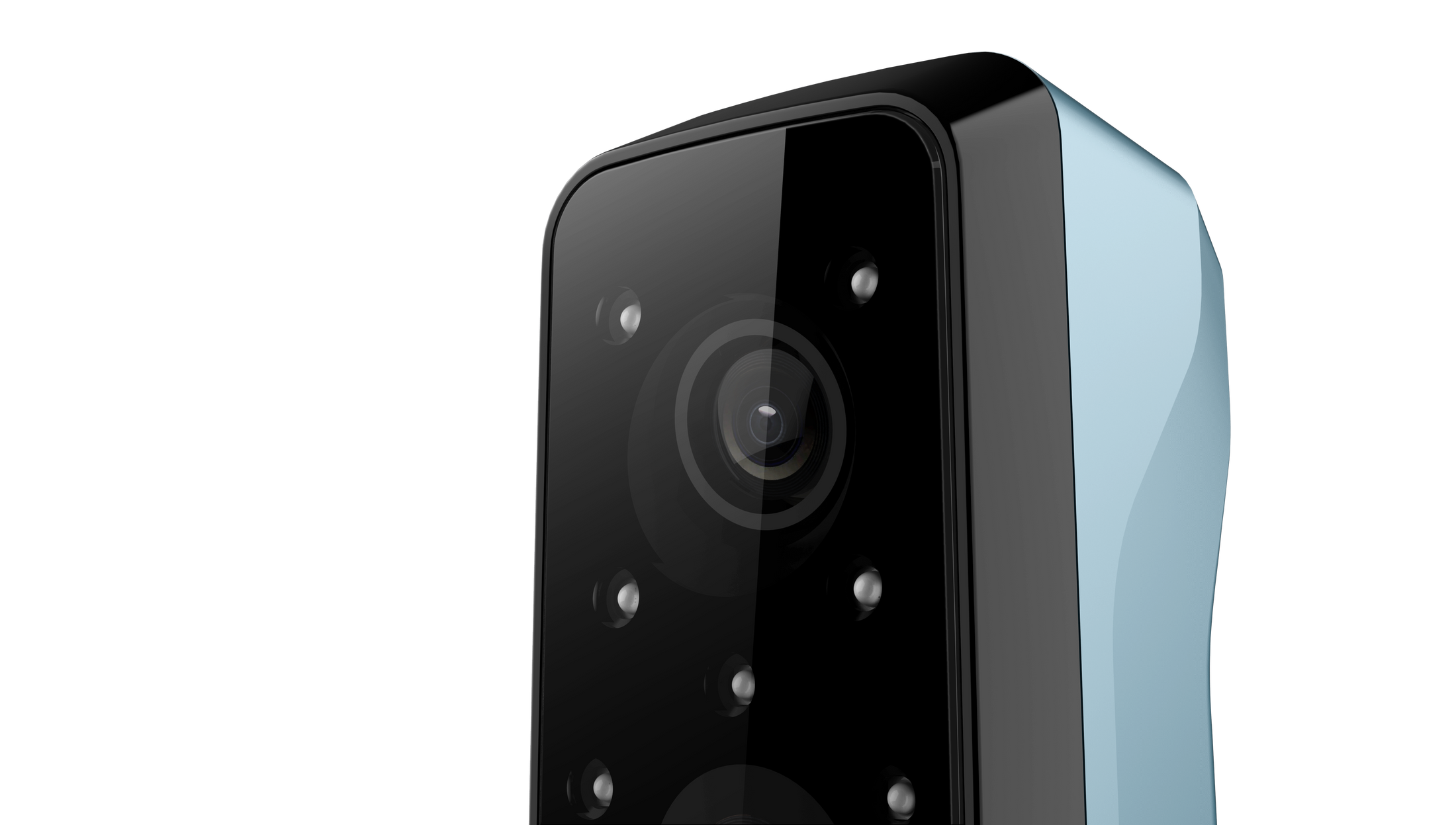

PORTABLE STRUCTURED-LIGHT 3D SCANNER

Affordable full-color 3D scanning for real-world objects

Portable, full-color 3D scanning for objects, people, art, prototypes, and scan-to-print workflows.

0.1–3 mmPoint distance
980,000 points/s; up to 14 FPSScan speed
434 × 379 mmMaximum field of view
Buy now
SKYLAB3D, an authorized Shining 3D reseller
Application-fit guidance
Formal quotes for procurement
Training and workflow support
Einstar

Package contents

Know exactly what arrives.

Verify everything included in the standard Einstar package before checkout.

01

EINSTAR standard package

Scanner hardware, calibration tools, cables, and software needed to get started.

  • EINSTAR 3D scanner
  • Protective carrying case
  • USB data cable
  • Power adapter
  • Power cable
  • Cleaning mat
  • Quick Start Guide
  • Calibration board
  • 6 mm target markers
  • Calibration-board protector
  • Carrying straps
  • EXStar scanning and mesh-processing software download

Package contents may be revised by the manufacturer; confirm any time-sensitive project requirements before ordering.

What changes in your workflow

From desktop scan to a usable 3D model.

Follow a clear workflow from setup and capture through mesh processing and export.

Capture high-density scan data with point distance down to 0.1 mm
01

Capture high-density scan data with point distance down to 0.1 mm

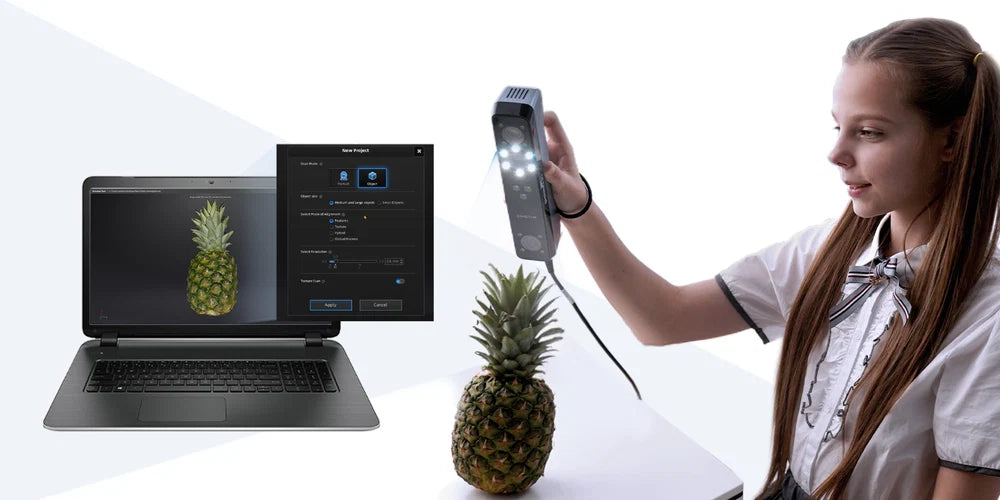

Scan medium-to-large objects at up to 14 FPS
02

Scan medium-to-large objects at up to 14 FPS

Preserve authentic color with the built-in RGB camera
03

Preserve authentic color with the built-in RGB camera

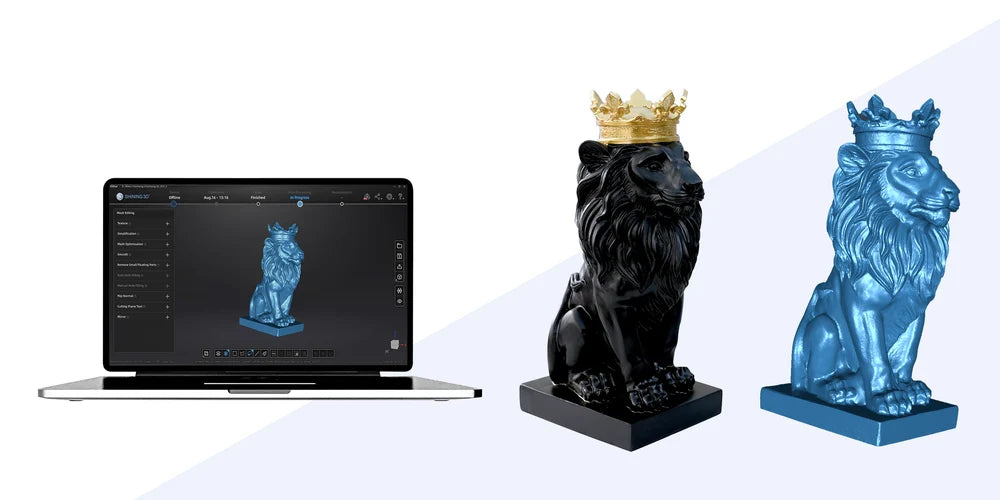

Track dark surfaces, shiny finishes, hair, and outdoor subjects with infrared VCSEL
04

Track dark surfaces, shiny finishes, hair, and outdoor subjects with infrared VCSEL

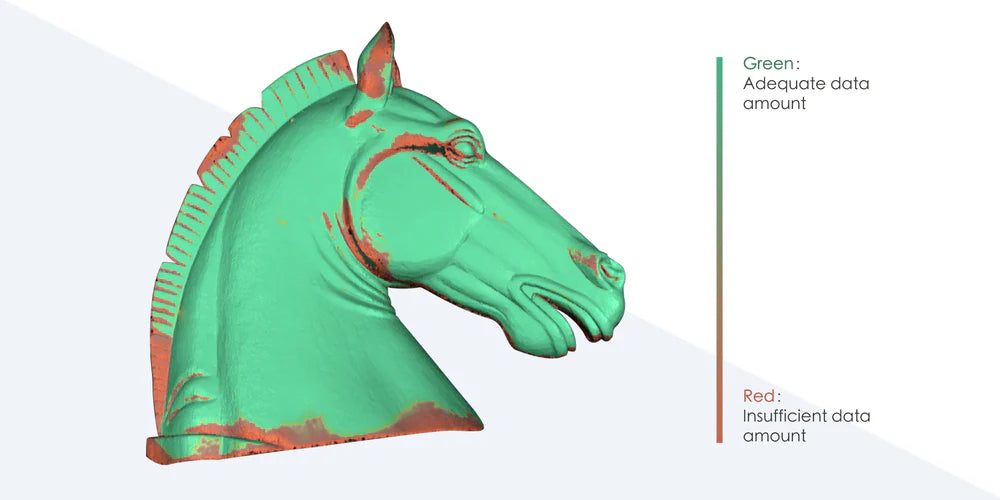

Process and export scan data with the included EXStar software
05

Process and export scan data with the included EXStar software

Einstar

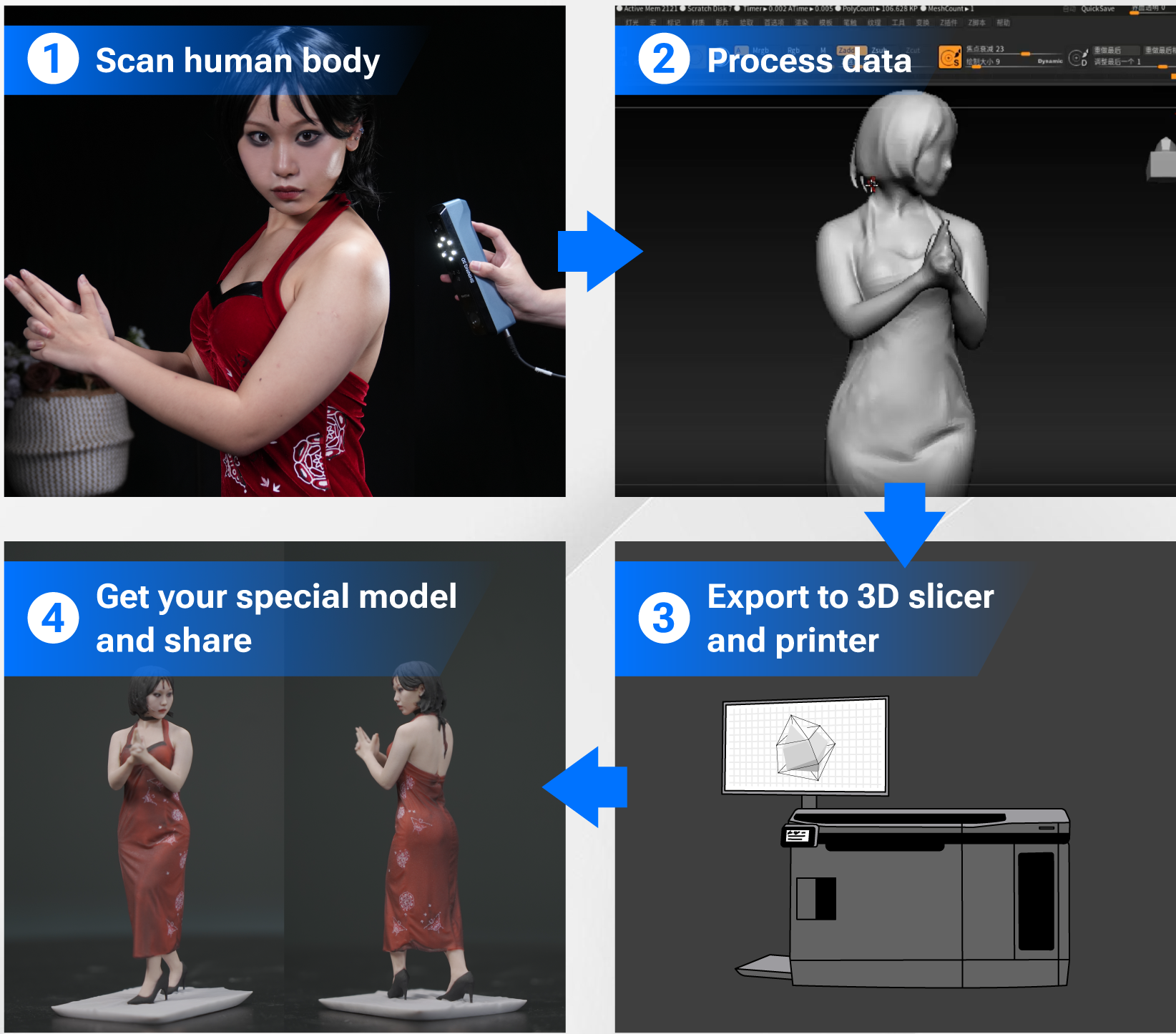

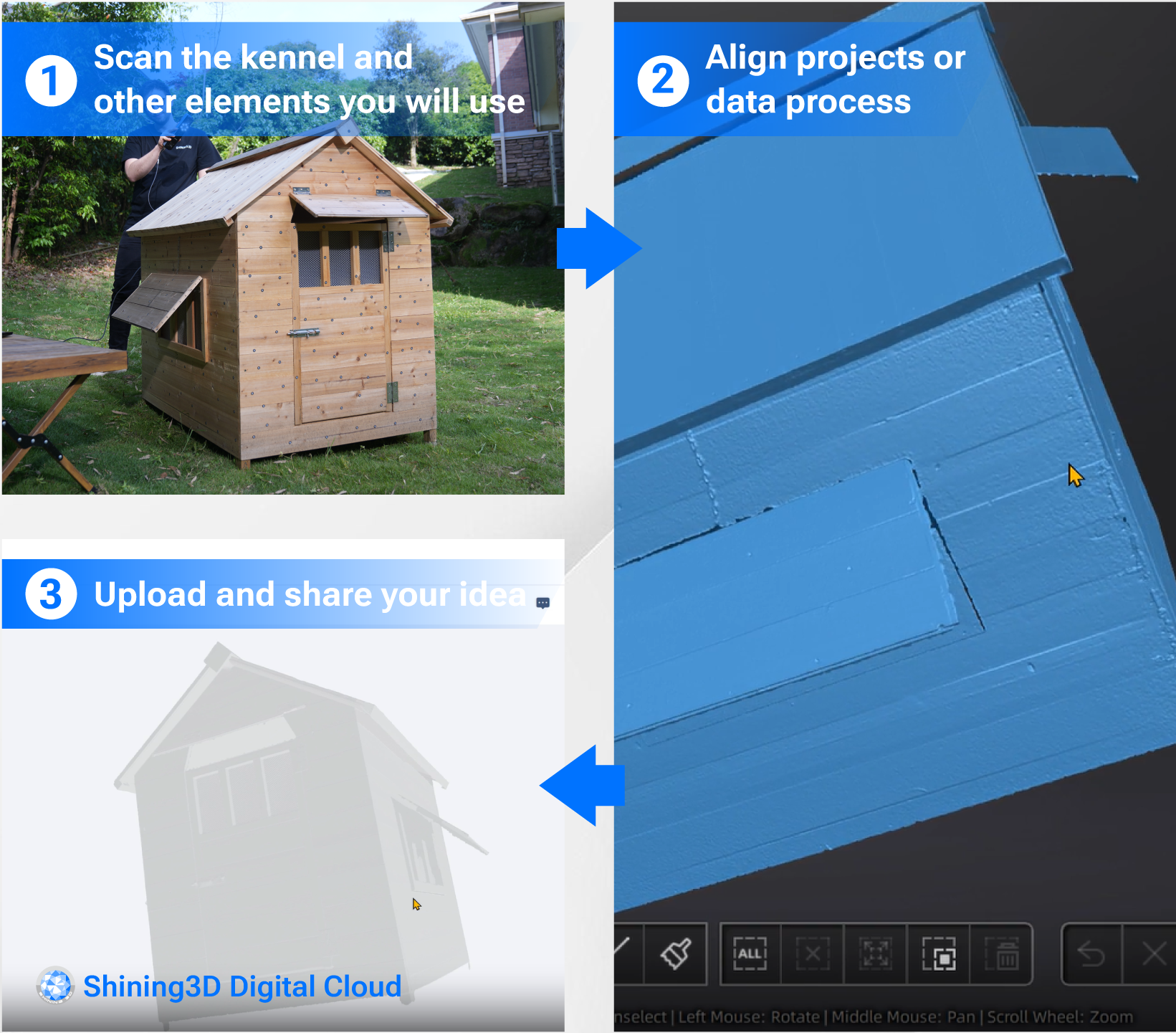

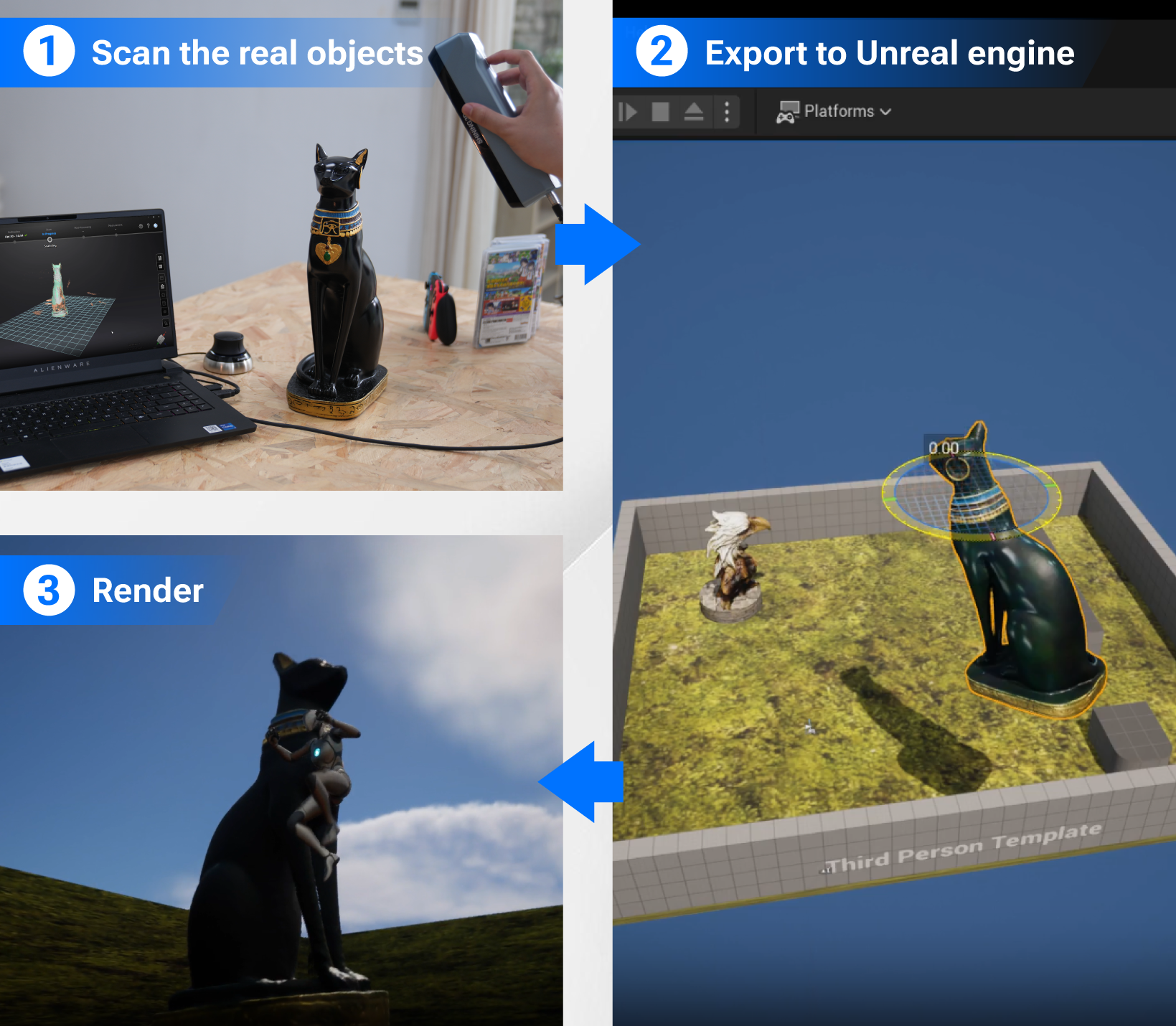

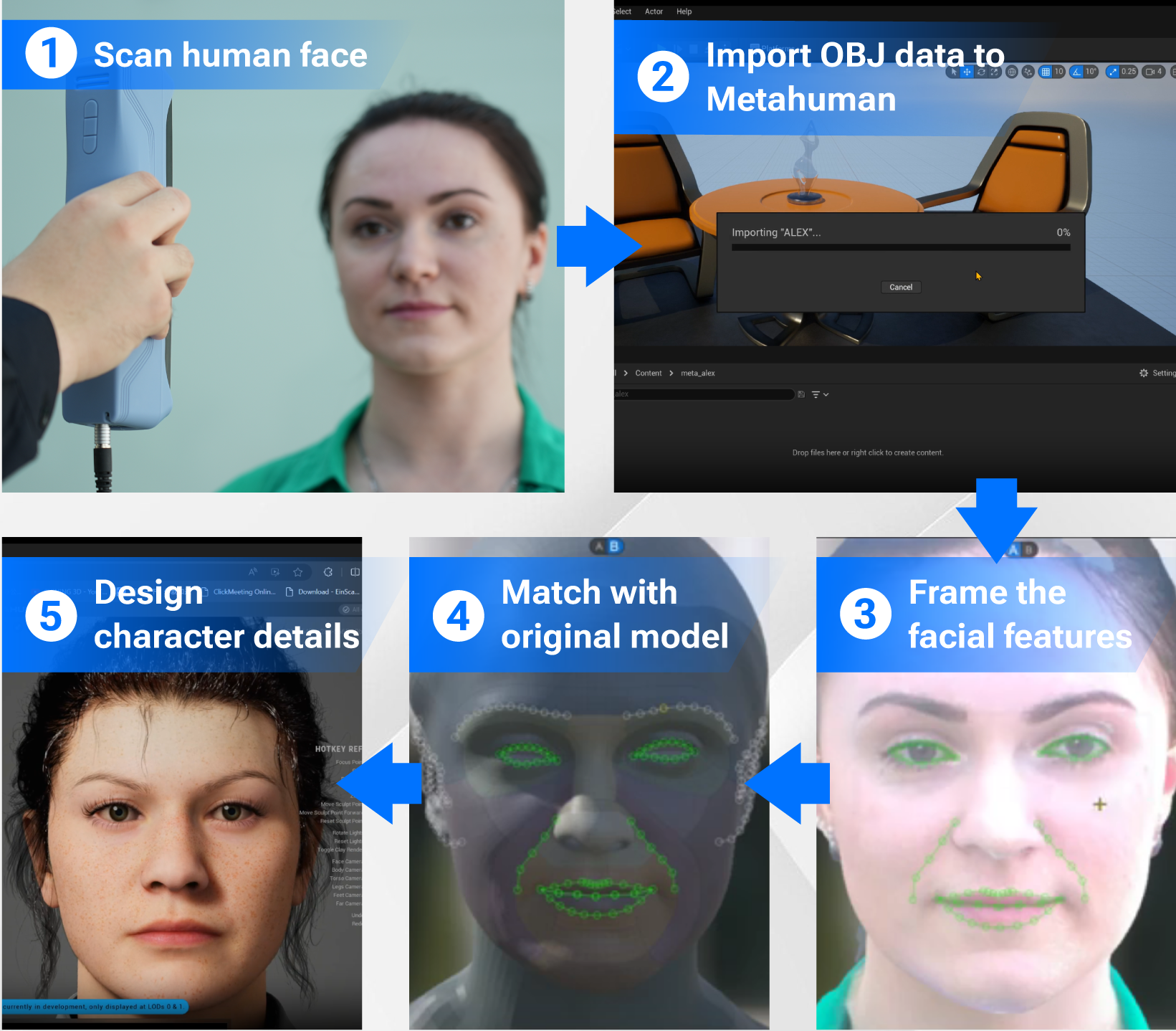

From scan to outcome

Capture, process, and move downstream.

Take the object from repeatable desktop capture through mesh preparation and into visualization, 3D printing, or engineering software.

Review technical specifications →

Application fit

Where this scanner fits best.

Review the parts, settings, and downstream uses that match this scanner.

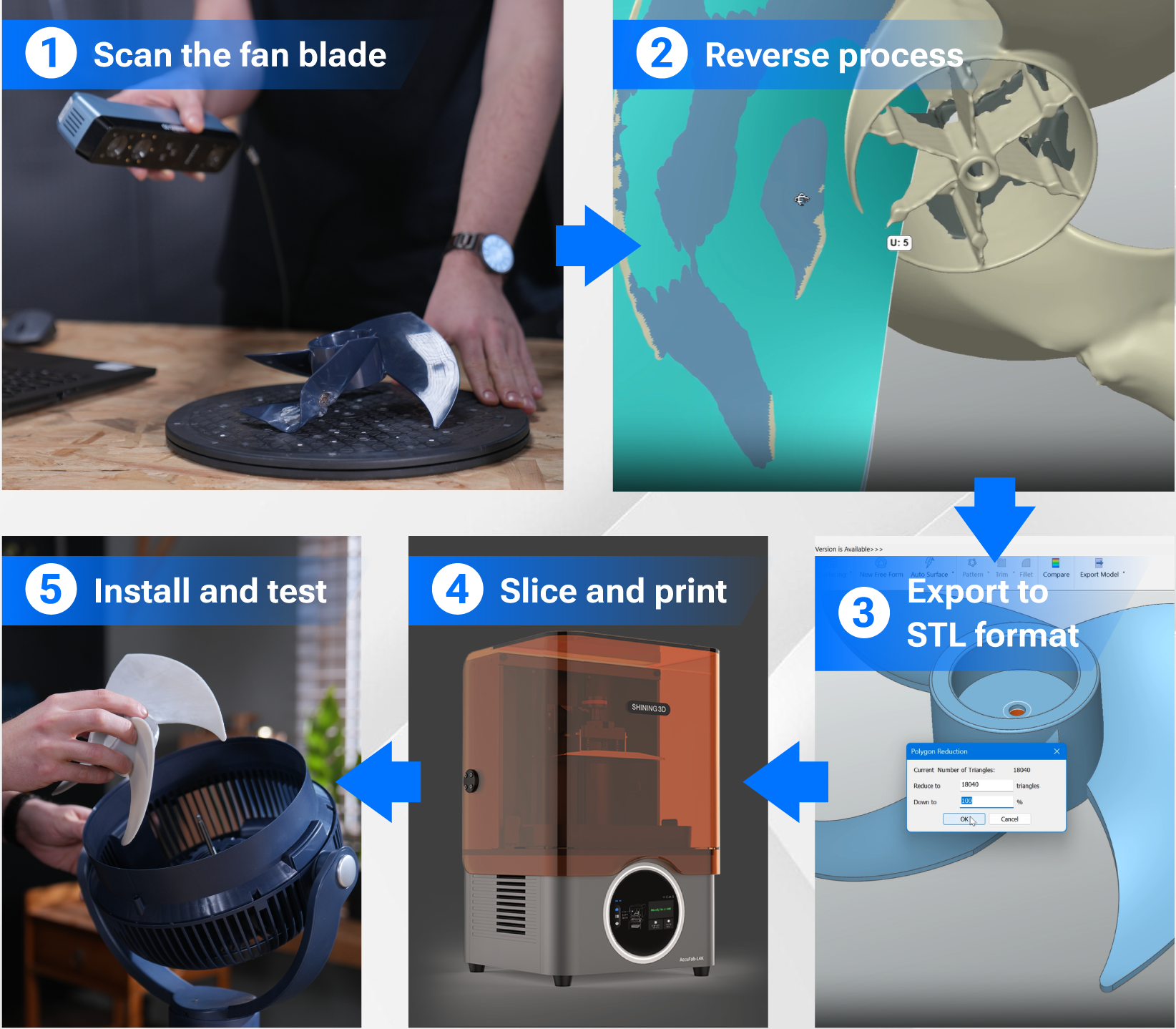

3D printing and personal manufacturing
01

3D printing and personal manufacturing

Product design and prototyping
02

Product design and prototyping

Automotive aftermarket reference scanning
03

Automotive aftermarket reference scanning

Cultural heritage and art digitization
04

Cultural heritage and art digitization

Video library

See the system in real workflows.

Use the demonstrations, tutorials, and application stories to review setup, scanning, and output.

Video library

Select a video to begin

Watch demonstrations, tutorials, and real application workflows without leaving the product page.

Technical specifications

Check the specifications before purchase.

Review the measurement, capture, output, and operating requirements before committing.

Point distance0.1–3 mm
Scan speed980,000 points/s; up to 14 FPS
Maximum field of view434 × 379 mm
Scan modeInfrared structured-light scan
Light sourceInfrared VCSEL structured light
Working distance160–1400 mm
Optimal working distance400 mm
Depth of field160–1400 mm
Alignment modesFeature, hybrid, texture, and global markers
Texture captureYes — built-in RGB camera
Outdoor scanningSupported
Output formatsOBJ, STL, PLY, P3, and 3MF
Suggested minimum object size100 × 100 × 100 mm
Computer interfaceUSB 2.0 or above
Scanner dimensions220 × 46 × 55 mm
Scanner weight500 g
Carrying-case dimensions245 × 245 × 90 mm
Operating temperature0–40 °C
Operating humidity10–90%
Laser safetyInfrared Class 1 under normal use
CertificationsCE, FCC, RoHS, WEEE, and KC
Component Minimum Recommended
Operating system Windows 10, 64-bit Windows 10/11, 64-bit
Processor Intel Core i7-7700H Intel Core i7-11800H or better
Graphics NVIDIA GTX 1060 NVIDIA GPU with 6 GB or more VRAM
Video memory 4 GB 6 GB or more
System memory 16 GB RAM 32 GB RAM or more
Connection USB 2.0 or above Direct USB connection
macOS macOS Ventura 13+, Apple silicon M1 Pro+, 32 GB RAM Apple silicon M1 Pro or newer with 32 GB RAM or more

EINSTAR requires an NVIDIA graphics card on Windows. Larger scan projects require more memory; verify workstation compatibility before purchase.

Download brochure ↗

Interactive scan results

Review scanned models.

Select a model to load the interactive viewer, or open it directly on Sketchfab.

Optional interactive preview

Portrait Model

The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.

Open on Sketchfab ↗

Models published by Shining 3D on Sketchfab. Use the direct link if the embedded viewer exceeds the device's graphics capacity.

Next step

Buy online or request a formal quote.

Use secure checkout for this scanner. Request a quote when you need a formal document, software, training, or procurement support.
