Reverse Engineering 3D Scanning Guidance
3D Scanning Workflows for Reverse Engineering and Scan-to-CAD
Capture physical parts, legacy components, or damaged geometry and move toward CAD reconstruction, redesign, documentation, or manufacturing review. SKYLAB3D helps buyers evaluate scanner fit, quote path, demo needs, and advanced requirements.
Scan-to-CAD workflow guidance
Legacy part capture
CAD/reverse engineering path
Advanced requirement review
Scan-to-CAD
For converting physical parts into CAD reconstruction or editable design paths.
Legacy Parts
For capturing old, undocumented, worn, or discontinued components.
Redesign / Documentation
For engineering review, part redesign, digital records, or manufacturing support.
Unsure Which Scanner Fits?
For part size, material, accuracy, software output, or advanced requirements.
Workflow Path
From Physical Part to CAD-Ready Direction
Reverse engineering starts with the part and ends with the right scanner, software, quote, demo, or advanced review path.
01
Share the Part Requirement
Part size, surface material, condition, accuracy target, and intended CAD/inspection output.
02
Capture Geometry
Select a scanner path for physical part capture, legacy components, damaged geometry, or field/on-site needs.
03
Process Scan Data
Review point cloud, mesh, alignment, and cleanup requirements before CAD or inspection use.
04
Decide Output Path
CAD reconstruction, redesign support, documentation, inspection comparison, or manufacturing review.
05
Confirm Quote / Demo Path
Move toward featured scanner, advanced requirement review, quote, demo, or supplier-supported path.
Common Reverse Engineering Applications
Use 3D Scanning When the Original CAD Is Missing, Outdated, or Incomplete
Reverse engineering needs vary by part condition, material, accuracy target, and intended output. Start with the use case closest to your requirement.
Legacy or Discontinued Parts
Capture parts with missing drawings, old tooling, or outdated CAD.
- Missing drawings
- Old tooling
- Outdated CAD
Damaged or Worn Components
Evaluate damaged, worn, or modified geometry before redesign or replacement planning.
- Worn surfaces
- Modified geometry
- Replacement planning
Redesign and Product Improvement
Capture existing geometry to support redesign, fit checks, or engineering review.
- Redesign support
- Fit checks
- Engineering review
CAD Documentation / Manufacturing Support
Build digital records, inspection references, or manufacturing review paths.
- Digital records
- Inspection reference
- Manufacturing review
Not sure which use case fits?
Scanner Paths for Reverse Engineering
Choose a Scanner Path Based on Part, Accuracy, and Output Need
Reverse engineering fit depends on part size, material, detail level, accuracy target, and whether the output is CAD reconstruction, redesign, documentation, or inspection review.

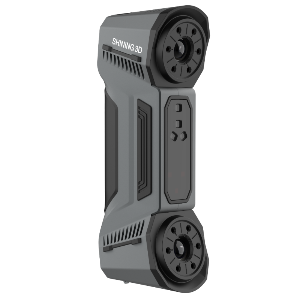

FreeScan Combo with CNAS
Best for accuracy-focused reverse engineering, inspection-adjacent workflows, and metrology-minded buyers.
- Accuracy-focused path
- Inspection and reverse engineering
- Quote or demo guidance
EinScan Rigil
Best for flexible industrial scanning, mixed part types, and engineering workflow evaluation.
- Mixed part capture
- Industrial workflow review
- Quote or demo guidance
Einstar Vega
Best for portable wireless capture, field documentation, and general 3D capture needs.
- Portable capture
- Field or on-site use
- Recommendation path available
Advanced / Non-Listed Requirement
Best for larger parts, tight accuracy needs, tracking systems, software workflow, or special support needs.
- Larger or complex parts
- Advanced accuracy needs
- Supplier-supported review path
Before You Request Guidance
Share the Right Details for a Better Scanner Recommendation
Reverse engineering scanner fit depends on the part, surface, accuracy target, environment, and intended output. The more detail you provide, the faster SKYLAB3D can route the right quote, demo, or workflow review path.
Helpful Details to Include
-
Part size and approximate dimensions
-
Material and surface finish
-
Accuracy or tolerance expectations
-
Intended output: CAD, mesh, inspection, documentation, or redesign support
-
Number of parts or recurring workflow need
-
Scanning environment: lab, shop floor, field, or customer site
-
Timeline, budget range, and procurement process
-
Need for training, software, or advanced support
Reverse Engineering Questions
Questions Before Starting a Scan-to-CAD Workflow?
Use these answers to decide whether to request scanner guidance, quote support, demo review, or an advanced requirement path.
Part size, material, surface finish, accuracy target, scanning environment, and intended output all affect scanner fit. Sharing these details helps SKYLAB3D route the right recommendation, quote, demo, or advanced review path.
Yes. 3D scanning can support workflows for legacy parts, missing drawings, documentation, redesign review, and CAD reconstruction direction. The right scanner path depends on the part and output need.
Not always. Reverse engineering often focuses on capturing geometry for CAD reconstruction, redesign, or documentation. Inspection usually compares scan data against nominal CAD or measurement requirements. Some workflows need both.
It depends on part size, surface, accuracy target, detail level, and whether the workflow is lab-based, shop-floor, or field-based. Featured scanner paths include FreeScan Combo, EinScan Rigil, and Einstar Vega, with advanced review available when the requirement is broader.
Start with workflow recommendation if you are unsure about scanner fit, software output, accuracy target, or advanced requirements. Request a quote if you already know the scanner path and procurement need.
Some workflows may require training, inspection software, scan-to-CAD software considerations, or supplier-supported review. Submit your requirement so the correct path can be clarified before quoting.
Still defining your reverse engineering workflow?
Ready to Review Your Reverse Engineering Workflow?
Get Scanner Guidance, Pricing, or a Demo for Your Scan-to-CAD Workflow
Share your part details, CAD output needs, accuracy target, and timeline so SKYLAB3D can help route the right scanner recommendation, quote, demo, or advanced review path.
Legacy Parts
Scan-to-CAD
Redesign Support
Advanced Requirements
