SHINING 3D Authorized Reseller | Professional Wireless 3D Scanner

EinScan Rigil - Professional Wireless 3D Scanning Without the Workstation Drag

Capture accurate 3D data for engineering, automotive, manufacturing, reverse engineering, and inspection workflows with a tri-mode scanner built for standalone, wireless PC, and wired PC operation.

Tri-mode workflow: standalone, wireless PC, wired PC
Hybrid blue laser + infrared scanning

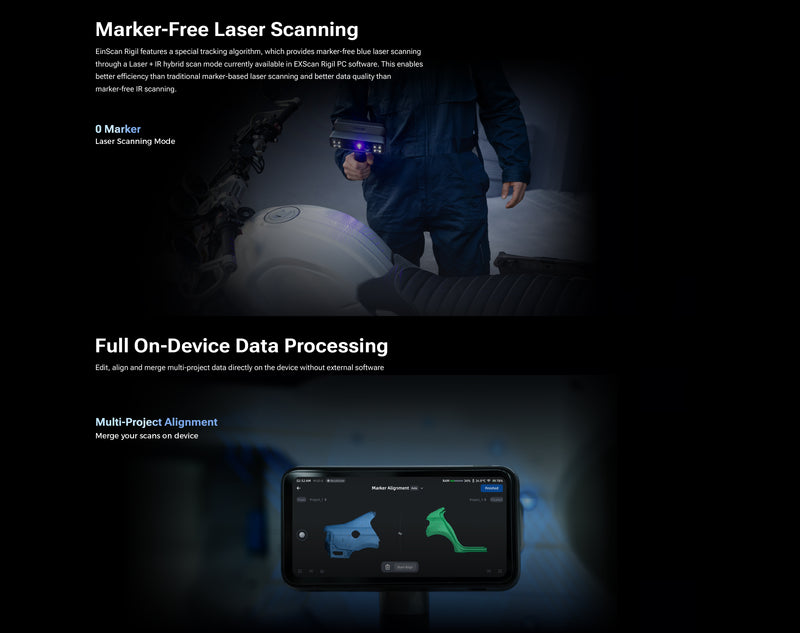

Marker-free laser scanning for faster setup
Built for automotive, manufacturing, engineering, and field scanning

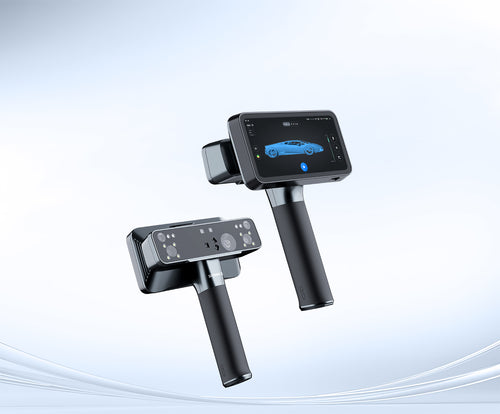

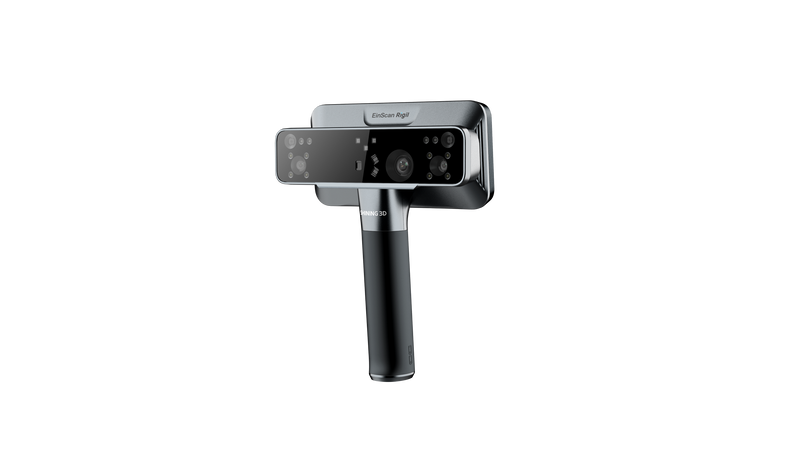

EinScan Rigil 3D Scanner

$4,999.00
In Stock - Ships in 1-2 Business Days
Request Quote Book Live Demo
Need help choosing the right scanner? Talk to an expert before ordering.
EinScan Rigil 3D Scanner
EinScan Rigil 3D Scanner
EinScan Rigil 3D Scanner
EinScan Rigil 3D Scanner
EinScan Rigil 3D Scanner
EinScan Rigil 3D Scanner
EinScan Rigil 3D Scanner
EinScan Rigil 3D Scanner
EinScan Rigil 3D Scanner
EinScan Rigil 3D Scanner
EinScan Rigil 3D Scanner
EinScan Rigil 3D Scanner
by Shining 3D

EinScan Rigil 3D Scanner

$4,999.00
Need help choosing the right scanner?

Call SKYLAB3D at (833) 573-7467 for product guidance, quote requests, demo questions, and shipping estimates.

Tri-mode industrial 3D scanning for portable, high-detail, and large-area workflows

The EinScan Rigil is Shining3D's most advanced portable 3D scanner, combining laser HD precision and IR Rapid speed in a single wireless-capable device. With a built-in 6.4" 2K AMOLED touchscreen, onboard compute, and dual battery system, the Rigil operates fully standalone in the field - no laptop required. From aerospace inspection to large-scale reverse engineering, it delivers metrology-grade results wherever the work takes you.

  • Standalone and PC-connected workflow options.
  • Built for both detailed and rapid scanning modes.
  • Strong fit for reverse engineering, inspection, and mixed industrial use

Best For

  • Mixed industrial workflows
  • Reverse engineering of mechanical parts
  • Teams needing both portability and deeper capability
  • Buyers who want one scanner to serve multiple job types

The EinScan Rigil is designed for professional 3D scanning workflows where portability, scan detail, and flexible operation matter. It is a strong fit for reverse engineering, inspection, manufacturing, automotive, product development, and technical education.

  • Reverse Engineering: Capture existing parts and use scan data for CAD reference, redesign, replacement parts, and product improvement.
  • Inspection & Quality Control: Compare scanned parts against CAD models to support deviation analysis and dimensional inspection workflows.
  • Manufacturing & Tooling: Scan machined parts, molds, castings, fixtures, tooling, and production components.
  • Automotive & Aftermarket: Digitize body panels, brackets, custom parts, restoration components, and performance assemblies.
  • Product Design & 3D Printing: Move faster from physical object to digital model for prototyping, scan-to-print, and design iteration.
  • Education & Research: Support engineering programs, labs, training centers, and research teams with professional handheld 3D scanning workflows.

Need help choosing the right scanner? Share your part size, material, required accuracy, and software workflow with SKYLAB3D. We can help confirm whether the EinScan Rigil is the right fit before you purchase.

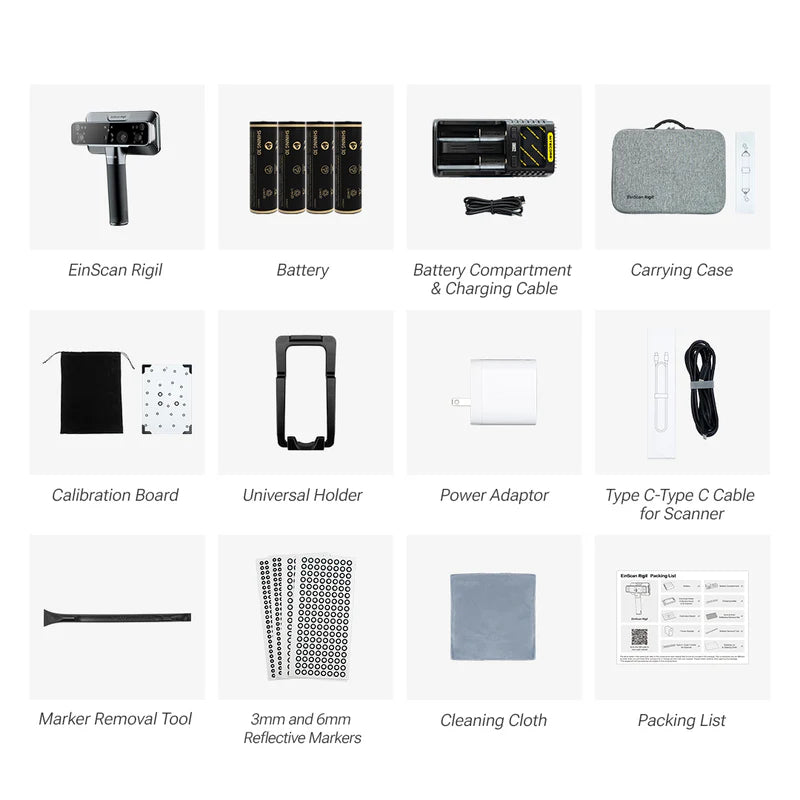

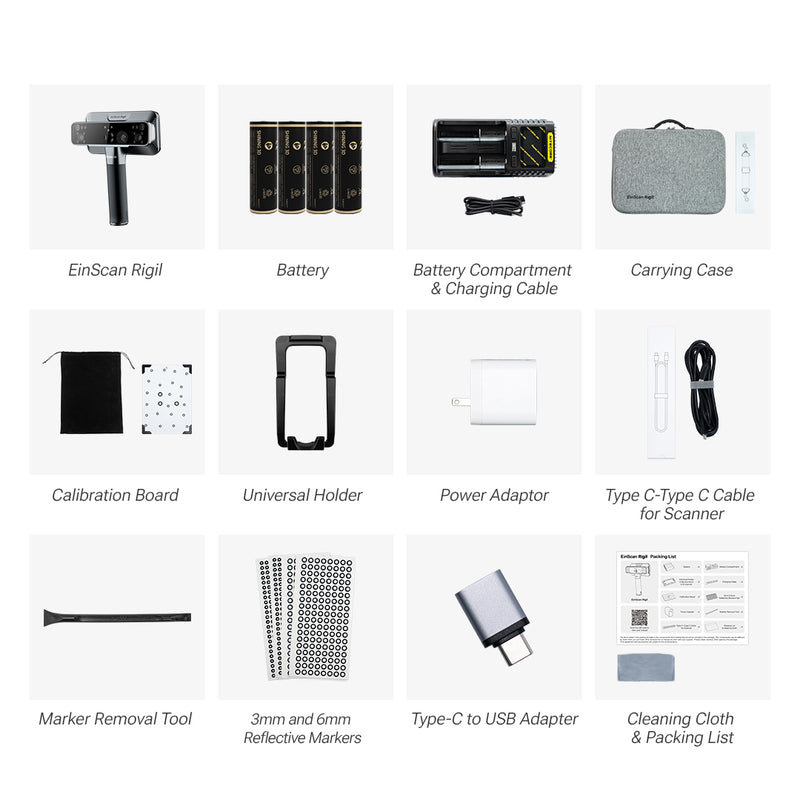

Your EinScan Rigil package includes the scanner and essential accessories for calibration, portable operation, marker-based scanning, power, connection, and safe storage.

  • EinScan Rigil 3D Scanner
  • Protective carrying case
  • Calibration board
  • Universal holder
  • Power adapter
  • USB Type-C scanner cable
  • Battery compartment and charging cable
  • Rechargeable battery
  • 3 mm and 6 mm reflective markers
  • Tempered glass screen protector
  • Marker removal tool
  • Cleaning cloth
  • Packing list

Need help confirming the right setup? Contact SKYLAB3D before ordering and we can help verify whether the standard package or an accessory kit is better for your scanning workflow.

EinScan Rigil Series Specifications

Work Mode

Standalone / PC-Wireless / PC-Wired for extra computing resource

Scanning Modes

The EinScan Rigil Series gives users flexible scanning options for different part sizes, surfaces, accuracy needs, and workflow conditions. Choose Laser HD when detail and accuracy matter most, or IR Rapid when speed, range, and flexible object capture are the priority.

Laser HD Mode - EinScan Rigil

Best for: high-detail industrial scanning, reverse engineering, inspection workflows, machined parts, tooling, and components where accuracy is important.

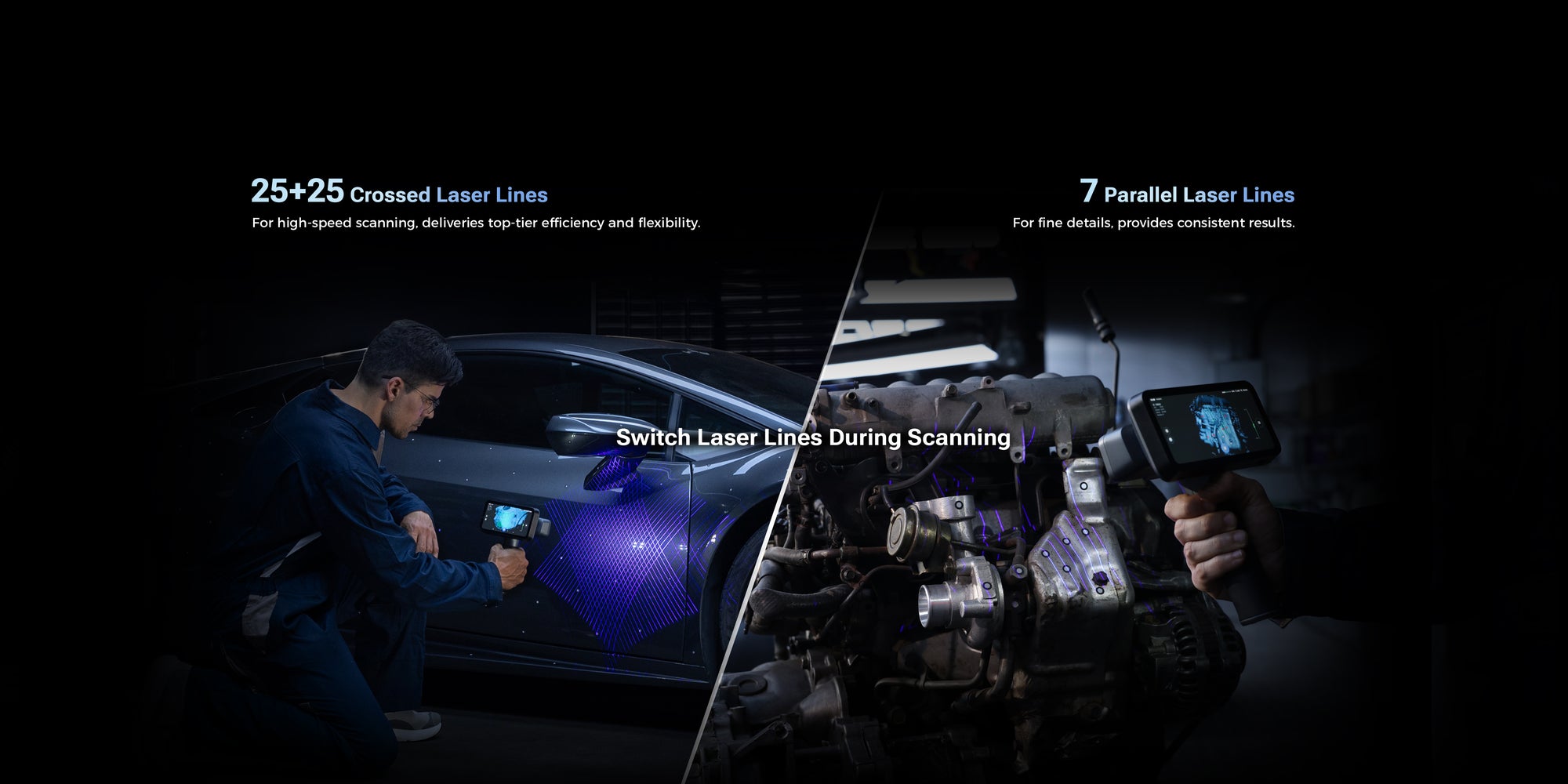

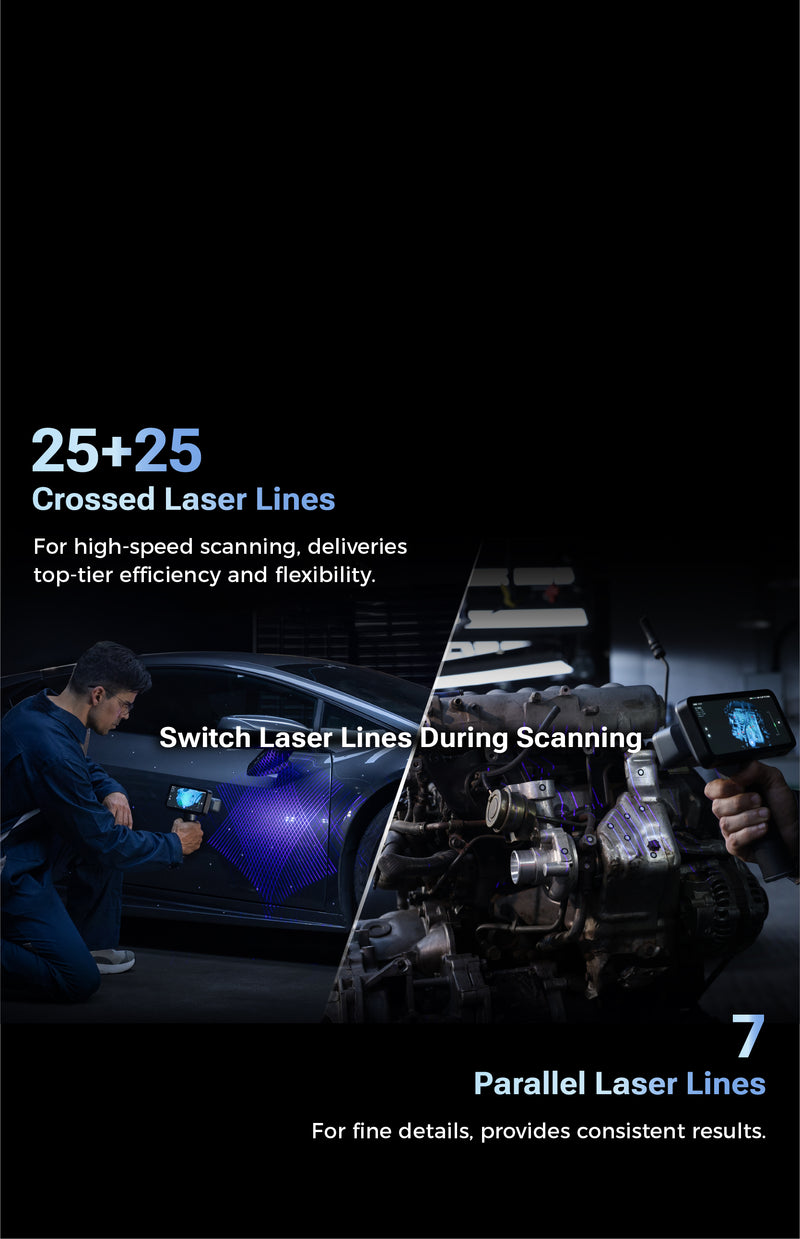

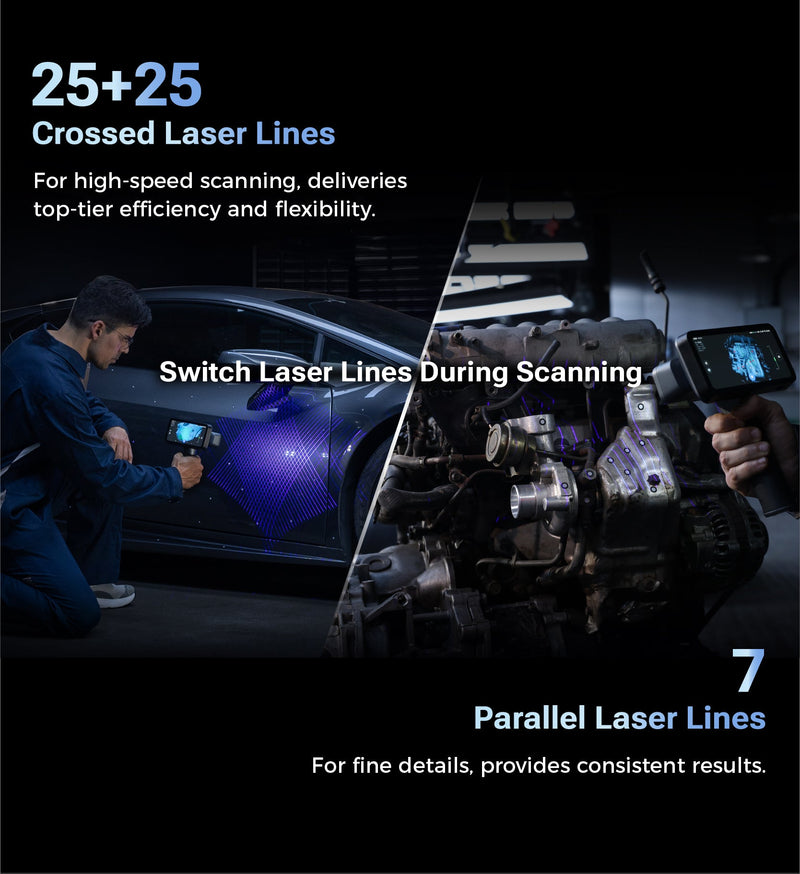

  • Light Source: 25 + 25 crossed laser lines and 7 blue laser parallel lines
  • Volumetric Accuracy: Up to 0.04 + 0.06 mm/m

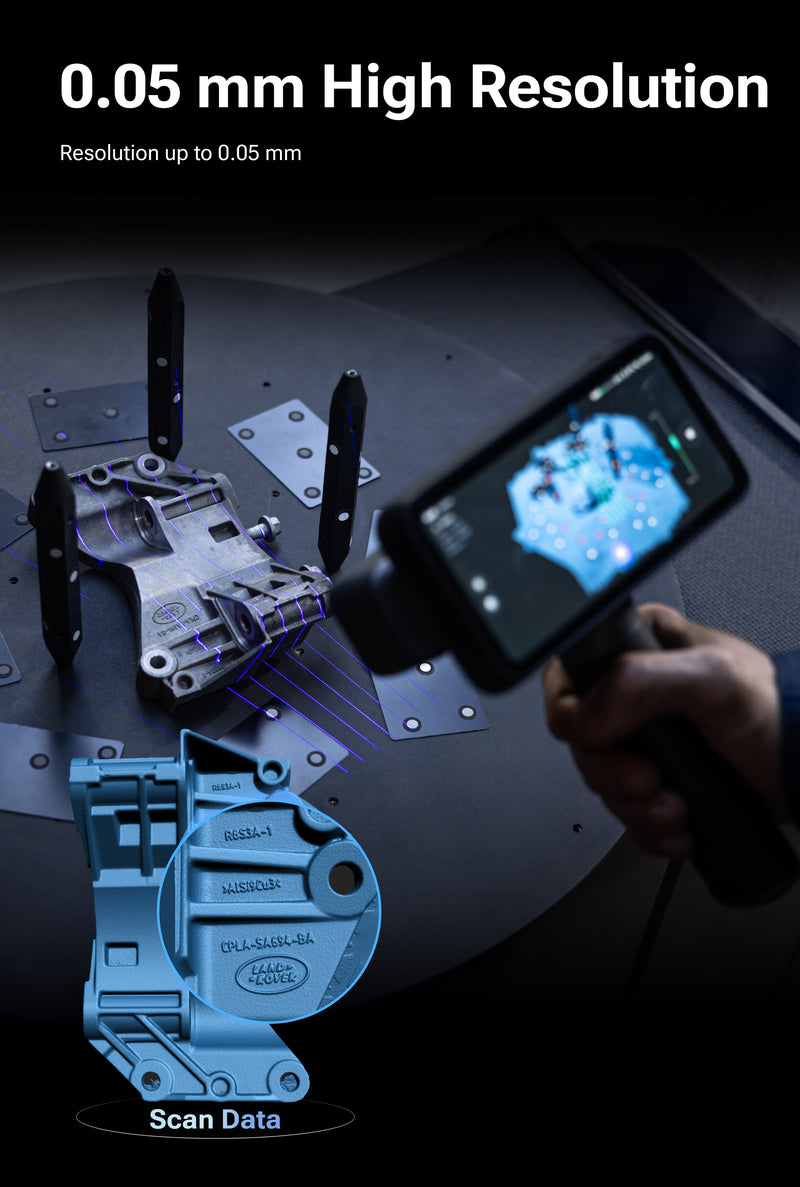

  • Resolution: 0.05–10 mm
  • Scanning Speed: Up to 4,800,000 points/s
  • Working Distance: 170–550 mm
  • Alignment Modes: Global markers, markers, and features
  • Laser Class: Class II

Laser HD Mode - EinScan Rigil Lite

Best for: users who need professional laser scanning capability in a lighter configuration with lower scanning speed and reduced hardware capacity compared with the full EinScan Rigil.

  • Light Source: 17 + 17 crossed laser lines and 7 blue laser parallel lines
  • Volumetric Accuracy: Not specified
  • Resolution: 0.05–10 mm
  • Scanning Speed: Up to 2,940,000 points/s
  • Working Distance: 170–550 mm
  • Alignment Modes: Global markers, markers, and features
  • Laser Class: Class II

IR Rapid Mode

Best for: faster scanning of larger objects, textured surfaces, human-scale objects, and workflows where speed and flexible alignment are more important than the highest laser-level accuracy.

  • Light Source: IR VCSEL
  • Volumetric Accuracy: Up to 0.1 + 0.4 mm/m
  • Resolution: 0.2–10 mm
  • Scanning Speed: Up to 16,000,000 points/s
  • Working Distance: 160–1500 mm
  • Alignment Modes: Global markers, markers, features, texture, and hybrid alignment
  • Laser Class: Not applicable

Which Mode Should You Use?

Use CaseRecommended ModeHighest detail and accuracyLaser HD - EinScan RigilReverse engineering of mechanical partsLaser HD - EinScan RigilInspection and part-to-CAD comparisonLaser HD - EinScan RigilFaster scanning of larger objectsIR Rapid ModeObjects with visible texture or color detailsIR Rapid ModeBudget-conscious professional laser scanningEinScan Rigil Lite

Shared Scanner Specifications

  • Camera Resolution: 3D: 2.3 MP × 2 / 1.3 MP × 2; Texture: 5 MP
  • Output Formats: STL, OBJ, PLY, 3MF, ASC
  • Operation Modes: Standalone, PC-wireless, and PC-wired

Hardware

EinScan RigilCPU: 8-core, 2.4 GHz; RAM: 32 GB LPDDR5; Storage: 64 GB eMMC + 1 TB SSD; 6.4-inch 2K AMOLED touchscreenEinScan Rigil LiteCPU: 8-core, 2.4 GHz; RAM: 24 GB LPDDR5; Storage: 64 GB eMMC + 512 GB SSD; 6.4-inch 2K AMOLED touchscreen

Operating Conditions

Temperature: -10°C to 40°C

Certifications

CE, FCC, ROHS, WEEE, FDA, SRRC, IP50

Recommended PC Configuration

  • Operating System: Windows 11, 64-bit
  • Processor: 13th Gen Intel® Core™ i7-13700H or above
  • Graphics Card: NVIDIA GeForce RTX 3060 Laptop GPU or above
  • VRAM: 8 GB or above
  • RAM: 64 GB or above, DDR5 dual-channel
  • Interface: USB 3.0

Interface & Power Source

  • USB Type-C
  • Battery: 5500 mAh × 2
  • Supports 60W PD 3.0 charger

Dimensions & Weight

  • Dimensions: 233 × 180 × 72.8 mm
  • Net Weight: 870 g, batteries included

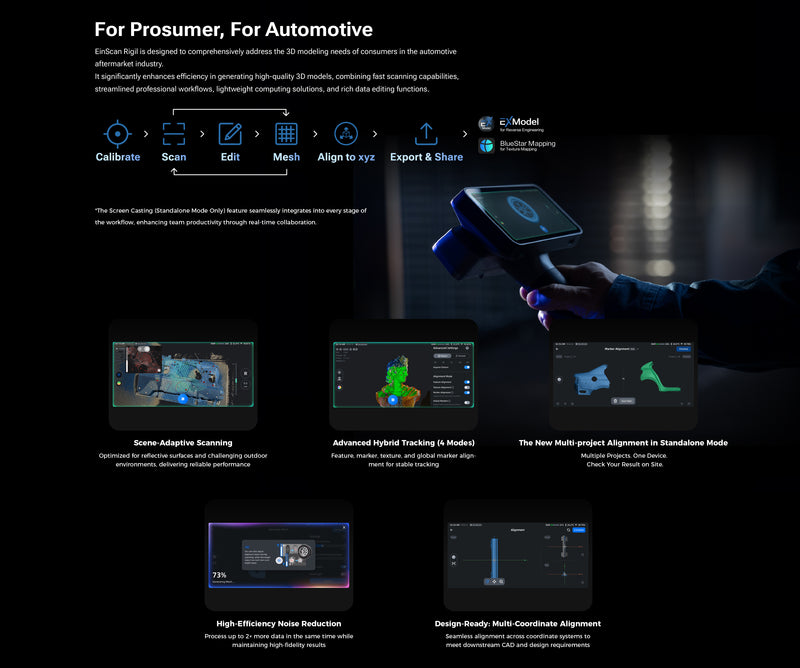

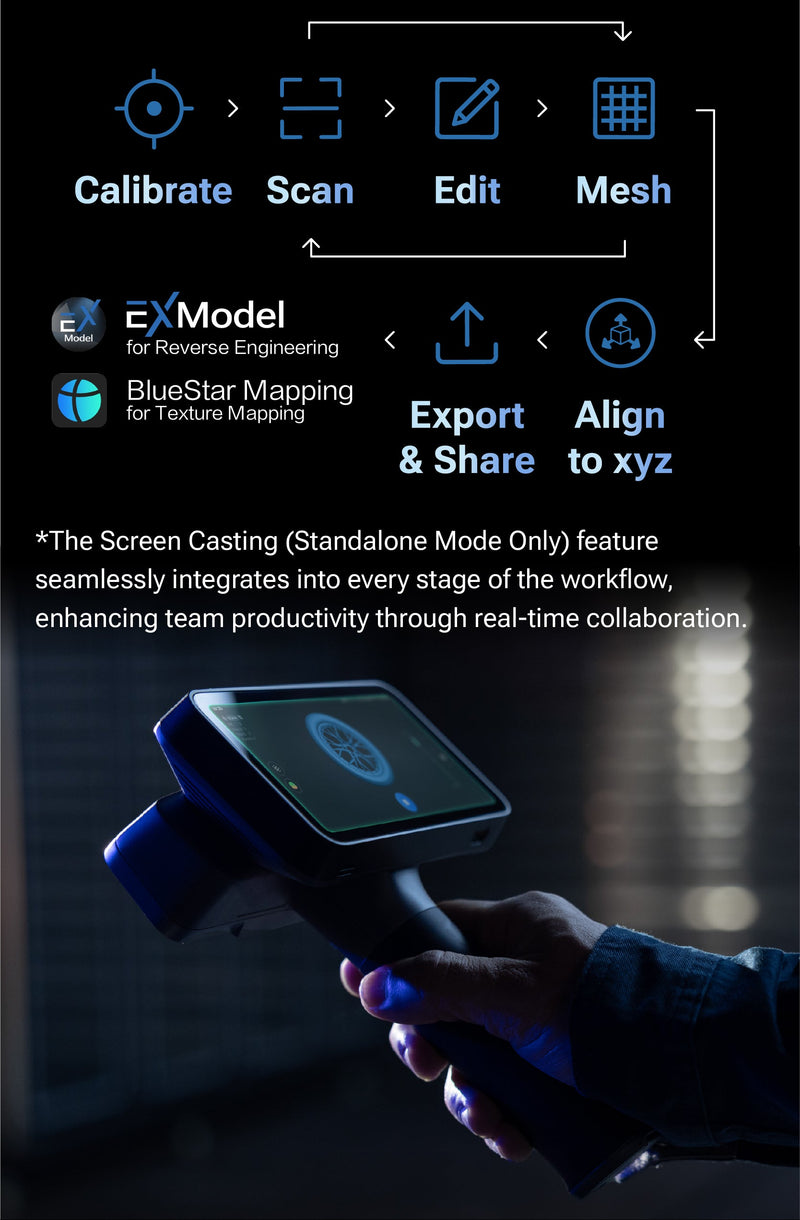

From Physical Part to Digital Engineering Asset

1

Scan the Object

Capture the part using standalone, wireless PC, or wired PC mode.

2

Process the Scan

Clean, align, and prepare scan data through the Rigil workflow.

3

Prepare for CAD or Inspection

Use software workflows such as EXModel for reverse engineering or SHINING3D Inspect for inspection-related workflows.

4

Use the Data

Move into CAD, comparison, fitment, inspection, documentation, or redesign workflows.

Built for Real Engineering and Manufacturing Applications

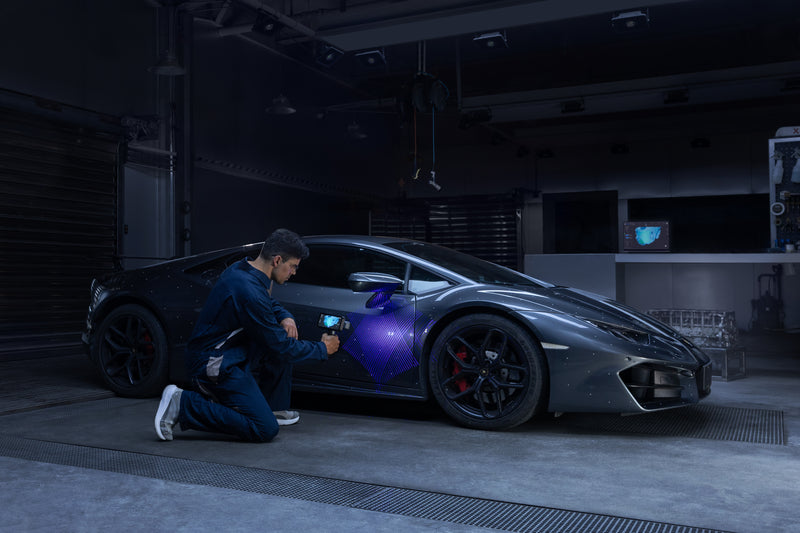

Automotive Scanning

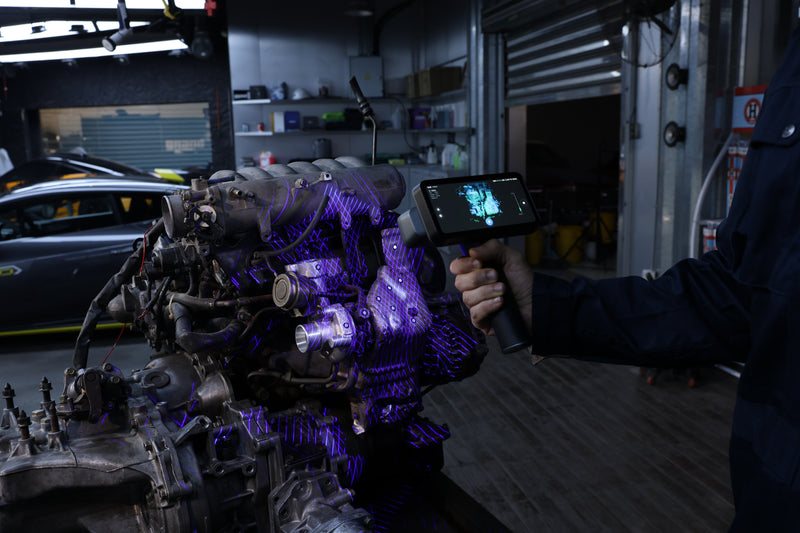

Capture vehicle parts, engine bays, bumpers, aftermarket components, and custom fitment geometry.

Metalworking & Manufacturing

Scan complex parts, shop-floor components, and production-related geometry.

Molding & Tooling

Digitize physical tooling, molds, and parts for redesign or verification workflows.

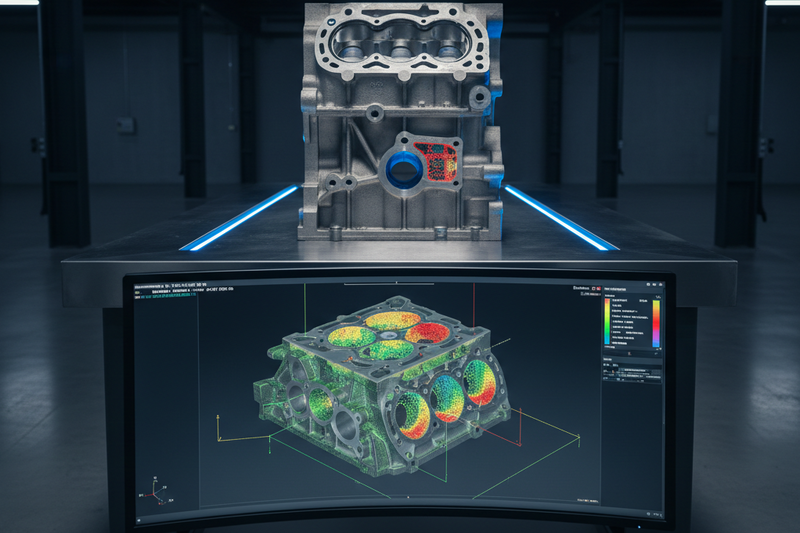

Industrial 3D scanning workflow showing machined part and scan-to-CAD visualization

Casting & Inspection Prep

Capture physical cast parts and prepare scan data for dimensional review or inspection workflows.

Send us your application and we'll recommend the right scanner.

See EinScan Rigil in Action

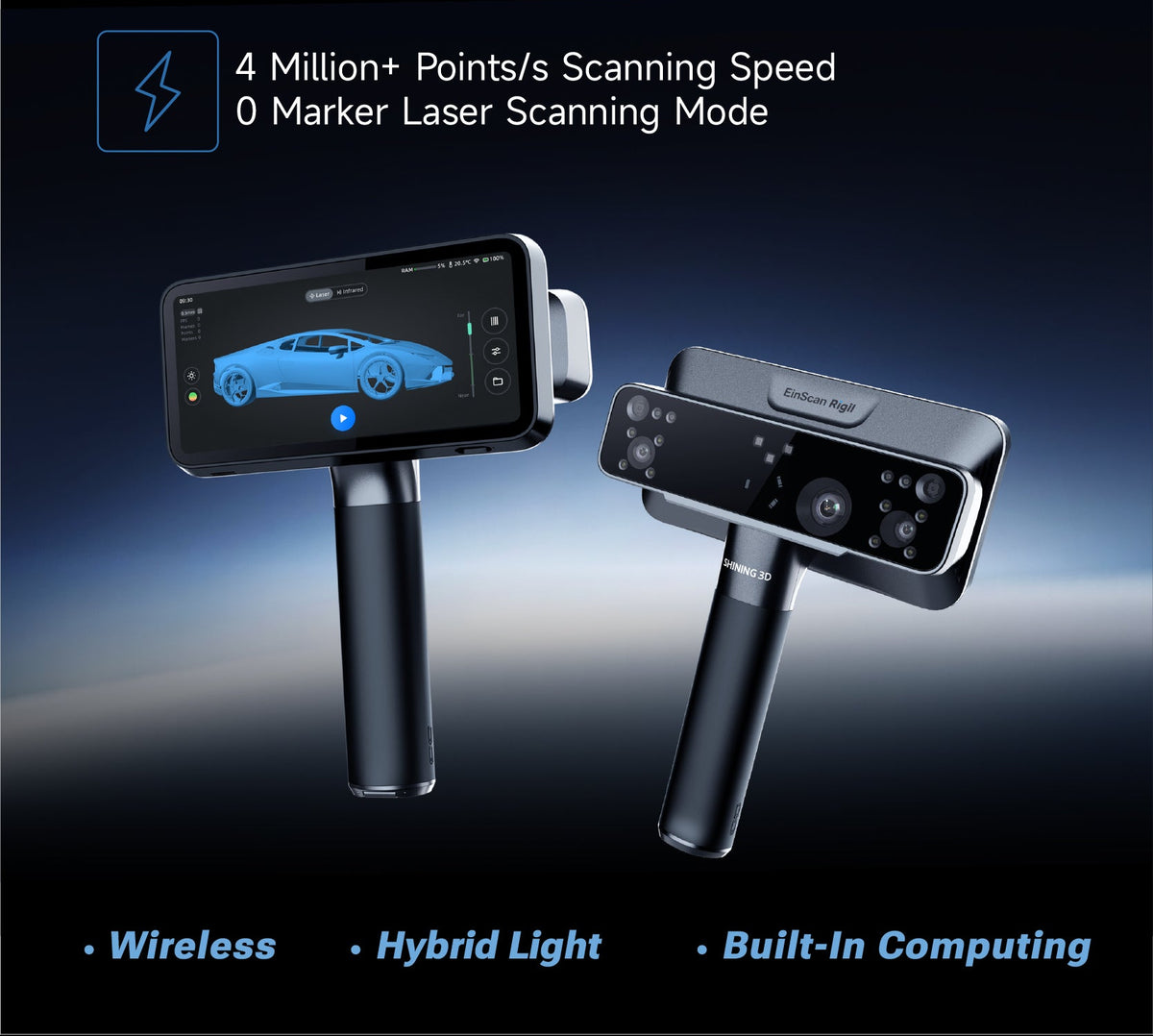

Product Overview

Product Overview

Watch the professional Rigil overview.

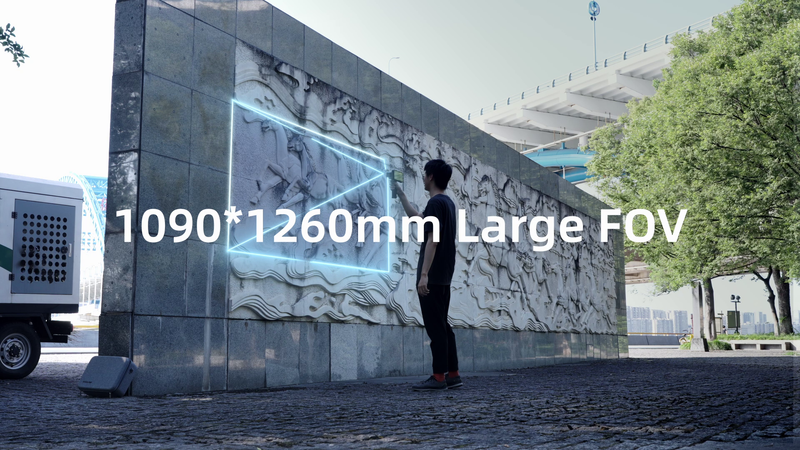

Real Workflow Demo

Real Workflow Demo

See how Rigil captures scan data in practical scanning conditions.

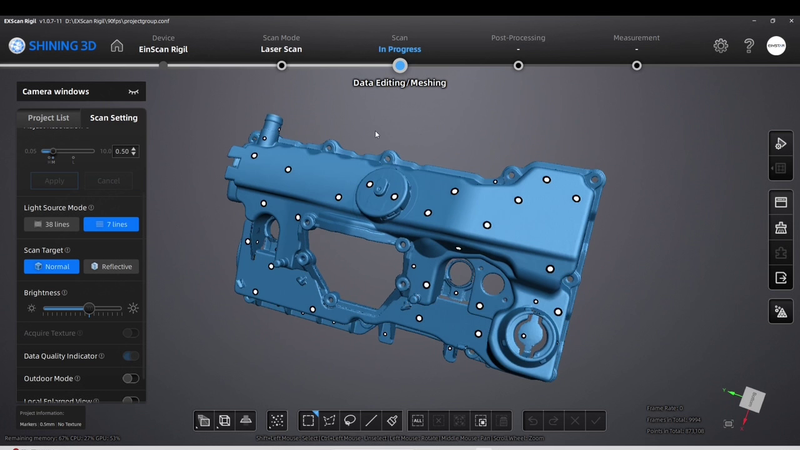

Technical Deep Dive

Technical Deep Dive

Explore modes, workflow, and professional use cases.

Book a Live Demo

Technical Specifications

Compare EinScan Rigil Series scan modes, hardware, output formats, and PC requirements in one clean view.

Tri-mode workflow

Standalone / PC-Wireless / PC-Wired

Dual scan modes

Laser HD + IR Rapid

IR Rapid speed

Up to 16,000,000 points/s

Texture camera

5MP high resolution

Display

6.4-inch 2K AMOLED touchscreen

Battery power

Dual 5500mAh batteries

Scan Mode Comparison

Specification Laser HD: EinScan Rigil Laser HD: EinScan Rigil Lite IR Rapid
Model EinScan Rigil Series EinScan Rigil Series EinScan Rigil Series
Work Mode Standalone / PC-Wireless / PC-Wired for extra computing resource Standalone / PC-Wireless / PC-Wired for extra computing resource Standalone / PC-Wireless / PC-Wired for extra computing resource
Scan Mode Laser HD Laser HD IR Rapid
Light Source 25+25 crossed laser lines + 7 blue laser parallel lines 17+17 crossed laser lines + 7 blue laser parallel lines IR VCSEL
Volumetric Accuracy Up to 0.04 + 0.06 mm/m Not listed / not certified in brochure Up to 0.1 + 0.4 mm/m
Resolution 0.05–10 mm 0.05–10 mm 0.2–10 mm
Scanning Speed 4,800,000 points/s 2,940,000 points/s 16,000,000 points/s
Working Distance 170–550 mm 170–550 mm 160–1500 mm
Alignment Mode Global Markers / Markers / Features Global Markers / Markers / Features Global Markers / Markers / Features / Texture / Hybrid
Camera Resolution 3D: 2.3MP×2 + 1.3MP×2; Texture: 5MP 3D: 2.3MP×2 + 1.3MP×2; Texture: 5MP 3D: 2.3MP×2 + 1.3MP×2; Texture: 5MP
Output Formats STL, OBJ, PLY, 3MF, ASC STL, OBJ, PLY, 3MF, ASC STL, OBJ, PLY, 3MF, ASC
Laser Class Class II Class II Not applicable

Hardware & Device Specifications

Specification Details
Hardware Rigil: CPU 8-core 2.4GHz; RAM 32GB LPDDR5; Storage 64GB eMMC + 1TB SSD; 6.4-inch 2K AMOLED touchscreen. Rigil Lite: CPU 8-core 2.4GHz; RAM 24GB LPDDR5; Storage 64GB eMMC + 512GB SSD; 6.4-inch 2K AMOLED touchscreen.
Operation Conditions Temperature -10°C to 40°C
Certifications CE, FCC, ROHS, WEEE, FDA, SRRC, IP50
Interface & Power Source USB Type-C; Battery 5500mAh×2; supports 60W PD3.0 charger
Dimensions 233 × 180 × 72.8 mm
Net Weight 870 g, batteries included

Recommended PC Configuration

Component Requirement
Operating System Windows 11 64-bit
Processor 13th Gen Intel Core i7-13700H or above
Graphics Card NVIDIA GeForce RTX 3060 Laptop GPU or above
VRAM 8GB or above
RAM 64GB or above, DDR5 dual-channel
Interface USB 3.0

Specifications may be updated by manufacturer.

Only EinScan Rigil has certified accuracy according to brochure.

PC-Wired mode is for extra computing resources.

Talk to Expert Request Quote

Choose the Right Scanner for Your Workflow

Find the perfect 3D scanner for your professional needs

Einstar Vega 3D Scanner

Einstar Vega

Best for: Portable all-in-one scanning, lighter professional/prosumer use, education, quick scan demos.

$1,999.00
View product
EinScan Rigil 3D Scanner

EinScan Rigil 3D Scanner

Best for: Professional wireless 3D scanning, automotive, reverse engineering, engineering teams, field scanning, and flexible shop-floor workflows.

$4,999.00
View product
FreeScan Combo 3D Scanner (with CNAS)

FreeScan Combo

Best for: Higher metrology-focused workflows, inspection-oriented use cases, tighter accuracy requirements, and more advanced industrial scanning needs.

$11,999.00
View product

More Than a Scanner - A Supported 3D Scanning Workflow

Buying a professional 3D scanner is not just a hardware decision. SKYLAB3D helps you evaluate the right scanner, understand the software workflow, coordinate demo options, and move from scan capture to usable digital output with more confidence.

Authorized Reseller Support

Guidance before purchase and coordination after purchase.

Application-Based Recommendations

We help match the scanner to your part type, material, accuracy needs, and workflow.

Demo & Training Path

Support for demo coordination, onboarding, and learning resources.

Software Workflow Guidance

Help understanding EXModel, SHINING3D Inspect, and downstream CAD/inspection paths.

Talk to a 3D Scanning Specialist

Need More Technical Detail?

Download Brochure

Review product highlights, specifications, and capabilities.

Download Brochure

Watch Technical Webinar

Explore Rigil features and workflow details in a deeper session.

Watch Webinar

Request Application Review

Share your part, material, accuracy requirement, and workflow goal.

Request Review

Frequently asked questions

  • Yes. Rigil is a strong fit for automotive, aftermarket, reverse engineering, and field scanning workflows where flexible movement and professional scan data matter.

  • Rigil supports standalone scanning, wireless PC mode, and wired PC mode, giving teams flexibility based on the job and workflow.

  • It depends on the use case. Vega is better for lighter portable all-in-one scanning. Rigil is better for professional wireless laser scanning workflows where engineering, automotive, manufacturing, or reverse engineering needs are stronger.

  • FreeScan Combo may be a better fit when the buyer has stricter metrology-focused inspection requirements or needs a more inspection-heavy workflow.

  • Yes. Share your part type, object size, material, accuracy needs, software workflow, budget, and timeline. SKYLAB3D can help recommend the right SHINING 3D scanner path.

  • Yes. Use the Book Live Demo option to discuss your application and review the scanner fit before purchase.

Still unsure? Talk to an expert.

Contact us

Ready to Start Scanning with EinScan Rigil?

Order online with free shipping, or request a quote if your company needs purchasing approval, PO processing, or application review.
