One-click desktop scanning with automatic turntable capture
PROFESSIONAL 3D SCANNING

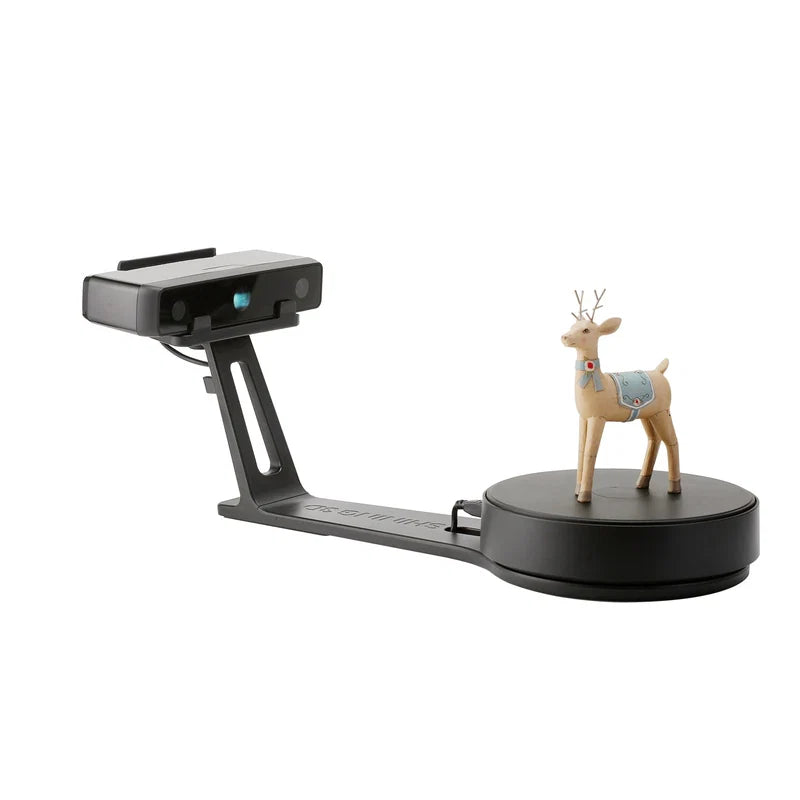

Desktop 3D Scanners
Less than 1 secondSingle scan speed
0.17 to 0.20 mmPoint distance
200 x 150 mmSingle scan range

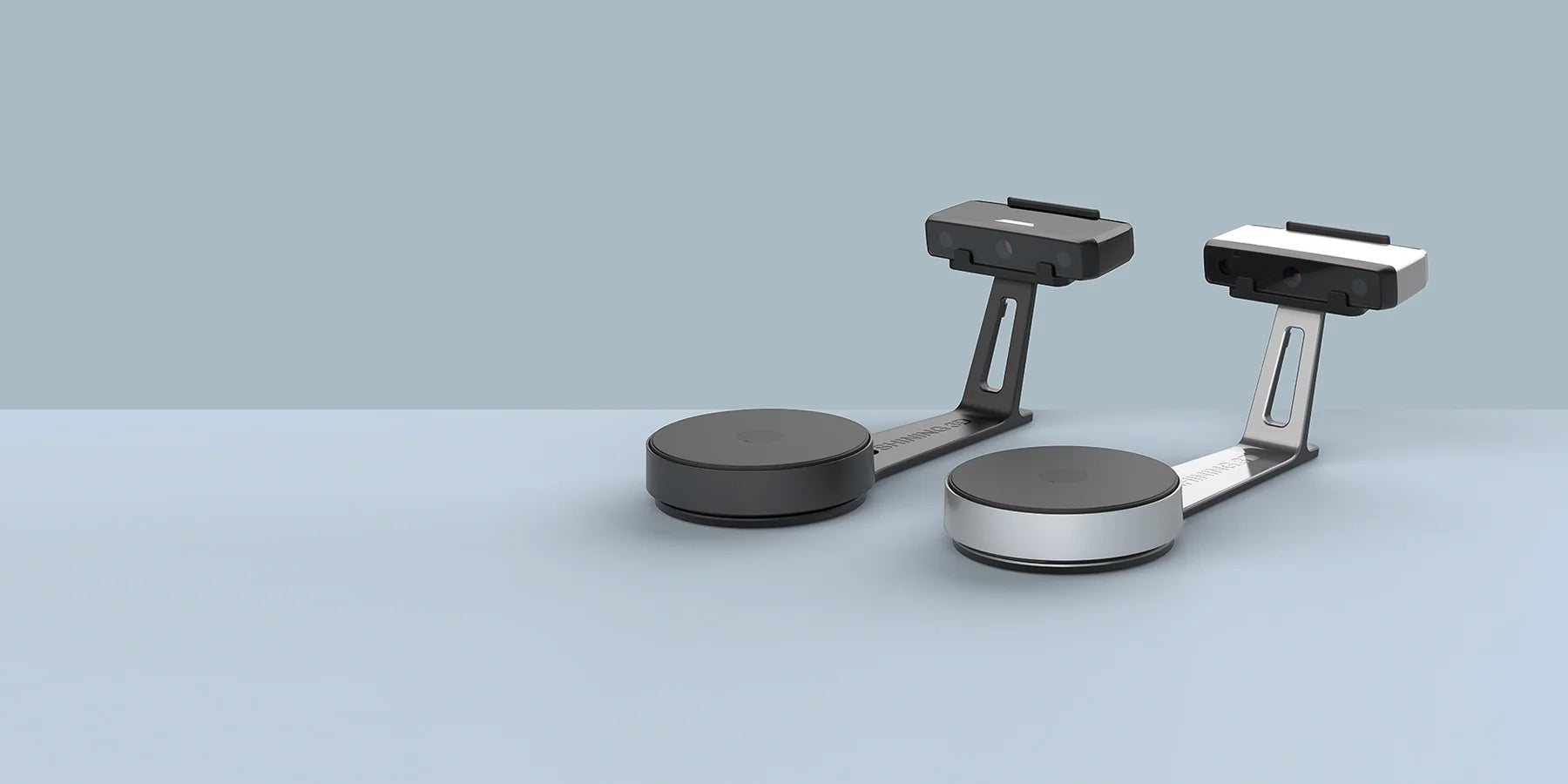

Model comparison
See what the price difference buys.
Compare the specifications and workflow differences before selecting a model.
| Decision point | Most Popular for EngineeringEinScan-SP V2Higher accuracy, coded-target alignment, and professional desktop work | EinScan-SE V2Accessible full-color capture for general desktop scanning |
|---|---|---|
| Price | $2,099 | $1,199 |
| Single-shot accuracy | Up to 0.05 mm | Up to 0.10 mm |
| Single scan speed | Less than 1 second | Less than 1 second |
| Point distance | 0.17 to 0.20 mm | 0.17 to 0.20 mm |
| Alignment | Manual, feature, markers, turntable, coded targets | Manual, feature, turntable |
| Turntable | Coded-target turntable | Standard turntable |
| Texture scan | Supported | Supported |
| Output | OBJ, STL, ASC, PLY, 3MF | OBJ, STL, ASC, PLY, 3MF |
| Best choice | Professional accuracy and flexible alignment | Lower-cost desktop scanning and digital modeling |

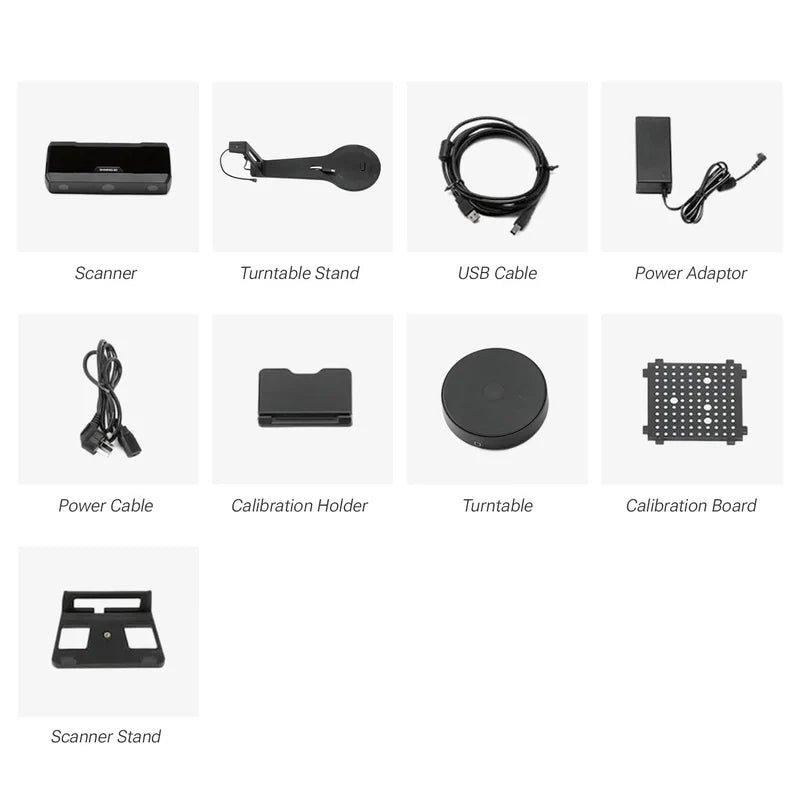

Package contents
Know exactly what arrives.
The checklist changes with the selected model so buyers can verify the scanner, cables, calibration hardware, and accessories before checkout.
01
EinScan-SE V2
Standard package
- Scanner head
- Turntable
- Scanner stand
- Scanner bracket
- Calibration board
- Calibration-board holder
- Power adapter
- USB cable A
- USB cable B
- EXScan S scanning software (included)
- Quick guide
02

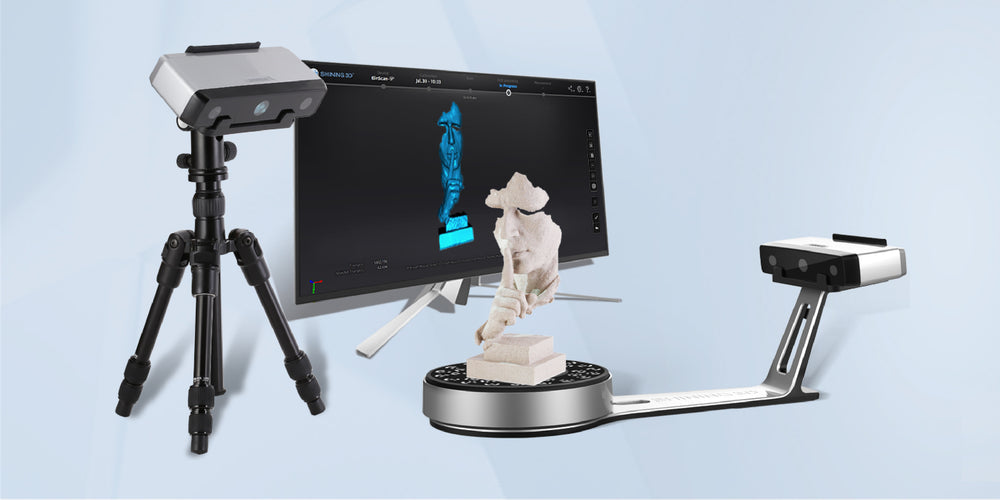

EinScan-SP V2
Standard package with professional alignment accessories
- Scanner head
- Coded-target turntable
- Scanner stand
- Scanner bracket
- Calibration board
- Calibration-board holder
- Tripod
- Marker set
- Power adapter
- USB cable A
- USB cable B
- EXScan S scanning software (included)
- Quick guide
Package contents follow Shining 3D's current device checklist. Regional plugs and minor packing revisions may vary.
What changes in your workflow
From desktop scan to a usable 3D model.
Follow a clear workflow from setup and capture through mesh processing and export.
02

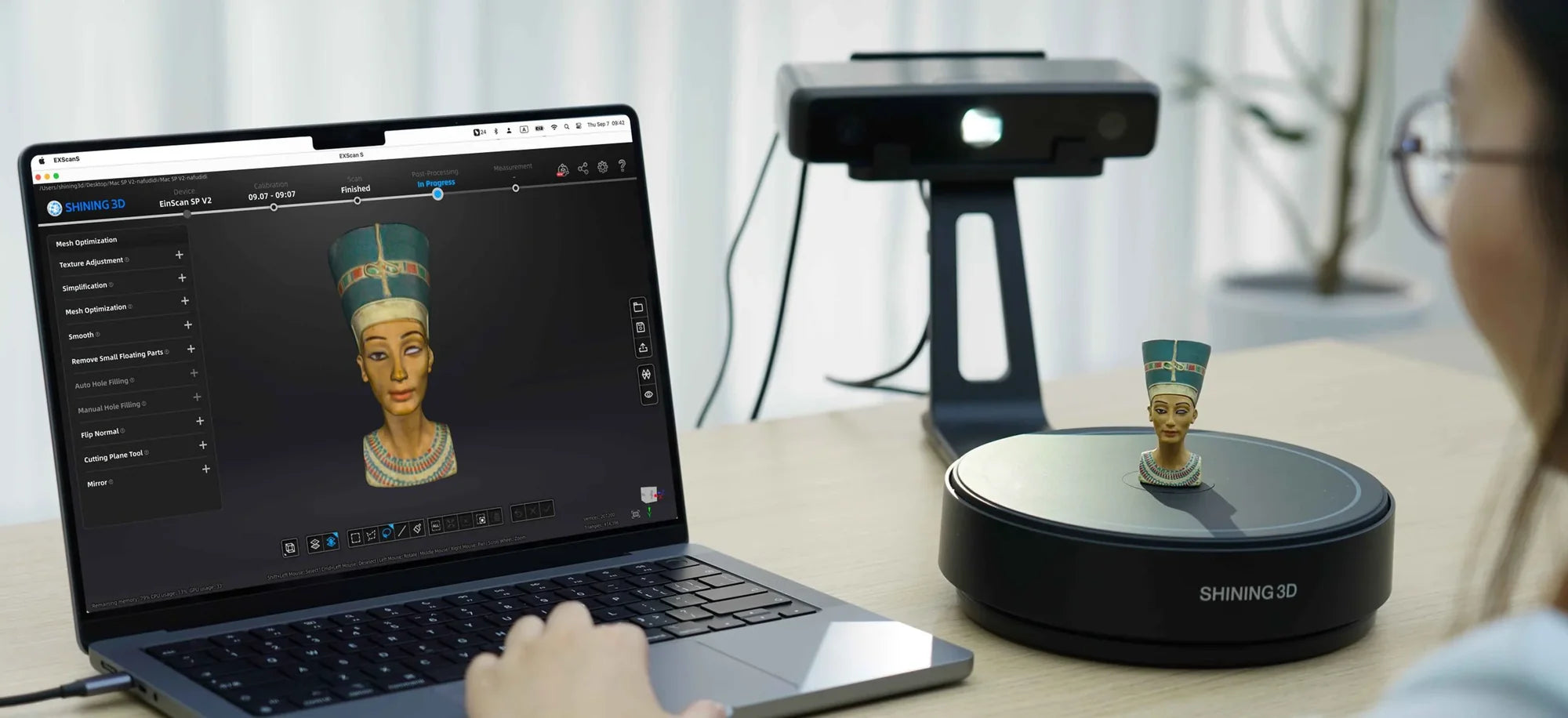

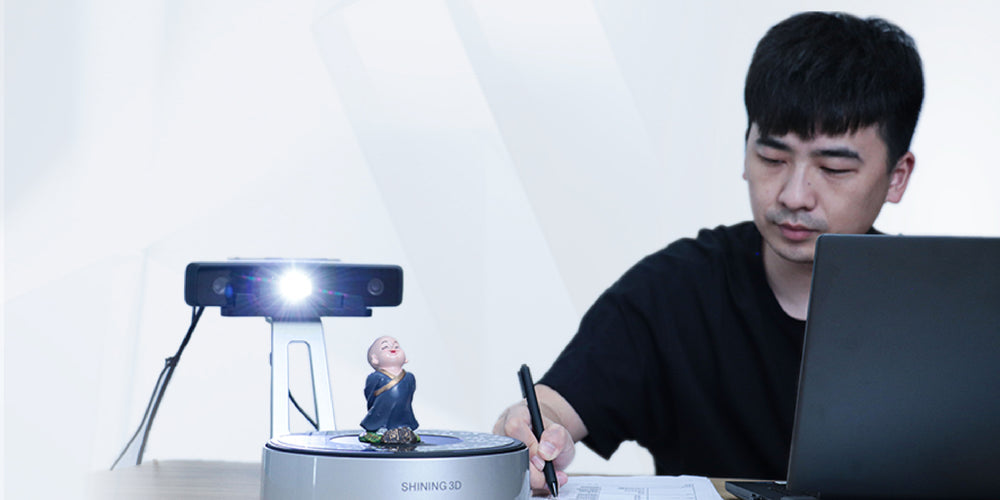

Single scans in under one second and a full turntable capture in about 45 seconds
03
Full-color texture capture for realistic digital models
04

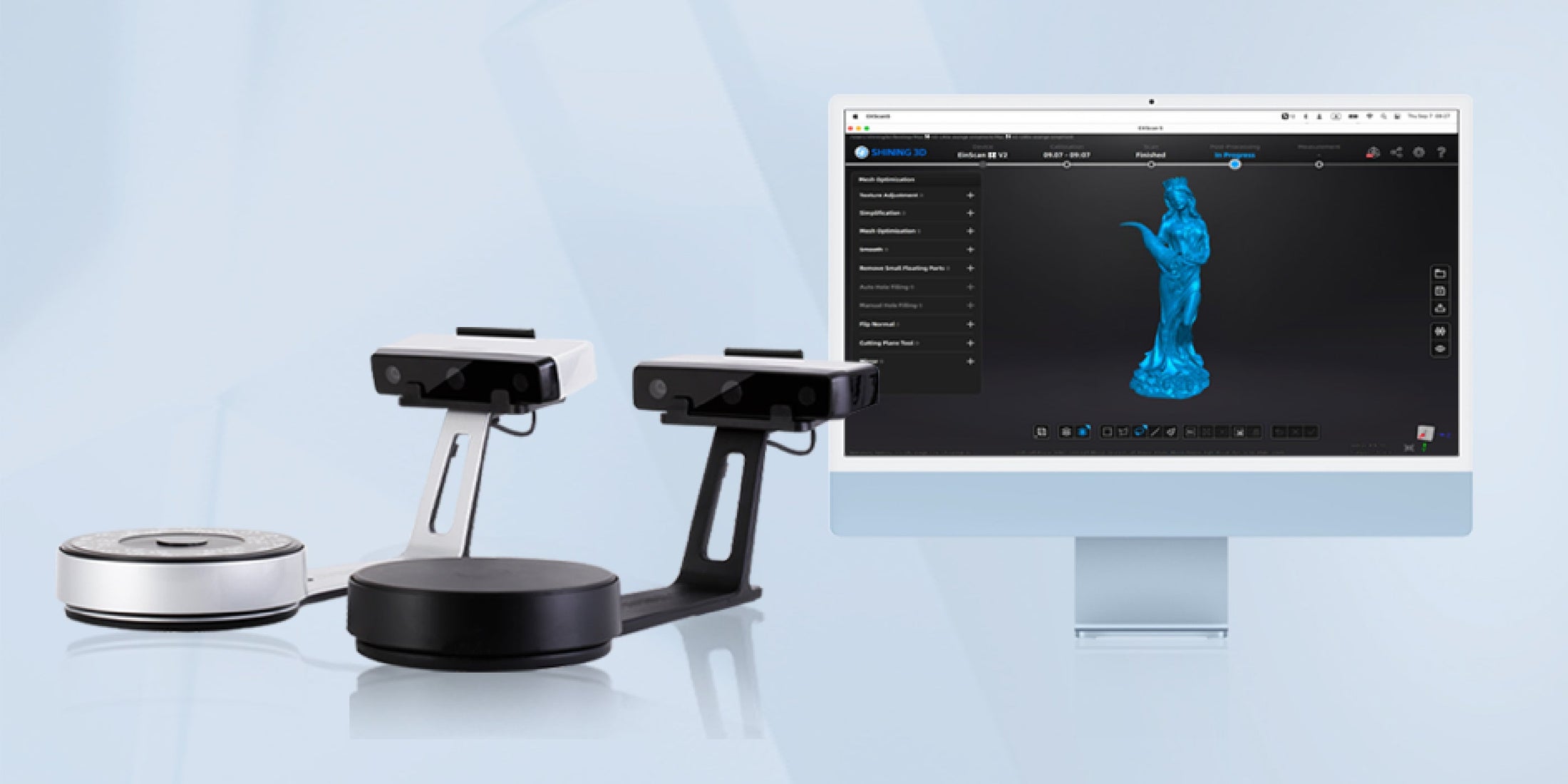

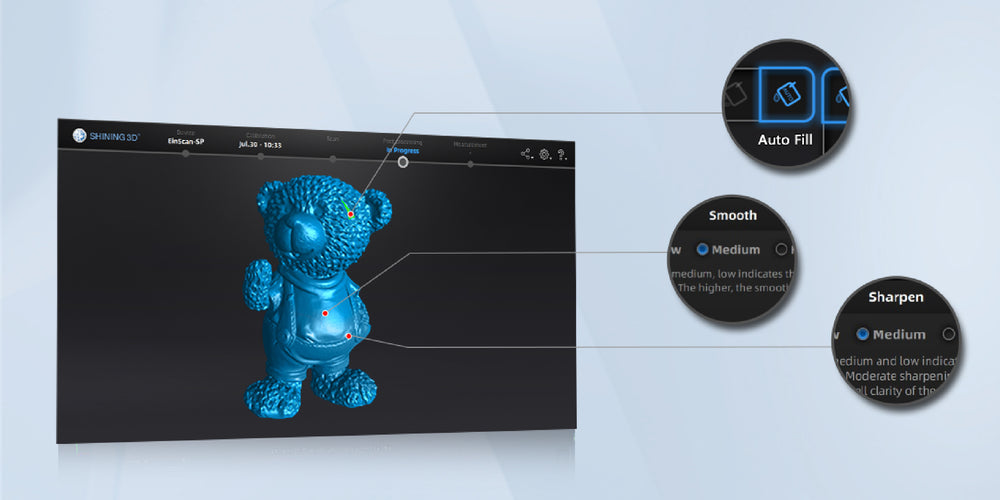

Includes EXScan S software with guided calibration, alignment, mesh cleanup, hole filling, smoothing, and simplification
05
Fixed and automatic modes for objects from small parts to a 700 mm envelope
06

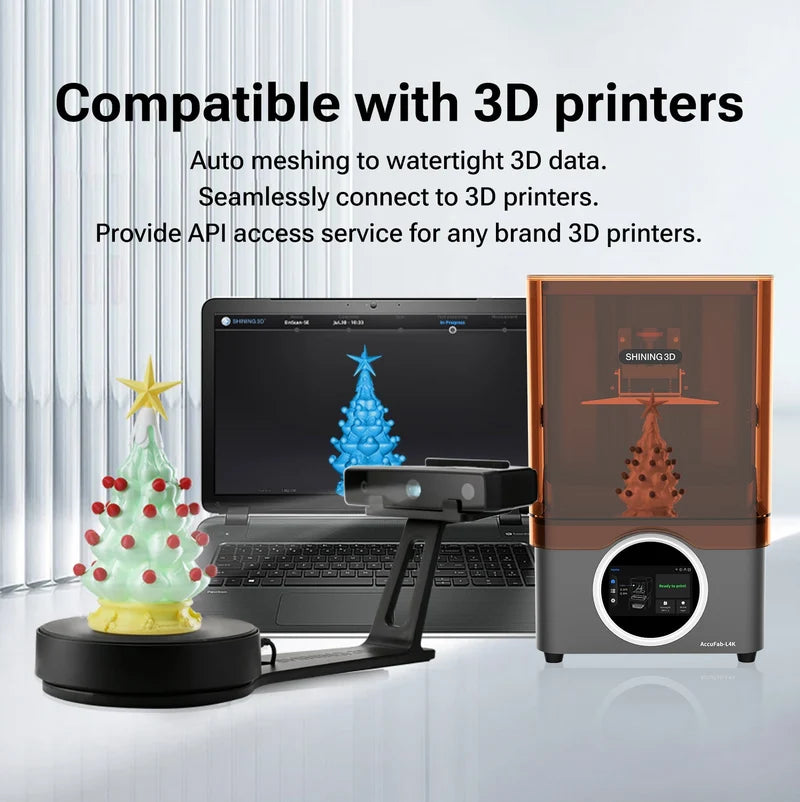

Watertight model export for direct 3D-print workflows
From scan to outcome
Capture, process, and move downstream.
Take the object from repeatable desktop capture through mesh preparation and into visualization, 3D printing, or engineering software.
Review technical specifications →Application fit
Where this scanner fits best.
Review the parts, settings, and downstream uses that match this scanner.
01
Small-part desktop capture
02
Archiving and digital modeling
03

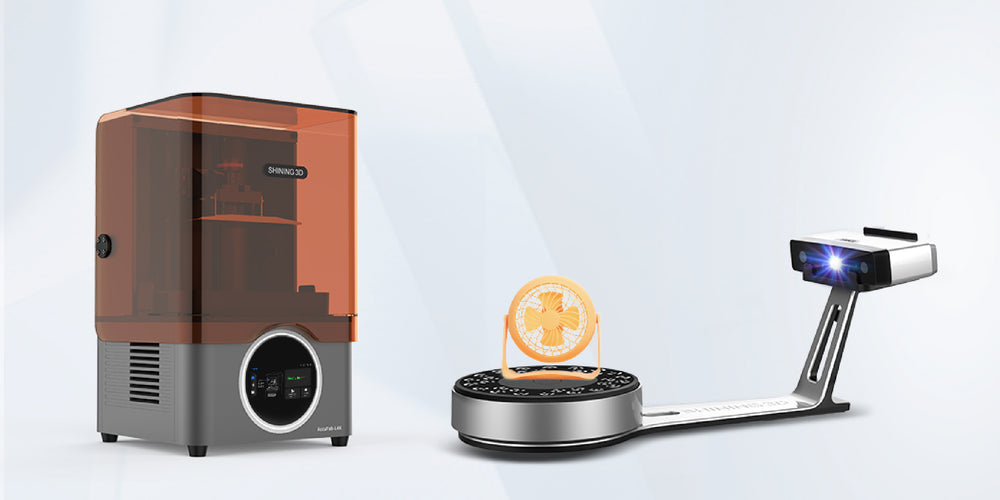

Direct-to-3D-print workflows
04

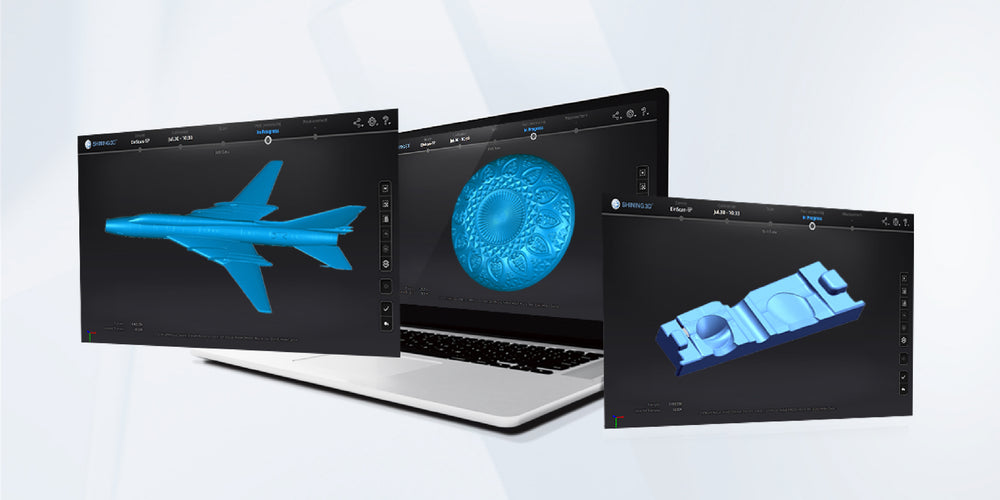

Reverse engineering and concept development
Technical specifications
Check the specifications before purchase.
Review the measurement, capture, output, and operating requirements before committing.
Single scan speedLess than 1 second
Point distance0.17 to 0.20 mm
Single scan range200 x 150 mm
Working distance290 to 480 mm
Maximum object envelope700 x 700 x 700 mm

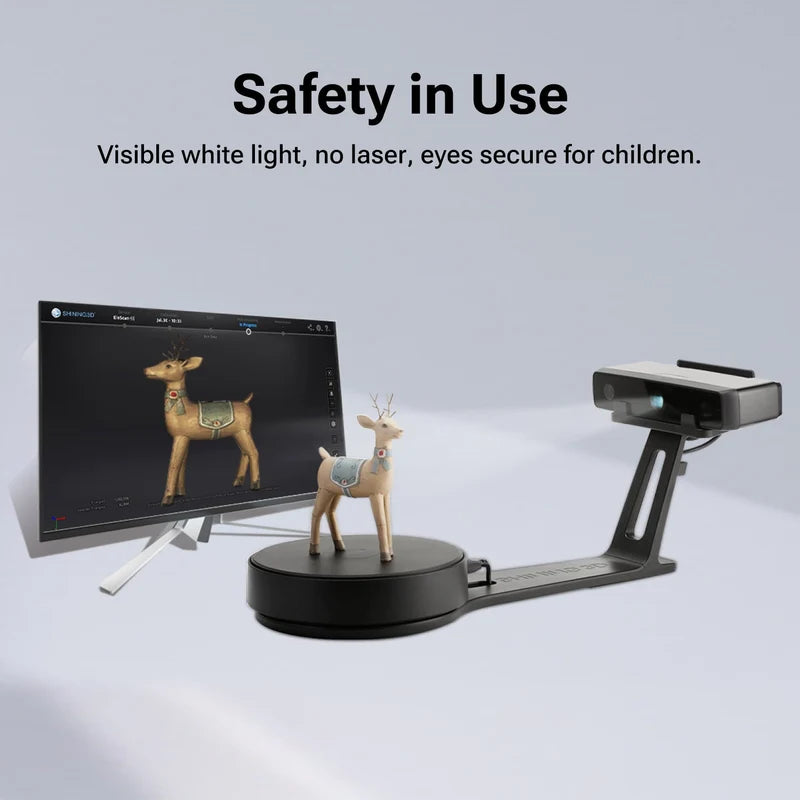

Light sourceWhite LED
Texture captureSupported
Output formatsOBJ, STL, ASC, PLY, 3MF
Turntable capacity5 kg
Supported platformsWindows 10/11 64-bit and macOS
| Component | Minimum | Recommended |
|---|---|---|
| Operating system | Windows 10 64-bit or a currently supported macOS release | Windows 11 64-bit or the current supported macOS release |
| Processor (Windows) | Intel Core i5, 3rd generation or newer | Intel Core i7-8700 or higher |
| Memory | 16 GB RAM | 32 GB RAM |
| Graphics (Windows) | NVIDIA GTX 660 with 2 GB or more VRAM | NVIDIA GTX 1060 with 4 GB or more VRAM |
| Connection | USB 3.0 | Dedicated USB 3.0 port |
EXScan S supports Windows and macOS for EinScan-SE V2 and EinScan-SP V2. The Windows hardware baseline is shown above; confirm the current EXScan S release against the exact Mac model before purchase.
Interactive scan results
Review scanned models.
Select a model to load the interactive viewer, or open it directly on Sketchfab.
Optional interactive preview
Clay Doll - EinScan-SP
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
Christmas Tree - EinScan-SP
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
Marseille Sculpture - EinScan-SE
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Models published by Shining 3D on Sketchfab. Use the direct link if the embedded viewer exceeds the device's graphics capacity.
Next step
Buy online or request a formal quote.
Use checkout for a standard purchase. Request a quote when you need a formal document, software, training, or help selecting a model.
