Rigil or Rigil Lite
Select the laser performance, onboard capacity, and accuracy specification required for the work.
Portable laser and infrared 3D scanning

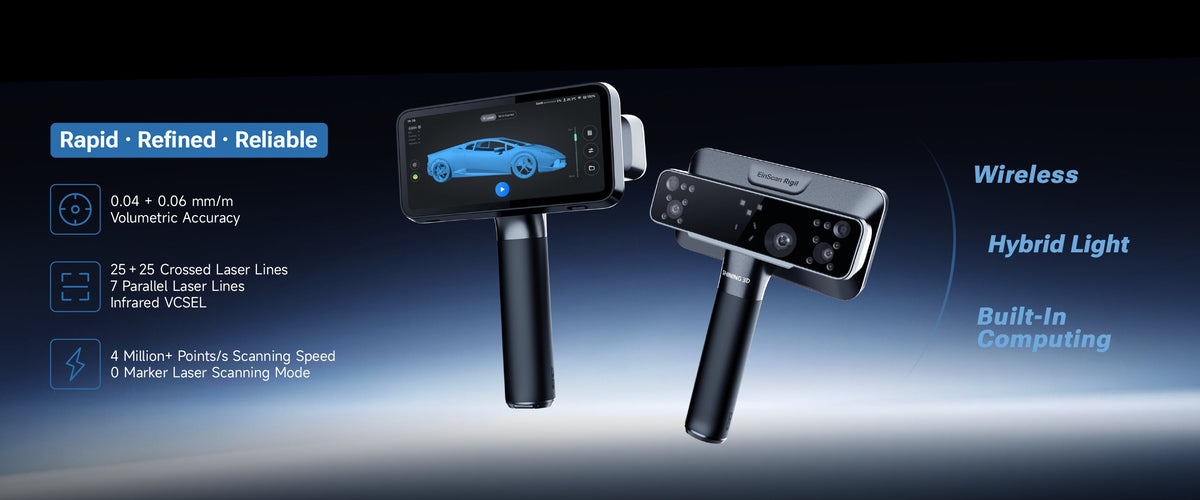

EinScan Rigil Series SHINING 3D wireless laser and infrared 3D scanners
Rigil or Rigil Lite. Build a portable scanning system around your work.
3 modesWorking modes
0.05 mmLaser resolution
5 MPTexture camera
870 gWeight with batteries
System architecture & capabilities
One family. Two levels of laser performance.
Both models offer standalone capture, hybrid blue-laser and infrared light, and full-color data. Rigil adds greater laser coverage, more onboard capacity, and a published certified laser-accuracy specification.
3 modesWorking modes
0.05 mmLaser resolution
5 MPTexture camera
870 gWeight with batteries
Laser and IR in one system
Switch light source and alignment strategy for the object and scanning conditions.
Scan through mesh export
Use included on-device tools or EXScan Rigil. Add downstream CAD and texture software only when needed.
Portable laser and infrared 3D scanning870 g including batteriesProduct weightCompare configurations
Choose the hardware that fits your workflow.
Certified laser accuracy
EinScan Rigil
Higher laser capture performance, 32 GB RAM, and 1 TB SSD. Published laser volumetric accuracy up to 0.04 + 0.06 mm/m.
25+25Crossed laser lines
32 GBOnboard RAM
Starting at $4,999
Est. monthly budget: $174/ mo
36 mo · 15% APR · $0 down. Illustration only.
Monthly payment options
Core standalone workflow
EinScan Rigil Lite
Laser and IR capture with 24 GB RAM and 512 GB SSD. The Rigil certified laser-accuracy specification does not apply to Lite.
17+17Crossed laser lines
24 GBOnboard RAM
Starting at $3,099
Est. monthly budget: $108/ mo
36 mo · 15% APR · $0 down. Illustration only.
Monthly payment options
Hardware specifications
| Capability | EinScan Rigil | EinScan Rigil Lite |
|---|---|---|
| Crossed blue laser lines | 25+25 | 17+17 |
| Parallel blue laser lines | 7 | 7 |
| Laser scanning speed | Up to 4,800,000 points/s | Up to 2,940,000 points/s |
| Certified laser volumetric accuracy | Up to 0.04 + 0.06 mm/m | Not specified for Lite |
| Laser point distance | 0.05 to 10 mm | 0.05 to 10 mm |
| IR scanning speed | Up to 16,000,000 points/s | Up to 16,000,000 points/s |

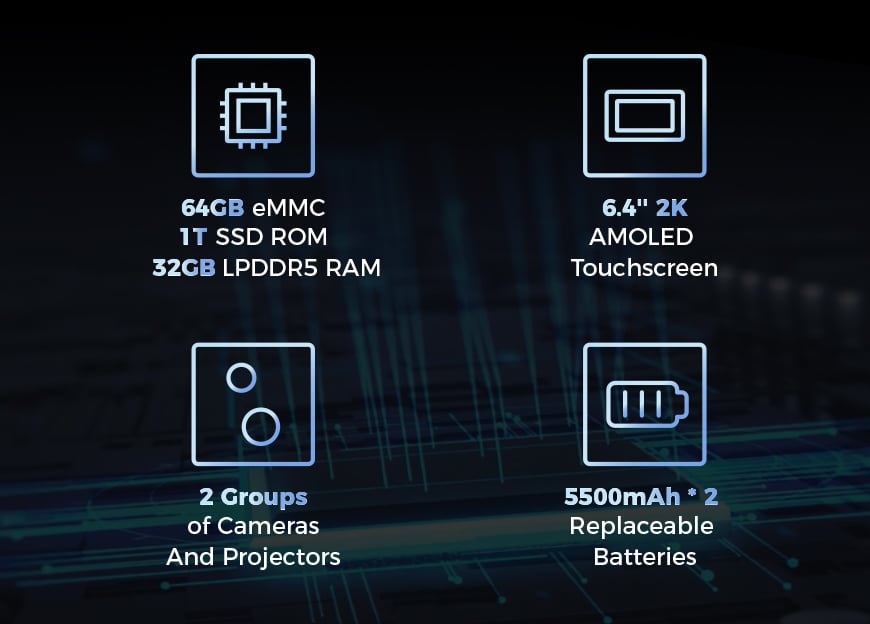

| RAM | 32 GB LPDDR5 | 24 GB LPDDR5 |
| Storage | 64 GB eMMC + 1 TB SSD | 64 GB eMMC + 512 GB SSD |
| Working modes | Standalone / PC wireless / PC wired | Standalone / PC wireless / PC wired |
| Texture camera | 5 MP | 5 MP |
| Screen | 6.4-inch 2K AMOLED | 6.4-inch 2K AMOLED |
| Weight with batteries | 870 g | 870 g |
| Included software | On-device EinScan App + EXScan Rigil | On-device EinScan App + EXScan Rigil |
Need custom software or multi-unit packages?
Build & Configure System ↗Performance highlights
Capture, process, and review at the object.
Explore the capabilities that affect capture, output quality and day-to-day operation.
Feature in focusOperation
01 / 10Your workflow
From standalone capture to the next design task.
- Step 01
Scanning software included

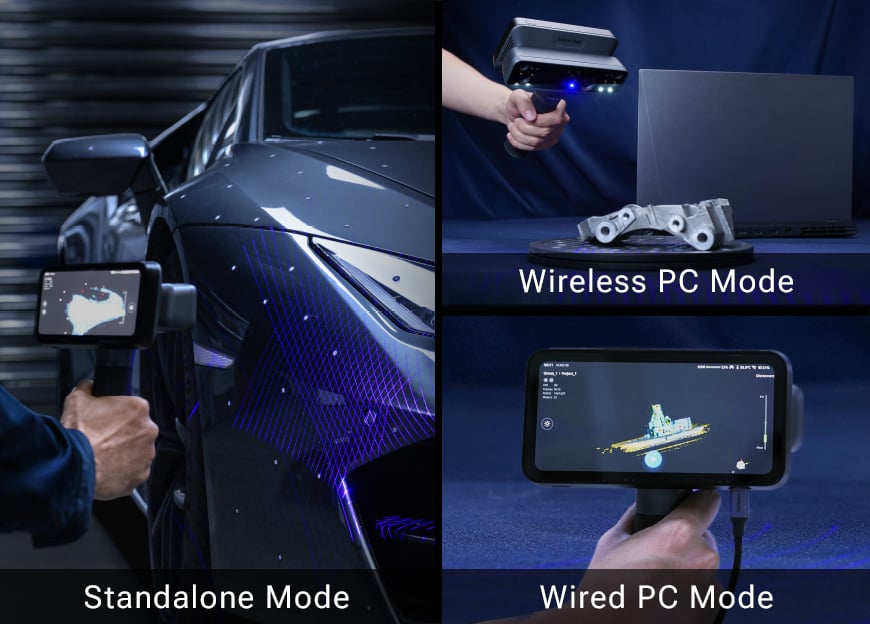

Prepare and capture
Calibrate, select laser or IR capture, and choose tracking suitable for the object. Start on device or use EXScan Rigil with a compatible computer.
Geometry and color scan data
- Step 02
On-device + EXScan Rigil included

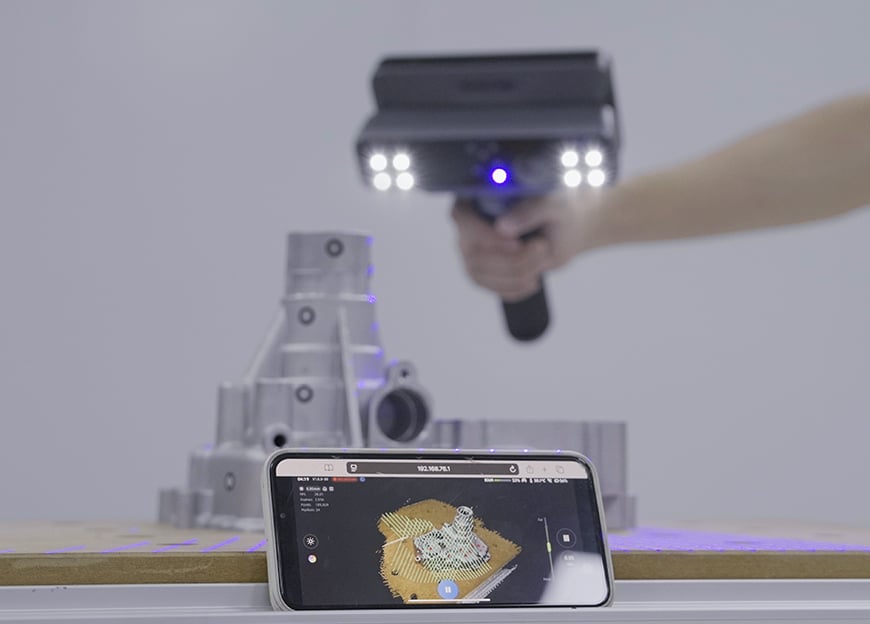

Review and refine
Check coverage, align projects, remove unwanted points, and prepare the mesh with on-device tools or EXScan Rigil.
Processed mesh
- Step 03
Optional downstream licenses
Continue into design
Export the mesh for downstream use. Add EXModel for CAD reconstruction or BlueStar Mapping for external-photo texture mapping when needed.
STL, OBJ, PLY, 3MF, or ASC

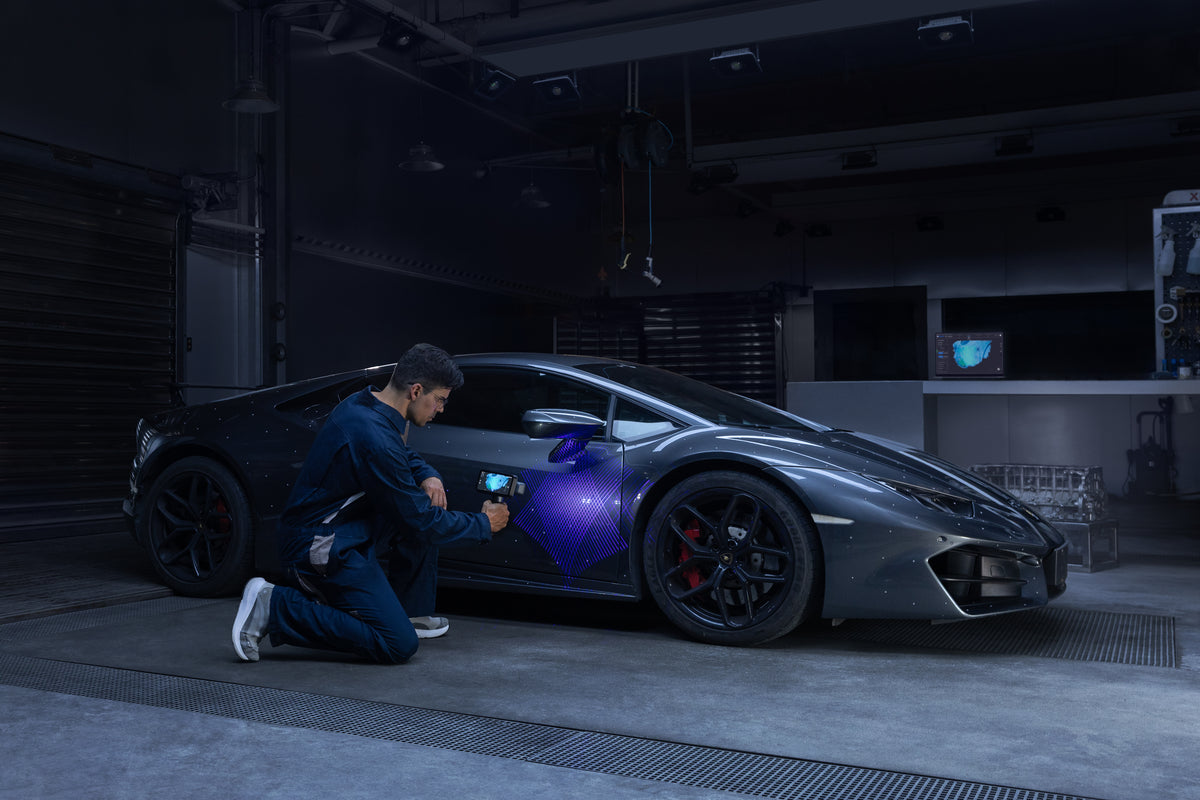

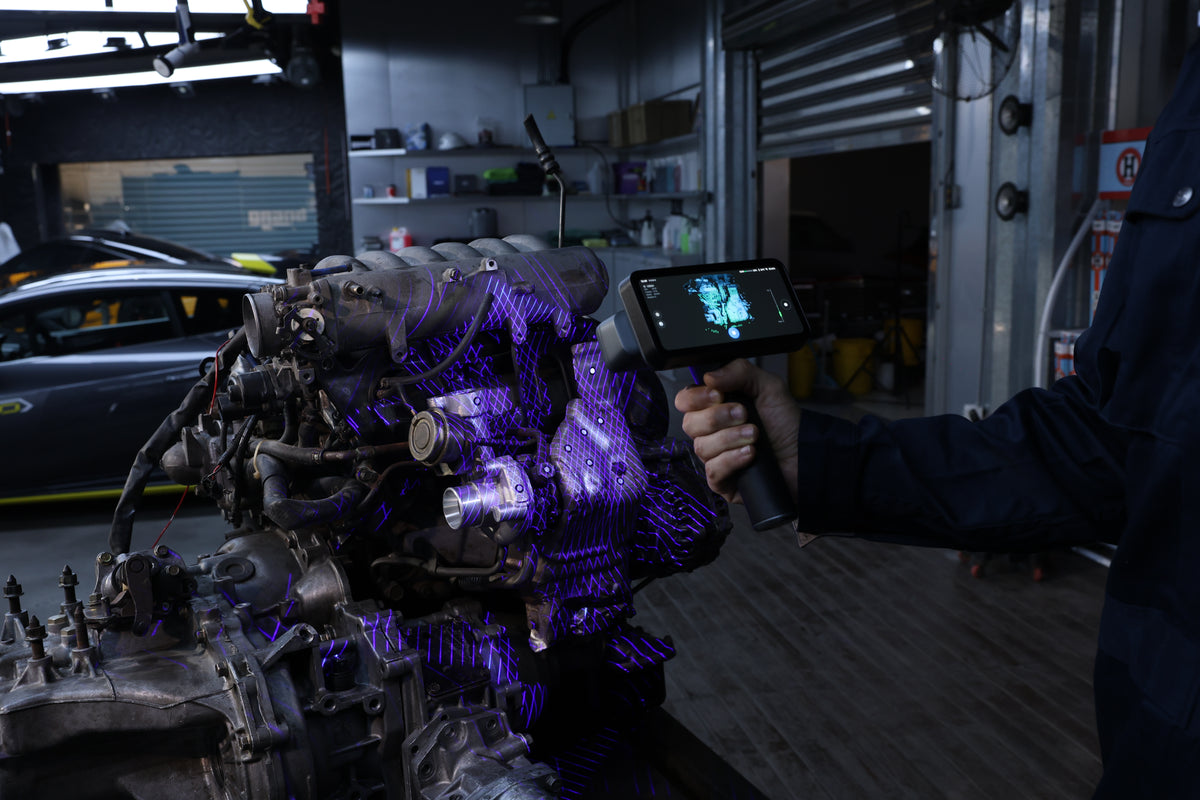

Application fit
Choose the model for your material, scale, and tolerance.
Explore representative use cases before confirming system fit.
Image: official SHINING 3D product imagery.
Image: official SHINING 3D product imagery.
Image: official SHINING 3D product imagery.
Image: official SHINING 3D product imagery.

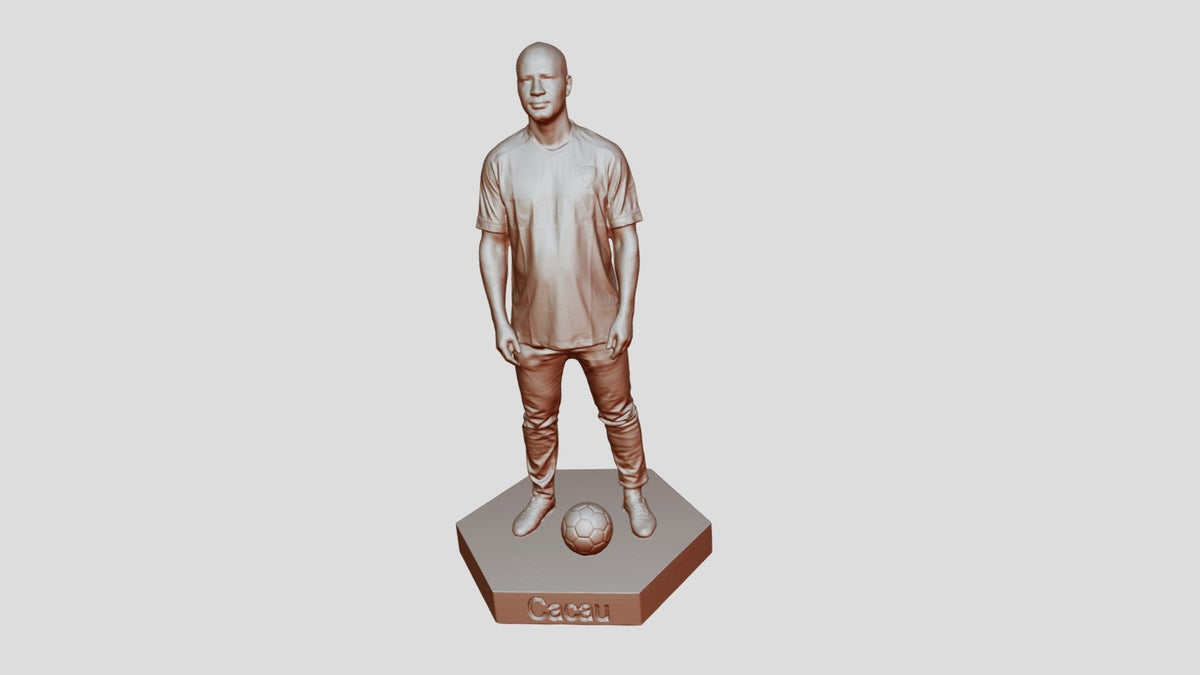

Image: SHINING 3D official Rigil sample on Sketchfab.
Image: SHINING 3D official Rigil sample on Sketchfab.

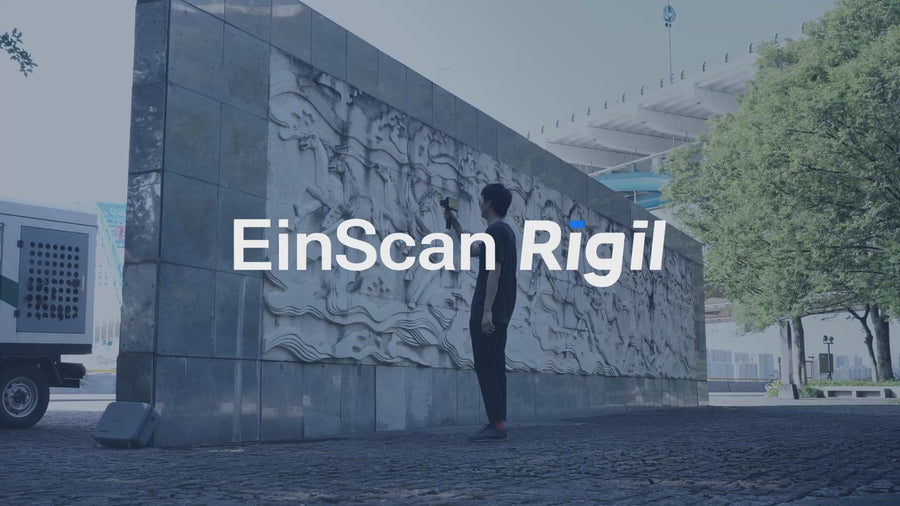

Video library
Watch the workflow in motion.
Use official demonstrations, case studies, and tutorials to assess real operation.
Additional product demonstrations (3)
Technical evidence
Every specification, organized for review.
Open the data set needed for engineering, IT, quality, and procurement review.
Complete data table
Open a category to review the full specification.
Physical & Operating Specifications
| Power | Two replaceable 5500 mAh batteries; supports 60 W PD 3.0 charging |
|---|---|
| Scanner weight | 870 g including batteries |
| Dimensions | 233 × 180 × 72.8 mm (H × D × W) |
| Operating temperature | -10°C to 40°C |
Capture & Measurement Performance
| Working modes | Standalone; PC wireless via Wi-Fi 6; PC wired via USB |
|---|---|
| Laser light source - Rigil | 25+25 crossed blue laser lines and 7 parallel blue laser lines |
| Laser light source - Rigil Lite | 17+17 crossed blue laser lines and 7 parallel blue laser lines |
| Infrared light source | IR VCSEL |
| Laser volumetric accuracy - Rigil | Up to 0.04 + 0.06 mm/m |
| Laser volumetric accuracy - Rigil Lite | No certified laser-accuracy figure specified in the manufacturer series brochure |
| IR volumetric accuracy | Up to 0.1 + 0.4 mm/m, per series brochure |
| Laser resolution / point distance | 0.05 to 10 mm; this is not the accuracy specification |
| IR resolution / point distance | 0.2 to 10 mm |
| Laser scanning speed - Rigil | Up to 4,800,000 points/s |
| Laser scanning speed - Rigil Lite | Up to 2,940,000 points/s |
| IR scanning speed | Up to 16,000,000 points/s |
| Laser working distance | 170 to 550 mm |
| IR working distance | 160 to 1500 mm |

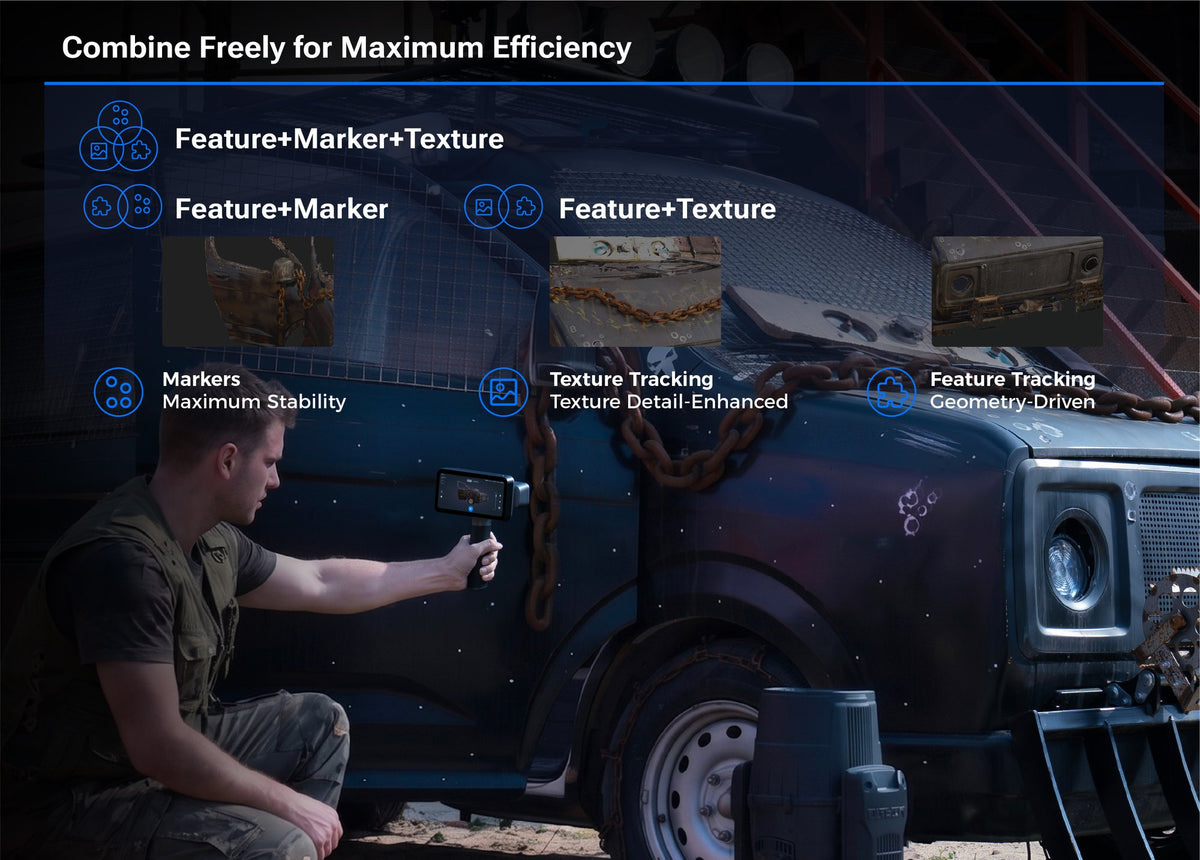

| Laser alignment | Global markers, markers, features |
| IR alignment | Global markers, markers, features, texture, hybrid |
| 3D cameras | Two 2.3 MP cameras and two 1.3 MP cameras |

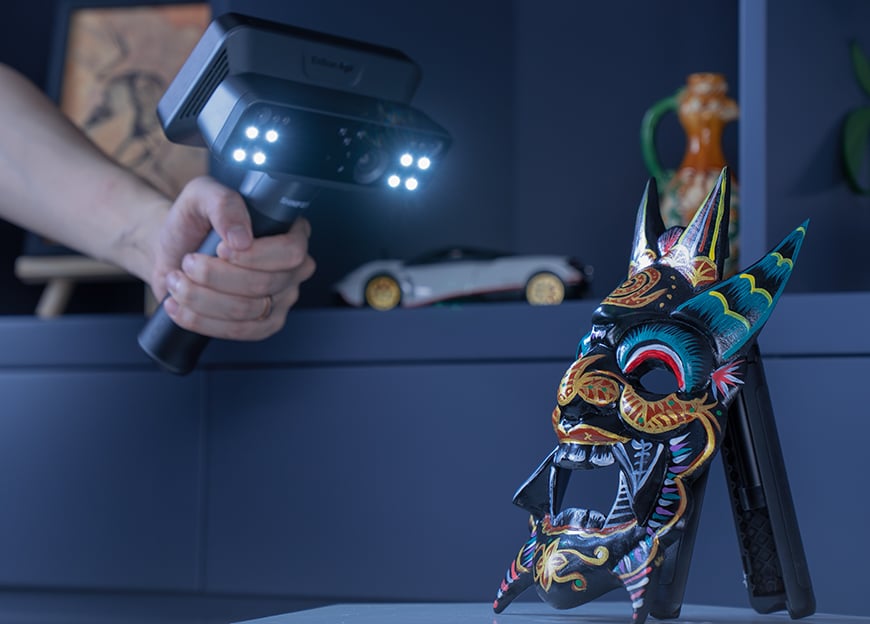

| Texture camera | 5 MP; color capture in laser and IR modes |
| Laser class | Class II, laser mode |
| Processor | Eight-core, 2.4 GHz |
| Memory - Rigil | 32 GB LPDDR5 |
| Memory - Rigil Lite | 24 GB LPDDR5 |
| Protection rating | IP50 |
Software, Formats & System Requirements
| Export formats | STL, OBJ, PLY, 3MF, ASC |
|---|---|
| Storage - Rigil | 64 GB eMMC + 1 TB SSD |
| Storage - Rigil Lite | 64 GB eMMC + 512 GB SSD |
| Display | 6.4-inch 2K AMOLED touchscreen |
| Included scanning software | On-device EinScan App and EXScan Rigil desktop software |
Workstation requirements
| Component | Minimum | Recommended |
|---|---|---|
| Standalone capture | No computer required | Use onboard capture, processing, and mesh review |
| Windows system | Not specified | Windows 11, 64-bit; 13th-generation Intel Core i7-13700H or above |
| Windows graphics | Not specified | NVIDIA GeForce RTX 3060 Laptop GPU or above, and at least 8 GB VRAM, as specified by the brochure; verify the actual GPU memory |
| Windows memory | Not specified | 64 GB or more, DDR5 dual-channel |
| Wired connection | Not specified | USB 3.0 interface with a suitable USB Type-C connection |
| Mac desktop workflow | Not specified | EXScan Rigil supports macOS. Manufacturer guidance starts at 24 GB RAM; higher-capacity Apple-silicon systems are recommended for large projects |
| Optional CAD / texture software | Not specified | Check the selected license and its separate operating-system and workstation requirements |
These are manufacturer recommendations rather than a guaranteed minimum for every project. Large datasets benefit from additional RAM and fast SSD storage. Both scanners can capture and process on-device without a computer.
Interactive results
Inspect representative scan data.
Load a model to examine surface detail and captured geometry.
Package contents
What arrives with the selected system.
Review the documented hardware, included accessories and software access for this product.
EinScan Rigil
- Selected Rigil or Rigil Lite scanner
- Rechargeable batteries
- Battery charging compartment and charging cable
- Carrying case
- Calibration board and universal holder
- Power adapter
- USB Type-C scanner cable
- Marker removal tool
- 3 mm and 6 mm reflective markers
- Tempered-glass screen protector
- Cleaning cloth and packing list
- Included on-device software and EXScan Rigil download
EinScan Rigil Lite
- Selected Rigil or Rigil Lite scanner
- Rechargeable batteries
- Battery charging compartment and charging cable
- Carrying case
- Calibration board and universal holder
- Power adapter
- USB Type-C scanner cable
- Marker removal tool
- 3 mm and 6 mm reflective markers
- Tempered-glass screen protector
- Cleaning cloth and packing list
- Included on-device software and EXScan Rigil download

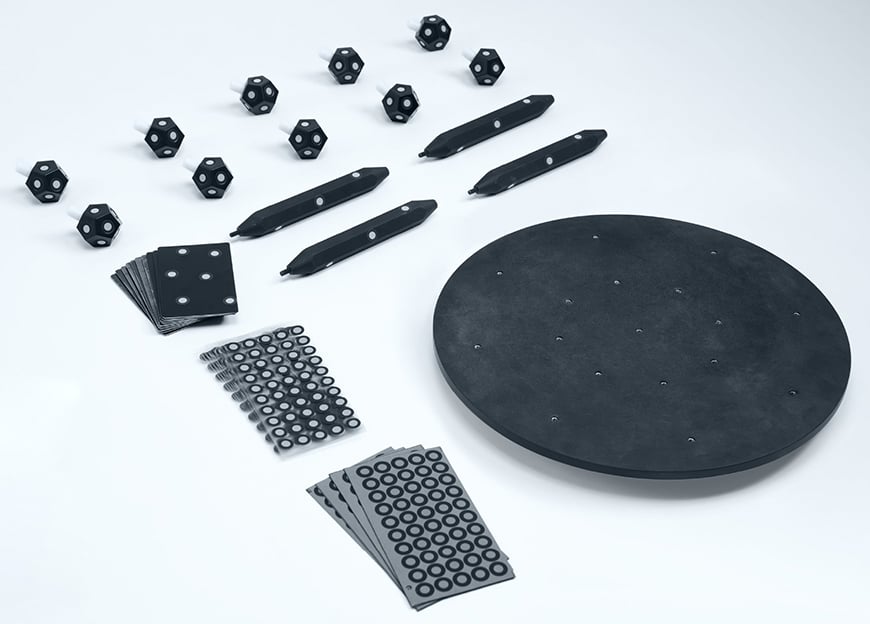

The selected scanner model determines the hardware package. A computer, Accessories Pro Kit, optional software licenses, and training are separate. Contents follow the official Rigil and Rigil Lite packing lists.
