WIRELESS BLUE LASER AND IR 3D SCANNER

EINSTAR Rockit 3D Scanner SHINING 3D 3D Scanner

Pocket-size scanning for small parts, vehicles, people, and field work

Laser HD and IR RapidScan modes

38 crossed blue laser lines (19 + 19) and 7 parallel blue laser linesLaser HD light source

Infrared VCSELIR Rapid light source

System architecture & capabilities

Pocket-size scanning for small parts, vehicles, people, and field work

Wireless, pocket-size blue-laser and IR scanning for detailed parts, full-color subjects, vehicles, and outdoor capture.

Laser HD and IR RapidScan modes

38 crossed blue laser lines (19 + 19) and 7 parallel blue laser linesLaser HD light source

Infrared VCSELIR Rapid light source

01Core capability

Built-in Wi-Fi

Scan wirelessly to a PC through built-in Wi-Fi, with USB Type-C available when needed

02Core capability

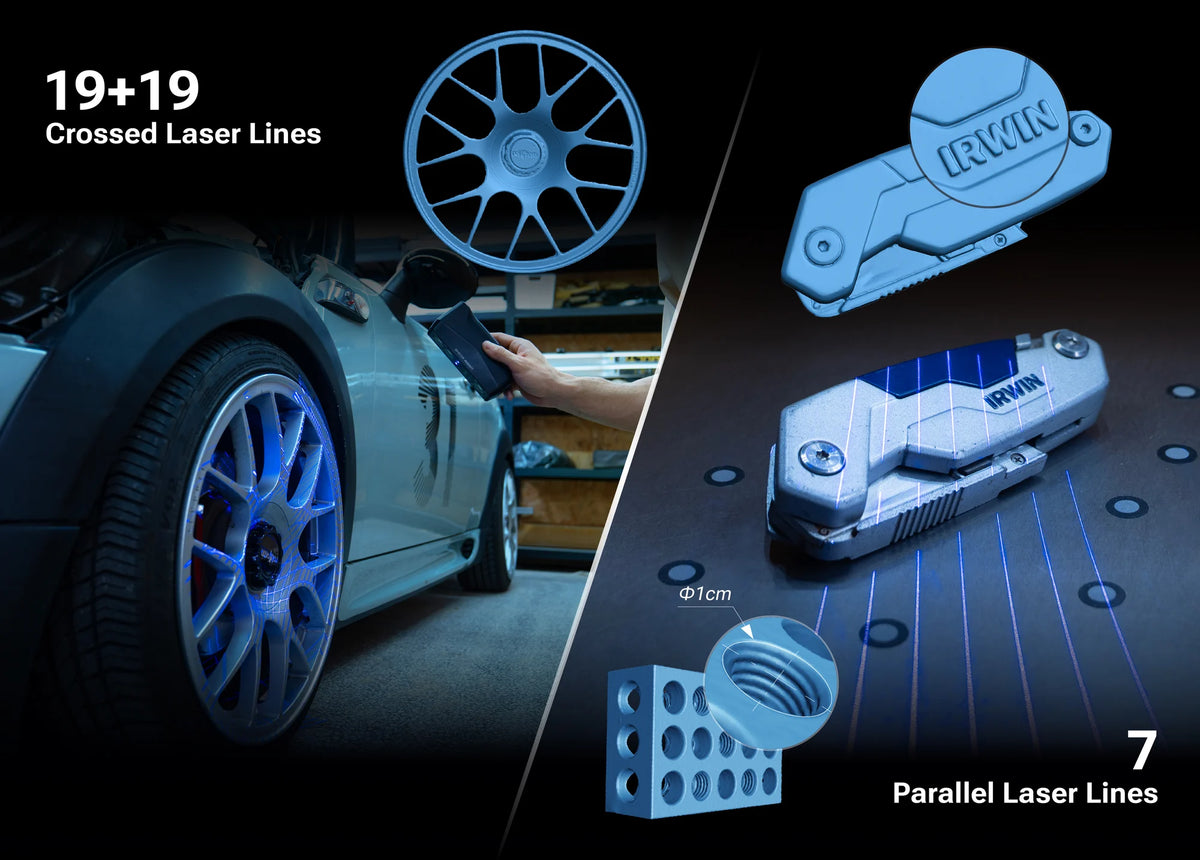

38 crossed laser lines

Capture fast, wide-area geometry with 38 crossed blue laser lines

03Core capability

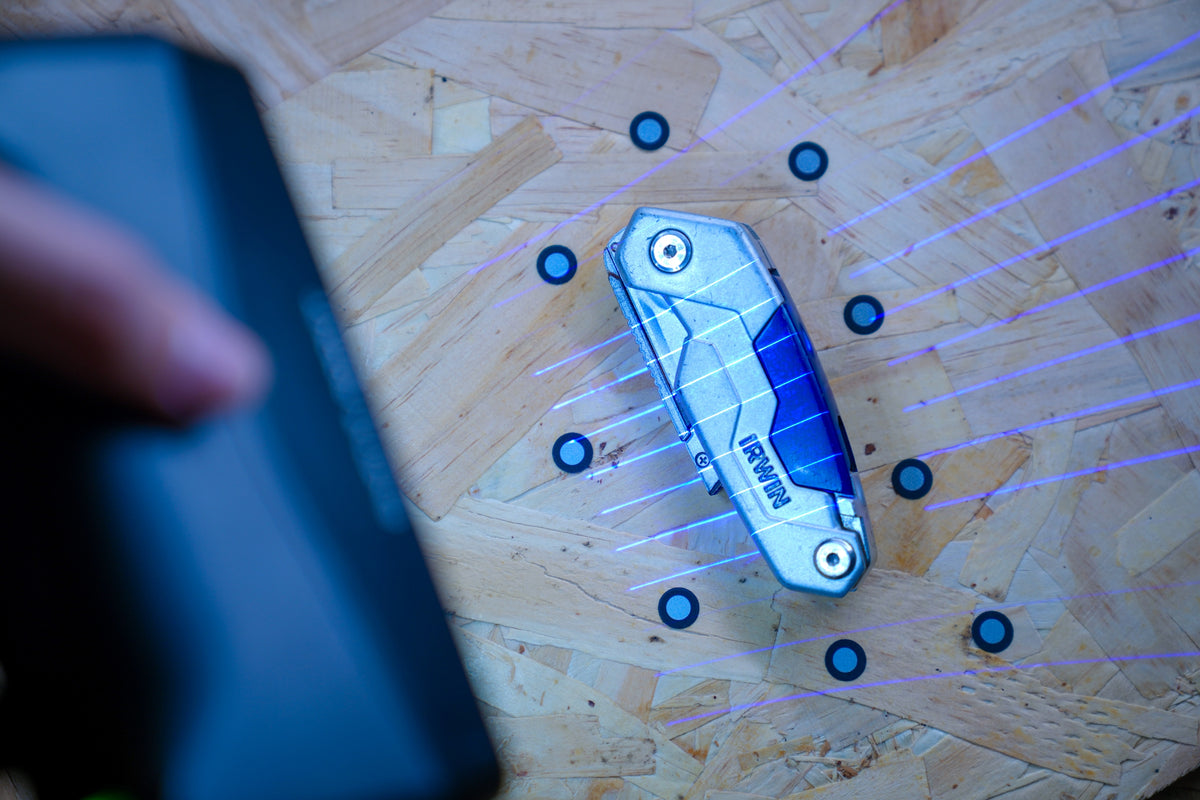

7 parallel laser lines

Resolve fine features and deep holes with 7 parallel blue laser lines

EINSTAR Rockit 3D Scanner

WIRELESS BLUE LASER AND IR 3D SCANNER

Performance highlights

Wireless capture for parts, people, and places.

Explore the capabilities that affect capture, output quality and day-to-day operation.

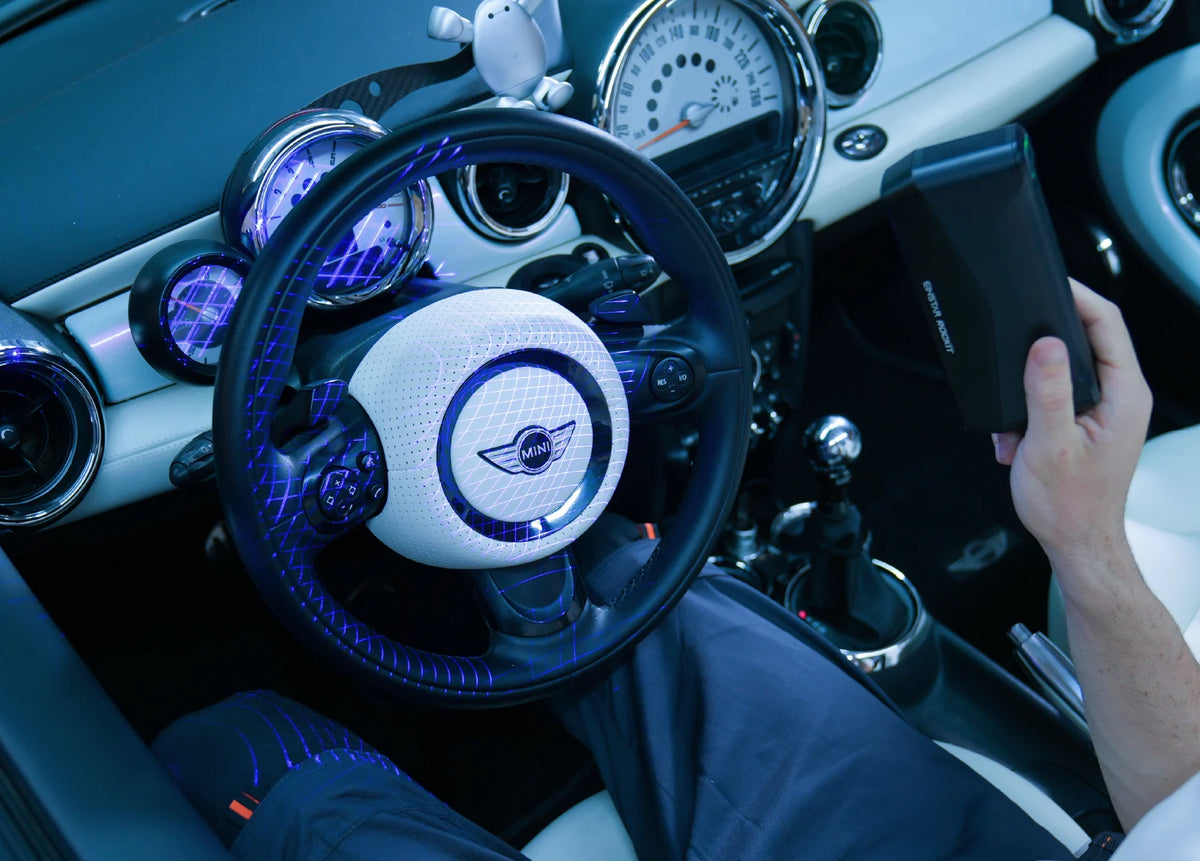

EINSTAR Rockit used wirelessly inside a vehicle

Feature in focusConnection

01 / 10

Your workflow

Capture, process, and move downstream.

EINSTAR Rockit 3D Scanner

01
Capture the object
Prepare the object and follow the scanner setup and capture workflow.
02
Review and prepare the mesh
Check coverage, align the scan data, and prepare the mesh using the included scanning software.
03
Export for the next step
Use the supported file formats in your printing, design, or visualization workflow.

Application fit

Choose the capture workflow for your project.

Explore representative use cases before confirming system fit.

Reverse engineering and product design

Reverse engineering and product design

Capture mechanical parts for reference meshes and downstream CAD reconstruction.

Image: EINSTAR Rockit official product imagery.

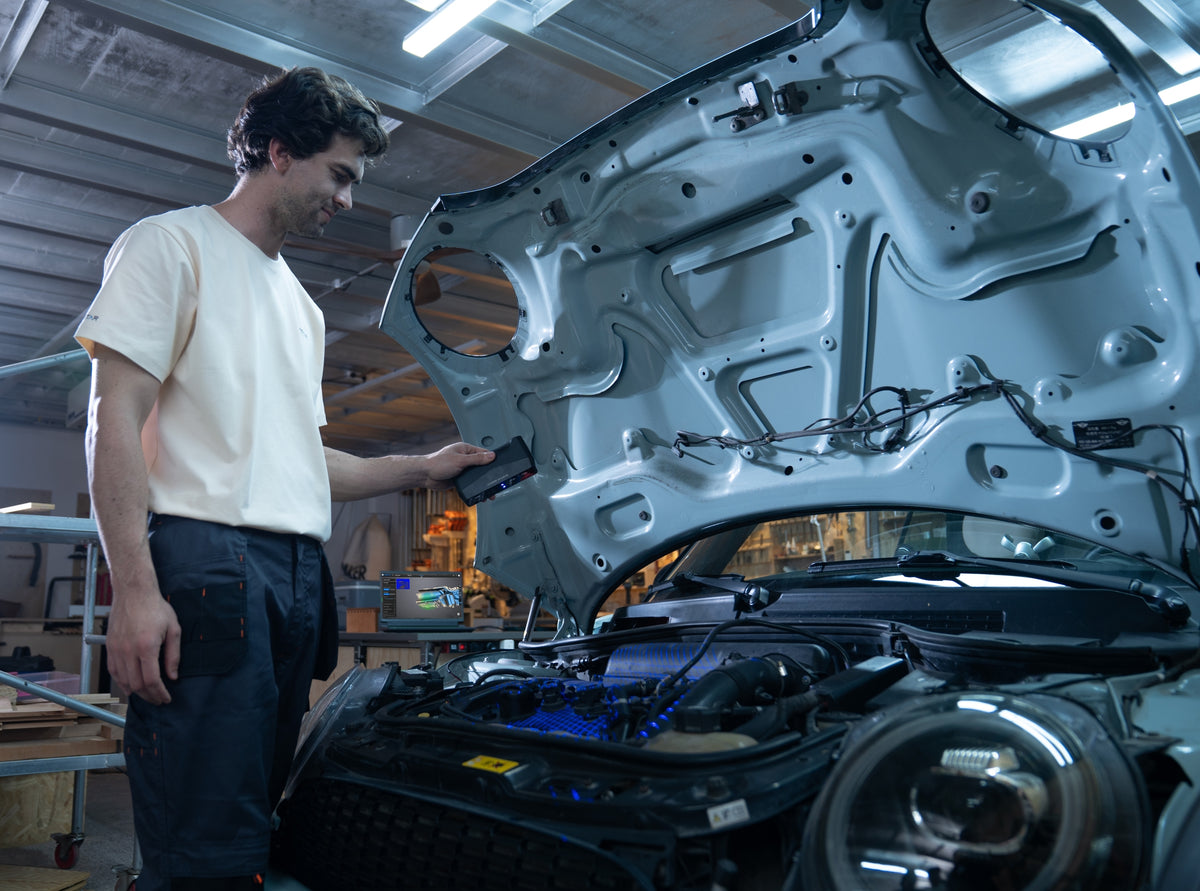

Automotive aftermarket parts and vehicle capture

Automotive aftermarket parts and vehicle capture

Digitize vehicle geometry for design and fitment reference. Shown: marker-free engine-bay capture.

Image: EINSTAR Rockit official product imagery.

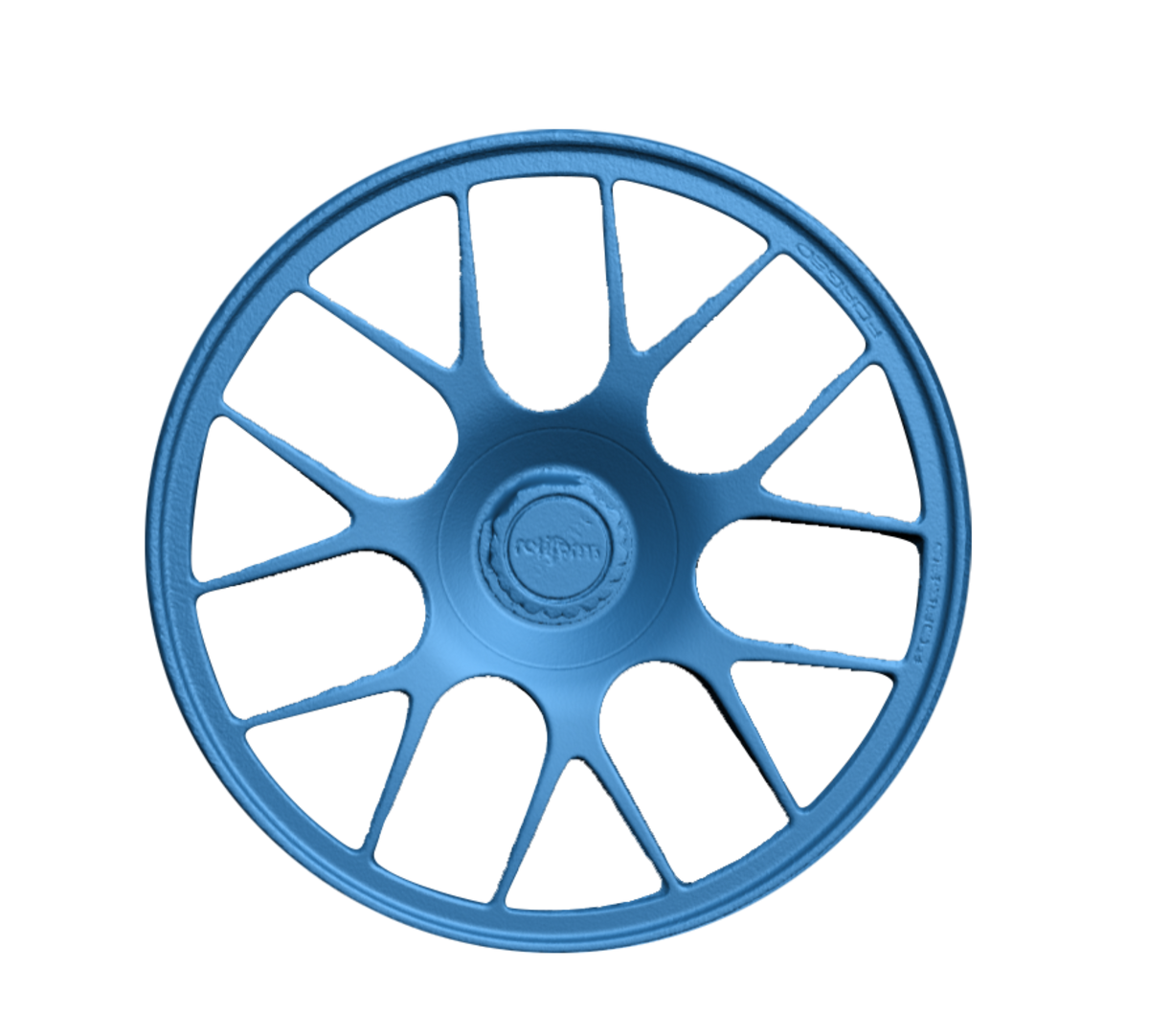

3D printing and personal manufacturing

3D printing and personal manufacturing

Prepare scanned geometry for mesh editing, prototyping, and print preparation. Shown: a captured wheel model.

Image: EINSTAR Rockit official product imagery.

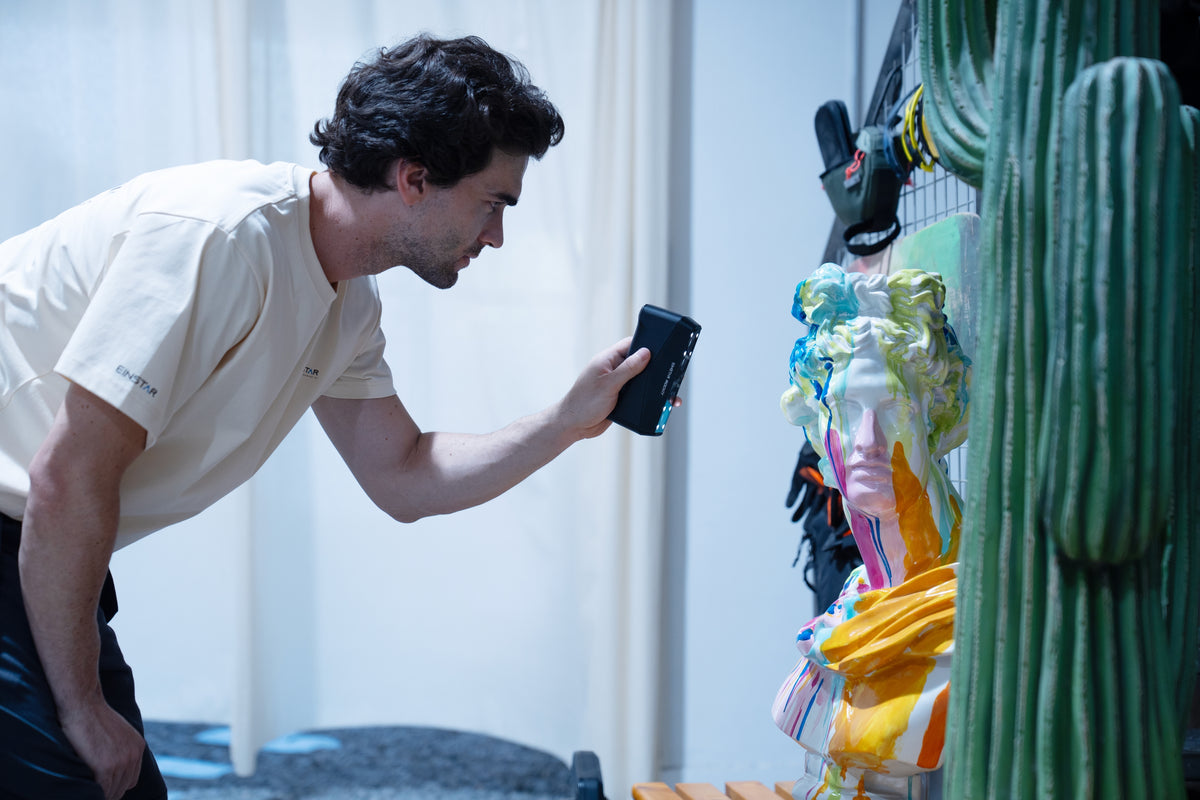

Digital art, sculpture, and cultural heritage

Digital art, sculpture, and cultural heritage

Capture object shape and color for creative work and digital documentation.

Image: EINSTAR Rockit official product imagery.

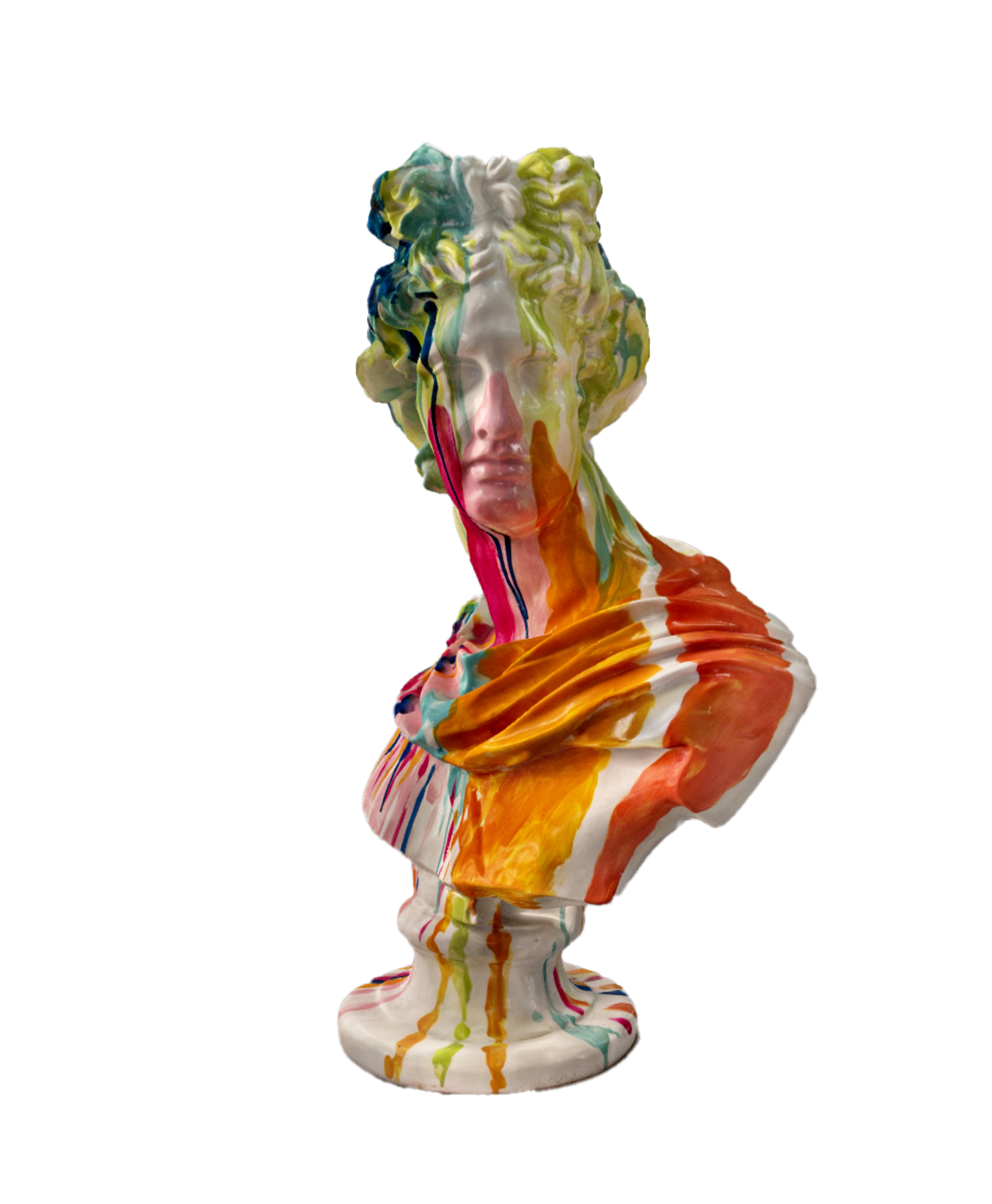

AR, VR, game assets, and digital content

AR, VR, game assets, and digital content

Bring textured object models into digital scenes after the required asset preparation.

Image: EINSTAR Rockit official product imagery.

Cosplay, portrait, and full-body capture

Cosplay, portrait, and full-body capture

Use IR Rapid to capture people and costumes for creative modeling workflows.

Image: EINSTAR Rockit official product imagery.

Outdoor statues, vehicles, and field objects

Outdoor statues, vehicles, and field objects

Capture field objects within the ambient-light limits of the selected scanning mode.

Image: EINSTAR Rockit official product imagery.

Video library

Watch the workflow in motion.

Use official demonstrations, case studies, and tutorials to assess real operation.

Technical evidence

Every specification, organized for review.

Open the data set needed for engineering, IT, quality, and procurement review.

Complete data table

Open a category to review the full specification.

Physical & Operating Specifications

Physical & Operating Specifications: EINSTAR Rockit 3D Scanner
Operating temperature	-10–40 °C
Battery	Swappable 5500 mAh battery; up to 3 hours runtime
Charging	Supports 60 W USB-C PD 3.0 charger
Dimensions	130 × 37 × 61 mm
Net weight	425 g with battery; 353 g without battery

Capture & Measurement Performance

Capture & Measurement Performance: EINSTAR Rockit 3D Scanner
Scan modes	Laser HD and IR Rapid
Laser HD light source	38 crossed blue laser lines (19 + 19) and 7 parallel blue laser lines
IR Rapid light source	Infrared VCSEL
Laser HD resolution	0.05–10 mm
IR Rapid resolution	0.2–10 mm

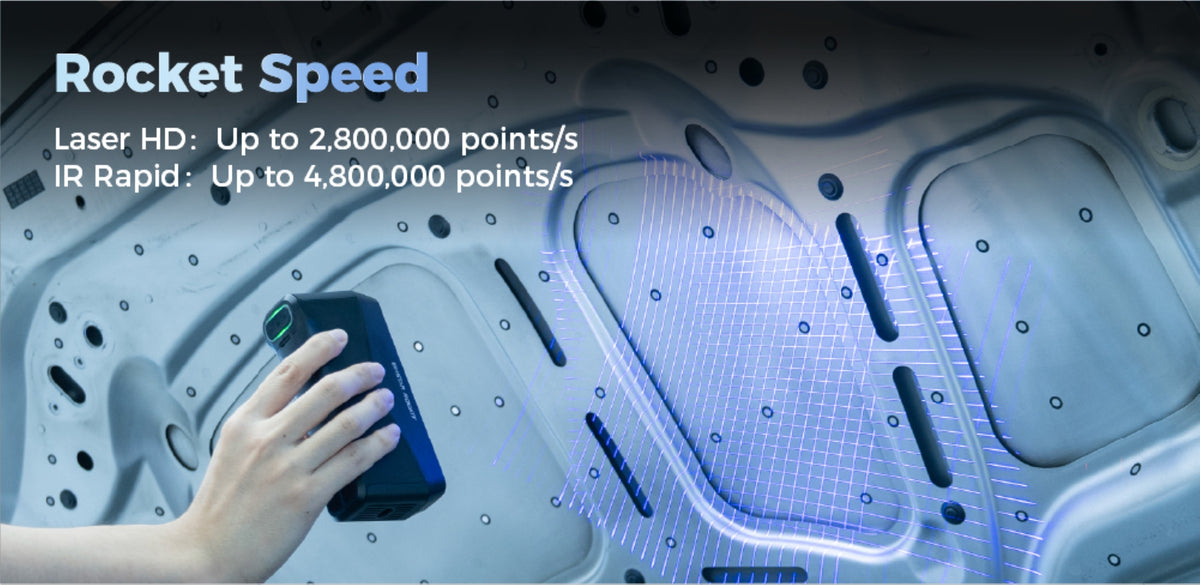

Laser HD scanning speed	Up to 2,800,000 points/s
IR Rapid scanning speed	Up to 4,800,000 points/s
Crossed-laser working distance	100–600 mm
Parallel-laser working distance	100–400 mm
IR Rapid working distance	160–1400 mm
Crossed-laser maximum field of view	545 × 620 mm
Parallel-laser maximum field of view	355 × 425 mm
IR Rapid maximum field of view	1170 × 1385 mm
Laser HD alignment	Global marker, markers, and features
IR Rapid alignment	Global marker, markers, features, texture, and hybrid
Minimum scan volume	Laser HD: 5 × 5 × 5 mm; IR Rapid: 50 × 50 × 50 mm
3D cameras	2 MP × 2
Texture camera	5 MP
Laser class	Class 2
Outdoor illuminance	Laser HD: below 110,000 lux; IR Rapid: below 70,000 lux
Interface	USB Type-C

Software, Formats & System Requirements

Software, Formats & System Requirements: EINSTAR Rockit 3D Scanner
Output formats	STL, OBJ, PLY, 3MF, and ASC
Wireless connection	Built-in Wi-Fi connection to a PC

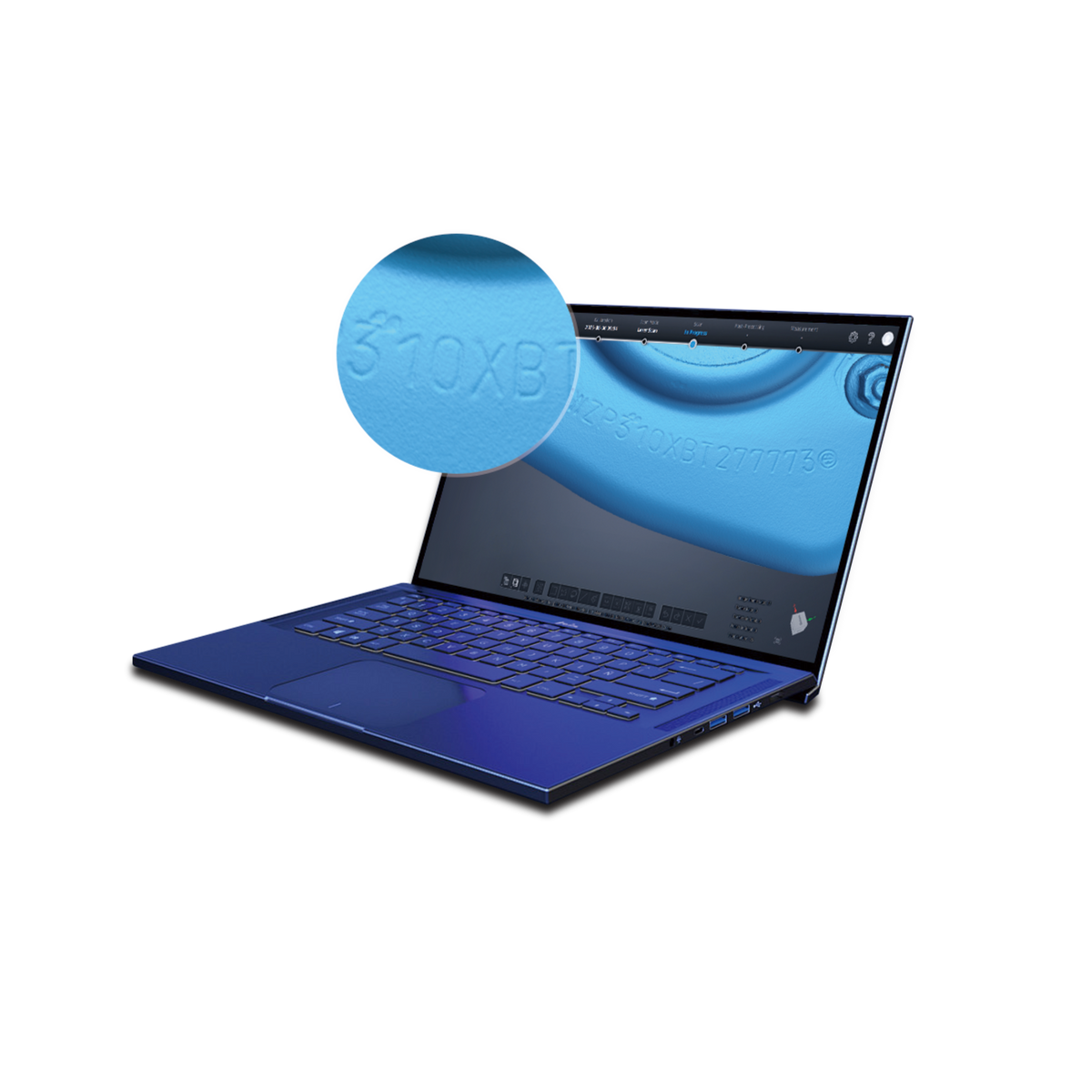

Included scanning software	EXStar Hub

Workstation requirements

Workstation requirements
Component	Minimum	Recommended
Windows operating system	Windows 11 Professional 22H2, 64-bit	Windows 11 Professional 22H2, 64-bit
Processor	13th Gen Intel Core i7-13700H or above	13th Gen Intel Core i7-13700H or above
Graphics	NVIDIA GeForce RTX 3060 Laptop GPU or above	NVIDIA GeForce RTX 3060 Laptop GPU or above
Video memory	6 GB	6 GB or more
System memory	32 GB DDR5 dual-channel	64 GB or more DDR5 dual-channel
Computer interface	USB 3.0	USB 3.0 or built-in Wi-Fi connection
macOS	macOS Tahoe 26.2; MacBook Pro M1 or Mac M3 and above; 16 GB RAM	macOS Tahoe 26.2; MacBook Pro M3 Max or Ultra and above; 24 GB RAM or more

The manufacturer specifies a high-performance workstation for Rockit. Confirm EXStar Hub compatibility with the exact computer and operating-system version before purchase.

Standards & Safety Compliance

Standards & Safety Compliance: EINSTAR Rockit 3D Scanner
Certifications	CE, FCC, RoHS, WEEE, FDA, SRRC, and IP50

Download product brochure ↗

Interactive results

Inspect representative scan data.

Load a model to examine surface detail and captured geometry.

Interactive scan mesh

Shining mascot coin

Rotate and zoom through the captured geometry. Inspect the surface detail from every angle.

Rotate 360° Zoom Surface mesh view

Package contents

What arrives with the selected system.

Review the documented hardware, included accessories and software access for this product.

EINSTAR Rockit Standard Package

Scanner, calibration tools, power components, markers, and carrying protection.

EINSTAR Rockit 3D scanner
Carrying case
Calibration board
Universal holder for the calibration board
Power adapter
Rechargeable 5500 mAh battery
Battery compartment
Battery-compartment charging cable
Type-C cable for the scanner and battery compartment
3 mm and 6 mm reflective markers
Wrist strap
Packing list
EXStar Hub software download

The manufacturer presents a rechargeable battery in the standard package, while regional FAQ wording can differ on battery quantity. Confirm the final regional package and plug type before fulfillment.
