PROFESSIONAL HYBRID-LIGHT 3D SCANNER

EinScan H2

Full Color 3D Scanning for Objects, People, and Medium to Large Parts
Capture detailed geometry and high-resolution texture using white LED and infrared VCSEL scanning modes. EinScan H2 is designed for professional workflows that require flexible object sizes, dark-surface capability, full-color capture, and comfortable non-contact scanning.
  • Accuracy up to 0.05 mm
  • Up to 1,200,000 points/second
  • 5MP full-color texture camera
$5,299.00

Request Configured Quote Check Application Fit Request a Demo
Compatible accessories, software, training, workstation requirements, and available protection options can be included in your configured quote.
APPLICATION FIT

Where EinScan H2 Fits Best

Evaluate whether your workflow benefits from hybrid white-light and infrared capture, full-color texture, and handheld scanning across medium-to-large targets.

01

Reverse engineering

Capture physical parts as 3D data to support scan-to-CAD reconstruction, redesign, and technical documentation.

Mechanical parts, legacy components, replacement parts, and product-development references.

02

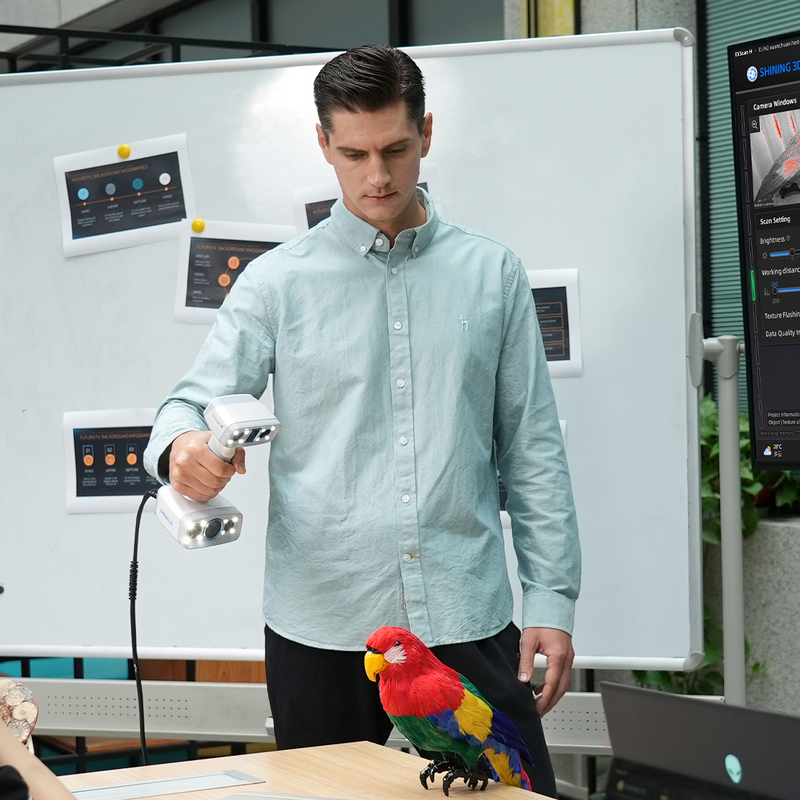

Full-color digitization

Combine detailed geometry with high-resolution color and texture for realistic digital models and visual assets.

Combine detailed geometry with high-resolution color and texture for realistic digital models and visual assets.

03

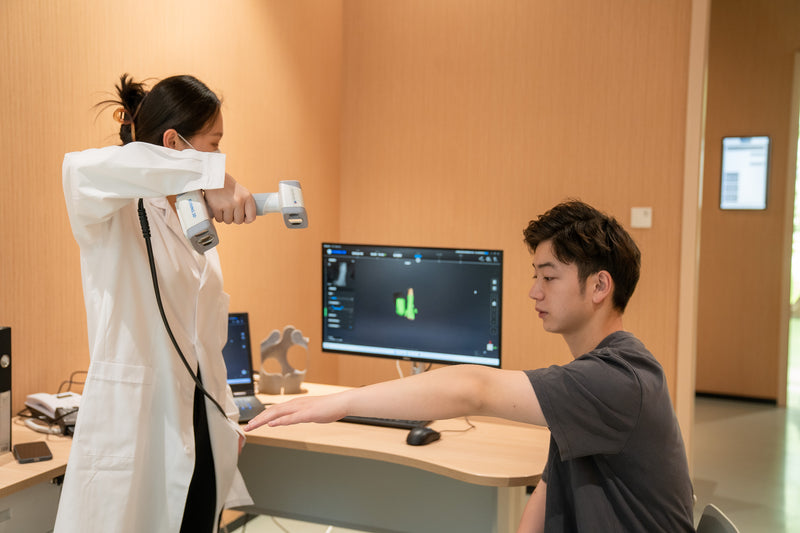

Face and body scanning

Use infrared capture for comfortable non-contact scanning of portraits, people, dark hair, and human-form data.

Portrait, body, research, orthotics and prosthetics workflow evaluation, and customized human-form applications.

04

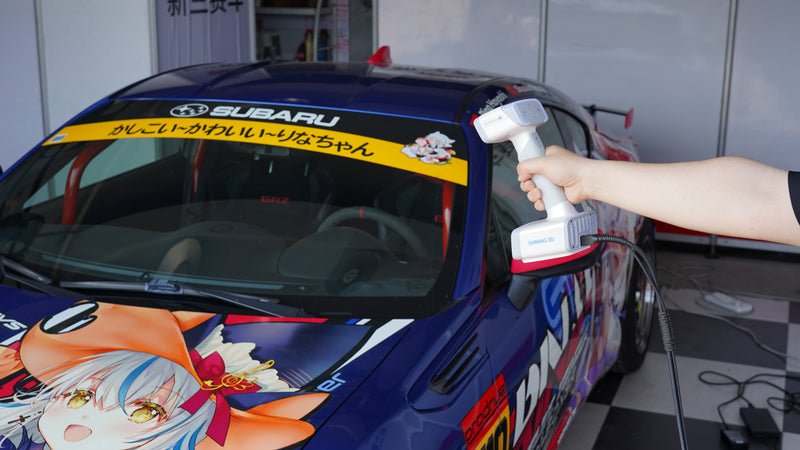

Medium-to-large object capture

Create reusable 3D records of parts, tools, and physical assets for future reference.

Adjust working distance and coverage to capture products, props, sculptures, and larger physical assets efficiently.
KEY PERFORMANCE

Performance for Flexible Full-Color Capture

Manufacturer-published performance highlights across EinScan H2 white-light and infrared scanning workflows.

Accuracy
up to 0.05
mm
Published accuracy in LED mode
SCAN SPEED
Up to 1.2M
points/s
Published maximum acquisition speed
MAXIMUM FIELD OF VIEW
780 × 900
mm
Published maximum field of view in IR mode
POINT DISTANCE
0.2 - 3
mm
Adjustable detail range for supported projects

Specifications are mode-dependent. Maximum field of view applies to infrared scanning, while the highest published accuracy applies to LED mode. Actual results depend on the target, surface, working distance, alignment method, environment, workstation, and processing settings.
COMPARE PROFESSIONAL SCANNERS

How EinScan H2 Compares for Professional 3D Scanning

Compare EinScan H2 with comparable professional handheld scanners across accuracy, color capture, field of view, scanning technology, target flexibility, and workflow fit.
EinScan H2
Recommended
EinScan H2
Hybrid LED + infrared handheld scanner for detailed objects, full-color capture, and face/body scanning.
BEST FIT Full-color digitization, reverse engineering, medium-to-large objects, and human scanning.
TRADE-OFF PC-connected; demanding reflective surfaces may require preparation or application testing.
Artec Eva
Artec Eva
Professional structured-light scanner for medium-sized objects, people, and full-color capture.
BEST FIT Target-free scanning, medium objects, human scanning, and established Artec Studio workflows.
TRADE-OFF Lower published accuracy and texture-camera resolution than H2; no dedicated infrared capture mode.
Peel 3
Peel 3
Professional IR-VCSEL handheld scanner focused on engineering and reverse-engineering workflows.
BEST FIT Engineering teams, medium-to-large objects, and CAD-oriented scanning workflows.
TRADE-OFF Single IR capture architecture and smaller published scanning area than H2.
Published accuracy
Manufacturer-published maximum point accuracy; measurement methods may differ.
Up to 0.05 mm
Up to 0.1 mm
Up to 0.05 mm
Capture technology
Hybrid white LED + infrared VCSEL
White structured light
Infrared VCSEL
Published capture area / field of view
Up to 780 × 900 mm in IR mode
Up to 536 × 371 mm at furthest working range
340 × 475 mm scanning area
Full color capture
Yes - dedicated 5MP texture camera
Yes - 1.3MP texture resolution
Yes - published color resolution of 50–200 DPI
Face and body workflow
Dedicated IR portrait workflow and human-scanning optimization
Supports safe structured-light scanning of people
General-purpose scanning rather than a dedicated portrait workflow
Medium-to-large target flexibility
Strong - wide IR field of view and mode-dependent working distance up to 1.5 m
Strong - designed primarily for medium-sized objects
Strong - recommended object size approximately 0.1–3.0 m
Dark or challenging surfaces
IR mode supports black and slightly reflective objects
Supported through Artec scanning and HD processing workflows
IR-VCSEL workflow designed for general professional object capture
One-scanner workflow versatility
Object + color + infrared object + portrait/body workflows
Professional structured-light object and human scanning
Professional object and engineering scanning
Reverse-engineering workflow
EXScan H with optional EXModel and downstream engineering software
Artec Studio ecosystem with professional downstream workflows
peel.OS with optional peel.CAD and peel.CAD Pro
Strongest reason to choose
Hybrid capture, 5MP full-color texture, wide IR coverage, and dedicated object + human workflows in one scanner
Mature professional structured-light platform and established Artec software ecosystem
Engineering-focused workflow, strong ergonomics, and integrated peel software options
Specifications and capabilities are based on manufacturer-published information reviewed in August 2026. Values may use different test methods, modes, software versions, and operating conditions. SKYLAB3D recommends validating the scanner against the actual target and required deliverable before purchase.
Comparison is based on manufacturer-published specifications and workflow positioning. Specifications use different test methods and operating modes, so final selection should be validated against the actual application.
Check Application Fit Request Configured Quote
CAPTURE WORKFLOW

Choose the Right H2 Scan Mode

Select white-light scanning for higher-detail object capture, or use infrared portrait and object workflows when subject comfort, dark materials, or wider-area capture matter.

MODE 1

White-light scanning for detailed object workflows

Use white LED structured light when geometry quality, color texture, and the highest published H2 accuracy are priorities for object scanning.

  • Supports detailed capture for reverse engineering, design, documentation, and digital archiving
  • Optional texture capture uses the H2’s 5MP color camera
  • Supports feature, texture, marker, global-marker, and hybrid alignment workflows
Best suited to non-black, non-reflective objects. Dark, highly reflective, or polished surfaces may require another mode, surface preparation, or application testing.
Surface type
Regular, textured, non-black surfaces
Detail priority
Highest H2 accuracy and detail
Throughput
Controlled detailed capture
CONFIGURE YOUR WORKFLOW

Choose the H2 Support Level That Fits Your Team

Start with the scanner, add the software and output workflow you need, or configure a guided deployment around your application, users, and operating environment.

SCANNER PACKAGE

EinScan H2 Scanner Configuration

Core hybrid-light and full-color scanning capability for teams that already have downstream software, technical resources, and an established implementation plan.

  • EinScan H2 scanner and manufacturer-standard package
  • EXScan H capture, alignment, processing, and mesh-export workflow
  • Pre-purchase application and configuration review
  • Formal quote, purchase-order, and procurement support

Best for: Teams with an existing CAD, visualization, 3D-printing, documentation, or digital-asset workflow.

Scanner configuration; optional services and software quoted separately.

Request Scanner Quote Check Application Fit
RECOMMENDED WORKFLOW
RECOMMENDED WORKFLOW

H2 Software & Output Workflow

Scanner plus a selected software path for teams that need usable mesh, CAD, 3D-printing, visualization, or full-color digital deliverables.

  • EinScan H2 scanner configuration
  • EXScan H capture, alignment, point-cloud, and mesh-processing workflow

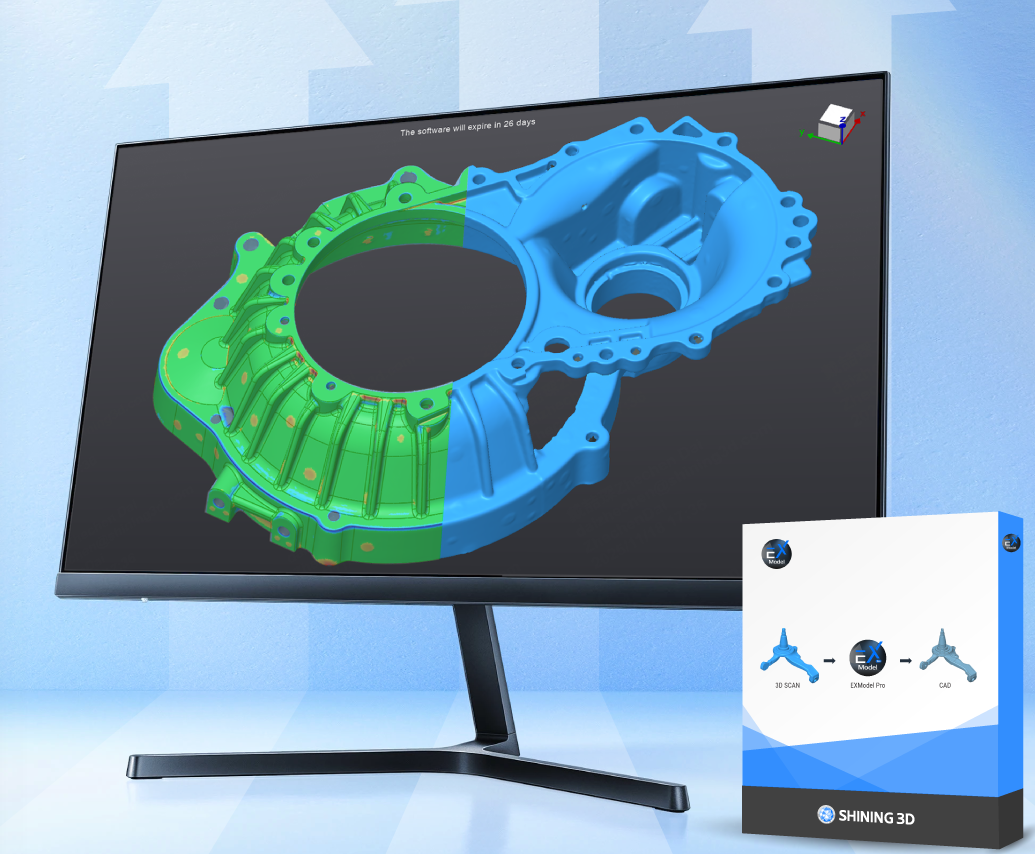

  • Optional EXModel or compatible downstream software path selected for the required result
  • Output planning for CAD, 3D printing, visualization, documentation, or digital archiving

Best for: Teams that need guidance moving from captured scan data to a defined engineering or digital output.

Configured with selected software and workflow support.

Request Workflow Quote Review Software Options
GUIDED DEPLOYMENT

H2 Guided Deployment

A configured scanner and software rollout supported by application planning, training, and workflow-adoption guidance.

  • EinScan H2 scanner configuration
  • Selected software and output workflow
  • Workstation, accessories, and deployment planning
  • Remote or on-site training quoted to scope

Best for: New scanning teams, multiple users, or organizations seeking a repeatable rollout with reduced implementation risk.

Configured according to application, training, and deployment scope.

Request Deployment Quote Discuss Training
Compatible accessories, software, training, workstation requirements, and available protection options can be included in the configured formal quote.
SOFTWARE WORKFLOW

From H2 Capture to Usable 3D Data

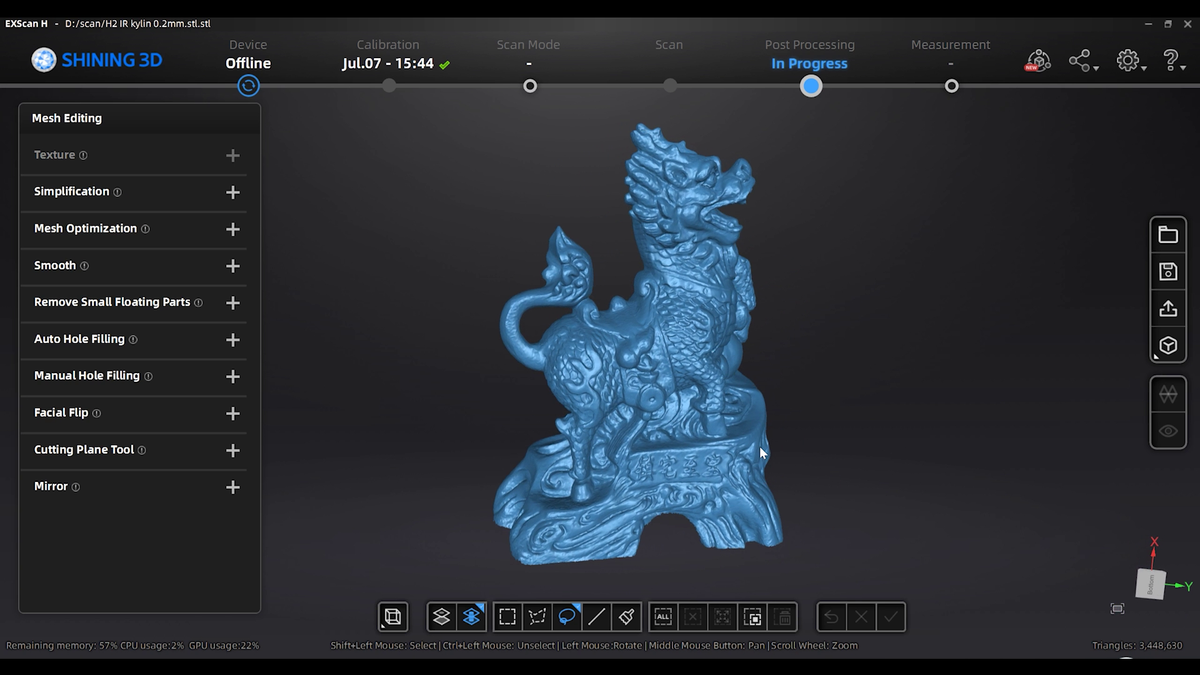

Move from acquisition in EXScan H through point-cloud processing, meshing, optional downstream software, and the deliverable required by your workflow.

STAGE 1

Capture and align in EXScan H

Select the appropriate H2 scan mode, configure the project, preview the target, and acquire aligned scan data from the required views.

  • Choose White Light, IR Portrait, or IR Object scanning for the application
  • Set project resolution, texture, brightness, and alignment options
  • Preview the target, capture the required views, and generate the point cloud

Capture quality depends on the selected mode, target geometry, surface condition, working distance, environment, alignment strategy, and workstation performance.

Review scan modes

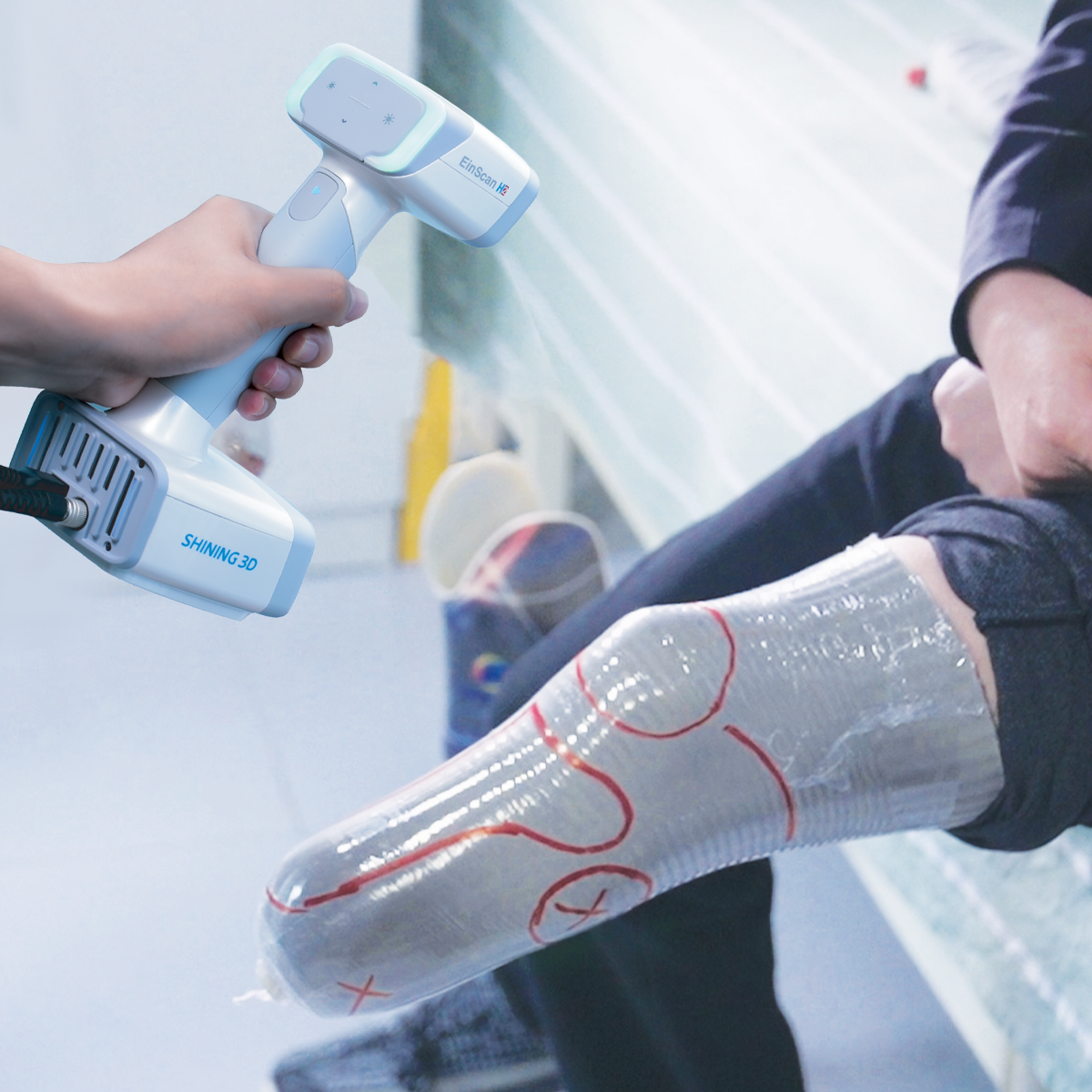

EinScan H2 3D scanner product view

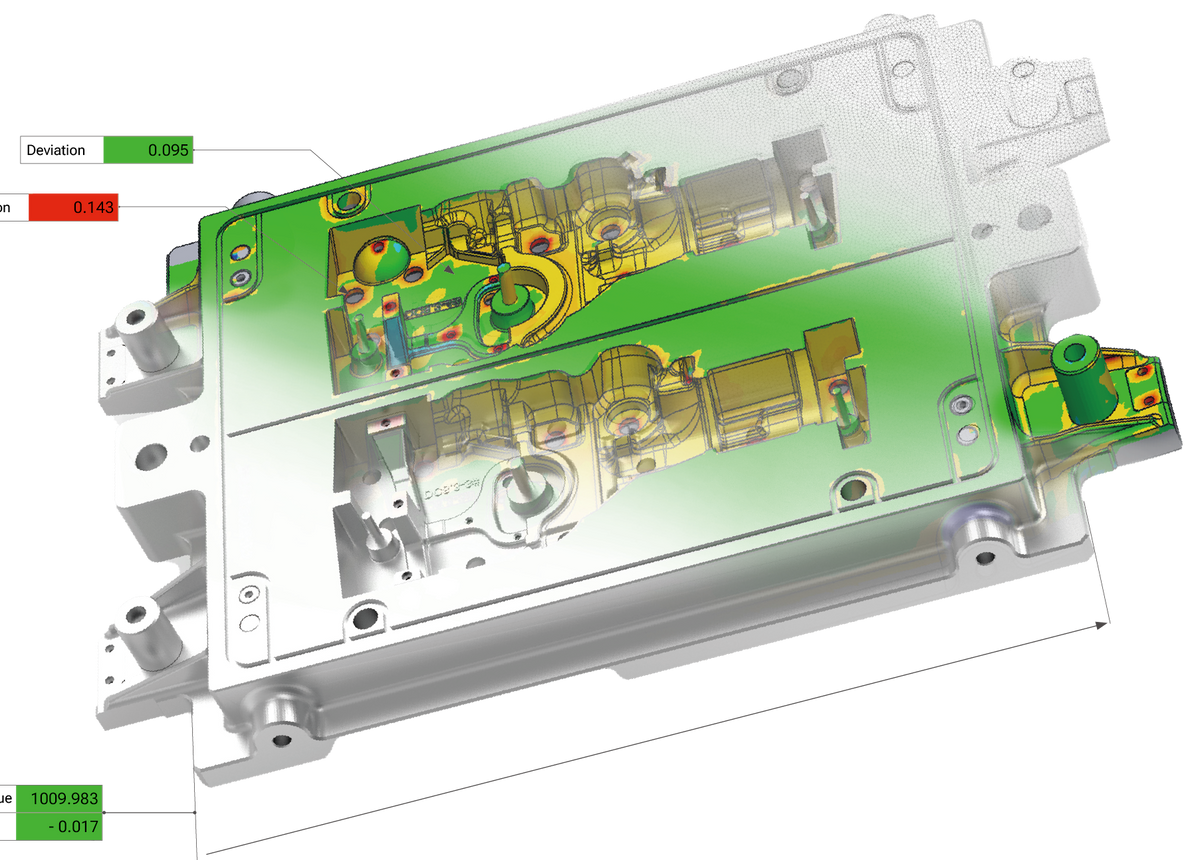

SUPPORTED DATA EXPORTS
ASC STL OBJ PLY 3MF
TRAINING & DEPLOYMENT

Move from Scanner Delivery to a Repeatable H2 Workflow

Configure application review, system preparation, user enablement, and follow-up support around your parts, team, software path, and operating environment.

1
APPLICATION REVIEW

Confirm the operating workflow

Review the targets, surfaces, required detail, texture needs, deliverables, workstation, software path, team experience, and capture environment before configuration.

The scanner, software, accessories, training, and deployment scope are confirmed before quotation.

2
SYSTEM PREPARATION

Configure the H2 scanner and software path

Prepare the EinScan H2 configuration, EXScan H workflow, scan modes, alignment approach, processing path, workstation considerations, and intended deliverables.

Hardware, software, accessories, and workstation requirements depend on the approved application and selected workflow.

3
GUIDED ENABLEMENT

Train around the customer’s targets and process

Provide remote or on-site guidance covering scanner setup, mode selection, capture technique, alignment, point-cloud review, mesh processing, export, and repeatable operating practices.

Delivery method, agenda, duration, location, target types, and number of participants are quoted according to scope.

4
WORKFLOW ADOPTION

Support the move into regular use

Address early workflow questions, reinforce repeatable practices, and identify adjustments needed for new target types, users, or downstream requirements.

Post-deployment support is defined in the formal quote and is not unlimited or automatically included.

AVAILABLE SUPPORT PATHS

Configure the Right Enablement Path

Training should match the application, team experience, software path, target types, and operating environment - not a generic fixed package.

Remote workflow onboarding

Application-focused guidance for H2 setup, scan-mode selection, capture, alignment, processing, export, and initial workflow adoption without on-site travel.

Scope, delivery method, agenda, and participant needs are confirmed in the formal quote.

On-Site Training and Deployment

Instructor-led guidance at the customer location using the agreed scanner configuration, software path, targets, and operating environment.

Location, travel, expenses, duration, site access, availability, and agenda are confirmed before scheduling.

Continued Workflow Support

A separately scoped path for follow-up questions, workflow refinement, new target types, additional users, or downstream-process changes after initial deployment.

Follow-up scope and commercial terms are defined separately in writing.

Training, travel, software, workstation preparation, and continued support are included only when documented in the final quote.
Discuss Training & Deployment Check Application Fit
Training and deployment are configured around your targets, team, software path, and operating environment. Scope and commercial terms are confirmed before quotation.

PURCHASE CONFIDENCE

Protect the H2 Investment and Document the Purchase

Final coverage, support, delivery, configuration, and commercial terms are confirmed in the formal quote and order documents.

Standard Product Coverage

Manufacturer warranty and support terms applicable to the selected EinScan H2 configuration are documented before order.

Coverage, exclusions, registration requirements, claim procedures, and service responsibilities follow the final manufacturer and order terms.

Optional Extended Protection

Where available, optional protection extensions can be reviewed when longer operating or budget protection is desired.

Availability, eligibility, duration, price, coverage, and any recertification requirements are confirmed separately and are not automatically included.

Support and service routing

SKYLAB3D helps route product, software, training, and deployment questions through the appropriate support path.

Service ownership, response expectations, deliverables, and commercial scope depend on the selected package and final written documents.

BUSINESS PURCHASING

Built for a Documented B2B Purchase

Configure the H2 solution first, then confirm scope, commercial terms, fulfillment details, and required documentation before commitment.

Configured formal quote

Hardware, software, accessories, training, support, pricing, quote validity, and selected package scope are documented for review.

Purchase-Order Support

Formal quotations and purchase-order workflows can be supported for eligible business and institutional purchases.

Tax-Exempt Documentation

Tax treatment is based on valid exemption documentation and applicable legal and administrative requirements.

Configuration and Delivery Confirmation

Selected H2 configuration, supplier availability, lead time, shipping destination, included items, and delivery responsibilities are confirmed before order.

Request Configured Quote Check Application Fit

No protection, service, delivery, or commercial term is assumed unless shown in the final quote or order documents.
TECHNICAL SPECIFICATIONS

EinScan H2 Technical Specifications

Manufacturer-published capture, operating, software, and workstation information for technical evaluation and workflow configuration.

Scanning Performance
Published maximum values vary by white-light or infrared operating mode.
Accuracy
Up to 0.05 mm
Published maximum accuracy in LED mode.
Scan speed
Up to 1,200,000 points/s
Manufacturer-published maximum acquisition speed.
Point distance
0.2 - 3 mm
Selectable range depends on scan target, mode, and project settings.
Maximum field of view
Up to 780 × 900 mm
Published maximum field of view in infrared mode.
Overall working-distance range
200 - 1,500 mm
Available range is mode dependent; the longest published range applies to infrared portrait scanning.
Capture Technology
Hybrid capture supports detailed object scanning, color digitization, and infrared human or dark-surface workflows.
Light sources
White LED and infrared VCSEL
Infrared light is invisible during operation.
Infrared projection system
3 VCSEL projectors
Texture camera
5 MP color camera
Available scan workflows
White Light, IR Portrait, and IR Object
Alignment methods
Global Markers, Feature, Hybrid, and Texture
Color and texture capture
Supported
Texture availability depends on the selected project and capture settings.
Target Size & Working Range
Working distance and project resolution should be selected according to target size and required detail.
White-light working distance
200 - 700 mm
IR portrait working distance
200 - 1,500 mm
IR object working distance
200 - 700 mm
Medium-object project
100 × 100 × 100 to 300 × 300 × 300 mm
Large-object project
Larger than 300 × 300 × 300 mm
Scanner operating format
Handheld scanning
Fixed scanning is not supported.
Software & Data
Included scanning software and optional downstream applications serve different workflow stages.
Scanning software
EXScan H
Supports calibration, capture, alignment, point-cloud processing, meshing, editing, measurement, and export.
Point-cloud export
ASC
Mesh exports
STL, OBJ, PLY, and 3MF
Global-marker data
P3
Used to preserve and reuse global-marker positioning data.
Compatible software examples
EXModel, Geomagic Design X, EXScan O&P, and BlueStar Mapping
Optional applications and licenses are selected and quoted separately according to the required workflow.
Recommended Workstation
Current EXScan H recommendations; larger or higher resolution projects may benefit from additional processing capacity.
Operating system
Windows 10 or Windows 11, 64-bit
Processor
Intel Core i7-8700 or above
Graphics card
NVIDIA RTX 3060 or above
Graphics memory
4 GB VRAM or above
System memory
32 GB RAM or above
Connection interface
USB 3.0
Graphics platform requirements
CUDA 10.2+ and OpenGL 4.3+
Use of a supported NVIDIA discrete GPU is recommended for smoother scanning and processing.

Source: SHINING 3D EinScan H2 product information and current EXScan H documentation. Information reviewed August 4, 2026. Manufacturer specifications and software requirements may change.

Request Configured Quote
DOCUMENTATION & RESOURCES

Verified EinScan H2 Product Documentation

Review manufacturer-published product information, software guidance, setup instructions, and operating documentation before final configuration and deployment.
Only documentation verified for the applicable product, software version, and workflow is shown. Commercial, warranty, regional compliance, and certification documents are confirmed separately when applicable.
  • PRODUCT DOCUMENTATION

    EinScan H2 Product Brochure

    Manufacturer brochure containing consolidated product positioning, capabilities, applications, and detailed technical specifications.

    Issuing organization: SHINING 3D
    Applicable model: EinScan H2
    Region/market: English-language manufacturer brochure
    Reference number: EinScan H2-EN 20241010-V1.1
    Status: Available from the official brochure download center
    Download EinScan H2 Brochure

    Select the EinScan H2 English brochure from the Professional 3D Scanner Brochure section.

Request Additional Documentation Request Configured Quote
Linked resources are maintained by SHINING 3D and may change without notice. Request the applicable commercial, warranty, compliance, or configuration documentation when it is required for purchasing or internal approval.

Compare products

{"one"=>"Select 2 or 3 items to compare", "other"=>"{{ count }} of 3 items selected"}

Select first item to compare

Select second item to compare

Select third item to compare

Compare
