01

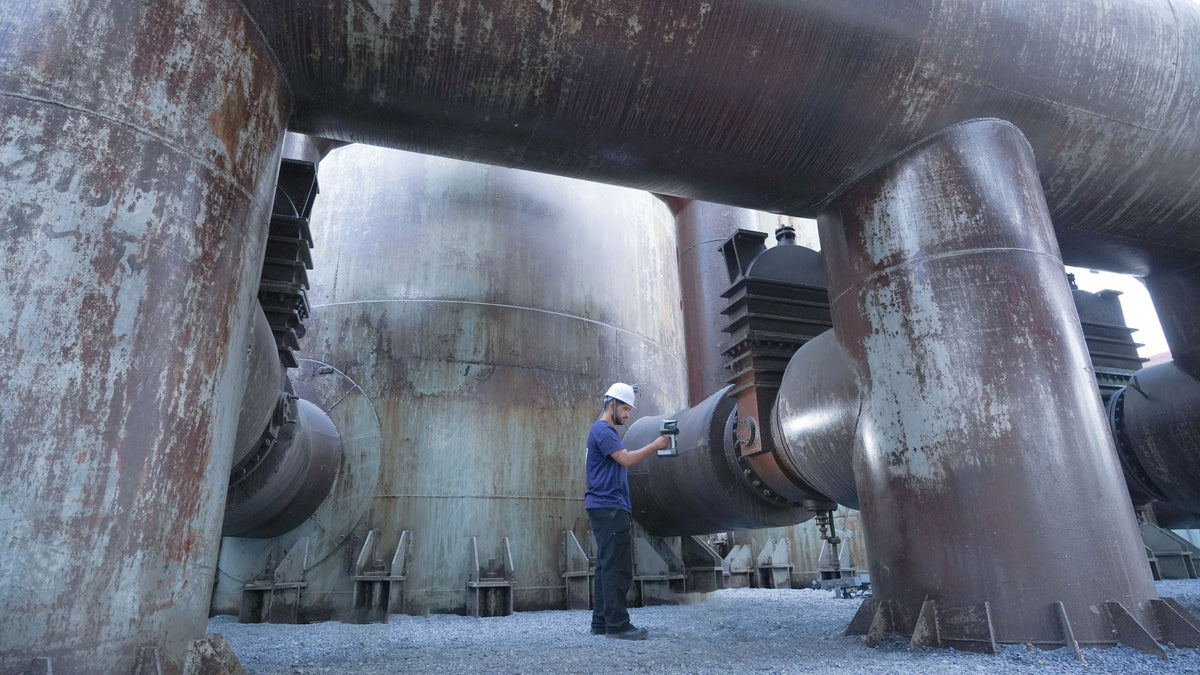

Fully wireless, standalone scanning with complete on-device scan-to-mesh processing
WIRELESS ALL-IN-ONE 3D SCANNING
Scan, process, and mesh without a laptop
Wireless, standalone handheld laser and infrared 3D scannerScanner type
0.1 m to over 10 mRecommended object size
IR Rapid: IR VCSEL; IR Adaptive: 38 IR laser lines; Laser HD: 101 blue laser linesScan modes / light sources
Up to 0.04 mmPoint accuracy
System architecture
Configure the complete measurement workflow.
EinScan Libre is a wireless, standalone 3D scanner with blue laser, infrared scanning, onboard NVIDIA processing, a 5.5-inch OLED screen, and 48 MP color capture.
Use Laser HD for detailed surfaces, IR Rapid for larger objects without markers, and IR Adaptive for dark or reflective surfaces. Scanning, basic editing, meshing, and export can all be completed on the scanner, so a laptop is not required in the field.
EXScan Libre PC software is included for more advanced editing, measurement, multi-resolution fusion, and project transfer. EXModel, BlueStar Mapping, Geomagic Design X, the Libre Backpack, training, and extended warranty coverage are optional. A one-year manufacturer warranty and standard shipping are included.
Match the system to the part, tolerance, environment, output, software stack, training need, and protection plan. Every selected option is included in the technical review.
Configuration
Build the system you need.
Select any optional protection, software, accessories, and training.
Configured total$28,999.00
Core system only
Your selected options will be prefilled on the recommendation and quote form.
System comparison
Compare the core system before adding options.
Review the core hardware first, then choose software, training, accessories, and protection.
| Decision point | Recommended for flexible field workflowsEinScan Libre (Wi-Fi)Flexible field work with wireless project transfer and PC connectivity | EinScan Libre (without Wi-Fi)Controlled or cable-only environments using USB-C or Gigabit Ethernet |
|---|---|---|
| Standalone scan-to-mesh | Included | Included |
| Three scan modes | Included | Included |
| Onboard computing and storage | Included | Included |
| USB-C and Gigabit Ethernet transfer | Supported | Supported |
| Wi-Fi 6 connectivity | Supported | Not included |
| Recommended choice | Mobile and flexible workflows | Network-restricted environments |
Standard system contents
Every major component, connection, and calibration item.
High-value systems are quoted as a complete operational package; exact quantities and region-specific items are confirmed on the formal quote.
01
EinScan Libre Standard Package
Verified against the current SHINING 3D EinScan Libre packing list.
- EinScan Libre scanner
- Two rechargeable batteries
- Battery charging dock
- Markers
- Power adapter
- Six individual calibration boards or two folding calibration boards
- Marker remover
- Scale bar
- Documentation
- Ethernet cable
- Charging-dock power line
- USB-C to USB-C cable
- World travel adapter kit
- USB drive with EXScan Libre PC software
- Included onboard scanning and processing software
The EinScan Libre Backpack, EXModel, BlueStar Mapping, Geomagic Design X, extended coverage, and training are optional and not included. Regional calibration-board format and plug type may vary.
System advantages
High-value capability without workflow friction.
Evaluate the measurable gains in setup, coverage, portability, capture speed, and confidence across large-volume inspection work.
02

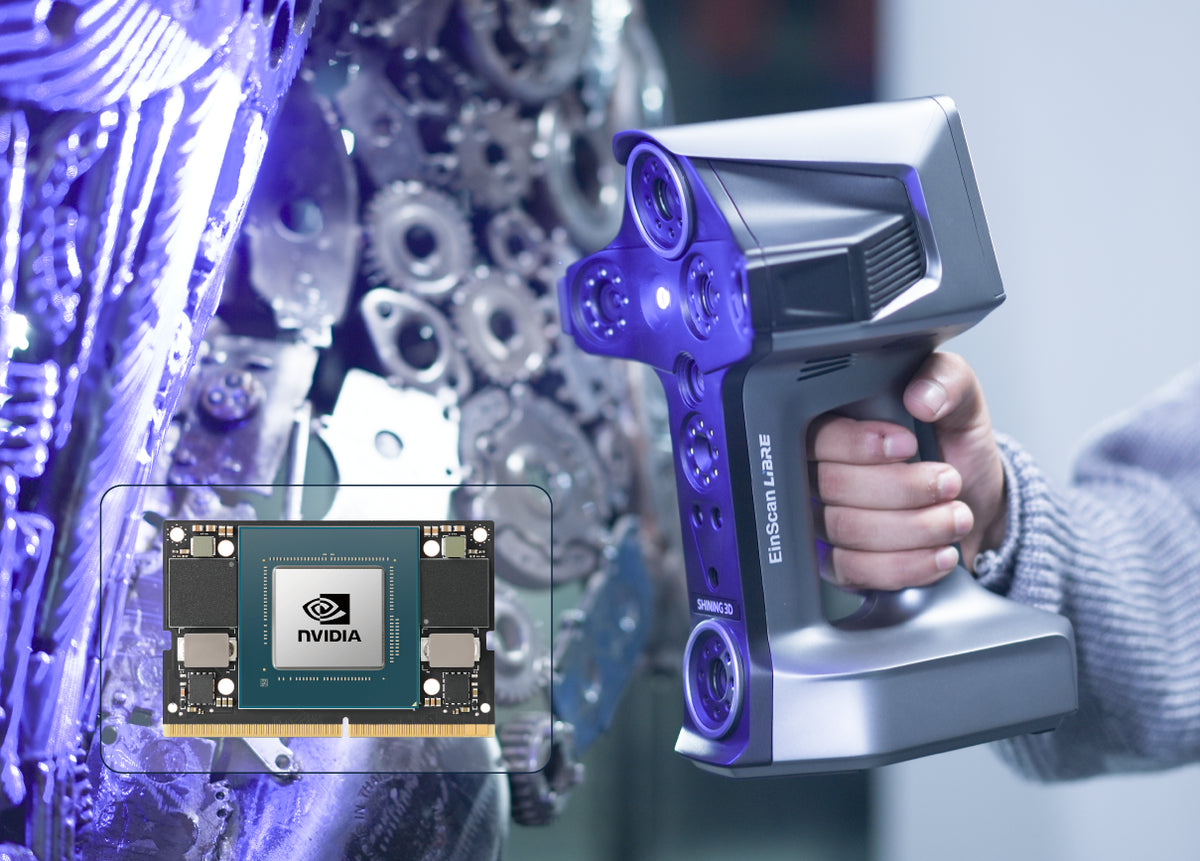

Integrated NVIDIA Jetson Orin NX, 1 TB SSD, and 5.5-inch OLED touchscreen
03

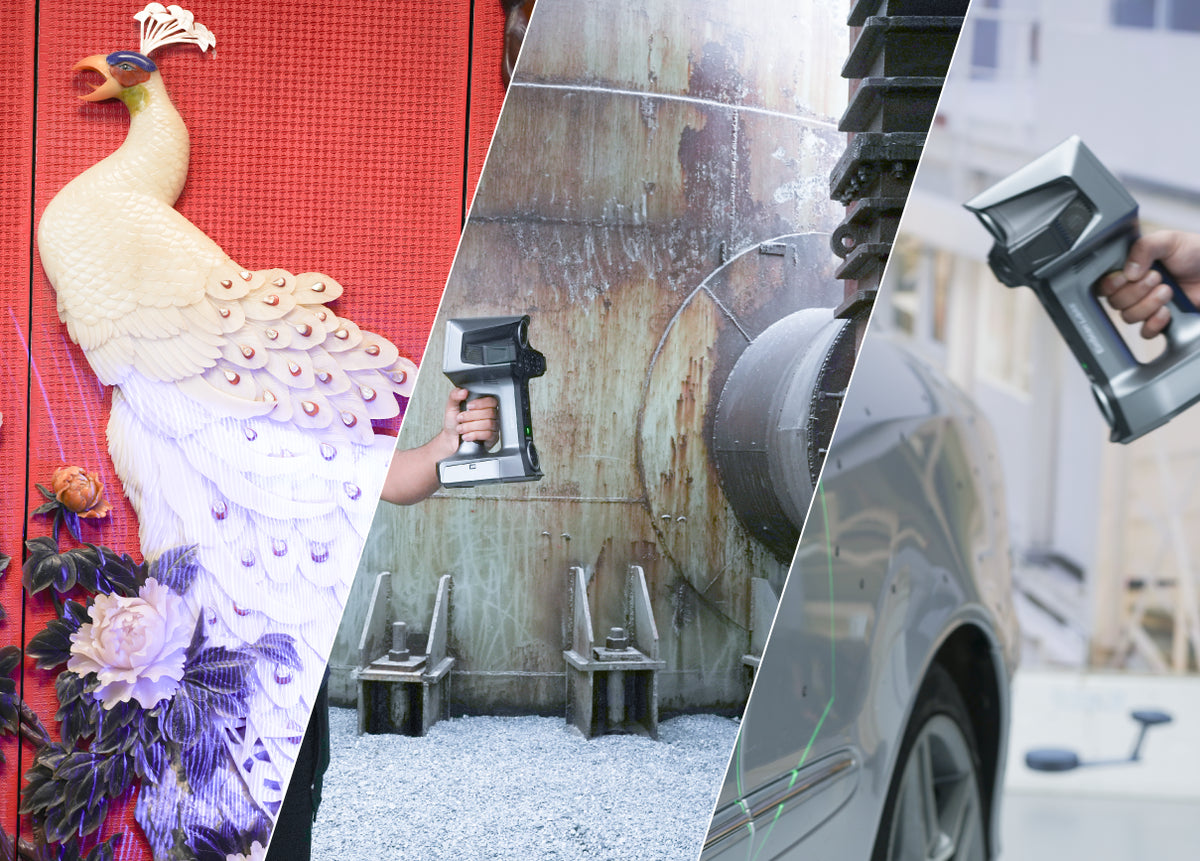

Three scan modes cover objects from 0.1 m to over 10 m and a wide range of surfaces
04

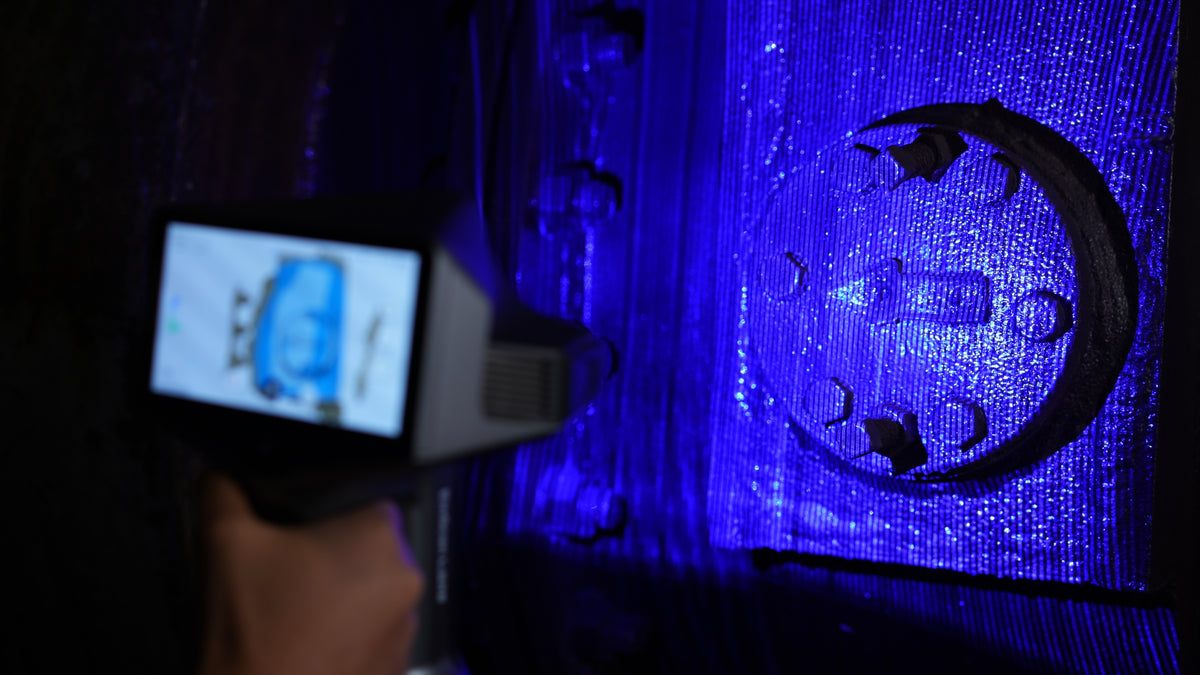

Laser HD uses 101 blue laser lines for high-detail, markerless textured scanning
05

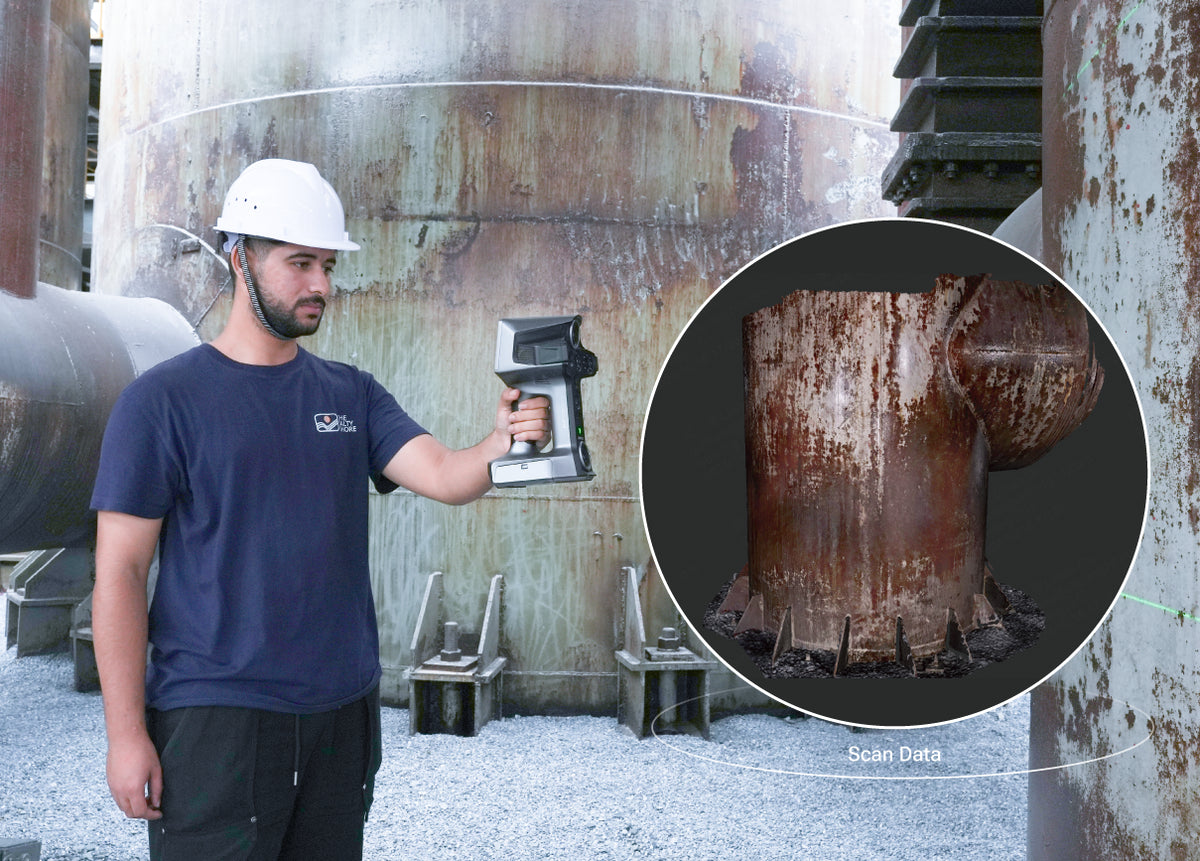

IR Rapid delivers wide-field, marker-free capture with working distance up to 1.5 m
06

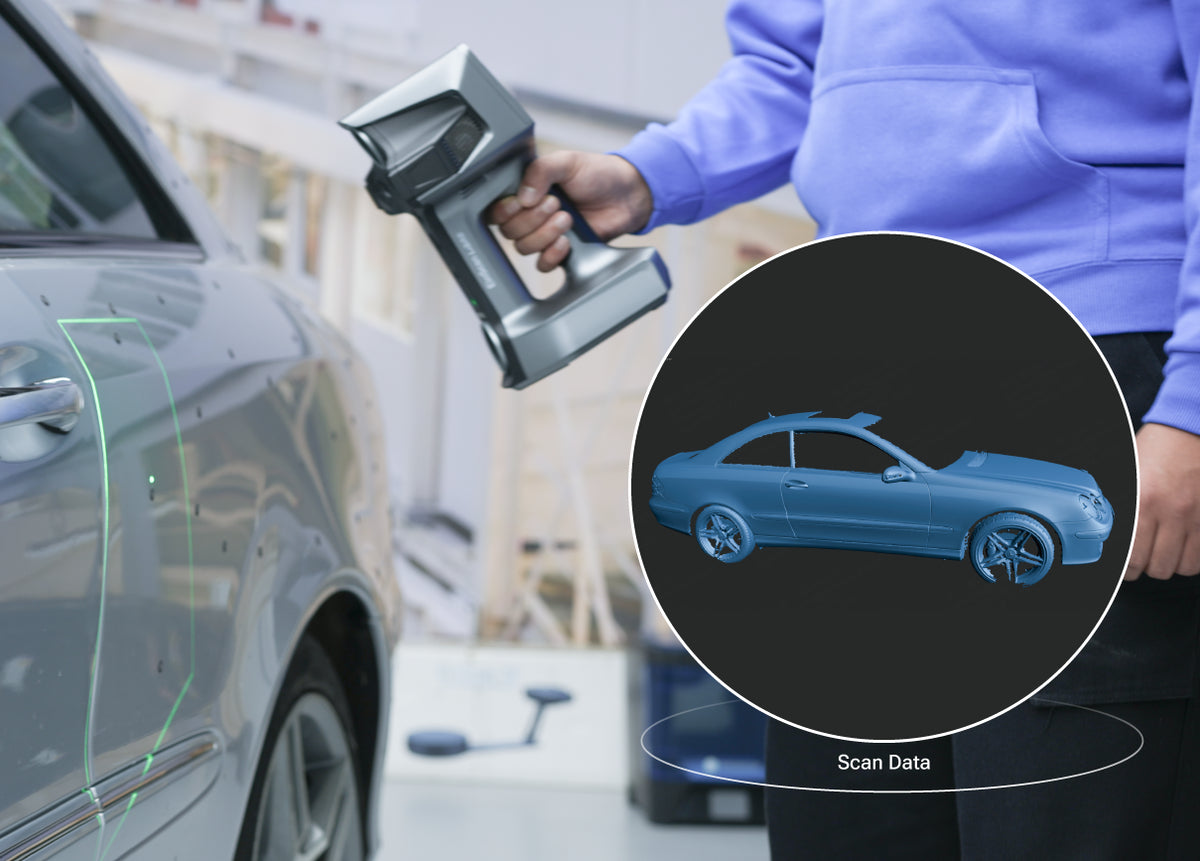

IR Adaptive uses 38 IR laser lines for reflective and black surfaces
07

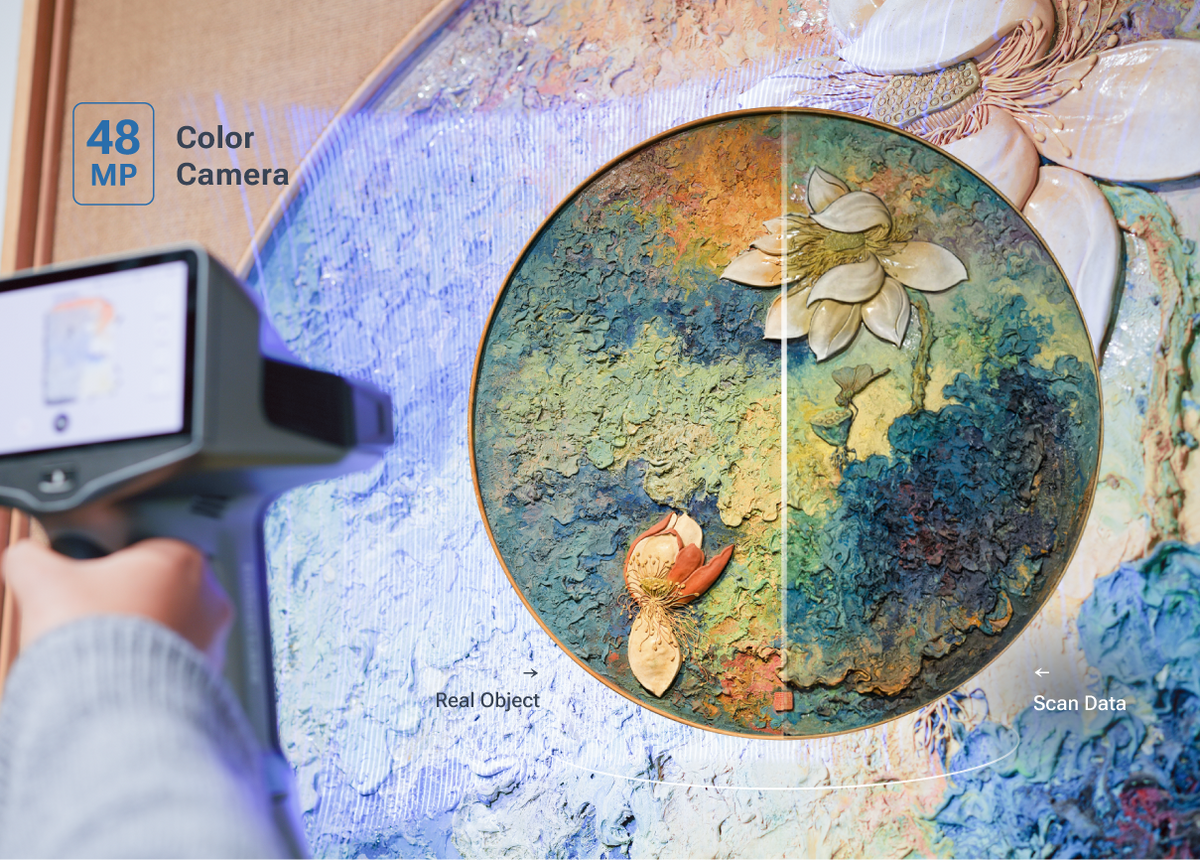

48 MP color capture produces lifelike texture for digital-twin and visualization work
Application proof
Built for parts that do not belong on a fixed CMM.
See how the system adapts to heavy industry, transportation, aviation, energy, and other large-component inspection environments.
01

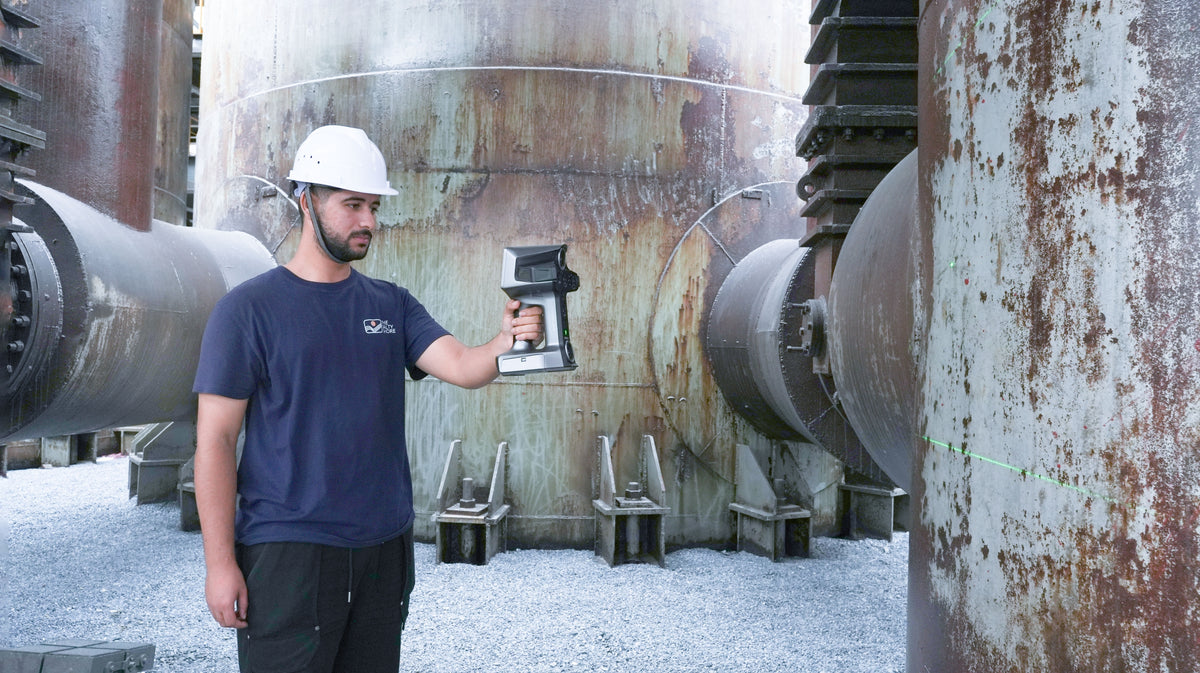

Reverse engineering and product development
02
Automotive modification, restoration, and customization
03

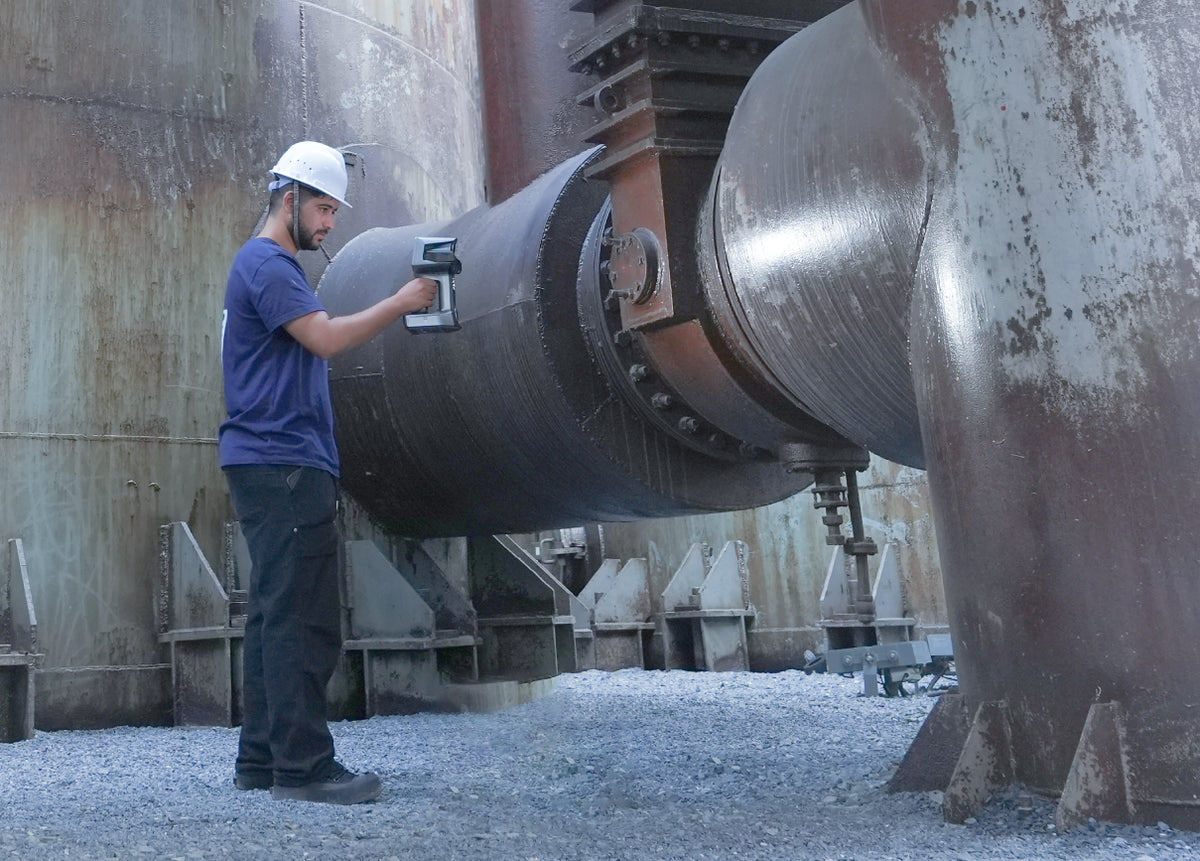

Energy, heavy-industry, and infrastructure field capture
04

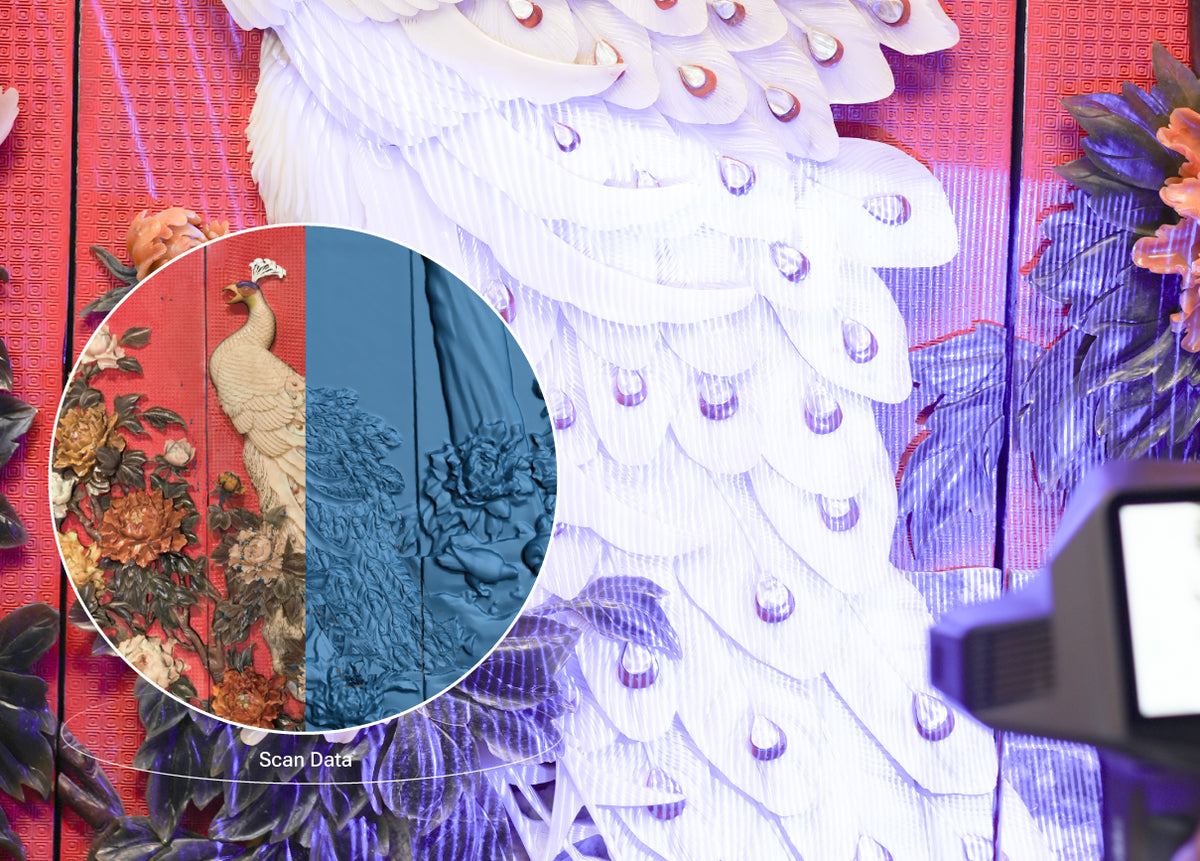

Cultural heritage, archaeology, art, and digital preservation
Video library
Evaluate the system under real operating conditions.
Move between unboxing, tracking, handheld capture, and application footage without leaving the page.
Video library
Select a video to begin
Watch demonstrations, tutorials, and real application workflows without leaving the product page.
Technical specifications
Technical evidence for engineering and IT.
Review measurement performance, operating envelope, connectivity, and the workstation needed to process the data.
Scanner typeWireless, standalone handheld laser and infrared 3D scanner
Recommended object size0.1 m to over 10 m
Scan modes / light sourcesIR Rapid: IR VCSEL; IR Adaptive: 38 IR laser lines; Laser HD: 101 blue laser lines
Point accuracyUp to 0.04 mm
Volumetric accuracyUp to 0.04 + 0.06 mm/m
Resolution (point distance)IR Rapid: 0.5 ~ 10 mm; IR Adaptive: 0.5 ~ 10 mm; Laser HD: 0.05 ~ 3.0 mm
Scan speedIR Rapid: 2,700,000 points/s; IR Adaptive: 1,900,000 points/s; Laser HD: 4,500,000 points/s
Field of viewIR Rapid: 370 × 470 ~ 983 × 979 mm; IR Adaptive: 370 × 470 ~ 779 × 835 mm; Laser HD: 165 × 200 ~ 382 × 450 mm
Working distanceIR Rapid: 500 ~ 1500 mm; IR Adaptive: 500 ~ 1200 mm; Laser HD: 200 ~ 500 mm
Alignment modesFeature, texture, hybrid, markers, and global markers
3D camera resolution5 MP
Color camera resolution48 MP
Output formatsSTL, OBJ, PLY, 3MF, ASC, and LAS
Included softwareOn-device scanning and processing software plus EXScan Libre PC software
Laser classificationClass II (eye safe)
Embedded processorNVIDIA Jetson Orin NX 16 GB; 8-core Arm Cortex-A78AE; Ampere GPU with 1024 CUDA cores; 100 TOPS
Internal storage1 TB SSD
DisplayBuilt-in 5.5-inch HD OLED touchscreen
InterfacesWi-Fi 6 on the standard model; USB-C; USB 3.0; Gigabit Ethernet
PowerTwo rechargeable batteries; up to 3 hours scanning time
ChargingSupports USB-C power banks or 100 W PD 3.0 fast-charge adapters
Scanner weight1.8 kg including battery; 1.6 kg excluding battery
Scanner dimensions162 × 182 × 266 mm
Operating temperature-10 ~ 50°C (14 ~ 122°F)
Operating humidity10 ~ 90% RH
| Component | Minimum | Recommended |
|---|---|---|
| Standalone scanning | No external PC required | Use the onboard scanner workflow for capture, editing, meshing, and export |
| Operating system for EXScan Libre PC | Not specified | Windows 10 or Windows 11, 64-bit |
| Processor for EXScan Libre PC | Not specified | Intel Core i7-11700 or higher |
| Graphics card for EXScan Libre PC | Not specified | NVIDIA GTX 1070 series or higher |
| Video memory for EXScan Libre PC | Not specified | 6 GB or more |
| System memory for EXScan Libre PC | Not specified | 32 GB RAM or more |
| PC connection | Not specified | Gigabit Ethernet, USB 3.0, or USB-C; Wi-Fi transfer is supported by the standard Wi-Fi model |
A PC is optional for scanning. These are SHINING 3D's recommended requirements for the included EXScan Libre desktop software used for expanded post-processing, measurement, and project management.
Interactive scan results
Inspect more than one related dataset.
Load the chosen model on demand, with a direct Sketchfab fallback for devices that cannot render the full scene.
Optional interactive preview
Automotive Body Shell Bracket
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
Guangong Character Model
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
Rusty Flange Gear Transmission Part
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
Sculpture
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
Porcelain Painting
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
Tube
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
Blue Relief
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
Shiny Artifact
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
Car Body
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Models published by Shining 3D on Sketchfab. Use the direct link if the embedded viewer exceeds the device's graphics capacity.
