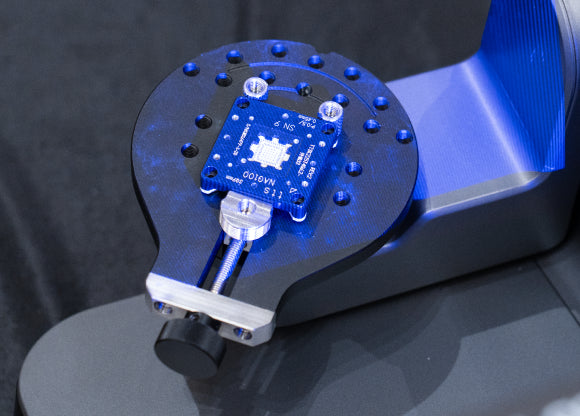

Metrology-grade accuracy up to 0.01 mm for small and detailed parts
PROFESSIONAL 3D SCANNING
One-click desktop metrology scanning for complex small parts
Up to 0.01 mmScan accuracy
140 × 90 × 80 mmScan volume
0.05 mmPoint distance
Feature and markersAlignment modes
Guided configuration
Configure the scanner, software, training, and coverage together.
AutoScan Inspec2 automates small-part capture with 0.01 mm accuracy, dual 5 MP cameras, and a three-axis turntable. It is designed for repeatable inspection, reverse engineering, and precision manufacturing workflows.
Select the software, training, and protection needed for the intended workflow. Your choices carry into the recommendation request for technical review.
Configuration
Build the workflow your application requires.
Select the protection, software, add-ons, and training needed for a complete working system.
Configured starting point$9,999.00
Core system only
Continue with this configurationYour selected options will be prefilled on the recommendation and quote form.
Package contents
The complete standard system, itemized.
Review the physical system, power and data connections, markers, software access, and documentation before requesting the configuration.
01
AutoScan Inspec2
Standard automated scanning system
- AutoScan Inspec2 integrated scanner system
- Three-axis automated turntable
- UltraScan scanning software (included)
- Power adapter and regional power cable
- Marker set
- Calibration accessories supplied for the system
- Quick-start and product documentation
The final packing list and accessory quantities are confirmed on the formal quote because manufacturer packing revisions can vary by region.
Key features
How the system performs in day-to-day use.
Review the features that affect setup time, repeatability, inspection speed, and output quality.
02

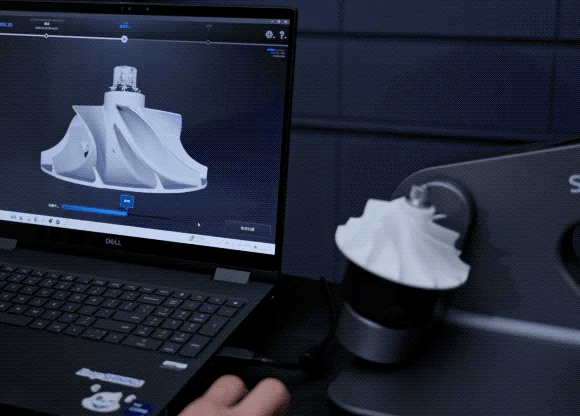

Three-axis automatic scanning reduces repositioning and operator variability
03

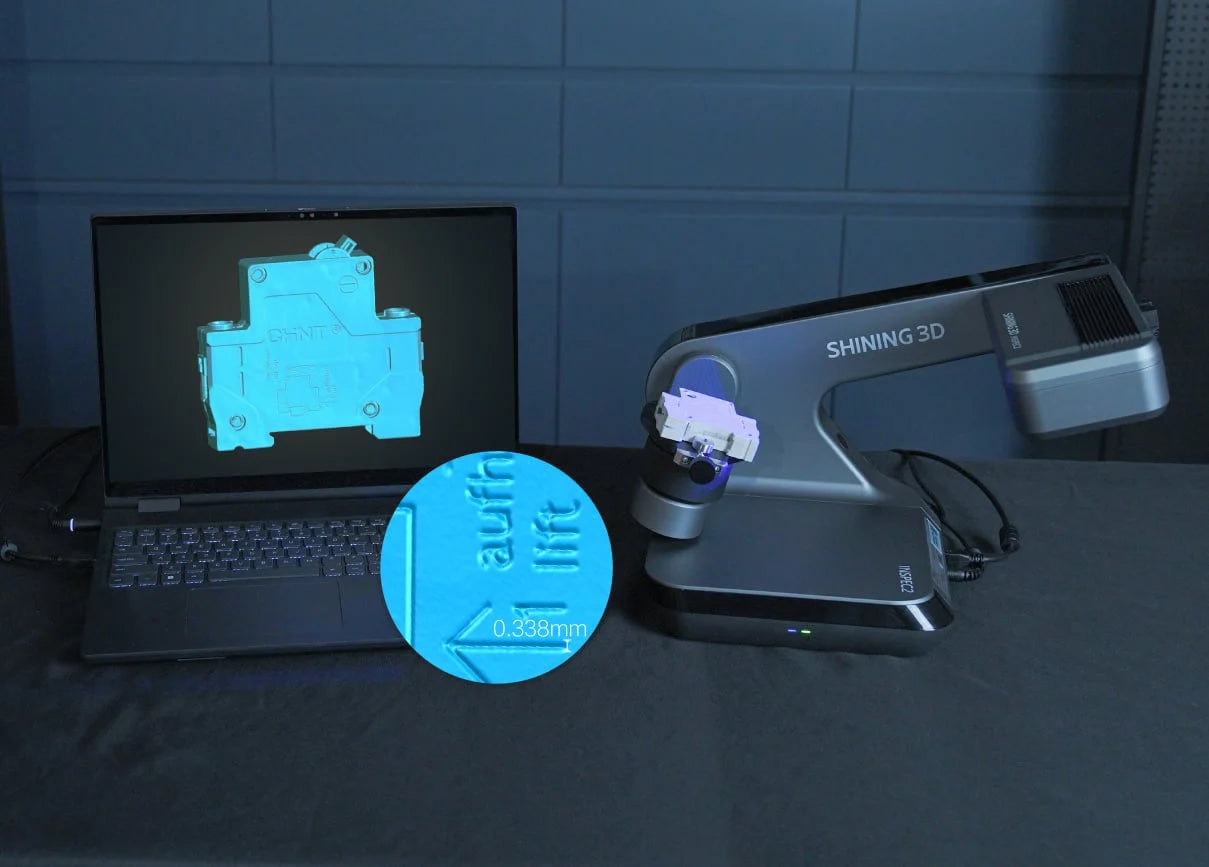

Dual 5 MP cameras capture fine geometry with 0.05 mm point distance
04

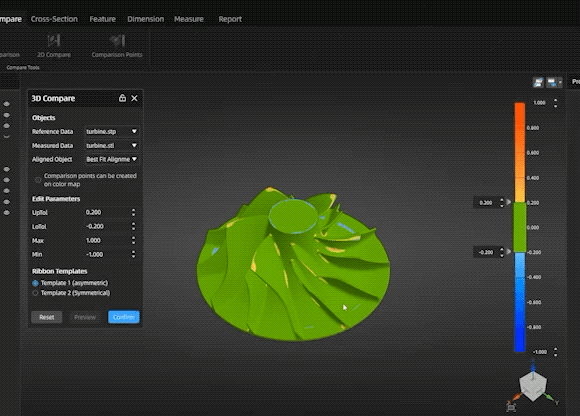

Feature and marker alignment support complex surfaces and repeatable acquisition
05

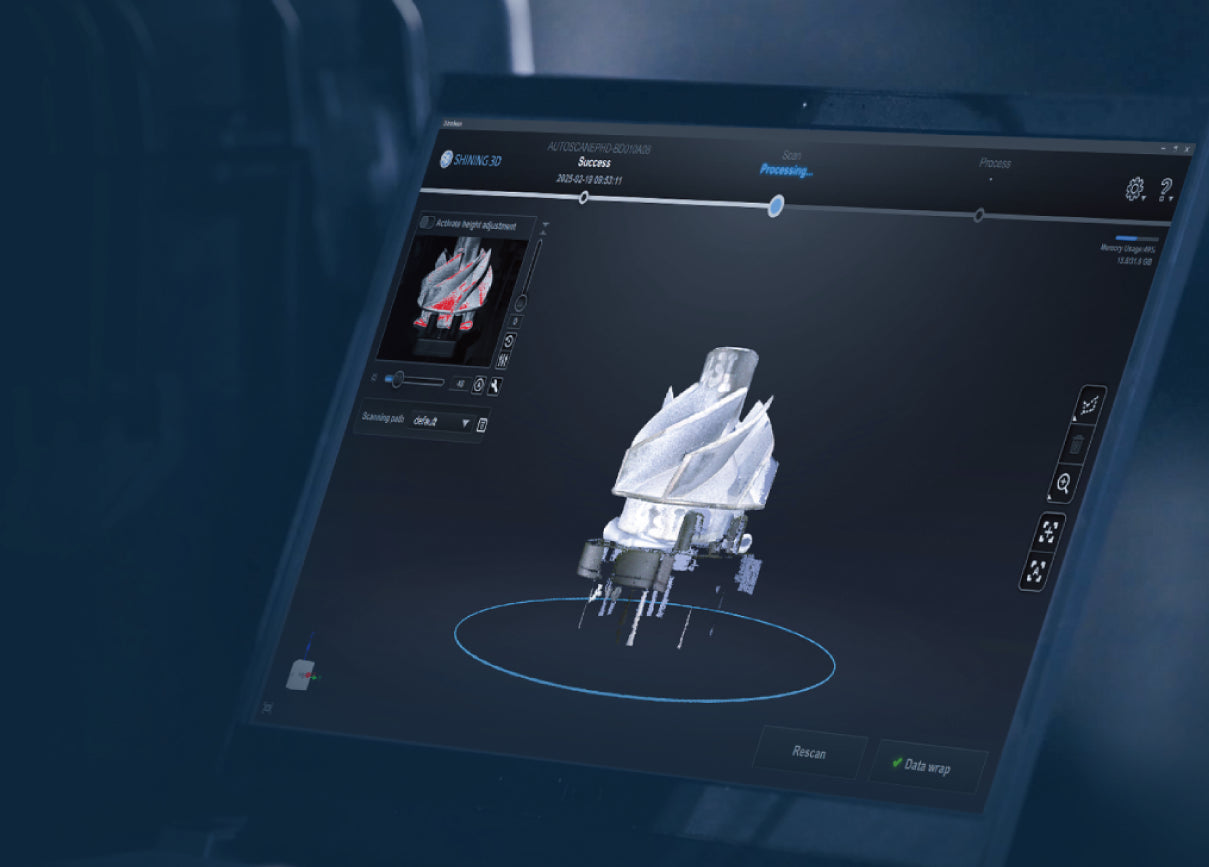

Includes UltraScan software for guided scanning, automatic calibration, and scan completion
06

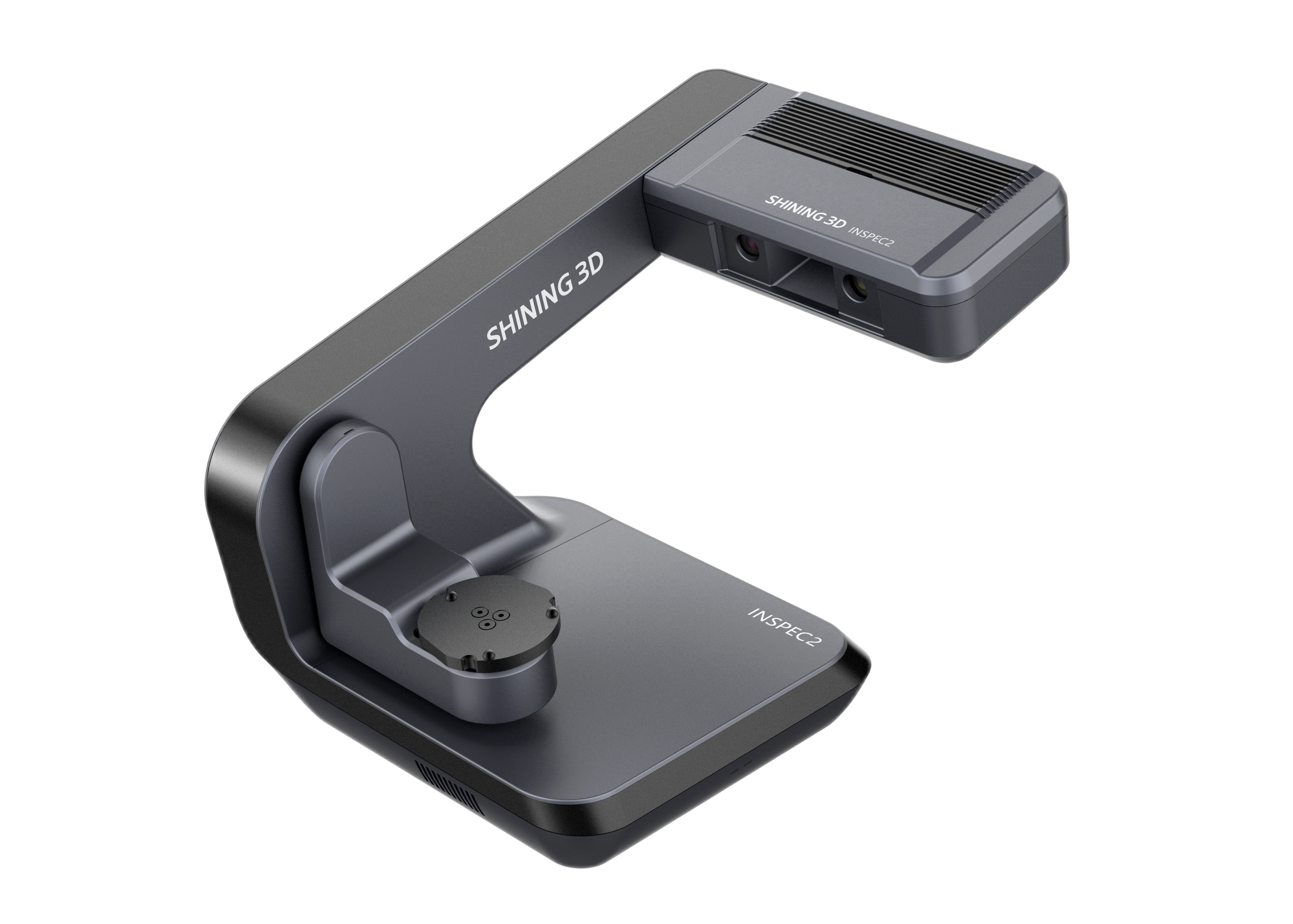

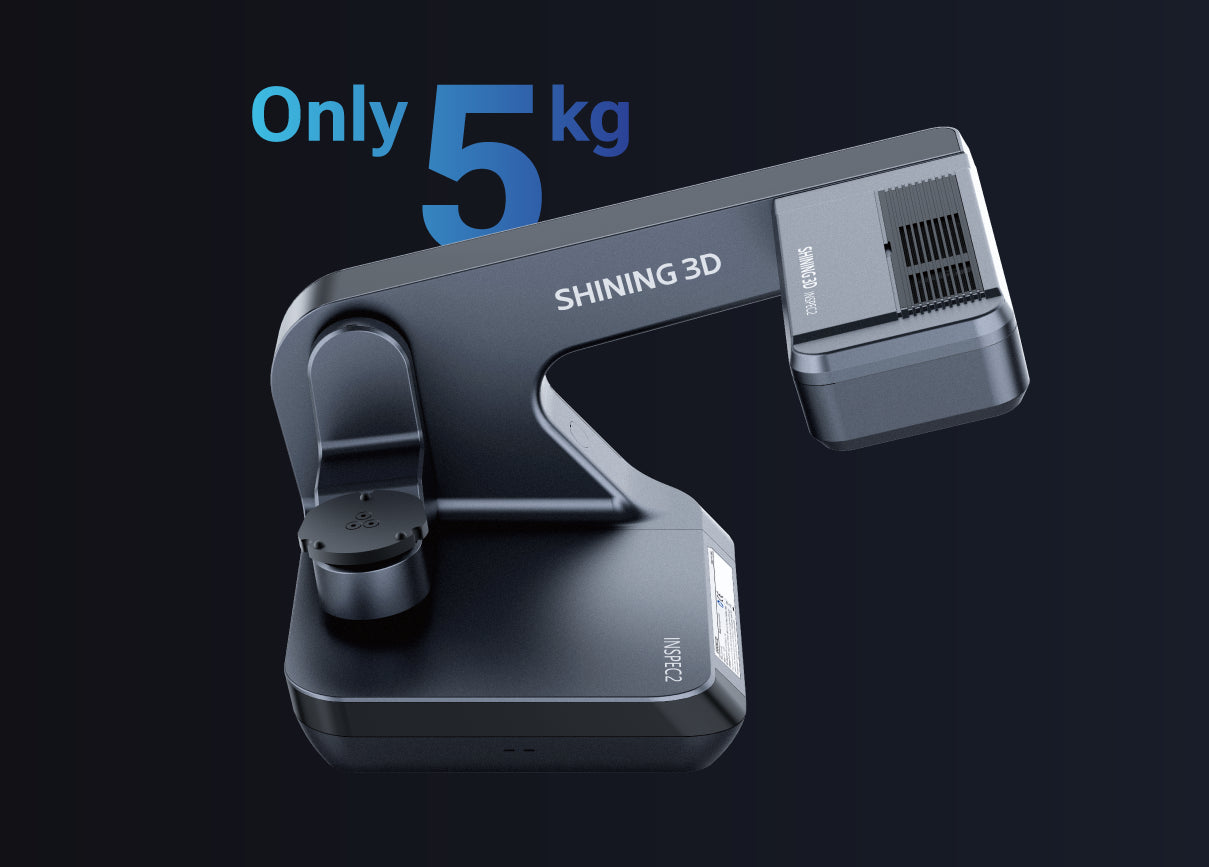

Compact & Lightweight
07
STL, OBJ, and PLY output connects the scan to inspection, design, and archiving tools
Complete measurement workflow
From automated capture to inspection-ready data.
Follow the workflow from repeatable capture through processing, inspection, and reporting.
Review technical specifications →Application fit
Where this system fits best.
Review the application environments where automation, accuracy, and repeatability create the clearest advantage.
01

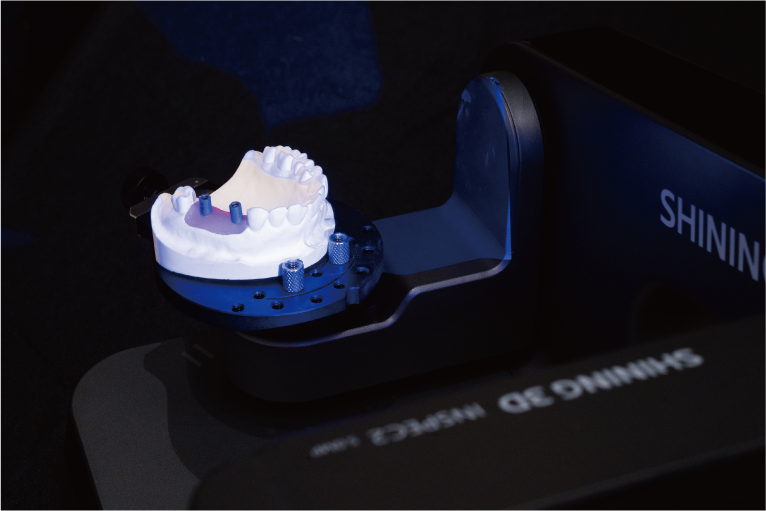

Precision components and small-part metrology
02

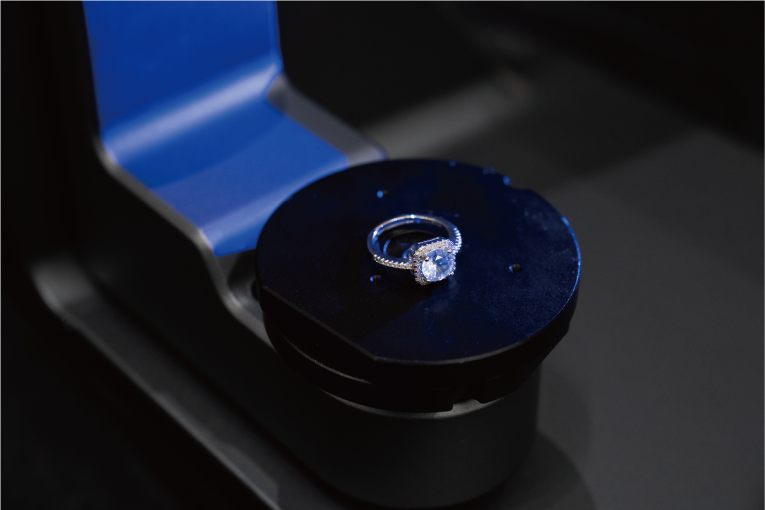

Tooling and fixture verification
03

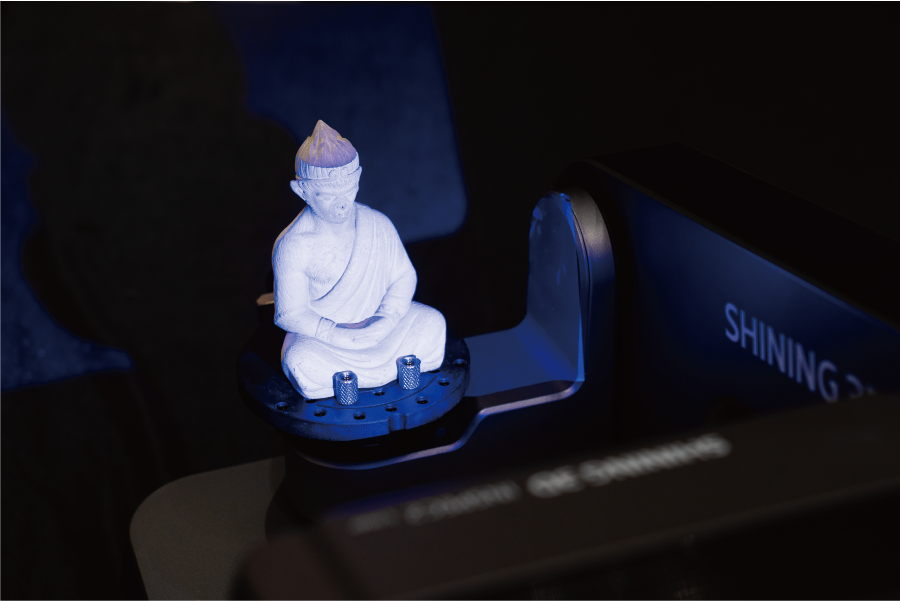

Reverse engineering and digital archiving
04

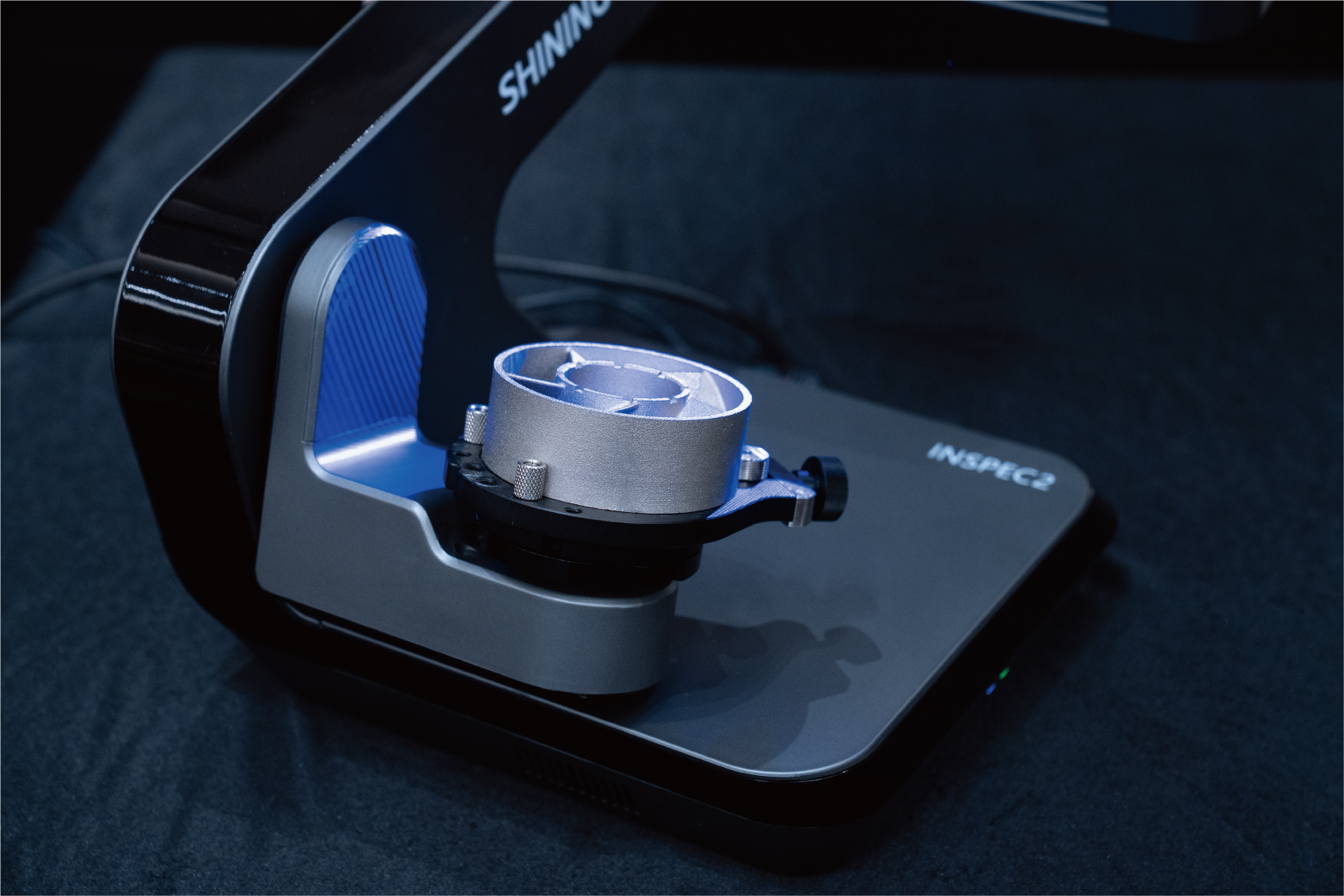

Dimensional inspection and quality control
Product media
Inspect the equipment and included system visually.
Product detail
Examine the system from every angle.
Review the scanner, turntable, accessories, interfaces, and physical setup before selecting a configuration.
Video library
Watch real scanning and inspection workflows.
Use the case studies, demonstrations, and tutorials to review the workflow from capture through final output.
Video library
Select a video to begin
Watch demonstrations, tutorials, and real application workflows without leaving the product page.
Technical specifications
Check the specifications before purchase.
Confirm accuracy, field of view, point distance, capture system, outputs, standards, and workstation requirements.
Scan accuracyUp to 0.01 mm
Scan volume140 × 90 × 80 mm
Point distance0.05 mm
Alignment modesFeature and markers
Rotation system3-axis automatic capture
Camera resolution2 × 5 MP
Light sourceBlue LED
Color captureSupported
Output formatsSTL, OBJ, PLY
Scanner dimensions342 × 423 × 379 mm
Scanner weight7.5 kg
CertificationsCE, FCC, RoHS, WEEE, KC
| Component | Minimum | Recommended |
|---|---|---|
| Operating system | Windows 10 or later, 64-bit only | Windows 11 64-bit |
| macOS support | Not supported | Use a compatible Windows workstation |
| Processor | Intel Core i7-3770 | Intel Core i7-8700 or higher |
| Memory | 16 GB RAM | 32 GB RAM |
| Graphics | NVIDIA GTX 1060 or newer; NVIDIA GPU required | NVIDIA RTX 3060 with 6 GB VRAM or higher |
| Connection | 1 x USB 3.0 | Dedicated USB 3.0 port |
UltraScan is a Windows-only scanning workflow for AutoScan Inspec2. Confirm the current UltraScan release before workstation deployment.
Interactive results
Review scanned models.
Select a model to load the interactive viewer, or open it directly on Sketchfab.
Optional interactive preview
VR Glasses - AutoScan Inspec2
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
Delicate Bird Craft - AutoScan Inspec2
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Models published by Shining 3D on Sketchfab. Use the direct link if the embedded viewer exceeds the device's graphics capacity.
