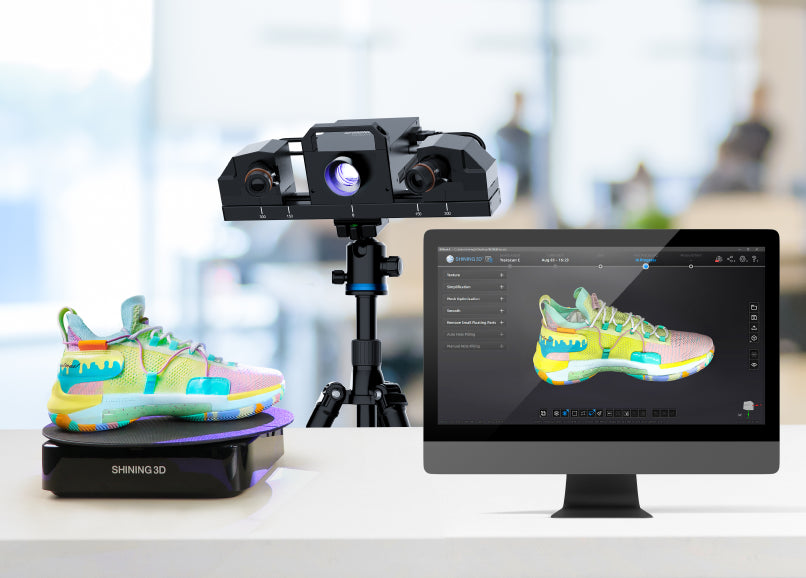

HIGH-RESOLUTION COLOR DESKTOP 3D SCANNER

Capture precise geometry and full-color detail in one desktop workflow

A professional dual-range desktop scanner for accurate, high-resolution geometry and authentic color capture of small to medium objects.

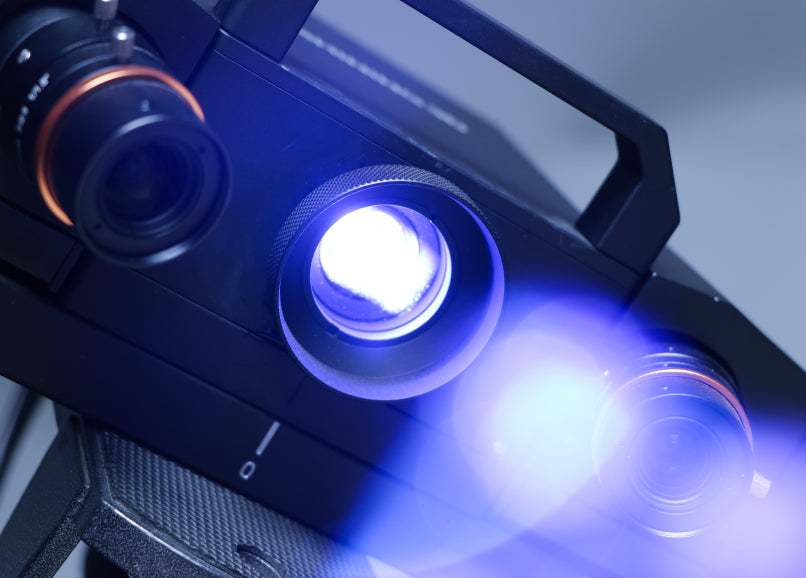

White LED structured lightScanning technology
Structured-light scanning with automatic turntableScan mode
150 × 96 mm (inner); 300 × 190 mm (outer)Scan ranges
Buy nowWatch recorded demo
SKYLAB3D, an authorized Shining 3D reseller
Application-fit guidance
Formal quotes for procurement
Training and workflow support
Transcan C

Package contents

Know exactly what arrives.

Verify everything included in the standard Transcan C package before checkout.

01

Transcan C Standard Package

Ready-to-use desktop scanning hardware with included EXScan C software.

  • Transcan C scanner
  • Tripod assembly
  • Automatic turntable
  • Calibration board
  • Target markers
  • Power cable and adapter
  • USB data cable
  • USB drive and documentation
  • EXScan C scanning and post-processing software

EXModel, Geomagic Design X, BlueStar Mapping, inspection software, workstation, and training are optional and not included. Regional package quantities and plug type should be confirmed before fulfillment.

What changes in your workflow

From desktop scan to a usable 3D model.

Follow a clear workflow from setup and capture through mesh processing and export.

Switch between 150 × 96 mm and 300 × 190 mm scan ranges for small and medium objects
01

Switch between 150 × 96 mm and 300 × 190 mm scan ranges for small and medium objects

Capture accuracy up to 0.035 mm with point distance down to 0.0375 mm
02

Capture accuracy up to 0.035 mm with point distance down to 0.0375 mm

Record detailed 24-bit color textures with two 12 MP professional color cameras
03

Record detailed 24-bit color textures with two 12 MP professional color cameras

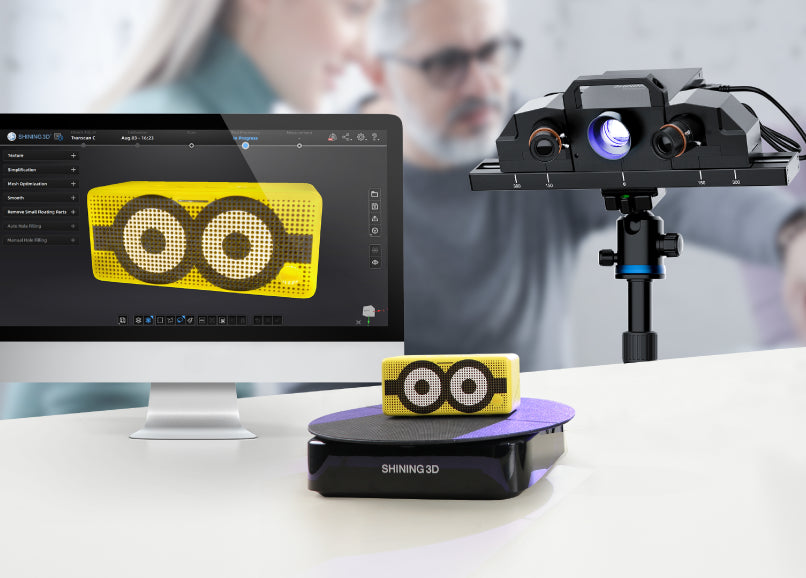

Automate repeatable capture with the included turntable and guided scanning workflow
04

Automate repeatable capture with the included turntable and guided scanning workflow

05

Mix high, medium, and low resolution in one EXScan C project to balance detail and efficiency

Application fit

Where this scanner fits best.

Review the parts, settings, and downstream uses that match this scanner.

Product design and reverse engineering
01

Product design and reverse engineering

Cultural heritage and museum digitization
02

Cultural heritage and museum digitization

Research, education, and 3D modeling
03

Research, education, and 3D modeling

Full-color virtual display and digital twins
04

Full-color virtual display and digital twins

Video library

See the system in real workflows.

Use the demonstrations, tutorials, and application stories to review setup, scanning, and output.

Video library

Select a video to begin

Watch demonstrations, tutorials, and real application workflows without leaving the product page.

Technical specifications

Check the specifications before purchase.

Review the measurement, capture, output, and operating requirements before committing.

Scanning technologyWhite LED structured light
Scan modeStructured-light scanning with automatic turntable
Scan ranges150 × 96 mm (inner); 300 × 190 mm (outer)
Single-shot accuracy0.035 mm (inner); 0.05 mm (outer)
Point distanceInner: 0.0375 / 0.075 / 0.114 mm; outer: 0.075 / 0.154 / 0.23 mm
Scan speed<70 s for 8 scans/turn without texture; <3 s per single frame without texture
Working distance260 mm (inner); 480 mm (outer)
Color captureRGB 24-bit color
Color camerasTwo 12 MP professional color cameras
Texture acquisitionFully automatic soft-light capture
Alignment modesMarkers, feature, and manual alignment
CalibrationManual calibration
Output formatsOBJ, STL, ASC, PLY, and 3MF
Operating environmentIndoor, room temperature
Host dimensions332 × 110 × 142 mm
Tripod dimensions475 × 120 × 120 mm
Turntable dimensions320 × 320 × 68 mm
Host weight2.7 kg
Tripod assembly weight2.2 kg
Turntable weight2.1 kg
Maximum turntable load≤10 kg
Included scanning softwareEXScan C for calibration, capture, editing, alignment, merging, optimization, and export
Component Minimum Recommended
Operating system Not specified Windows 10 or Windows 11, 64-bit
Processor Not specified Intel Core i7-8700
Graphics card Not specified NVIDIA GTX/RTX series, GeForce GTX 1060 or higher
Video memory Not specified 4 GB or more
System memory Not specified 32 GB RAM

SHINING 3D publishes a recommended configuration rather than a separate minimum. EXScan C is Windows-only; larger and higher-resolution projects benefit from stronger GPU performance and additional memory.

Download brochure ↗

Interactive scan results

Review scanned models.

Select a model to load the interactive viewer, or open it directly on Sketchfab.

Optional interactive preview

Textured Jar

The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.

Open on Sketchfab ↗

Models published by Shining 3D on Sketchfab. Use the direct link if the embedded viewer exceeds the device's graphics capacity.

Next step

Buy online or request a formal quote.

Use secure checkout for this scanner. Request a quote when you need a formal document, software, training, or procurement support.
