01

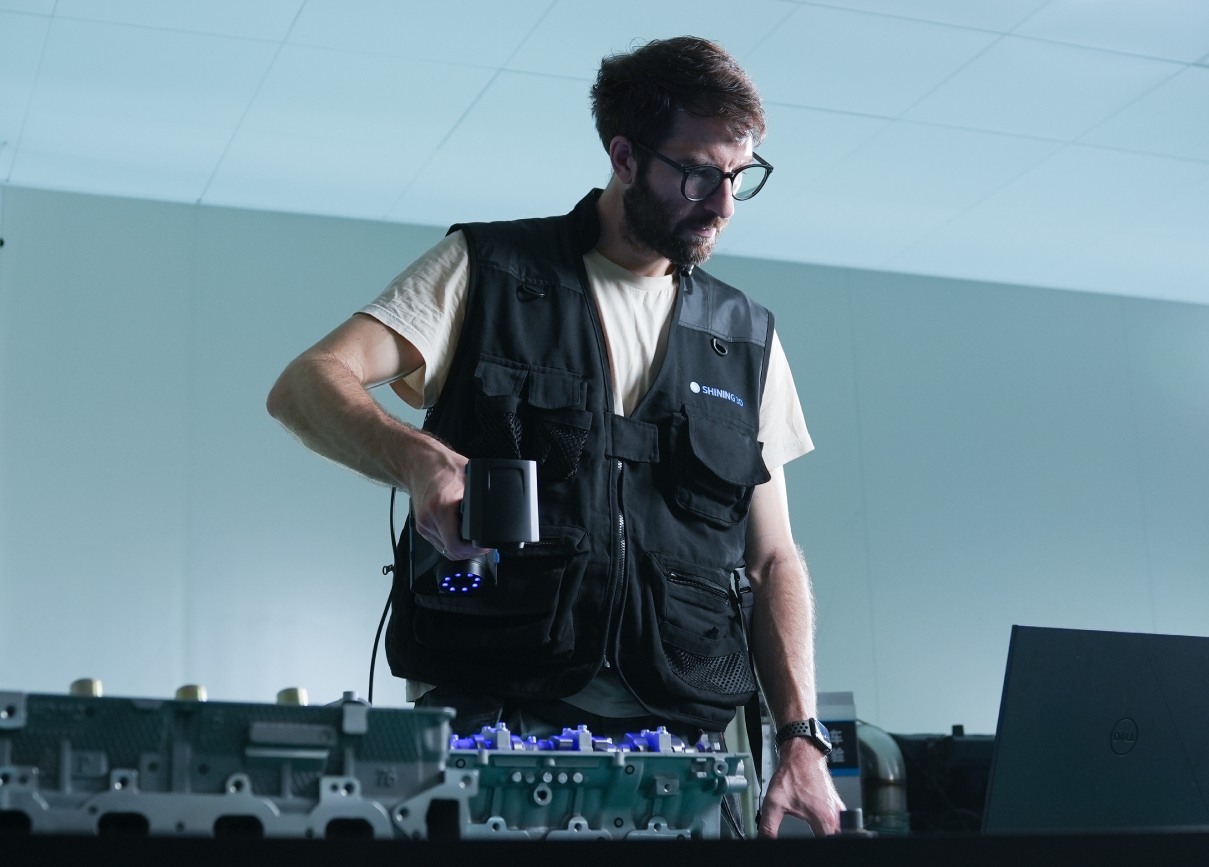

0.02 mm certified accuracy
PROFESSIONAL 3D SCANNING
FreeScan UE Pro2
Up to 0.02 mmAccuracy
50 high-speed, 7 detail, 1 deep-hole lineLaser modes
Up to 3,460,000 points/sScan speed
180 fpsMaximum frame rate
System architecture
Configure the complete measurement workflow.
FreeScan UE Pro2 combines wireless metrology scanning, embedded computing, and video photogrammetry for portable inspection of small-to-large industrial parts.
FreeScan Software included
FreeScan Software access is included with the scanner and enabled through the supplied hardware dongle. The native application supports device control, real-time mesh display, reusable scanning templates, data-quality visualization, AI-assisted feature recognition, flexible post-scan resolution, mesh generation, basic measurement, and the integrated quick on-site inspection workflow.
Optional workflow software: SHINING 3D Inspect is available for advanced inspection and reporting. EXModel and EXModel Pro are available for mesh preparation and scan-to-CAD workflows. These optional licenses are not included in the scanner price.
Match the system to the part, tolerance, environment, output, software stack, training need, and protection plan. Every selected option is included in the technical review.
Configuration
Build the workflow your application requires.
Select the protection, software, add-ons, and training needed for a complete working system.
Configured starting point$24,999.00
Core system only
Continue with this configurationYour selected options will be prefilled on the recommendation and quote form.
Standard system contents
Every major component, connection, and calibration item.
High-value systems are quoted as a complete operational package; exact quantities and region-specific items are confirmed on the formal quote.
01
FreeScan UE Pro2 Standard Package
Scanner, included software access, power, calibration and wired-operation hardware confirmed by SHINING 3D's official unboxing.
- FreeScan UE Pro2 scanner
- Wireless power adapter
- Software-access dongle for FreeScan Software
- Photogrammetry scale bars
- Calibration board
- Wired connection cables for optional USB 3.0 operation
- FreeScan Software - included native application for device control, real-time mesh display, reusable scanning templates, scan-quality visualization, AI feature recognition, flexible resolution and quick on-site inspection
Exact quantities, plug type and region-specific wireless accessories are confirmed on the formal quote. A compatible Windows workstation, SHINING 3D Inspect, EXModel or EXModel Pro, training and extended protection are not included unless selected.
System advantages
High-value capability without workflow friction.
Evaluate the measurable gains in setup, coverage, portability, capture speed, and confidence across large-volume inspection work.
02

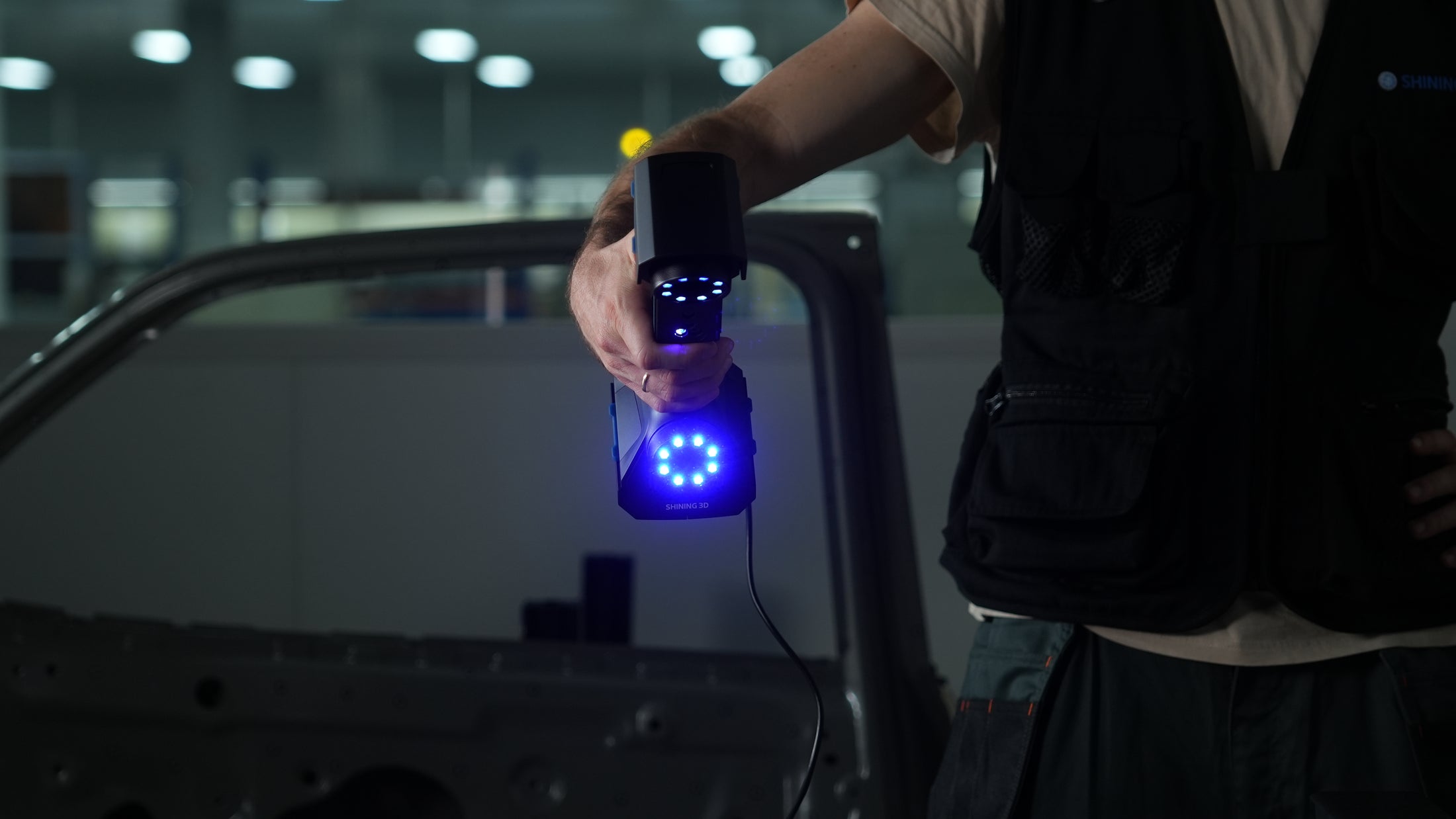

Wireless capture with embedded computing
03

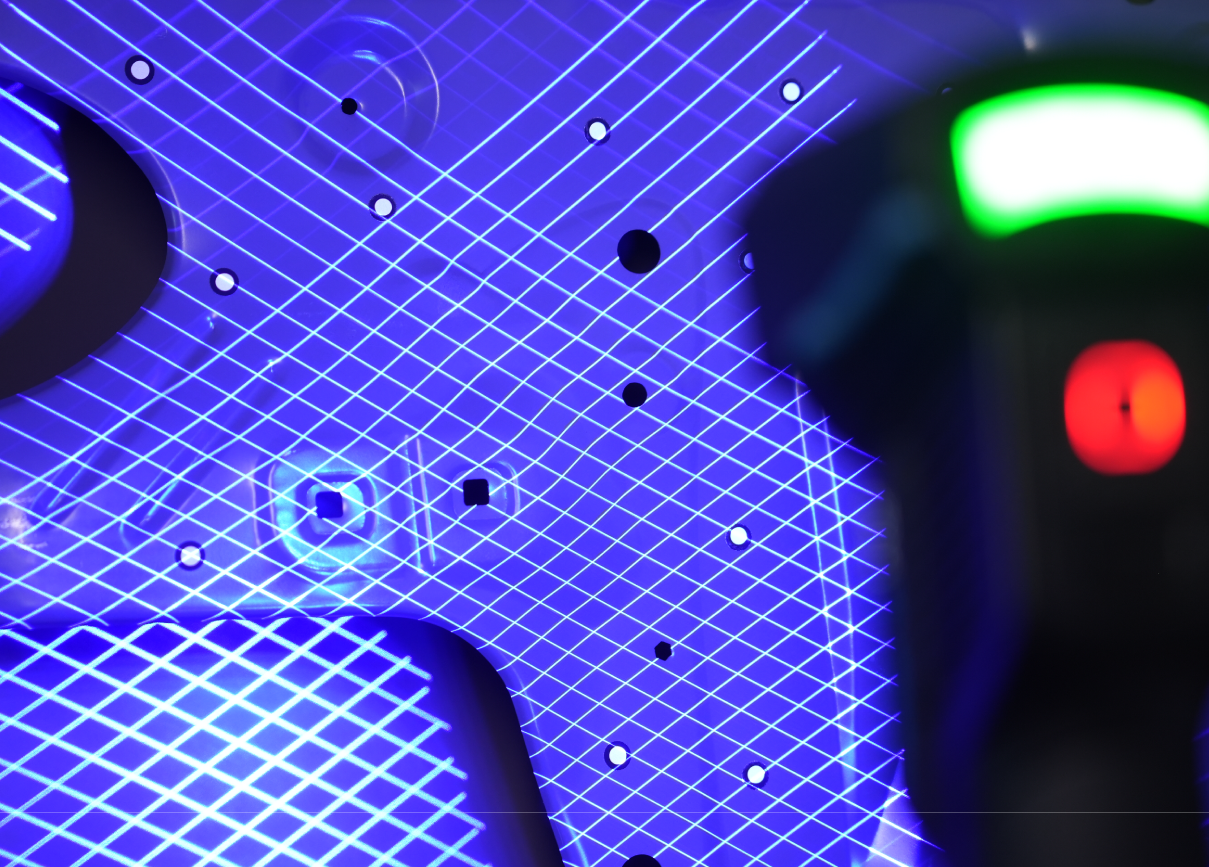

50 + 7 + 1 blue laser line modes
04

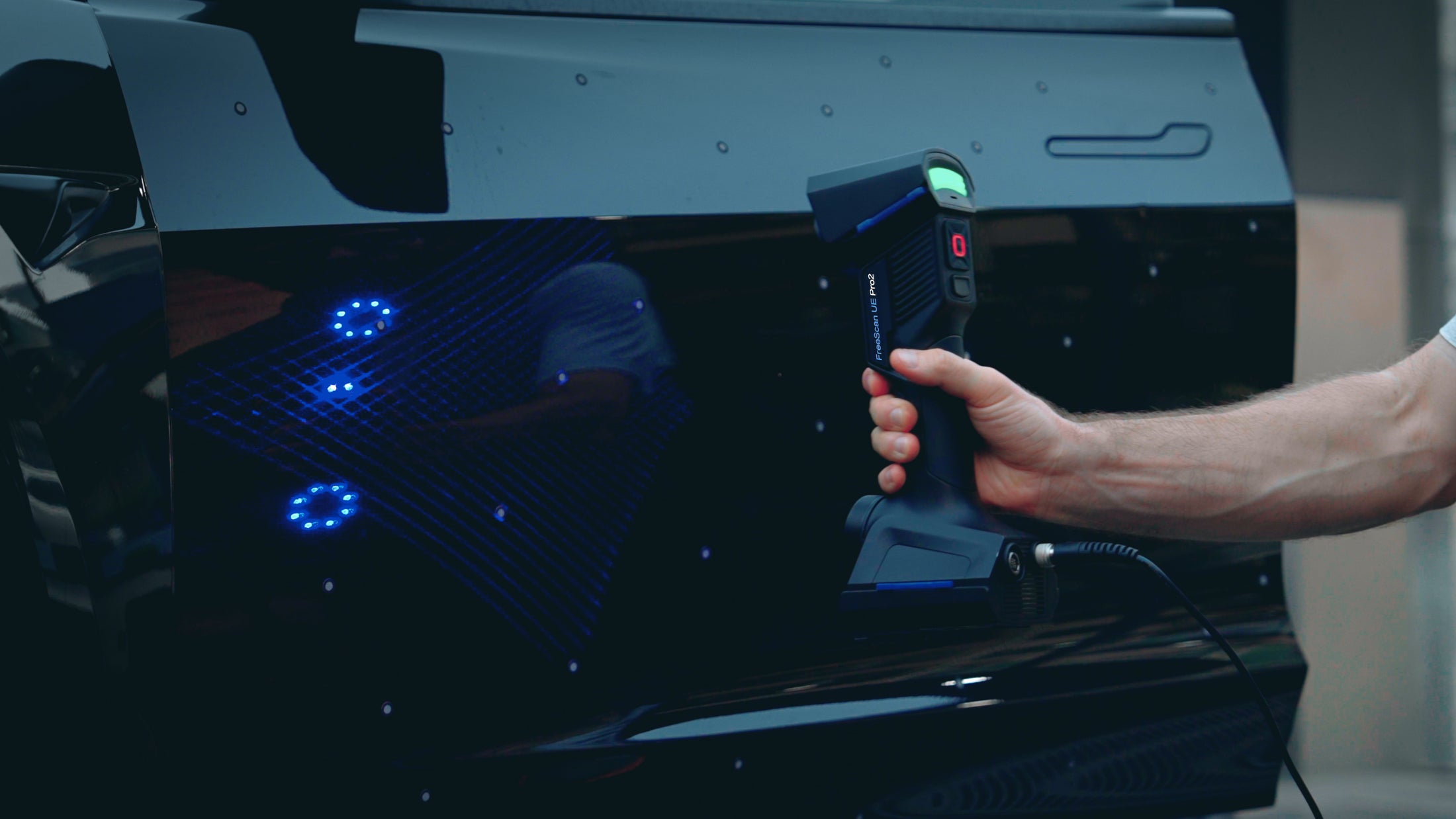

Up to 3,460,000 points per second
05

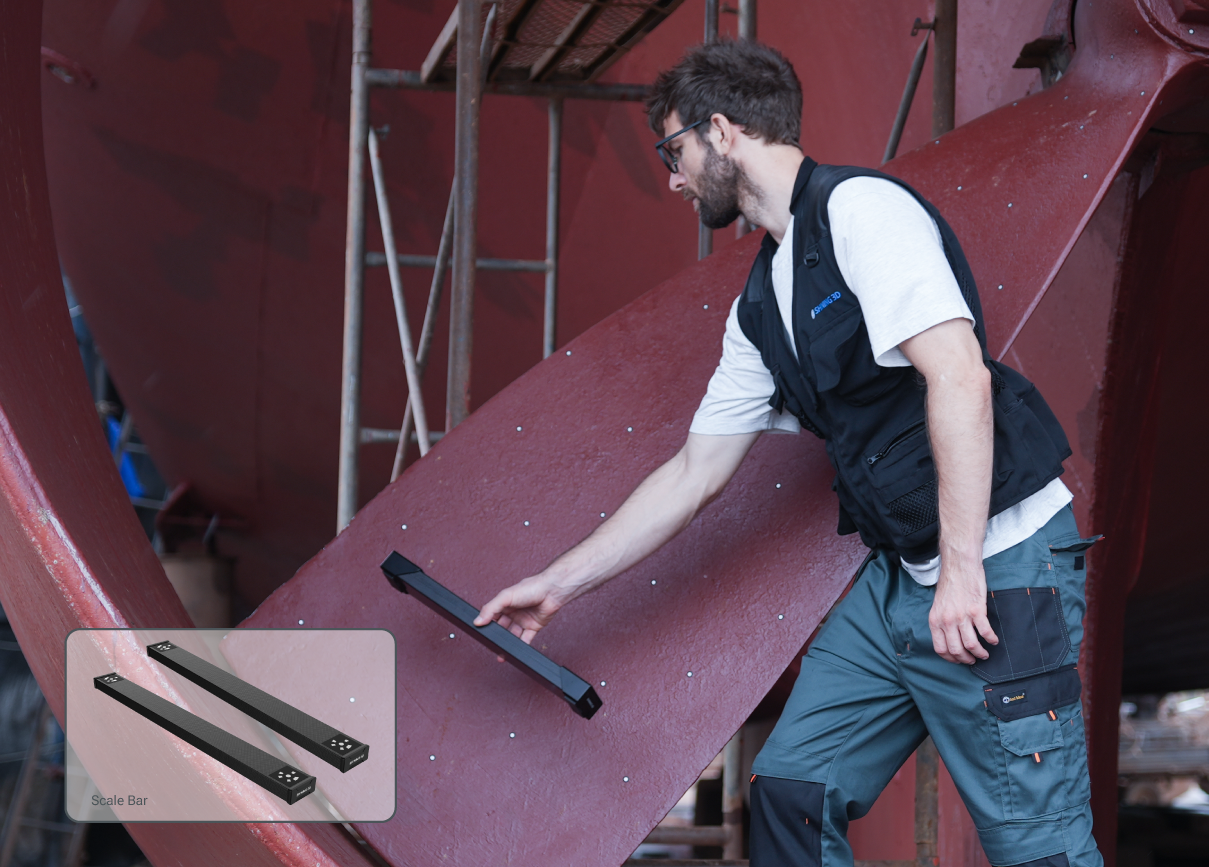

Binocular photogrammetry without coded targets
06

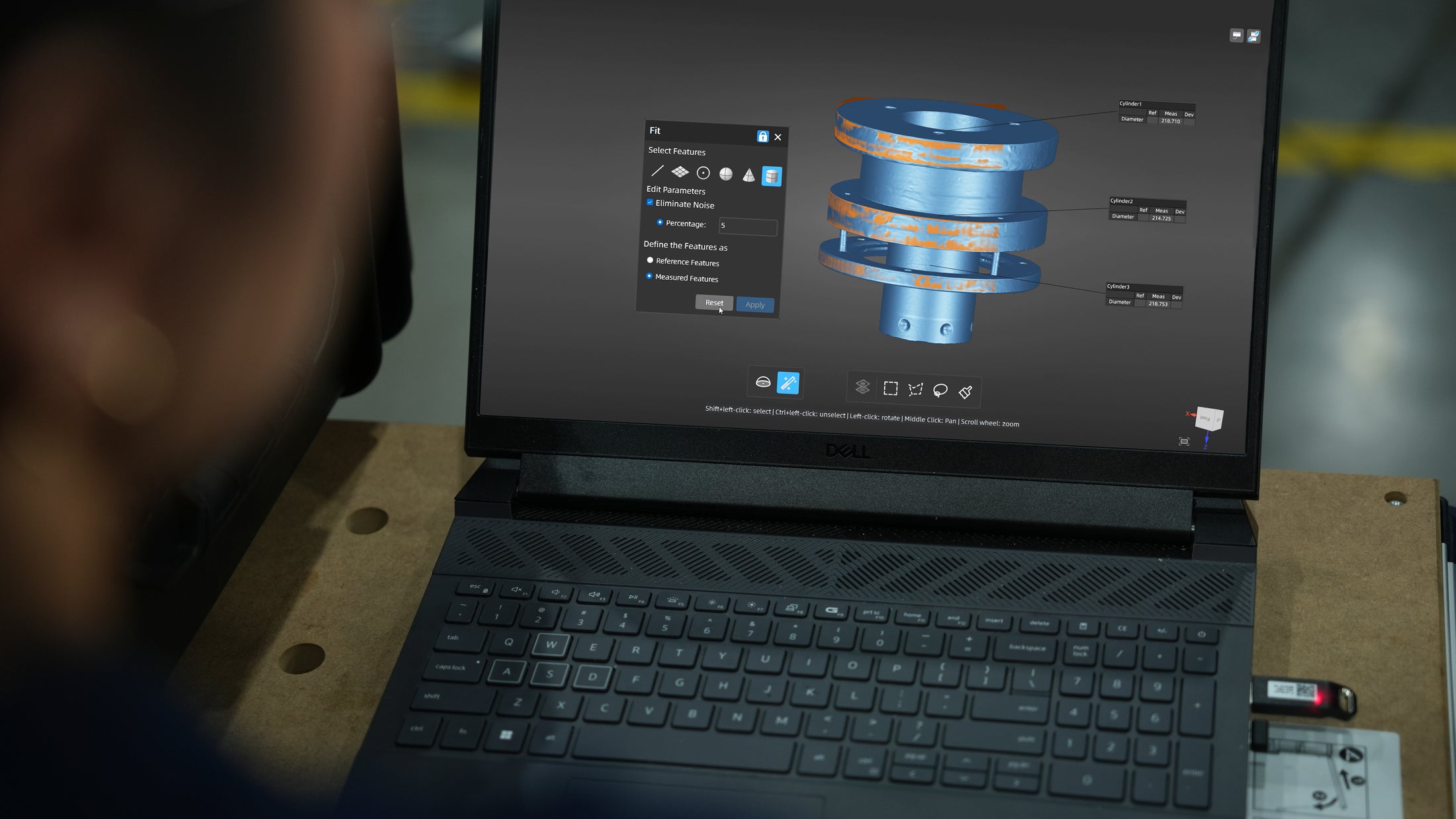

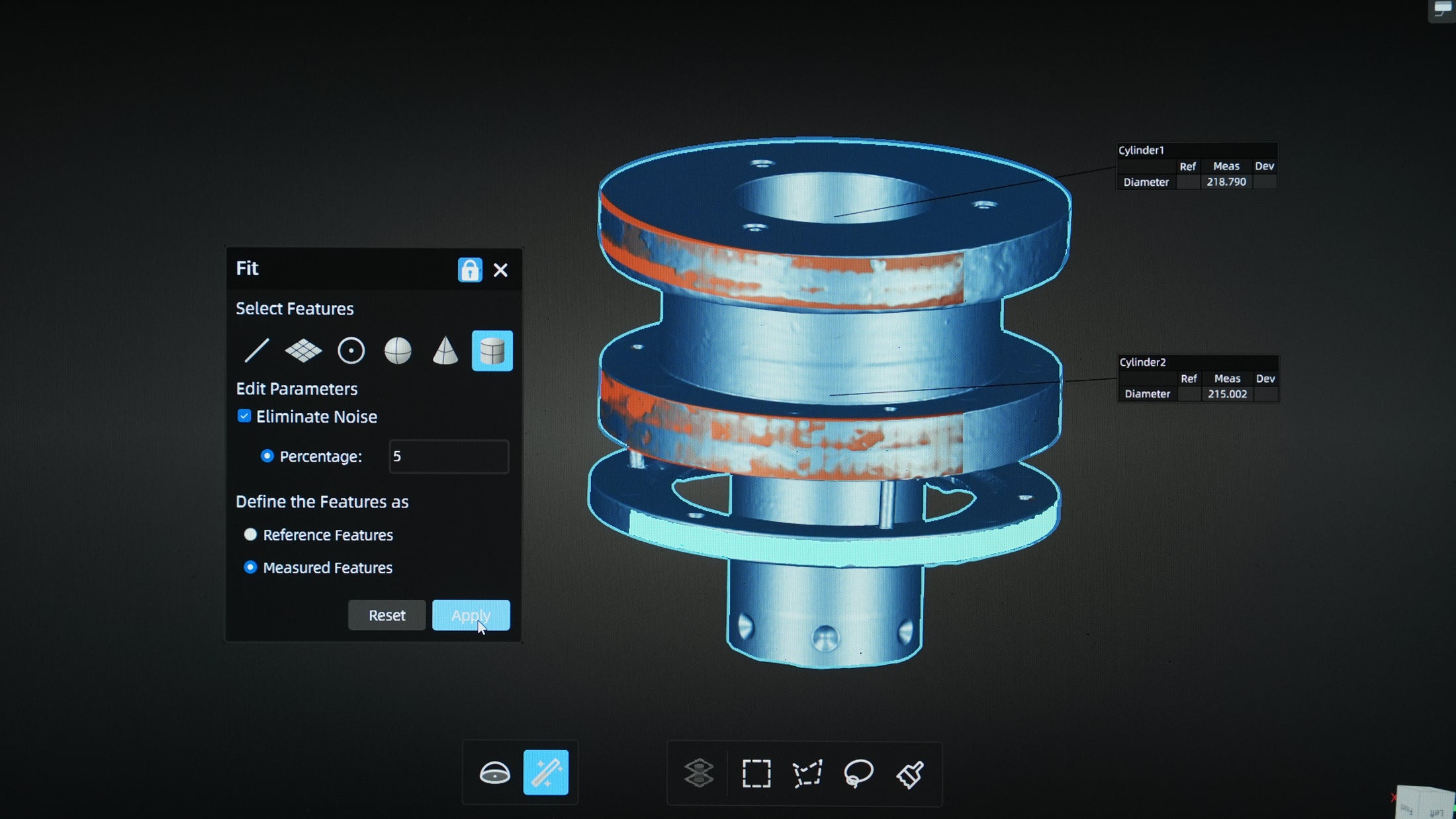

On-device inspection workflow
Deploy where the work happens
Bring controlled measurement to the part.
Combine mobile setup, optical tracking, wide-range capture, and downstream inspection in one connected operating workflow.
Review engineering specifications →Application proof
Built for parts that do not belong on a fixed CMM.
See how the system adapts to heavy industry, transportation, aviation, energy, and other large-component inspection environments.
01

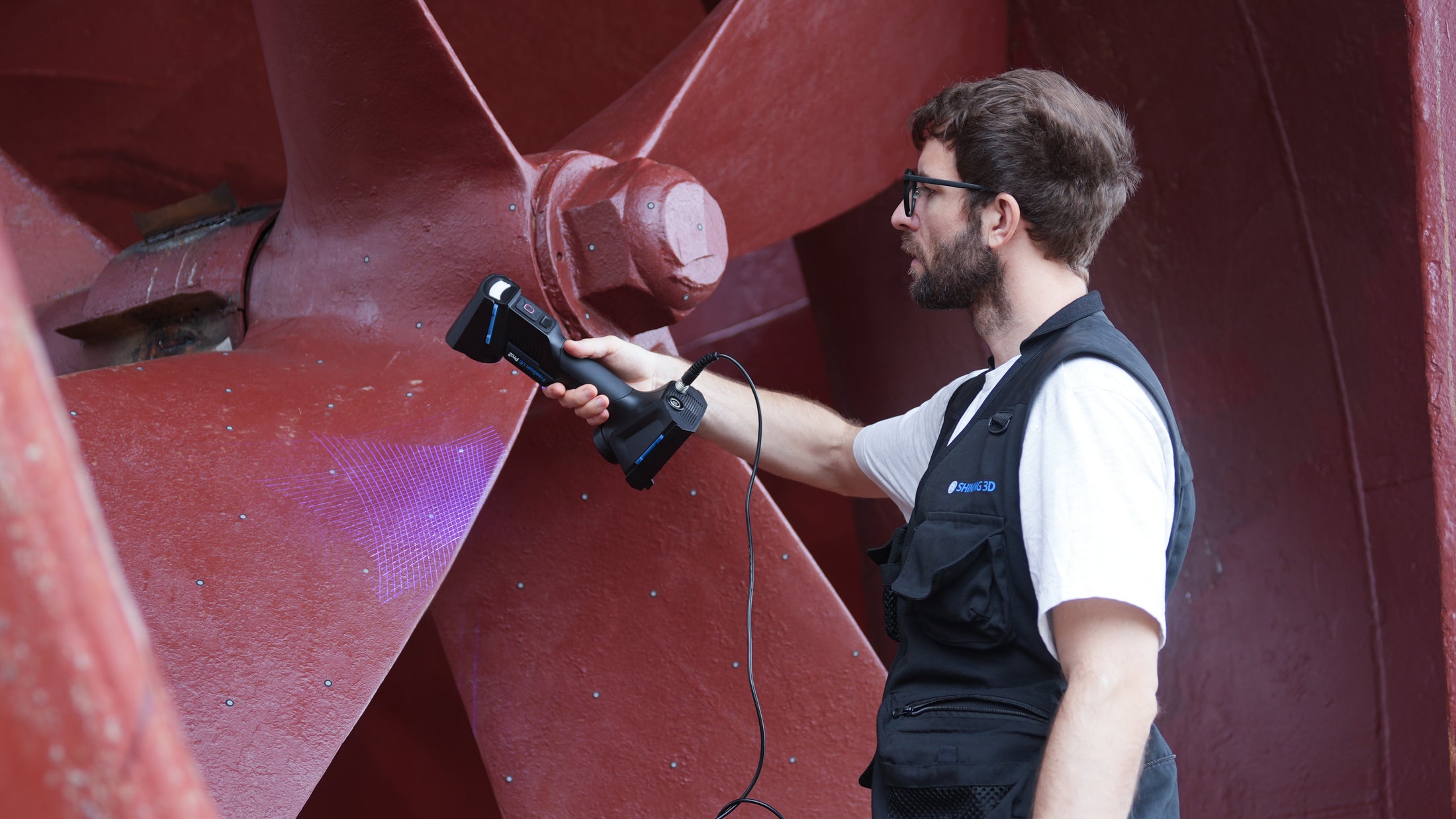

Large-part inspection
02

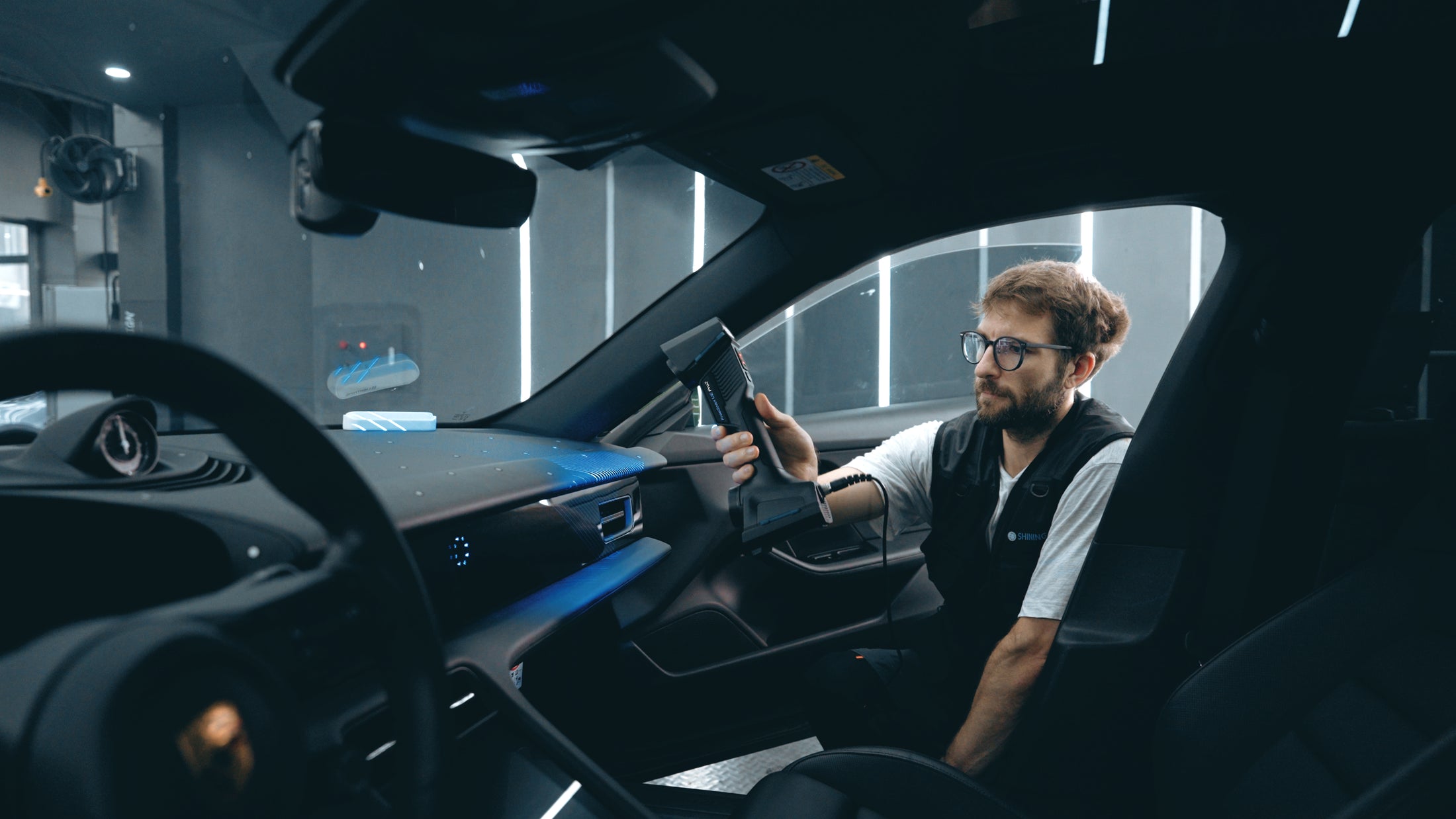

Automotive sheet metal
03
Tooling and dies

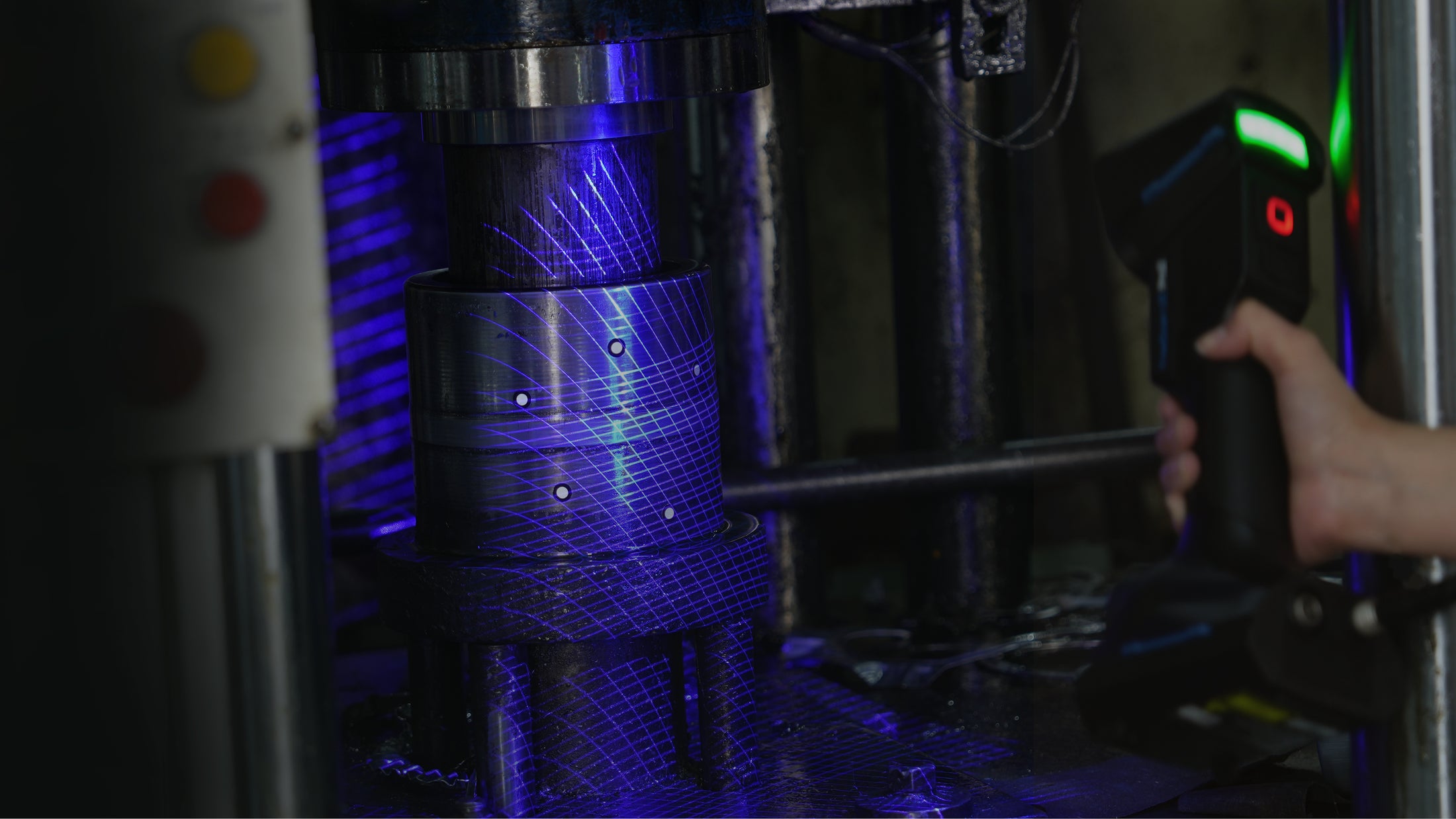

04

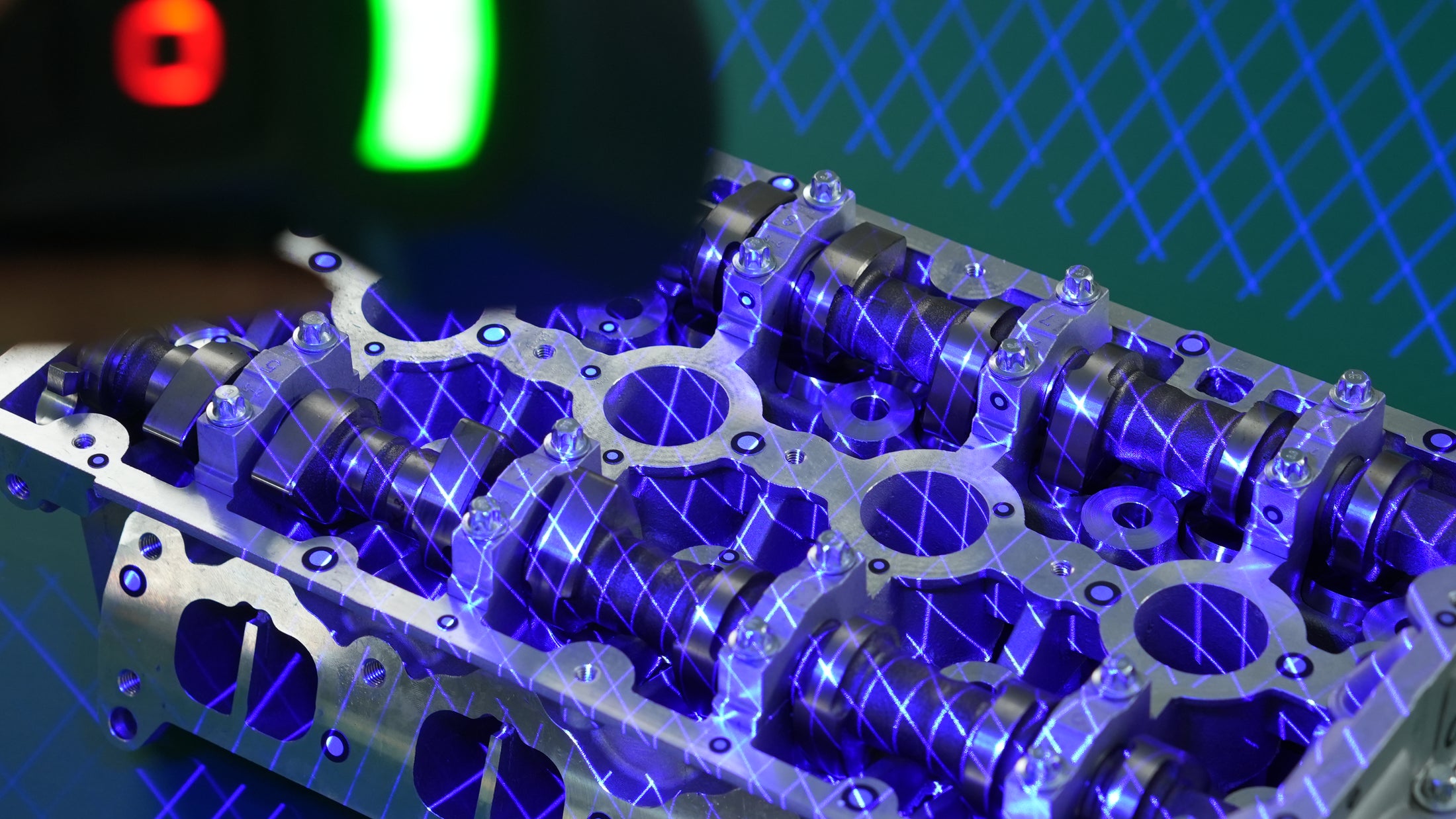

Reverse engineering
Video library
Evaluate the system under real operating conditions.
Move between unboxing, tracking, handheld capture, and application footage without leaving the page.
Video library
Select a video to begin
Watch demonstrations, tutorials, and real application workflows without leaving the product page.
Engineering specifications
Technical evidence for engineering and IT.
Review measurement performance, operating envelope, connectivity, and the workstation needed to process the data.
AccuracyUp to 0.02 mm
Laser modes50 high-speed, 7 detail, 1 deep-hole line
Scan speedUp to 3,460,000 points/s
Maximum frame rate180 fps
Maximum field of view600 × 550 mm
Volumetric accuracy0.02 + 0.03 mm/m; up to 0.02 + 0.015 mm/m with photogrammetry
Net weight950 g
ConnectionWireless and USB 3.0
CertificationsCE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TISAX
Accuracy certificationVDI/VDE 2634 Part 3 and ISO 10360; tested in an ISO/IEC 17025 accredited accuracy laboratory
| Component | Minimum | Recommended |
|---|---|---|
| Operating system | — | Windows 11 Professional 22H2 (64-bit) |
| Processor | — | 13th Gen Intel Core i7-13700H or above |
| Graphics card | — | NVIDIA GeForce RTX 4060 Laptop GPU or above |
| Video memory | — | 8 GB or above |
| System memory | — | 64 GB or above, DDR5 dual-channel |
| Connection | — | USB 3.0 |
SHINING 3D specifies this as the recommended computer configuration; minimum requirements are not stated in the brochure.
Interactive scan results
Inspect more than one related dataset.
Load the chosen model on demand, with a direct Sketchfab fallback for devices that cannot render the full scene.
Optional interactive preview
Cylinder Head Part
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
Black Reflective Car Door
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Models published by Shining 3D on Sketchfab. Use the direct link if the embedded viewer exceeds the device's graphics capacity.
Move from interest to evidence
Send the exact system configuration—not a generic inquiry.
Software, add-ons, training, and protection selections will be visible in the quote form and submission.
