Mesh editing with hole filling, smoothing, boundary editing, and data reduction
License options
Select your license and deployment tier.
Choose the edition and term that match the work. Maintenance renewals and deployment services are grouped separately to prevent accidental purchase.
$540.00
Flexible financing options available
Education pricing requires eligibility verification. Maintenance renewals are only for existing permanent-license holders.
EXModel vs EXModel Pro
Compare Standard and Pro capabilities.
Shared mesh-to-CAD tools and Pro-only modeling functions are separated so the edition decision is clear.
| Capability | EXModel Pro | EXModel |
|---|---|---|
| Mesh editing | ✓ | ✓ |
| Mesh alignment | ✓ | ✓ |
| Primitive extraction and references | ✓ | ✓ |
| Cross sections, 2D and 3D sketching | ✓ | ✓ |
| Free-form modeling and auto-surfacing | ✓ | ✓ |
| IGES / STEP / DXF export | ✓ | ✓ |
| Extrude and revolved surfaces | ✓ | ✓ |
| Advanced surfacing: helix, loft, sweep, fill, blend, flatten | ✓ | — |
| Constrained sketch assist, offsets, and patterns | ✓ | — |
| Roll / unroll workflows | ✓ | — |
| Solid trim, cut, combine, fillet, chamfer, and patterns | ✓ | — |
| Hybrid free-form and parametric modeling | ✓ | — |
| Design and feature-tree transfer | ✓ | — |
| Mesh-to-mesh comparison | ✓ | — |
Scan-to-CAD workflow
Move from scan data to engineering geometry.
Follow the four stages from imported scan data to a CAD-ready engineering deliverable.
01Import and prepare the scan mesh
02Repair, align, and extract references
03Build surfaces, sketches, and features
04Export CAD-ready engineering deliverables
Inside the workflow
Review the interface and outputs before choosing a license.
See how project data moves through the software, where key decisions happen, and what the final deliverable looks like.
Review licensing and system details →Core capability
Capabilities tied to usable project outcomes.
Review the feature groups, analysis tools, workflow controls, and output options that determine which edition fits the work.
02
Mesh alignment using coordinates, N-point alignment, and fine alignment
03
Primitive extraction and reference geometry from scan data
04
Cross sections plus 2D and 3D sketching
05
Manual free-form modeling and one-click auto-surfacing
06
IGES, STEP, and DXF export for downstream CAD workflows
07
Pro-only hybrid, solid, advanced surfacing, and feature-tree workflows
08
One-click transfer from SHINING 3D scanning software
Software in action
See where the software fits your workflow.
Explore the product-specific applications, operations, and deliverables supported by this software.
01

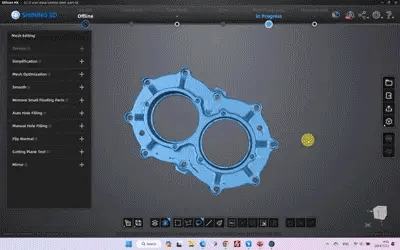

One-click scan-to-CAD transfer
02

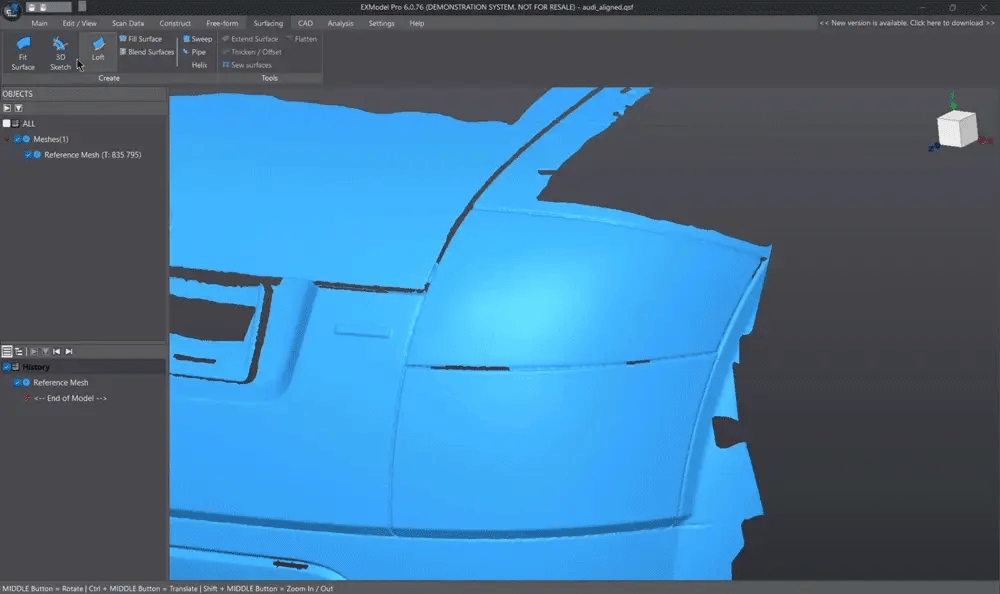

3D sketching and advanced surfacing
03

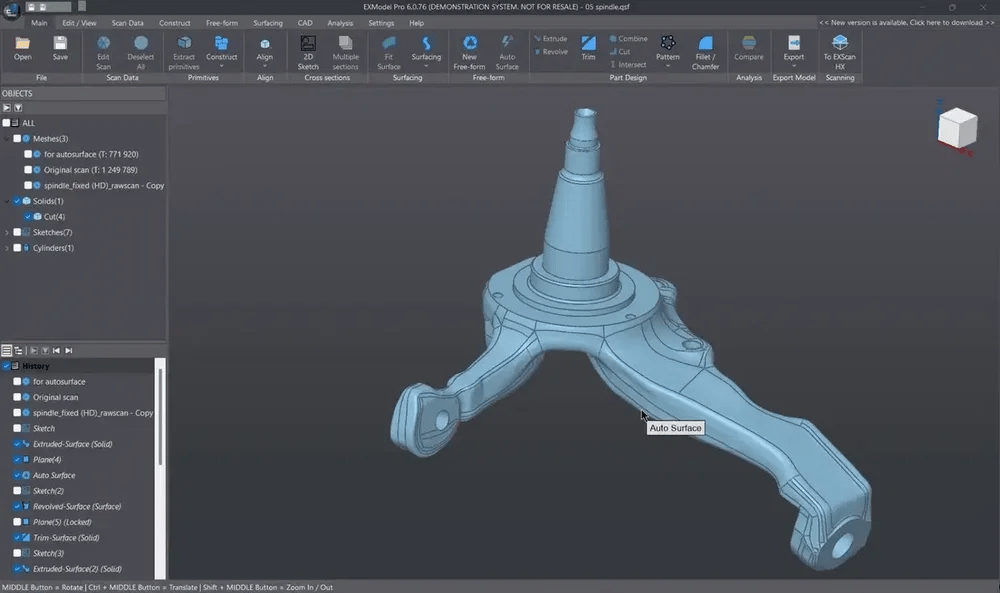

Mesh-to-CAD reconstruction
04

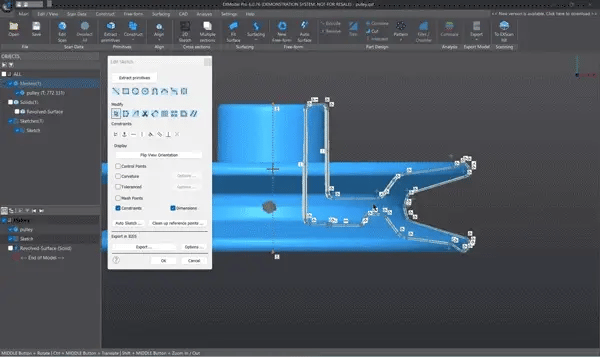

Constrained 2D sketching
Demo and tutorial library
See the software before choosing a license.
Compare demos, tutorials, use cases, and full workflow recordings in one place.
Video library
Select a video to begin
Watch demonstrations, tutorials, and real application workflows without leaving the product page.
License and system details
System and IT requirements.
Confirm edition, term, maintenance, deployment, operating system, memory, storage, and graphics compatibility before purchasing.
EditionsEXModel and EXModel Pro
License choicesAnnual, multi-year, permanent, and maintenance
Core workflowMesh-to-CAD reconstruction
Shared exportsIGES, STEP, DXF
Shared toolsMesh editing, alignment, references, sketches, and surfacing
Pro-only capabilityHybrid modeling, solids, advanced surfacing, roll/unroll, and feature transfer
DeploymentLocal license; network and cloud setup quoted separately
Scanner workflowOne-click transfer from SHINING 3D scanning software
| Component | Minimum | Recommended |
|---|---|---|
| Operating system | Windows 10/11 64-bit | Windows 11 Pro 64-bit |
| Processor | Intel Core i5 or equivalent | Intel Core i7 / AMD Ryzen 7 or higher |
| Memory | 16 GB RAM | 32 GB RAM for larger scan projects |
| Storage | 256 GB | 512 GB SSD or larger |
| Graphics | Dedicated NVIDIA or AMD graphics card | Dedicated NVIDIA GPU with 6 GB+ VRAM |
| Internet | Not mandatory | Connected for automatic update detection |
Minimum values are from SHINING 3D’s current EXModel download guidance. Recommended values are SKYLAB3D guidance for production-sized scan projects.
Select with confidence
Purchase the clear case. Quote the complex one.
Online checkout fits a known single-license need. Use the guidance path for deployment, maintenance, multiple seats, education, or training.
