Wi-Fi + USB-C

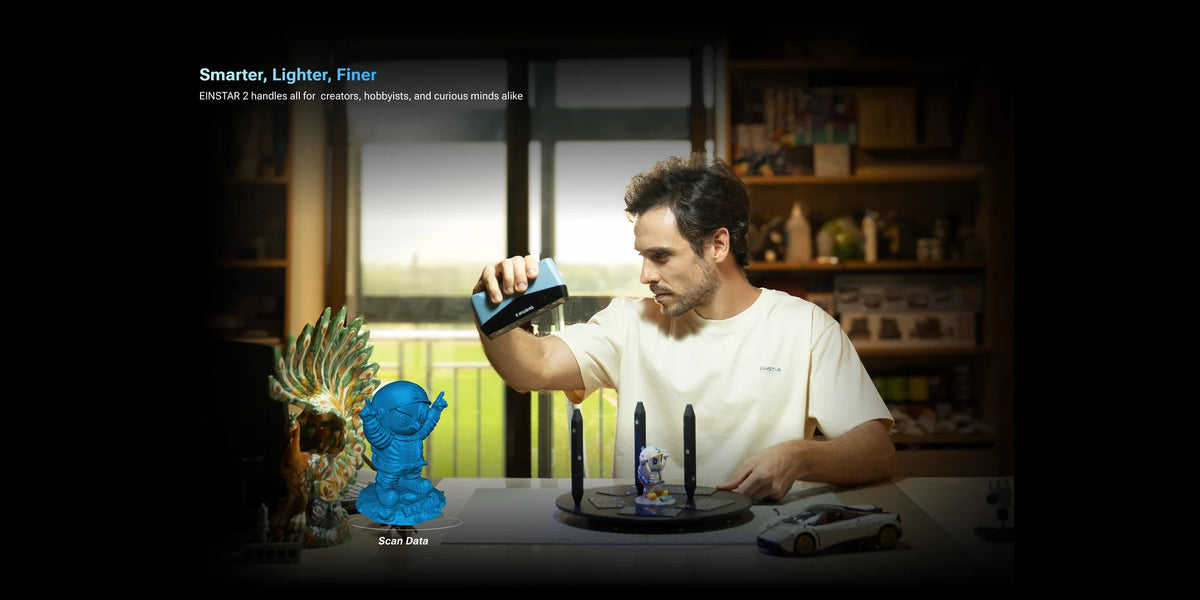

Scan wirelessly to a PC through built-in Wi-Fi, with USB Type-C available when needed
TRUE WIRELESS HYBRID 3D SCANNER
EINSTAR 2 SHINING 3D Wireless handheld 3D scanner
Smarter, lighter scanning for fine parts, vehicles, people, and outdoor work
Down to 0.05 mmLaser HD resolution
17Parallel blue laser lines
420 gWeight with battery
Up to 3 hoursBattery runtime
System architecture & capabilities
Wireless capture, from fine parts to full vehicles.
Down to 0.05 mmLaser HD resolution
17Parallel blue laser lines
420 gWeight with battery
Up to 3 hoursBattery runtime
17 blue laser lines

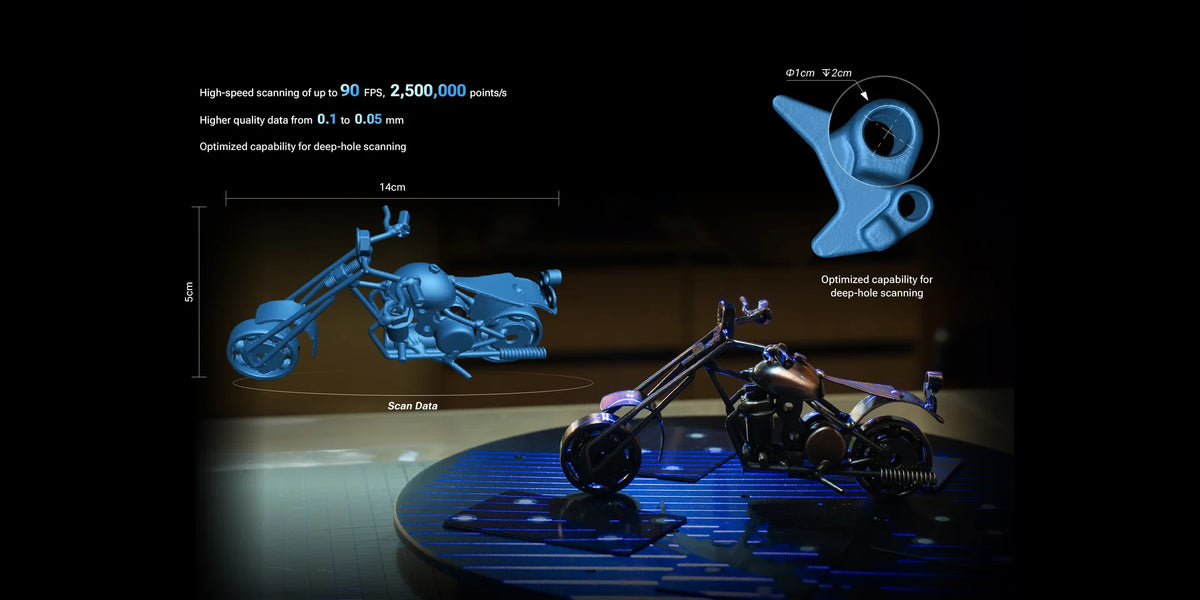

Capture fine detail with 17 parallel blue laser lines in Laser HD mode
Up to 4.8M pts/s

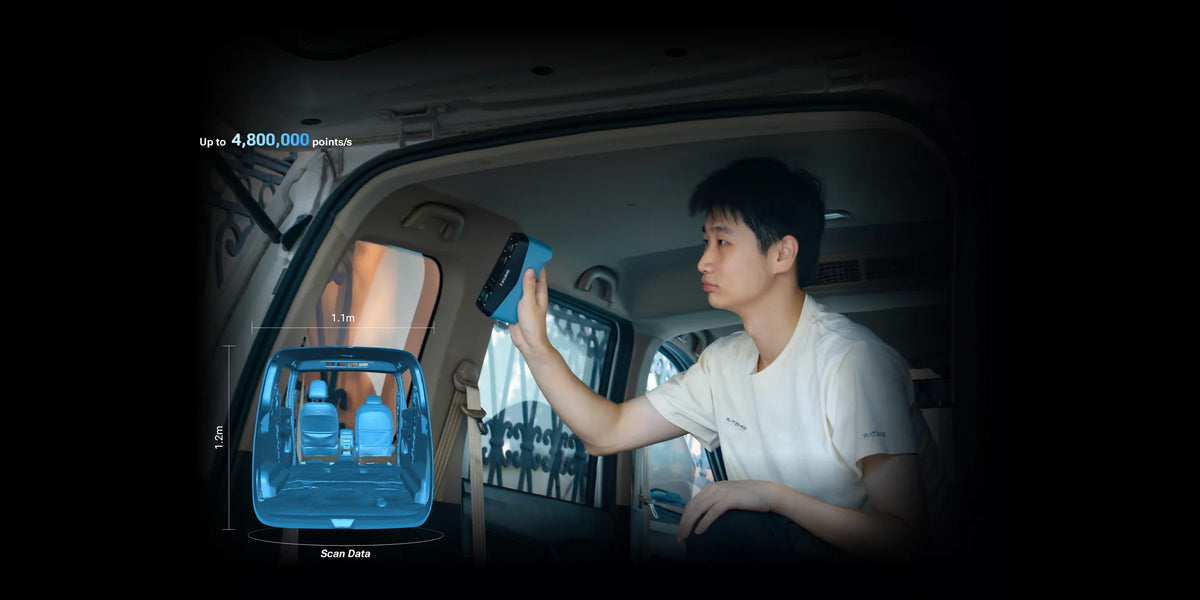

Reach up to 2,500,000 points/s in Laser HD and 4,800,000 points/s in IR Rapid
TRUE WIRELESS HYBRID 3D SCANNERPerformance highlights
Explore the capabilities that matter.
Explore the capabilities that affect capture, output quality and day-to-day operation.
Feature in focusWireless connection
01 / 10Your workflow
From acquisition to a usable deliverable.
- Step 01
EXStar Hub included
Choose a scan mode
Use Laser HD for fine geometry or IR Rapid for larger objects and body capture.
Object-appropriate capture
- Step 02
EXStar Hub included

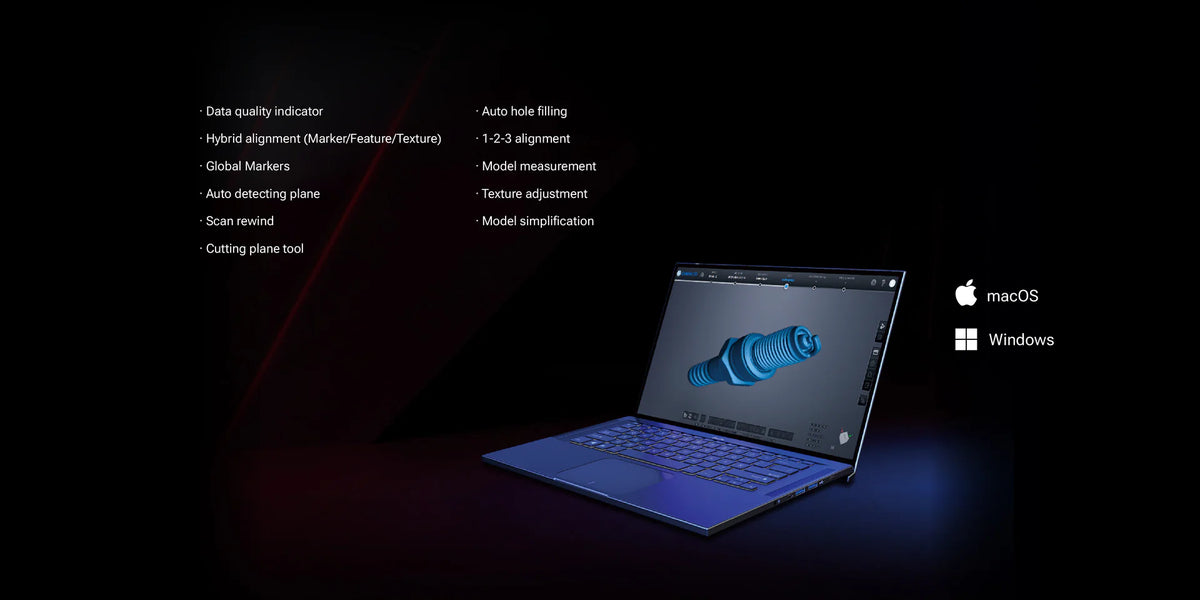

Align & process
Review, align and edit the scan in EXStar Hub before exporting the mesh.
Processed scan mesh
- Step 03
Optional CAD software selected separately
Design, print or visualize
Use the exported data in the downstream application. Add EXModel only when CAD reconstruction is needed.
Mesh for the selected workflow
Application fit
See where this system fits.
Explore representative use cases before confirming system fit.
Video library
Watch the workflow in motion.
Use official demonstrations, case studies, and tutorials to assess real operation.
Technical evidence
Every specification, organized for review.
Open the data set needed for engineering, IT, quality, and procurement review.
Complete data table
Open a category to review the full specification.
Physical & Operating Specifications
| Operating temperature | -10–40 °C |
|---|---|
| Battery | Swappable 5500 mAh rechargeable battery; up to 3 hours runtime |
| Charging | Supports 60 W USB-C PD 3.0 charger |
| Dimensions | 130 × 37 × 61 mm |
| Net weight | 420 g with battery; 348 g without battery |
Capture & Measurement Performance
| Scan modes | Laser HD and IR Rapid |
|---|---|
| Laser HD light source | 17 parallel blue laser lines |
| IR Rapid light source | Infrared VCSEL |
| Laser HD resolution | 0.05–10 mm |
| IR Rapid resolution | 0.2–10 mm |
| Laser HD scanning speed | Up to 2,500,000 points/s |
| IR Rapid scanning speed | Up to 4,800,000 points/s |
| Laser HD working distance | 100–600 mm |
| IR Rapid working distance | 160–1400 mm |
| Laser HD maximum field of view | 490 × 580 mm |
| IR Rapid maximum field of view | 1170 × 1385 mm |
| Laser HD alignment | Global marker and markers |
| IR Rapid alignment | Global marker, markers, features, texture, and hybrid |
| Minimum scan volume | Laser HD: 10 × 10 × 10 mm; IR Rapid: 50 × 50 × 50 mm |
| 3D cameras | 2 MP × 2 |

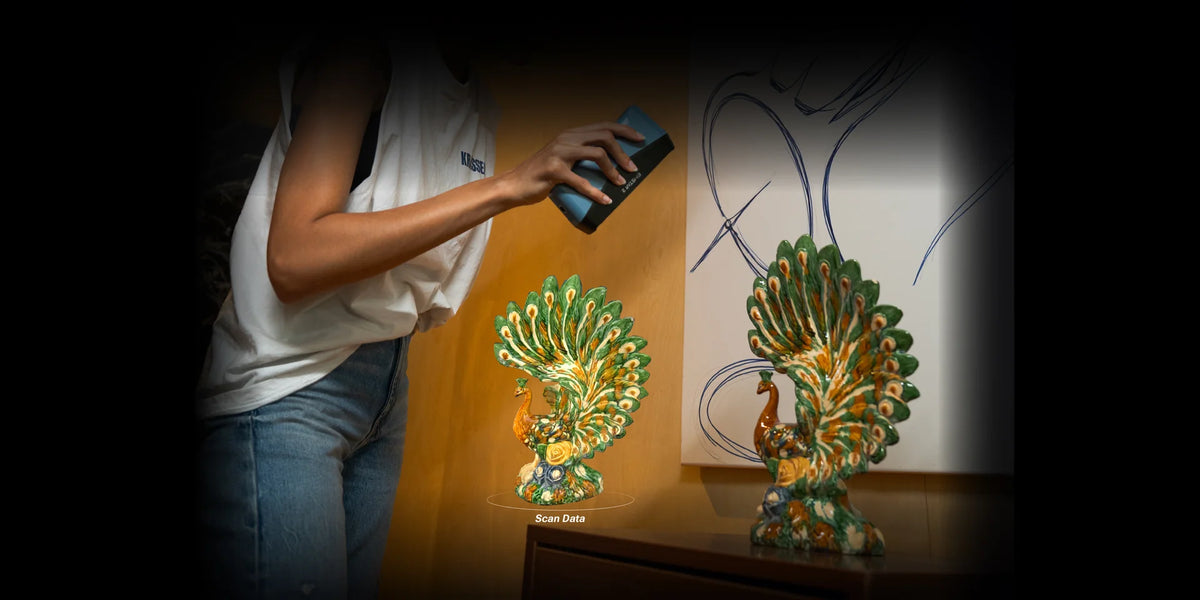

| Texture camera | 2.3 MP |
| Laser class | Class 2 |

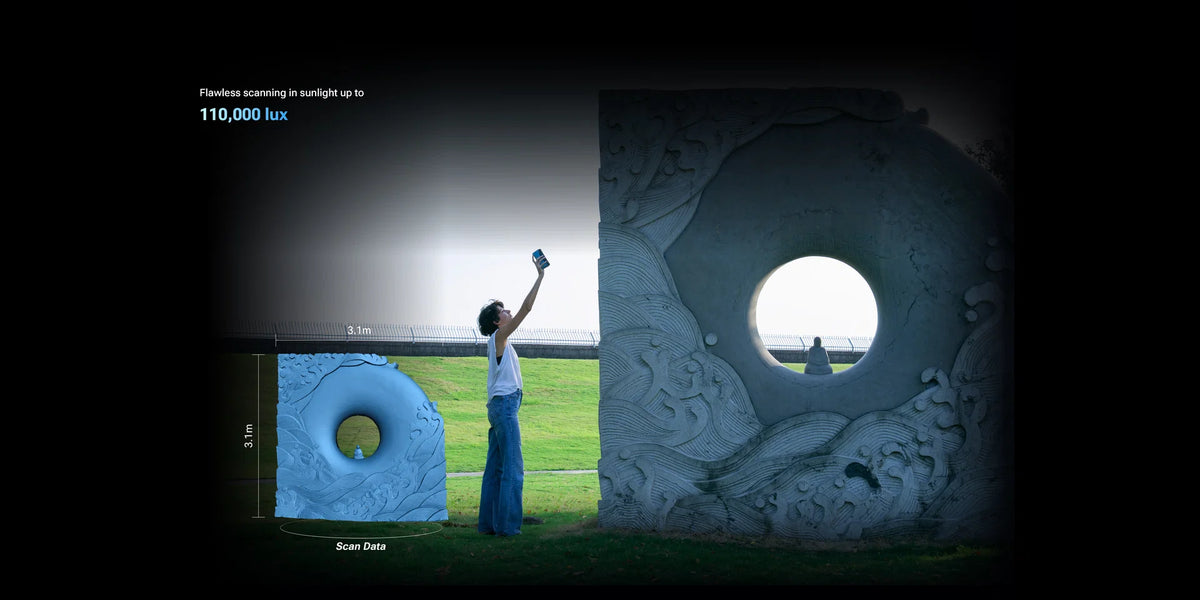

| Outdoor illuminance | Laser HD: below 110,000 lux; IR Rapid: below 70,000 lux |
| Interface | USB Type-C |
Software, Formats & System Requirements
| Output formats | STL, OBJ, PLY, 3MF, and ASC |
|---|---|
| Wireless connection | Built-in Wi-Fi connection to a PC |
| Included scanning software | EXStar Hub |
Workstation requirements
| Component | Minimum | Recommended |
|---|---|---|
| Windows operating system | Windows 11 Professional 22H2, 64-bit | Windows 11 Professional 22H2, 64-bit |
| Processor | 13th Gen Intel Core i7-13700H or above | 13th Gen Intel Core i7-13700H or above |
| Graphics | NVIDIA GeForce RTX 3060 Laptop GPU or above | NVIDIA GeForce RTX 3060 Laptop GPU or above |
| Video memory | 6 GB | 6 GB or more |
| System memory | 32 GB DDR5 dual-channel | 64 GB or more DDR5 dual-channel |
| Computer interface | USB 3.0 | USB 3.0 or built-in Wi-Fi connection |
| macOS | macOS Tahoe 26.2; MacBook Pro M1 or Mac M3 and above; 16 GB RAM | macOS Tahoe 26.2; MacBook Pro M3 Max or Ultra and above; 24 GB RAM or more |
The manufacturer specifies a high-performance workstation for EINSTAR 2. Confirm EXStar Hub compatibility with the exact computer and operating-system version before purchase.
Standards & Safety Compliance
| Certifications | CE, FCC, RoHS, WEEE, FDA, SRRC, and IP50 |
|---|
Interactive results
Inspect representative scan data.
Load a model to examine surface detail and captured geometry.
Package contents
What arrives with the selected system.
Review the documented hardware, included accessories and software access for this product.
EINSTAR 2 Standard Package
Scanner, calibration tools, power components, markers, and carrying protection.
- EINSTAR 2 3D scanner
- Carrying case
- Calibration board
- Universal holder for the calibration board
- Power adapter
- Rechargeable 5500 mAh battery
- Battery compartment
- Battery-compartment charging cable
- Type-C cable for the scanner and battery compartment
- 3 mm and 6 mm reflective markers
- Packing list
- EXStar Hub software download
Confirm the final regional plug type and package components before fulfillment.
