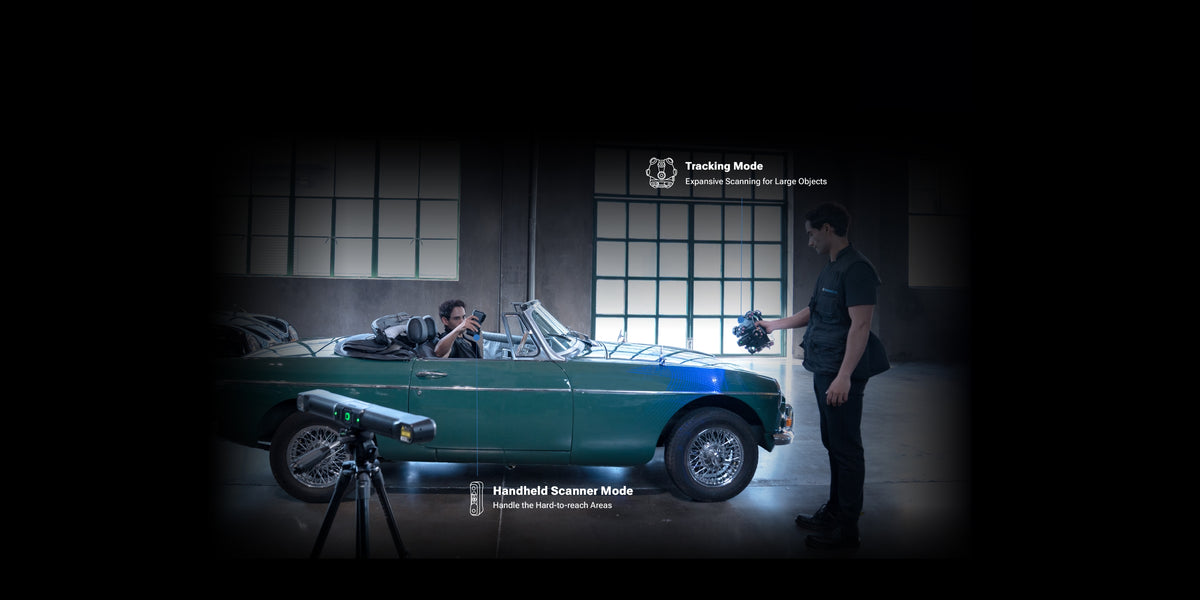

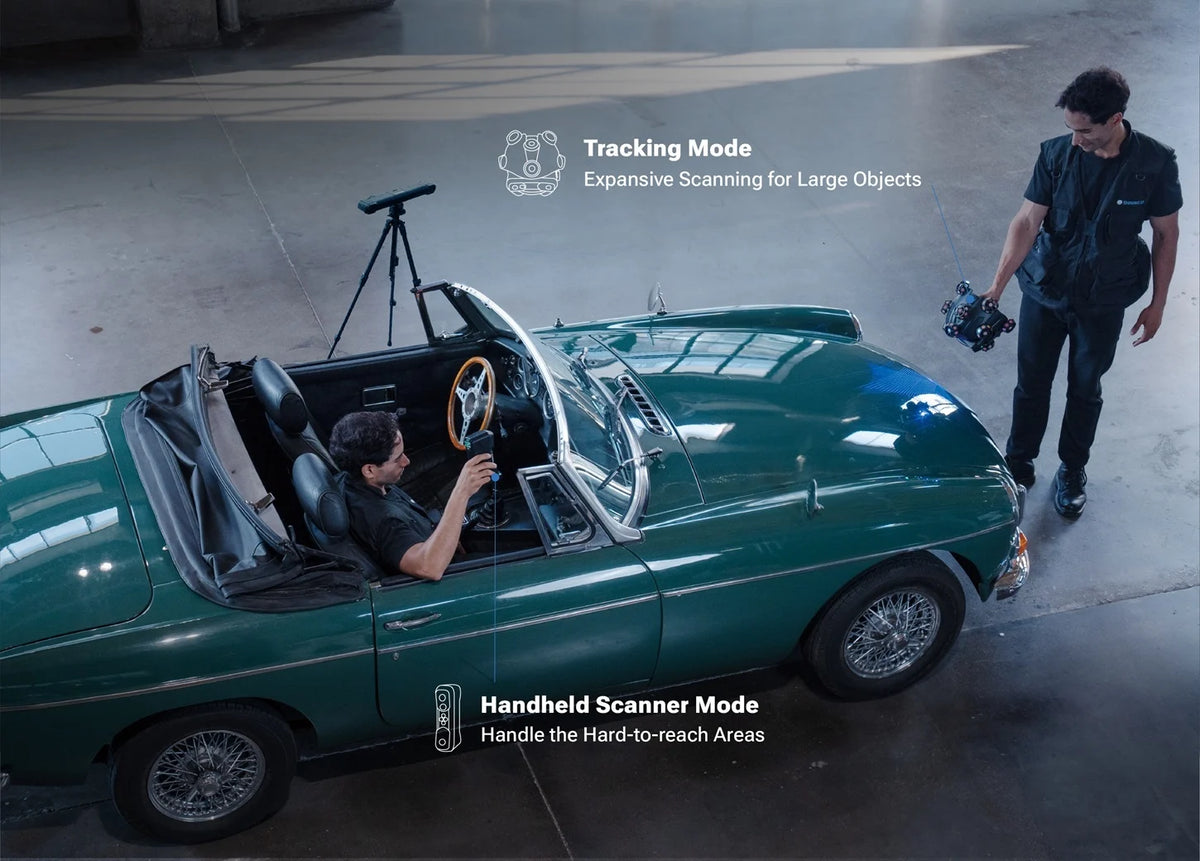

Switch between tracked large-object capture and a detachable handheld scanner in the same project
WIRELESS MARKER-FREE TRACKING SYSTEM
Scan large parts without surface markers
Wireless optical tracking system with detachable handheld laser scannerSystem type
Tracking Mode and Handheld Scanner ModeWork modes
Blue laserScan mode
19 + 19 crossed laser lines, 7 parallel laser lines, and 1 single laser lineLight sources
Guided configuration
Configure the scanner, software, training, and coverage together.
EinScan Trak combines an optical tracker and detachable laser scanner in one wireless system. In tracking mode, the tracker follows the spherical scanner across a 15 m³ volume, so medium and large objects can be captured without placing markers on most surfaces. Detach the scanner for small parts, narrow areas, and deep features, then merge both data sets in the same EXScan Trak project.
Three blue-laser patterns cover fast surface capture, fine detail, and deep holes. The system reaches up to 2,630,000 points per second, supports resolution from 0.05 to 10 mm, and records 5 MP color texture. A dedicated Wi-Fi 6 router, four batteries, calibration hardware, tripod, transport case, EXScan Trak, and a complimentary one-year EXMeasure license are included.

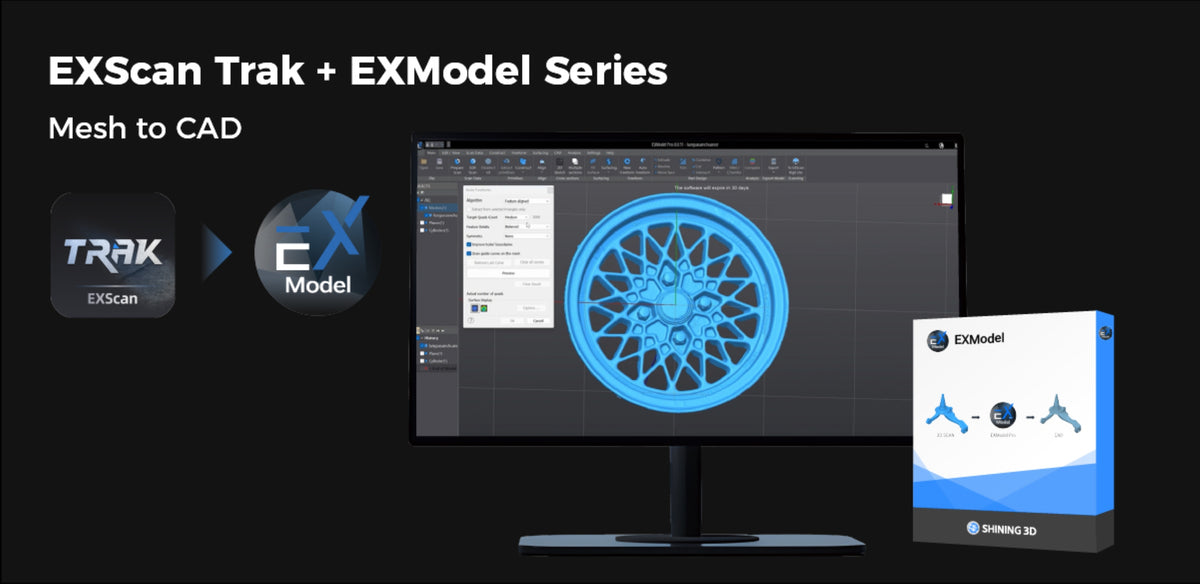

Built for reverse engineering, vehicle customization, marine projects, heritage preservation, product design, and research. Optional EXModel software, BlueStar Mapping, an Accessories Pro Kit, and training can be added to the configuration.
Select the software, training, and protection needed for the intended workflow. Your choices carry into the recommendation request for technical review.
Configuration
Build the system you need.
Select any optional protection, software, accessories, and training.
Configured total$6,999.00
Core system only
Checkout and quote actions use the same selected configuration.
Package contents
The complete standard system, itemized.
Review the physical system, power and data connections, markers, software access, and documentation before requesting the configuration.
01
EinScan Trak Standard Package
Core wireless tracking system, calibration hardware, power components, networking equipment, software, and transport protection.

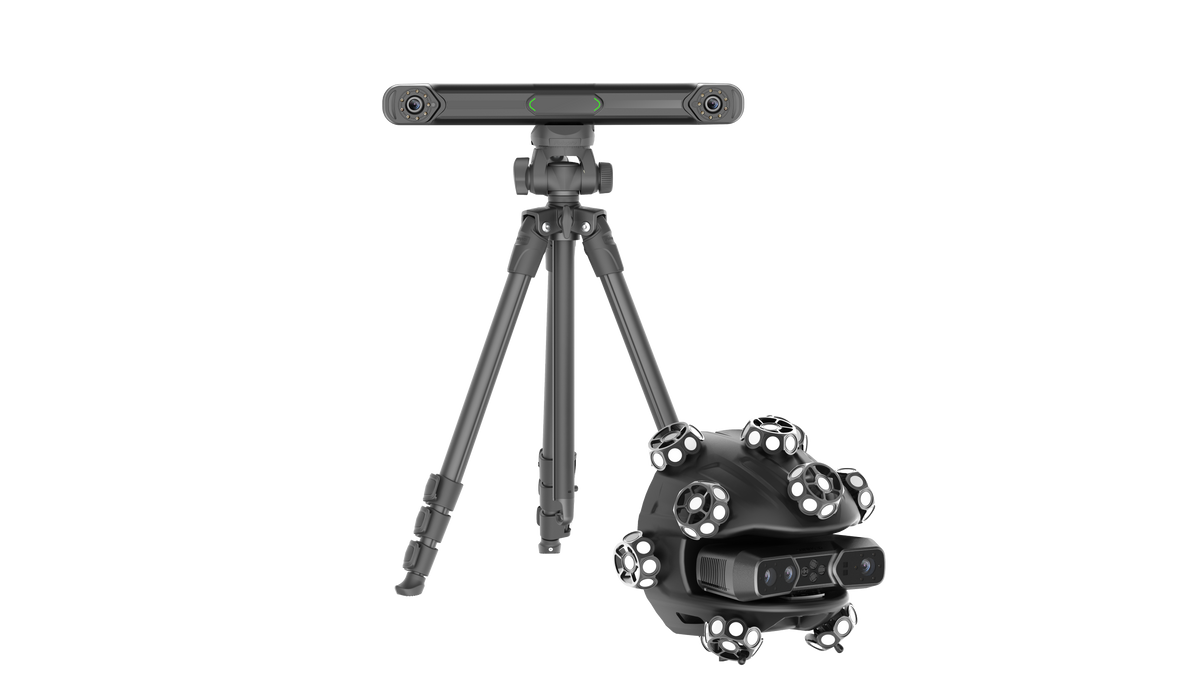

- EinScan Trak tracker
- EinScan Trak spherical scanner with detachable handheld scanner
- System calibrator
- Calibration rod
- Markers set and marker scraper
- Four 5400 mAh batteries
- Battery compartment
- Tripod
- Dedicated router
- Router Ethernet cable
- USB Ethernet adapter
- USB drive
- Two 4.5 m power and data cable assemblies
- 2 m USB-C to USB-C power cable
- Power cable
- Power adapters with multi-country plug adapter kit
- Cleaning cloth
- Protective packaging case
- Quick guide and packing list
- EXScan Trak acquisition software
- Complimentary one-year EXMeasure license
EXModel, BlueStar Mapping, Accessories Pro Kit, workstation, and training are optional. Final regional plug type and package quantities are confirmed before fulfillment.
Key features
How the system performs in day-to-day use.
Review the features that affect setup time, repeatability, inspection speed, and output quality.
02

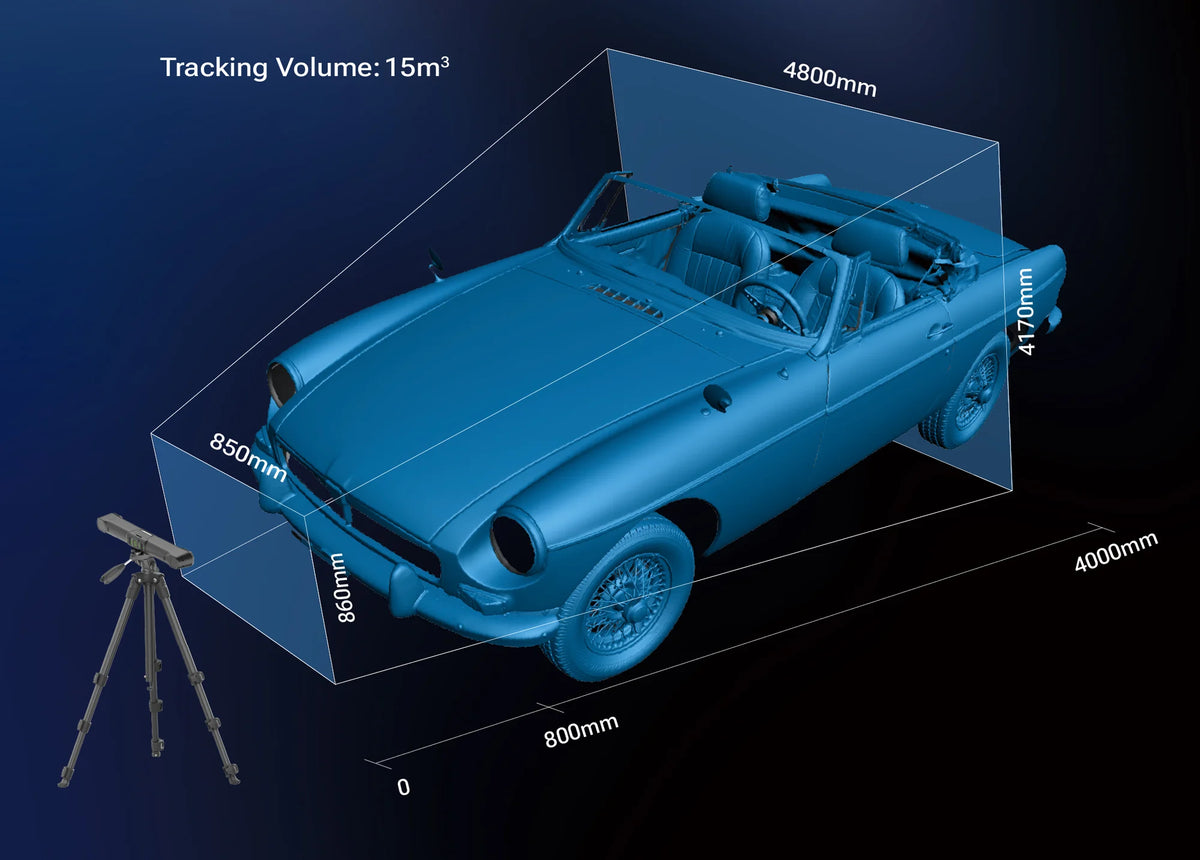

Work wirelessly across a 15 m³ tracking volume through the included Wi-Fi 6 router
03

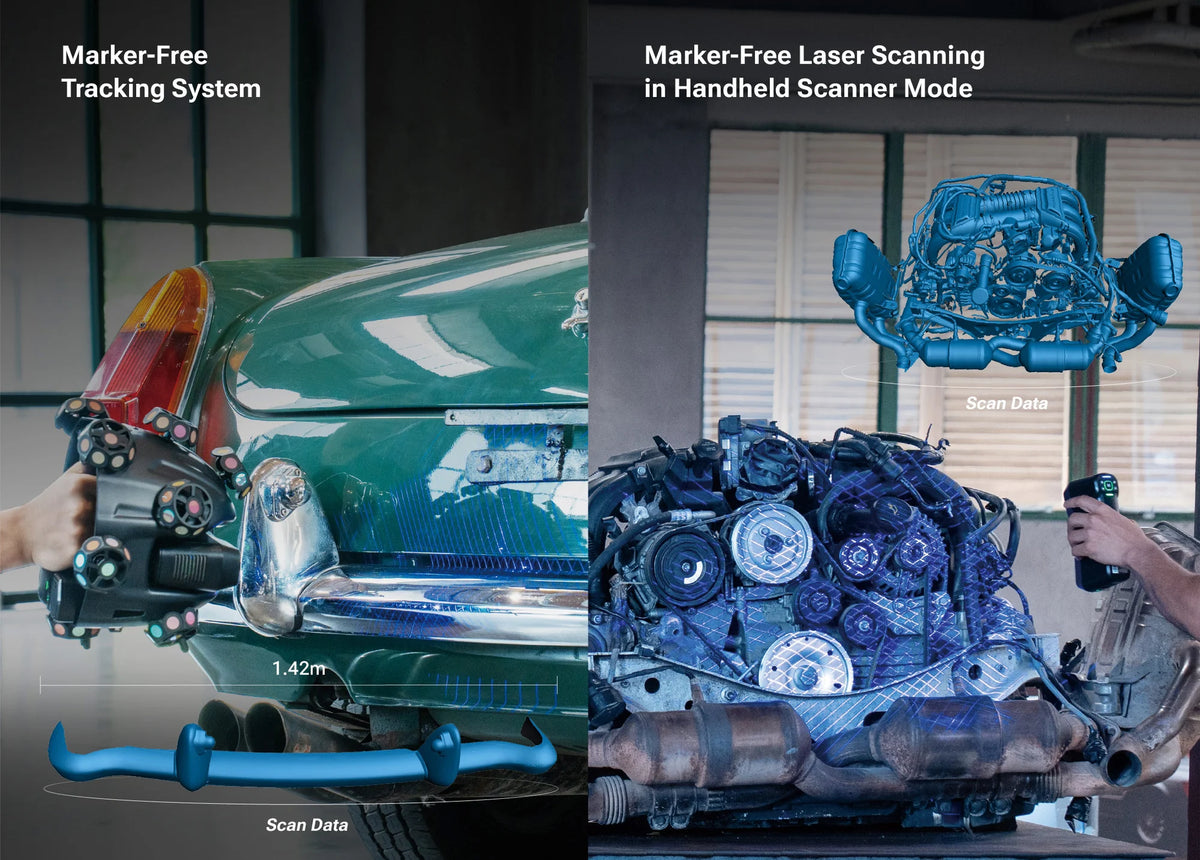

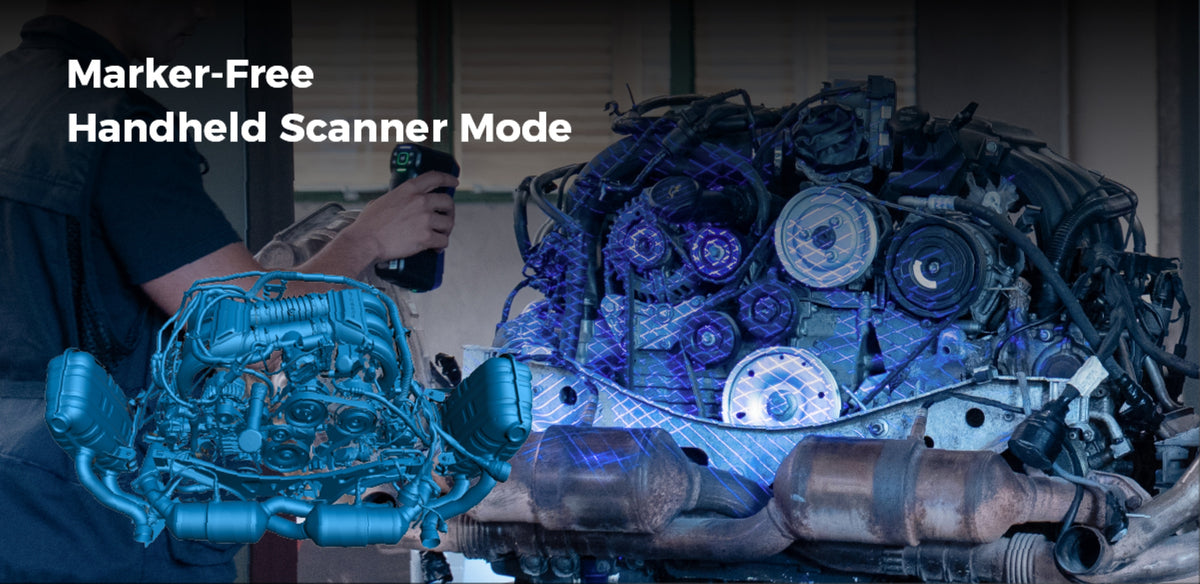

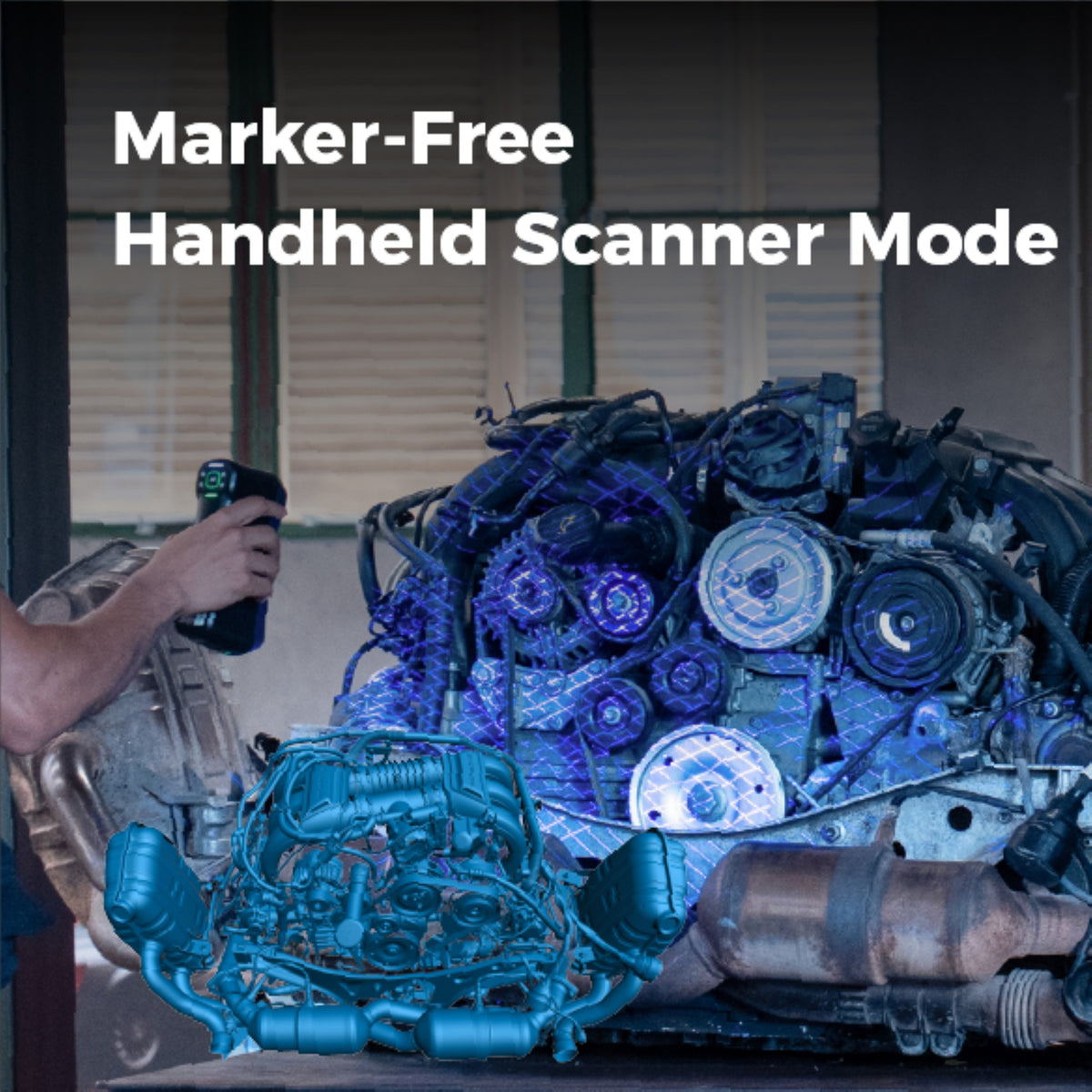

Scan without surface markers in tracking mode and on feature-rich objects in handheld mode
04

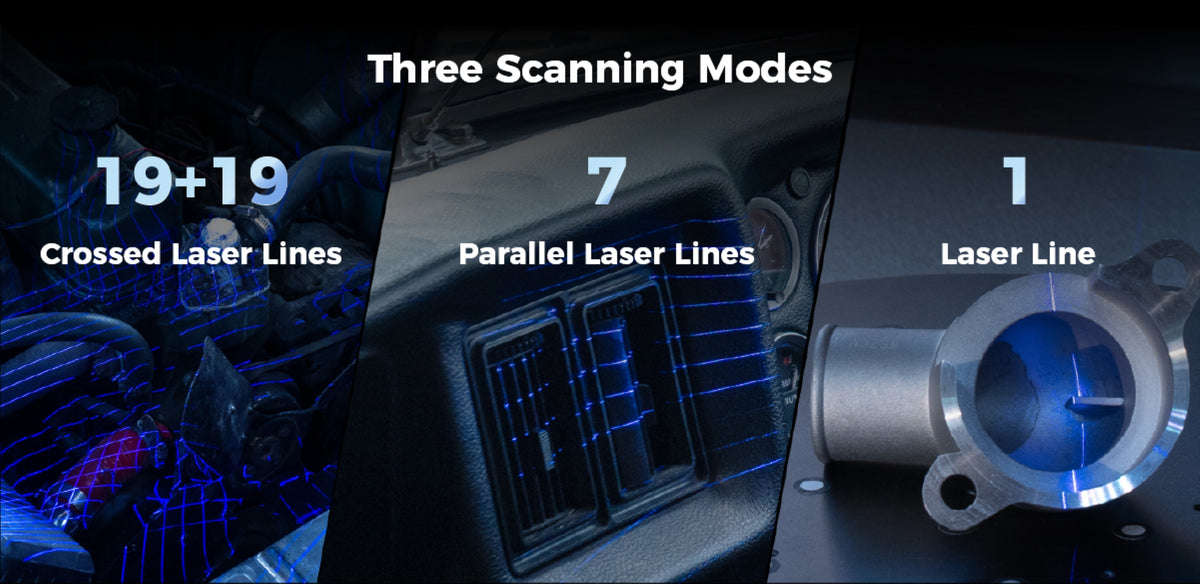

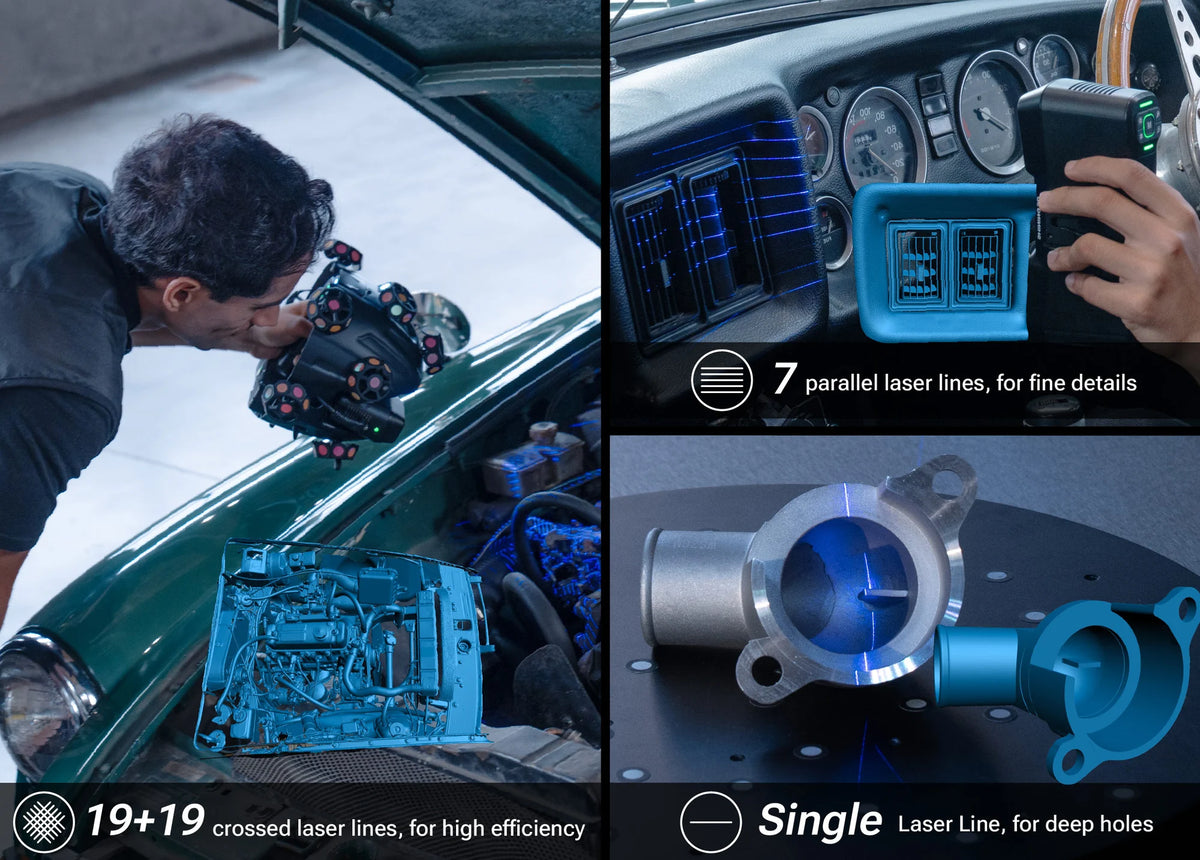

Capture broad surfaces, fine edges, and deep holes with 19 + 19 crossed lines, 7 parallel lines, and 1 single laser line
05

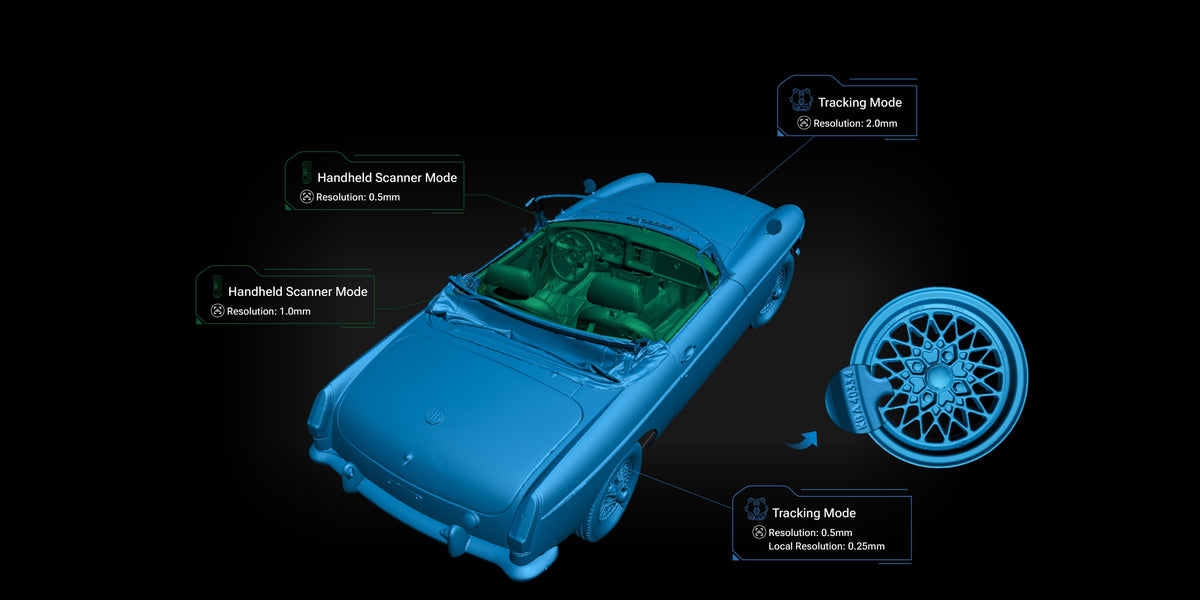

Merge tracking and handheld data across different resolutions inside EXScan Trak
06

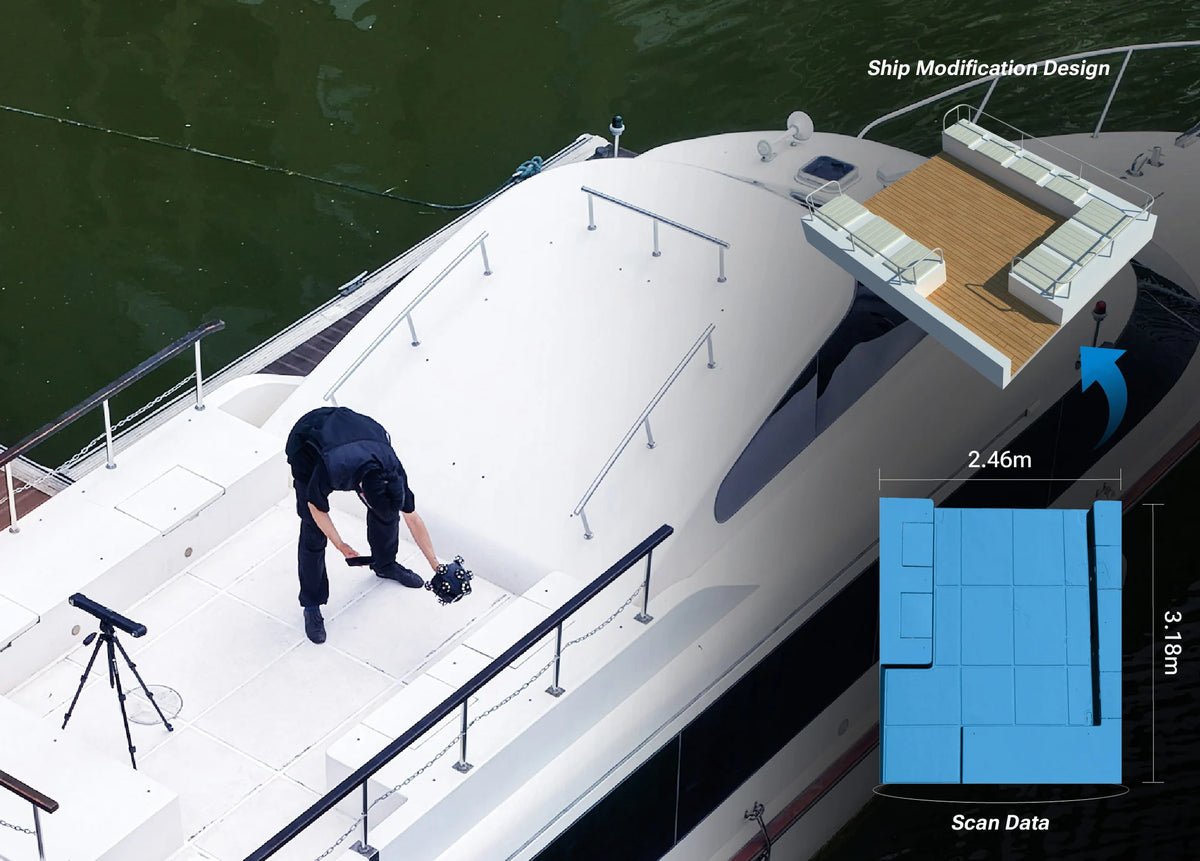

Handle many dark and reflective surfaces indoors or outdoors, with support up to 110,000 lux
07

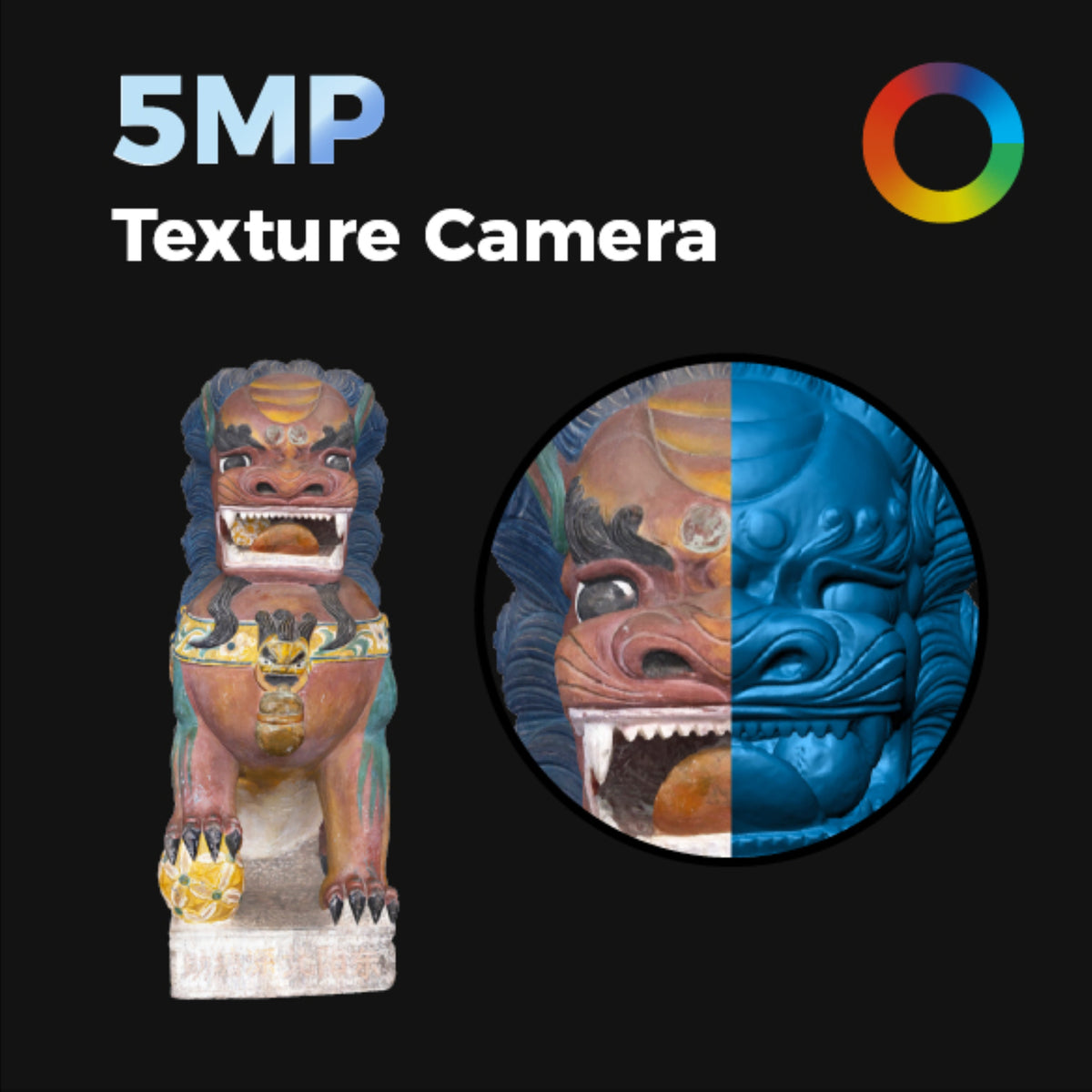

Record 5 MP color texture for heritage, visualization, and digital-content projects
08

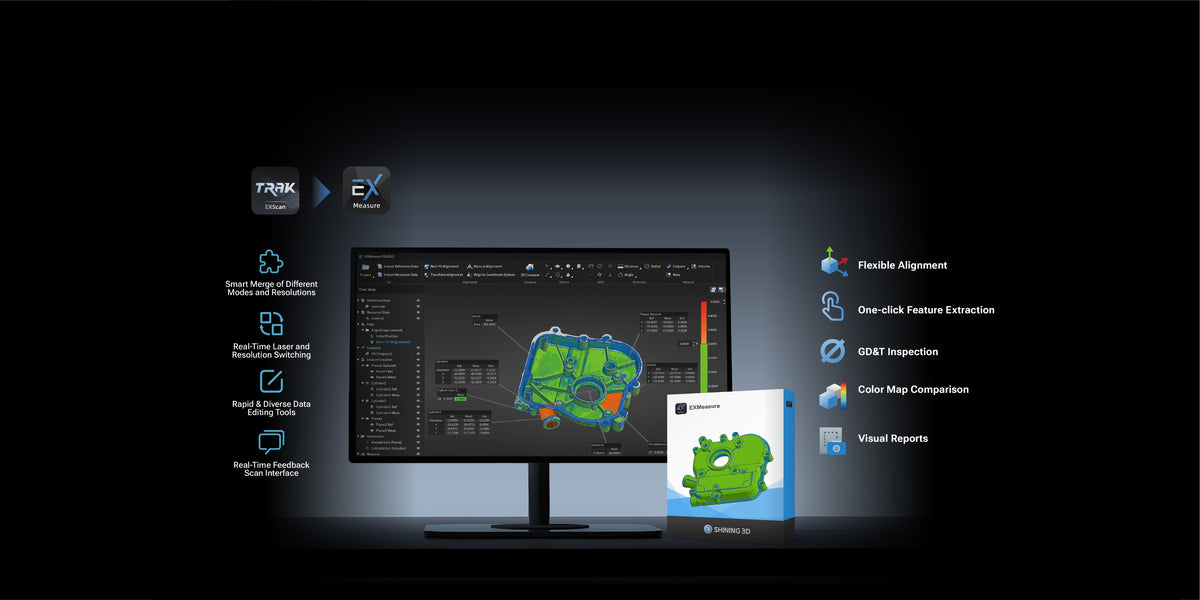

Receive EXScan Trak plus a complimentary one-year EXMeasure license for measurement and reporting
Complete measurement workflow
From automated capture to inspection-ready data.
Follow the workflow from repeatable capture through processing, inspection, and reporting.
Review technical specifications →Application fit
Where this system fits best.
Review the application environments where automation, accuracy, and repeatability create the clearest advantage.
01

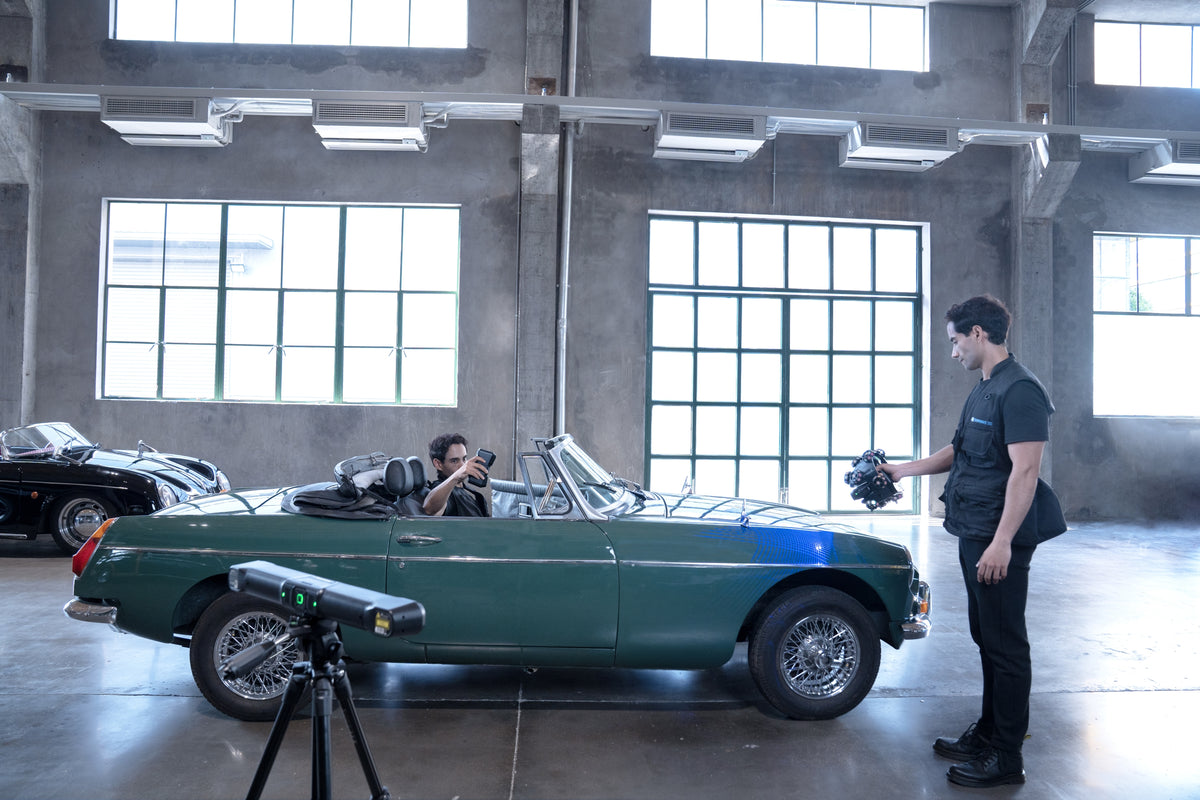

Automotive customization, restoration, and complete vehicle capture
02

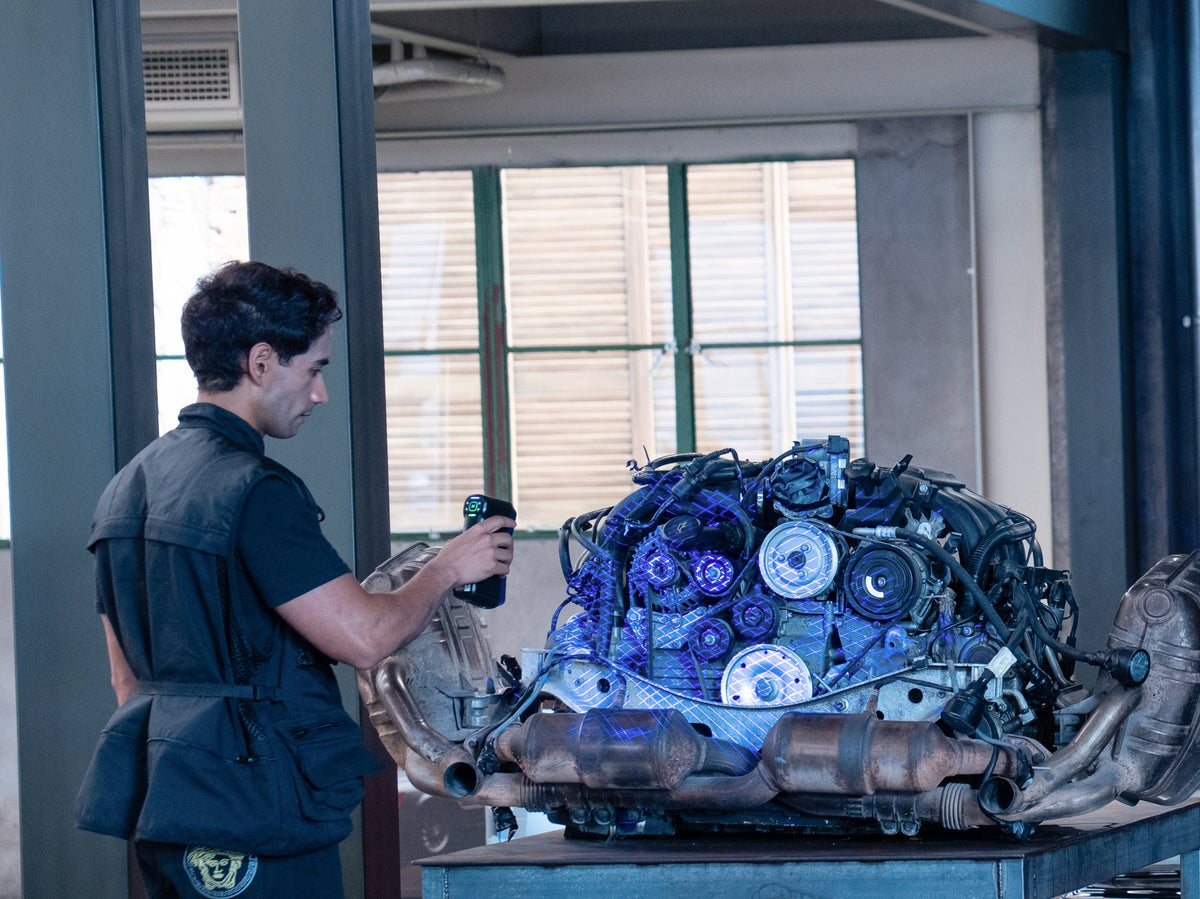

Reverse engineering and product development
03

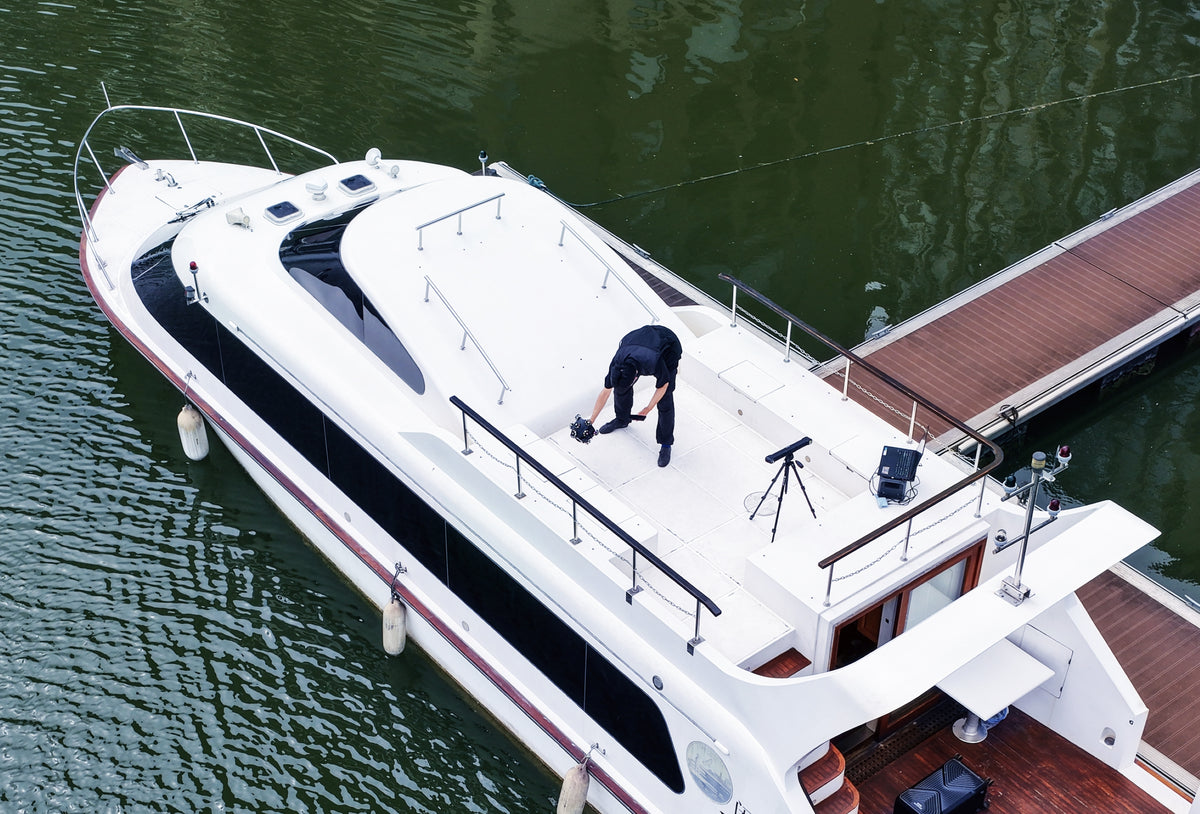

Marine refit and large-part digitization
04

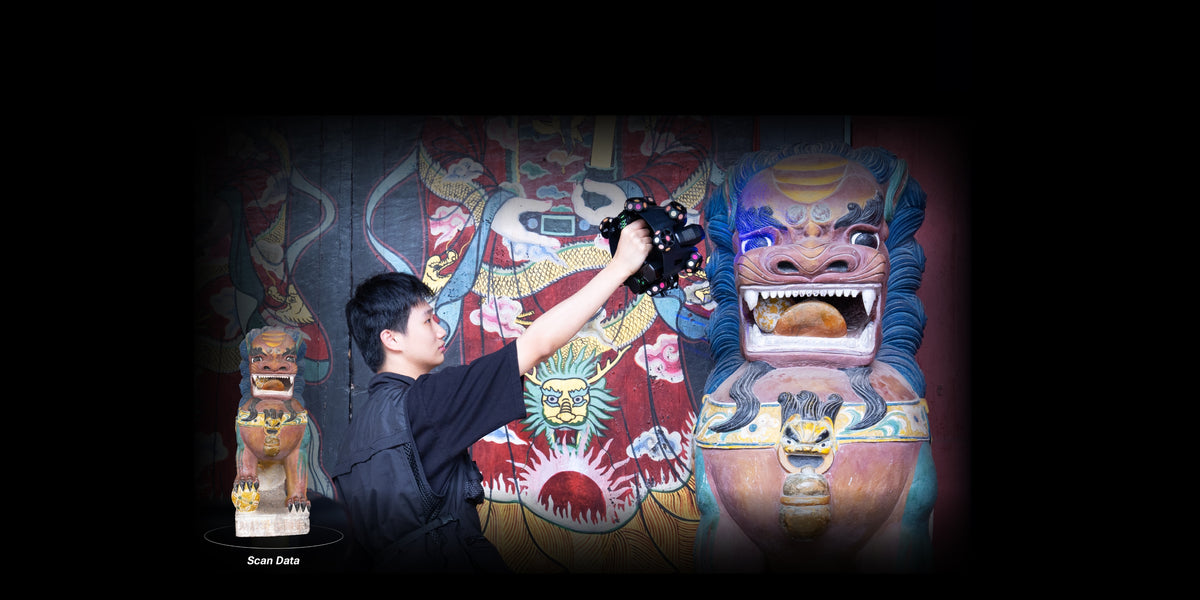

Cultural heritage preservation, sculpture, and museum documentation
Product media
Inspect the equipment and included system visually.
Product detail
Examine the system from every angle.
Review the scanner, turntable, accessories, interfaces, and physical setup before selecting a configuration.
Video library
Watch real scanning and inspection workflows.
Use the case studies, demonstrations, and tutorials to review the workflow from capture through final output.
Video library
Select a video to begin
Watch demonstrations, tutorials, and real application workflows without leaving the product page.
Technical specifications
Check the specifications before purchase.
Confirm accuracy, field of view, point distance, capture system, outputs, standards, and workstation requirements.
System typeWireless optical tracking system with detachable handheld laser scanner
Work modesTracking Mode and Handheld Scanner Mode
Scan modeBlue laser
Light sources19 + 19 crossed laser lines, 7 parallel laser lines, and 1 single laser line
Volumetric accuracyUp to 0.1 mm

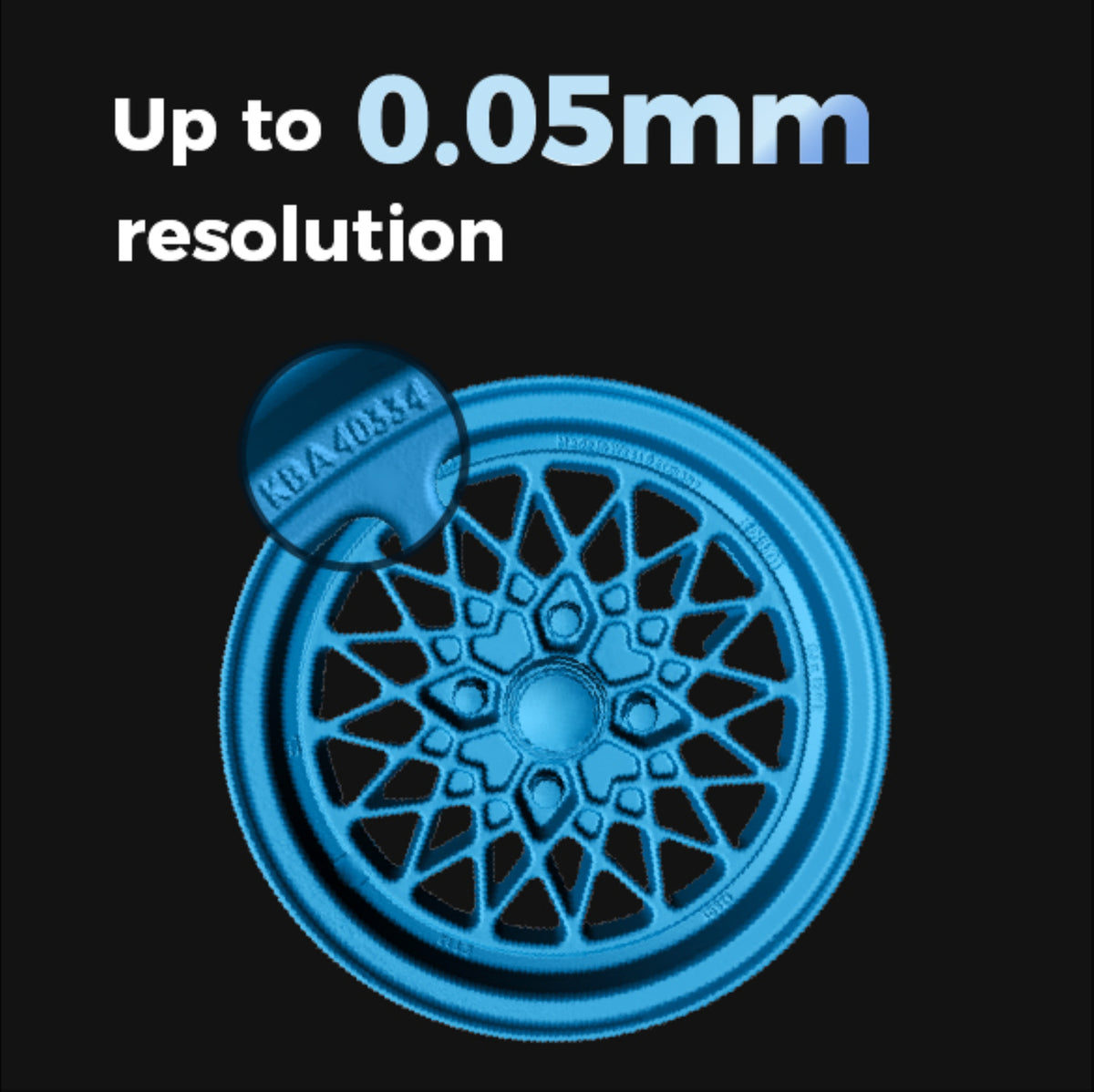

Resolution0.05 to 10 mm
Scanning speedUp to 2,630,000 points/s
Tracking working distance800 to 4000 mm
Handheld working distance100 to 500 mm
Maximum tracking field of view4796 × 4174 mm at 4000 mm
Maximum handheld field of view547 × 463 mm at 500 mm

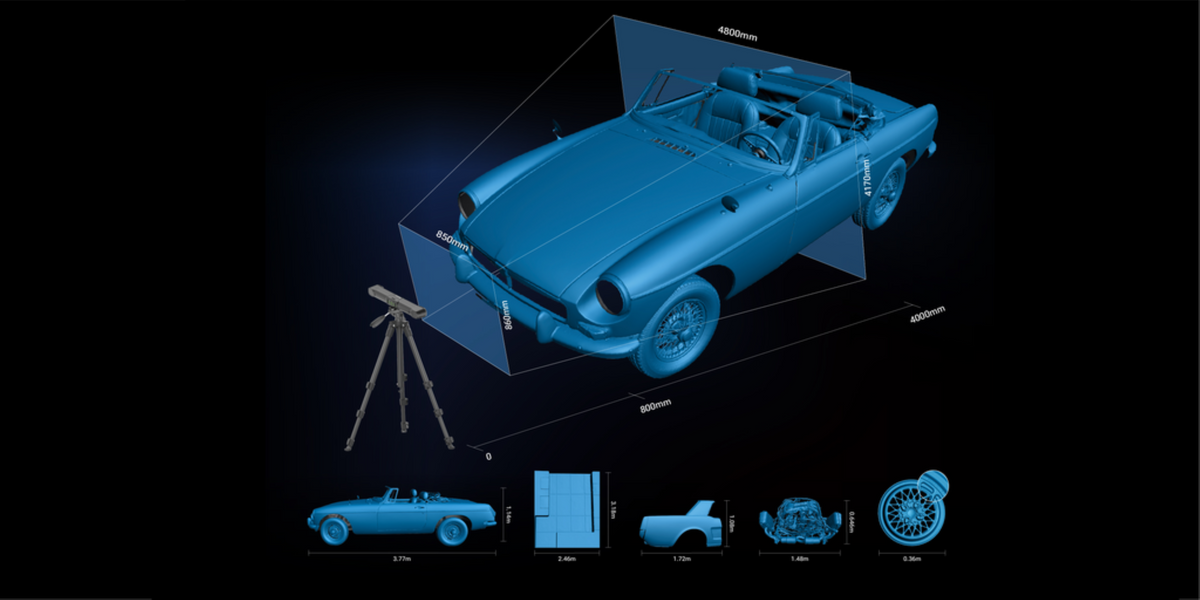

Tracking volume15 m³
Tracking alignmentOptical tracking and global markers
Handheld alignmentFeature, marker, and global-marker alignment
Tracker camerasTwo 5 MP cameras
Scanner depth camerasTwo 2 MP cameras
Texture cameraOne 5 MP camera
Output formatsSTL, OBJ, PLY, 3MF, and ASC
Laser classClass 2
Outdoor illuminanceUp to 110,000 lux
Operating temperature-10 to 40 °C
Wireless connectionWi-Fi 6 through the included dedicated router
Tracking runtimeUp to 5.5 hours with two tracker batteries and two scanner batteries
Handheld runtimeUp to 3.5 hours with one battery
Battery systemHot-swappable 5400 mAh batteries; four included
InterfacesTracker: two USB Type-C ports; scanner: one USB Type-C port; computer: USB 3.0 and LAN
Tracker dimensions462 × 68 × 54 mm
Spherical scanner dimensions244 × 186 × 238 mm
Handheld scanner dimensions199 × 193 × 172 mm
Net weightTracker: 1.02 kg; spherical scanner: 1.46 kg; handheld scanner: 0.48 kg
CertificationsCE, FCC, RoHS, WEEE, FDA, SRRC, and IP50
Included acquisition softwareEXScan Trak
Included measurement softwareOne-year EXMeasure license
| Component | Minimum | Recommended |
|---|---|---|
| Operating system | Windows 10 or 11, 64-bit, per the brochure | Windows 11, 64-bit, per current U.S. product guidance |
| Processor | 13th Gen Intel Core i7-13650HX or above | 13th Gen Intel Core i7-13650HX or above |
| Graphics card | NVIDIA GeForce RTX 3060 Laptop GPU | NVIDIA GeForce RTX 4060 or above |
| Video memory | 6 GB or more | 8 GB or more |
| System memory | 32 GB or more, DDR5 dual-channel | 64 GB or more, DDR5 dual-channel |
| Computer connections | USB 3.0 and LAN | USB 3.0 and LAN through the included dedicated router |
| macOS | Not currently supported | Future support has been announced, but availability is not confirmed |
EinScan Trak requires a compatible Windows workstation. The included dedicated router connects the tracker and scanner to the computer for wireless scanning.
Interactive results
Review scanned models.
Select a model to load the interactive viewer, or open it directly on Sketchfab.
Optional interactive preview
MG car
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
Colorful stone lion
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Models published by Shining 3D on Sketchfab. Use the direct link if the embedded viewer exceeds the device's graphics capacity.
Next step
Buy your selected configuration or request a quote.
Choose the core system and compatible software, training, add-ons, and protection, then either check out with the full selection or send it for technical review.
