Standalone infrared scanning
Choose HD or Fast capture and inspect the result on the scanner.
Portable full-color 3D scanning

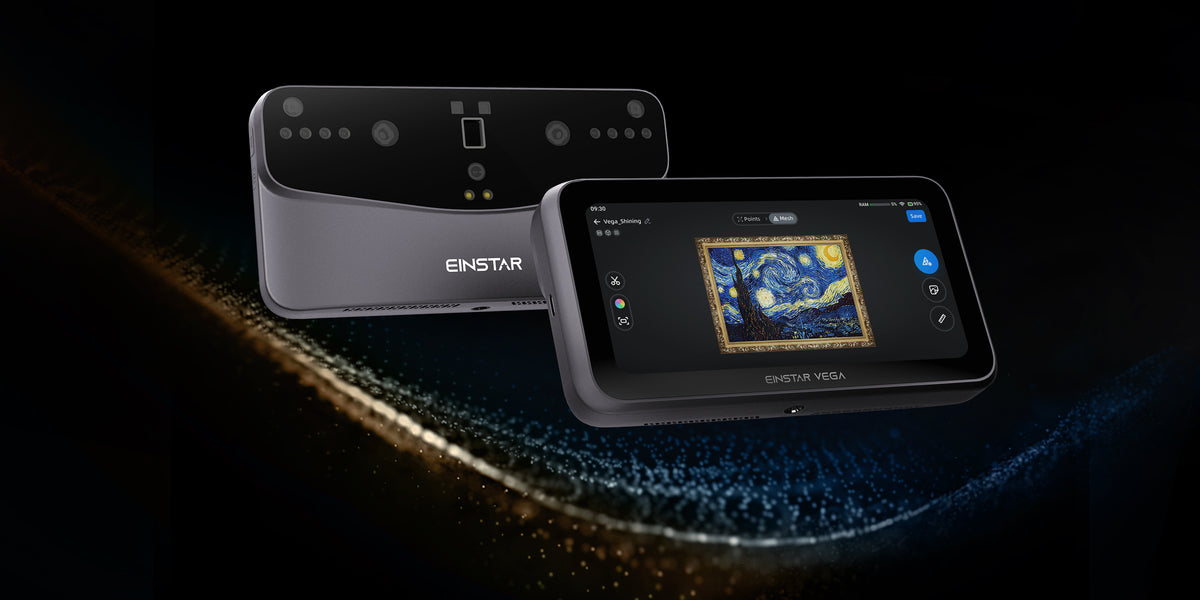

EINSTAR VEGA SHINING 3D standalone infrared 3D scanner
Full-color scanning in your hands. Capture, process, and review without a computer.
0.05 mmHD point distance
48 MPColor camera
32 GBOnboard memory
535 gRegular-edition weight
System architecture & capabilities
Take your scanning workflow to the object.
Standalone full-color scanning for creative work, design, and field capture. Switch between HD infrared MEMS and Fast infrared VCSEL modes, then refine data in included StarVision software.
0.05 mmHD point distance
48 MPColor camera
32 GBOnboard memory
535 gRegular-edition weight
48 MP texture camera
Capture surface color for creative assets and digital documentation.
StarVision included
Continue data processing on a compatible Windows or Mac computer.
Portable full-color 3D scanning535 g regular edition; 643 g limited editionProduct weightPerformance highlights

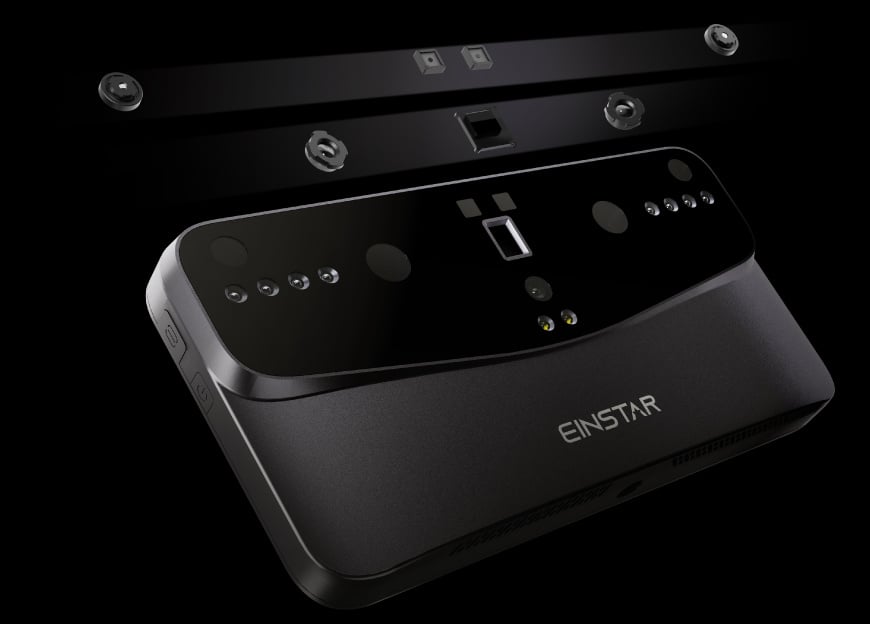

Two infrared modes. One portable workflow.
Explore the capabilities that affect capture, output quality and day-to-day operation.

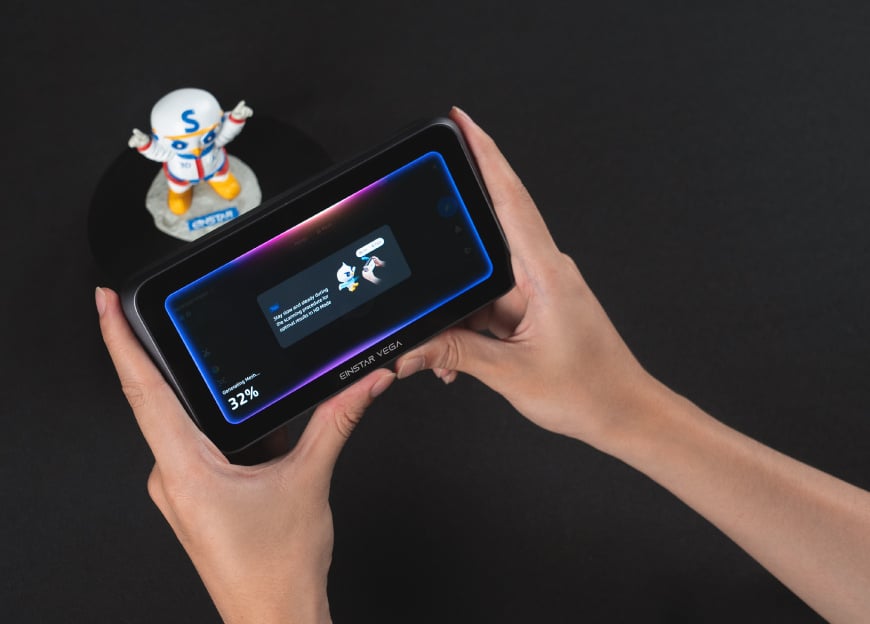

Feature in focusOperation
01 / 12Your workflow
Capture on VEGA. Refine in StarVision.
- Step 01
Onboard software included

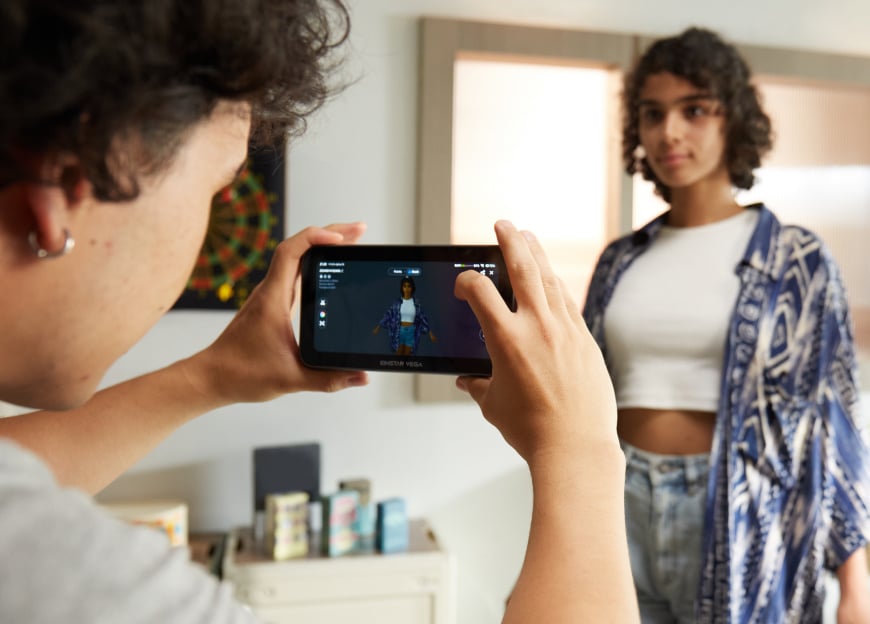

Choose a mode and capture

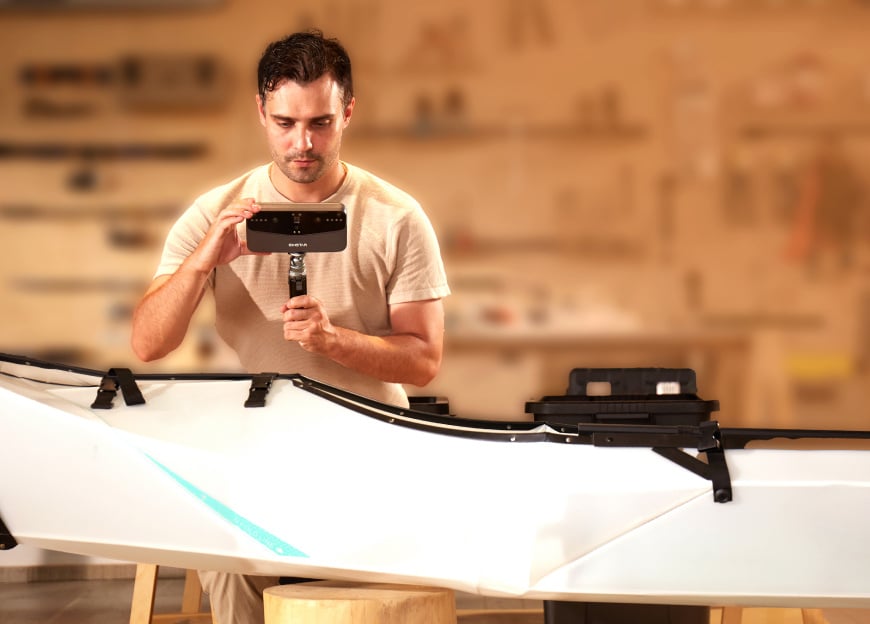

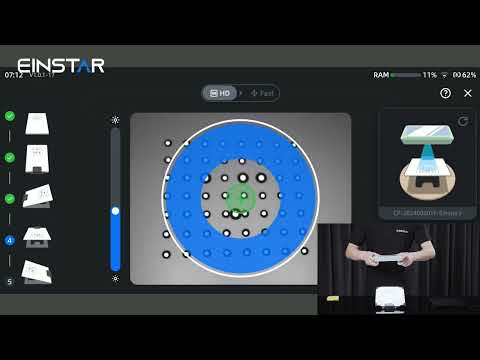

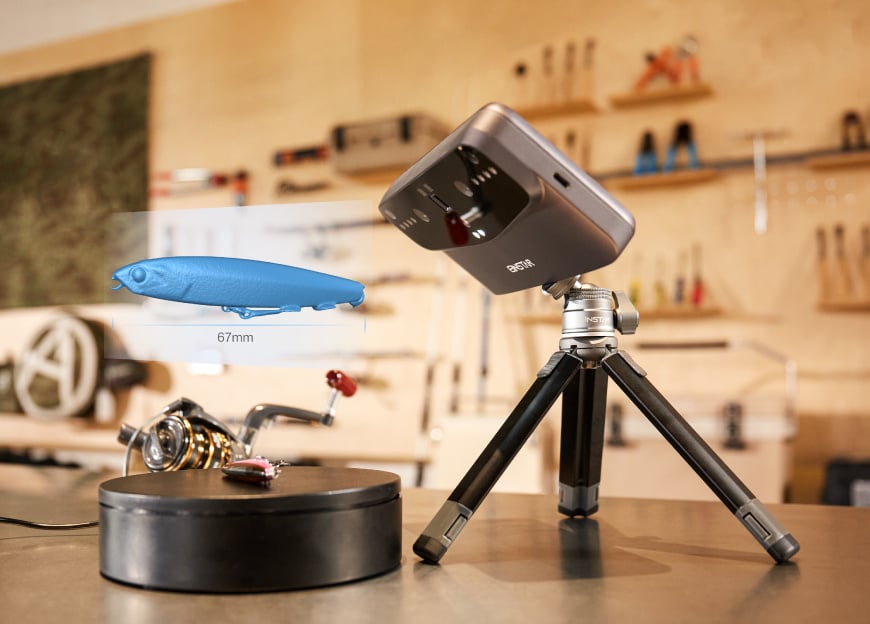

Calibrate and select HD for small details or Fast for larger coverage. Preview the scan directly on the touchscreen.
Geometry and color scan data
- Step 02

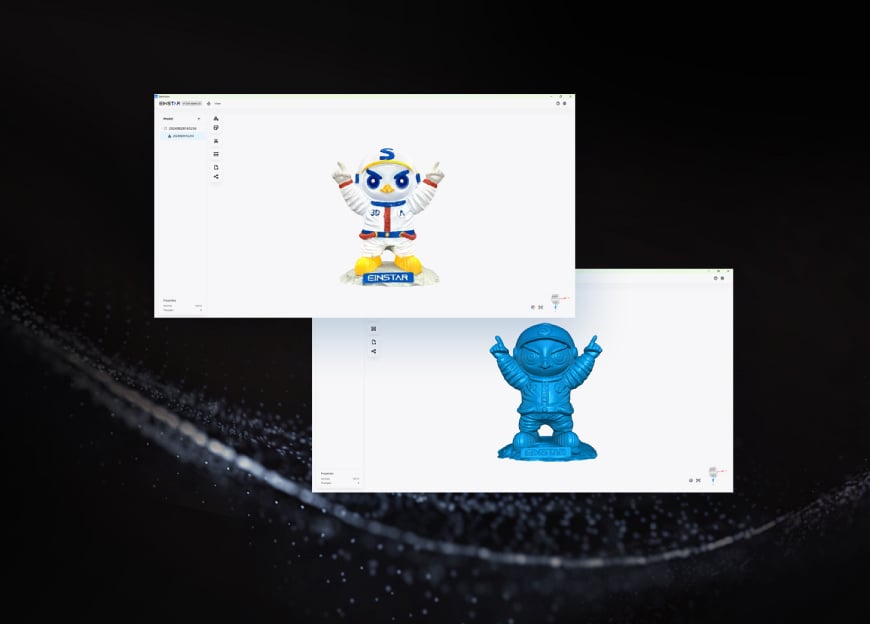

StarVision included
Process and check coverage
Review and process on the scanner, or transfer the project to a compatible computer for further work in StarVision.
Processed mesh
- Step 03
Optional downstream software

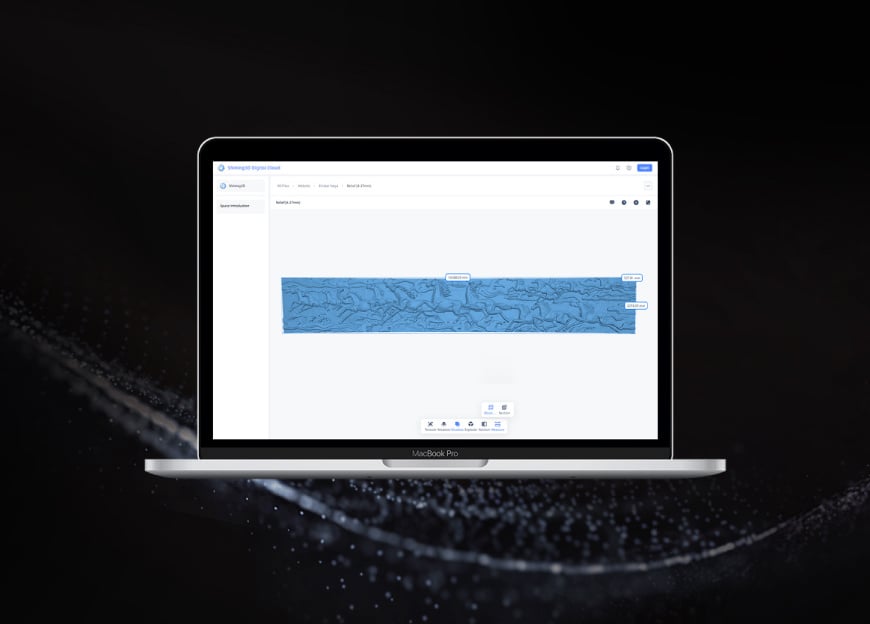

Export for your project
Export STL, OBJ, PLY, or ASC as appropriate. Continue to printing, digital-content tools, or separately licensed CAD software.
Mesh files for the next workflow
Application fit

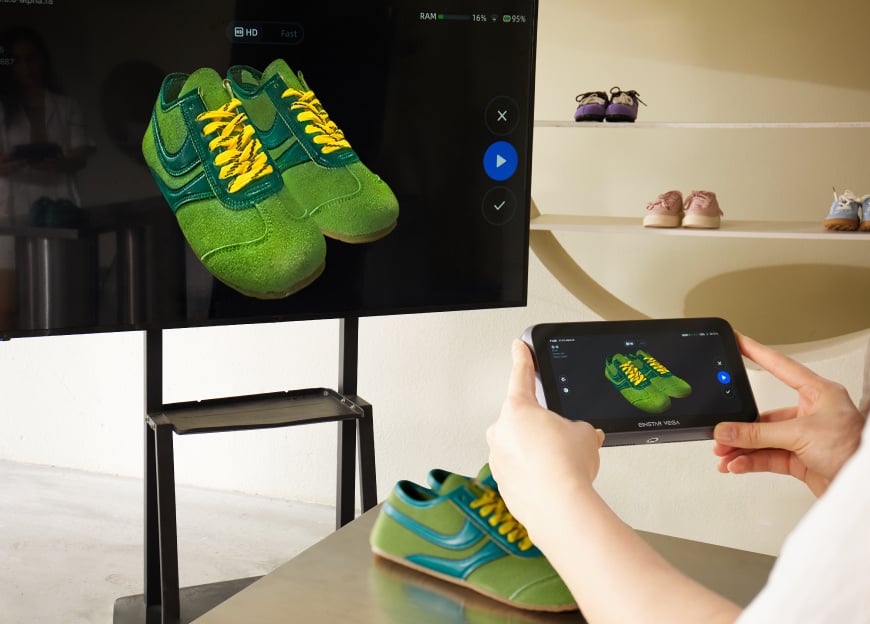

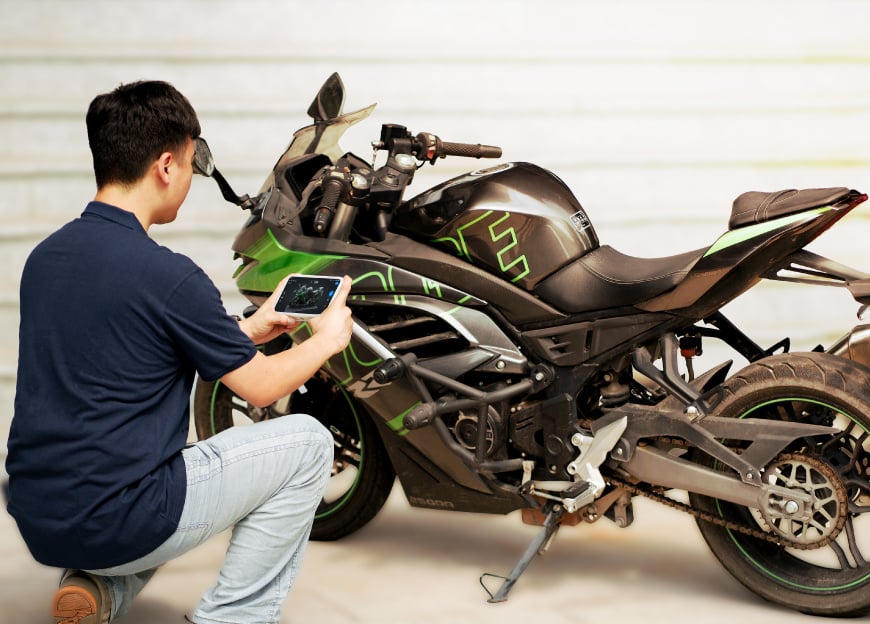

From physical objects to creative 3D work.
Explore representative use cases before confirming system fit.
Image: official SHINING 3D product imagery.
Image: official SHINING 3D product imagery.
Image: official SHINING 3D product imagery.
Image: official SHINING 3D product imagery.
Image: official SHINING 3D product imagery.
Video library
Watch the workflow in motion.
Use official demonstrations, case studies, and tutorials to assess real operation.
Technical evidence
Every specification, organized for review.
Open the data set needed for engineering, IT, quality, and procurement review.
Complete data table
Open a category to review the full specification.
Physical & Operating Specifications
| Scanner weight | 535 g regular edition; 643 g limited edition |
|---|---|
| Scanner dimensions | 180 × 95 × 26.5 mm |
| Battery | Built-in 5000 mAh; external power-bank charging supported |
| Charging | 65 W fast charging; PD/PPS protocols |
| Operating temperature | -10°C to 40°C |
| Operating humidity | 0 to 90% RH, non-condensing |
Capture & Measurement Performance
| Scanning technology | HD: infrared MEMS; Fast: infrared VCSEL |
|---|---|
| HD point distance | 0.05 to 3 mm |
| Fast point distance | 0.5 to 10 mm |
| Accuracy | The manufacturer does not publish a dimensional accuracy figure in the VEGA V1.3.2 brochure; 0.05 mm is point distance, not accuracy |
| HD capture frame rate | Up to 15 FPS |
| Fast capture frame rate | Up to 20 FPS |
| HD working distance | 100 to 350 mm, per V1.3.2 brochure |
| Fast working distance | 270 to 1500 mm, per V1.3.2 brochure |
| Alignment | Feature, marker, and texture alignment |
| IR cameras | HD: 2 MP; Fast: 1.3 MP |
| Color camera | 48 MP |
| Processor | Eight-core CPU, 2.4 GHz |
| Memory | 32 GB LPDDR4 |
| Supplemental lighting | 10 LEDs |
| IMU | 6 degrees of freedom |
| Protection rating | IP50 |
Software, Formats & System Requirements
| Export formats | PLY, STL, OBJ, ASC |
|---|---|
| Storage | 32 GB eMMC + 512 GB SSD |

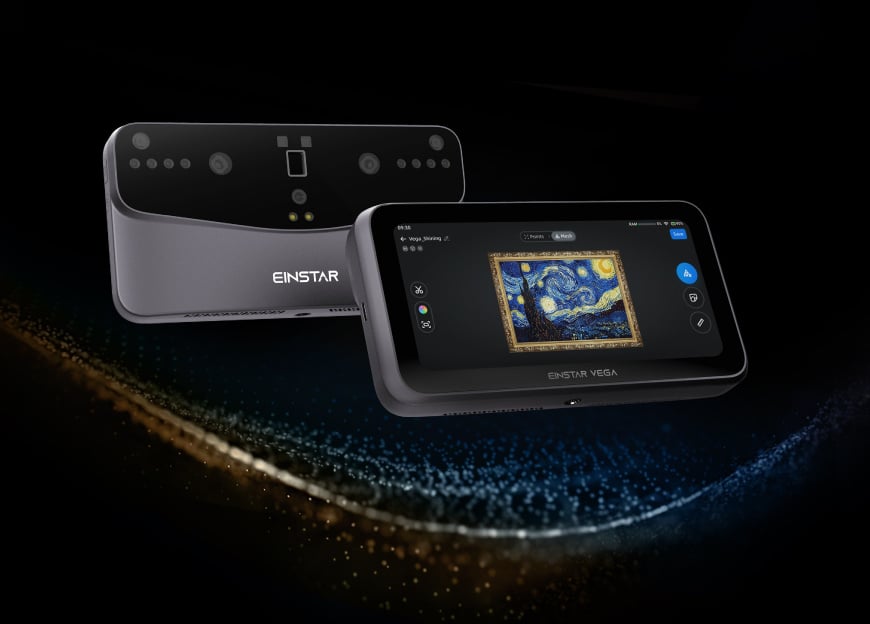

| Display | 6.4-inch 2K AMOLED touchscreen |
| Connections | Wi-Fi 6 and USB Type-C |
| Included desktop software | StarVision for compatible Windows and Mac computers |
Workstation requirements
| Component | Minimum | Recommended |
|---|---|---|
| Standalone capture | No computer required | Use the built-in display, processor, and storage to scan and review data |
| StarVision on Windows | Not specified | Windows 10 or 11, 64-bit; Intel Core i7 and 32 GB RAM, per V1.3.2 brochure |
| StarVision on Mac | Not specified | macOS 11.0 on Apple silicon, per V1.3.2 brochure; confirm support for the current release |
| Optional CAD / texture software | Not specified | Check the selected application license and its separate workstation requirements |
The manufacturer brochure supplies recommended desktop configurations, not a separate minimum PC specification. VEGA can capture without a computer. Project size affects desktop memory and processing needs.
Interactive results
Inspect representative scan data.
Load a model to examine surface detail and captured geometry.
Package contents
What arrives with the selected system.
Review the documented hardware, included accessories and software access for this product.
EINSTAR VEGA standard package
- EINSTAR VEGA scanner
- Carrying case
- Calibration board
- Power adapter and cable
- 3 mm and 6 mm markers
- Holder and wrist rope / strap
- Quick-start guide and packing list
- SHINING 3D mascot
- Included StarVision software download
Package contents follow the manufacturer packing-list image. A computer, tripod, turntable, CAD license, and 3D printer are not included.
