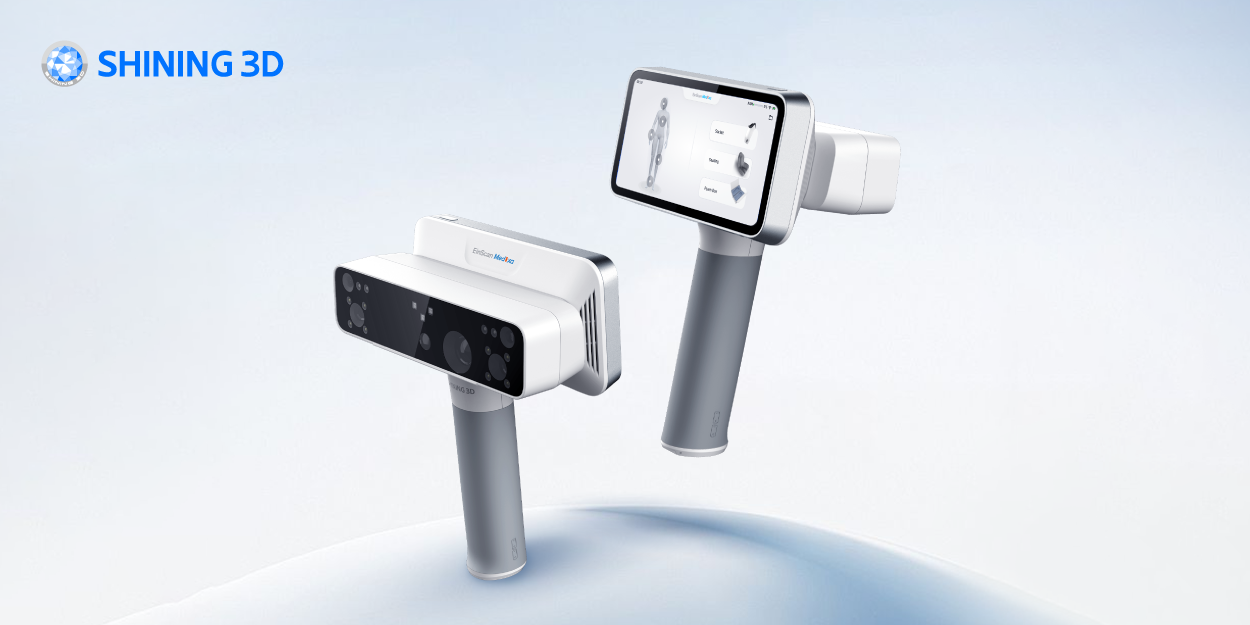

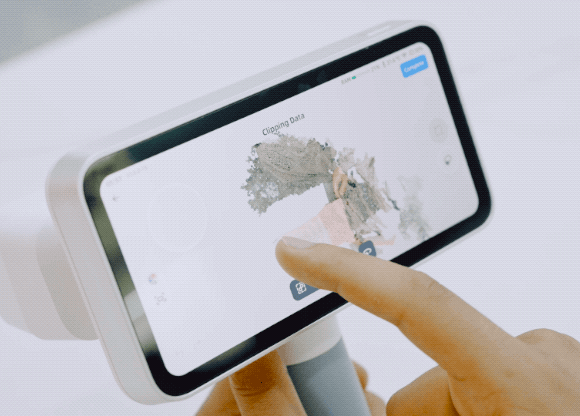

Wireless, all-in-one O&P scanning and onboard processing
WIRELESS O&P 3D SCANNER
From patient scan to production-ready 3D data
Wireless, all-in-one body 3D scanner for orthotics and prostheticsScanner type
Face, cranial, torso, upper limb, lower limb, feet, socket, seating and foam boxScan presets
White light and infrared VCSELLight sources
RMS < 0.3 (manufacturer brochure notation)Accuracy
Guided configuration
Configure the scanner, software, training, and coverage together.
EinScan Medixa is a wireless, all-in-one body 3D scanner purpose-built for orthotics and prosthetics. It combines guided patient capture, onboard processing, mesh editing, measurement, and data export in one portable device, so no external computer is required during scanning.
Preconfigured O&P modes cover cranial, face, torso, upper and lower limbs, feet, sockets, seating, and foam boxes. White-light and infrared VCSEL capture, movement compensation, and a 5 MP texture camera help clinicians record geometry, surface color, trim lines, and anatomical markings with a contact-free workflow.
Included O&P software: Medixa's dedicated onboard workflow for guided scanning, processing, editing, measurement, and STL, OBJ, and PLY export is included with the scanner. There is no separate software license charge or ongoing subscription for this native workflow.
Foot Station 2 and Medixa-specific extended warranty or protection options can be selected in the guided configuration. EXModel and SHINING3D Inspect are not included and are not required for the standard Medixa O&P workflow.
Select the software, training, and protection needed for the intended workflow. Your choices carry into the recommendation request for technical review.
Configuration
Build the workflow your application requires.
Select the protection, software, add-ons, and training needed for a complete working system.
Configured starting point$5,599.00
Core system only
Continue with this configurationYour selected options will be prefilled on the recommendation and quote form.
Package contents
The complete standard system, itemized.
Review the physical system, power and data connections, markers, software access, and documentation before requesting the configuration.
01
EinScan Medixa Standard Package
Components verified against SHINING 3D's Medixa documentation.
- EinScan Medixa 3D scanner
- Rechargeable 5500 mAh battery
- Battery compartment
- Charging cable
- Type-C to Type-C scanner cable
- Power adapter
- 3 mm and 6 mm markers
- Calibration board with universal holder
- Additional calibration board
- Cleaning cloth
- Packing list and documentation
- Included Medixa onboard O&P software for guided scanning, processing, editing, measurement, and STL/OBJ/PLY export — no separate license or ongoing subscription for the native workflow
Foot Station 2 and Medixa-specific extended warranty or protection are optional configuration choices and are not included in the standard package. EXModel and SHINING3D Inspect are not part of the Medixa package or standard O&P configuration. Confirm final regional quantities and plug type before activation.
Key features
How the system performs in day-to-day use.
Review the features that affect setup time, repeatability, inspection speed, and output quality.
02

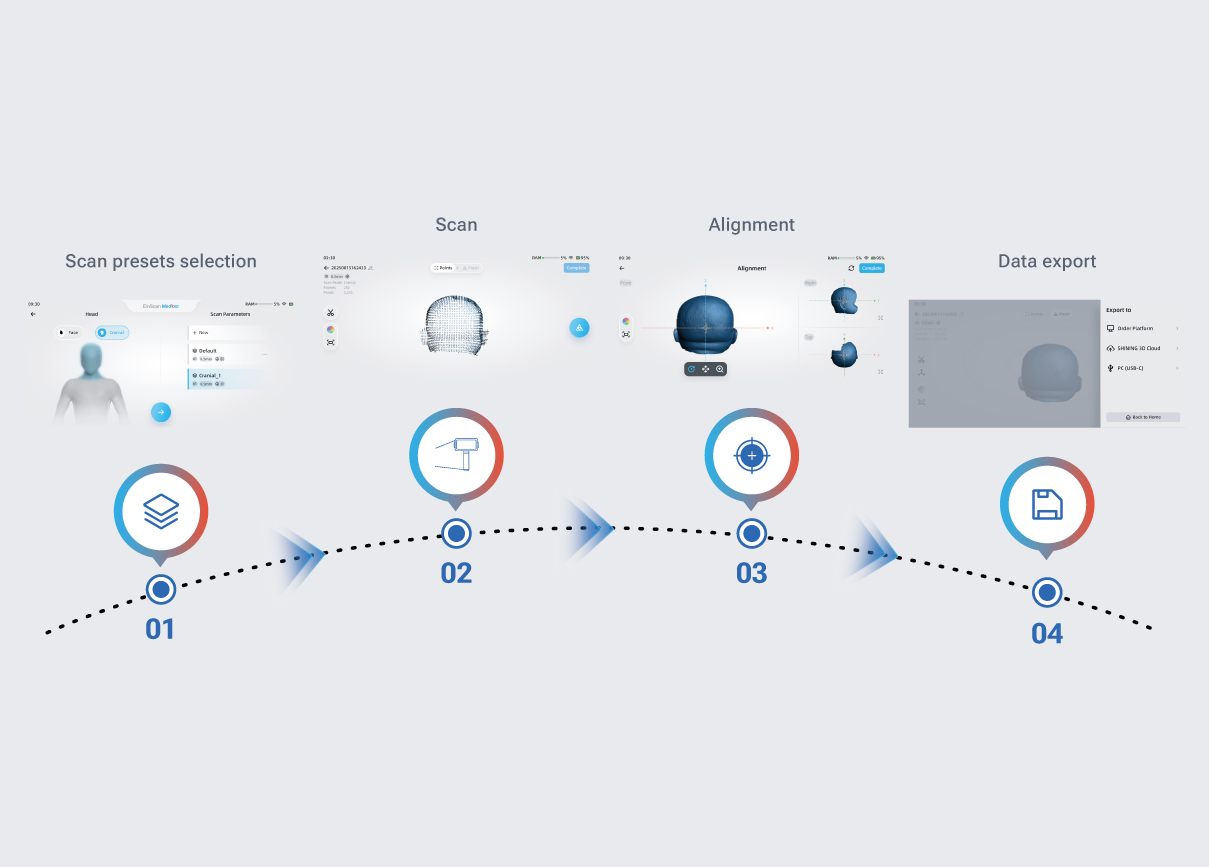

Tailored step-by-step workflow for orthotics and prosthetics
03

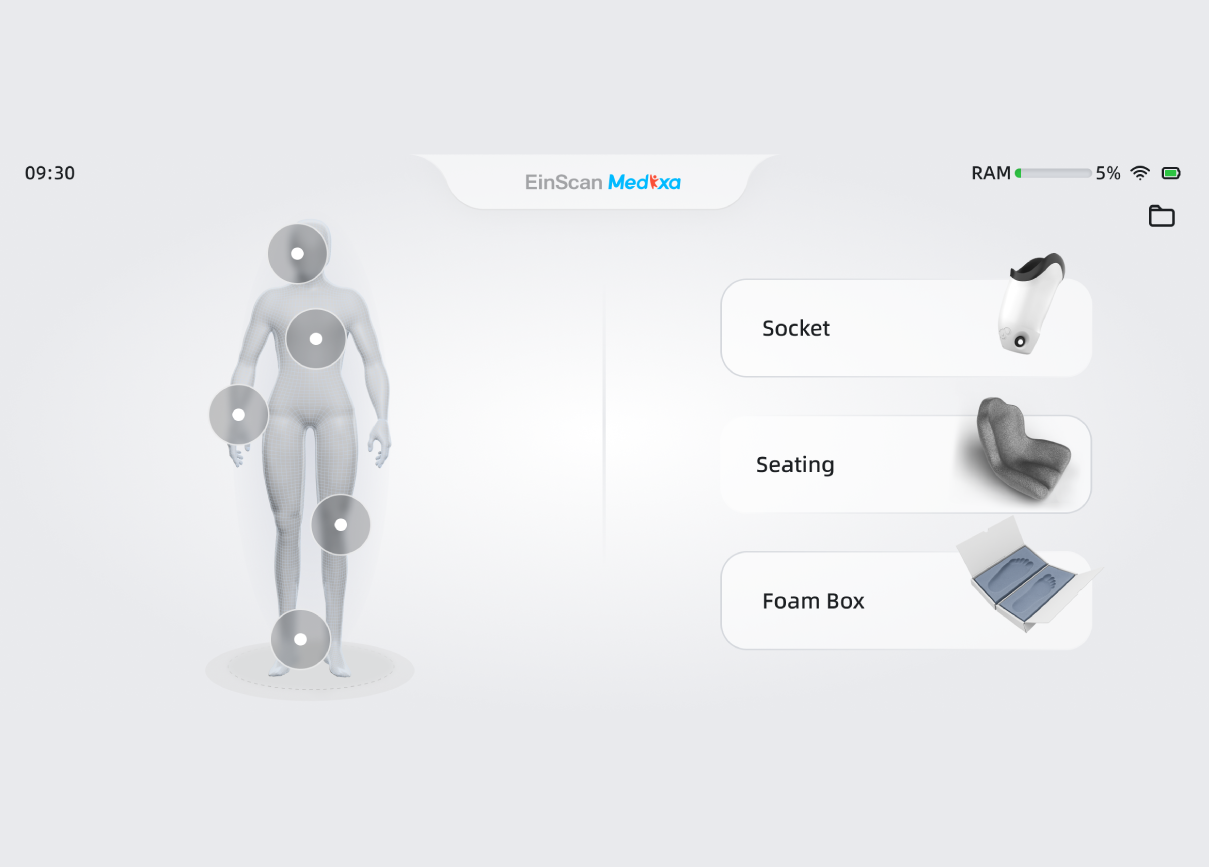

Personalized presets for cranial, torso, limb, foot, socket and seating capture
04

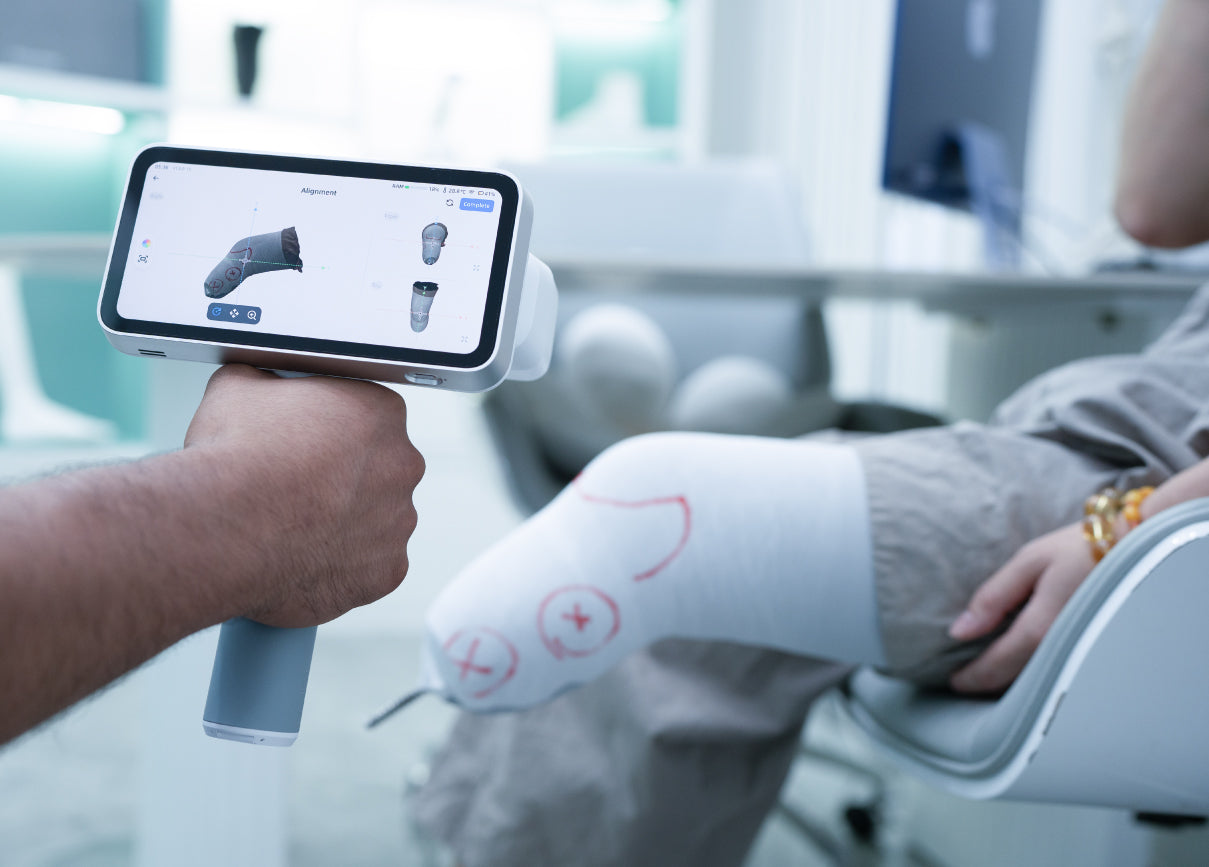

High-quality O&P output with consistent one-scan capture
05

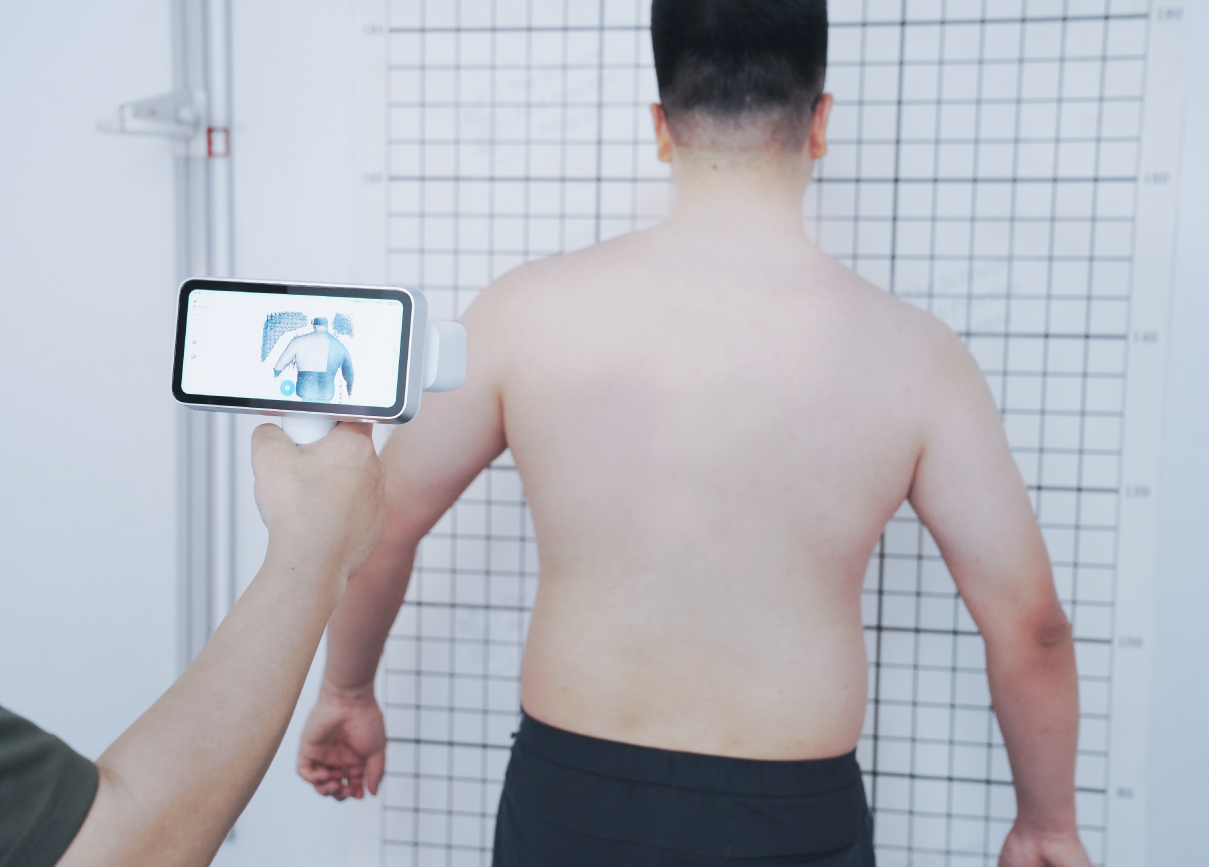

Movement compensation for slight patient motion
06

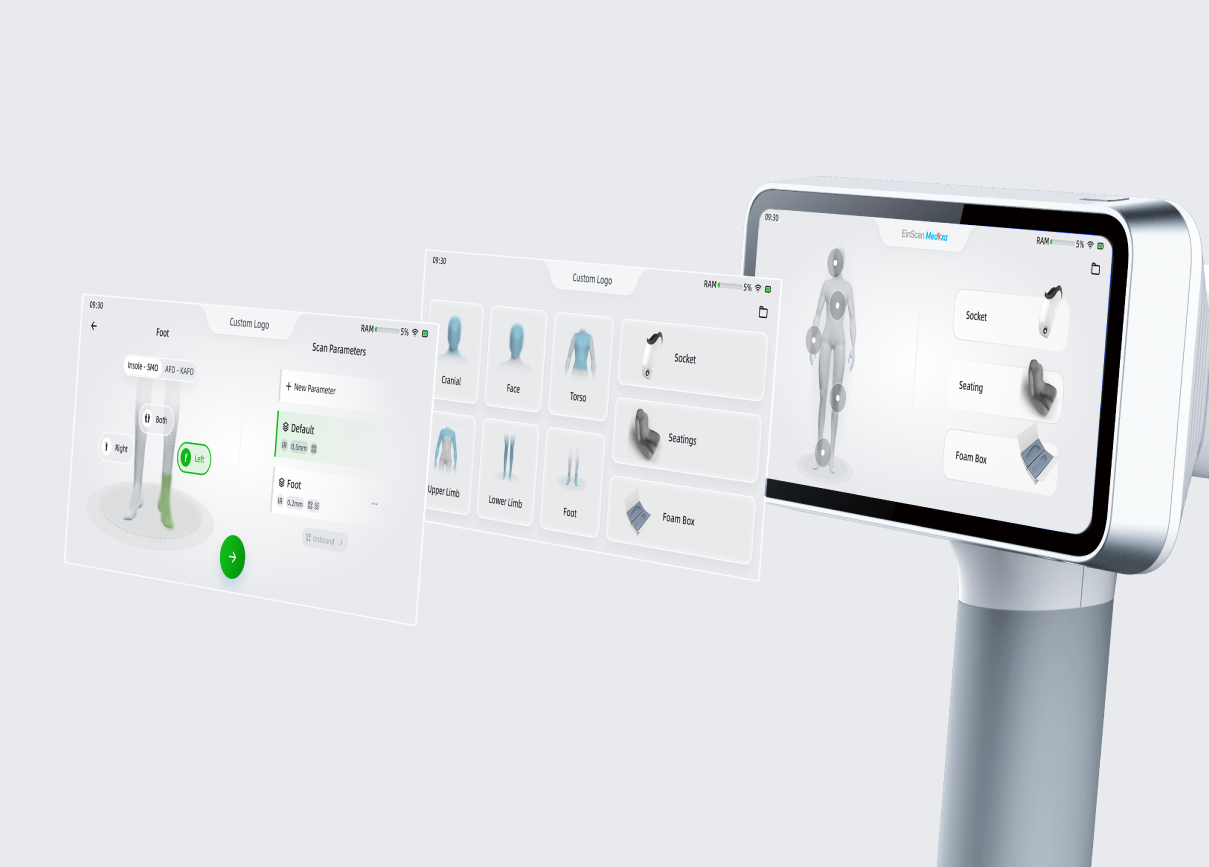

Flexible STL, OBJ and PLY export plus supported platform integration
Complete measurement workflow
From automated capture to inspection-ready data.
Follow the workflow from repeatable capture through processing, inspection, and reporting.
Review technical specifications →Application fit
Where this system fits best.
Review the application environments where automation, accuracy, and repeatability create the clearest advantage.
01
Cranial remolding orthoses
02
Prosthetic sockets and residual limbs
03
Spinal and scoliosis bracing
04

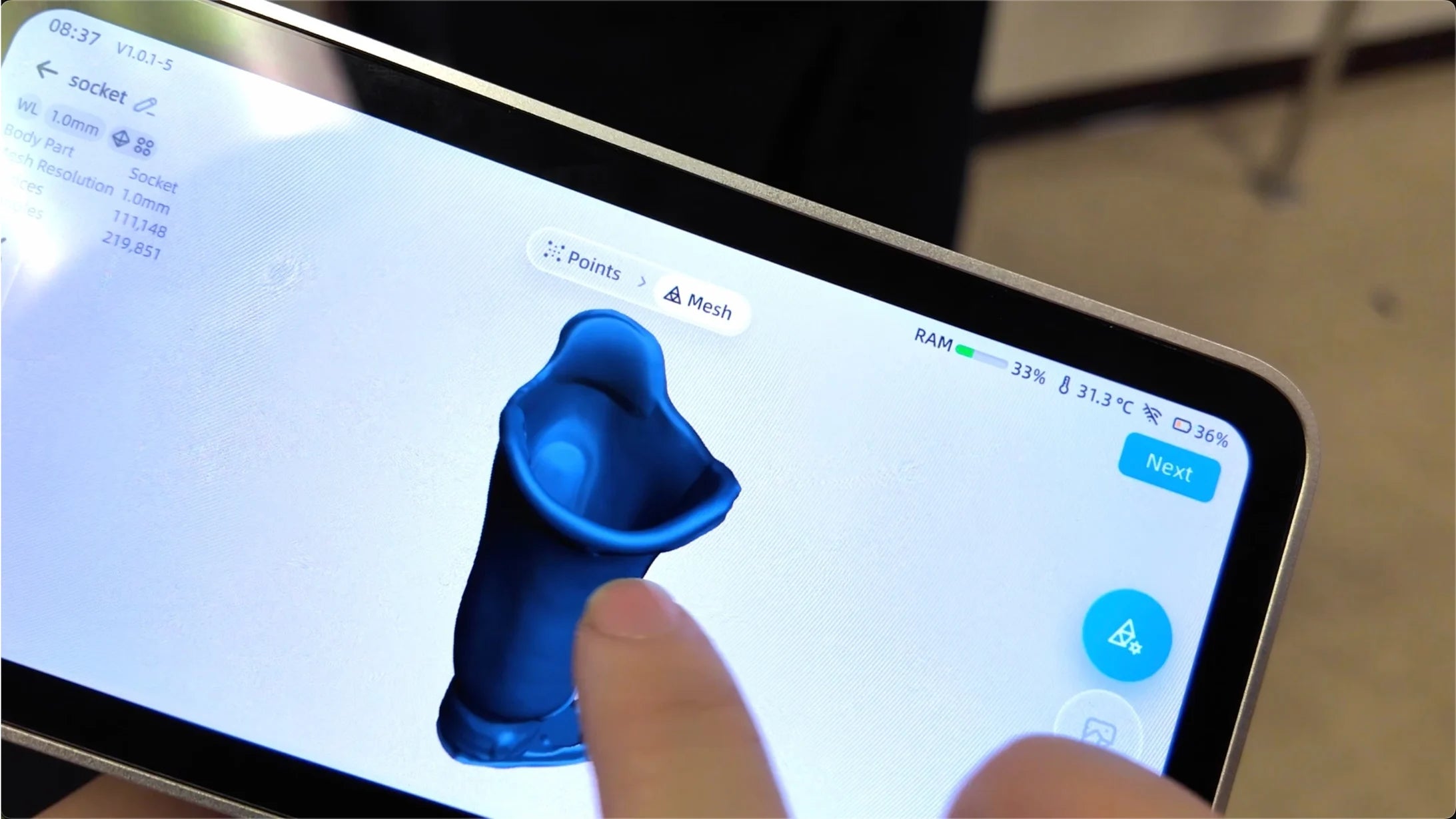

Upper- and lower-limb orthoses and prostheses
Product media
Inspect the equipment and included system visually.
Product detail
Examine the system from every angle.
Review the scanner, turntable, accessories, interfaces, and physical setup before selecting a configuration.
Video library
Watch real scanning and inspection workflows.
Use the case studies, demonstrations, and tutorials to review the workflow from capture through final output.
Video library
Select a video to begin
Watch demonstrations, tutorials, and real application workflows without leaving the product page.
Technical specifications
Check the specifications before purchase.
Confirm accuracy, field of view, point distance, capture system, outputs, standards, and workstation requirements.
Scanner typeWireless, all-in-one body 3D scanner for orthotics and prosthetics
Scan presetsFace, cranial, torso, upper limb, lower limb, feet, socket, seating and foam box
Light sourcesWhite light and infrared VCSEL
AccuracyRMS < 0.3 (manufacturer brochure notation)
Working distanceWhite light: 200–600 mm; infrared VCSEL: 160–1500 mm
Point distance0.2–3.0 mm
Maximum field of viewWhite light: 475 × 360 mm; infrared VCSEL: 1090 × 1260 mm
Optical safetyWhite LED: eye-safe; infrared VCSEL: Class I eye-safe
Texture camera5 MP
Alignment modesFeature, texture, hybrid, marker and global-marker alignment
Output formatsSTL, OBJ and PLY
Compatible accessoryFoot Station 2 — purchased separately and selectable in configuration
Embedded processor8-core CPU, 2.4 GHz
On-device storage1 TB SSD
Display6.4-inch 2K AMOLED touchscreen
ConnectivityWi-Fi 6 and USB-C
Battery systemTwo 5500 mAh batteries; up to 3 hours of continuous scanning
ChargingSupports USB-C 60 W PD 3.0 charger
Dimensions233 × 180 × 91 mm (H × D × W)
Weight953 g with batteries
Supported markers3 mm and 6 mm
Included O&P softwareDedicated Medixa onboard workflow for guided scanning, processing, editing, measurement and STL/OBJ/PLY export; no separate license or ongoing subscription for the native workflow
Computer during scanningNot required
Integrated platformsriiForm, BabySymmetry and Protosthetics
| Component | Minimum | Recommended |
|---|---|---|
| Computer during scanning | Not required | Not required — capture, processing, editing, measurement and export run on Medixa |
| Embedded processor | — | 8-core CPU at 2.4 GHz |
| On-device storage | — | 1 TB SSD |
| Display | — | 6.4-inch 2K AMOLED touchscreen |
| Wireless and ports | — | Wi-Fi 6 and USB-C |
| Power | — | Two 5500 mAh batteries; supports USB-C 60 W PD 3.0 charger |
| Connection and export | USB-C direct export | USB-C or SHINING 3D Cloud; Wi-Fi is used for cloud workflows and device updates |
| Direct file-manager access | Windows | Windows; macOS requires a third-party MTP utility such as OpenMTP |
| External CAD/O&P workstation | Depends on the downstream platform | Follow the requirements published by the selected CAD/CAM, O&P, texture-mapping or inspection software |
EinScan Medixa contains its own processor, storage, display and power system. Optional downstream applications may require a separate workstation.
