FreeScan Combo+ for Automotive Reverse Engineering: From Scan to CAD

Automotive reverse engineering is rarely a simple “scan the part” job. A cast transmission housing, brake caliper, control arm, body panel, or legacy service part can combine machined datums, deep pockets, black surfaces, worn geometry, and broad low-feature areas. The useful question is not whether a scanner can produce a dense mesh. It is whether the complete workflow can produce CAD or inspection data that engineering can defend, reproduce, and use.

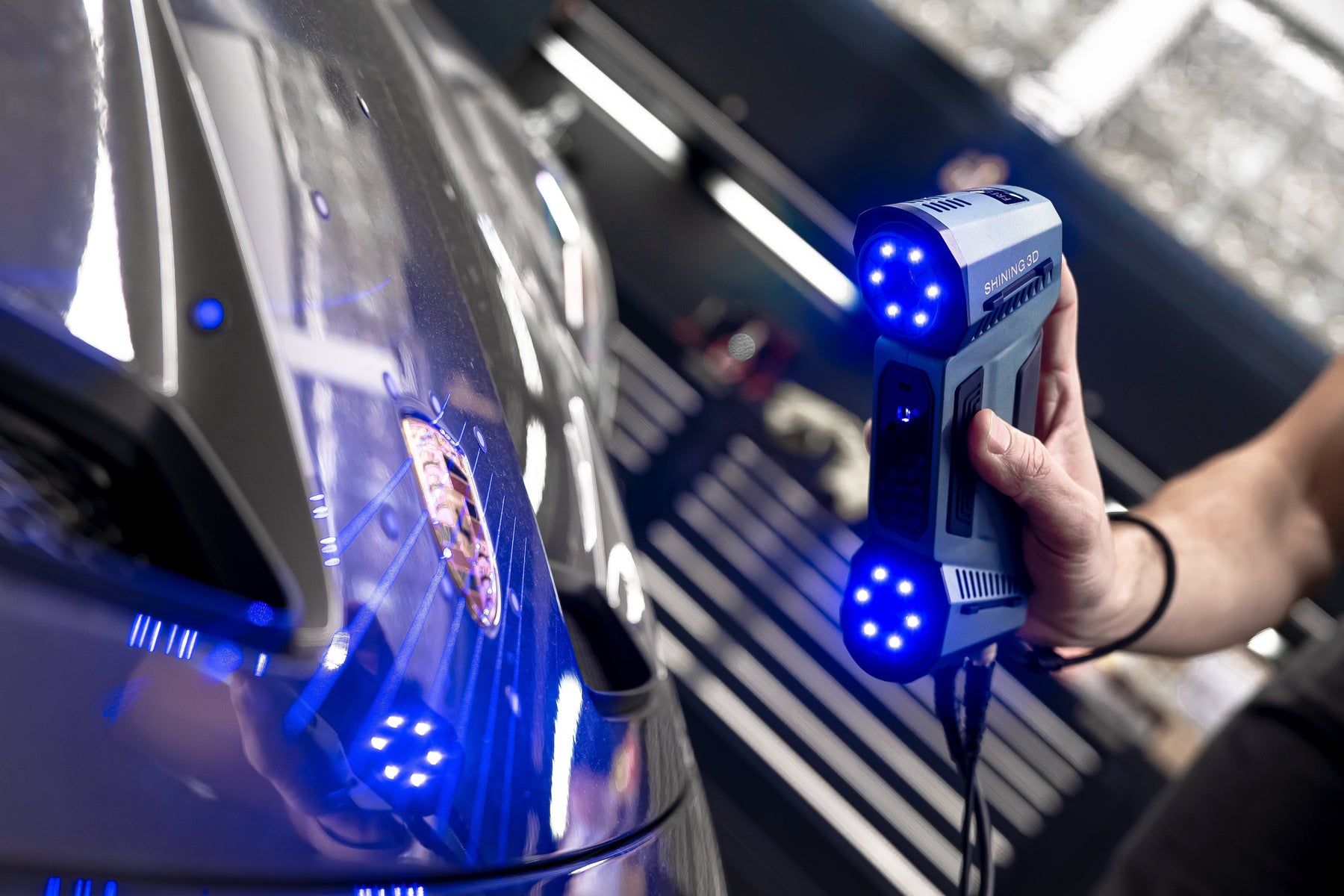

The SHINING 3D FreeScan Combo+ is a compact metrology-oriented scanner designed for this mixed workload. Its blue-laser modes support detailed capture of industrial surfaces, while its infrared mode expands coverage for larger features and broad geometry. For North American automotive suppliers, restoration shops, motorsports teams, job shops, and product-development groups, that combination can reduce the number of separate capture tools needed across a scan-to-CAD workflow.

Short answer: FreeScan Combo+ is best matched to teams that need one portable system for both detailed automotive components and larger surrounding geometry, but still understand that accuracy is a property of the full measurement process not a headline specification alone.

Why automotive parts expose weak scanning workflows

Automotive parts are deceptively difficult because one component may contain several measurement problems at once. A cylinder head has complex cast surfaces plus machined sealing faces and holes. A stamped body panel has a large, smooth skin with few natural features. A suspension upright may be dark, reflective, oily, and full of occluded pockets. A worn legacy part adds a further question: should the CAD model reproduce the existing wear, or reconstruct the original design intent?

Those conditions create five recurring failure modes:

• Registration drift: broad or repetitive geometry gives the software too little information to align frames reliably.
• Surface dropout: polished metal, gloss paint, oil, and deep black surfaces can reduce usable optical return.
• False precision: a dense mesh may look convincing while datum strategy, scale control, and uncertainty remain undefined.
• Occlusion: ribs, bores, deep channels, and undercuts cannot be captured from a single viewing angle.
• CAD overfitting: fitting every bump in a worn or cast surface can create a complicated model that fails to represent design intent.

The remedy is a controlled process: define the engineering question first, choose the capture mode and reference strategy around that question, validate critical features independently, and build CAD from functional geometry rather than from mesh appearance.

Where FreeScan Combo+ fits

FreeScan Combo+ combines multiple blue-laser patterns including crossed, parallel, and single-line modes with infrared scanning. The published product configuration lists up to 0.02 mm accuracy under specified laser-mode conditions. That number is useful for screening, but procurement teams should evaluate the full acceptance test, the part size, the working environment, the operator procedure, and the required measurement uncertainty.

Important: Reverse engineering and dimensional inspection are related but different jobs. Reverse engineering asks, “What manufacturable geometry should we create?” Inspection asks, “How does this measured part compare with a defined requirement?” A workflow can support both, but the alignment, validation, reporting, and acceptance criteria must be chosen accordingly.

A practical scan-to-CAD workflow

1. Define the output before touching the scanner

Write down the target deliverable: watertight mesh, editable parametric CAD, surface model, fixture envelope, or inspection report. Then identify the features that actually drive function. On an intake manifold, flange planes, port locations, bolt axes, and sealing interfaces usually matter more than reproducing every casting ripple. On a body panel, global curvature and mating boundaries may dominate.

Record the required tolerance and the business consequence of error. A packaging model used to avoid interference does not need the same validation plan as a part being released for machining.

2. Establish datums and references

Before scanning, define how the part will be oriented in CAD and how future parts will be aligned. Use functional datum features when they survive and can be measured: a primary mounting plane, a secondary bore axis, and a tertiary locating feature are common examples. If the part has large, smooth, or repetitive areas, apply reference targets around the workpiece and on stable surrounding fixtures. Avoid placing every target in one plane.

For a large assembly, distribute references through the measurement volume. If the part must be flipped, plan a shared overlap zone or a fixture-based transfer so the two sides do not become separate, weakly constrained scans.

3. Control the surface condition

Blue-laser capture is generally effective on many industrial surfaces, including darker materials, but no optical scanner is immune to surface physics. Clean oil and loose debris. Evaluate polished chrome, mirror-like aluminum, transparent coatings, and extremely dark materials in a test area. Use removable scanning spray only when necessary and account for coating thickness if critical dimensions are involved.

Do not spray precision bores, sealing faces, or reference artifacts casually. If a coating is required, document the product, application method, estimated thickness, and whether critical features were measured by another instrument.

4. Capture in layers, not one heroic pass

Start with global geometry and stable registration. Then make focused passes around holes, thin edges, deep features, and mating surfaces. Change viewing angle rather than repeatedly scanning the same easy surface. For deep pockets or narrow grooves, a single-line laser mode can help reach geometry that broad patterns cannot see cleanly.

Watch live tracking quality and stop when registration becomes uncertain. Ten seconds spent restoring a strong reference is cheaper than discovering drift after meshing.

5. Clean the mesh conservatively

Remove obvious background data and isolated noise, but preserve the raw scan before smoothing or hole filling. Aggressive cleanup can erase sharp edges, move surfaces, and fabricate geometry across occluded regions. Maintain three versions: raw aligned data, cleaned reference mesh, and the downstream CAD or inspection project.

6. Reconstruct design intent

Use the mesh as evidence, not as the finished engineering definition. Fit planes, cylinders, cones, and other analytic features where manufacturing intent supports them. Use symmetry only after checking whether the surviving part is actually symmetric. Build freeform surfaces where the component genuinely requires them, and control the transition between analytic and organic geometry.

For a worn part, compare repeated or mirrored features and consult mating components, drawings, service data, and manufacturing knowledge. The best model is often a reasoned reconstruction—not a literal copy of damage.

7. Validate the deliverable

Compare the finished CAD back to the scan with a controlled alignment. Report deviations at functional interfaces separately from cosmetic surfaces. Verify critical diameters, distances, and planes using appropriate independent instruments when the risk warrants it. Preserve the calibration records, software version, environmental conditions, operator, part condition, target layout, and alignment method.

How GD&T and traceability should be handled

North American engineering teams commonly communicate geometric requirements using ASME Y14.5. The scanner does not “create GD&T.” The drawing or product definition establishes the requirements; the measurement workflow then extracts and evaluates features against those requirements. Procurement should confirm that the chosen inspection software supports the needed characteristic types, datum structures, reporting format, and customer-specific rules.

NIST makes an equally important distinction: metrological traceability is a property of a measurement result, established through a documented, unbroken chain of calibrations with stated uncertainties. It is not automatically conferred by owning a particular scanner or by attaching the phrase “NIST traceable” to the instrument.

For audit-sensitive work, ask:

• What calibrated artifact or reference is used to verify the system?
• Is the calibration chain documented, and are measurement uncertainties stated?
• What acceptance test is performed at installation and after service?
• How are environmental conditions, operator method, and part setup controlled?
• What evidence demonstrates that the process is fit for the specific tolerance?

See NIST’s metrological traceability guidance and the current ASME Y14.5 standard page when building internal procedures. For regulated or customer-controlled work, your quality organization should approve the measurement plan.

Direct answers to common buyer questions

Is FreeScan Combo+ good for automotive reverse engineering?

Yes, when the workload includes a mix of castings, machined features, trim, and larger freeform geometry. Its combination of laser and infrared capture is particularly useful for shops that do not want separate scanners for small detailed parts and broader vehicle geometry. The final fit depends on part size, tolerance, software, validation needs, and operator skill.

Can FreeScan Combo+ scan black or reflective automotive parts?

Blue-laser scanning can capture many dark and metallic surfaces effectively, but polished, transparent, oily, or mirror-like finishes may still need cleaning, exposure adjustment, angle changes, or removable scanning spray. Always test the real material and finish before committing to a production workflow.

Does FreeScan Combo+ need markers?

For metrology-oriented laser work and low-feature automotive geometry, reference targets are often the most robust alignment strategy. Feature-based or other alignment methods may work in suitable modes and on suitable surfaces, but markers should be viewed as process control rather than wasted setup time when accuracy and repeatability matter.

Can a 3D scanner replace a CMM?

Not universally. A portable optical scanner is excellent for dense surface coverage, freeform geometry, fast deviation mapping, and reverse engineering. A CMM, arm, bore gauge, micrometer, or other contact method may remain better for specific tight-tolerance features, deep internal geometry, or established acceptance procedures. Strong shops combine instruments according to risk.

How do you turn a 3D scan into a STEP file?

Align and clean the scan, define datums, extract analytic and freeform features, rebuild the part in reverse-engineering or CAD software, and validate the CAD against the mesh. Exporting a triangulated STL as STEP does not create a useful parametric model; the geometry must be reconstructed intentionally.

What should be included in a scanner demo?

Use one of your own representative parts. Time the complete workflow, not just data capture. Require the vendor to show setup, target placement, difficult surfaces, scan cleanup, CAD or inspection output, validation of critical features, hardware requirements, training, annual service, and the evidence behind accuracy claims.

Procurement checklist for North American teams

• Bring a representative easy part and a representative difficult part to the demo.
• Define the smallest critical tolerance and the largest typical scan volume.
• Confirm the computer, GPU, memory, cabling, and shop-floor mobility requirements.
• Price the complete workflow: scanner, software, workstation, targets, spray, training, calibration, support, and annual costs.
• Ask for an application-specific acceptance test and a documented calibration/verification plan.
• Confirm export paths into the actual CAD and inspection systems your team uses.
• Evaluate who will own scan cleanup, CAD reconstruction, and quality approval.
• Measure operator-to-operator repeatability on the same part.

The decision rule

Choose FreeScan Combo+ when your constraint is workflow range: detailed industrial parts one day, broad freeform automotive geometry the next, with portable capture and a metrology-oriented path. Choose a more specialized system when your work is dominated by automated batch inspection, very large tracked volumes, microscopic features, or acceptance requirements already tied to another measurement platform.

The fastest path to a sound decision is not another generic specification comparison. It is a controlled demonstration using your part, your tolerance, your software, and your acceptance criteria.
