FreeScan UE Pro2 for Stamping Die Inspection at the Press

A stamping die can drift out of its intended geometry long before the cause is obvious on a finished panel. Wear at a draw bead, a repaired forming surface, or a local change near a trim edge may appear first as unstable dimensions, repeated spotting work, or a first-off part that will not hold capability.

The difficult part is often access. Moving a large die to a measurement room consumes crane time and interrupts production, while cables and limited reach complicate measurement at the press. A wireless handheld system can shorten that path, but the scan is useful only when it is tied to a defined datum strategy, an approved CAD revision, and a measurement decision.

Why die inspection becomes a production problem

Traditional checks remain essential for critical features, yet they do not always reveal the full shape of a large freeform surface. A laser scan can add a dense geometric record that helps the team answer questions such as:

• Where has the forming surface moved relative to the released CAD model?
• Did a repair restore the intended contour or create a local high spot?
• Is a change concentrated in one region, or is the alignment masking a broader shift?
• Can the team compare the current die with a trusted baseline captured after tryout?

The objective is not to collect the largest possible point cloud. It is to produce evidence that supports a repair, release, or escalation decision without confusing scanner resolution with measurement certainty.

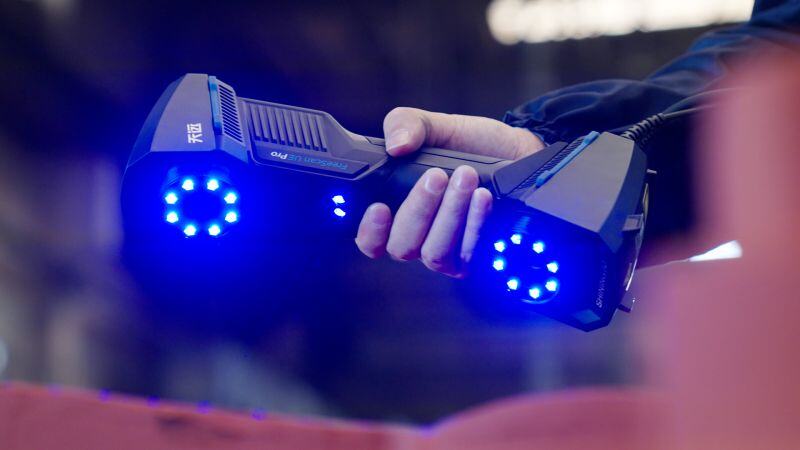

What FreeScan UE Pro2 changes on the shop floor

The FreeScan UE Pro2 combines wireless operation with several laser configurations for different surface and feature conditions. SHINING 3D specifies the following performance for the current model:

Published specifications describe the scanner under stated conditions; they do not automatically establish that a particular inspection is capable. Surface condition, target placement, alignment, thermal state, operator technique, calibration status, and the tolerance being evaluated all affect the usable result.

Begin with the decision the measurement must support

Before placing a target or starting a scan, write down the decision boundary. A repair team investigating wear has a different requirement from a quality engineer releasing a die after engineering change. The measurement plan should identify:

• the controlled CAD revision and the coordinate system used for comparison;
• the datum features or tooling references that will constrain alignment;
• the regions and characteristics that matter to the decision;
• the tolerance, guard band, or escalation threshold for each result;
• the required report, raw-data retention, and approval record;
• the independent check required when a result is close to the limit.

This prevents a common error: applying a best-fit alignment that makes the color map look favorable while moving the deviation into a functional datum or trim condition. The alignment method belongs in the inspection plan and report.

For drawing interpretation, use the organization's controlled requirements and the applicable edition of ASME Y14.5. A surface deviation map is not a substitute for evaluating the specified characteristic in its defined datum reference frame.

A controlled capture sequence for an in-place die

1. Control hazardous energy and access. Scanning in or near a press must follow the facility's applicable energy-control and machine-safety procedures. OSHA's control of hazardous energy standard includes inspecting and servicing activities within its scope. Only authorized personnel should determine the required lockout, blocking, and safe access.
2. Stabilize the measurement condition. Record die and ambient temperature, recent production or repair activity, surface cleaning, and any removable coating. A scanner operating within its temperature specification does not remove thermal expansion from the part.
3. Select the reference strategy. Use stable targets or the scanner's photogrammetry workflow when the tool size and accuracy plan require it. SHINING 3D recommends photogrammetry for objects larger than 1.5 m.
4. Protect the datums. Capture enough of each designated reference feature to support the intended alignment. Avoid using damaged or recently reworked areas as alignment constraints unless the inspection plan explicitly calls for them.
5. Divide the die into overlapping regions. Plan the path before capture so broad surfaces, steep transitions, pockets, and edges receive sufficient coverage without losing tracking.
6. Use the scan mode that matches the geometry. Start with the high-speed lines for coverage, then use fine or deep-hole mode only where it adds needed information.
7. Check completeness before removing references. Review coverage, target registration, noise, edge quality, and any inaccessible geometry while the setup can still be recovered.
8. Save the raw project and processing settings. A deviation report is easier to defend when the original observations, alignment definition, mesh settings, and software version remain available.

Turn the scan into useful wear evidence

A clean mesh is an intermediate result. The engineering value comes from a repeatable comparison that separates tool movement from alignment choices and data-processing artifacts.

Start by preserving the raw scan. Remove stray data conservatively, document any smoothing or hole filling, and avoid editing the mesh in a way that can change the feature under evaluation. Align the data using the approved datum or tooling-reference method before calculating deviations. When a local best fit is appropriate for a repair investigation, label it as a local analysis rather than a full-tool acceptance result.

A baseline captured after final tryout can be more informative than nominal CAD alone. Comparing the same die at controlled intervals can reveal the location and direction of change, even when the as-built tool contains accepted handwork that differs from nominal geometry.

Report enough context to reproduce the conclusion

A useful inspection record should include the die identifier, CAD revision, calibration status, environmental observations, reference layout, alignment method, analysis settings, deviation scale, critical sections, acceptance criteria, and reviewer. If the organization claims metrological traceability, follow NIST's definition of metrological traceability: traceability applies to a measurement result through a documented, unbroken calibration chain with stated uncertainties. It is not created merely by naming a calibrated scanner.

Where this workflow fits, and where another method should lead

FreeScan UE Pro2 is well suited to dense surface comparison, repair verification, incoming tool assessment, and periodic wear monitoring when its validated capability matches the requirement. The wireless connection is especially useful where cables would complicate movement around a press or large tool.

It should not be treated as a universal replacement for tactile measurement, dedicated gaging, or nondestructive testing. A CMM, laser tracker, probe, bore gage, or purpose-built fixture may remain the better authority for hidden features, deep internal geometry, highly constrained datums, or tolerances beyond the demonstrated uncertainty of the scan process. Surface geometry also cannot establish subsurface crack condition or material integrity.

Teams comparing scanner classes can review SKYLAB3D's industrial 3D scanning and inspection workflow guidance and the SHINING 3D industrial scanner collection. For smaller reflective cast or machined parts, the FreeScan Combo inspection workflow for machined components addresses a different measurement problem.

Questions manufacturing teams ask before a die-scanning trial

Can FreeScan UE Pro2 inspect a stamping die without moving it to a measurement room?

It can capture a die in place when safe access, environmental conditions, reference placement, and the required measurement capability have been validated. The facility must complete its applicable energy-control and access procedures before anyone enters the press work area.

Does wireless operation reduce measurement accuracy?

Wireless transmission changes how data reaches the workstation; it does not remove the need to validate the complete measurement process. Confirm registration quality, data integrity, environmental stability, calibration status, and repeatability on the actual tool and tolerance.

When should photogrammetry be used?

SHINING 3D recommends photogrammetry for objects larger than 1.5 m. It can reduce accumulated error across a large measurement volume, but the target layout and resulting registration still need to meet the shop's documented measurement plan.

Can a deviation color map release a repaired die?

Not by itself. Release should follow the controlled acceptance criteria, datum strategy, uncertainty evaluation, required independent checks, and approval process. The color map is evidence within that process, not the process itself.
