OptimScan Q12 for Injection-Molded Part Inspection

OptimScan Q12 is a strong fit for full-field inspection of small and medium injection-molded parts when the job needs dense surface data, repeatable positioning, and CAD comparison in a controlled area. The scanner still has to be qualified against the drawing tolerance, part finish, fixture, alignment method, and inspection decision before it supports acceptance.

An injection-molded housing can pass several caliper checks and still have a warped sealing face, a bowed wall, or a boss pattern that shifts after ejection. Those errors are difficult to understand from isolated dimensions. A structured-light scan creates a dense surface record that can show where the part departs from nominal geometry and whether the pattern repeats across the sampled production run.

The value is not the color map by itself. The inspection becomes useful when the quality team connects the scan to a controlled fixture, a defined datum system, a stable part condition, and a clear release or correction decision.

What should the inspection decide?

Start with the production question, then select the measurement method. This prevents a high-resolution scan from becoming an impressive image that does not answer the drawing requirement.

Why does a fixed dual-range scanner fit this work?

A handheld scanner is useful when the part is large, installed, or difficult to move. A fixed structured-light system is often a better starting point when parts can be brought to a controlled bench and the team wants consistent camera geometry, a repeatable fixture, and a semi-automated capture sequence.

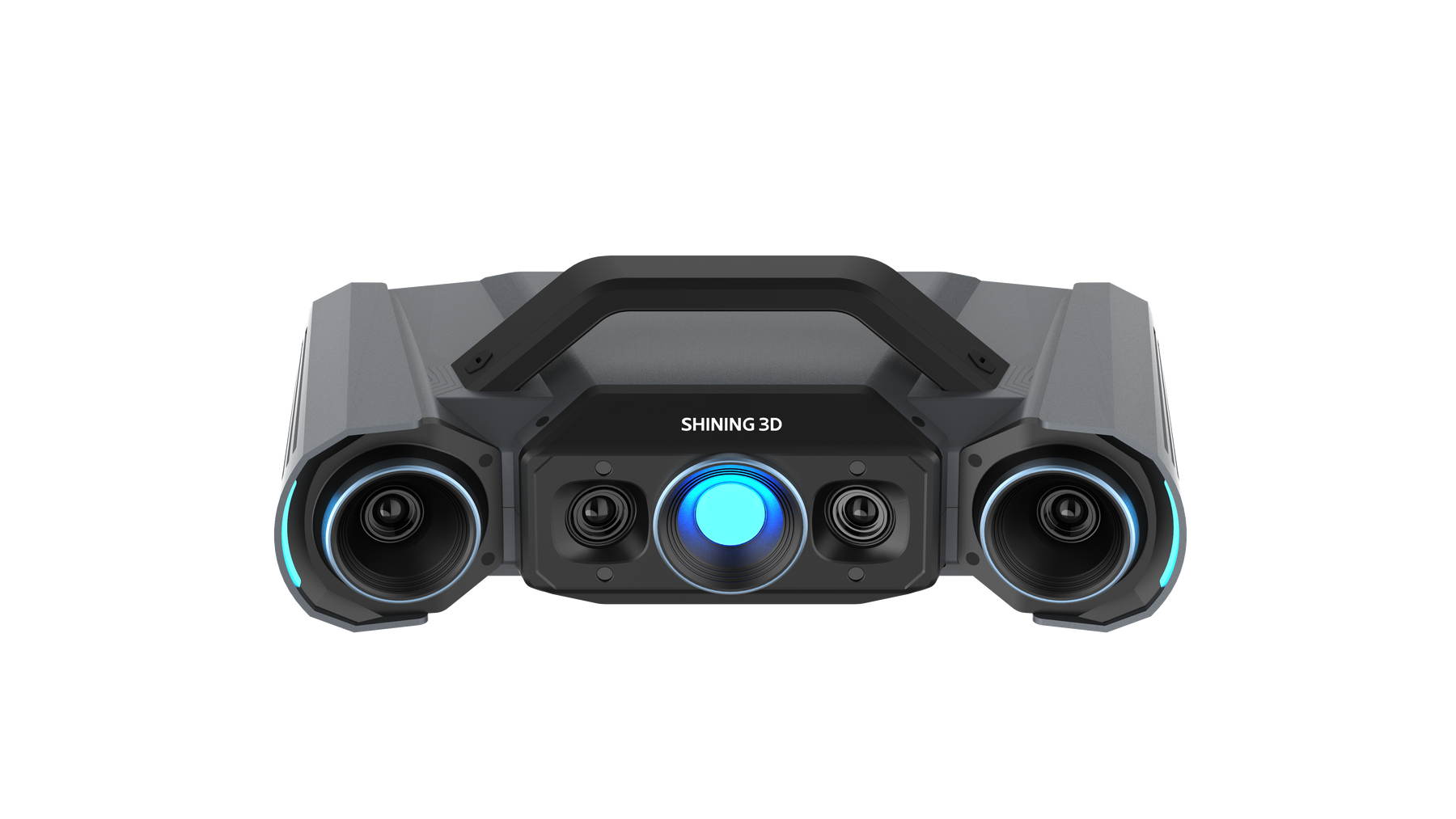

According to SHINING 3D's original OptimScan Q12 launch specifications, the Q12 uses four 12.3 MP industrial cameras and blue LED structured light. The original Q12 provides a 430 x 300 mm large range with stated accuracy of 0.015 mm and a 160 x 110 mm small range with stated accuracy of 0.005 mm. A software-controlled range change lets the operator capture the part envelope and then add higher-detail data where needed.

The manufacturer also states that a single scan captures up to 12 million points in less than one second. That exposure speed can reduce sensitivity to short disturbances, but it does not make the complete measurement instantaneous. The workflow still includes warm-up, calibration, part loading, multiple views, alignment, meshing, inspection, and reporting.

Published scanner accuracy is not the same as uncertainty for a specific production result. Fixture restraint, thermal state, surface treatment, view-to-view registration, alignment, software settings, and feature extraction all affect the result. A capability study should use the same representative parts, operators, fixtures, and report logic planned for production.

How should the part be fixtured and conditioned?

Thin molded walls can change shape under very small loads. A clamp that makes the part easy to scan can also pull a warped flange into nominal form. The fixture should support the part as the drawing or functional test requires, while leaving the highest-value surfaces visible.

• Define the time after molding, temperature, and humidity condition used for inspection.
• Use the minimum restraint needed for a stable, repeatable position.
• Keep fixture contacts away from flexible measurement regions when possible.
• Record any surface treatment, because coating thickness can affect the measured surface.
• Label cavity, resin lot, machine, tool condition, and process setting with the scan record.

Dark, translucent, or glossy polymers may require exposure changes or an approved scanning treatment. Do not assume that a surface that produces a complete mesh also produces measurement data suitable for the tolerance. Test the actual resin, colorant, texture, and finish.

Which alignment answers the drawing?

A global best fit spreads deviation across the part. It can be useful for diagnosing overall process behavior, but it may conceal movement at a functional interface. For acceptance, use the datum structure and tolerance interpretation defined by the product specification.

ASME Y14.5 establishes rules for dimensioning and tolerancing. The scanner and inspection software do not create design intent. The measurement plan has to identify which surfaces establish the primary, secondary, and tertiary datum reference frame and how imperfect molded features will be extracted.

It is often helpful to produce two labeled analyses:

• Datum-based inspection for feature location, profile, and functional interface decisions.
• Best-fit or regional analysis for diagnosing shrinkage, bow, twist, or cavity-related process drift.

Do not mix the two coordinate systems in one report without saying which result supports acceptance.

What belongs in a repeatable molded-part workflow?

1. Confirm the product definition. Lock the CAD and drawing revision, datum reference frame, tolerances, and inspection characteristics.
2. Condition and identify the sample. Preserve cavity, lot, molding machine, process state, and time after molding.
3. Verify the measurement system. Complete warm-up, calibration, and any procedure-specific check artifact before scanning production samples.
4. Load the controlled fixture. Confirm that the support does not force the part into a preferred shape.
5. Capture the broad geometry. Use the larger field of view for the part envelope and the relationships among functional regions.
6. Add detail where the decision needs it. Use the smaller range for fine edges, clips, sealing features, and local geometry when the application study supports it.
7. Inspect in the defined coordinate system. Apply the documented alignment, comparison limits, feature filters, and section locations.
8. Issue a controlled report. Store the raw data, alignment, nominal revision, fixture ID, software settings, equipment status, exclusions, and decision together.

SHINING 3D's current OptimScan software documentation states that SHINING3D Inspect supports alignment, comparison, cross-sections, features, dimensions, gauges, and report creation. The report should show only the characteristics needed for the decision, with inaccessible regions and data exclusions identified.

What can the scan miss?

Optical scanning measures surfaces that the cameras and projector can see. Deep blind holes, undercuts, enclosed passages, internal ribs, and wall thickness may remain partly or completely unmeasured. A complete-looking mesh can also contain filled holes or reconstructed areas that were not directly captured.

Use sectioning, computed tomography, conventional gaging, or another qualified method when the characteristic is internal or inaccessible. The method should follow the drawing, control plan, customer requirement, and the risk of accepting a bad part.

If the result supports formal acceptance, metrological traceability must be addressed at the result level. NIST explains that traceability requires a documented, unbroken chain of calibrations in which each link contributes to measurement uncertainty. A calibration certificate for the scanner is necessary evidence, but it does not replace control of the fixture, environment, operator method, software, verification interval, and uncertainty for the reported result.

Where does Q12 sit beside a handheld scanner?

Choose the architecture from the part and the decision. OptimScan Q12 is the stronger candidate when the part fits a controlled fixed-scanner workflow and the team values fine detail, repeatable positioning, or future automation. A handheld laser scanner is more flexible for larger machined parts, installed components, and shop-floor work around obstructed geometry.

For that adjacent workflow, see the guide to FreeScan Combo for handheld machined-part inspection. SKYLAB3D's industrial 3D scanning inspection guide explains the application details needed before equipment selection, while the SHINING 3D industrial scanner collection shows the models currently listed in the store. OptimScan Q12 is an advanced, non-listed requirement and should be reviewed before a quote path is confirmed.

Questions quality teams ask about OptimScan Q12

Can OptimScan Q12 inspect injection-molded parts?

Yes, when the part envelope, visible geometry, surface finish, tolerance, fixture, environment, and alignment method fit a demonstrated measurement process. Qualification should use representative molded parts and the same reporting logic planned for production.

Does the 0.005 mm accuracy mean it can accept every 0.005 mm tolerance?

No. The stated scanner accuracy is not the uncertainty of every measured characteristic. The complete process, including fixturing, surface condition, registration, alignment, feature extraction, environment, and verification, must provide adequate capability for the tolerance.

Can the scan measure internal ribs and wall thickness?

Only when the relevant surfaces are optically visible and captured. Enclosed or hidden geometry requires computed tomography, sectioning, or another qualified method.

Is a best-fit alignment acceptable for production inspection?

Use best fit for process diagnosis when appropriate. Use the drawing-defined datum reference frame for acceptance when the product requirement depends on functional datums, unless engineering specifies another valid alignment.
