Up to 0.01 mm

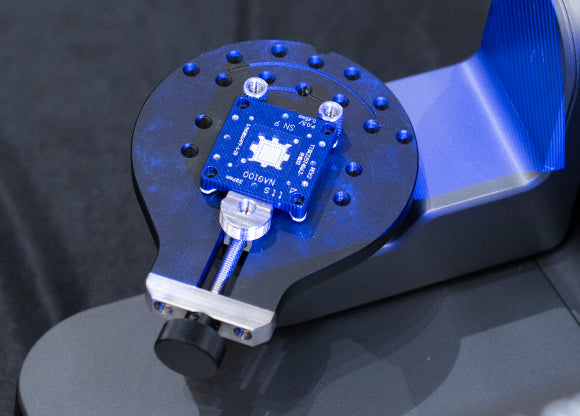

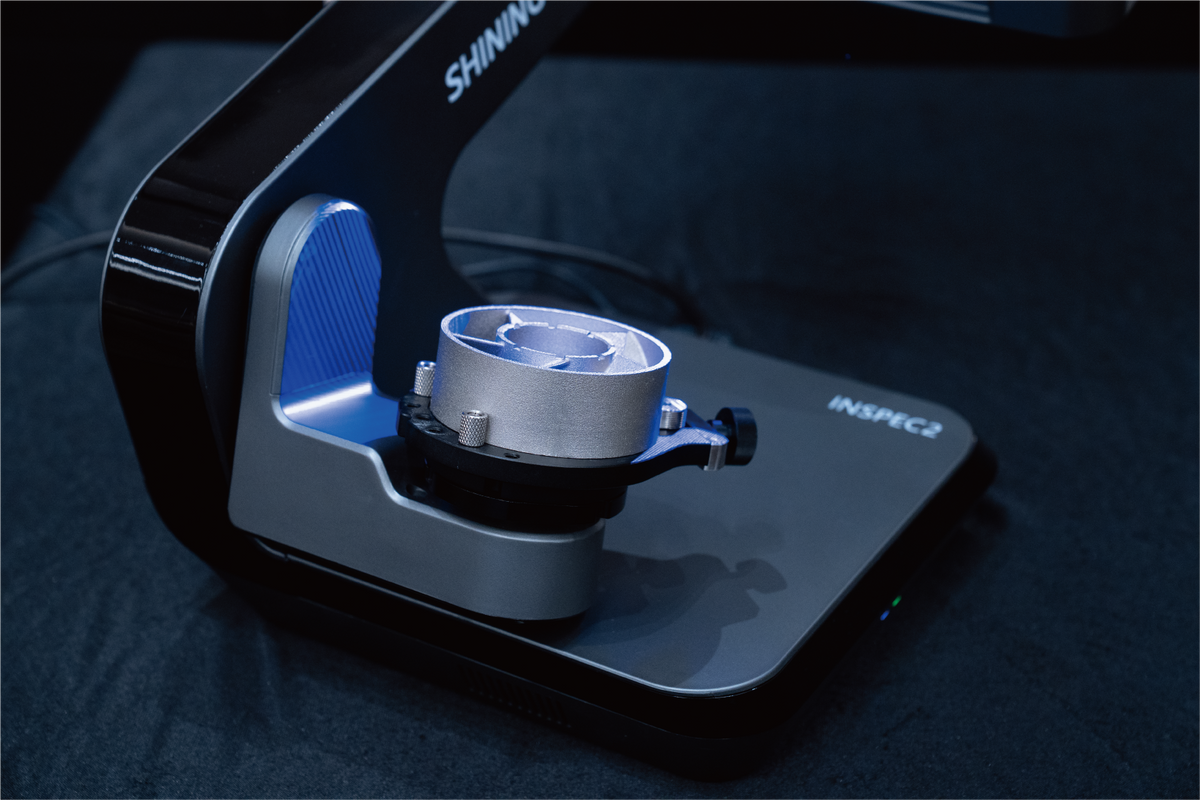

Metrology-grade accuracy up to 0.01 mm for small and detailed parts
PROFESSIONAL 3D SCANNING

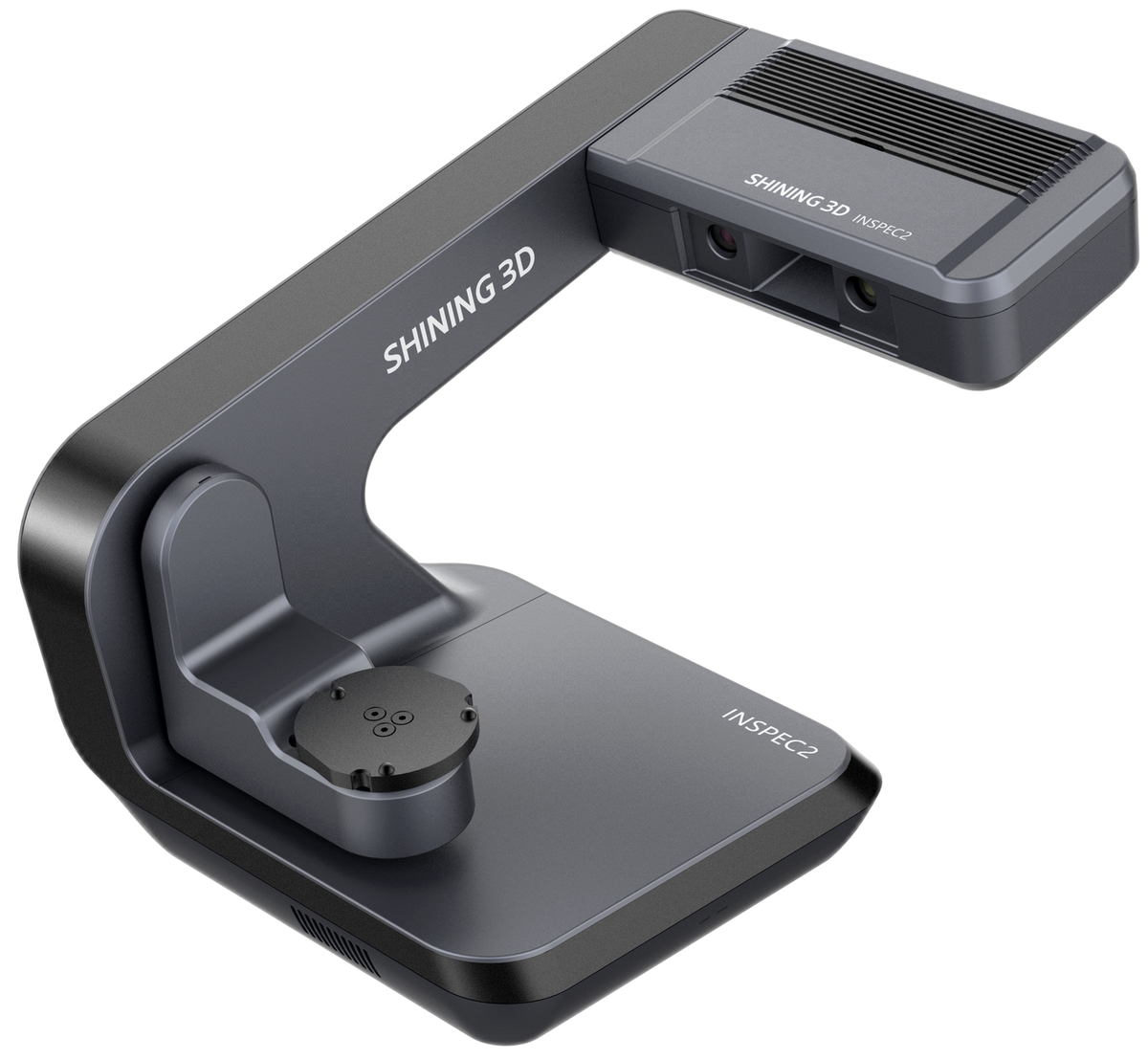

AutoScan Inspec2 SHINING 3D Automatic desktop 3D scanner
One-click desktop metrology scanning for complex small parts
Up to 0.01 mmScan accuracy
3 axesAutomatic turntable
2 × 5 MPCameras
5 kgWeight
System architecture & capabilities
Automated capture for small parts and fine geometry.
Up to 0.01 mmScan accuracy
3 axesAutomatic turntable
2 × 5 MPCameras
5 kgWeight

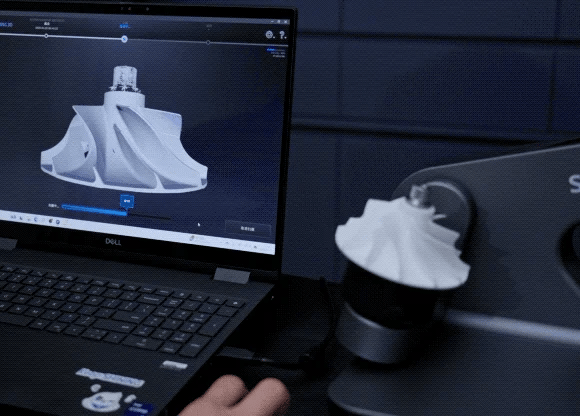

3-axis turntable
Three-axis automatic scanning reduces repositioning and operator variability
2 × 5 MP cameras

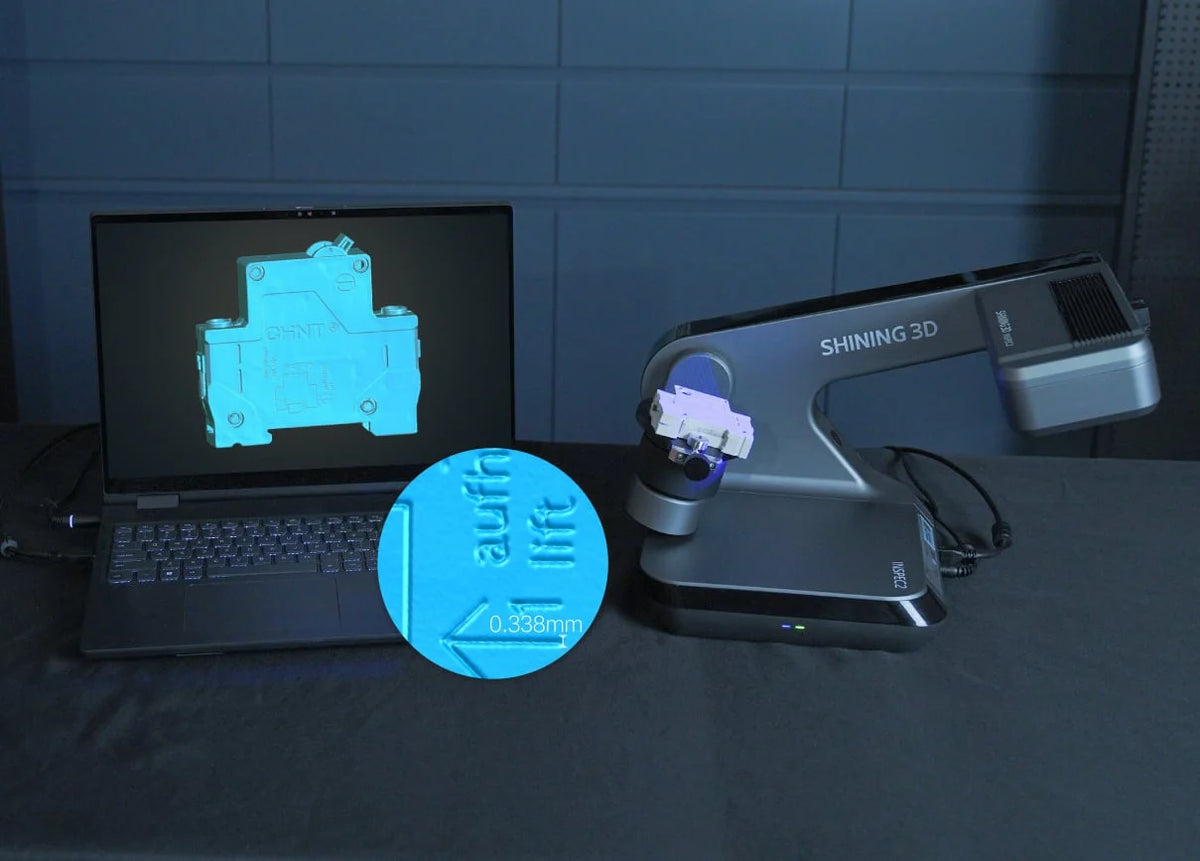

Dual 5 MP cameras capture fine geometry with 0.05 mm point distance
PROFESSIONAL 3D SCANNING7.5 kgProduct weightPerformance highlights
Explore the capabilities that matter.
Explore the capabilities that affect capture, output quality and day-to-day operation.
Feature in focusSmall-part accuracy
01 / 07Your workflow
From acquisition to a usable deliverable.
- Step 01

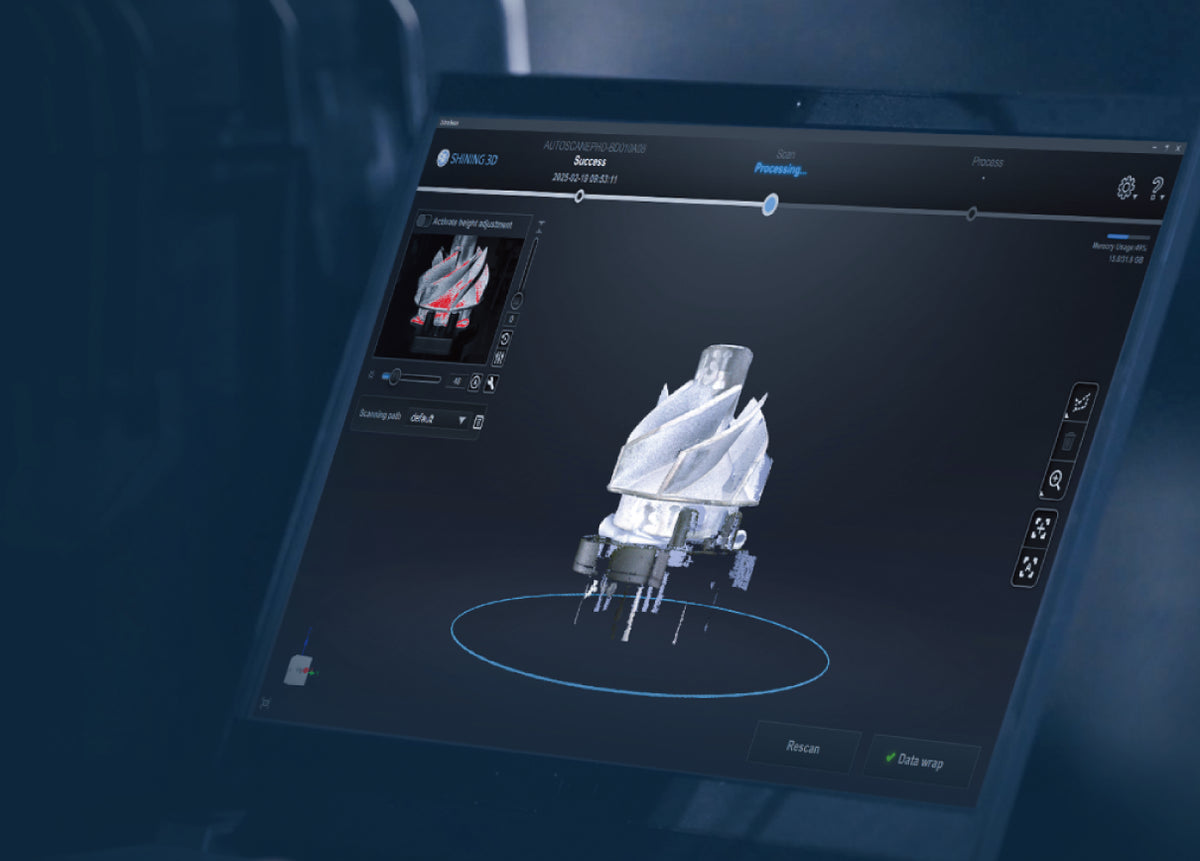

UltraScan included
Position & calibrate
Prepare the part and follow UltraScan calibration and setup.
Ready-to-scan small part
- Step 02
UltraScan included
Automatic capture
Use the three-axis turntable to acquire multiple views, then review scan coverage.
Aligned surface data
- Step 03
Inspection license depends on configuration
Export & evaluate
Export the mesh for design, archiving or dimensional comparison in compatible software.
STL, OBJ or PLY
Application fit
See where this system fits.
Explore representative use cases before confirming system fit.

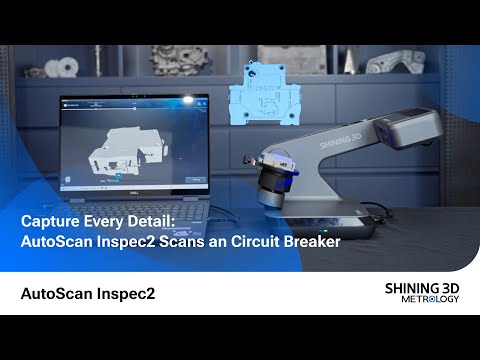

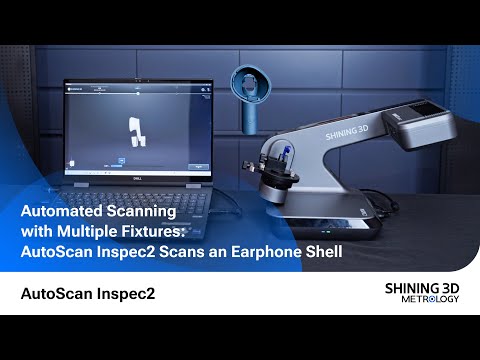

Video library
Watch the workflow in motion.
Use official demonstrations, case studies, and tutorials to assess real operation.
Technical evidence
Every specification, organized for review.
Open the data set needed for engineering, IT, quality, and procurement review.
Complete data table
Open a category to review the full specification.
Physical & Operating Specifications
| Scanner dimensions | 342 × 423 × 379 mm |
|---|---|
| Scanner weight | 7.5 kg |
Capture & Measurement Performance
| Scan accuracy | Up to 0.01 mm |
|---|---|
| Scan volume | 140 × 90 × 80 mm |
| Point distance | 0.05 mm |

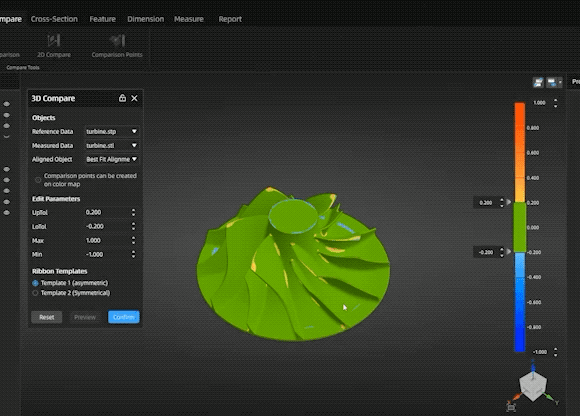

| Alignment modes | Feature and markers |
| Rotation system | 3-axis automatic capture |
| Camera resolution | 2 × 5 MP |
| Light source | Blue LED |
| Color capture | Supported |
Software, Formats & System Requirements
| Output formats | STL, OBJ, PLY |
|---|
Workstation requirements
| Component | Minimum | Recommended |
|---|---|---|
| Operating system | Windows 10 or later, 64-bit only | Windows 11 64-bit |
| macOS support | Not supported | Use a compatible Windows workstation |
| Processor | Intel Core i7-3770 | Intel Core i7-8700 or higher |
| Memory | 16 GB RAM | 32 GB RAM |
| Graphics | NVIDIA GTX 1060 or newer; NVIDIA GPU required | NVIDIA RTX 3060 with 6 GB VRAM or higher |
| Connection | 1 x USB 3.0 | Dedicated USB 3.0 port |
UltraScan is a Windows-only scanning workflow for AutoScan Inspec2. Confirm the current UltraScan release before workstation deployment.
Standards & Safety Compliance
| Certifications | CE, FCC, RoHS, WEEE, KC |
|---|
Interactive results
Inspect representative scan data.
Load a model to examine surface detail and captured geometry.
Package contents
What arrives with the selected system.
Review the documented hardware, included accessories and software access for this product.
AutoScan Inspec2
Standard automated scanning system
- AutoScan Inspec2 integrated scanner system
- Three-axis automated turntable
- UltraScan scanning software (included)
- Power adapter and regional power cable
- Marker set
- Calibration accessories supplied for the system
- Quick-start and product documentation
The final packing list and accessory quantities are confirmed on the formal quote because manufacturer packing revisions can vary by region.
AutoScan Inspec2
$9,999
Monthly budget illustrations assume 36 payments at 15% APR, $0 down. Taxes, shipping and fees are excluded. This is not a financing offer or approval. Payment options through Affirm are subject to eligibility. See Affirm for available terms. Taxes and any applicable shipping are calculated separately.
Est. monthly budget: $347/ mo
36 mo · 15% APR · $0 down. Illustration only.
