Standalone scan-to-mesh
Fully wireless, standalone scanning with complete on-device scan-to-mesh processing
WIRELESS ALL-IN-ONE 3D SCANNING

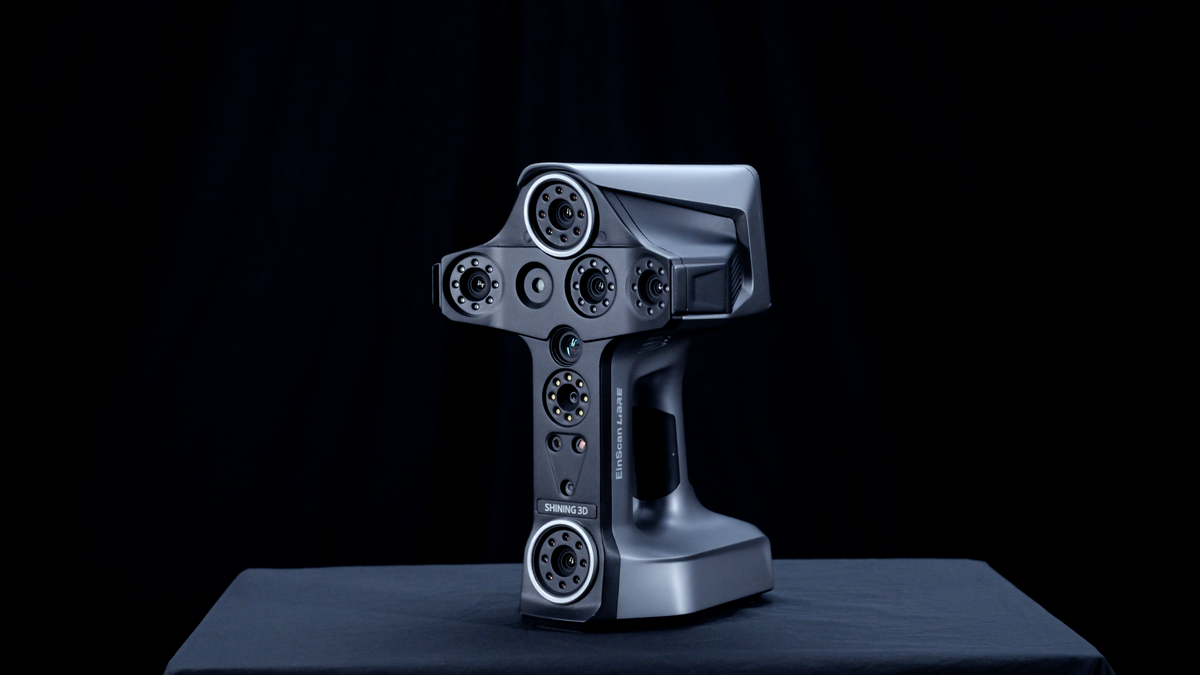

EinScan Libre SHINING 3D Wireless standalone 3D scanner
Capture, process, and review without a tethered workstation.
StandaloneOn-device workflow
101Laser HD lines
48 MPTexture camera
1 TBOn-device storage
System architecture & capabilities
Capture, process, and review without a tethered workstation.
StandaloneOn-device workflow
101Laser HD lines
48 MPTexture camera
1 TBOn-device storage
Onboard computing

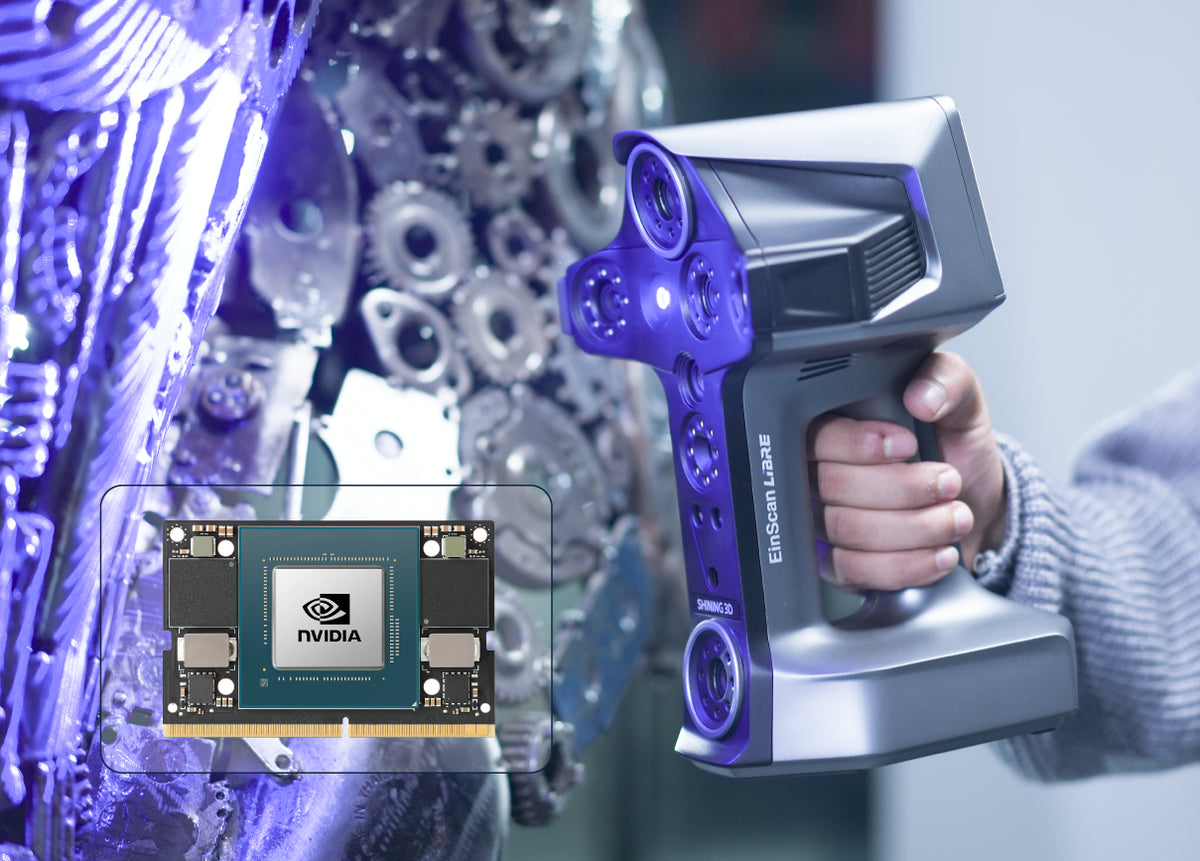

Integrated NVIDIA Jetson Orin NX, 1 TB SSD, and 5.5-inch OLED touchscreen

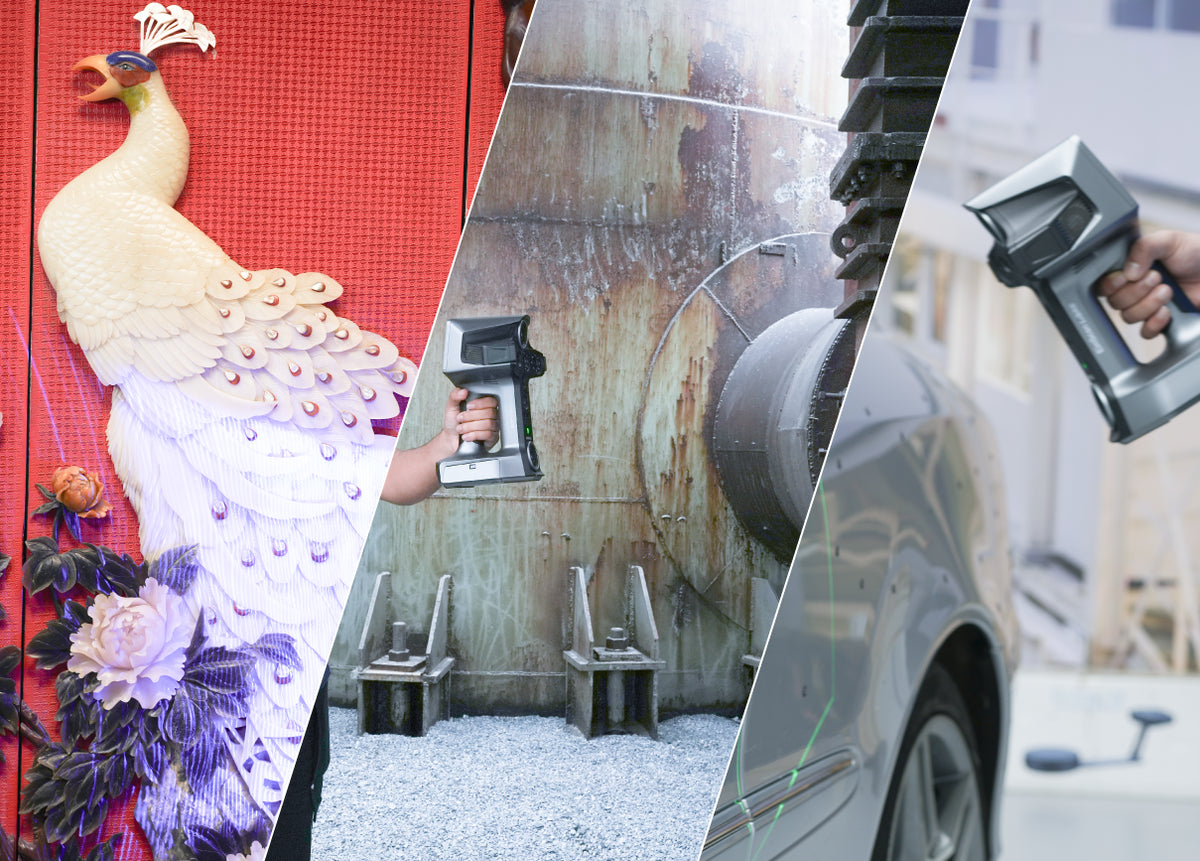

Three scanning modes
Three scan modes cover objects from 0.1 m to over 10 m and a wide range of surfaces
WIRELESS ALL-IN-ONE 3D SCANNING1.8 kg including battery; 1.6 kg excluding batteryProduct weightCompare configurations
Choose the hardware that fits your workflow.
EinScan Libre (Wi-Fi)
Select the connectivity version for your region and operating requirements.
StandaloneOn-device workflow
101Laser HD lines
Starting at $28,999
Est. monthly budget: $1,006/ mo
36 mo · 15% APR · $0 down. Illustration only.
Monthly payment options
EinScan Libre (without Wi-Fi)
Select the connectivity version for your region and operating requirements.
StandaloneOn-device workflow
101Laser HD lines
Starting at $28,999
Est. monthly budget: $1,006/ mo
36 mo · 15% APR · $0 down. Illustration only.
Monthly payment options
Hardware specifications
| Capability | EinScan Libre (Wi-Fi) | EinScan Libre (without Wi-Fi) |
|---|---|---|
| Standalone scan-to-mesh | Included | Included |
| Three scan modes | Included | Included |
| Onboard computing and storage | Included | Included |
| USB-C and Gigabit Ethernet transfer | Supported | Supported |
| Wi-Fi 6 connectivity | Supported | Not included |
| Recommended choice | Mobile and flexible workflows | Network-restricted environments |
Need custom software or multi-unit packages?
Build & Configure System ↗Performance highlights
Explore EinScan Libre capabilities.
Explore the capabilities that affect capture, output quality and day-to-day operation.
Feature in focusStandalone scan-to-mesh
01 / 07Your workflow
From measurement planning to the engineering handoff.
- Step 01
Scanner workflow
Plan the capture
Choose the scan mode, working range, and preparation around the part geometry and measurement objective.
Part-specific capture setup
- Step 02
Scanner workflow
Capture & review the data
Check alignment, coverage, and data quality before preparing the result for the next engineering step.
Reviewed 3D scan data
- Step 03
Downstream licence requirements apply
Continue in CAD or inspection
Confirm the export format and software licence for downstream reverse engineering, dimensional inspection, or reporting.
An agreed engineering handoff
Application fit
Explore the applications for EinScan Libre.
Explore representative use cases before confirming system fit.
Video library
Watch the workflow in motion.
Use official demonstrations, case studies, and tutorials to assess real operation.
Technical evidence
Every specification, organized for review.
Open the data set needed for engineering, IT, quality, and procurement review.
Complete data table
Open a category to review the full specification.
Physical & Operating Specifications
| Power | Two rechargeable batteries; up to 3 hours scanning time |
|---|---|
| Charging | Supports USB-C power banks or 100 W PD 3.0 fast-charge adapters |
| Scanner weight | 1.8 kg including battery; 1.6 kg excluding battery |
| Scanner dimensions | 162 × 182 × 266 mm |
| Operating temperature | -10 ~ 50°C (14 ~ 122°F) |
| Operating humidity | 10 ~ 90% RH |
Capture & Measurement Performance
| Scanner type | Wireless, standalone handheld laser and infrared 3D scanner |
|---|---|
| Recommended object size | 0.1 m to over 10 m |

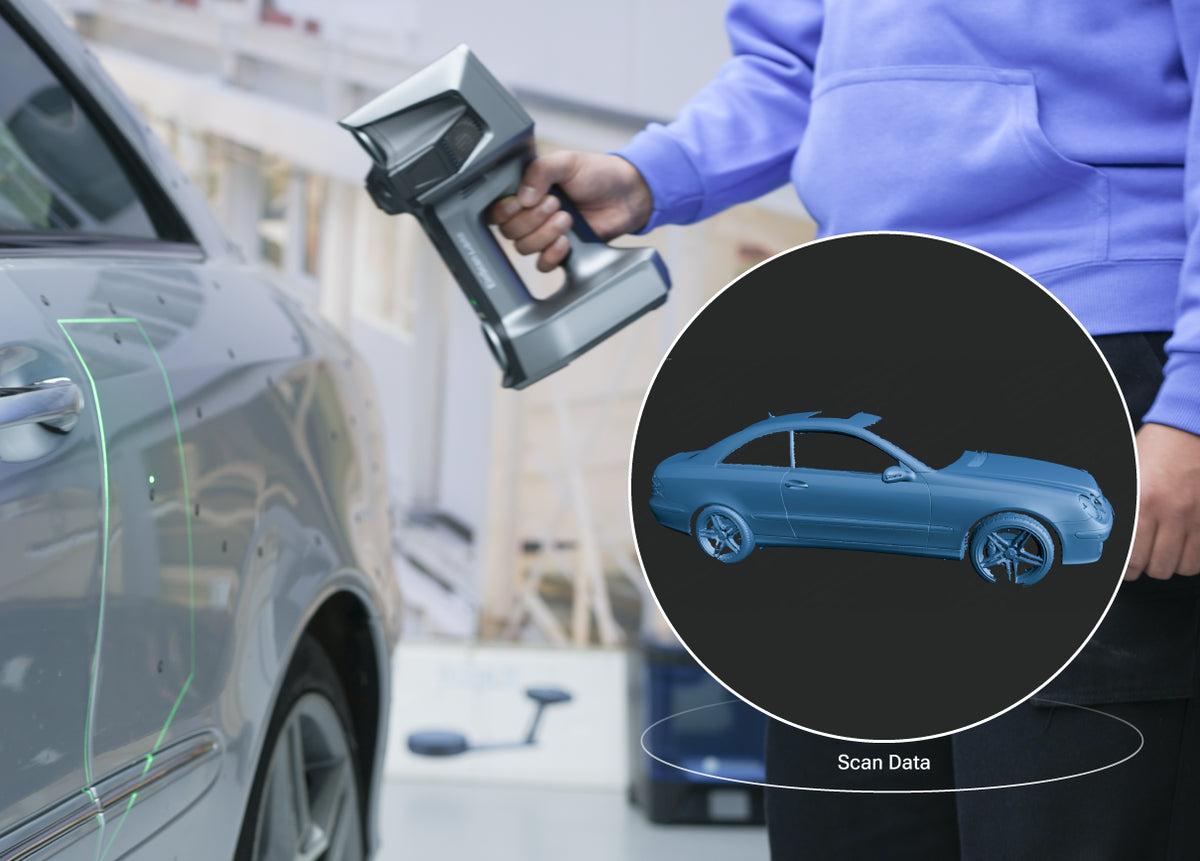

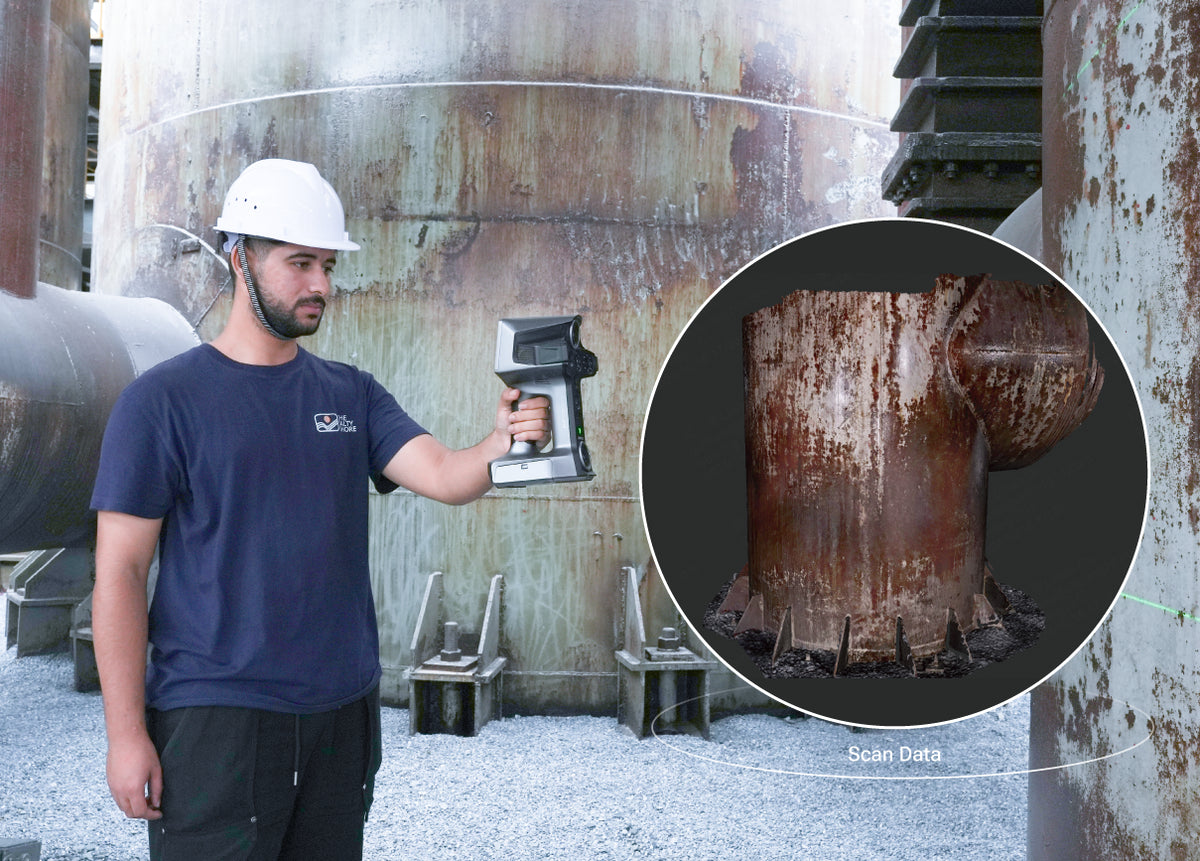

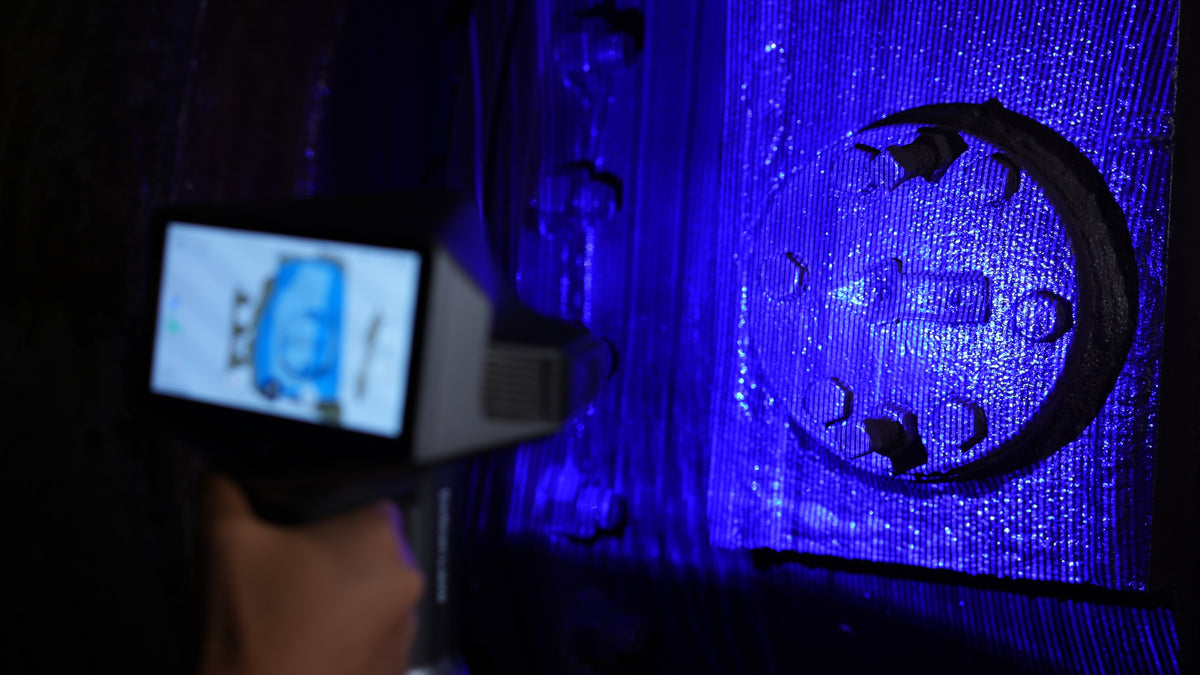

| Scan modes / light sources | IR Rapid: IR VCSEL; IR Adaptive: 38 IR laser lines; Laser HD: 101 blue laser lines |
| Point accuracy | Up to 0.04 mm |
| Volumetric accuracy | Up to 0.04 + 0.06 mm/m |
| Resolution (point distance) | IR Rapid: 0.5 ~ 10 mm; IR Adaptive: 0.5 ~ 10 mm; Laser HD: 0.05 ~ 3.0 mm |
| Scan speed | IR Rapid: 2,700,000 points/s; IR Adaptive: 1,900,000 points/s; Laser HD: 4,500,000 points/s |
| Field of view | IR Rapid: 370 × 470 ~ 983 × 979 mm; IR Adaptive: 370 × 470 ~ 779 × 835 mm; Laser HD: 165 × 200 ~ 382 × 450 mm |
| Working distance | IR Rapid: 500 ~ 1500 mm; IR Adaptive: 500 ~ 1200 mm; Laser HD: 200 ~ 500 mm |
| Alignment modes | Feature, texture, hybrid, markers, and global markers |
| 3D camera resolution | 5 MP |

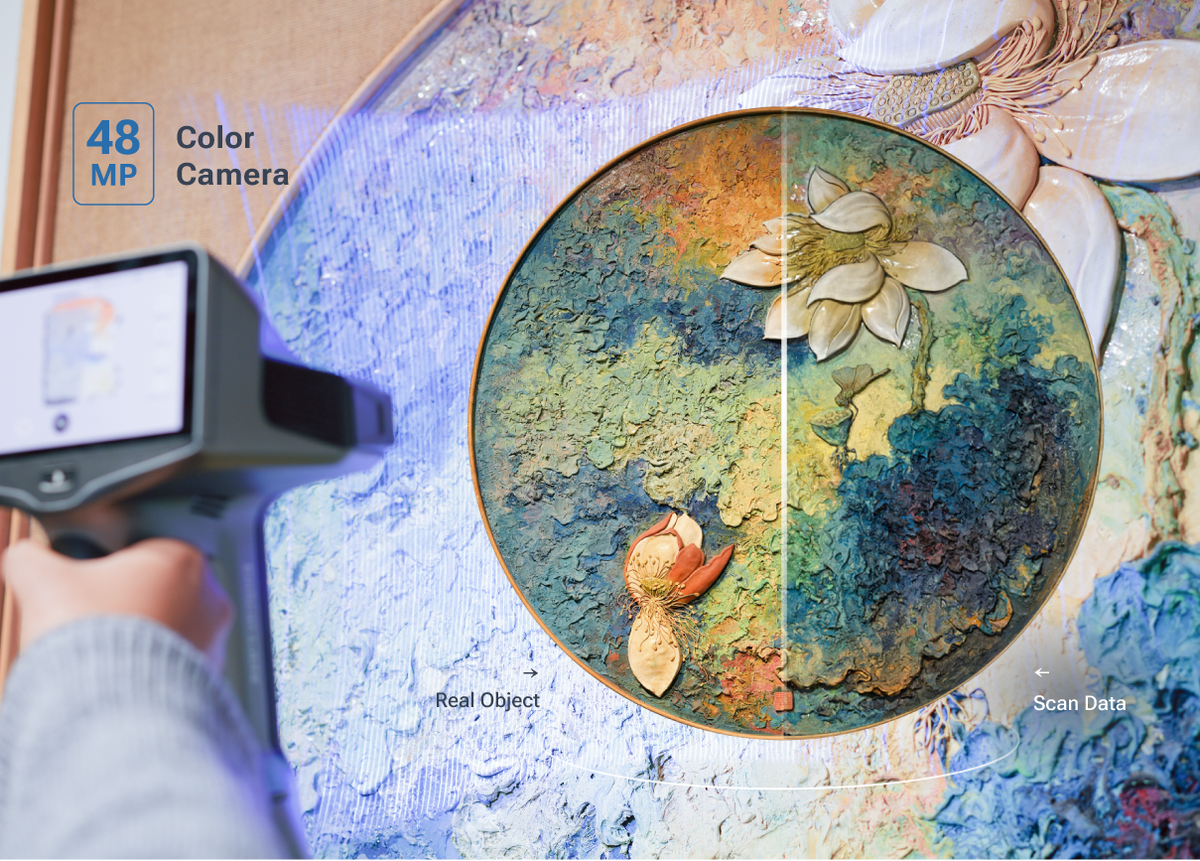

| Color camera resolution | 48 MP |
| Laser classification | Class II (eye safe) |
| Embedded processor | NVIDIA Jetson Orin NX 16 GB; 8-core Arm Cortex-A78AE; Ampere GPU with 1024 CUDA cores; 100 TOPS |
| Interfaces | Wi-Fi 6 on the standard model; USB-C; USB 3.0; Gigabit Ethernet |
Software, Formats & System Requirements
| Output formats | STL, OBJ, PLY, 3MF, ASC, and LAS |
|---|---|
| Included software | On-device scanning and processing software plus EXScan Libre PC software |
| Internal storage | 1 TB SSD |
| Display | Built-in 5.5-inch HD OLED touchscreen |
Workstation requirements
| Component | Minimum | Recommended |
|---|---|---|
| Standalone scanning | No external PC required | Use the onboard scanner workflow for capture, editing, meshing, and export |
| Operating system for EXScan Libre PC | Not specified | Windows 10 or Windows 11, 64-bit |
| Processor for EXScan Libre PC | Not specified | Intel Core i7-11700 or higher |
| Graphics card for EXScan Libre PC | Not specified | NVIDIA GTX 1070 series or higher |
| Video memory for EXScan Libre PC | Not specified | 6 GB or more |
| System memory for EXScan Libre PC | Not specified | 32 GB RAM or more |
| PC connection | Not specified | Gigabit Ethernet, USB 3.0, or USB-C; Wi-Fi transfer is supported by the standard Wi-Fi model |
A PC is optional for scanning. These are SHINING 3D's recommended requirements for the included EXScan Libre desktop software used for expanded post-processing, measurement, and project management.
Interactive results
Inspect representative scan data.
Load a model to examine surface detail and captured geometry.
Package contents
What arrives with the selected system.
Review the documented hardware, included accessories and software access for this product.
EinScan Libre Standard Package
Verified against the current SHINING 3D EinScan Libre packing list.
- EinScan Libre scanner
- Two rechargeable batteries
- Battery charging dock
- Markers
- Power adapter
- Six individual calibration boards or two folding calibration boards
- Marker remover
- Scale bar
- Documentation
- Ethernet cable
- Charging-dock power line
- USB-C to USB-C cable
- World travel adapter kit
- USB drive with EXScan Libre PC software
- Included onboard scanning and processing software
The EinScan Libre Backpack, EXModel, BlueStar Mapping, Geomagic Design X, extended coverage, and training are optional and not included. Regional calibration-board format and plug type may vary.
