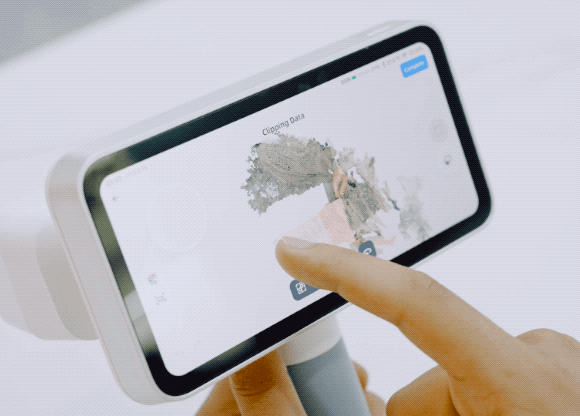

All-in-one
Wireless, all-in-one O&P scanning and onboard processing

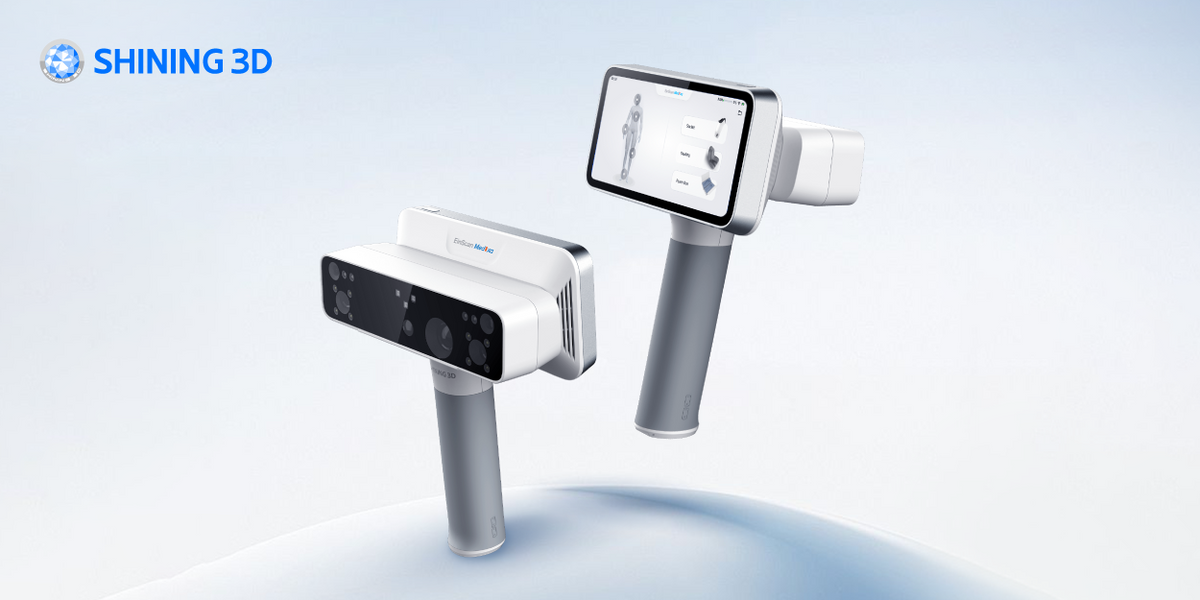

WIRELESS O&P 3D SCANNER
EinScan Medixa SHINING 3D All-in-one O&P scanner
From patient scan to production-ready 3D data
OnboardScanning & processing
5 MPTexture camera
1 TBOn-device storage
Not requiredComputer during capture
System architecture & capabilities
A clinical workflow from patient capture to usable 3D data.
OnboardScanning & processing
5 MPTexture camera
1 TBOn-device storage
Not requiredComputer during capture
Guided O&P workflow
Tailored step-by-step workflow for orthotics and prosthetics

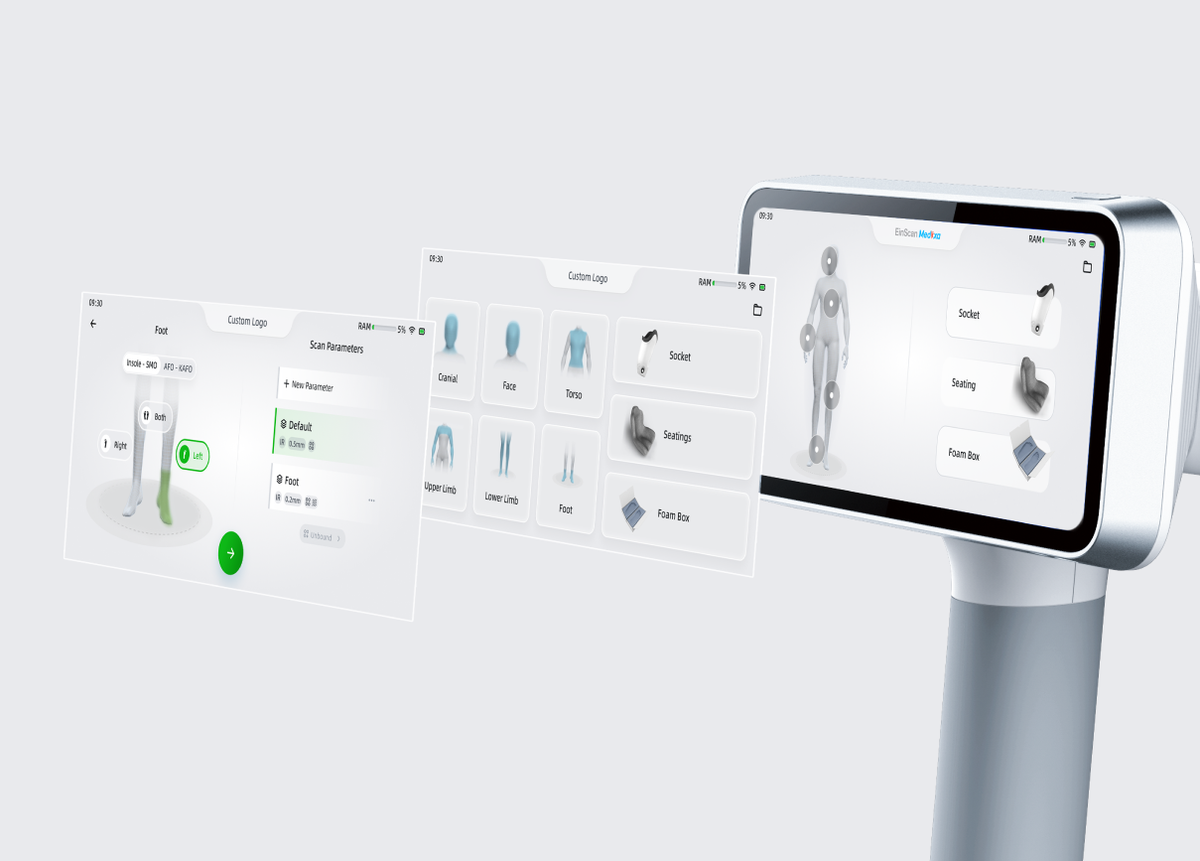

Personalized presets
Personalized presets for cranial, torso, limb, foot, socket and seating capture
WIRELESS O&P 3D SCANNER953 g with batteriesProduct weightPerformance highlights
Designed around clinical capture.
Explore the capabilities that affect capture, output quality and day-to-day operation.
Feature in focusWireless capture

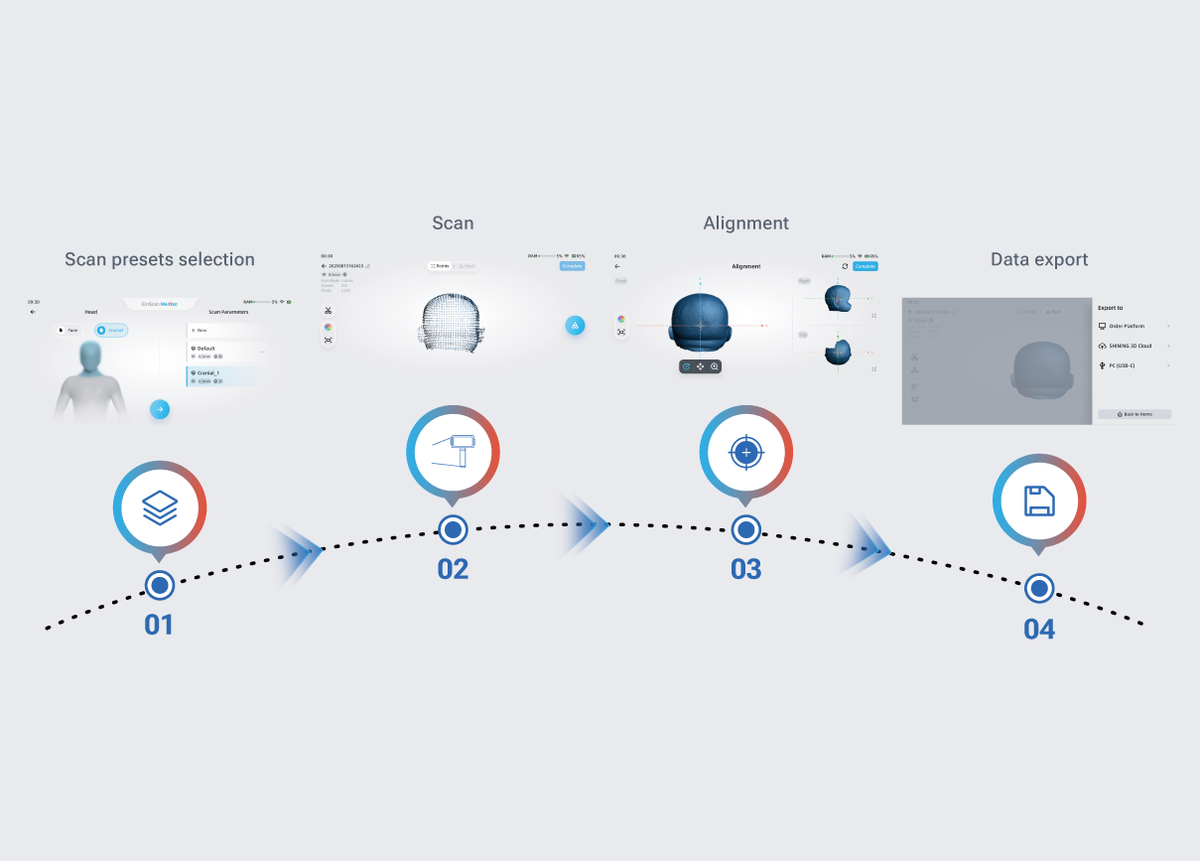

01 / 06Your workflow
From patient capture to the next clinical step.
- Step 01
Included onboard workflow

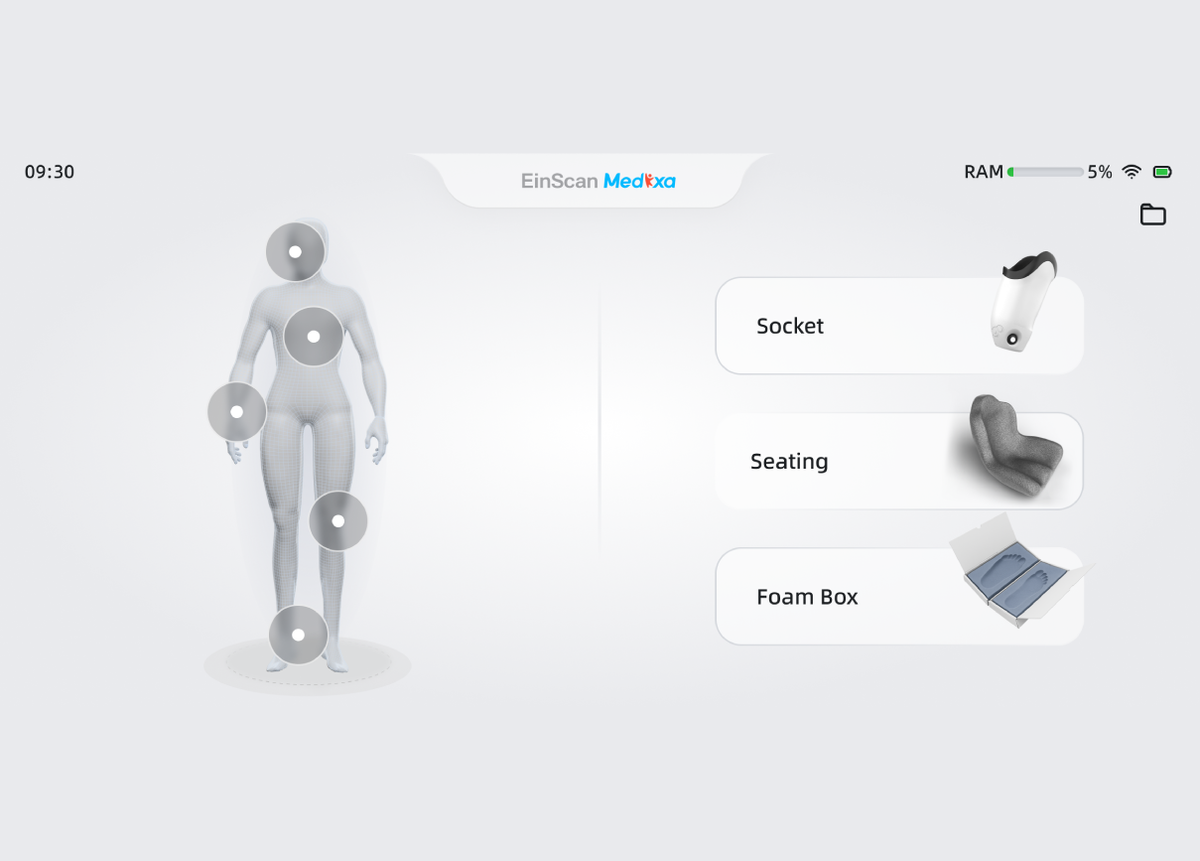

Select the clinical preset
Choose the body region or device preset and prepare the patient for contact-free capture.
Patient-specific scan setup
- Step 02
Included onboard workflow
Capture & review
Follow acquisition and processing on the device, then check coverage and the captured anatomy.
Reviewed patient scan
- Step 03
Downstream platform requirements apply
Export to the O&P workflow
Export STL, OBJ or PLY to the selected design or ordering platform. Confirm platform compatibility for the clinic.
Files for downstream O&P design
Application fit
Find the workflow that fits your clinic.
Explore representative use cases before confirming system fit.
Video library
Watch the workflow in motion.
Use official demonstrations, case studies, and tutorials to assess real operation.
Technical evidence
Every specification, organized for review.
Open the data set needed for engineering, IT, quality, and procurement review.
Complete data table
Open a category to review the full specification.
Physical & Operating Specifications
| Battery system | Two 5500 mAh batteries; up to 3 hours of continuous scanning |
|---|---|
| Charging | Supports USB-C 60 W PD 3.0 charger |
| Dimensions | 233 × 180 × 91 mm (H × D × W) |
| Weight | 953 g with batteries |
Capture & Measurement Performance
| Scanner type | Wireless, all-in-one body 3D scanner for orthotics and prosthetics |
|---|---|
| Scan presets | Face, cranial, torso, upper limb, lower limb, feet, socket, seating and foam box |
| Light sources | White light and infrared VCSEL |
| Accuracy | RMS < 0.3 (manufacturer brochure notation) |
| Working distance | White light: 200–600 mm; infrared VCSEL: 160–1500 mm |
| Point distance | 0.2–3.0 mm |
| Maximum field of view | White light: 475 × 360 mm; infrared VCSEL: 1090 × 1260 mm |
| Texture camera | 5 MP |
| Alignment modes | Feature, texture, hybrid, marker and global-marker alignment |
| Compatible accessory | Foot Station 2 ; purchased separately and selectable in configuration |
| Embedded processor | 8-core CPU, 2.4 GHz |
| Connectivity | Wi-Fi 6 and USB-C |
| Supported markers | 3 mm and 6 mm |
| Computer during scanning | Not required |
| Integrated platforms | riiForm, BabySymmetry and Protosthetics |
Software, Formats & System Requirements
| Output formats | STL, OBJ and PLY |
|---|---|
| On-device storage | 1 TB SSD |
| Display | 6.4-inch 2K AMOLED touchscreen |
| Included O&P software | Dedicated Medixa onboard workflow for guided scanning, processing, editing, measurement and STL/OBJ/PLY export; no separate license or ongoing subscription for the native workflow |
Workstation requirements
| Component | Minimum | Recommended |
|---|---|---|
| Computer during scanning | Not required | Not required ; capture, processing, editing, measurement and export run on Medixa |
| Embedded processor | Not specified | 8-core CPU at 2.4 GHz |
| On-device storage | Not specified | 1 TB SSD |
| Display | Not specified | 6.4-inch 2K AMOLED touchscreen |
| Wireless and ports | Not specified | Wi-Fi 6 and USB-C |
| Power | Not specified | Two 5500 mAh batteries; supports USB-C 60 W PD 3.0 charger |
| Connection and export | USB-C direct export | USB-C or SHINING 3D Cloud; Wi-Fi is used for cloud workflows and device updates |
| Direct file-manager access | Windows | Windows; macOS requires a third-party MTP utility such as OpenMTP |
| External CAD/O&P workstation | Depends on the downstream platform | Follow the requirements published by the selected CAD/CAM, O&P, texture-mapping or inspection software |
EinScan Medixa contains its own processor, storage, display and power system. Optional downstream applications may require a separate workstation.
Standards & Safety Compliance
| Optical safety | White LED: eye-safe; infrared VCSEL: Class I eye-safe |
|---|

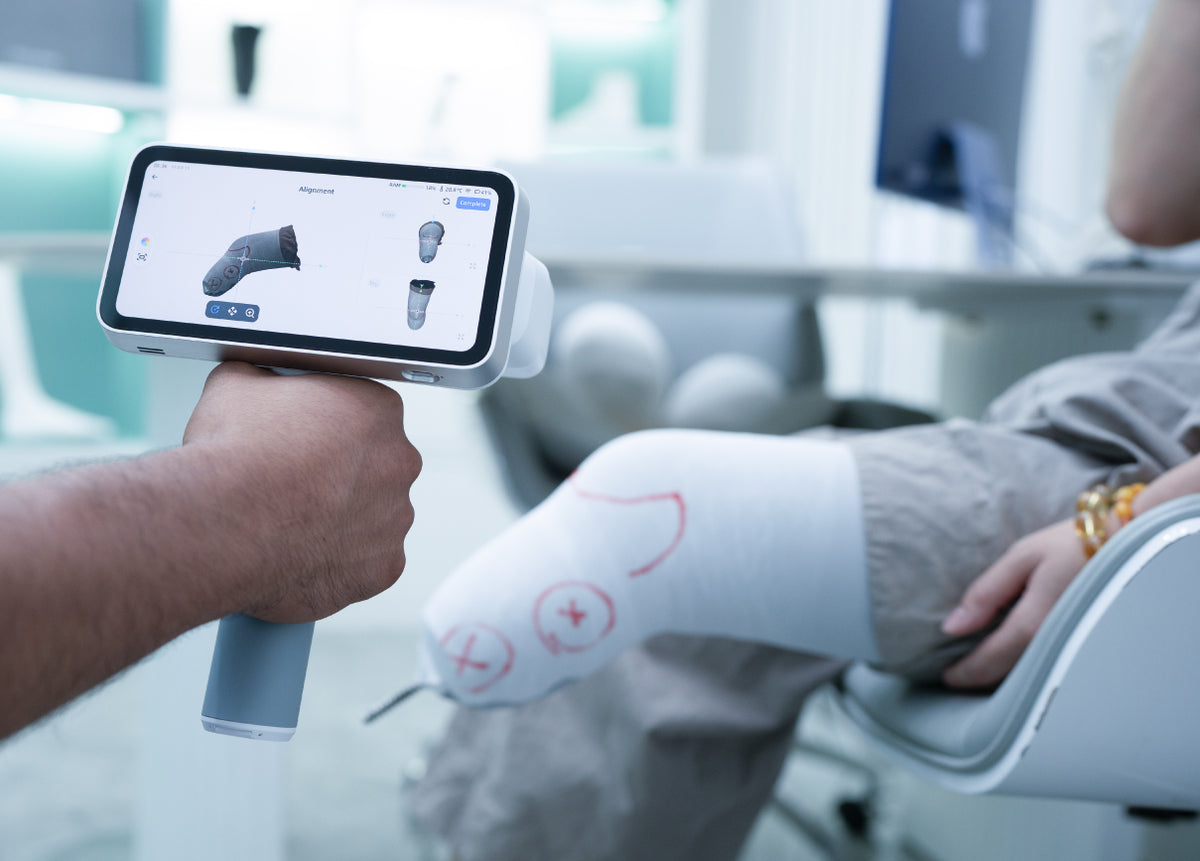

Interactive results
Inspect representative scan data.
Load a model to examine surface detail and captured geometry.
Package contents
What arrives with the selected system.
Review the documented hardware, included accessories and software access for this product.
EinScan Medixa Standard Package
Components verified against SHINING 3D's Medixa documentation.
- EinScan Medixa 3D scanner
- Rechargeable 5500 mAh battery
- Battery compartment
- Charging cable
- Type-C to Type-C scanner cable
- Power adapter
- 3 mm and 6 mm markers
- Calibration board with universal holder
- Additional calibration board
- Cleaning cloth
- Packing list and documentation
- Included Medixa onboard O&P software for guided scanning, processing, editing, measurement, and STL/OBJ/PLY export ; no separate license or ongoing subscription for the native workflow
Foot Station 2 and Medixa-specific extended warranty or protection are optional configuration choices and are not included in the standard package. EXModel and SHINING3D Inspect are not part of the Medixa package or standard O&P configuration. Confirm final regional quantities and plug type before activation.
EinScan Medixa
$5,599
Monthly budget illustrations assume 36 payments at 15% APR, $0 down. Taxes, shipping and fees are excluded. This is not a financing offer or approval. Payment options through Affirm are subject to eligibility. See Affirm for available terms. Taxes and any applicable shipping are calculated separately.
Est. monthly budget: $195/ mo
36 mo · 15% APR · $0 down. Illustration only.
Monthly payment options
