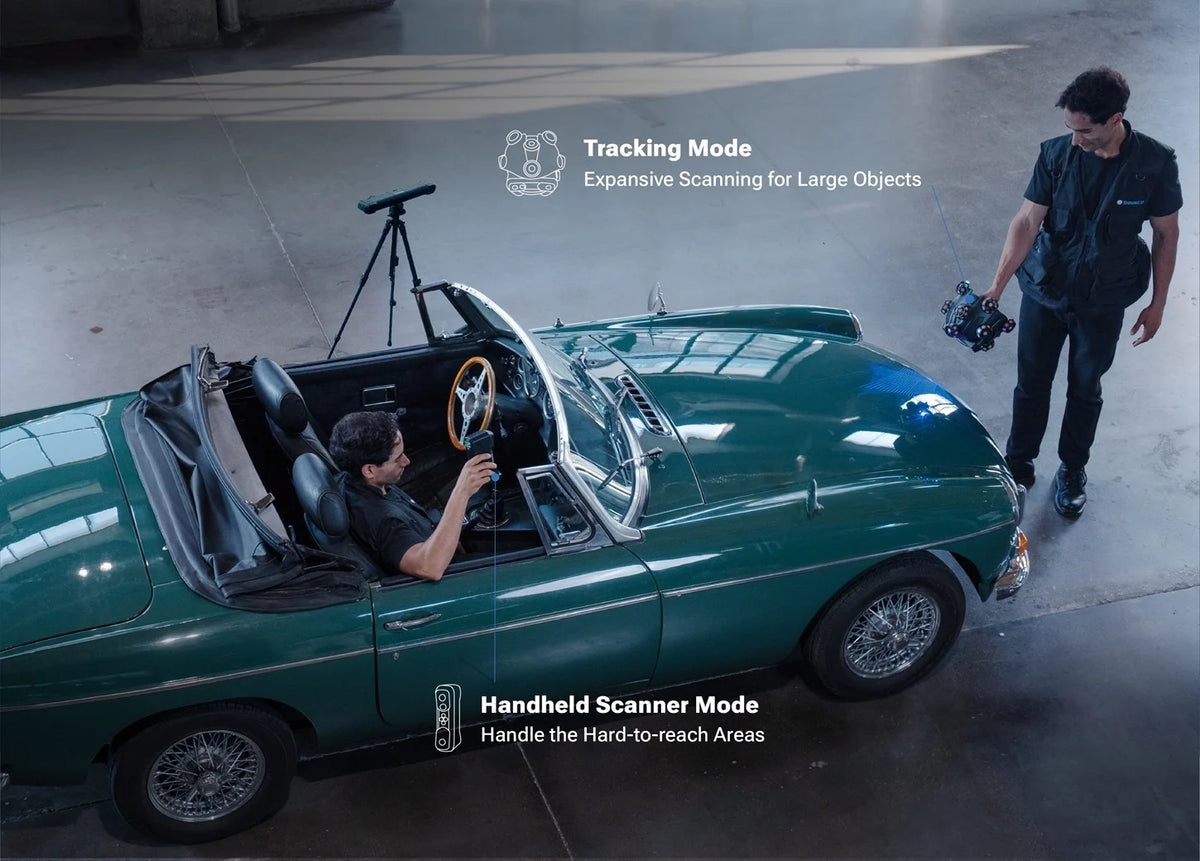

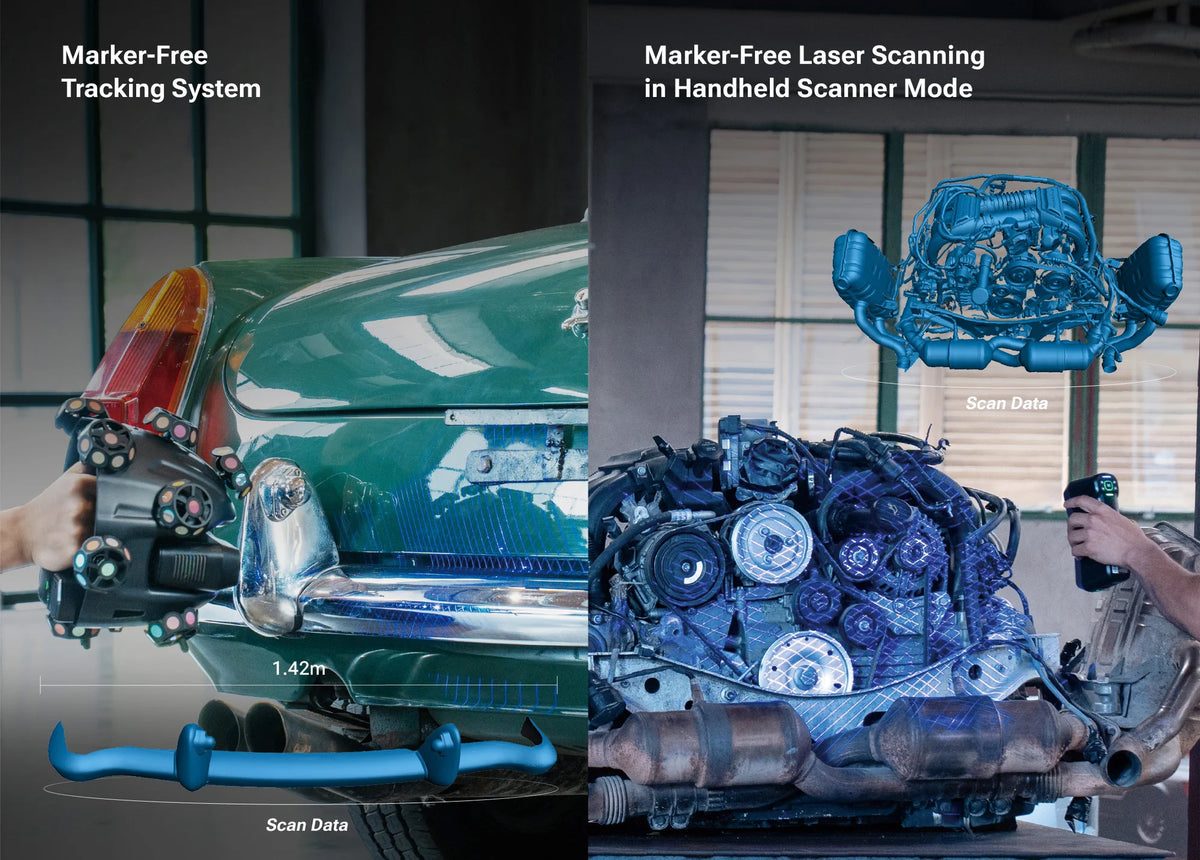

Two work modes
Use optical tracking for large surfaces, then detach the same scanner for small parts, narrow spaces, and deep features.
WIRELESS MARKER-FREE TRACKING SYSTEM
EinScan Trak SHINING 3D Wireless tracking & scanning system
Scan large parts without surface markers
Tracking + handheldCapture modes
15 m³Wireless tracking volume
38 + 7 + 1Laser patterns

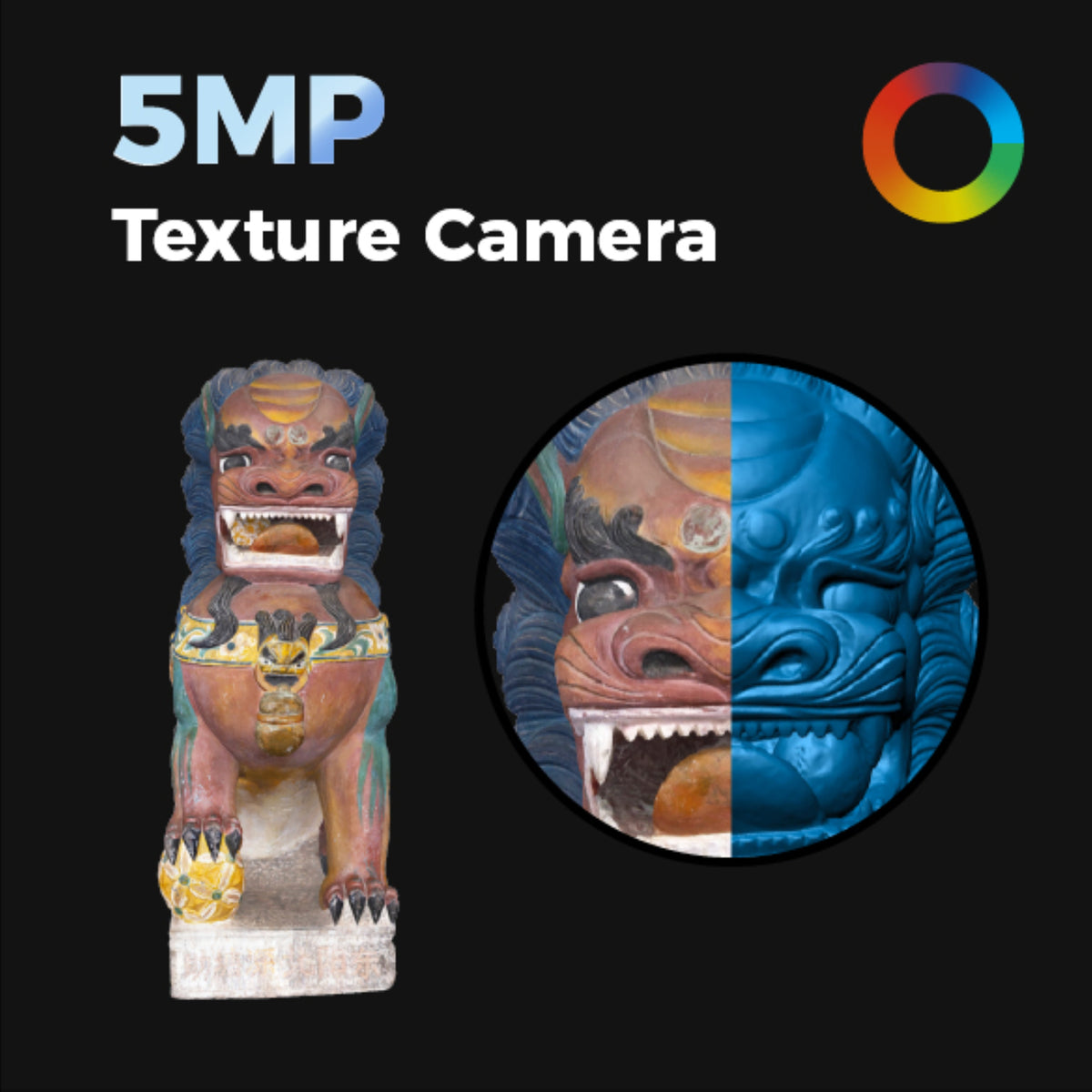

5 MPTexture camera
System architecture & capabilities
One system for broad surfaces and hard-to-reach detail.
Tracking + handheldCapture modes
15 m³Wireless tracking volume
38 + 7 + 1Laser patterns
5 MPTexture camera

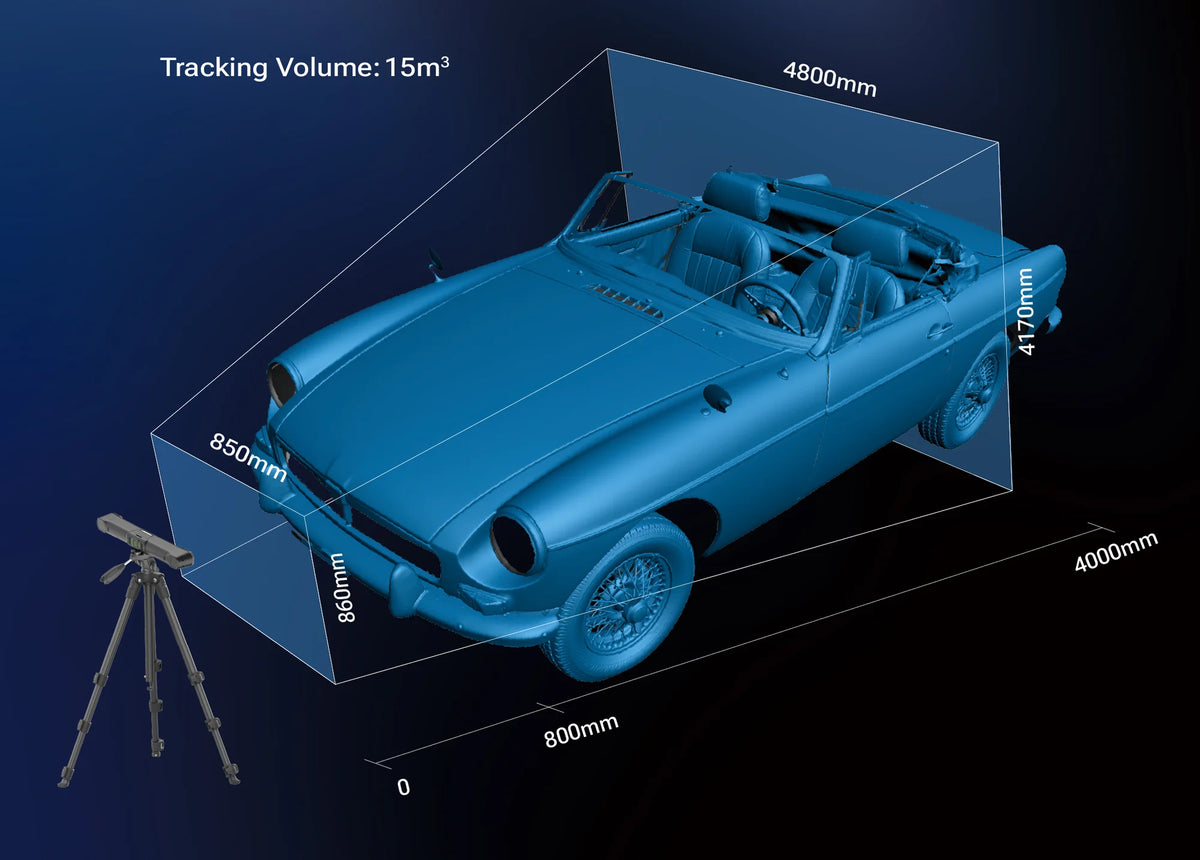

15 m³ wireless volume

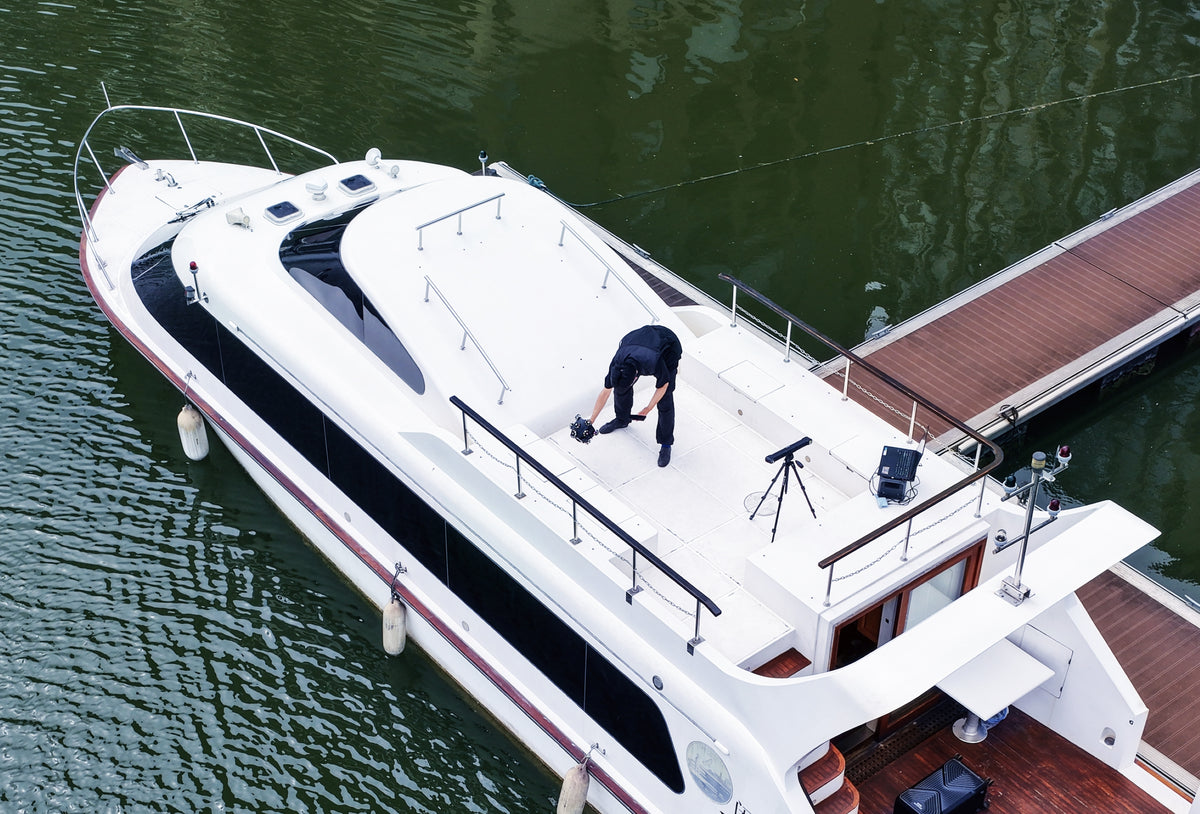

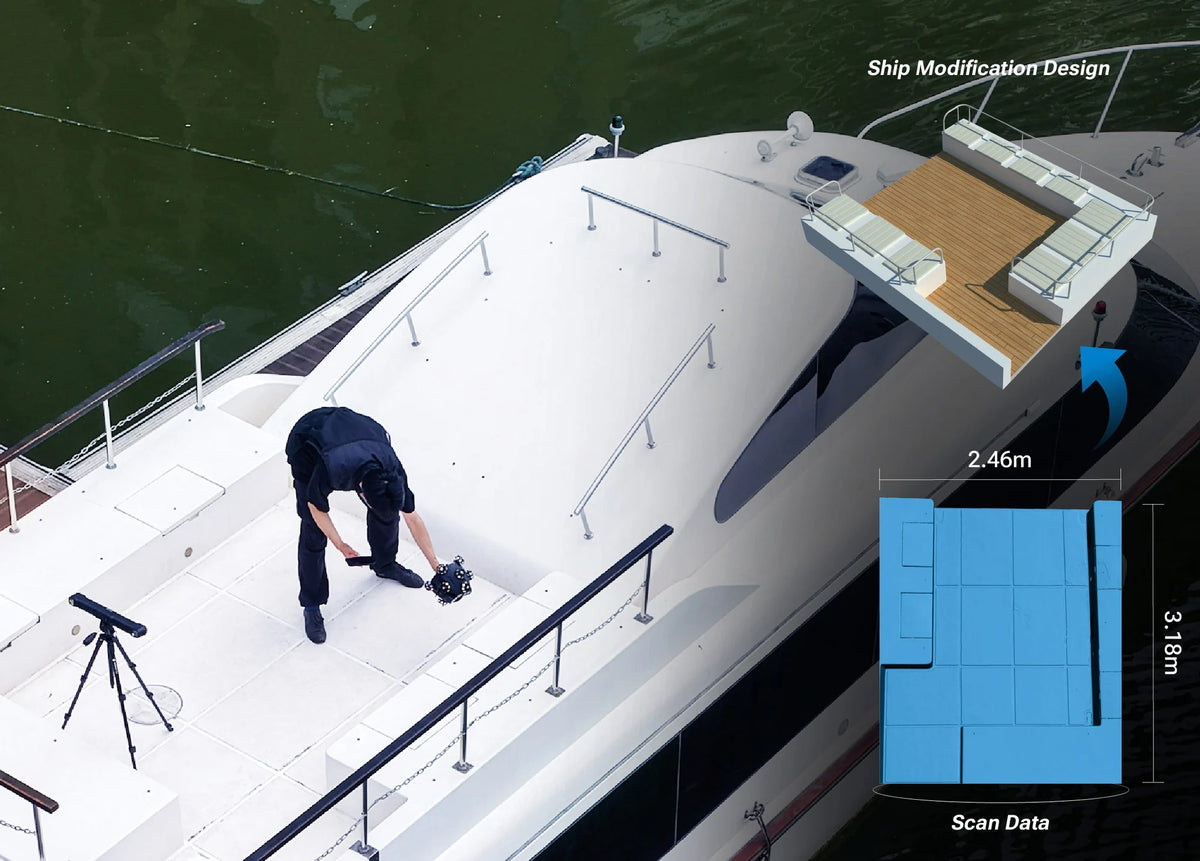

The tracker follows the spherical scanner without markers on most object surfaces, reducing preparation on vehicles, boats, and valuable artifacts.
EXMeasure included for one year

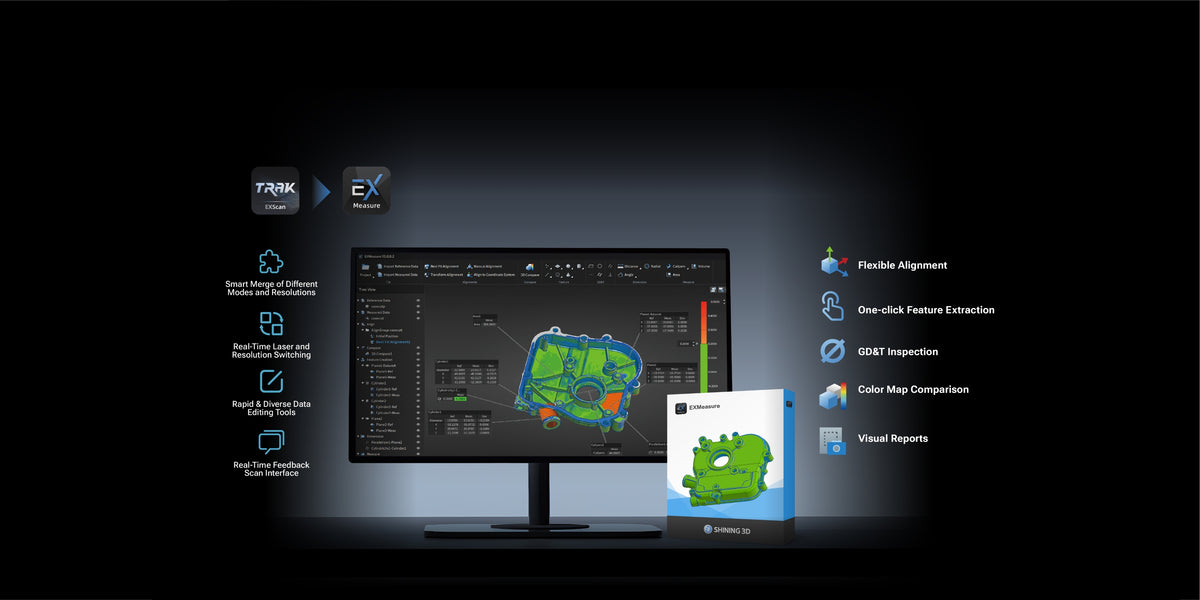

Capture and process data in EXScan Trak, then use the included EXMeasure license for alignment, dimensional analysis, GD&T, comparison, and reporting.
WIRELESS MARKER-FREE TRACKING SYSTEMPerformance highlights
Explore the capabilities that matter.
Explore the capabilities that affect capture, output quality and day-to-day operation.
Feature in focusTwo work modes
01 / 08Your workflow
From acquisition to a usable deliverable.
- Step 01
EXScan Trak included

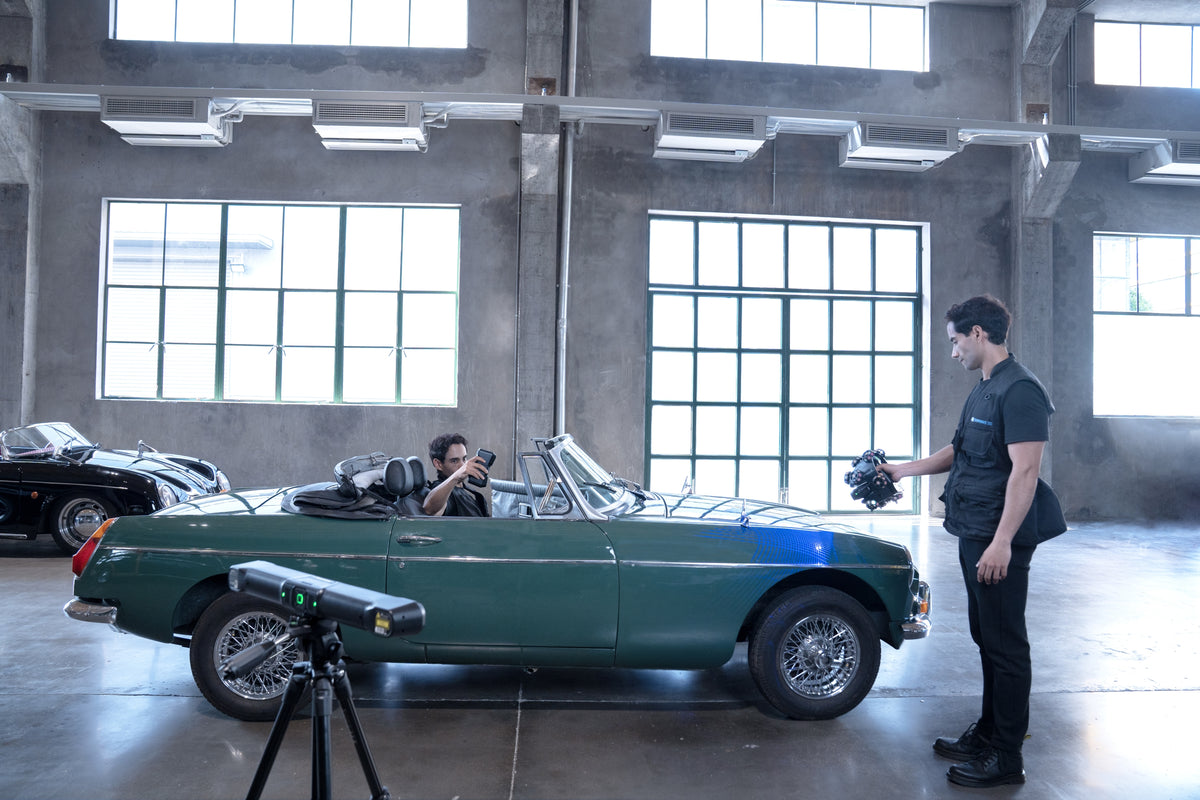

Position the tracker
Set up the tracker and included router for wireless capture of larger objects.
Tracked scan setup
- Step 02
EXScan Trak included

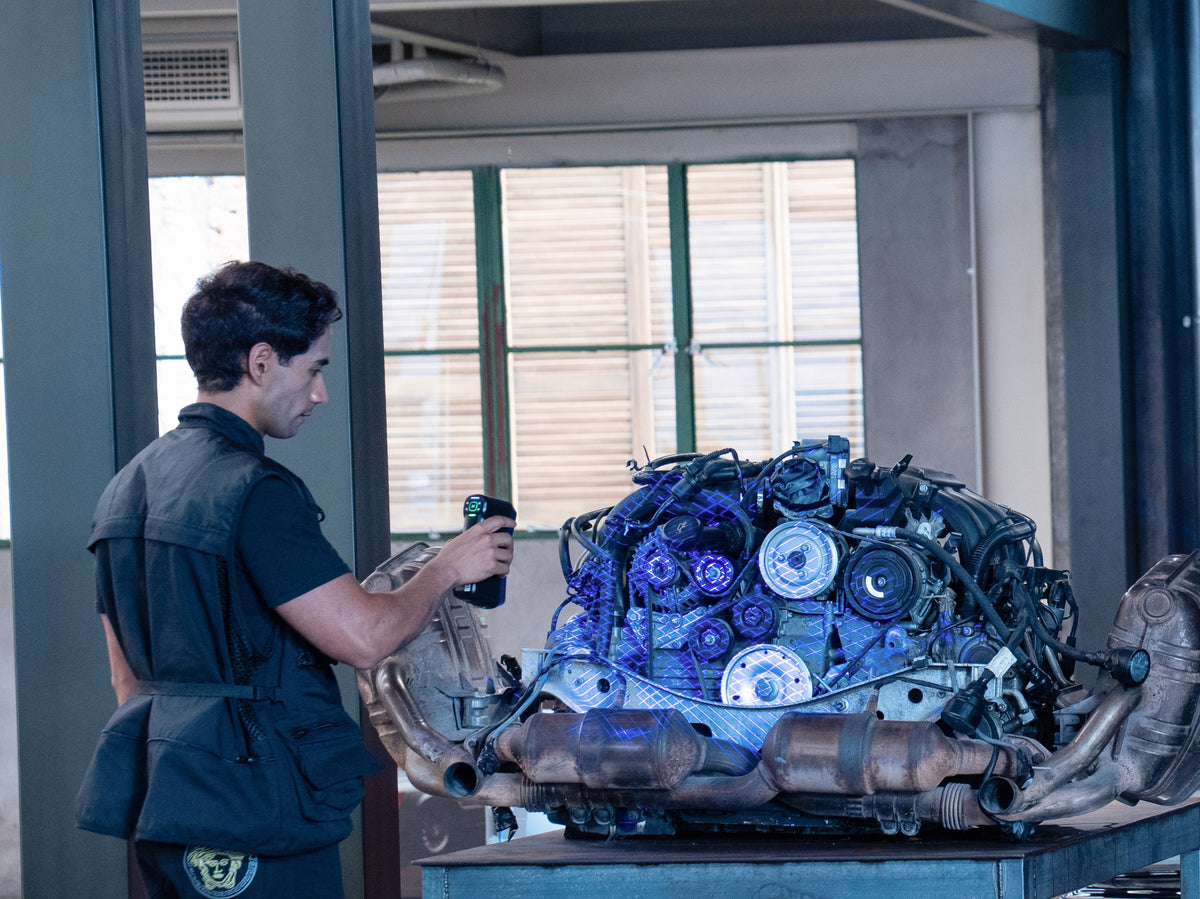

Capture & combine

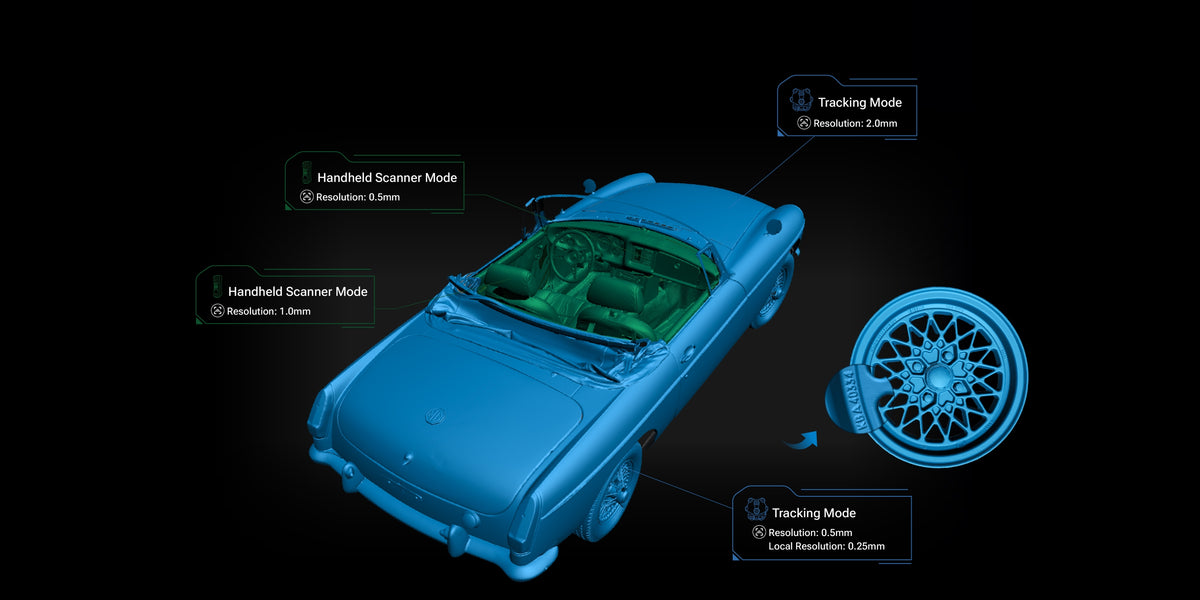

Use tracking or handheld mode and combine scan data across resolutions in EXScan Trak.
Merged scan geometry
- Step 03
EXMeasure included for one year; CAD optional
Measure or rebuild
Review dimensions in EXMeasure or select optional EXModel software for CAD reconstruction.
Measurement or CAD deliverable

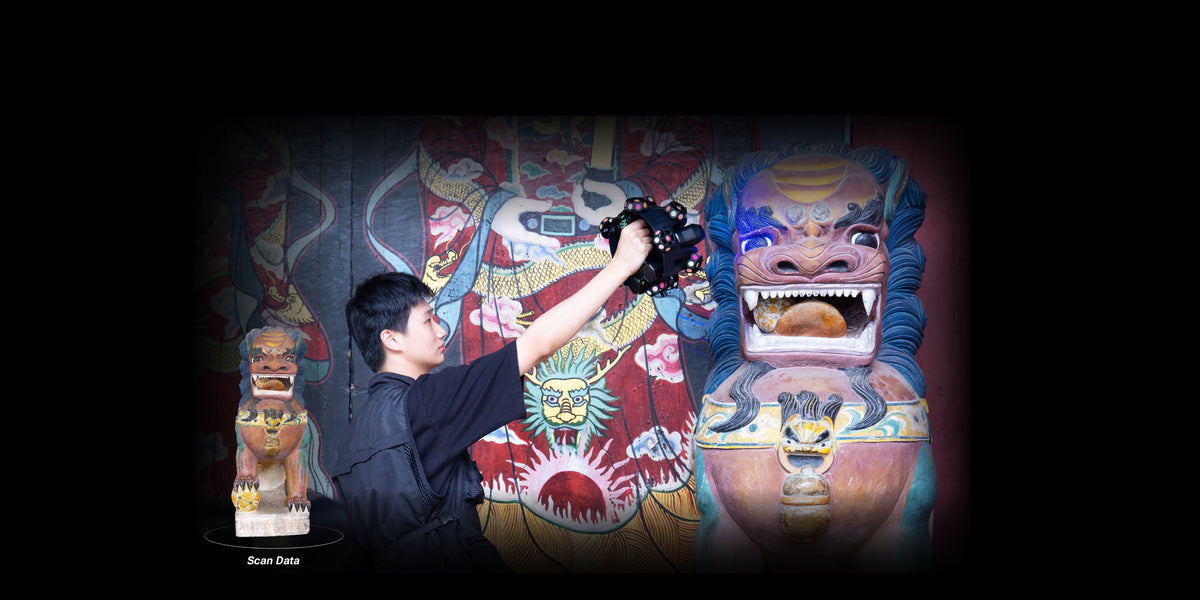

Application fit
See where this system fits.
Explore representative use cases before confirming system fit.
Video library
Watch the workflow in motion.
Use official demonstrations, case studies, and tutorials to assess real operation.
Technical evidence
Every specification, organized for review.
Open the data set needed for engineering, IT, quality, and procurement review.
Complete data table
Open a category to review the full specification.
Physical & Operating Specifications
| Operating temperature | -10 to 40 °C |
|---|---|
| Battery system | Hot-swappable 5400 mAh batteries; four included |
| Tracker dimensions | 462 × 68 × 54 mm |
| Spherical scanner dimensions | 244 × 186 × 238 mm |
| Handheld scanner dimensions | 199 × 193 × 172 mm |
| Net weight | Tracker: 1.02 kg; spherical scanner: 1.46 kg; handheld scanner: 0.48 kg |
Capture & Measurement Performance
| System type | Wireless optical tracking system with detachable handheld laser scanner |
|---|---|
| Work modes | Tracking Mode and Handheld Scanner Mode |
| Scan mode | Blue laser |

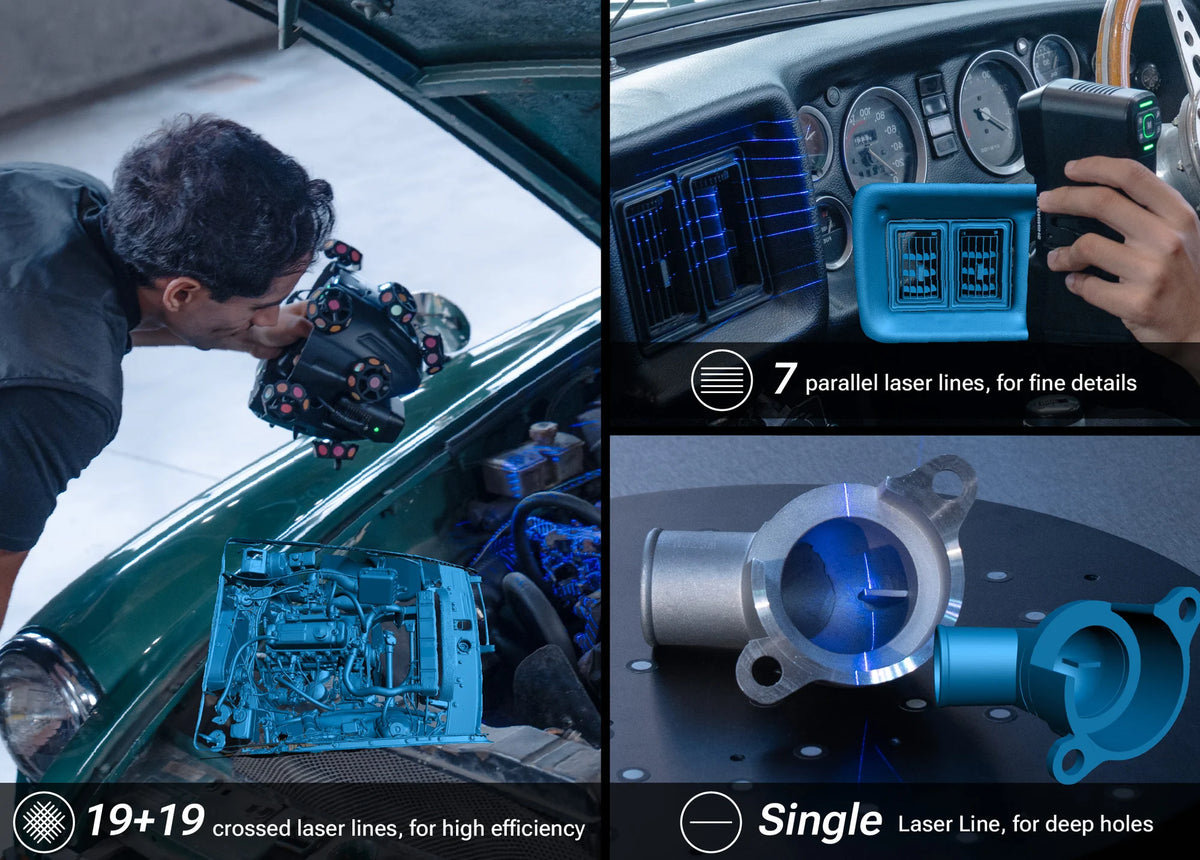

| Light sources | 19 + 19 crossed laser lines, 7 parallel laser lines, and 1 single laser line |
| Volumetric accuracy | Up to 0.1 mm |
| Resolution | 0.05 to 10 mm |
| Scanning speed | Up to 2,630,000 points/s |
| Tracking working distance | 800 to 4000 mm |
| Handheld working distance | 100 to 500 mm |
| Maximum tracking field of view | 4796 × 4174 mm at 4000 mm |
| Maximum handheld field of view | 547 × 463 mm at 500 mm |
| Tracking volume | 15 m³ |
| Tracking alignment | Optical tracking and global markers |
| Handheld alignment | Feature, marker, and global-marker alignment |
| Tracker cameras | Two 5 MP cameras |
| Scanner depth cameras | Two 2 MP cameras |
| Texture camera | One 5 MP camera |
| Laser class | Class 2 |
| Outdoor illuminance | Up to 110,000 lux |
| Tracking runtime | Up to 5.5 hours with two tracker batteries and two scanner batteries |
| Handheld runtime | Up to 3.5 hours with one battery |
| Interfaces | Tracker: two USB Type-C ports; scanner: one USB Type-C port; computer: USB 3.0 and LAN |
Software, Formats & System Requirements
| Output formats | STL, OBJ, PLY, 3MF, and ASC |
|---|---|
| Wireless connection | Wi-Fi 6 through the included dedicated router |
| Included acquisition software | EXScan Trak |
| Included measurement software | One-year EXMeasure license |
Workstation requirements
| Component | Minimum | Recommended |
|---|---|---|
| Operating system | Windows 10 or 11, 64-bit, per the brochure | Windows 11, 64-bit, per current U.S. product guidance |
| Processor | 13th Gen Intel Core i7-13650HX or above | 13th Gen Intel Core i7-13650HX or above |
| Graphics card | NVIDIA GeForce RTX 3060 Laptop GPU | NVIDIA GeForce RTX 4060 or above |
| Video memory | 6 GB or more | 8 GB or more |
| System memory | 32 GB or more, DDR5 dual-channel | 64 GB or more, DDR5 dual-channel |
| Computer connections | USB 3.0 and LAN | USB 3.0 and LAN through the included dedicated router |
| macOS | Not currently supported | Future support has been announced, but availability is not confirmed |
EinScan Trak requires a compatible Windows workstation. The included dedicated router connects the tracker and scanner to the computer for wireless scanning.
Standards & Safety Compliance
| Certifications | CE, FCC, RoHS, WEEE, FDA, SRRC, and IP50 |
|---|
Interactive results
Inspect representative scan data.
Load a model to examine surface detail and captured geometry.
Package contents
What arrives with the selected system.
Review the documented hardware, included accessories and software access for this product.
EinScan Trak Standard Package
Core wireless tracking system, calibration hardware, power components, networking equipment, software, and transport protection.
- EinScan Trak tracker
- EinScan Trak spherical scanner with detachable handheld scanner
- System calibrator
- Calibration rod
- Markers set and marker scraper
- Four 5400 mAh batteries
- Battery compartment
- Tripod
- Dedicated router
- Router Ethernet cable
- USB Ethernet adapter
- USB drive
- Two 4.5 m power and data cable assemblies
- 2 m USB-C to USB-C power cable
- Power cable
- Power adapters with multi-country plug adapter kit
- Cleaning cloth
- Protective packaging case
- Quick guide and packing list
- EXScan Trak acquisition software
- Complimentary one-year EXMeasure license
EXModel, BlueStar Mapping, Accessories Pro Kit, workstation, and training are optional. Final regional plug type and package quantities are confirmed before fulfillment.
