Wireless probing
Pair with a compatible FreeScan Trak Nova or FreeScan Trak ProW tracker for wireless probing.
PROFESSIONAL 3D SCANNING
FreeProbe Series SHINING 3D Wireless optical tracking probe
Wireless probing for hard-to-reach features
0.025 mmProbing accuracy
0.46 kgFreeProbe 2 weight
0.59 kgFreeProbe 2 Pro weight
Compatible trackerRequired system
System architecture & capabilities

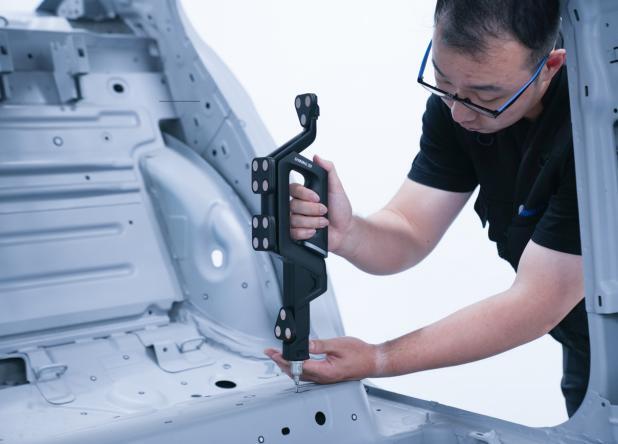

Measure features that surface scanning cannot reach.
Evaluate FreeProbe for professional 3D capture and measurement workflows. Select a catalog configuration or request a tailored recommendation based on part size, material, accuracy, and downstream software needs.
0.025 mmProbing accuracy
0.46 kgFreeProbe 2 weight
0.59 kgFreeProbe 2 Pro weight
Compatible trackerRequired system
Contact measurement
Measure discrete features and hidden areas without reconstructing a surface mesh.
Extended & L-type tips
Adapt probe access with supported extension rods and L-type tip configurations.
PROFESSIONAL 3D SCANNINGCompare configurations
Choose the hardware that fits your workflow.
FreeProbe 2
Standard probing configuration
0.025 mmProbing accuracy
0.46 kgWeight
Starting at $7,500
Est. monthly budget: $260/ mo
36 mo · 15% APR · $0 down. Illustration only.
Monthly payment options
FreeProbe 2 (6mm)
Confirm tip and regional package with the selected tracker
6 mmCatalog tip option
Confirm with quoteSystem fit
Starting at $7,500
Est. monthly budget: $260/ mo
36 mo · 15% APR · $0 down. Illustration only.
Monthly payment options
FreeProbe 2 Pro
Deeper access with partial marker occlusion
0.025 mmProbing accuracy
0.59 kgWeight
Starting at $9,800
Est. monthly budget: $340/ mo
36 mo · 15% APR · $0 down. Illustration only.
Monthly payment options
Hardware specifications
| Capability | FreeProbe 2 | FreeProbe 2 (6mm) | FreeProbe 2 Pro |
|---|---|---|---|
| Configuration | FreeProbe 2 | FreeProbe 2 with catalog 6 mm tip option | FreeProbe 2 Pro |
| Primary use | Standard probing tasks | Confirm tip fit for the task | Deeper access with partial marker occlusion |
| Tracker required | Compatible FreeScan Trak system | Compatible FreeScan Trak system | Compatible FreeScan Trak system |
Need custom software or multi-unit packages?
Build & Configure System ↗Performance highlights
Explore the capabilities that matter.
Explore the capabilities that affect capture, output quality and day-to-day operation.
FreeProbeWireless probing
Feature in focusSystem integration
01 / 05Your workflow
From acquisition to a usable deliverable.
- Step 01
Compatible tracker required
Confirm the system
Match the probe, tracker and inspection software before configuring the measurement task.
Compatible measurement setup
- Step 02
Probe access depends on setup
Probe the feature
Position a supported tip on the required geometry while keeping sufficient tracking visibility.
Discrete measured features
- Step 03
Inspection software entitlement must be confirmed
Review the measurement
Transfer the acquired features into the supported inspection workflow for evaluation.
Dimensional evaluation
Application fit
See where this system fits.
Explore representative use cases before confirming system fit.
Technical evidence
Every specification, organized for review.
Open the data set needed for engineering, IT, quality, and procurement review.
Complete data table
Open a category to review the full specification.
Physical & Operating Specifications
| FreeProbe 2 weight | 0.46 kg |
|---|---|
| FreeProbe 2 Pro weight | 0.59 kg |
| FreeProbe 2 dimensions | 50 × 110 × 363 mm |
| FreeProbe 2 Pro dimensions | 50 × 113.5 × 454.5 mm |
Capture & Measurement Performance
| Product type | Wireless optical tracking probe |
|---|---|
| Compatible trackers | FreeScan Trak Nova and FreeScan Trak ProW; confirm exact system configuration |
| Probing accuracy | 0.025 mm |
| Accuracy verification | ISO 10360; tested in the manufacturer ISO/IEC 17025 accredited accuracy laboratory |
Software, Formats & System Requirements
| Compatible inspection software | SHINING3D Inspect, PolyWorks and Geomagic Control X; verify licenses and integration |
|---|
Workstation requirements
| Component | Recommended |
|---|---|
| Tracking system | Compatible FreeScan Trak Nova or FreeScan Trak ProW system |
| Inspection software | Confirm a supported inspection application and its probe integration |
| Workstation | Use the requirements of the selected tracker and inspection software |
The probe is a system accessory. A compatible tracker and required software are supplied separately unless included in the configured quote.
