Blue laser + IR VCSEL
Combines 26 or 50 parallel blue laser lines for dark and reflective metal with marker-free infrared capture for feature-rich assemblies.
HYBRID-LIGHT METROLOGY SCANNER
FreeScan Combo Series SHINING 3D Industrial metrology scanner
Laser accuracy. Flexible capture.
Up to 0.02 mmLaser accuracy
3.6M pts/sMaximum Combo+ speed
620 gScanner weight
26 / 50Blue laser lines
System architecture & capabilities
Metrology-grade accuracy across demanding surfaces.
Up to 0.02 mmLaser accuracy
3.6M pts/sMaximum Combo+ speed
620 gScanner weight
26 / 50Blue laser lines

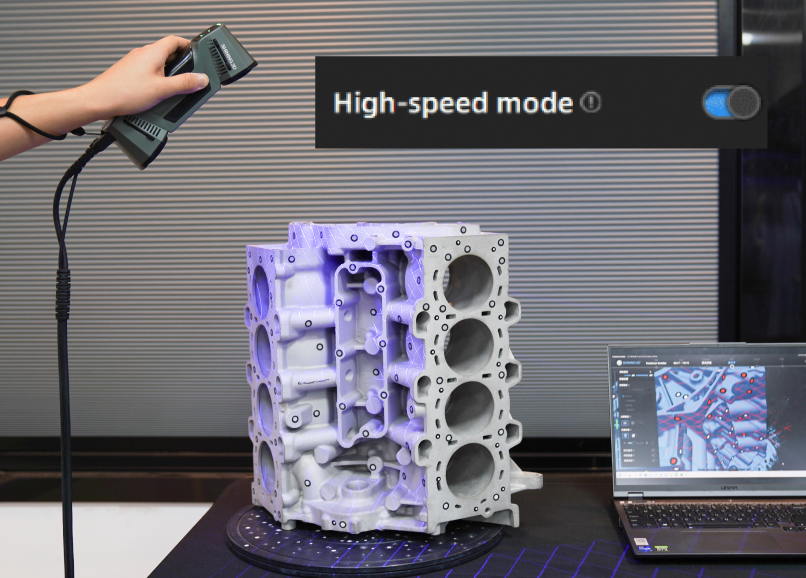

Up to 3,600,000 pts/s
Accelerates overall surface capture on FreeScan Combo+, while seven-line detail mode remains available for fine features.
620 g compact body
Designed for controlled handheld positioning in narrow seams, deep pockets, and complex production environments.
HYBRID-LIGHT METROLOGY SCANNER620 gProduct weightCompare configurations
Choose the hardware that fits your workflow.
FreeScan Combo
Standard precision metrology
26Laser lines
1.86M pts/sMaximum speed
Starting at $11,999
Est. monthly budget: $416/ mo
36 mo · 15% APR · $0 down. Illustration only.
Monthly payment options
Recommended for throughput
FreeScan Combo+
High-throughput capture
50Laser lines
3.6M pts/sMaximum speed
Starting at $14,999
Est. monthly budget: $520/ mo
36 mo · 15% APR · $0 down. Illustration only.
Monthly payment options
Performance specifications
| Capability | FreeScan Combo | FreeScan Combo+ |
|---|---|---|
| Overall scan pattern | 26 laser lines | 50 laser lines |
| Maximum laser scan speed | 1,860,000 points/s | 3,600,000 points/s |
| Laser accuracy | Up to 0.02 mm | Up to 0.02 mm |
Optical modes
| Capability | FreeScan Combo | FreeScan Combo+ |
|---|---|---|
| Fine and deep-feature modes | Included | Included |
| Marker-free infrared mode | Included | Included |
Workflow & software
| Capability | FreeScan Combo | FreeScan Combo+ |
|---|---|---|
| Bundled workflow software | None | None |
| Primary workflow | Scan and export | Faster scan and export |
Need custom software or multi-unit packages?
Build & Configure System ↗Performance highlights
Explore the capabilities that matter.
Explore the capabilities that affect capture, output quality and day-to-day operation.
Feature in focusLaser accuracy
01 / 08Your workflow
From capture to engineering decisions.
- Step 01
Included capture tools

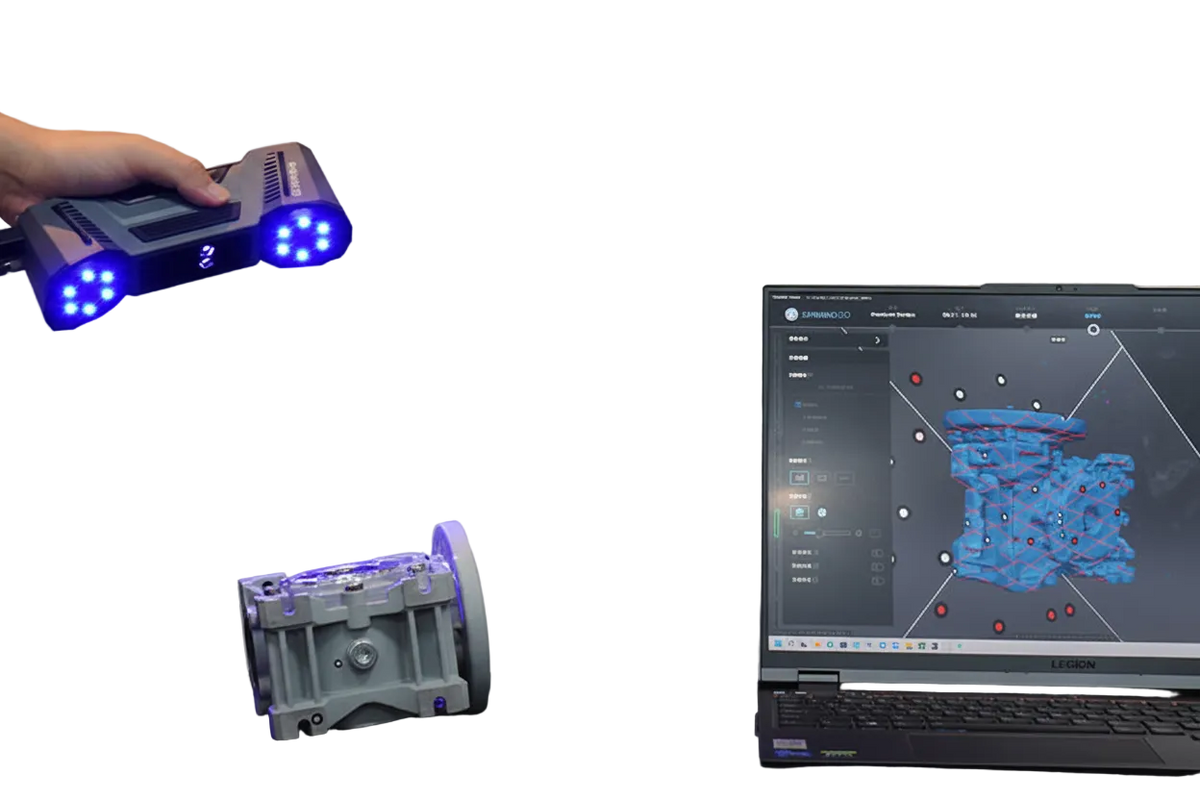

Capture & Alignment
Capture with blue laser or infrared scanning and follow the data in real time. Align scan passes and generate a mesh in FreeScan software.
Aligned scan data
- Step 02
Inspection licence required

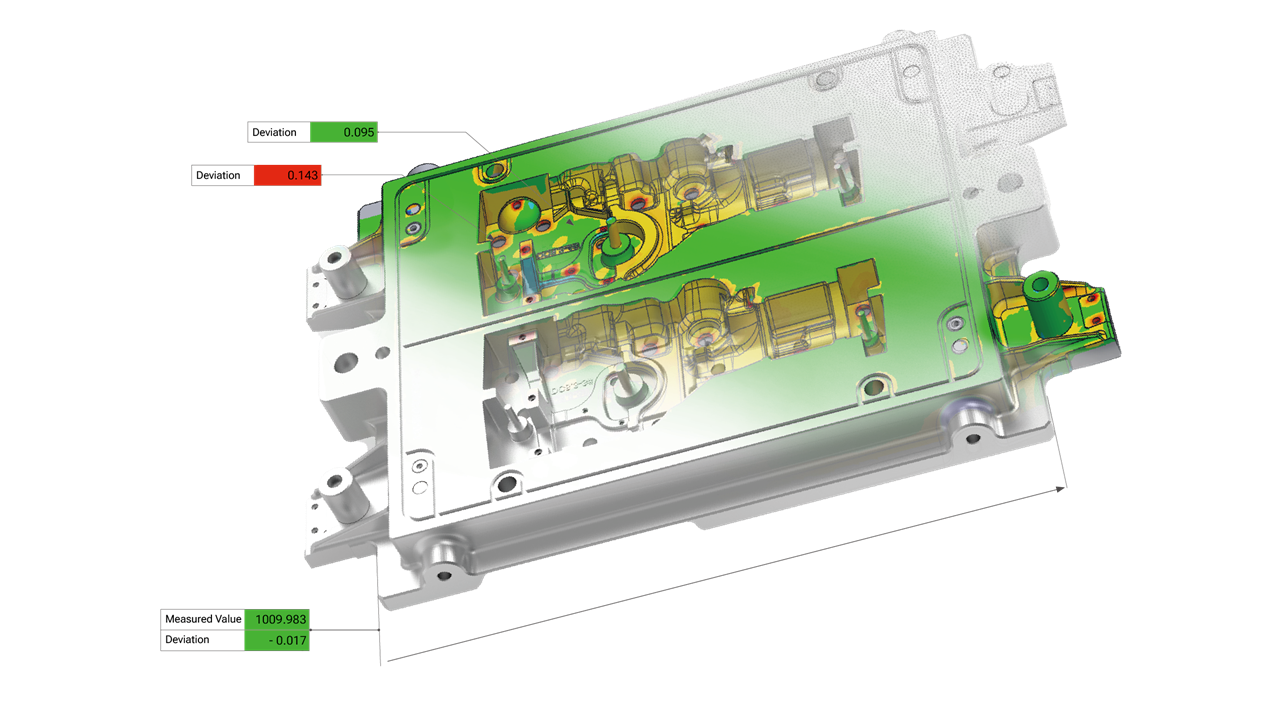

Inspection & Mesh Processing
Refine and simplify the mesh, then export STL, OBJ or 3MF. Use licensed inspection software for CAD-to-part alignment and deviation color maps.
Mesh files & deviation analysis
- Step 03
CAD / inspection licence required
CAD Export & Reporting
Rebuild CAD geometry with EXModel Pro or Geomagic Design X, or generate dimensional inspection reports with SHINING3D Inspect or Control X.
CAD models or inspection reports
Application fit
See where this system fits.
Explore representative use cases before confirming system fit.

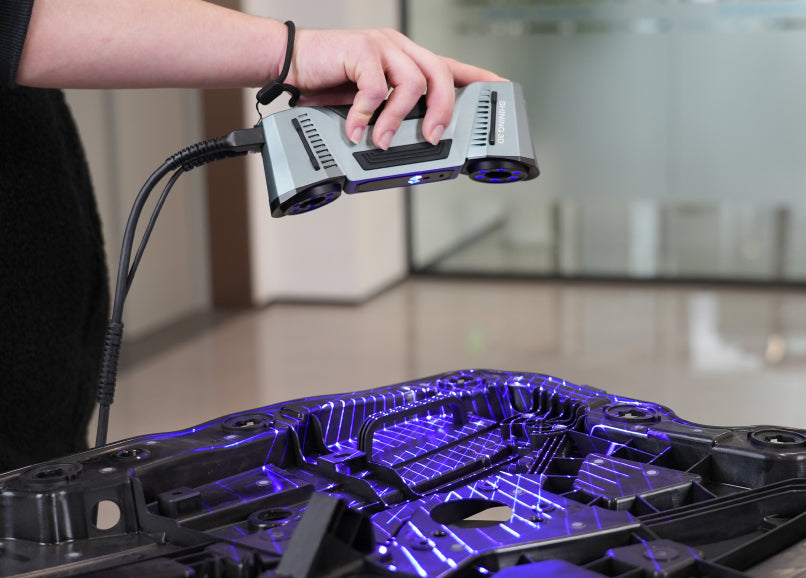

Workflow: blue-laser capture → mesh-to-CAD comparison in compatible inspection software. Inspection licenses are selected separately.

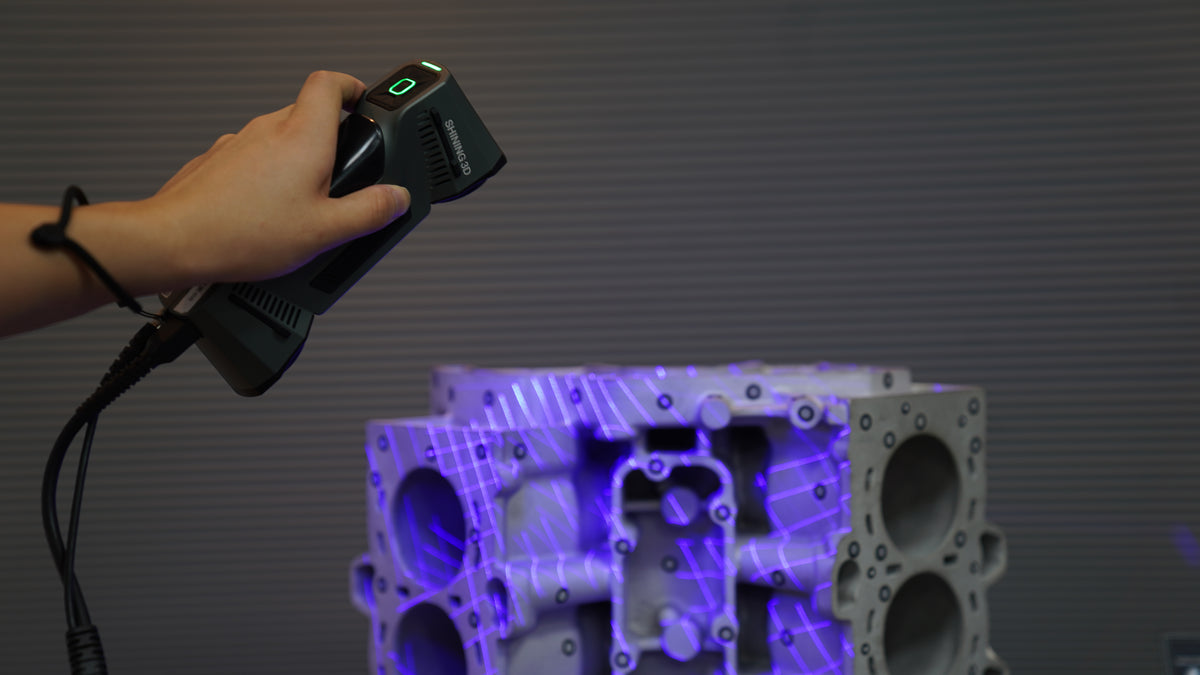

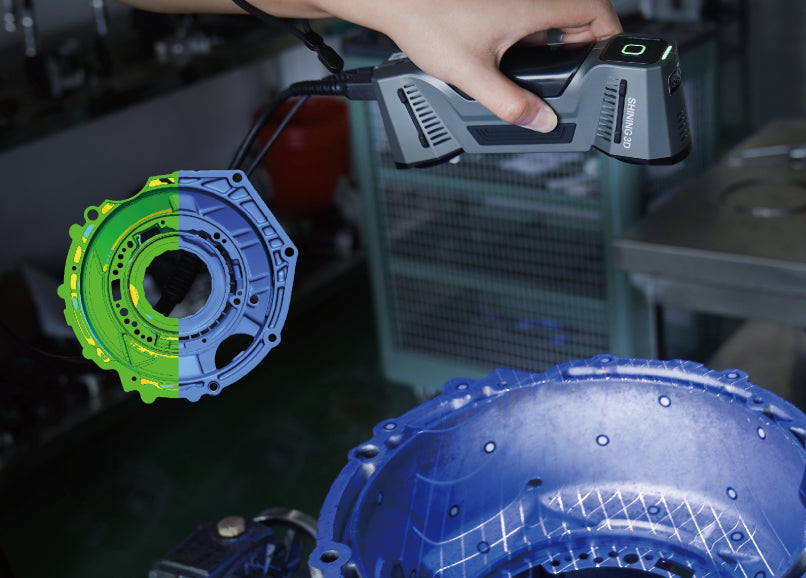

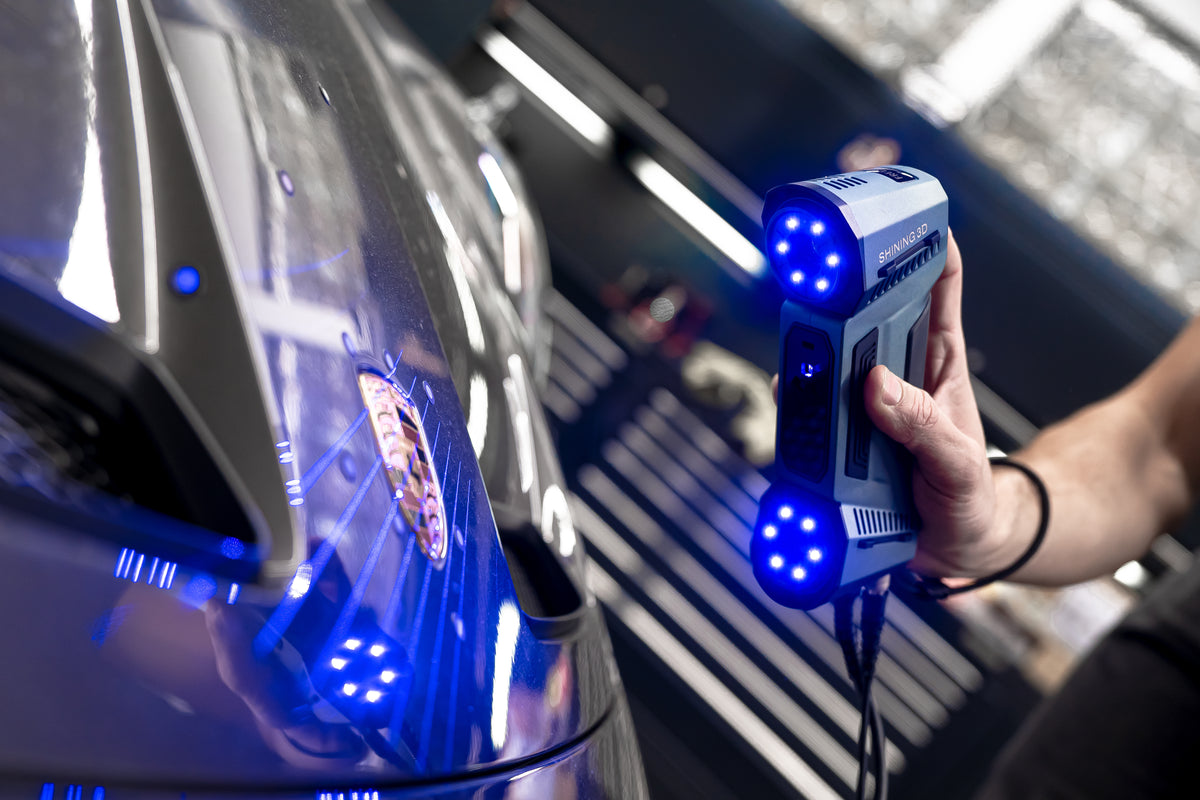

Workflow: capture the part → align to reference CAD → review deviations in compatible inspection software. Confirm fit against your part tolerances.

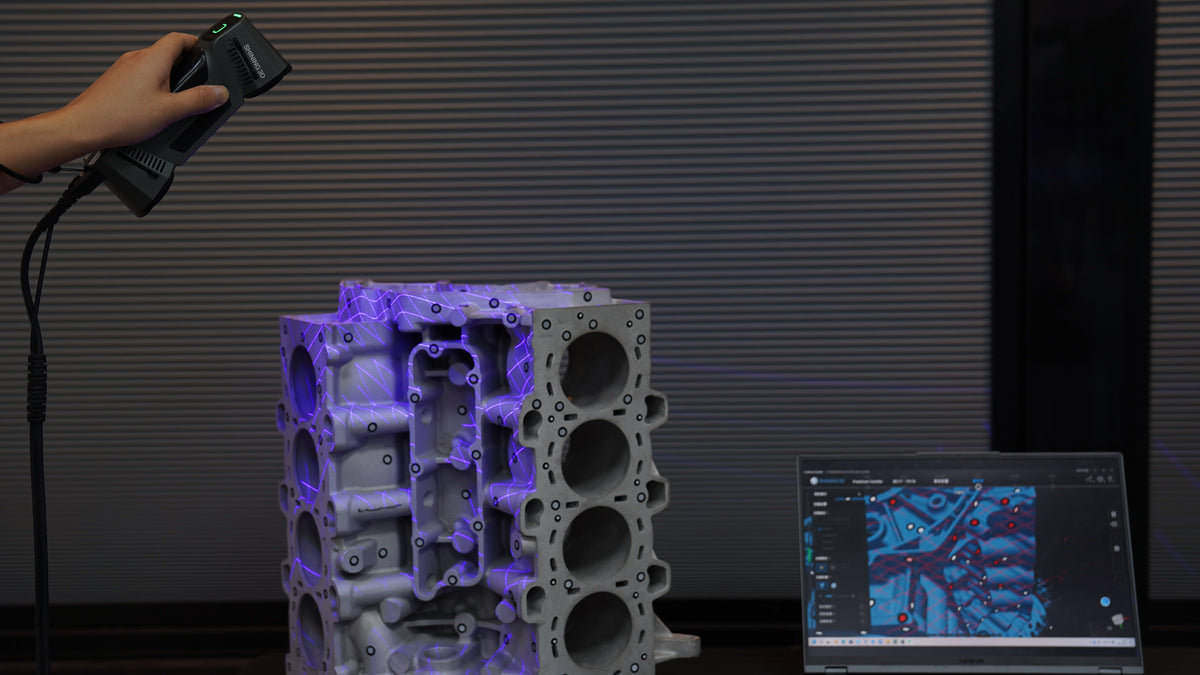

Workflow: capture → mesh cleanup → CAD reconstruction. EXModel Pro is an optional reverse-engineering license; CAD reconstruction accuracy depends on the workflow.

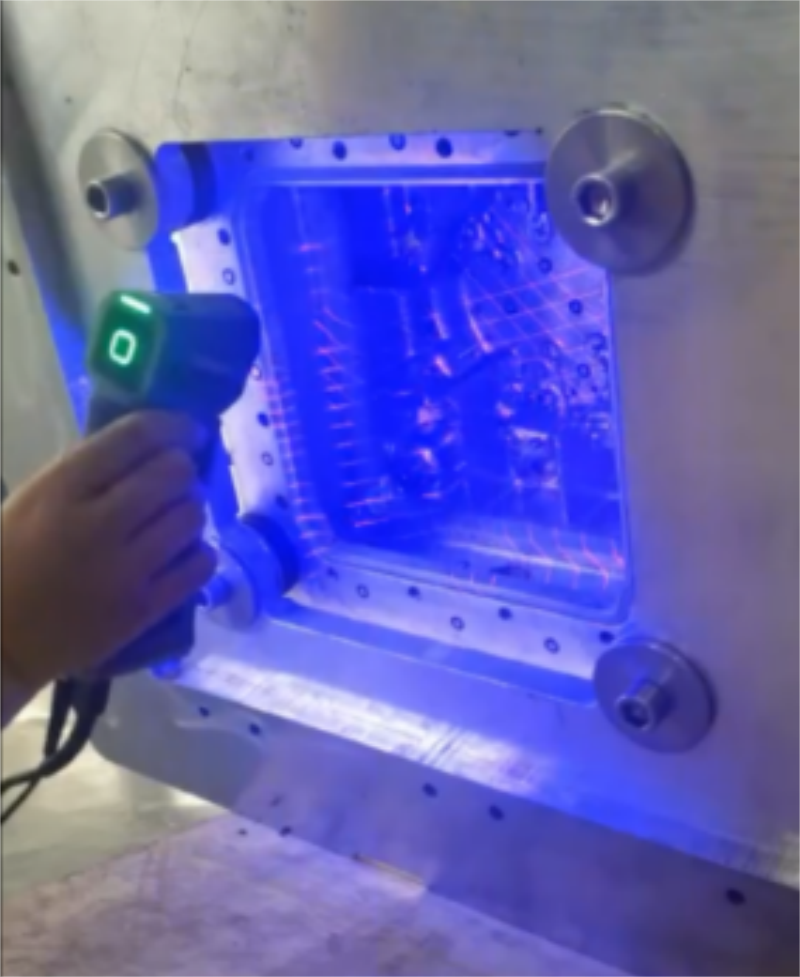

Manufacturer case study: FreeScan Combo capturing narrow automotive mold cavities for assembly analysis in 3D software.

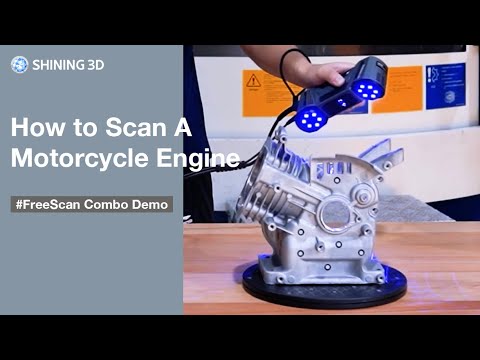

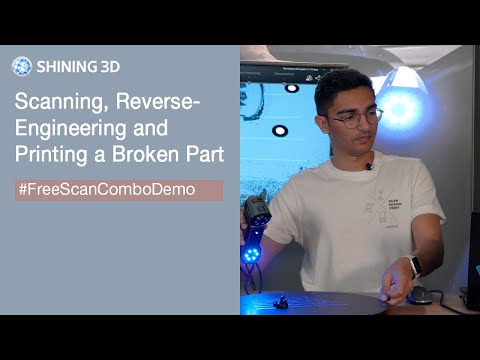

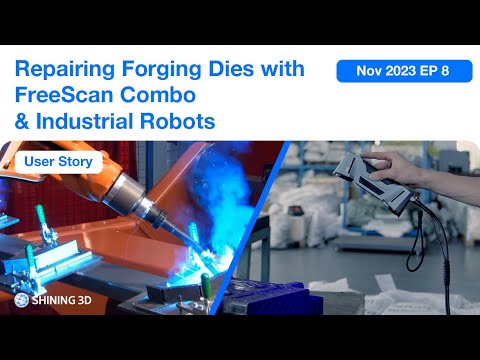

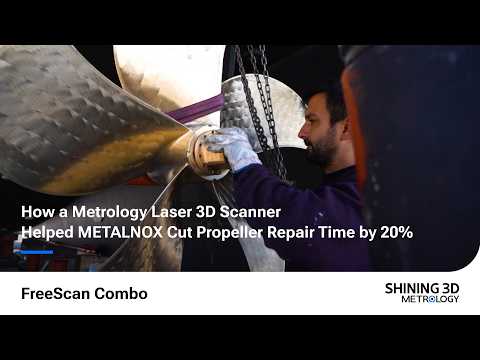

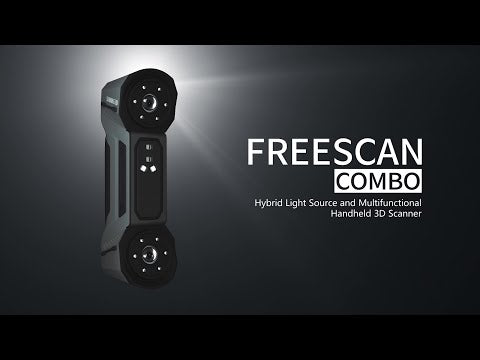

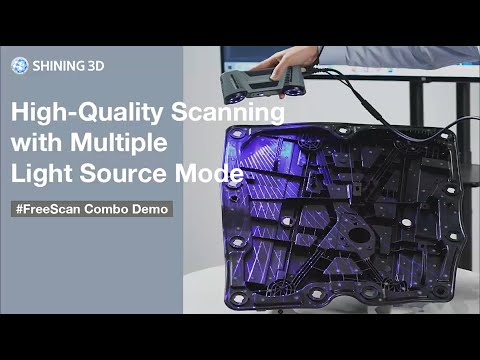

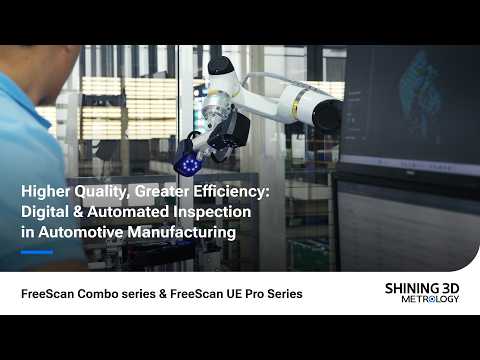

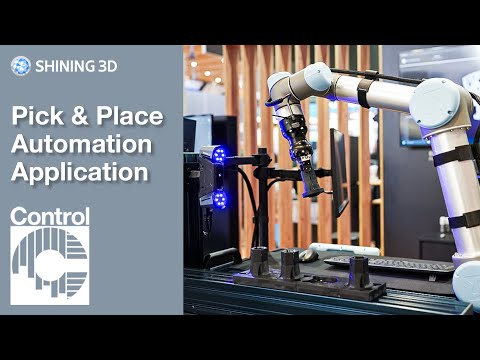

Video library
Watch the workflow in motion.
Use official demonstrations, case studies, and tutorials to assess real operation.
Technical evidence
Every specification, organized for review.
Open the data set needed for engineering, IT, quality, and procurement review.
Complete data table
Open a category to review the full specification.
Physical & Operating Specifications
| Power input | 12 V, 5.0 A |
|---|---|
| Dimensions | 193 × 63 × 53 mm |
| Weight | 620 g |
| Operating temperature | -20 to 40 °C |
| Operating humidity | 10% to 90% |
Capture & Measurement Performance
| Scanner type | Wired handheld hybrid-light metrology 3D scanner |
|---|---|
| Available scanner models | FreeScan Combo and FreeScan Combo+ |
| Light sources | Blue laser and infrared VCSEL |

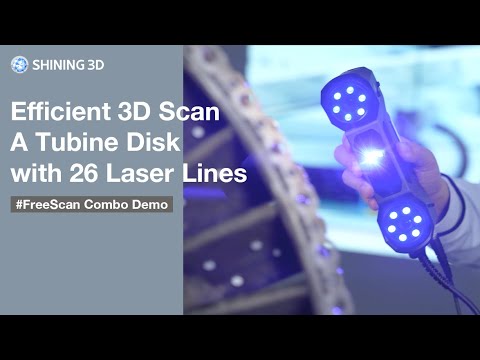

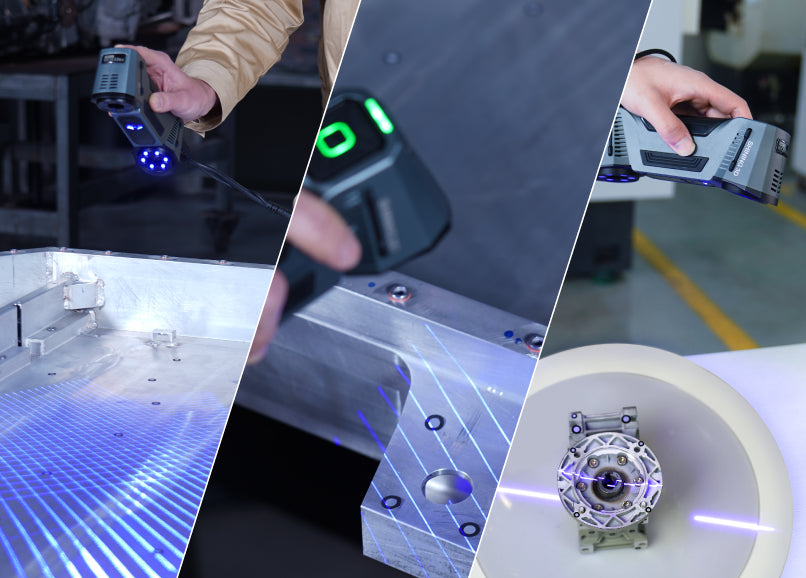

| High-speed laser pattern | 26 laser lines on Combo; 50 laser lines on Combo+ |
| Detailed scan | 7 parallel laser lines |

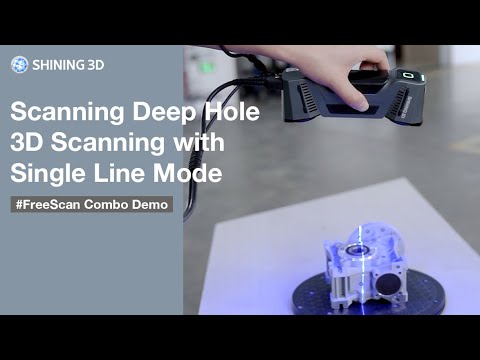

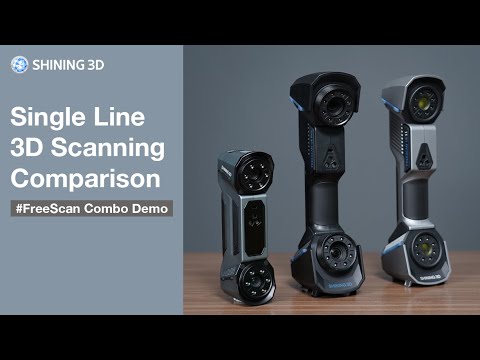

| Deep-feature scan | 1 single laser line |

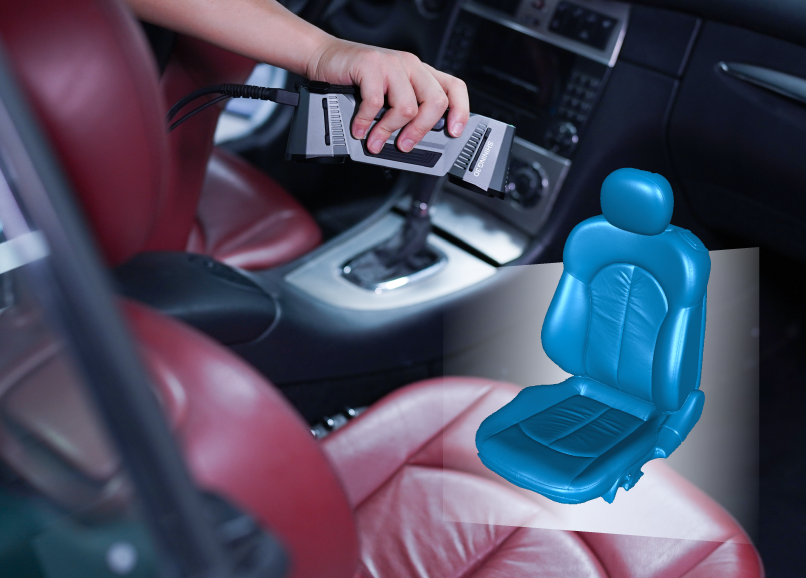

| Marker-free scan | Infrared VCSEL mode on feature-rich objects |
| Maximum laser scan speed | 1,860,000 points/s on Combo; 3,600,000 points/s on Combo+ |
| Infrared scan speed | 2,250,000 points/s |
| Laser scan accuracy | Up to 0.02 mm |
| Laser volumetric accuracy | 0.02 + 0.033 mm/m |
| Infrared volumetric accuracy | 0.05 + 0.1 mm/m |
| Working distance | 300 mm in multi-line and single-line modes; 200 mm in detailed mode; 300 mm in infrared mode |
| Maximum field of view | 520 × 510 mm in laser modes; 600 × 600 mm in infrared mode |
| Scan depth | 360 mm in laser modes; up to 1,240 mm in infrared mode |
| Point distance | 0.05 to 10 mm in laser modes; 0.1 to 3 mm in infrared mode |
| Texture capture | Not supported; the scanners do not include a color camera |
Software, Formats & System Requirements
| Included scanning software | FreeScan software with no ongoing scanning-software subscription |
|---|---|
| Connection | USB 3.0 |
Workstation requirements
| Component | Recommended |
|---|---|
| Operating system | Windows 10 or Windows 11, 64-bit |
| Processor | Intel Core i7-10700 or higher |
| Memory | 32 GB or more |
| Graphics | NVIDIA GeForce RTX 3060 or higher |
| Graphics memory | 6 GB or more VRAM |
| Connection | USB 3.0 |
The attached SHINING 3D brochure provides this workstation baseline. Larger scan projects and inspection workloads can benefit from a faster processor, more memory, and a higher-tier NVIDIA GPU.
Standards & Safety Compliance
| Light safety | Class II, eye safe |
|---|---|
| Accuracy acceptance | VDI/VDE 2634 Part 3 and ISO 10360; tested in an ISO/IEC 17025 accredited accuracy lab |
| Certifications | CE, FCC, RoHS, WEEE, KC, FDA, UKCA, IP50, and TISAX |
Interactive results
Inspect representative scan data.
Load a model to examine surface detail and captured geometry.

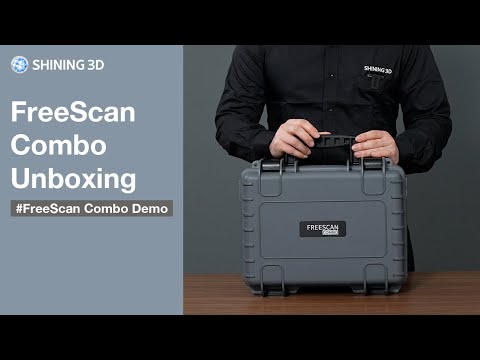

Package contents
What arrives with the selected system.
Review the documented hardware, included accessories and software access for this product.
FreeScan Combo
26-line scanner package
- Selected FreeScan Combo or FreeScan Combo+ scanner
- Included FreeScan scanning software
- Calibration plate
- USB 3.0 scanner cable
- Power adapter
- Regional power cable
- USB drive
- Software license dongle
- Reference markers
- Certificate and quick start guide
FreeScan Combo+
50-line scanner package
- Selected FreeScan Combo or FreeScan Combo+ scanner
- Included FreeScan scanning software
- Calibration plate
- USB 3.0 scanner cable
- Power adapter
- Regional power cable
- USB drive
- Software license dongle
- Reference markers
- Certificate and quick start guide
FreeScan Combo with EXModel Pro
Reverse-engineering package
- Selected FreeScan Combo or FreeScan Combo+ scanner
- Included FreeScan scanning software
- Calibration plate
- USB 3.0 scanner cable
- Power adapter
- Regional power cable
- USB drive
- Software license dongle
- Reference markers
- Certificate and quick start guide
- EXModel Pro software entitlement under bundle SKU BD.202409.041 (US)
FreeScan Combo with EXModel and Geomagic Essentials
Scan-to-CAD package
- Selected FreeScan Combo or FreeScan Combo+ scanner
- Included FreeScan scanning software
- Calibration plate
- USB 3.0 scanner cable
- Power adapter
- Regional power cable
- USB drive
- Software license dongle
- Reference markers
- Certificate and quick start guide
- EXModel software entitlement and Geomagic Essentials entitlement under bundle SKU BD.202507.006(US)
FreeScan Combo with Control X Essentials
Inspection package
- Selected FreeScan Combo or FreeScan Combo+ scanner
- Included FreeScan scanning software
- Calibration plate
- USB 3.0 scanner cable
- Power adapter
- Regional power cable
- USB drive
- Software license dongle
- Reference markers
- Certificate and quick start guide
- Control X Essentials software entitlement under bundle SKU BD.202409.051 (US)
FreeScan Combo+ with EXModel Pro
High-throughput reverse-engineering package
- Selected FreeScan Combo or FreeScan Combo+ scanner
- Included FreeScan scanning software
- Calibration plate
- USB 3.0 scanner cable
- Power adapter
- Regional power cable
- USB drive
- Software license dongle
- Reference markers
- Certificate and quick start guide
- EXModel Pro software entitlement under bundle SKU BD.202507.007(US)
Manufacturer warranty and standard shipping are included with every scanner configuration. The exact software license term, maintenance entitlement, regional plug, marker quantity, and packing quantities are confirmed against the current US packing list before fulfillment. Training, extended protection, and software not named in the selected configuration are optional.
