STANDALONE METROLOGY AND INSPECTION
FreeScan Omni SHINING 3D Standalone metrology scanner
Move from capture to inspection on the scanner.
On-deviceScan & inspection
0.02 mmScanner accuracy
Video photogrammetryLarge-part control

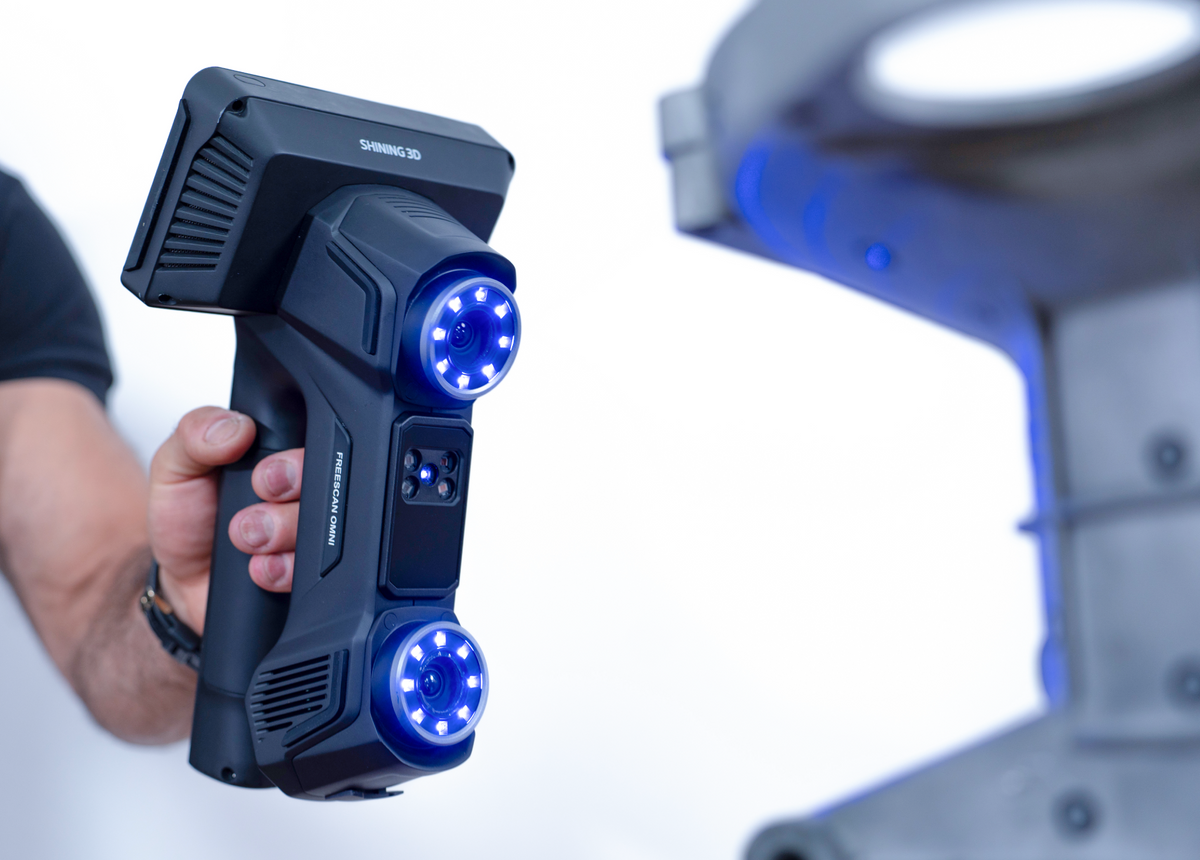

Hot-swappablePower workflow
System architecture & capabilities
Move from capture to inspection on the scanner.
On-deviceScan & inspection
0.02 mmScanner accuracy
Video photogrammetryLarge-part control
Hot-swappablePower workflow

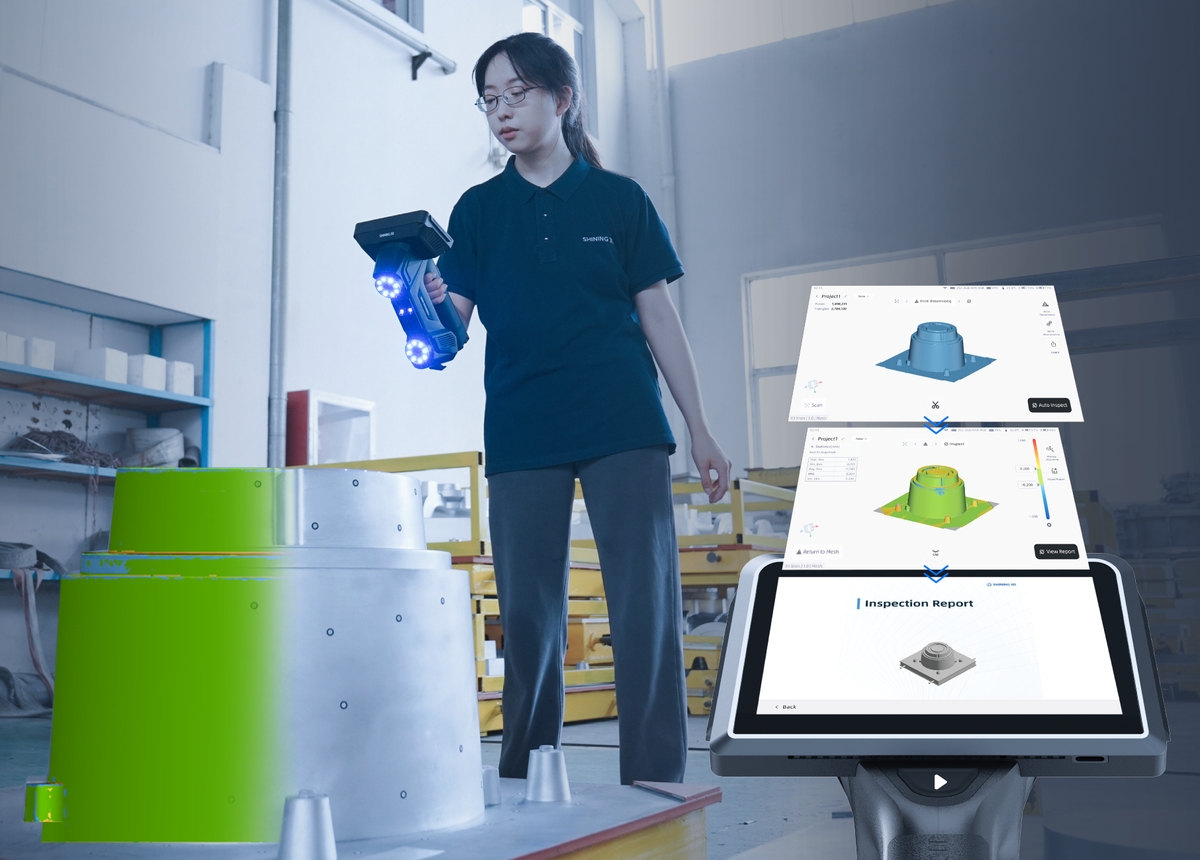

Standalone operation
Wireless standalone operation with onboard computing
0.02 mm accuracy
Certified accuracy of 0.02 mm
STANDALONE METROLOGY AND INSPECTIONPerformance highlights
Explore FreeScan Omni capabilities.
Explore the capabilities that affect capture, output quality and day-to-day operation.
Feature in focusScan, inspect & report
01 / 07Your workflow
From measurement planning to the engineering handoff.
- Step 01
Scanner workflow
Plan the capture
Choose the scan mode, working range, and preparation around the part geometry and measurement objective.
Part-specific capture setup
- Step 02
Scanner workflow

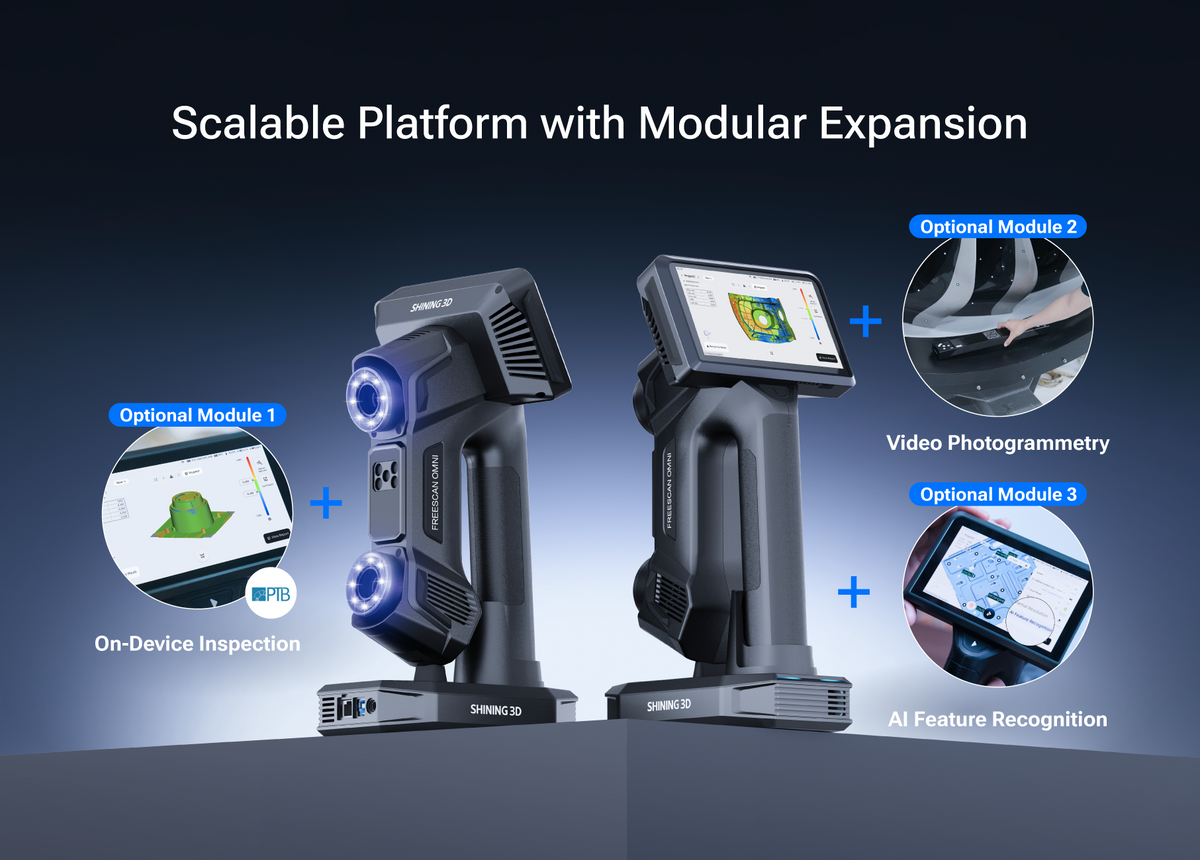

Capture & review the data
Check alignment, coverage, and data quality before preparing the result for the next engineering step.
Reviewed 3D scan data
- Step 03
Downstream licence requirements apply
Continue in CAD or inspection

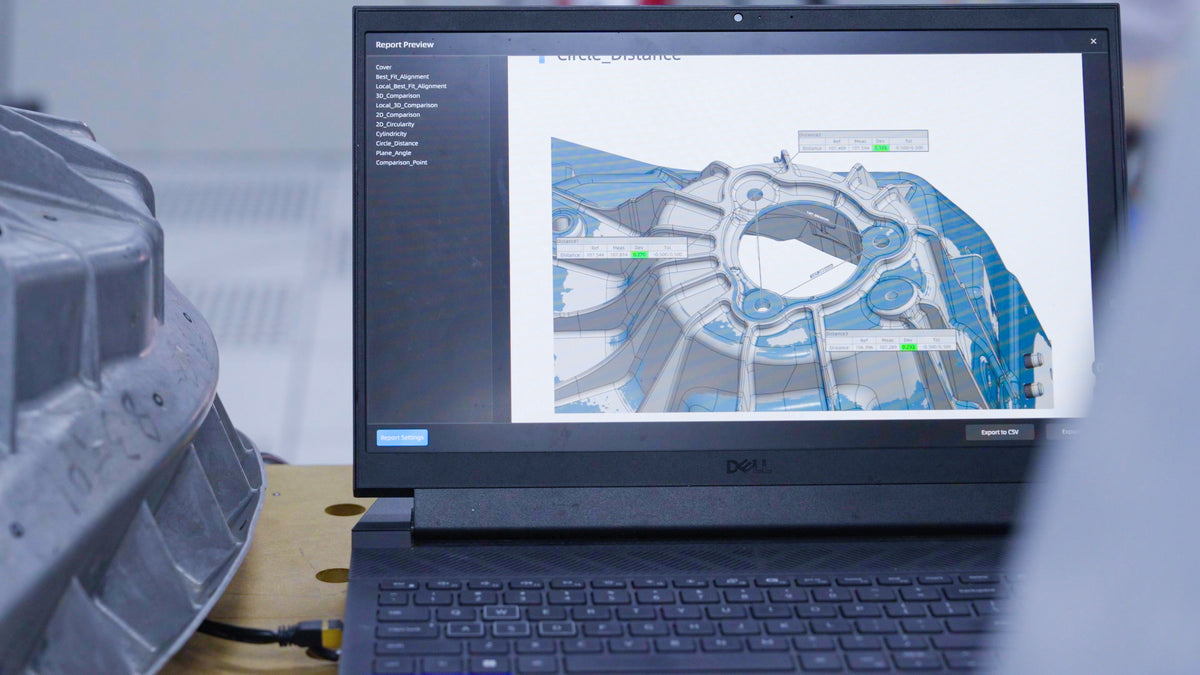

Confirm the export format and software licence for downstream reverse engineering, dimensional inspection, or reporting.
An agreed engineering handoff
Application fit
Explore the applications for FreeScan Omni.
Explore representative use cases before confirming system fit.
Video library
Watch the workflow in motion.
Use official demonstrations, case studies, and tutorials to assess real operation.
Technical evidence
Every specification, organized for review.
Open the data set needed for engineering, IT, quality, and procurement review.
Complete data table
Open a category to review the full specification.
Physical & Operating Specifications
| Net weight | 1.1 kg or less |
|---|---|
| Working temperature | -10 to 40 °C (14 to 104 °F) |
| Working humidity | 10% to 90% |
Capture & Measurement Performance
| Accuracy | 0.02 mm (0.0008 in) |
|---|---|
| Volumetric accuracy | 0.02 + 0.03 mm/m |
| Volumetric accuracy with VPG | 0.02 + 0.015 mm/m (0.0008 in + 0.00018 in/ft) |
| Scan speed | Up to 7,619,000 points/s |
| Onboard hardware | Built-in computing, 32 GB memory, FPGA, and 1 TB SSD |
| Industrial cameras | Dual 5 MP cameras |
| Resolution | 0.01 to 10 mm |
| Depth of field | 830 mm (170 to 1000 mm) |
| Maximum field of view | Laser: 580 x 650 mm; IR: 1205 x 1104 mm |
| Light sources | Blue laser and IR VCSEL |

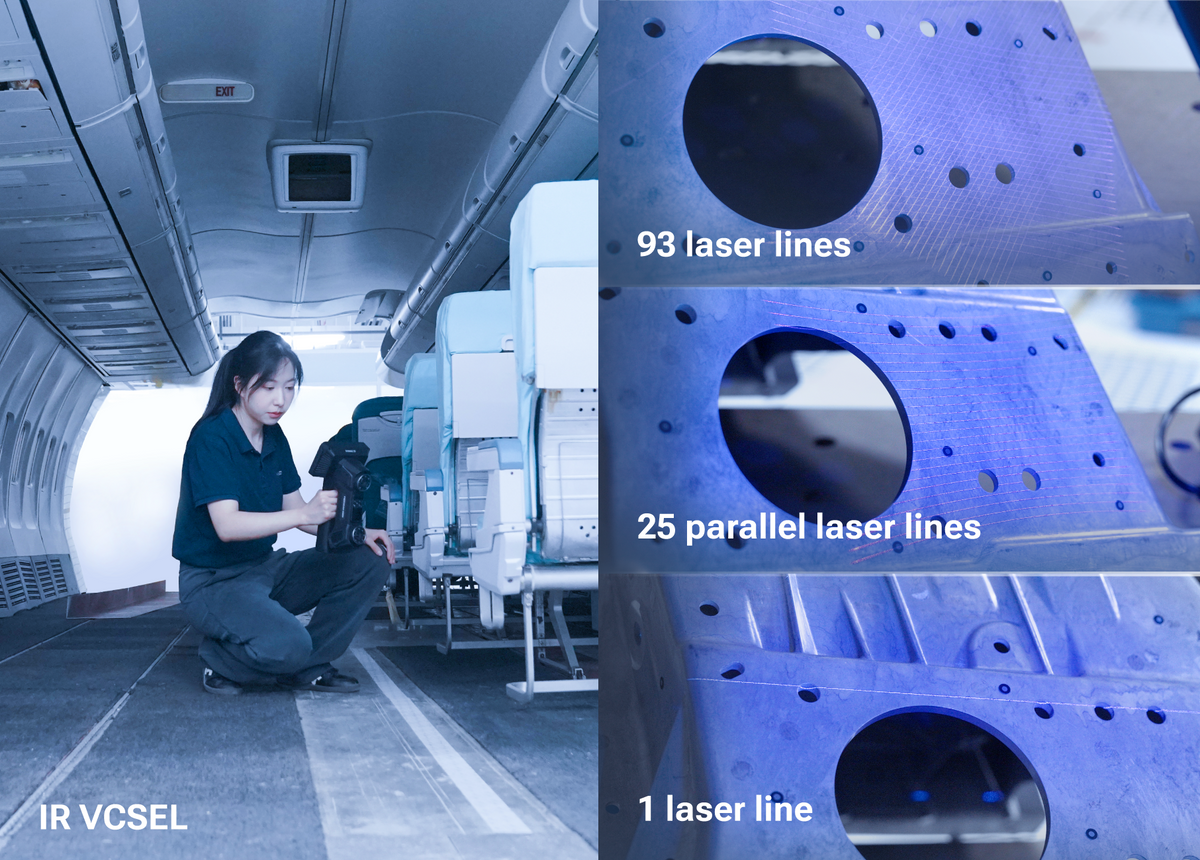

| Scanning modes | 93-line high-speed, 25-line detail, single-line deep-pocket, and IR rapid scan |
| Working distance | 200 to 680 mm |

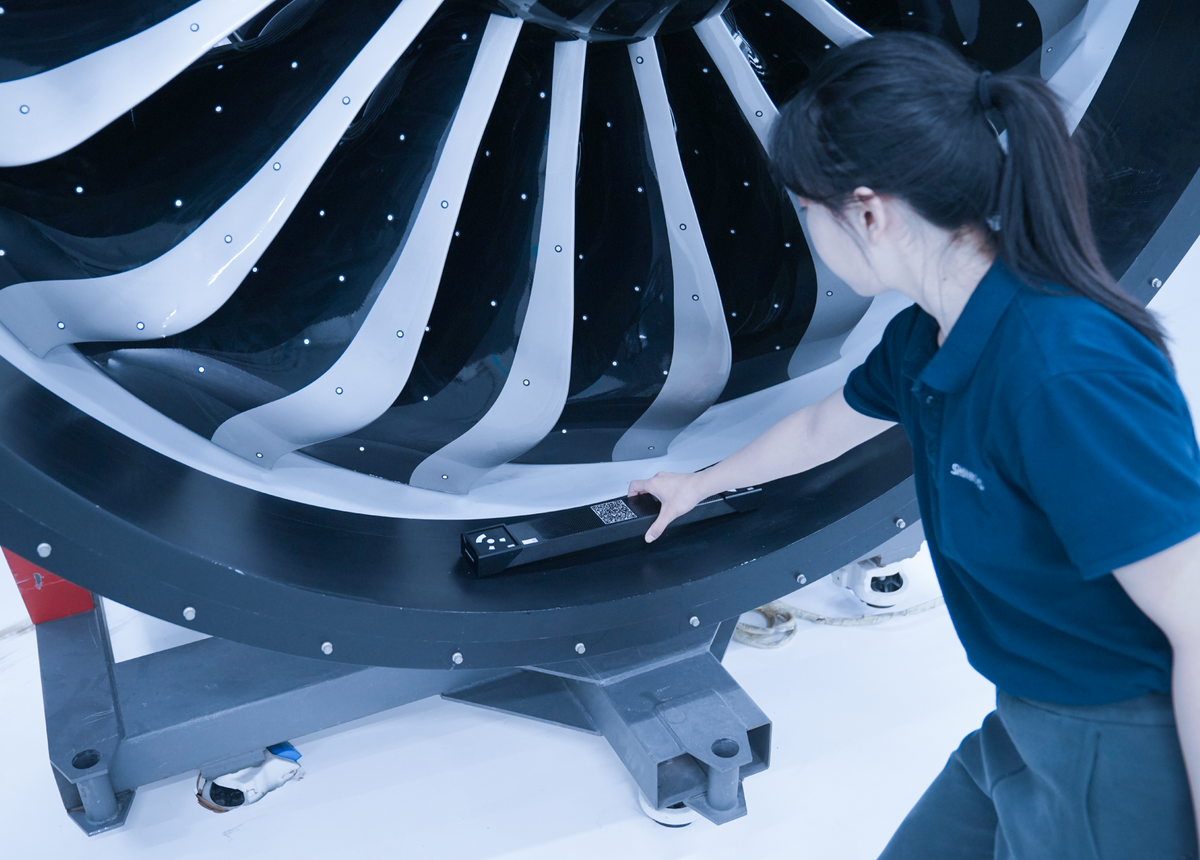

| Video photogrammetry | Supported without coded markers |

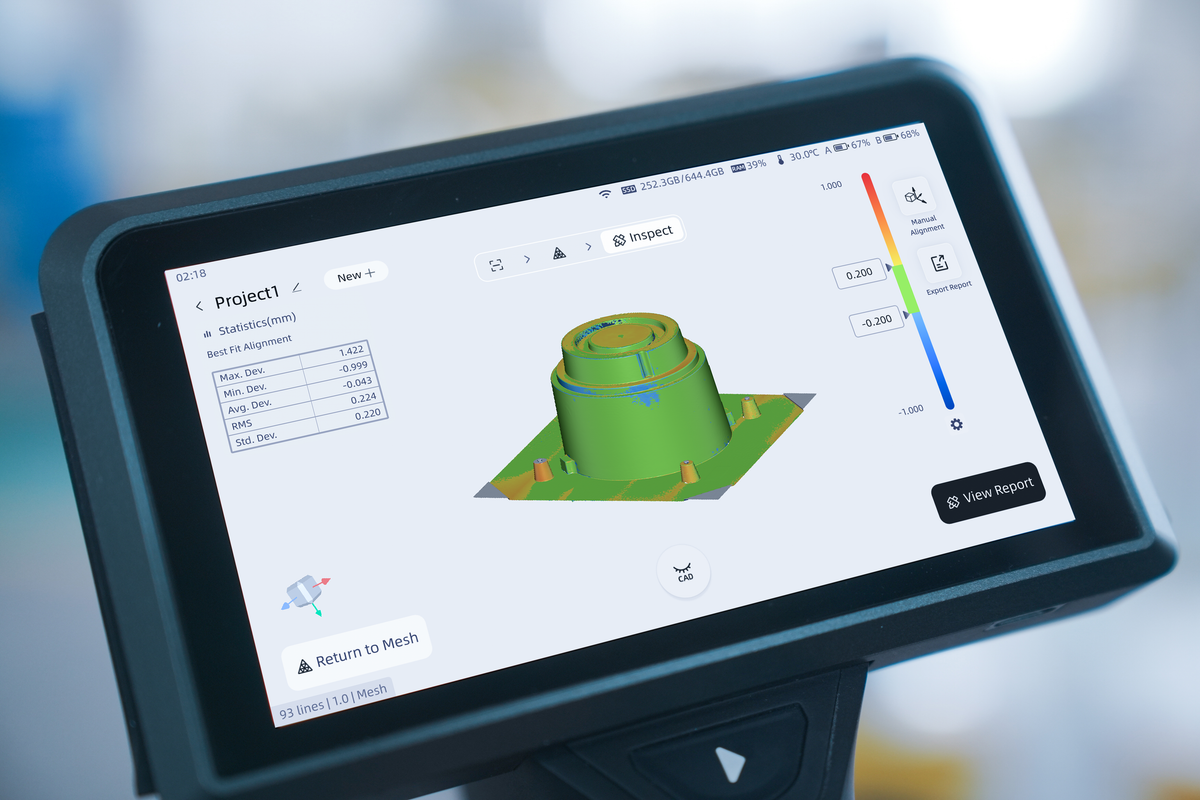

| Inspection module | Integrated on-device inspection |

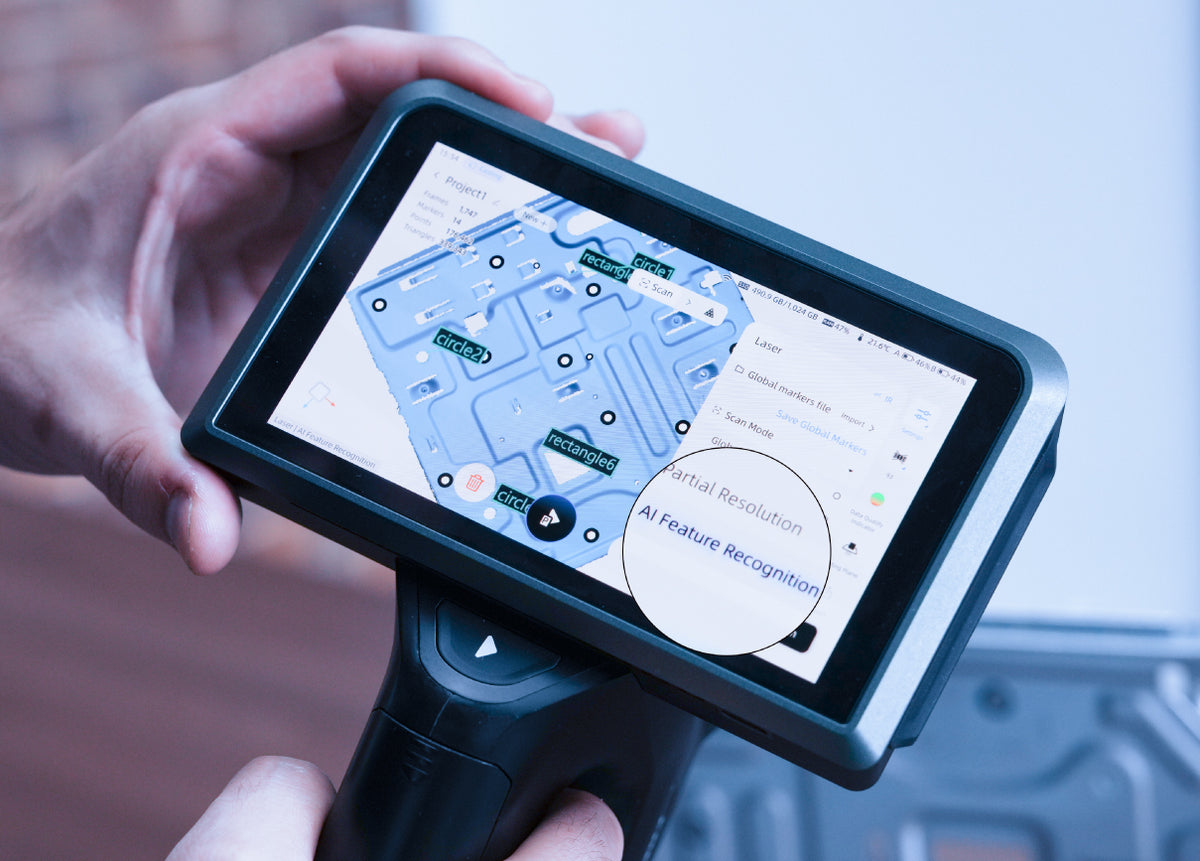

| Hole scanning | Intelligent boundary detection for round holes, rectangular holes, and slots |
Software, Formats & System Requirements

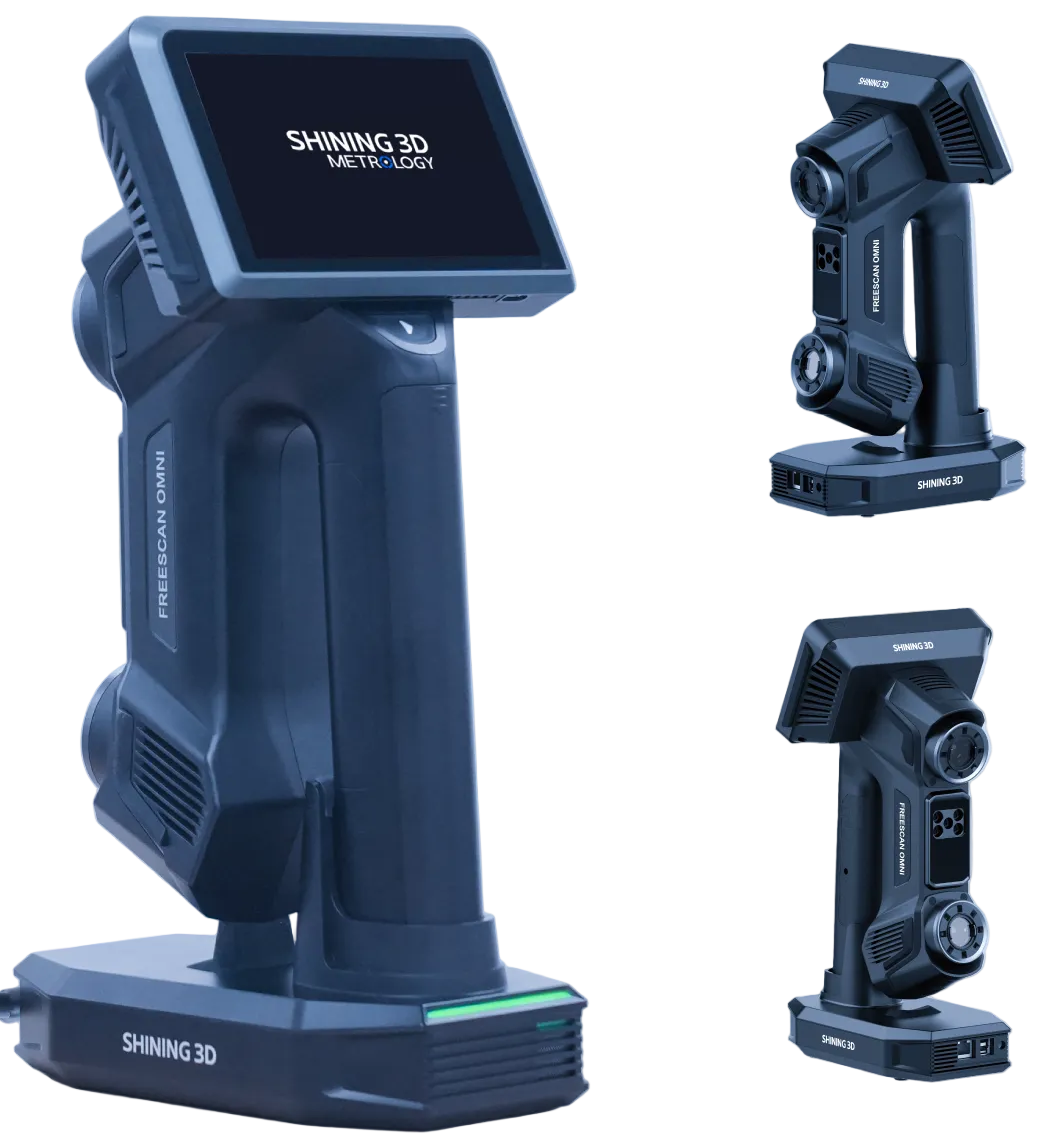

| Connection | Wireless or wired through the Smart Dock using fiber optic connection |
|---|---|
| Display | 5.5-inch touchscreen |
| Output formats | STL, ASC, 3MF, and P3 |
Workstation requirements
| Component | Minimum | Recommended |
|---|---|---|
| Standalone scanning and inspection | No external PC required | Use the onboard scanner workflow for capture, meshing, inspection, and reporting |
| Operating system for desktop software | Not specified | Windows 11 Professional 22H2, 64-bit |
| Processor | Not specified | 13th Gen Intel Core i7-13650HX or above |
| Graphics card | Not specified | NVIDIA GeForce RTX 4060 Laptop GPU or above |
| Video memory | Not specified | 12 GB or above |
| System memory | Not specified | 64 GB or above, DDR5 dual-channel |
| Storage | Not specified | SSD with 250 GB available space |
| Interface | Not specified | USB 3.0 |
| Internet | Required for first activation and updates | Offline activation can be completed through another internet-connected computer |
A workstation is optional for scanning and on-device inspection. These requirements apply when using the included FreeScan Omni desktop software and SHINING3D Inspect on a PC. A discrete NVIDIA GPU is required.
Standards & Safety Compliance
| Certifications | CE, FCC, RoHS, WEEE, KC, FDA, UKCA, IP50, TELEC, and TISAX |
|---|---|
| Acceptance test | VDI/VDE 2634 Part 3 and ISO 10360, tested in an ISO/IEC 17025 accredited accuracy lab |
Interactive results
Inspect representative scan data.
Load a model to examine surface detail and captured geometry.
Package contents
What arrives with the selected system.
Review the documented hardware, included accessories and software access for this product.
FreeScan Omni Standard Package
The flagship scan-to-inspect package with the scanner, inspection software, power, calibration, and connection hardware.
- FreeScan Omni 3D scanner
- Integrated on-device scanning, meshing, inspection, and reporting
- FreeScan Omni desktop software
- Full SHINING3D Inspect desktop license with manufacturer updates
- Smart Dock, also identified as the AP charging dock
- Eight rechargeable 18650 batteries
- Battery charging hub and power cable
- Dock power adapter and power cable
- Dock USB 3.0 data cable
- Gigabit Ethernet cable with screws
- USB-C data cable
- USB-C male to USB-A female adapter
- USB or USB-C to Ethernet adapter
- Multifunctional charger head
- Quick calibration board
- Validated VPG scale bar
- Marker set and marker spatula
- USB flash drive
- Certificate of conformity, warranty card, accuracy report, and packing list
Manufacturer warranty and standard shipping are included. EXModel, EXModel Pro, BlueStar Mapping, PolyWorks, Geomagic Control X, Geomagic Design X, additional markers, training, and extended protection are optional and are not part of the standard package.
FreeScan Omni
$38,999
Monthly budget illustrations assume 36 payments at 15% APR, $0 down. Taxes, shipping and fees are excluded. This is not a financing offer or approval. Affirm is unavailable for purchases over $30,000.
