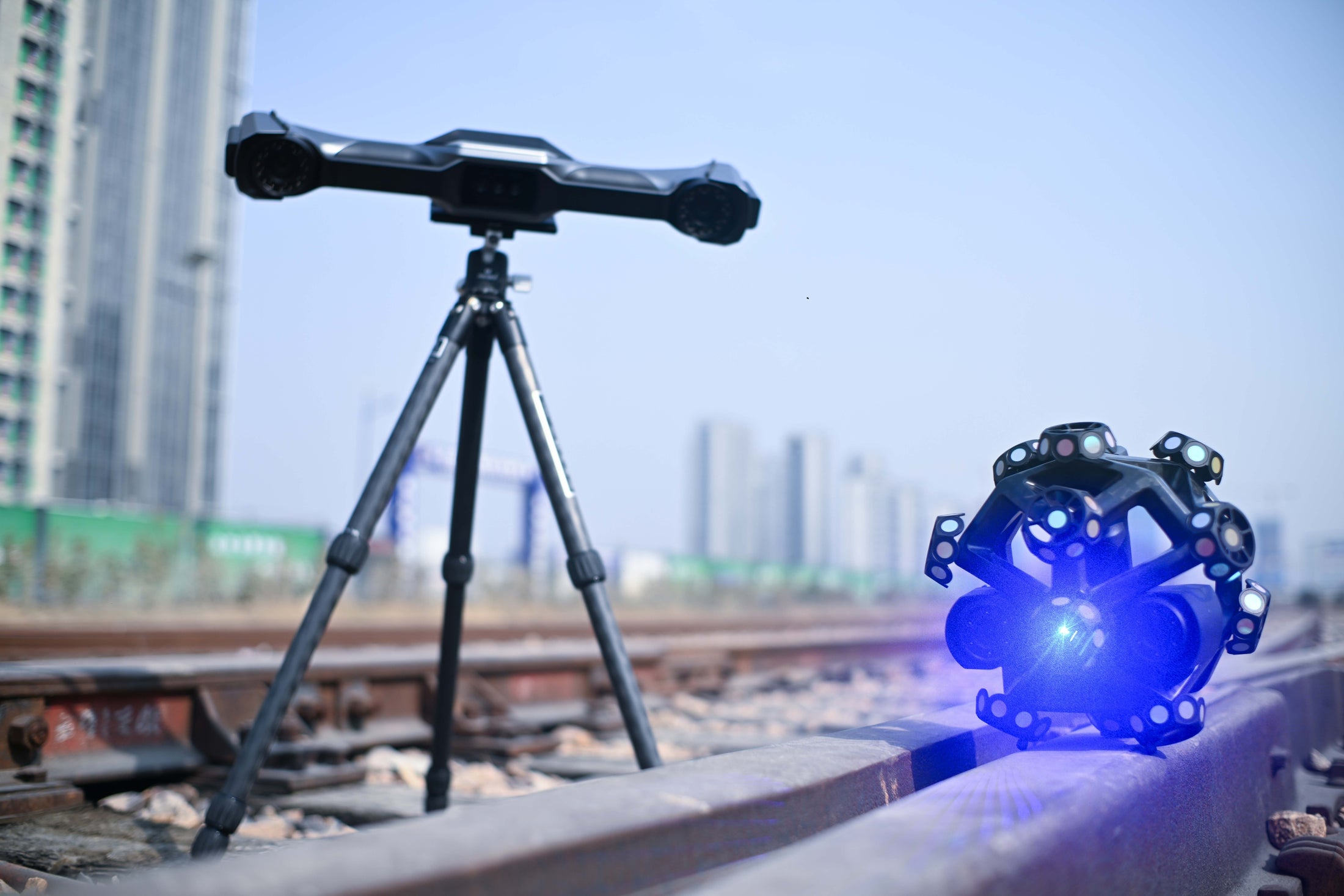

Marker-free optical tracking accelerates setup on large components
PROFESSIONAL 3D SCANNING
Portable wireless tracking, wide-range laser scanning, and photogrammetry in one system
50 laser linesHigh-speed scan mode
7 parallel laser linesDetail scan mode
1 extra laser lineDeep-pocket scan mode
6,140,000 points/sMaximum scan rate
System architecture
Configure the complete measurement workflow.
Portable wireless tracking, wide-range laser scanning, and photogrammetry in one system.
Official brochure specifications and verified catalog configurations are organized below so technical teams and buyers can evaluate fit without leaving the page.
Match the system to the part, tolerance, environment, output, software stack, training need, and protection plan. Every selected option is included in the technical review.
Configuration
Build the workflow your application requires.
Select the protection, software, add-ons, and training needed for a complete working system.
Configured starting point$49,999.00
Core system only
Continue with this configurationYour selected options will be prefilled on the recommendation and quote form.
Standard system contents
Every major component, connection, and calibration item.
High-value systems are quoted as a complete operational package; exact quantities and region-specific items are confirmed on the formal quote.
01

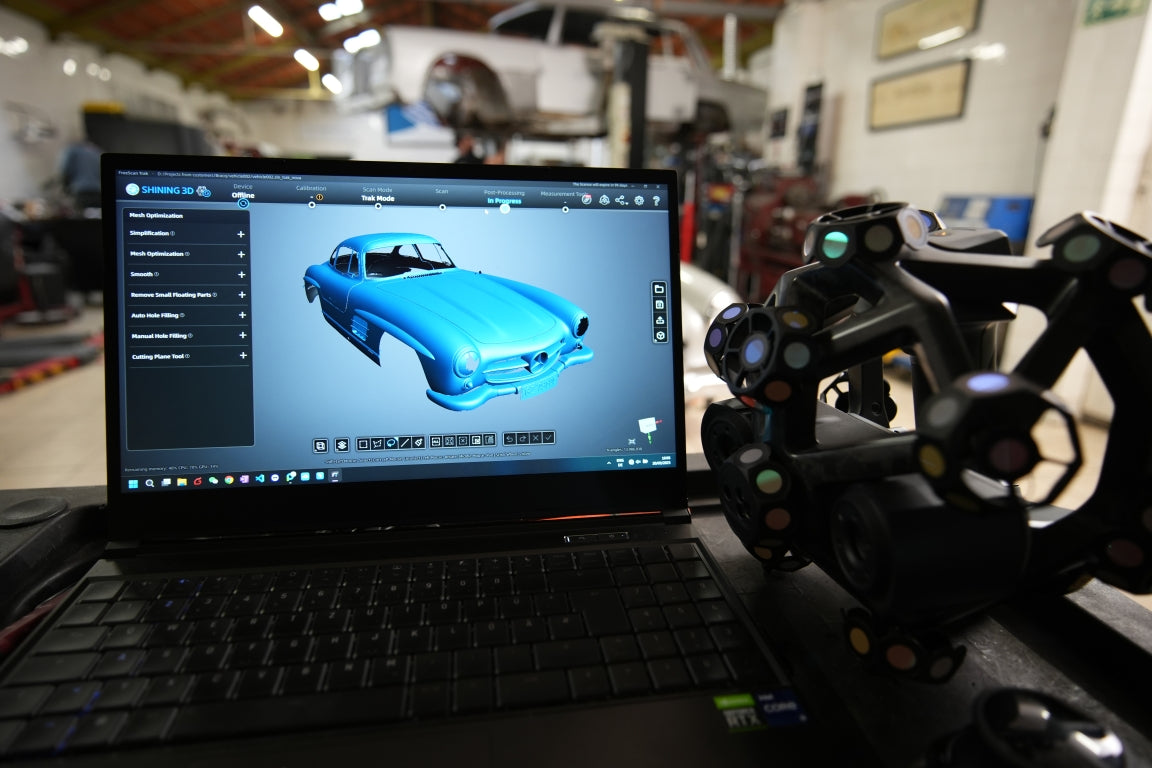

FreeScan Trak Nova standard system
Portable optical tracking and handheld scanning package
- TE Nova optical tracker
- UE Nova detachable wide-range scanner
- Carbon-fiber tripod
- Calibration rod for VPG workflow
- Wi-Fi 6 router
- Swappable batteries and charging accessories
- Wired hub with power, data, fiber, and network connections
- Software license / security dongle
- Portable protective case
- Calibration and acceptance documentation
Exact quantities, region-specific power accessories, and acceptance documents are confirmed in the formal quote.
System advantages
High-value capability without workflow friction.
Evaluate the measurable gains in setup, coverage, portability, capture speed, and confidence across large-volume inspection work.
02
Video photogrammetry delivers volumetric accuracy without coded targets
03
Up to 6.14 million points per second for high-throughput capture
04
A 2600 × 2200 mm field of view supports large-volume inspection
05
High-speed, detail, and deep-pocket laser modes cover varied geometry
06
Wireless and optical-fiber connections adapt to shop-floor and field deployment
07
Optional probing reaches holes, edges, and inaccessible measurement points
08
Inspection-ready workflows move captured data directly toward quality decisions
Deploy where the work happens
Bring controlled measurement to the part.
Combine mobile setup, optical tracking, wide-range capture, and downstream inspection in one connected operating workflow.
Review engineering specifications →Application proof
Built for parts that do not belong on a fixed CMM.
See how the system adapts to heavy industry, transportation, aviation, energy, and other large-component inspection environments.
01

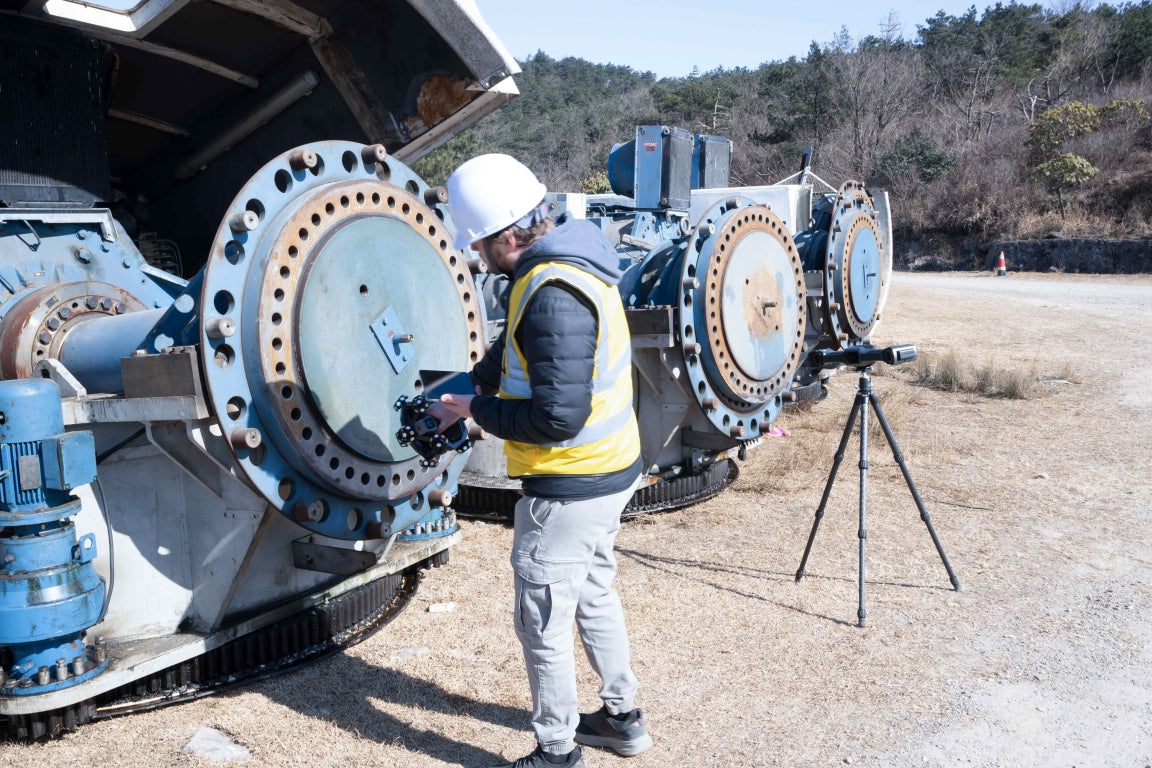

Heavy industry and large components
02

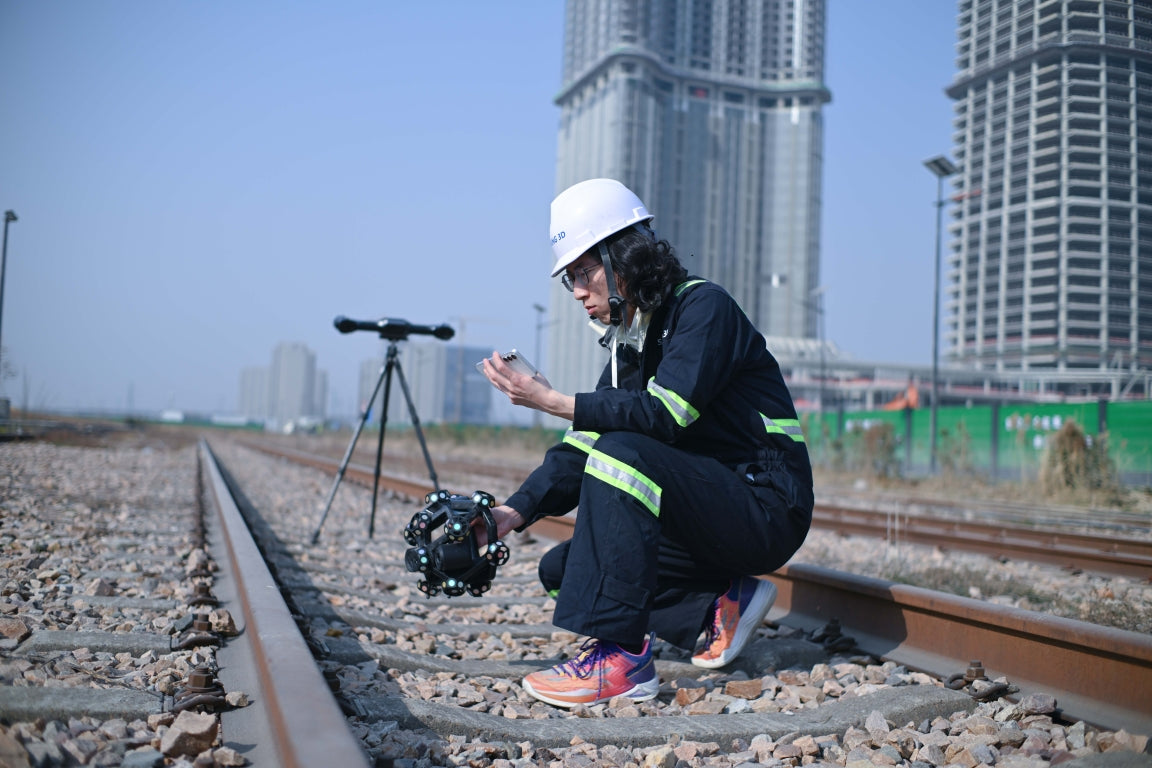

Rail and transportation
03

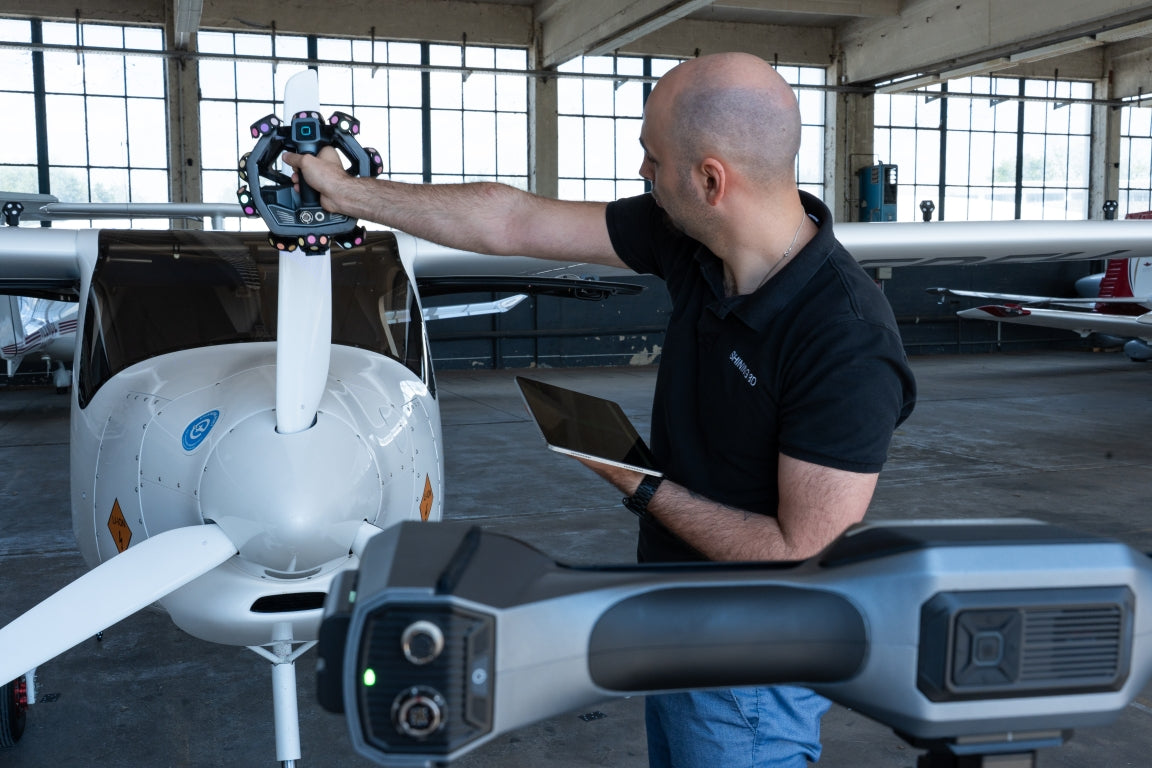

Civil aviation
04

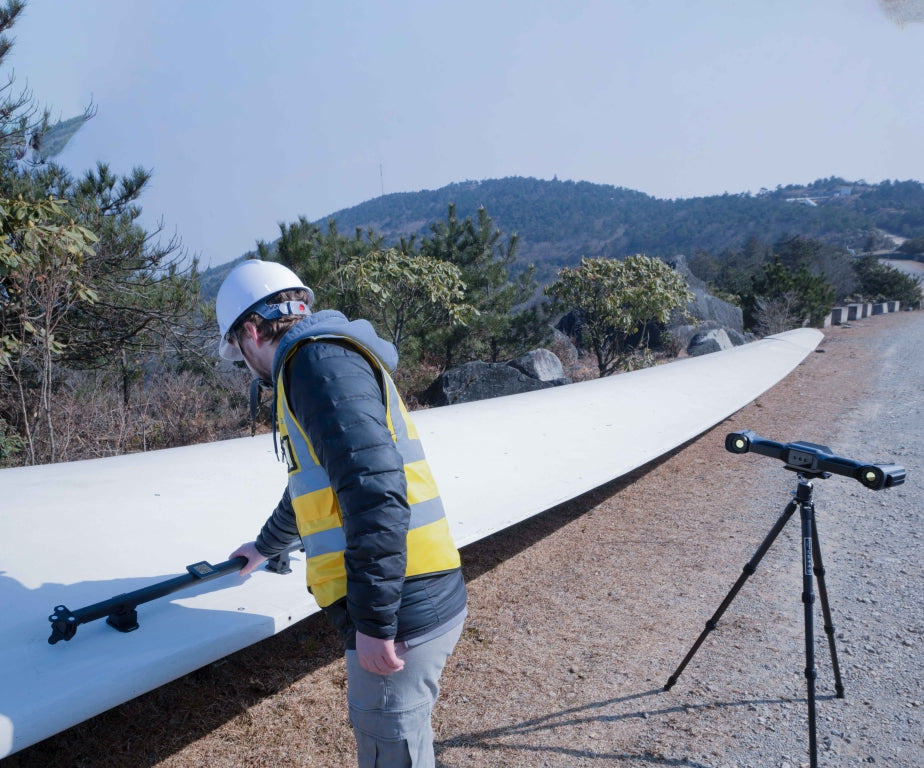

Energy and turbine blades
Video library
Evaluate the system under real operating conditions.
Move between unboxing, tracking, handheld capture, and application footage without leaving the page.
Video library
Select a video to begin
Watch demonstrations, tutorials, and real application workflows without leaving the product page.
Engineering specifications
Technical evidence for engineering and IT.
Review measurement performance, operating envelope, connectivity, and the workstation needed to process the data.
High-speed scan mode50 laser lines
Detail scan mode7 parallel laser lines
Deep-pocket scan mode1 extra laser line
Maximum scan rate6,140,000 points/s
Scanner accuracyUp to 0.02 mm
Volumetric accuracy0.062 mm within 12 m³
VPG volumetric accuracy0.046 mm + 0.012 mm/m
Resolution0.01–10 mm
Maximum field of view2600 × 2200 mm
Tracking setupMarker-free; VPG without coded targets
ConnectionWireless and optical fiber
Tracker working distance800–3500 mm
Scanner working distance170–550 mm
VerificationVDI/VDE 2634 Part 3 and ISO 10360; ISO/IEC 17025 laboratory
| Component | Minimum | Recommended |
|---|---|---|
| Operating system | Application review required | Windows 11 Pro 22H2 64-bit |
| Processor | Application review required | Intel Core i7-13700H or higher |
| Memory | Application review required | 64 GB DDR5 dual-channel |
| Graphics | Application review required | NVIDIA RTX 4060 Laptop GPU or higher; 8 GB+ VRAM |
| Connection | USB 3.0 | Dedicated USB 3.0 plus supported wireless/network setup |
SHINING 3D publishes a recommended FreeScan Trak Nova workstation rather than a separate minimum configuration. Validate the final computer with the quoted workflow.
Interactive scan results
Inspect more than one related dataset.
Load the chosen model on demand, with a direct Sketchfab fallback for devices that cannot render the full scene.
Optional interactive preview
Boat Turbine — FreeScan Trak Nova
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
Drone — FreeScan Trak Nova
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Models published by Shining 3D on Sketchfab. Use the direct link if the embedded viewer exceeds the device's graphics capacity.
