Marker-free setup
Marker-free optical tracking accelerates setup on large components
PROFESSIONAL 3D SCANNING

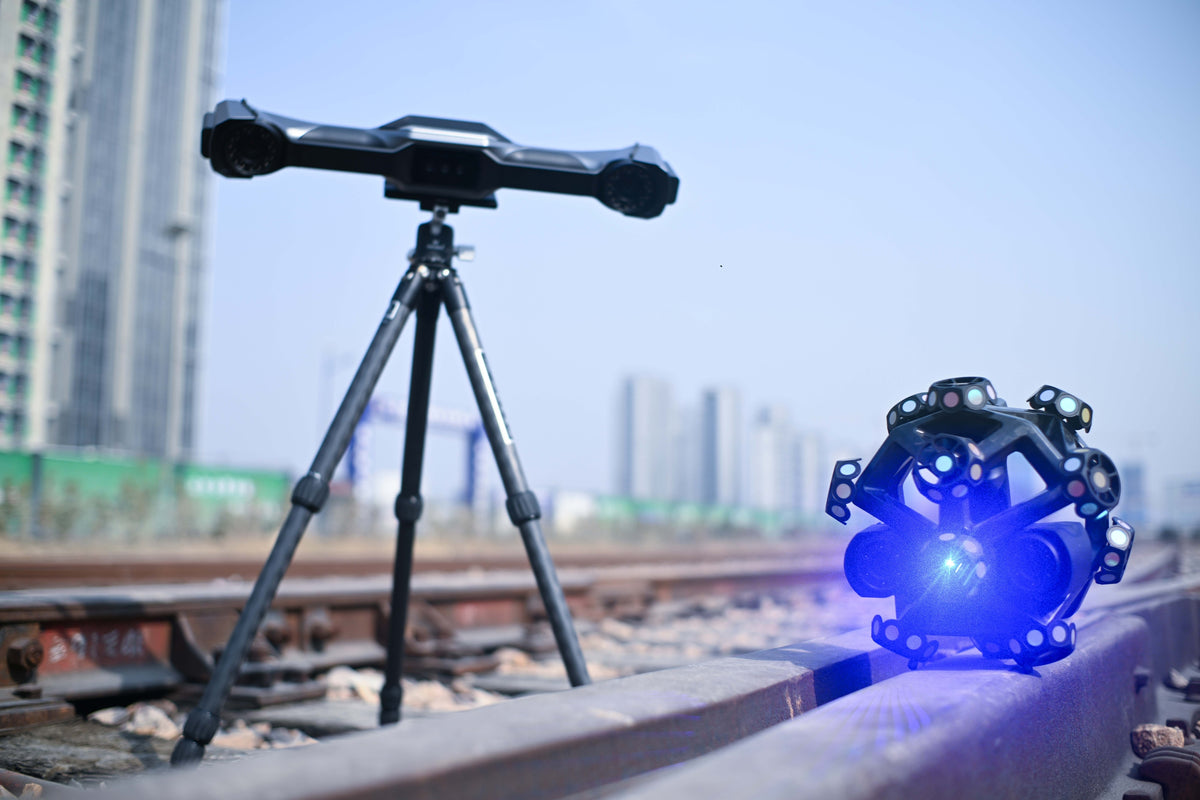

FreeScan Trak Nova SHINING 3D Large-volume optical tracking system
Connect scanning, tracking, and large-part inspection.
6.14M pts/sMaximum capture speed
2.6 × 2.2 mMaximum field of view
Marker-freeDynamic tracking
Wireless / fiberConnection options
System architecture & capabilities
Connect scanning, tracking, and large-part inspection.
6.14M pts/sMaximum capture speed
2.6 × 2.2 mMaximum field of view
Marker-freeDynamic tracking
Wireless / fiberConnection options
Video photogrammetry
Video photogrammetry delivers volumetric accuracy without coded targets
Up to 6.14M points/s
Up to 6.14 million points per second for high-throughput capture
PROFESSIONAL 3D SCANNINGPerformance highlights
Explore FreeScan Trak Nova capabilities.
Explore the capabilities that affect capture, output quality and day-to-day operation.
FreeScan Trak NovaMarker-free setup
Feature in focusMarker-free setup
01 / 08Your workflow
From measurement planning to the engineering handoff.
- Step 01
Scanner workflow
Plan the capture
Choose the scan mode, working range, and preparation around the part geometry and measurement objective.
Part-specific capture setup
- Step 02
Scanner workflow

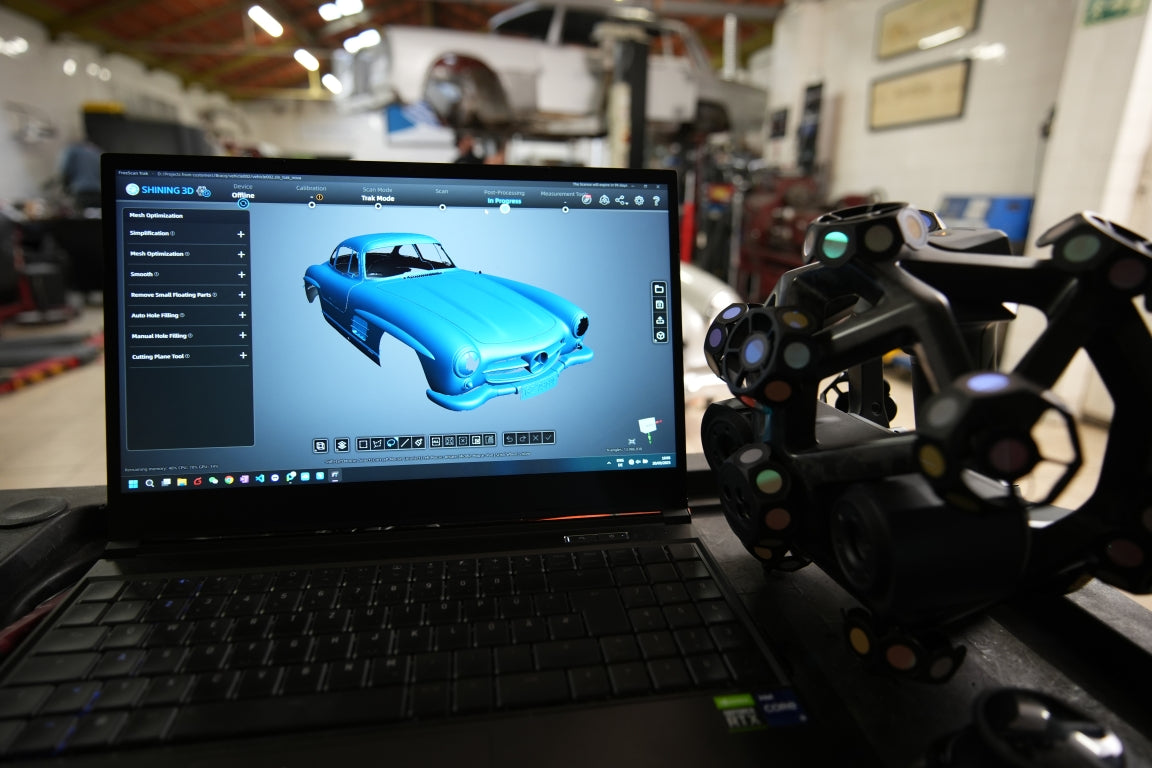

Capture & review the data
Check alignment, coverage, and data quality before preparing the result for the next engineering step.
Reviewed 3D scan data
- Step 03
Downstream licence requirements apply
Continue in CAD or inspection
Confirm the export format and software licence for downstream reverse engineering, dimensional inspection, or reporting.
An agreed engineering handoff

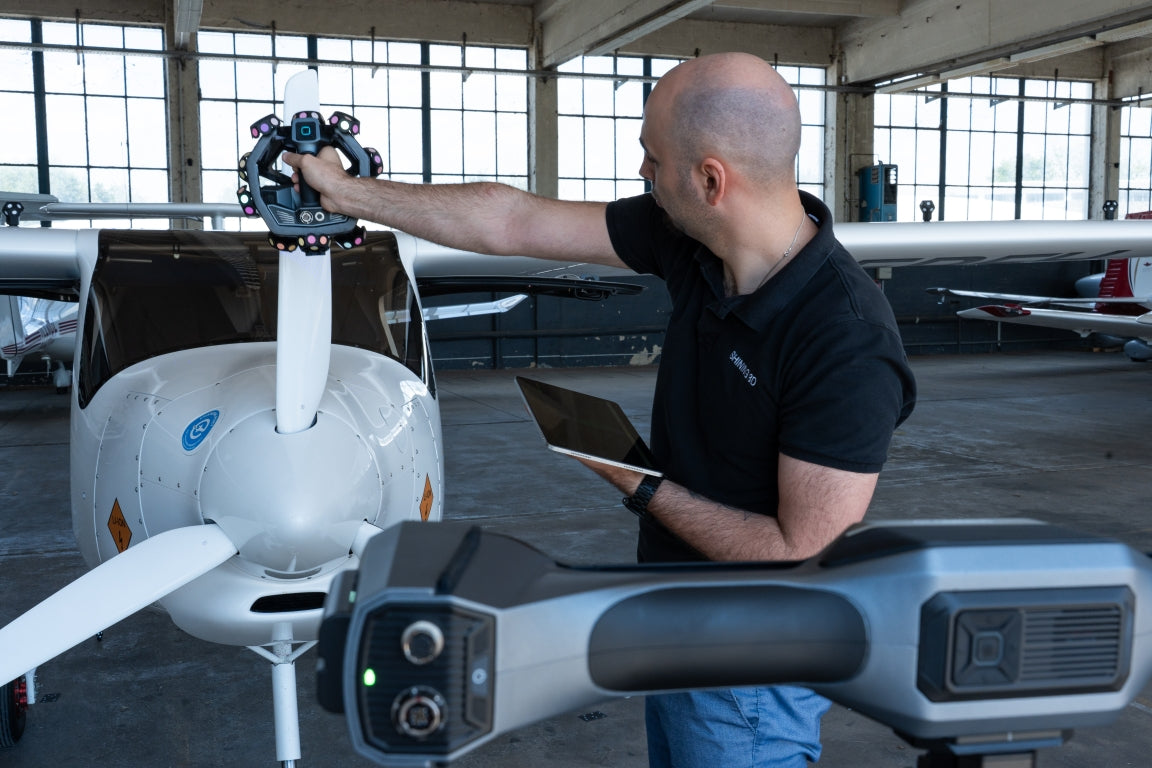

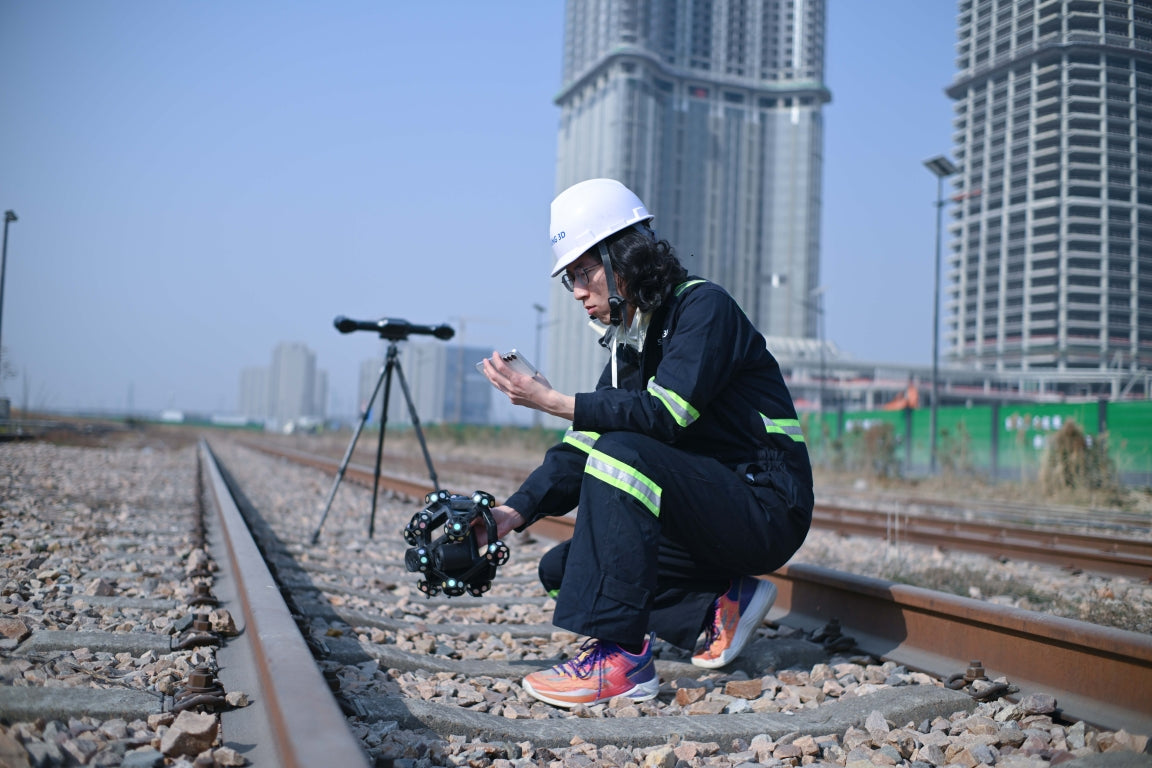

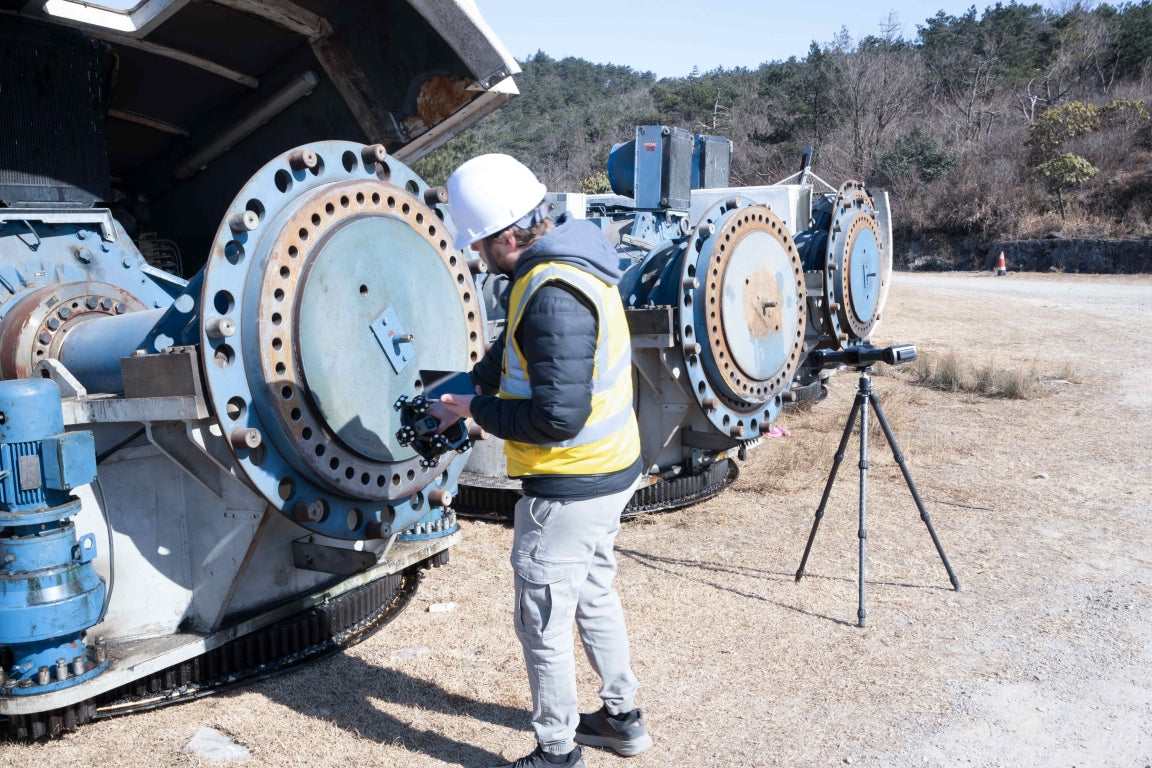

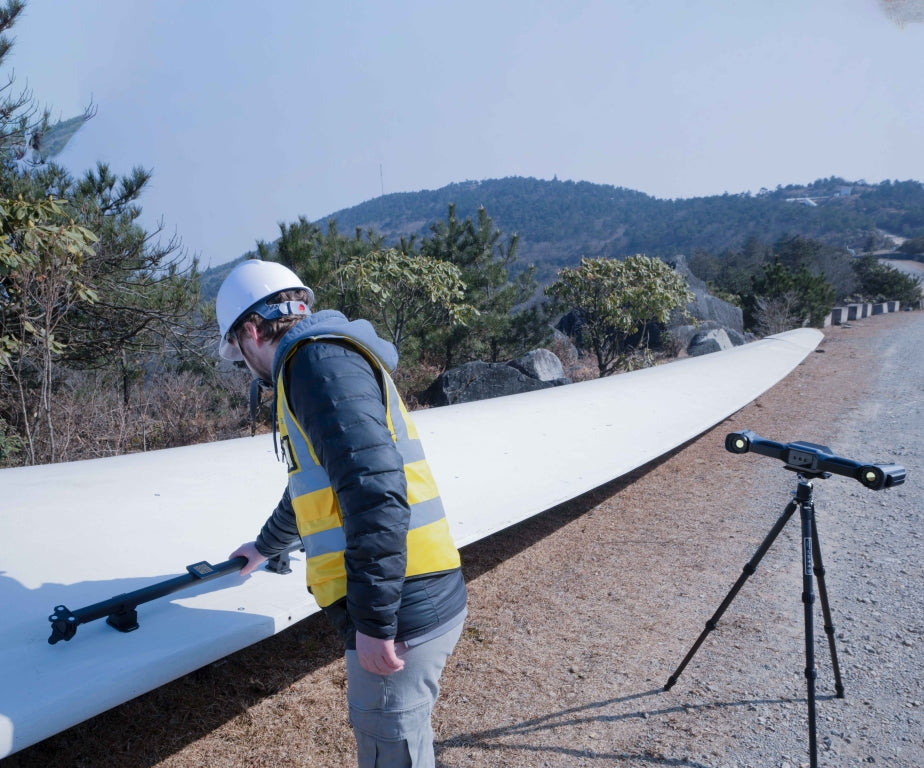

Application fit
Explore the applications for FreeScan Trak Nova.
Explore representative use cases before confirming system fit.
Video library
Watch the workflow in motion.
Use official demonstrations, case studies, and tutorials to assess real operation.
Technical evidence
Every specification, organized for review.
Open the data set needed for engineering, IT, quality, and procurement review.
Complete data table
Open a category to review the full specification.
Capture & Measurement Performance
| High-speed scan mode | 50 laser lines |
|---|---|
| Detail scan mode | 7 parallel laser lines |
| Deep-pocket scan mode | 1 extra laser line |
| Maximum scan rate | 6,140,000 points/s |
| Scanner accuracy | Up to 0.02 mm |
| Volumetric accuracy | 0.062 mm within 12 m³ |
| VPG volumetric accuracy | 0.046 mm + 0.012 mm/m |
| Resolution | 0.01–10 mm |
| Maximum field of view | 2600 × 2200 mm |
| Tracking setup | Marker-free; VPG without coded targets |
| Tracker working distance | 800–3500 mm |
| Scanner working distance | 170–550 mm |
| Verification | VDI/VDE 2634 Part 3 and ISO 10360; ISO/IEC 17025 laboratory |
Software, Formats & System Requirements
| Connection | Wireless and optical fiber |
|---|
Workstation requirements
| Component | Minimum | Recommended |
|---|---|---|
| Operating system | Application review required | Windows 11 Pro 22H2 64-bit |
| Processor | Application review required | Intel Core i7-13700H or higher |
| Memory | Application review required | 64 GB DDR5 dual-channel |
| Graphics | Application review required | NVIDIA RTX 4060 Laptop GPU or higher; 8 GB+ VRAM |
| Connection | USB 3.0 | Dedicated USB 3.0 plus supported wireless/network setup |
SHINING 3D publishes a recommended FreeScan Trak Nova workstation rather than a separate minimum configuration. Validate the final computer with the quoted workflow.
Interactive results
Inspect representative scan data.
Load a model to examine surface detail and captured geometry.
Package contents
What arrives with the selected system.
Review the documented hardware, included accessories and software access for this product.
FreeScan Trak Nova standard system
Portable optical tracking and handheld scanning package
- TE Nova optical tracker
- UE Nova detachable wide-range scanner
- Carbon-fiber tripod
- Calibration rod for VPG workflow
- Wi-Fi 6 router
- Swappable batteries and charging accessories
- Wired hub with power, data, fiber, and network connections
- Software license / security dongle
- Portable protective case
- Calibration and acceptance documentation
Exact quantities, region-specific power accessories, and acceptance documents are confirmed in the formal quote.
FreeScan Trak Nova
$49,999
Monthly budget illustrations assume 36 payments at 15% APR, $0 down. Taxes, shipping and fees are excluded. This is not a financing offer or approval. Affirm is unavailable for purchases over $30,000.
Est. monthly budget: $1,734/ mo
36 mo · 15% APR · $0 down. Illustration only.
Monthly payment options
