Marker-free dynamic referencing with the FreeTrak optical tracker
OPTICAL TRACKING METROLOGY SYSTEM
Measure large parts without surface markers
Up to 0.023 mmAccuracy
3,070,000 points/sMaximum scan speed
50 crossed blue laser linesHigh-speed scan
Marker-free dynamic referencingTracking workflow
System architecture
Configure the complete measurement workflow.

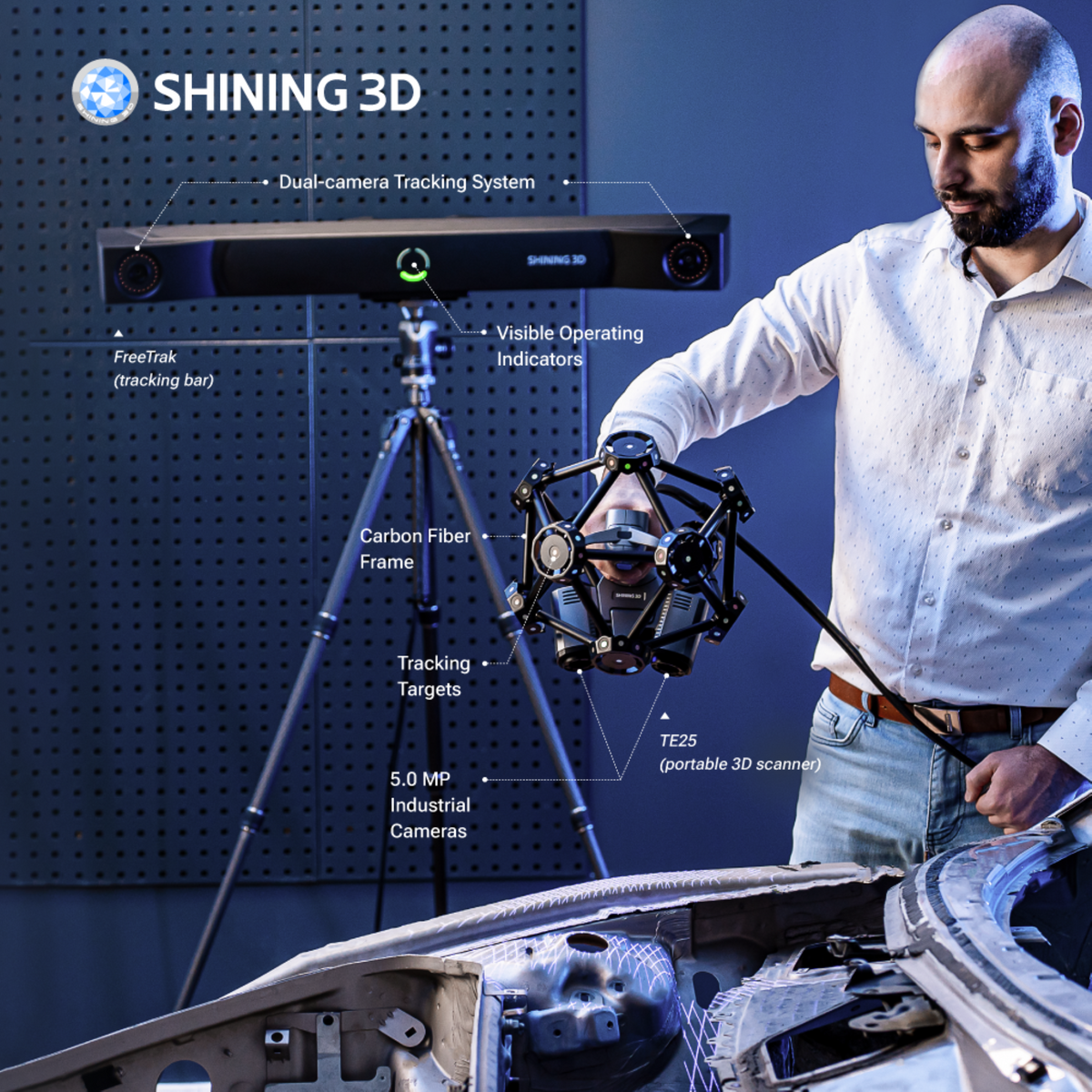

FreeScan Trak Pro2 combines the FreeTrak optical tracker with the TE25 handheld laser scanner for marker-free measurement of large industrial parts. It delivers accuracy up to 0.023 mm and scanning speeds up to 3,070,000 points per second.
Use 50 crossed laser lines for fast overall capture, seven parallel lines for fine detail, or a single line for deep features. Switch to marker-based scanning when the part or setup calls for it. An optional compatible FreeProbe enables contact measurement through PolyWorks or Geomagic Control X.
SKYLAB3D will confirm the correct system, workstation, software, training, and protection plan for your application before issuing a formal quote.
Match the system to the part, tolerance, environment, output, software stack, training need, and protection plan. Every selected option is included in the technical review.
Configuration
Build the system you need.
Select any optional protection, software, accessories, and training.
Configured total$65,999.00
Core system only
Your selected options will be prefilled on the recommendation and quote form.
Standard system contents
Every major component, connection, and calibration item.
High-value systems are quoted as a complete operational package; exact quantities and region-specific items are confirmed on the formal quote.
01
FreeScan Trak Pro2 System
Core tracked metrology system. Final cable, calibration, and accessory quantities are confirmed on the formal quote.
- FreeTrak dual-camera optical tracker
- TE25 handheld blue-laser scanner
- FreeScan Trak scanning software
A workstation, downstream inspection or reverse-engineering software, FreeProbe, 15 m Trak cable, training, and optional protection are not included unless they are listed on the formal quote.
System advantages
High-value capability without workflow friction.
Evaluate the measurable gains in setup, coverage, portability, capture speed, and confidence across large-volume inspection work.
02

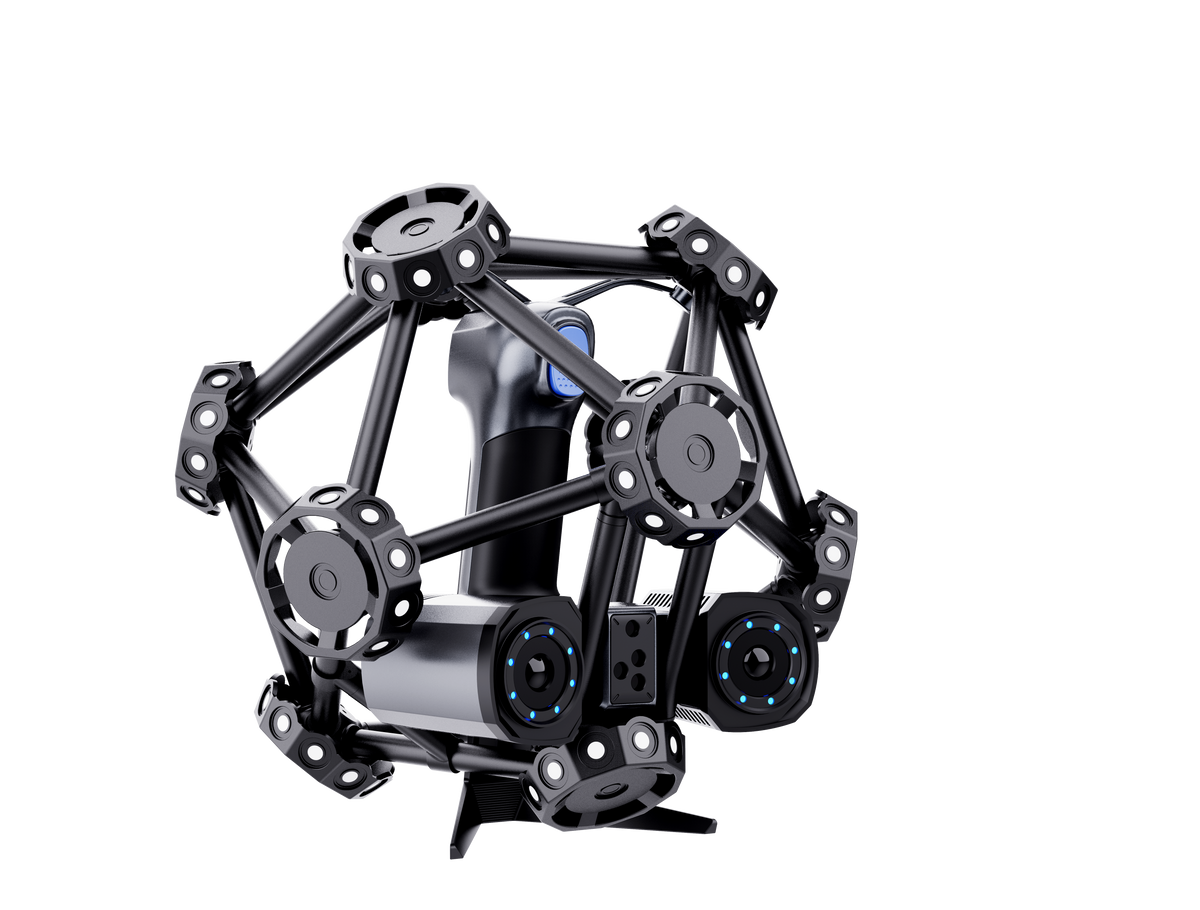

Metrology accuracy up to 0.023 mm
03
Up to 3,070,000 points/s with 50 crossed blue laser lines
04

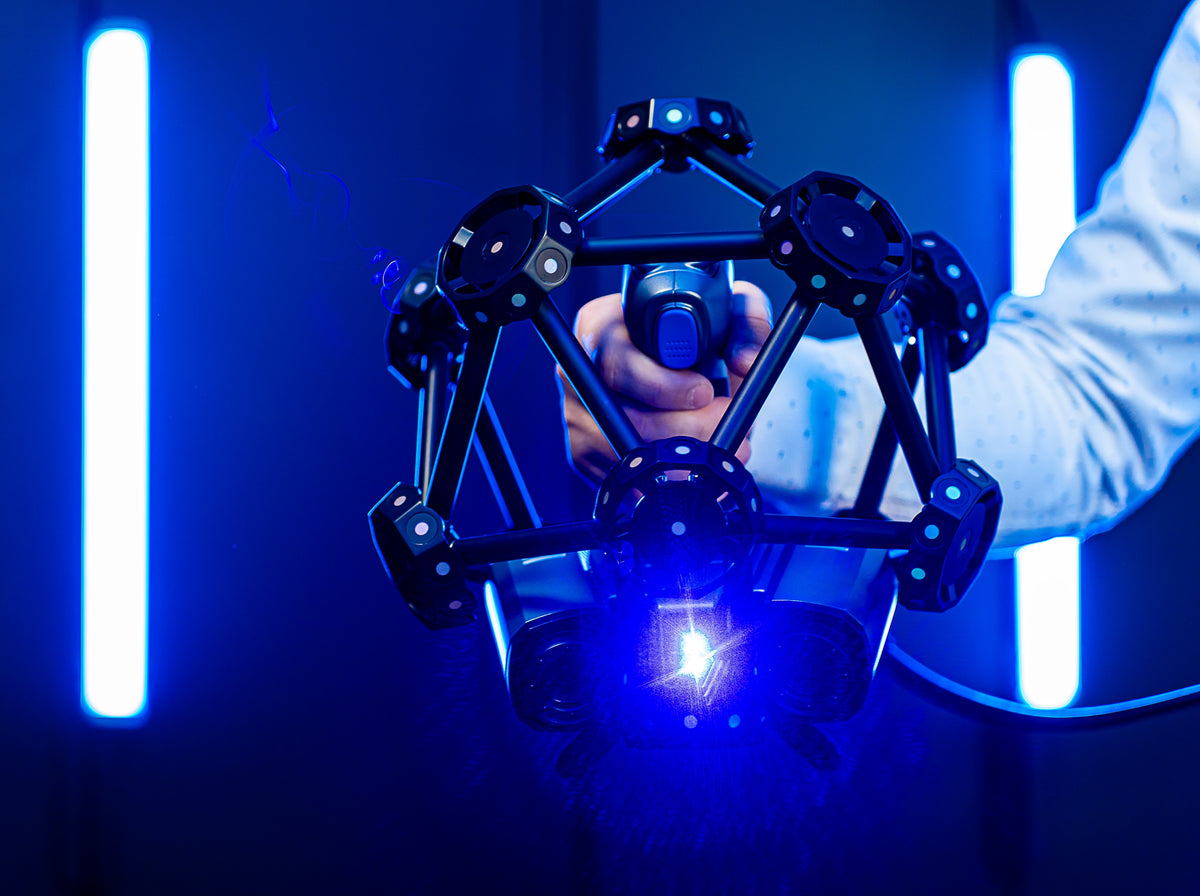

Seven parallel laser lines for fine detail
05

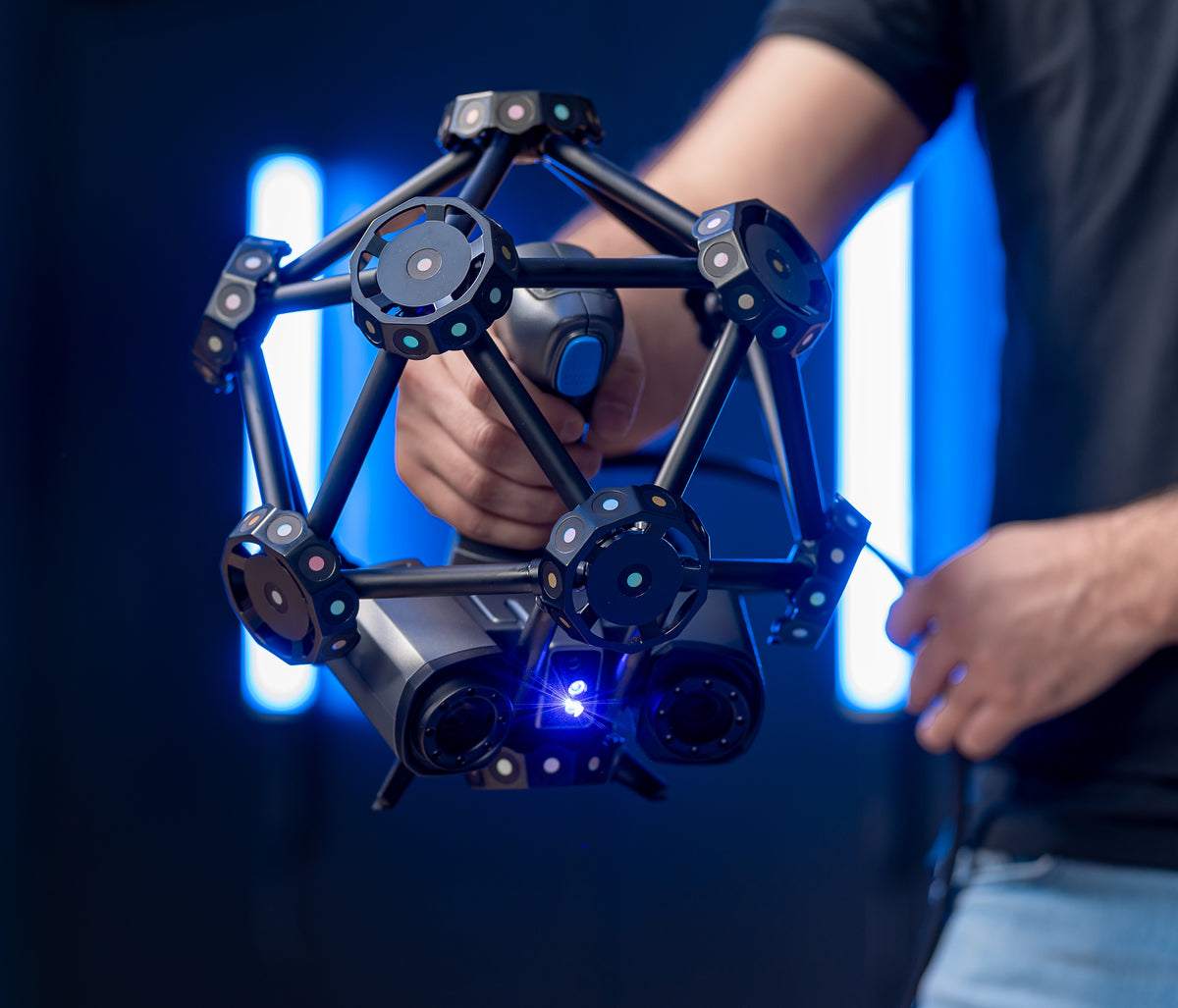

One single laser line for deep features with a 1:4 diameter-to-depth ratio
06

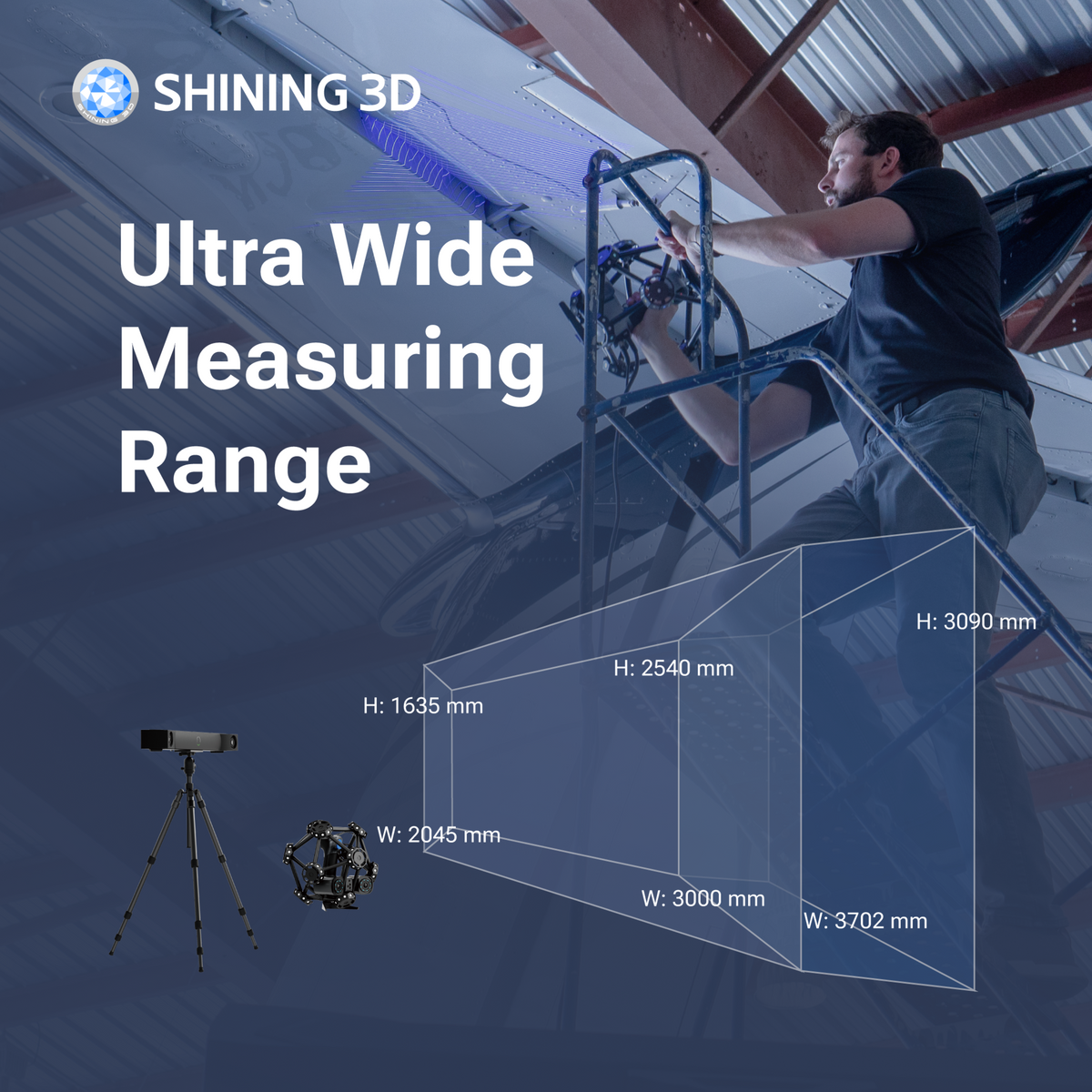

Wide, expandable tracking range without traditional leapfrog
07

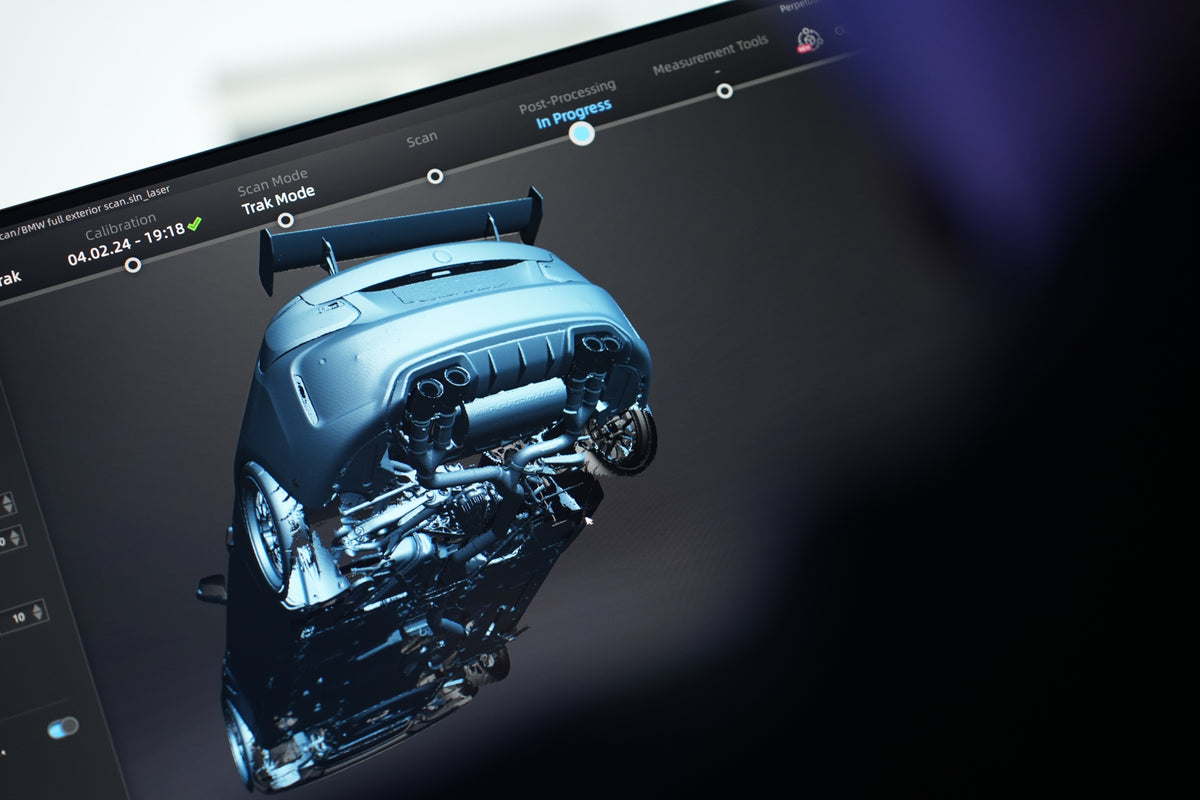

Optical tracking and marker-based scanning modes
08

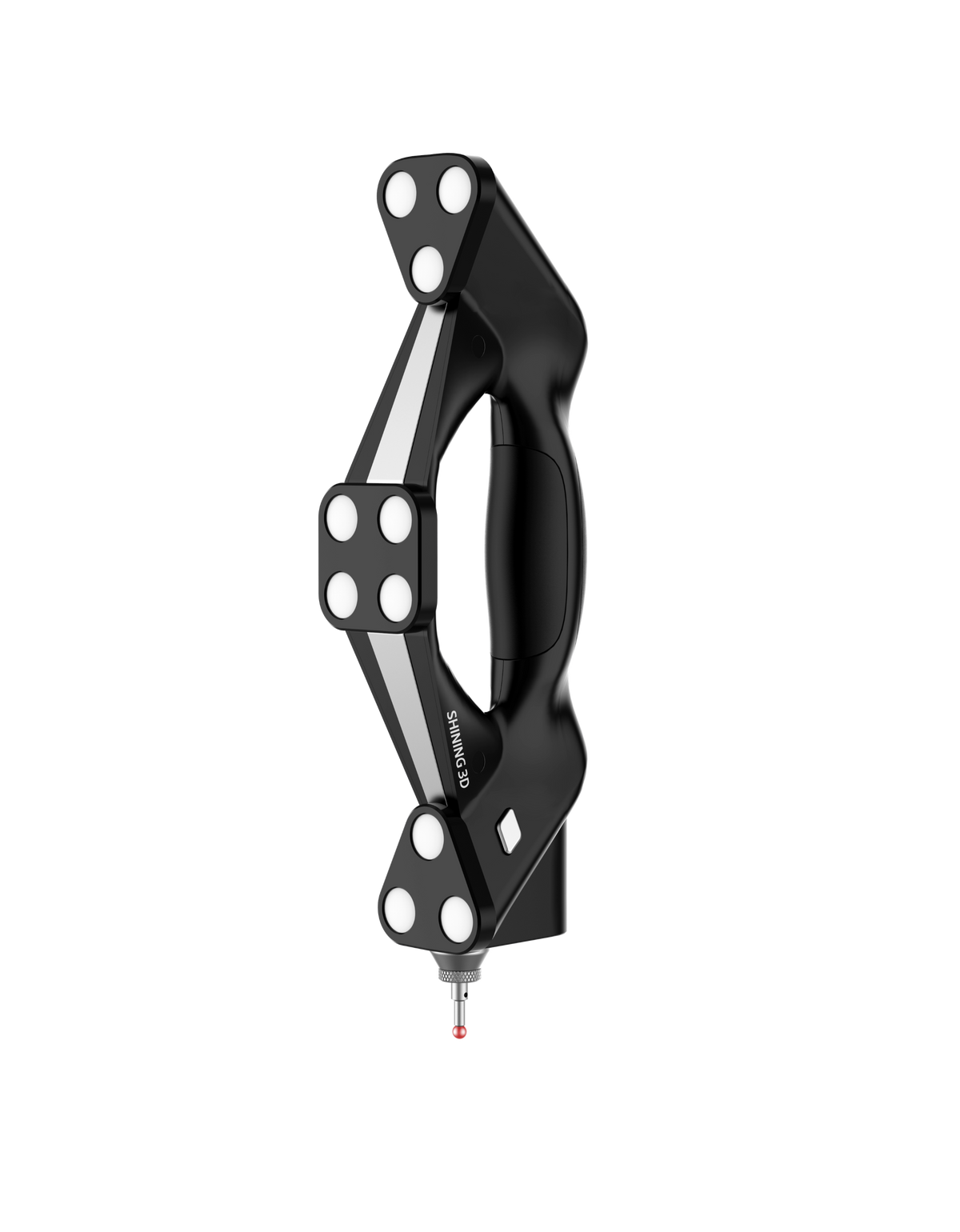

Optional FreeProbe contact measurement through PolyWorks or Geomagic Control X
Deploy where the work happens
Bring controlled measurement to the part.
Combine mobile setup, optical tracking, wide-range capture, and downstream inspection in one connected operating workflow.
Review engineering specifications →Application proof
Built for parts that do not belong on a fixed CMM.
See how the system adapts to heavy industry, transportation, aviation, energy, and other large-component inspection environments.
01

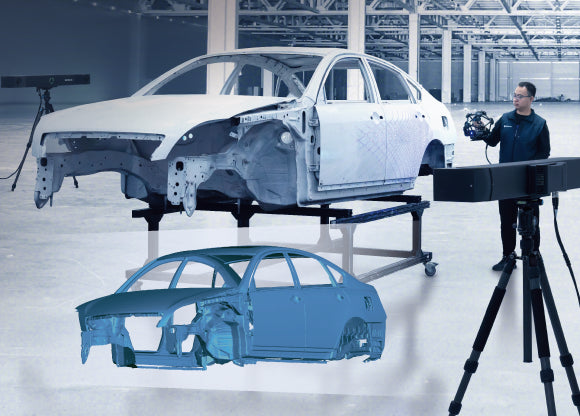

Automotive body-in-white and complete vehicle inspection
02

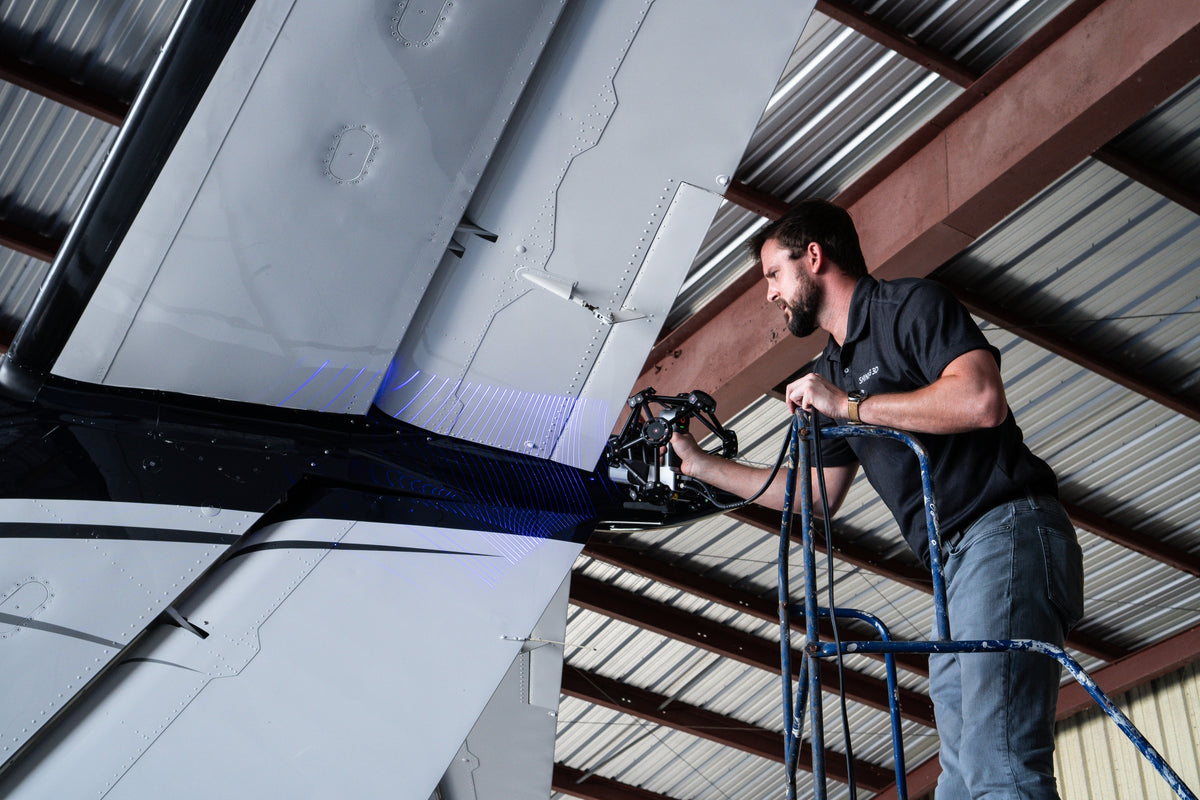

Aircraft skins, wings, engines, and structural assemblies
03

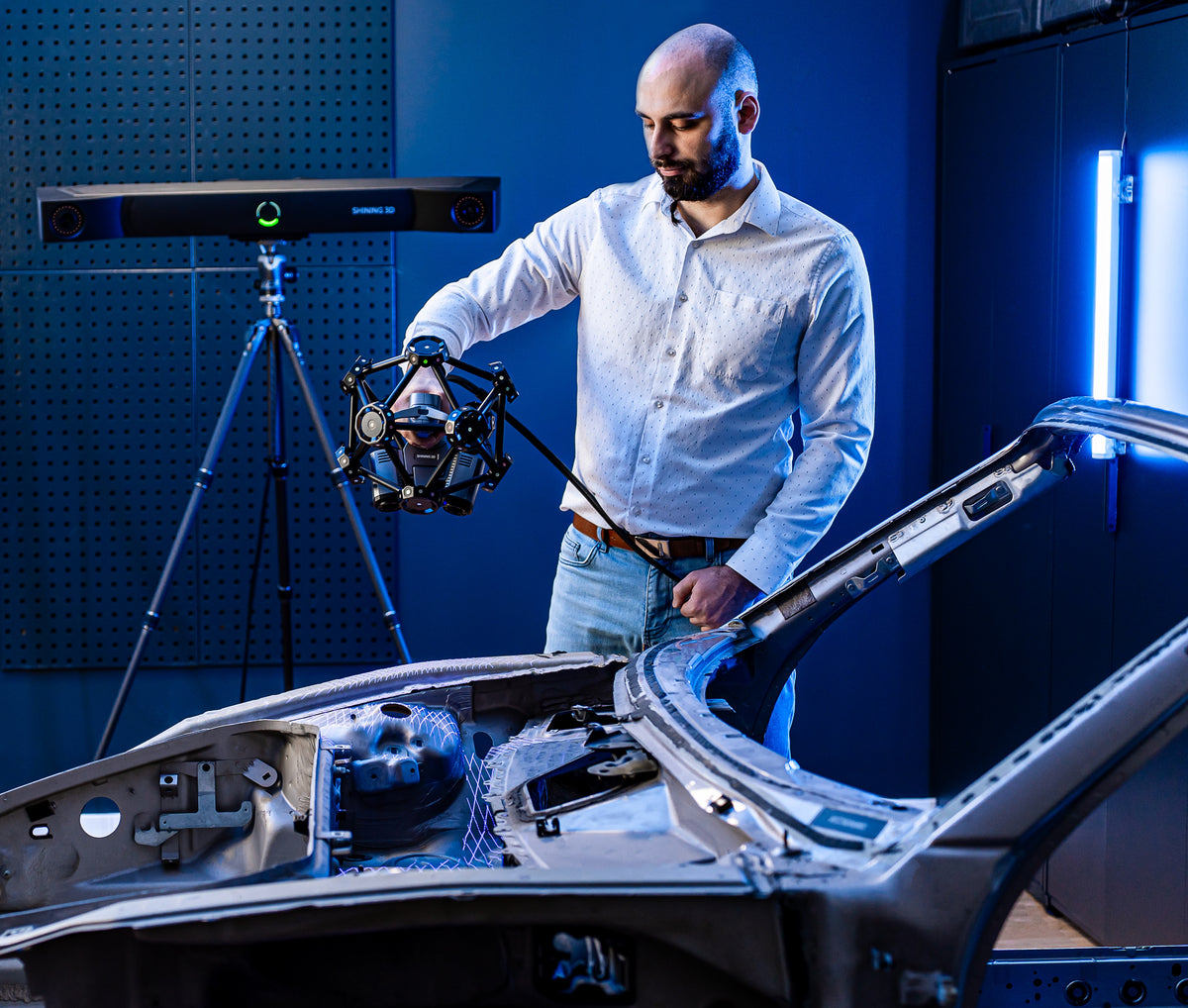

Sheet-metal parts, welded frames, fixtures, and assembly verification
04

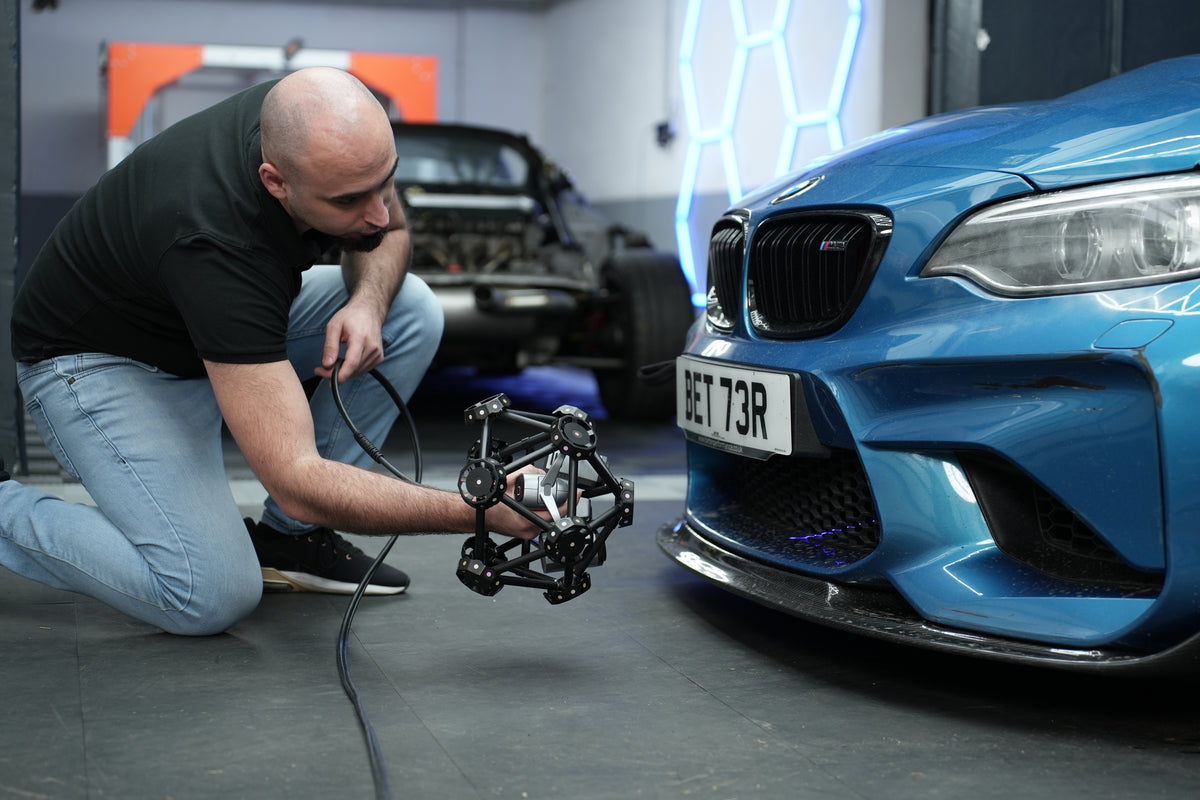

Large-part reverse engineering for transportation, energy, and heavy industry
Video library
Evaluate the system under real operating conditions.
Move between unboxing, tracking, handheld capture, and application footage without leaving the page.
Video library
Select a video to begin
Watch demonstrations, tutorials, and real application workflows without leaving the product page.
Technical specifications
Technical evidence for engineering and IT.
Review measurement performance, operating envelope, connectivity, and the workstation needed to process the data.
AccuracyUp to 0.023 mm
Maximum scan speed3,070,000 points/s
High-speed scan50 crossed blue laser lines
Tracking workflowMarker-free dynamic referencing
System typePortable optical 3D measuring and dynamic tracking system
Core componentsFreeTrak dual-camera optical tracker and TE25 handheld laser scanner
Scanning modesOptical tracking and marker-based scanning
Detailed scan7 parallel blue laser lines
Deep-feature scan1 single blue laser line; up to 1:4 hole diameter-to-depth ratio
Volumetric accuracy0.062 mm over 9.6 m³; 0.072 mm over 17.6 m³
Volumetric accuracy with photogrammetry0.044 mm + 0.012 mm/m
Maximum field of view650 × 580 mm
Point distance0.01 to 10 mm
Scan depth400 mm
Working distance300 mm
Recommended object size0.1 to 10 m
Industrial cameras2 × 5 MP on the TE25 scanner
Optional FreeProbe accuracy0.025 mm
Optional FreeProbe measurement rate100 measurements/s
Light sourceInfrared LED on FreeTrak; blue laser on TE25
Laser classClass II
FreeTrak dimensions and weight1079 × 237 × 110 mm; 7.2 kg
TE25 dimensions and weight281 × 283 × 290 mm; 1.47 kg
FreeProbe dimensions and weight70 × 150 × 340 mm; 0.5 kg
ConnectivityUSB 3.0, IEEE 802.11n/ac, and IEEE 802.3ab
Output formatsSTL, OBJ, PLY, ASC, and 3MF
Operating temperature-10 to 40 °C
Operating humidity10% to 90% RH
Accuracy acceptanceVDI/VDE 2634 Part 3 and ISO 10360; evaluated in an ISO/IEC 17025 accredited laboratory
CertificationsCE, FCC, RoHS, WEEE, KC, FDA, UKCA, IP50, TELEC, and TISAX
| Component | Minimum | Recommended |
|---|---|---|
| Operating system | Not separately published | Windows 10 Pro 64-bit or Windows 11 Pro 64-bit |
| Processor | AVX instruction support required | Intel Core i7-13650HX at 2.6 GHz or above |
| Graphics card | Discrete NVIDIA GPU required | NVIDIA GeForce RTX 4060 or above |
| Video memory | Not separately published | 8 GB or above |
| System memory | Not separately published | 64 GB or above, DDR5 dual-channel |
| Interface | USB 3.0 | USB 3.0 |
The current Shining 3D brochure publishes a recommended workstation configuration, not a separate minimum specification. Shining 3D support also requires an NVIDIA GPU and a processor with AVX instruction support.
Interactive scan results
Inspect more than one related dataset.
Load the chosen model on demand, with a direct Sketchfab fallback for devices that cannot render the full scene.
Optional interactive preview
Industry Part
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
Impeller Part
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Models published by Shining 3D on Sketchfab. Use the direct link if the embedded viewer exceeds the device's graphics capacity.
Request a configured quote
Send us the system configuration you selected.
Your software, accessory, training, and protection choices will be included in the quote request.
