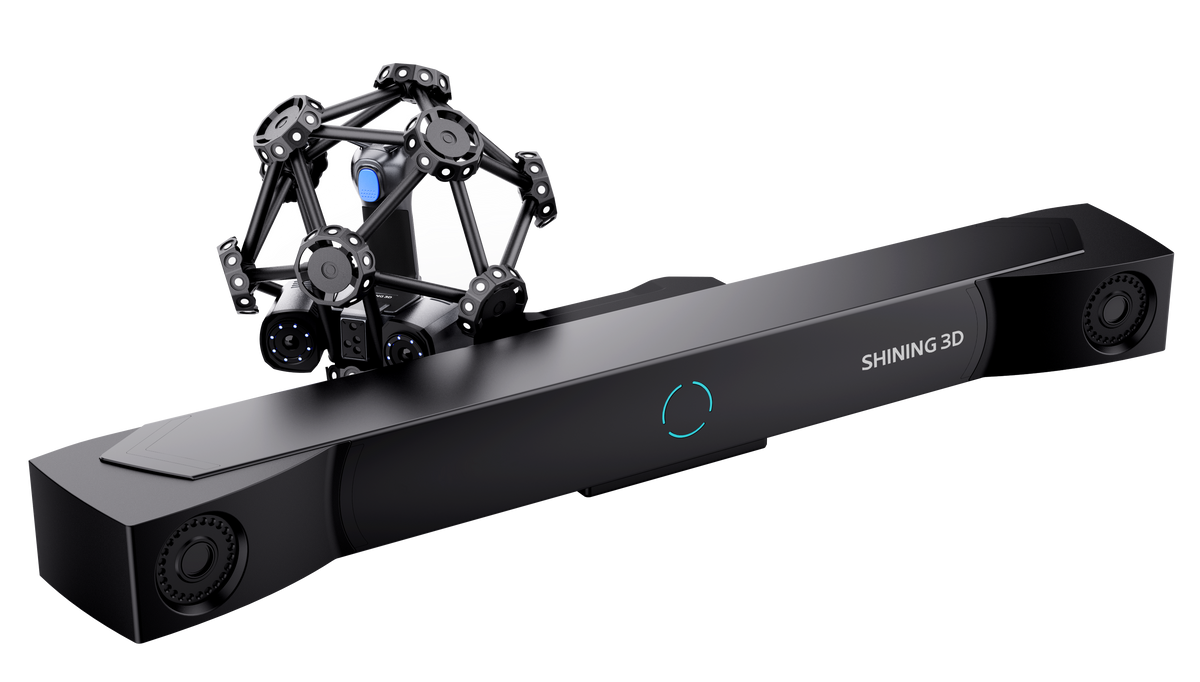

FreeScan Trak Pro2 SHINING 3D Optically tracked metrology system
Measure large assemblies with marker-free optical tracking.
Up to 0.023 mmScanner accuracy
3.07M pts/sMaximum capture speed
50High-speed laser lines
Marker-freeOptical tracking
System architecture & capabilities
Measure large assemblies with marker-free optical tracking.
Up to 0.023 mmScanner accuracy
3.07M pts/sMaximum capture speed
50High-speed laser lines
Marker-freeOptical tracking
Up to 0.023 mm
Metrology accuracy up to 0.023 mm
Up to 3.07M points/s
Up to 3,070,000 points/s with 50 crossed blue laser lines
OPTICAL TRACKING METROLOGY SYSTEMPerformance highlights
Explore FreeScan Trak Pro2 capabilities.
Explore the capabilities that affect capture, output quality and day-to-day operation.
Feature in focusMarker-free tracking
01 / 08Your workflow
From measurement planning to the engineering handoff.
- Step 01
Scanner workflow
Plan the capture
Choose the scan mode, working range, and preparation around the part geometry and measurement objective.
Part-specific capture setup
- Step 02
Scanner workflow

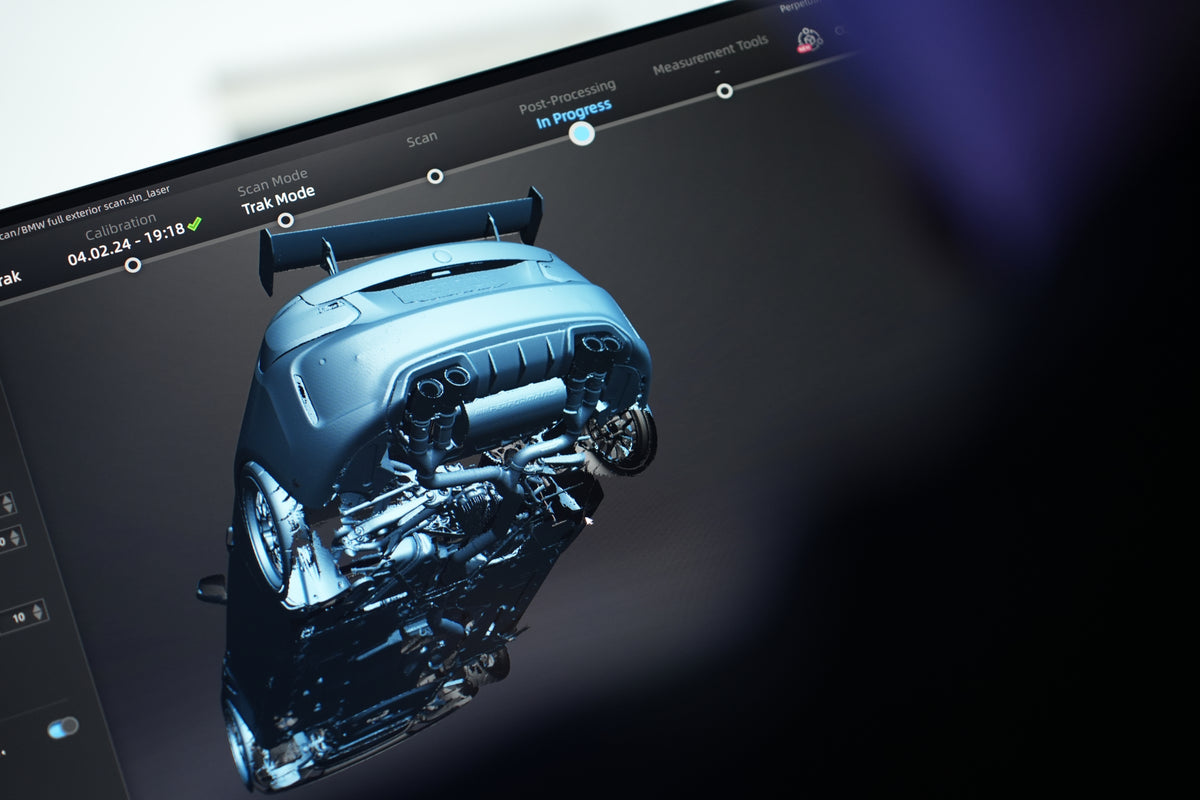

Capture & review the data
Check alignment, coverage, and data quality before preparing the result for the next engineering step.
Reviewed 3D scan data
- Step 03
Downstream licence requirements apply
Continue in CAD or inspection
Confirm the export format and software licence for downstream reverse engineering, dimensional inspection, or reporting.
An agreed engineering handoff

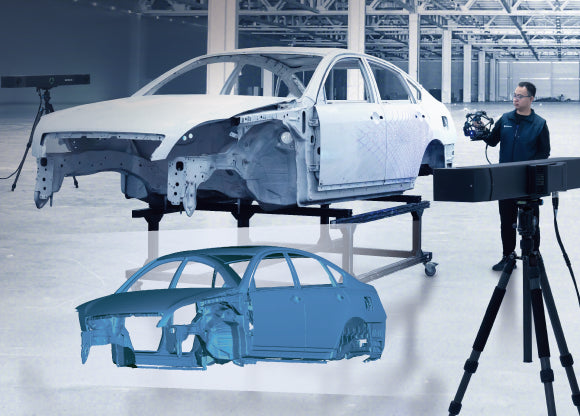

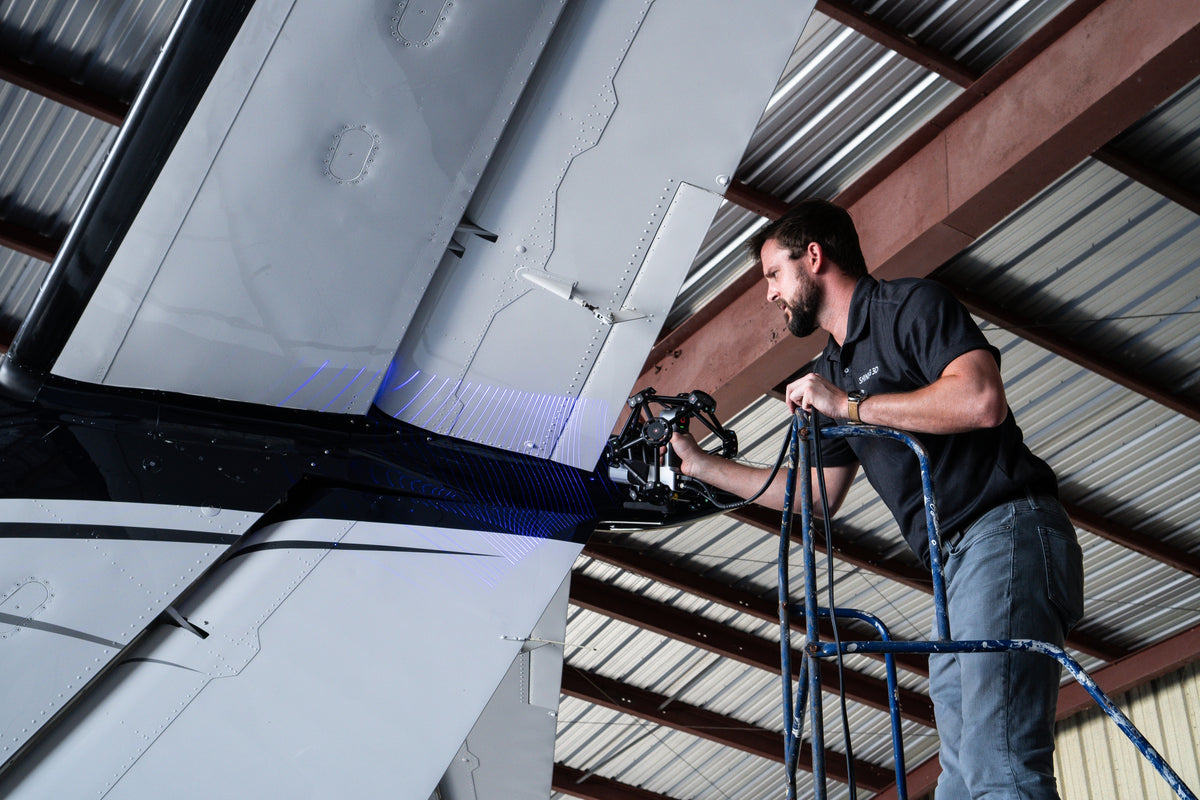

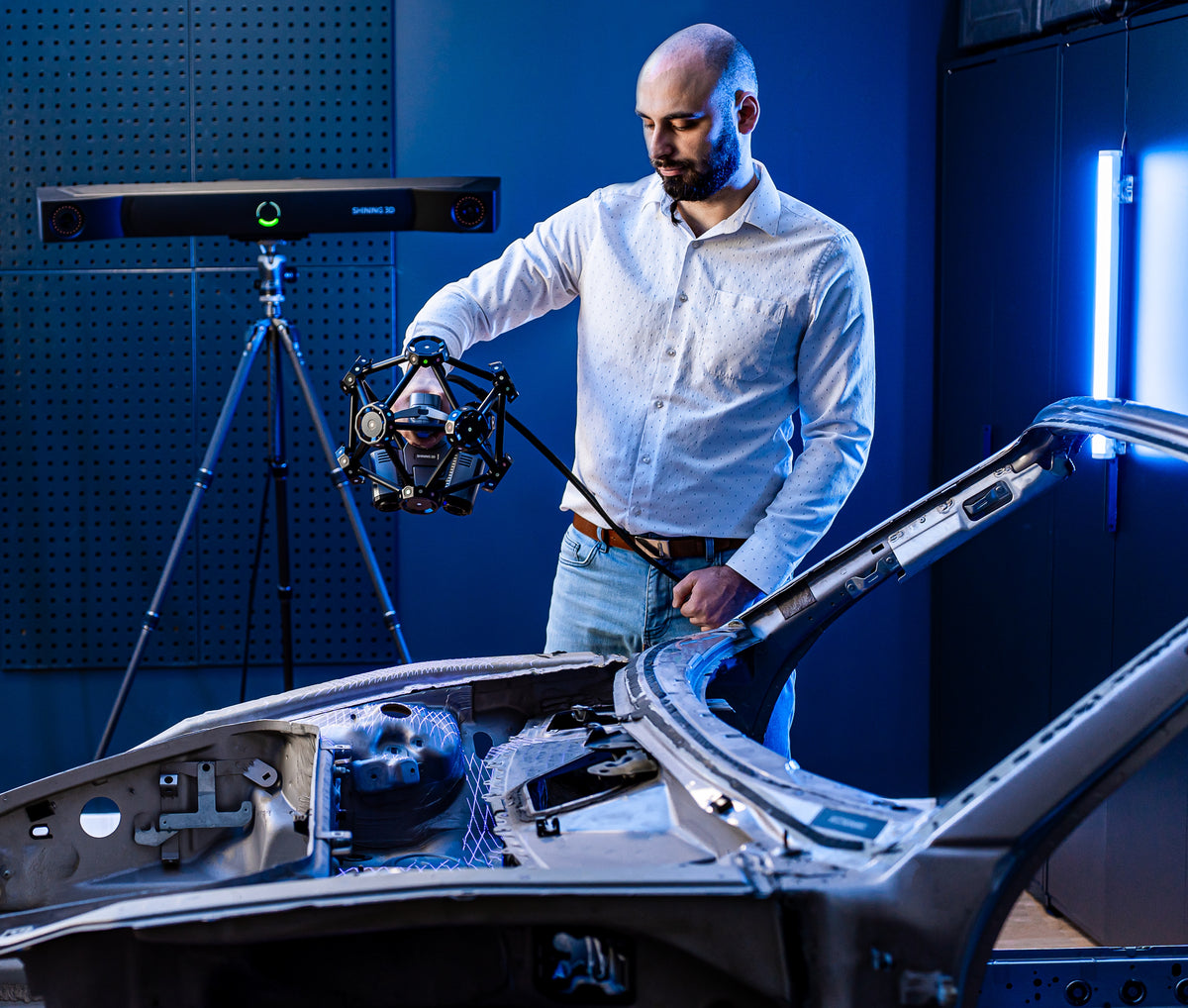

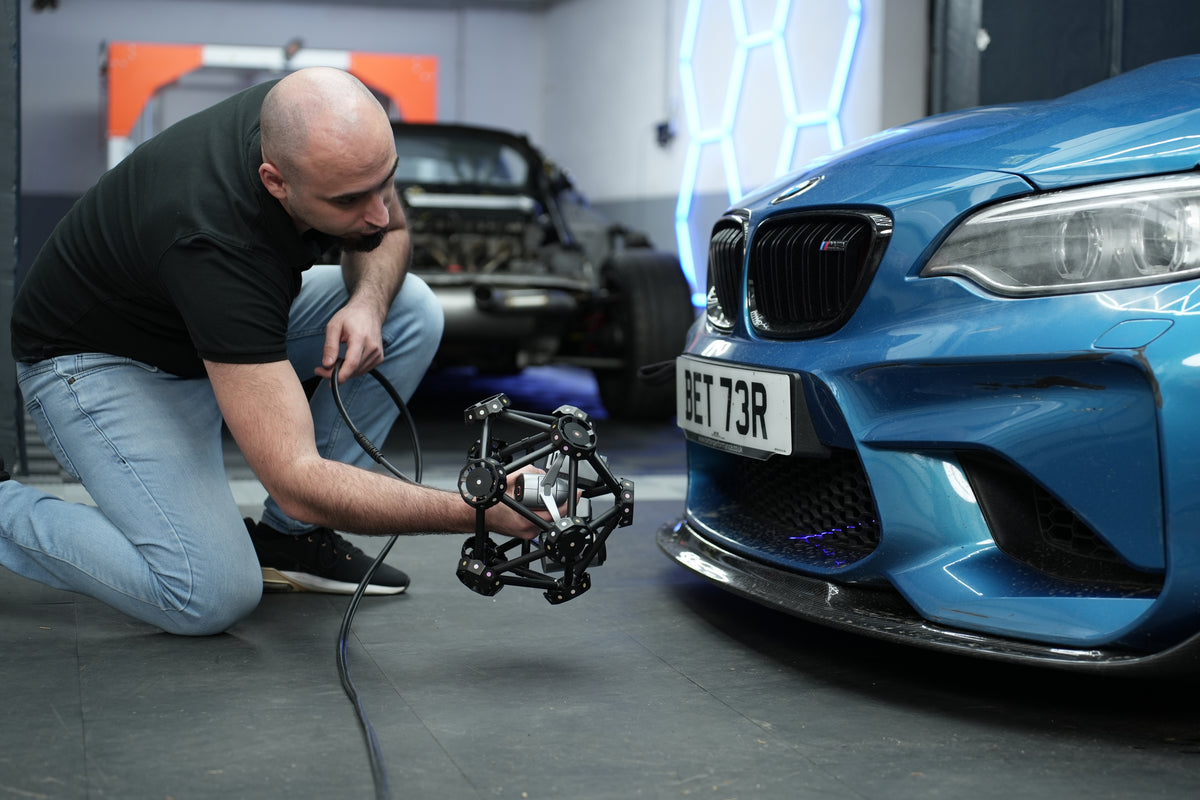

Application fit
Explore the applications for FreeScan Trak Pro2.
Explore representative use cases before confirming system fit.
Video library
Watch the workflow in motion.
Use official demonstrations, case studies, and tutorials to assess real operation.
Technical evidence
Every specification, organized for review.
Open the data set needed for engineering, IT, quality, and procurement review.
Complete data table
Open a category to review the full specification.
Physical & Operating Specifications
| FreeTrak dimensions and weight | 1079 × 237 × 110 mm; 7.2 kg |
|---|---|
| TE25 dimensions and weight | 281 × 283 × 290 mm; 1.47 kg |

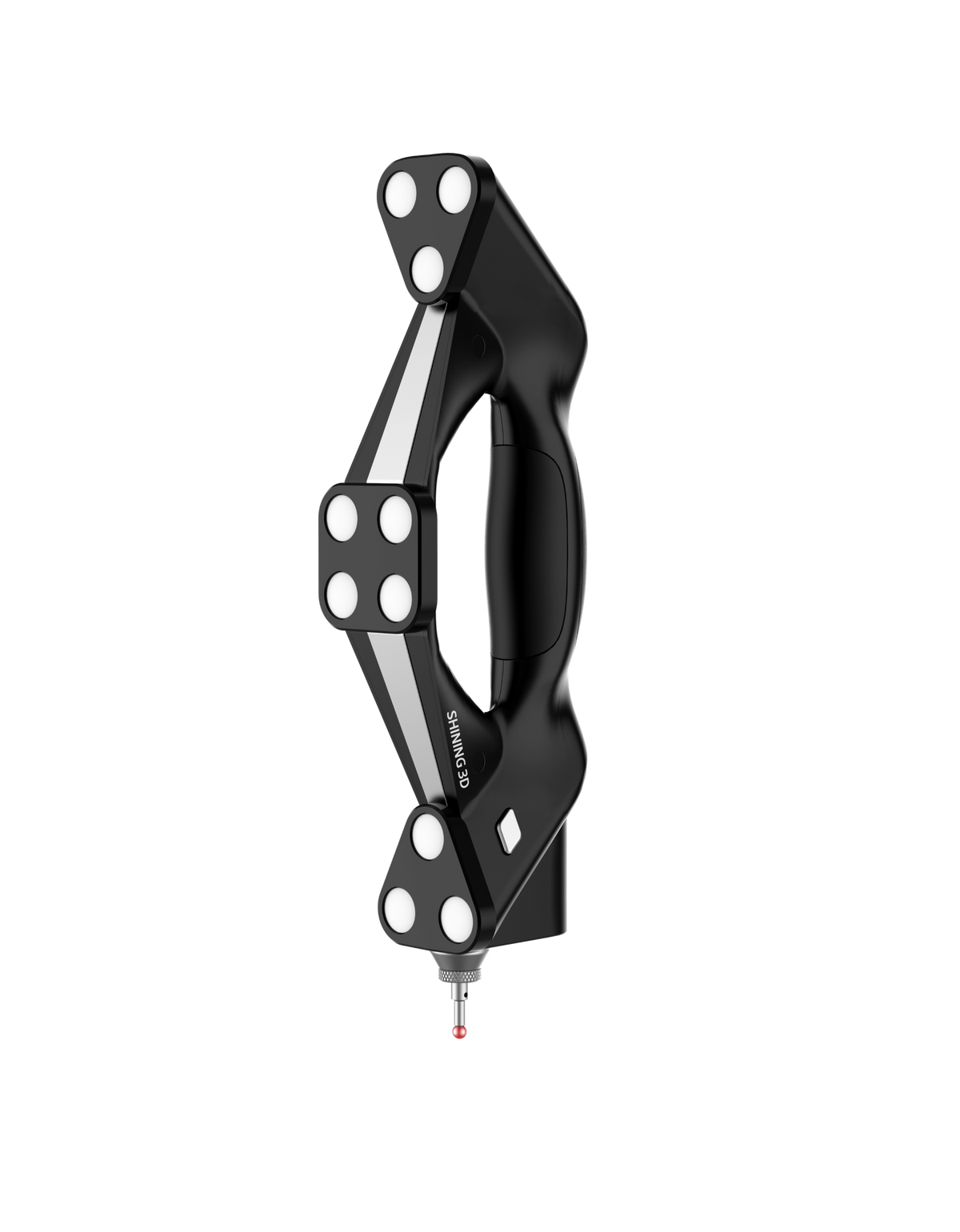

| FreeProbe dimensions and weight | 70 × 150 × 340 mm; 0.5 kg |
| Operating temperature | -10 to 40 °C |
| Operating humidity | 10% to 90% RH |
Capture & Measurement Performance
| Accuracy | Up to 0.023 mm |
|---|---|
| Maximum scan speed | 3,070,000 points/s |

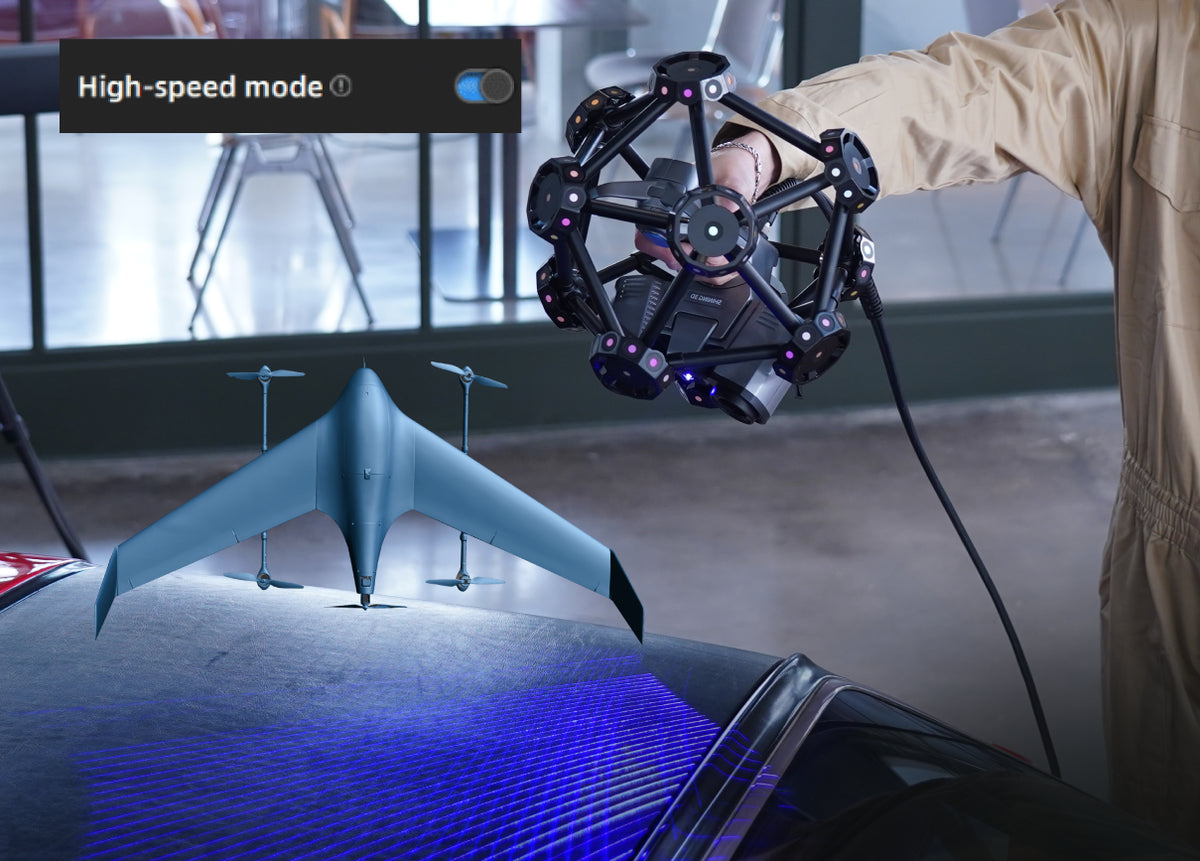

| High-speed scan | 50 crossed blue laser lines |
| Tracking workflow | Marker-free dynamic referencing |
| System type | Portable optical 3D measuring and dynamic tracking system |

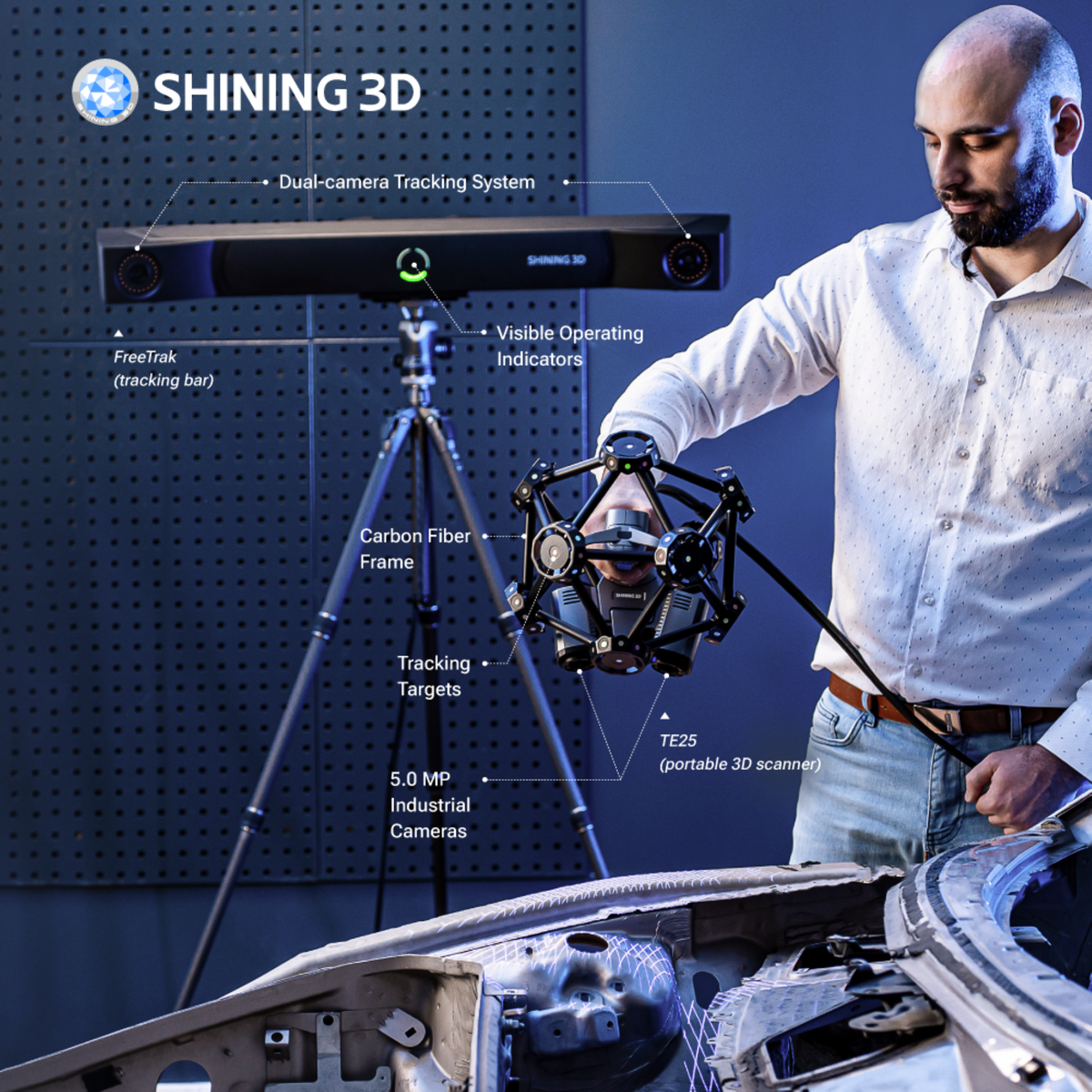

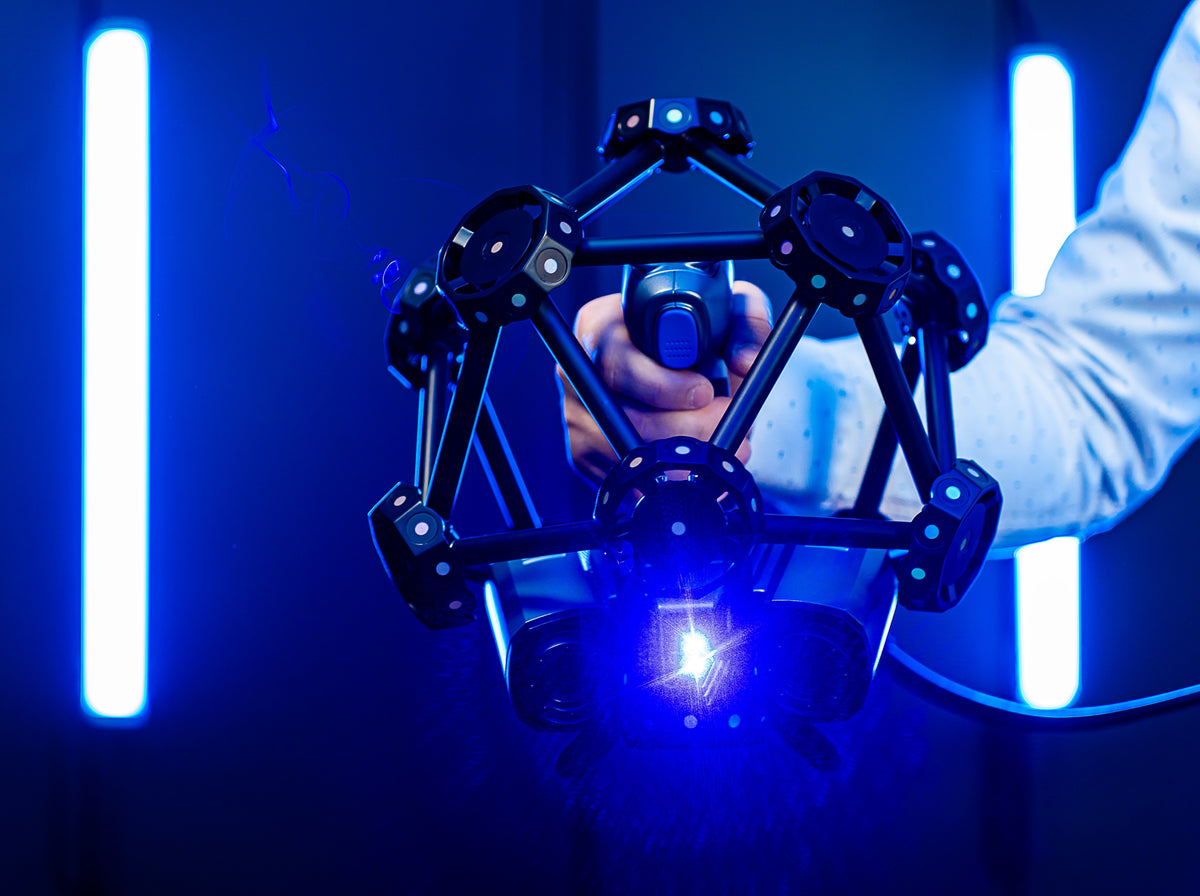

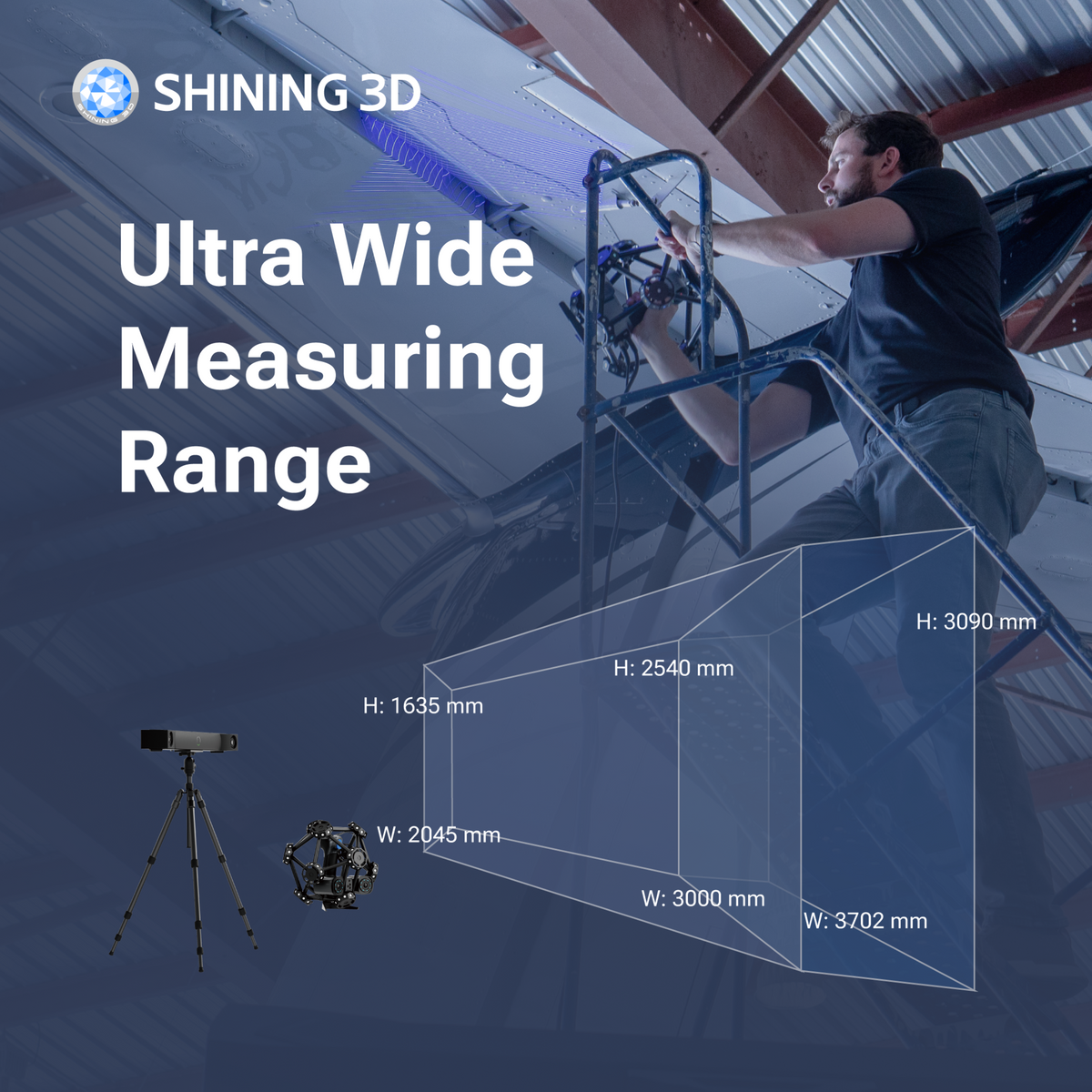

| Core components | FreeTrak dual-camera optical tracker and TE25 handheld laser scanner |
| Scanning modes | Optical tracking and marker-based scanning |
| Detailed scan | 7 parallel blue laser lines |
| Deep-feature scan | 1 single blue laser line; up to 1:4 hole diameter-to-depth ratio |
| Volumetric accuracy | 0.062 mm over 9.6 m³; 0.072 mm over 17.6 m³ |
| Volumetric accuracy with photogrammetry | 0.044 mm + 0.012 mm/m |
| Maximum field of view | 650 × 580 mm |
| Point distance | 0.01 to 10 mm |
| Scan depth | 400 mm |
| Working distance | 300 mm |
| Recommended object size | 0.1 to 10 m |
| Industrial cameras | 2 × 5 MP on the TE25 scanner |
| Optional FreeProbe accuracy | 0.025 mm |
| Optional FreeProbe measurement rate | 100 measurements/s |
| Light source | Infrared LED on FreeTrak; blue laser on TE25 |
| Laser class | Class II |
| Connectivity | USB 3.0, IEEE 802.11n/ac, and IEEE 802.3ab |
Software, Formats & System Requirements
| Output formats | STL, OBJ, PLY, ASC, and 3MF |
|---|
Workstation requirements
| Component | Minimum | Recommended |
|---|---|---|
| Operating system | Not separately published | Windows 10 Pro 64-bit or Windows 11 Pro 64-bit |
| Processor | AVX instruction support required | Intel Core i7-13650HX at 2.6 GHz or above |
| Graphics card | Discrete NVIDIA GPU required | NVIDIA GeForce RTX 4060 or above |
| Video memory | Not separately published | 8 GB or above |
| System memory | Not separately published | 64 GB or above, DDR5 dual-channel |
| Interface | USB 3.0 | USB 3.0 |
The current Shining 3D brochure publishes a recommended workstation configuration, not a separate minimum specification. Shining 3D support also requires an NVIDIA GPU and a processor with AVX instruction support.
Standards & Safety Compliance
| Accuracy acceptance | VDI/VDE 2634 Part 3 and ISO 10360; evaluated in an ISO/IEC 17025 accredited laboratory |
|---|---|
| Certifications | CE, FCC, RoHS, WEEE, KC, FDA, UKCA, IP50, TELEC, and TISAX |
Interactive results
Inspect representative scan data.
Load a model to examine surface detail and captured geometry.
Package contents
What arrives with the selected system.
Review the documented hardware, included accessories and software access for this product.
FreeScan Trak Pro2 System
Core tracked metrology system. Final cable, calibration, and accessory quantities are confirmed on the formal quote.
- FreeTrak dual-camera optical tracker

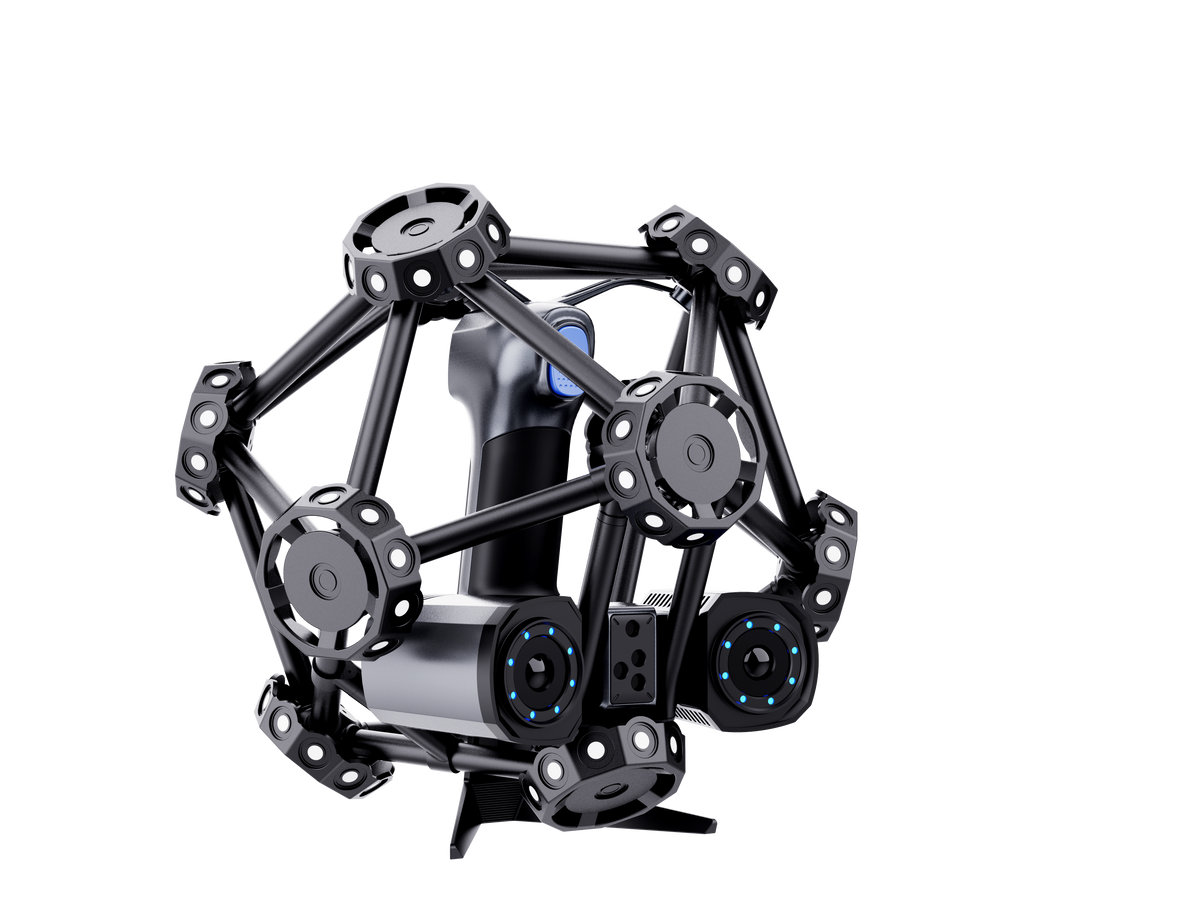

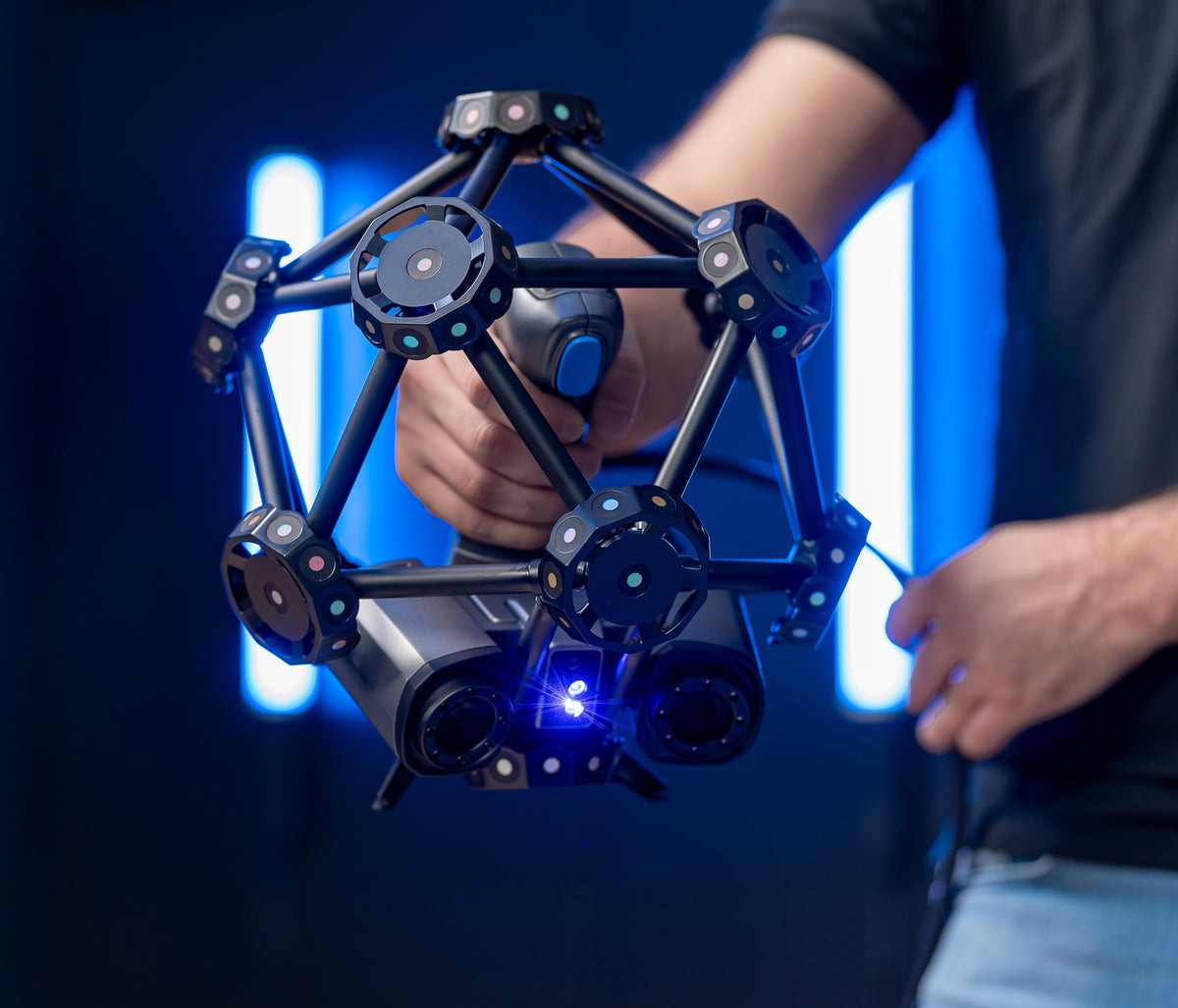

- TE25 handheld blue-laser scanner
- FreeScan Trak scanning software
A workstation, downstream inspection or reverse-engineering software, FreeProbe, 15 m Trak cable, training, and optional protection are not included unless they are listed on the formal quote.
FreeScan Trak Pro2
$65,999
Monthly budget illustrations assume 36 payments at 15% APR, $0 down. Taxes, shipping and fees are excluded. This is not a financing offer or approval. Affirm is unavailable for purchases over $30,000.
Est. monthly budget: $2,288/ mo
36 mo · 15% APR · $0 down. Illustration only.
Monthly payment options
