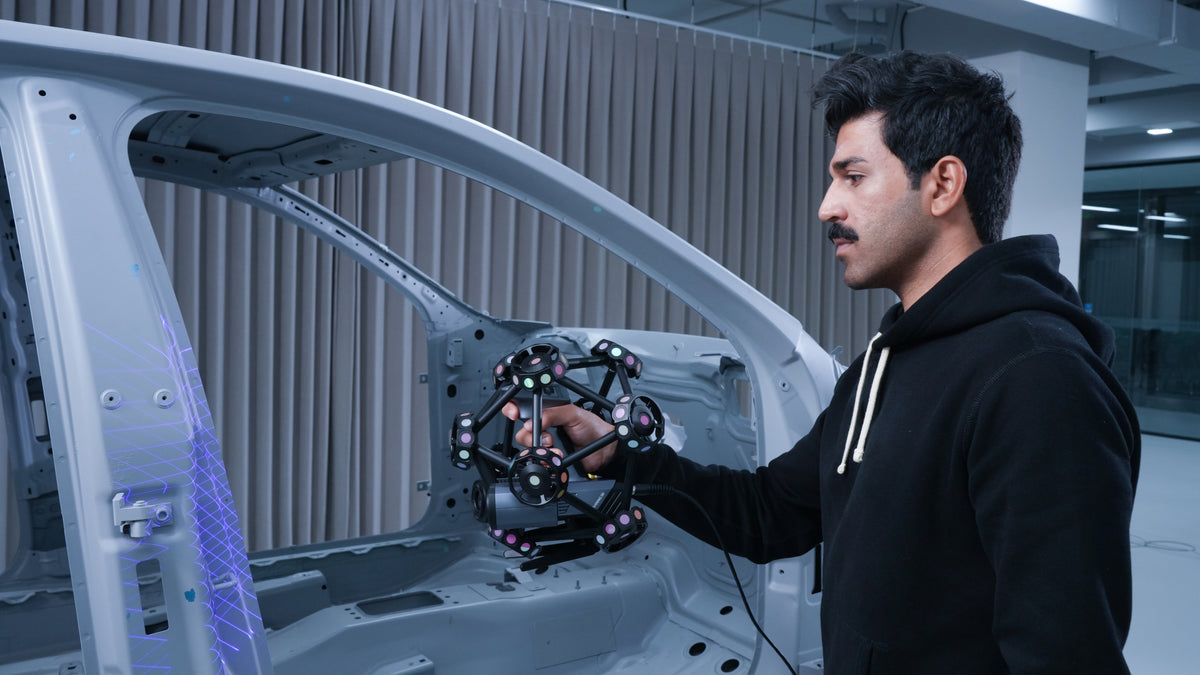

Marker-free dynamic tracking
Marker-free dynamic tracking with the FreeTrak W optical tracker
WIRELESS OPTICAL TRACKING SYSTEM
FreeScan Trak ProW SHINING 3D Wireless optical tracking system

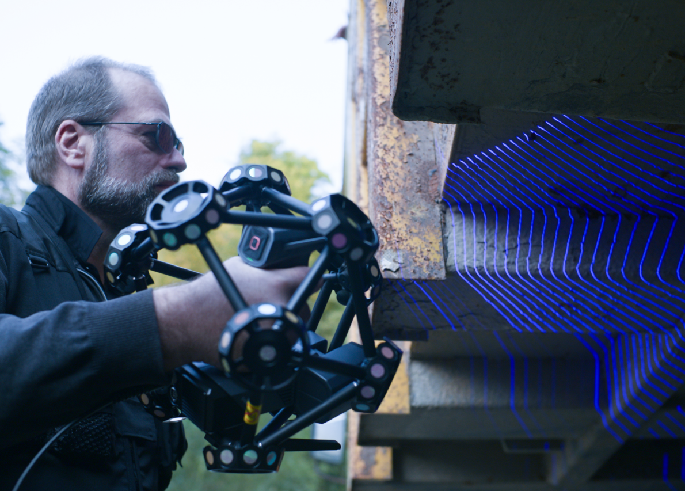

Take marker-free measurement across large industrial workspaces.
8.6 mMaximum tracking range
Up to 206.7 m³Single-station volume
5.5M pts/sMaximum capture speed
Up to 0.023 mmScanner accuracy
System architecture & capabilities
Take marker-free measurement across large industrial workspaces.
8.6 mMaximum tracking range
Up to 206.7 m³Single-station volume
5.5M pts/sMaximum capture speed
Up to 0.023 mmScanner accuracy
Up to 206.7 m³

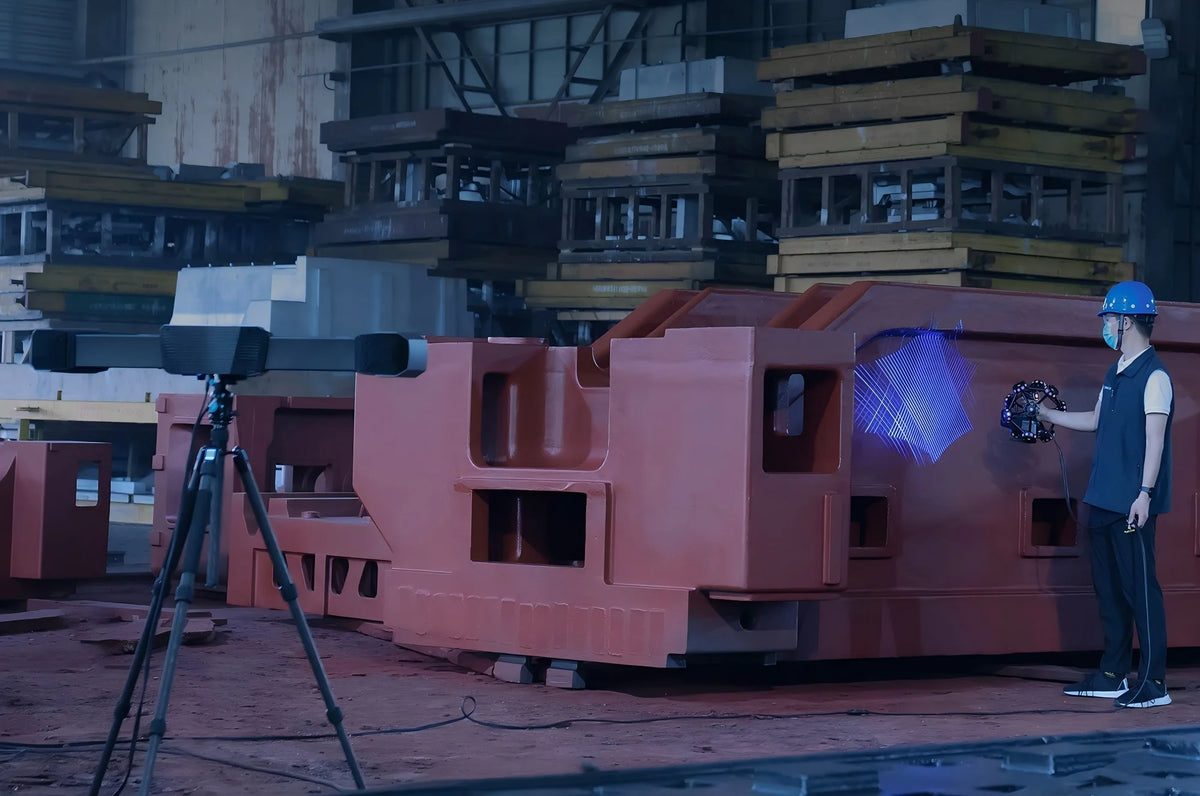

Up to 206.7 m³ single-station tracking volume and 8.6 m range

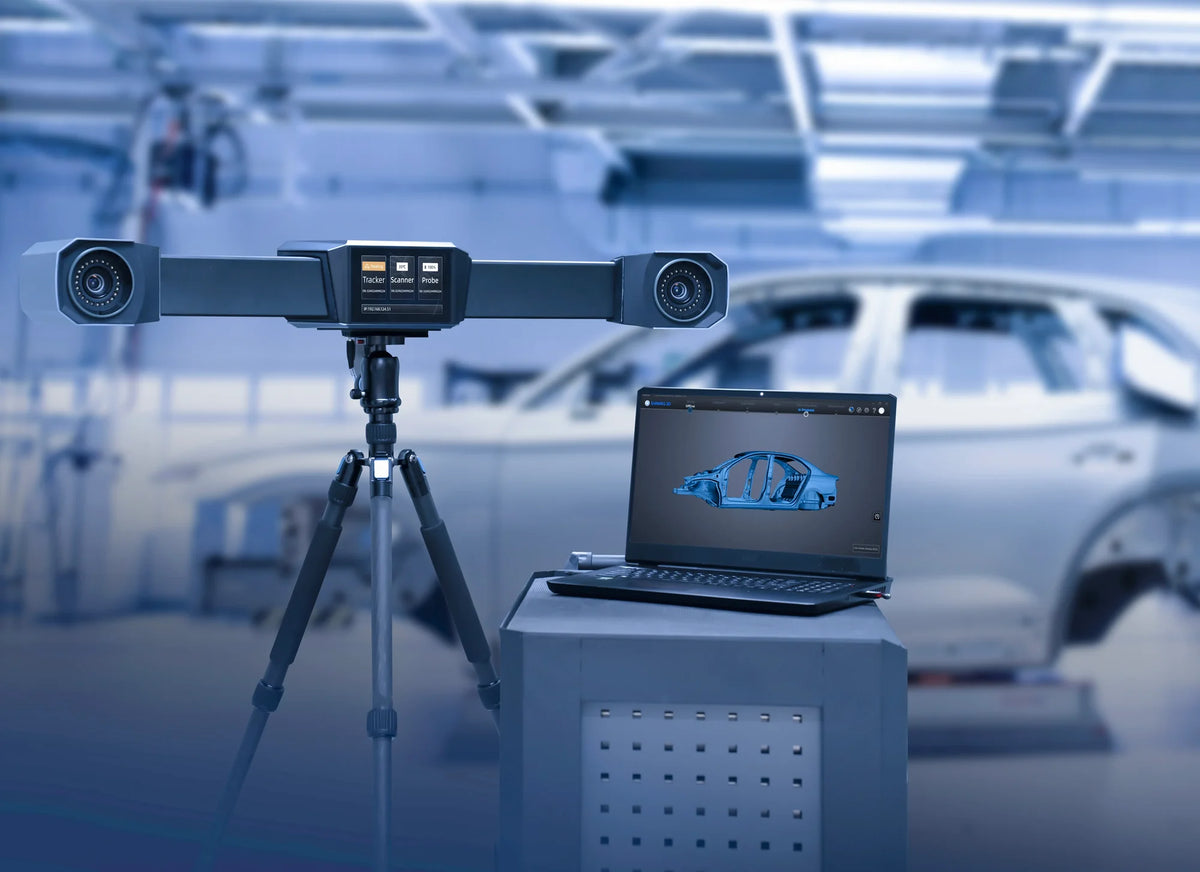

Wireless power workflow
Fully wireless scanning with power-bank operation
WIRELESS OPTICAL TRACKING SYSTEMPerformance highlights
Explore FreeScan Trak ProW capabilities.
Explore the capabilities that affect capture, output quality and day-to-day operation.
Feature in focusMarker-free dynamic tracking
01 / 08Your workflow
From measurement planning to the engineering handoff.
- Step 01
Scanner workflow
Plan the capture
Choose the scan mode, working range, and preparation around the part geometry and measurement objective.
Part-specific capture setup
- Step 02
Scanner workflow

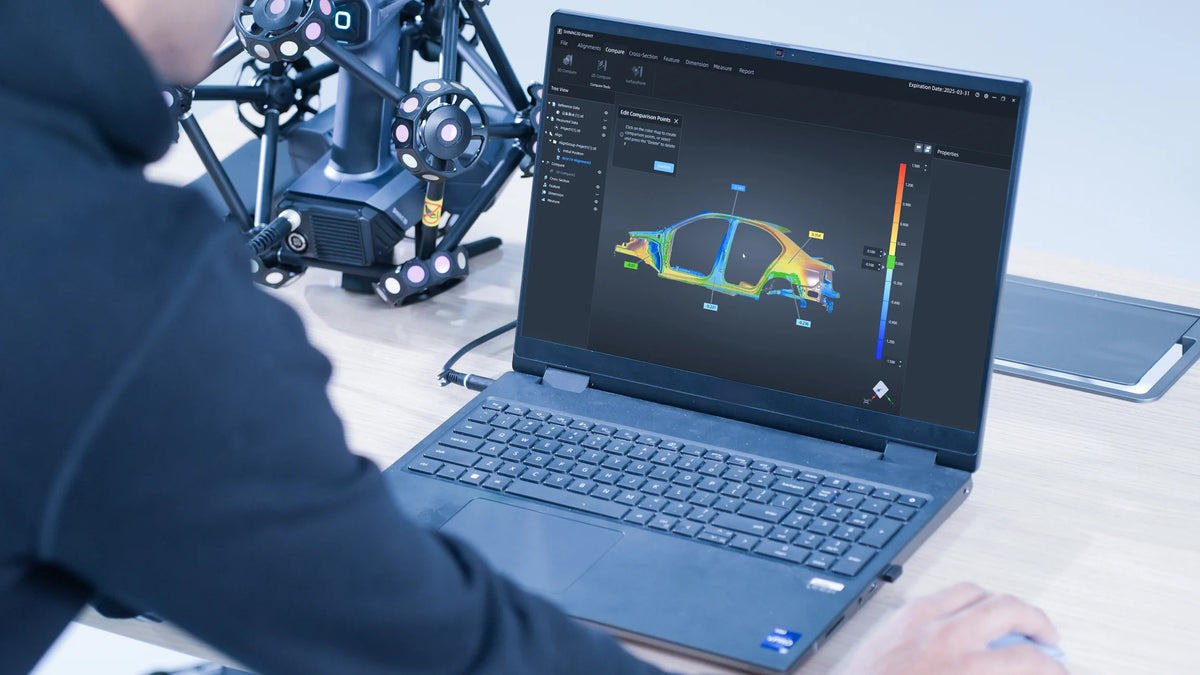

Capture & review the data
Check alignment, coverage, and data quality before preparing the result for the next engineering step.
Reviewed 3D scan data
- Step 03
Downstream licence requirements apply
Continue in CAD or inspection
Confirm the export format and software licence for downstream reverse engineering, dimensional inspection, or reporting.
An agreed engineering handoff
Application fit
Explore the applications for FreeScan Trak ProW.
Explore representative use cases before confirming system fit.
Video library
Watch the workflow in motion.
Use official demonstrations, case studies, and tutorials to assess real operation.
Technical evidence
Every specification, organized for review.
Open the data set needed for engineering, IT, quality, and procurement review.
Complete data table
Open a category to review the full specification.
Physical & Operating Specifications
| FreeTrak W weight | 10.6 kg |
|---|---|
| TE25W weight | 1.4 kg |
Capture & Measurement Performance
| Accuracy | Up to 0.023 mm |
|---|---|
| Maximum scan speed | 5,500,000 points/s |
| Maximum tracking distance | 8.6 m |
| Single-station tracking volume | Up to 206.7 m³ |
| System type | Wireless optical 3D measuring and dynamic tracking system |
| Tracking workflow | Marker-free dynamic tracking with FreeTrak W |
| Scanner | TE25W handheld laser scanner |
| Resolution | 0.01 to 10 mm |
| High-speed scan | 50 laser lines |
| Detailed scan | 7 parallel laser lines |
| Deep-pocket scan | 1 laser line |
| Volumetric accuracy by range | 0.046 mm at 15.6 m³; 0.063 mm at 45 m³; 0.088 mm at 76 m³; 0.127 mm at 128 m³ |
| Volumetric accuracy with VPG | 0.044 + 0.012 mm/m across extension volume |
Software, Formats & System Requirements
| Connection | Wireless or wired by fiber optic cable |
|---|
Workstation requirements
| Component | Minimum | Recommended |
|---|---|---|
| Operating system | Not separately published | Windows 11 Professional 22H2, 64-bit |
| Processor | AVX instruction support required | 13th Gen Intel Core i7-13700H or above |
| System memory | Not separately published | 64 GB or above, DDR5 dual-channel |
| Graphics card | NVIDIA GPU with at least 1,280 CUDA cores | NVIDIA GeForce RTX 4060 Laptop GPU or above |
| Video memory | Not separately published | 8 GB or above |
| USB port | USB 3.0 | USB 3.0 |
| Supported display | Not separately published | 1920 × 1080 at 100% or 125% scaling |
Shining 3D publishes a recommended workstation configuration rather than a separate minimum specification. The current FreeScan Trak ProW software page recommends Windows 11 Pro 64-bit.
Standards & Safety Compliance

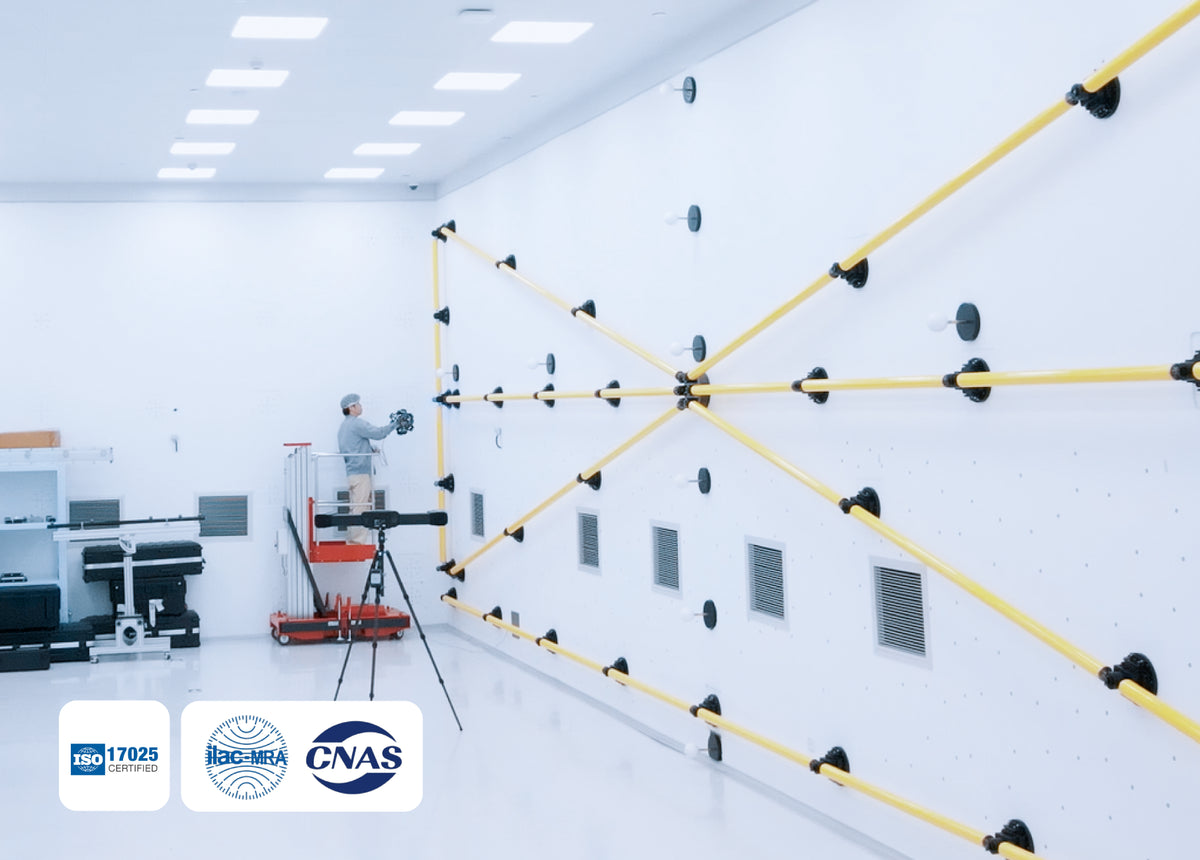

| Accuracy acceptance | VDI/VDE 2634 Part 3 and ISO 10360; certified in an ISO/IEC 17025 accredited accuracy laboratory |
|---|---|
| Certifications | CE, FCC, RoHS, WEEE, KC, FDA, UKCA, IP50, TELEC, and TISAX |
Interactive results
Inspect representative scan data.
Load a model to examine surface detail and captured geometry.
Package contents
What arrives with the selected system.
Review the documented hardware, included accessories and software access for this product.
FreeScan Trak ProW System
Core wireless tracked metrology system. Final cable, battery, calibration, and accessory quantities are confirmed on the formal quote.

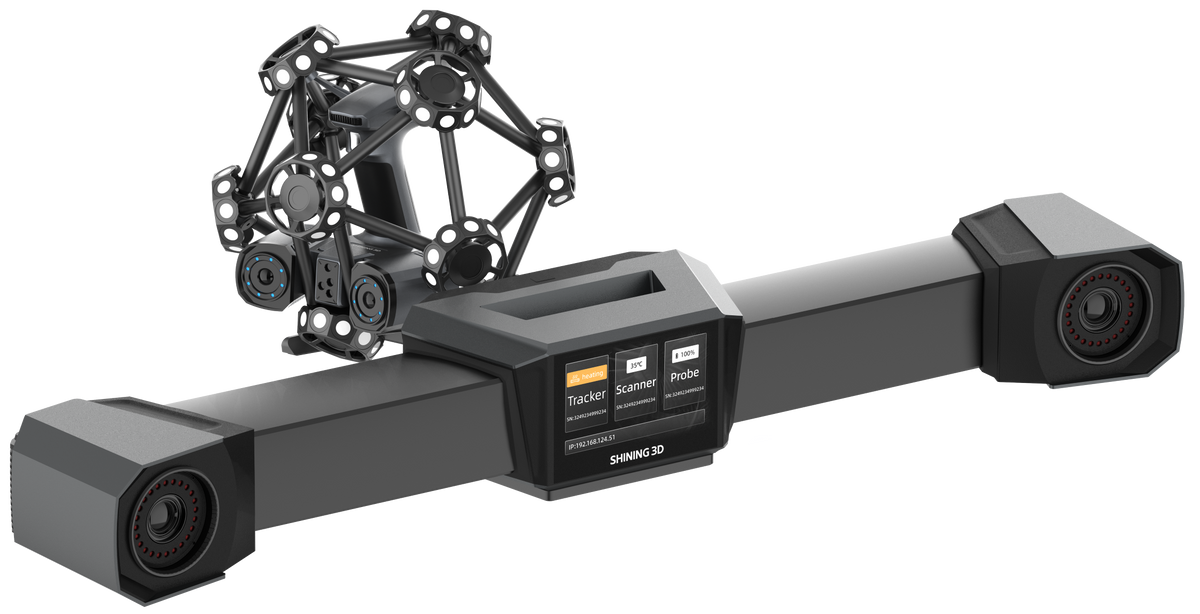

- FreeTrak W optical tracker
- TE25W handheld laser scanner

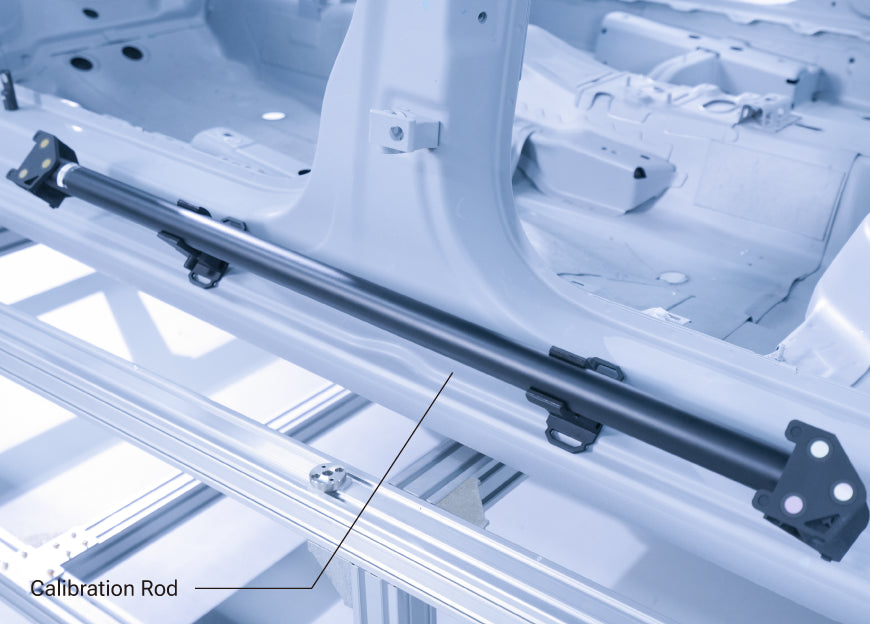

- Calibration rod for the video photogrammetry workflow
- FreeScan Trak software
- Shining 3D supplied tracker battery and scanner power bank
- Wireless router and connection accessories as specified on the final packing list

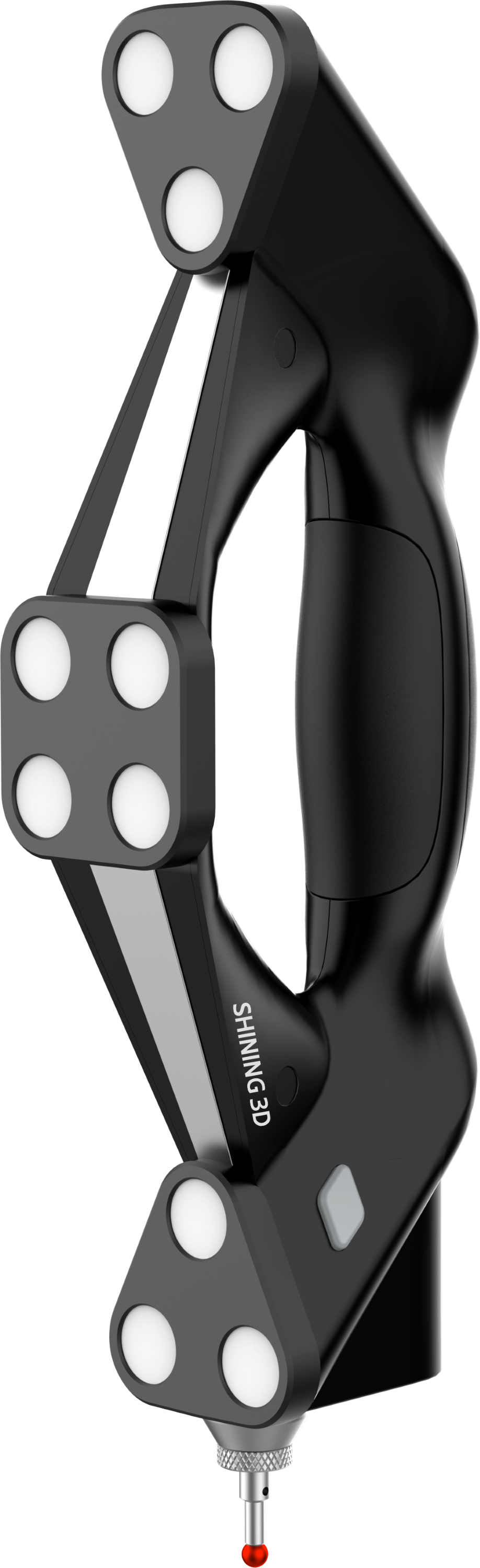

A workstation, downstream inspection or reverse-engineering software, FreeProbe, training, and optional protection are not included unless they are listed on the formal quote.
