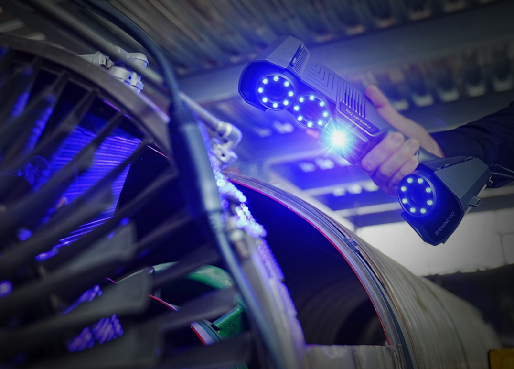

98-line marker-free mode
98-line marker-free scanning for feature-rich geometry
METROLOGY 3D SCANNER
FreeScan Trio SHINING 3D Multi-mode metrology scanner
Match the scanning mode to the part and inspection task.
98Marker-free laser lines
3.01M pts/sMaximum capture speed
Up to 0.02 mmMarker-supported accuracy
3 × 5 MPScanner cameras
System architecture & capabilities
Match the scanning mode to the part and inspection task.
98Marker-free laser lines
3.01M pts/sMaximum capture speed
Up to 0.02 mmMarker-supported accuracy
3 × 5 MPScanner cameras
Up to 3.01M points/s
Up to 3,010,000 points per second with three 5 MP cameras
Marker-supported precision
Up to 0.02 mm accuracy in marker-supported modes
METROLOGY 3D SCANNER985 gProduct weightPerformance highlights
Explore FreeScan Trio capabilities.
Explore the capabilities that affect capture, output quality and day-to-day operation.

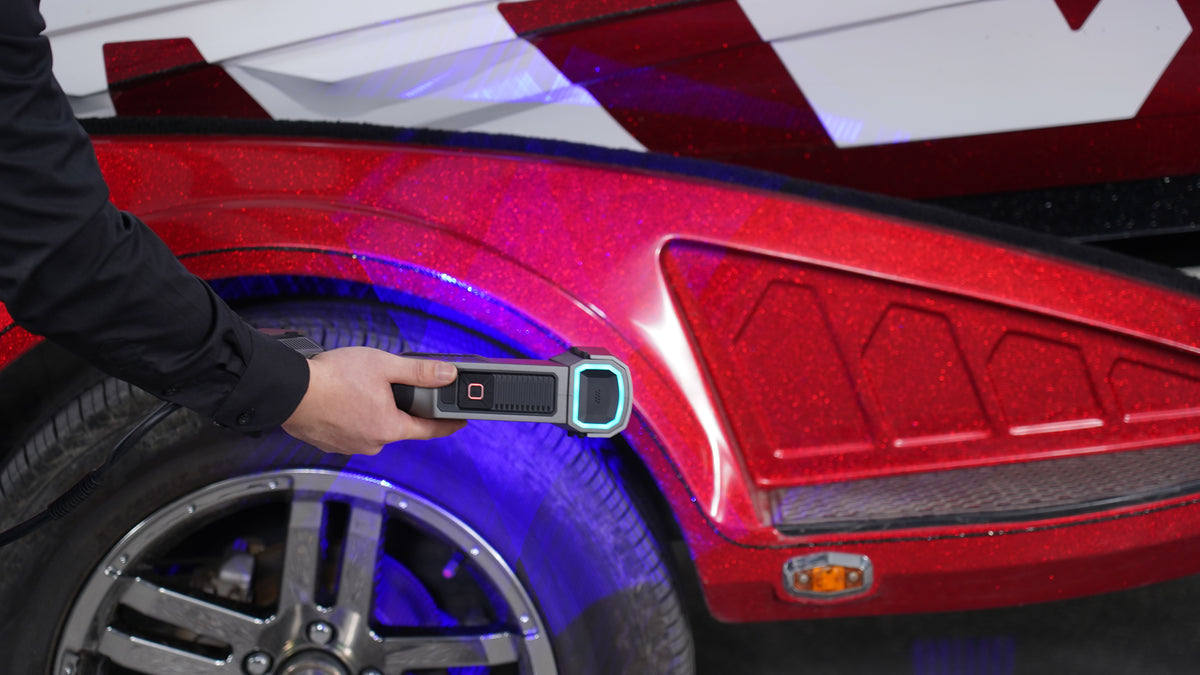

Feature in focus98-line marker-free mode
01 / 07Your workflow
From measurement planning to the engineering handoff.
- Step 01
Scanner workflow
Plan the capture
Choose the scan mode, working range, and preparation around the part geometry and measurement objective.
Part-specific capture setup
- Step 02
Scanner workflow

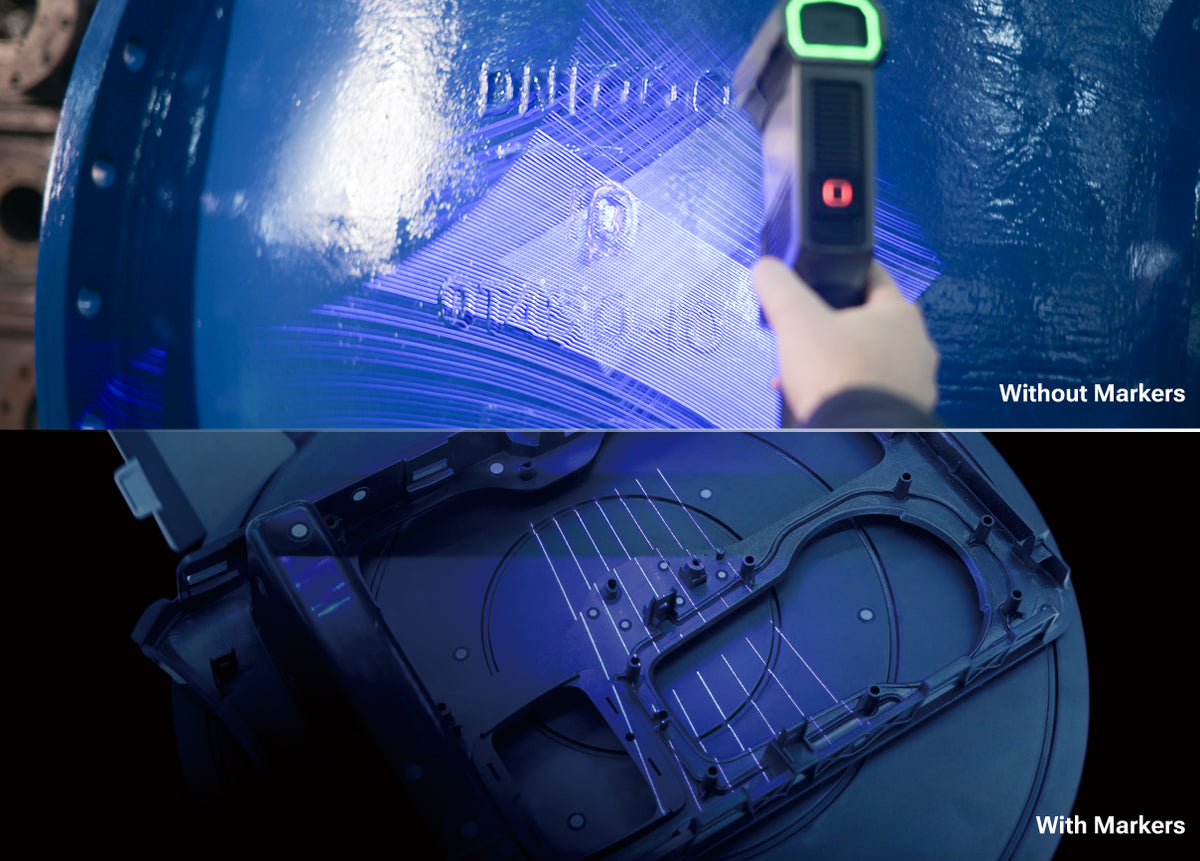

Capture & review the data
Check alignment, coverage, and data quality before preparing the result for the next engineering step.
Reviewed 3D scan data
- Step 03
Downstream licence requirements apply
Continue in CAD or inspection
Confirm the export format and software licence for downstream reverse engineering, dimensional inspection, or reporting.
An agreed engineering handoff
Application fit
Explore the applications for FreeScan Trio.
Explore representative use cases before confirming system fit.
Video library
Watch the workflow in motion.
Use official demonstrations, case studies, and tutorials to assess real operation.
Technical evidence
Every specification, organized for review.
Open the data set needed for engineering, IT, quality, and procurement review.
Complete data table
Open a category to review the full specification.
Physical & Operating Specifications
| Power | 12 V, 5.0 A |
|---|---|
| Dimensions | 331 × 120 × 76 mm |
| Weight | 985 g |
| Operating temperature | 0 to 40 °C |
| Operating humidity | 10% to 90% |
Capture & Measurement Performance
| Scanner type | Wired handheld laser 3D metrology scanner |
|---|---|

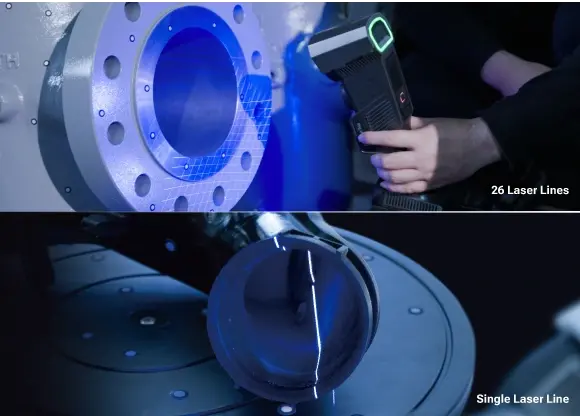

| Scan modes | High Speed, Deep Hole, Detailed, and No Markers |
| Laser patterns | 26 lines; 26 lines or single line; 7 parallel lines; 98 lines |
| Maximum scan speed | Up to 3,010,000 points/s |
| Camera system | Three industrial 5 MP cameras |
| Marker-supported accuracy | Up to 0.02 mm |
| Volumetric accuracy | 0.02 + 0.03 mm/m |
| Volumetric accuracy with VPG | 0.02 + 0.015 mm/m |
| Maximum field of view | 650 × 580 mm |
| Scan depth | 360 mm |
| Working distance | 300 mm in High Speed, Deep Hole, and No Markers modes; 200 mm in Detailed mode |
| Point distance | 0.01 to 3 mm |
| Light source | Blue laser |
| Dark and reflective surfaces | Supported |
| Data output | ASC, OBJ, STL, and PLY |
Software, Formats & System Requirements
| Connection | USB 3.0 |
|---|
Workstation requirements
| Component | Recommended |
|---|---|
| Operating system | Windows 11 Professional 22H2, 64-bit |
| Processor | 13th Gen Intel Core i7-13700H or above; AVX support required |
| Memory | 64 GB or more DDR5, dual-channel |
| Graphics | NVIDIA GeForce RTX 4060 Laptop GPU or above |
| Graphics memory | 8 GB or more VRAM |
| CUDA requirement | NVIDIA GPU with at least 1,280 CUDA cores |
| Connection | USB 3.0 |
SHINING 3D publishes these as the recommended FreeScan Trio workstation requirements. A compatible NVIDIA GPU is mandatory. The scanner connects to the workstation during scanning.
Standards & Safety Compliance
| Laser safety | Class II, eye safe; less than 1 mW at 450 nm |
|---|---|

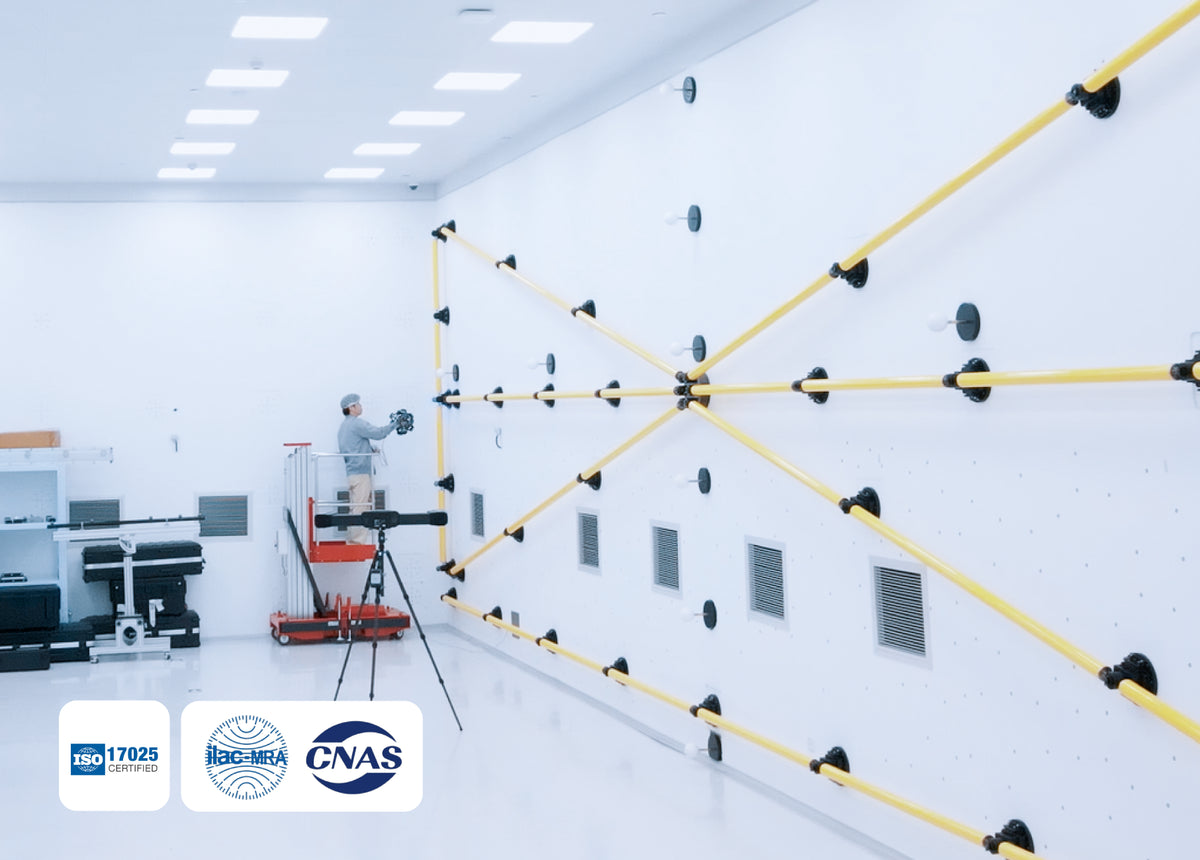

| Accuracy acceptance | VDI/VDE 2634 Part 3 and ISO 10360; tested in an ISO/IEC 17025 accredited laboratory |
| Certifications | CE, FCC, RoHS, WEEE, KC, FDA, UKCA, IP50, and TISAX |
Interactive results
Inspect representative scan data.
Load a model to examine surface detail and captured geometry.
Package contents
What arrives with the selected system.
Review the documented hardware, included accessories and software access for this product.
FreeScan Trio
Scanner-only package
- FreeScan Trio scanner
- Included FreeScan software
- Software license dongle
- 12 V, 5 A power adapter
- Regional power cord
- Combined power and USB 3.0 aviation cable
FreeScan Trio with EXModel Pro
Reverse-engineering package
- FreeScan Trio scanner
- Included FreeScan software
- Software license dongle
- 12 V, 5 A power adapter
- Regional power cord
- Combined power and USB 3.0 aviation cable
- EXModel Pro software entitlement under bundle SKU BD202411.000(US)
FreeScan Trio with Control X Essentials
Inspection package
- FreeScan Trio scanner
- Included FreeScan software
- Software license dongle
- 12 V, 5 A power adapter
- Regional power cord
- Combined power and USB 3.0 aviation cable
- Geomagic Control X Essentials software entitlement under bundle SKU BDL00109(US)
Manufacturer warranty and standard shipping are included. The exact software license term, maintenance entitlement, regional plug, calibration contents, and packing quantities must be confirmed against the current US packing list before fulfillment. Training, extended protection, additional markers, and software not named in the selected package are optional.
