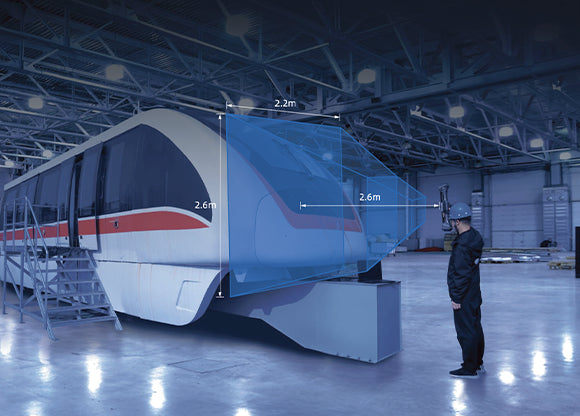

2.6 × 2.2 m field of view
2.6 × 2.2 m field of view with scanning distance up to 2.6 m

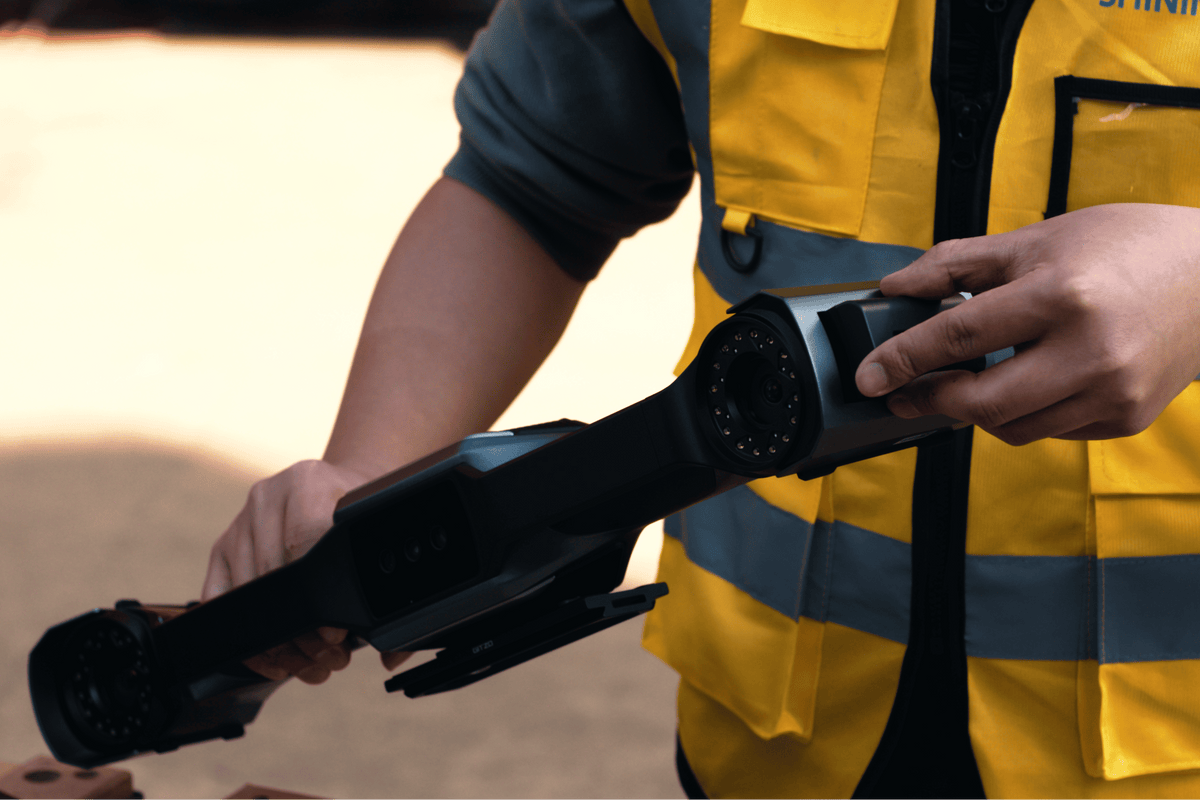

WIRELESS METROLOGY 3D SCANNER
FreeScan UE Nova SHINING 3D Large-field metrology scanner
Capture large components with a wide field of view.
2.6 × 2.2 mMaximum field of view
0.072 mmScanner accuracy
4.6M pts/sMaximum capture speed
50Laser lines
System architecture & capabilities
Capture large components with a wide field of view.
2.6 × 2.2 mMaximum field of view
0.072 mmScanner accuracy
4.6M pts/sMaximum capture speed
50Laser lines

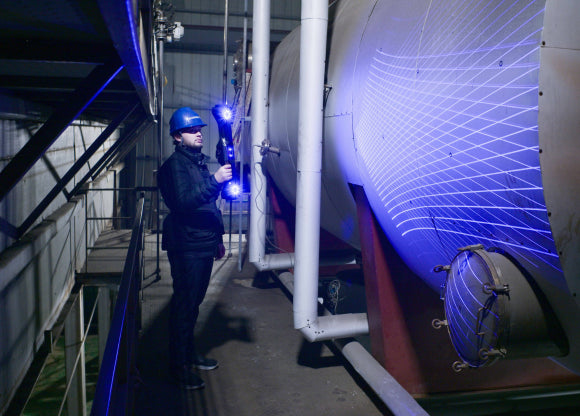

50 blue laser lines
50 blue laser lines and capture speed up to 4,600,000 points/s

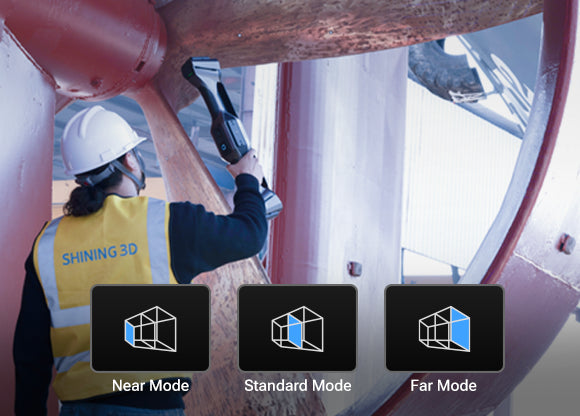

Three working ranges
Near, Standard, and Far working ranges for changing site conditions
WIRELESS METROLOGY 3D SCANNER1.6 kgProduct weightCompare configurations
Choose the hardware that fits your workflow.
FreeScan UE Nova
2.6 × 2.2 mMaximum field of view
0.072 mmScanner accuracy
Starting at $50,400
Est. monthly budget: $1,748/ mo
36 mo · 15% APR · $0 down. Illustration only.
Monthly payment options
Existing owners only
Trak Nova Upgrade for Existing UE Nova Owners
Upgrade for existing UE Nova owners only. Existing scanner eligibility and required hardware are confirmed on the quote.
Existing UE NovaEligibility
Upgrade onlyOrder scope
Starting at $17,999
Est. monthly budget: $624/ mo
36 mo · 15% APR · $0 down. Illustration only.
Monthly payment options
Hardware specifications
| Capability | FreeScan UE Nova | Trak Nova Upgrade for Existing UE Nova Owners |
|---|---|---|
| Purchase purpose | New scanner system | Upgrade an existing eligible UE Nova |
| Wide-range handheld scanning | Included | Uses the existing UE Nova |
| VPG large-volume workflow | Included | Retained in the upgraded system |
| Dynamic tracking | Not included | Added after upgrade |
| Marker-free tracking scan | Not included | Added after upgrade |
| Eligibility | New system quote | Existing UE Nova serial validation required |
| Purchase route | Configure quote | Configure quote |
Need custom software or multi-unit packages?
Build & Configure System ↗Performance highlights
Explore FreeScan UE Nova capabilities.
Explore the capabilities that affect capture, output quality and day-to-day operation.
Feature in focus2.6 × 2.2 m field of view
01 / 08Your workflow
From measurement planning to the engineering handoff.
- Step 01
Scanner workflow
Plan the capture
Choose the scan mode, working range, and preparation around the part geometry and measurement objective.
Part-specific capture setup
- Step 02
Scanner workflow

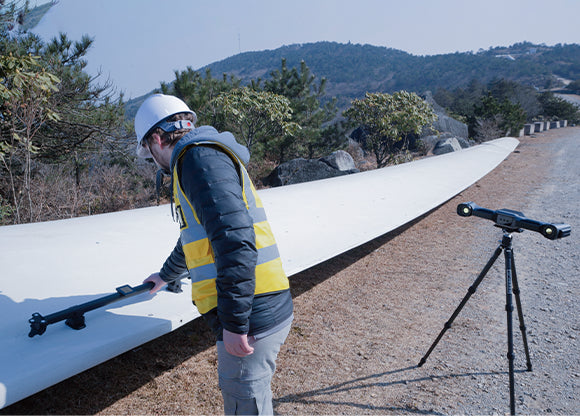

Capture & review the data
Check alignment, coverage, and data quality before preparing the result for the next engineering step.
Reviewed 3D scan data
- Step 03
Downstream licence requirements apply
Continue in CAD or inspection
Confirm the export format and software licence for downstream reverse engineering, dimensional inspection, or reporting.
An agreed engineering handoff
Application fit
Explore the applications for FreeScan UE Nova.
Explore representative use cases before confirming system fit.
Video library
Watch the workflow in motion.
Use official demonstrations, case studies, and tutorials to assess real operation.
Technical evidence
Every specification, organized for review.
Open the data set needed for engineering, IT, quality, and procurement review.
Complete data table
Open a category to review the full specification.
Physical & Operating Specifications
| Power | Swappable batteries, external battery, or wired power |
|---|---|
| Weight | 1.6 kg |
Capture & Measurement Performance
| Scanner type | Wireless handheld blue-laser metrology 3D scanner |
|---|---|
| Standalone scanning workflow | Marker-supported handheld scanning |
| Laser pattern | 50 blue laser lines |
| Maximum scan speed | Up to 4,600,000 points/s |
| Accuracy | 0.072 mm |
| Volumetric accuracy with VPG | 0.072 + 0.012 mm/m |
| Video photogrammetry | Integrated VPG with calibration-rod marker verification; no coded targets required for VPG setup |
| Maximum field of view | 2,600 × 2,200 mm |
| Maximum scanning distance | 2,600 mm |
| Near working range | 300 to 800 mm |
| Far working range | 1,200 to 2,600 mm |
| Depth of field | 2,300 mm, from 300 to 2,600 mm |
| Resolution | 0.5 to 10 mm |
| High-speed scan | Included |
| Detailed scan | Included in Near mode |
| Surface compatibility | Normal, dark, and reflective industrial surfaces |
| Outdoor scanning | Supported with the supplied lens-filter workflow |
| Optional Trak Nova upgrade | Adds dynamic tracking and marker-free scanning for eligible existing UE Nova systems |
Software, Formats & System Requirements
| Connection | Wireless or fiber-optic wired operation |
|---|---|
| Included software | FreeScan Trak software with intelligent resolution and full-size inspection tools |
Workstation requirements
| Component | Recommended |
|---|---|
| Operating system | Windows 11 Professional 22H2, 64-bit |
| Processor | 13th Gen Intel Core i7-13700H or above; AVX support required |
| Memory | 64 GB or more DDR5, dual-channel |
| Graphics | NVIDIA GeForce RTX 4060 Laptop GPU or above |
| Graphics memory | 8 GB or more VRAM |
| CUDA requirement | NVIDIA GPU with at least 1,280 CUDA cores |
| Interface | USB 3.0 |
SHINING 3D publishes these as recommended requirements and does not provide a separate minimum. Wireless operation uses a router connected to the workstation by network cable.
Standards & Safety Compliance
| Standard working range | 600 to 1,500 mm |
|---|---|

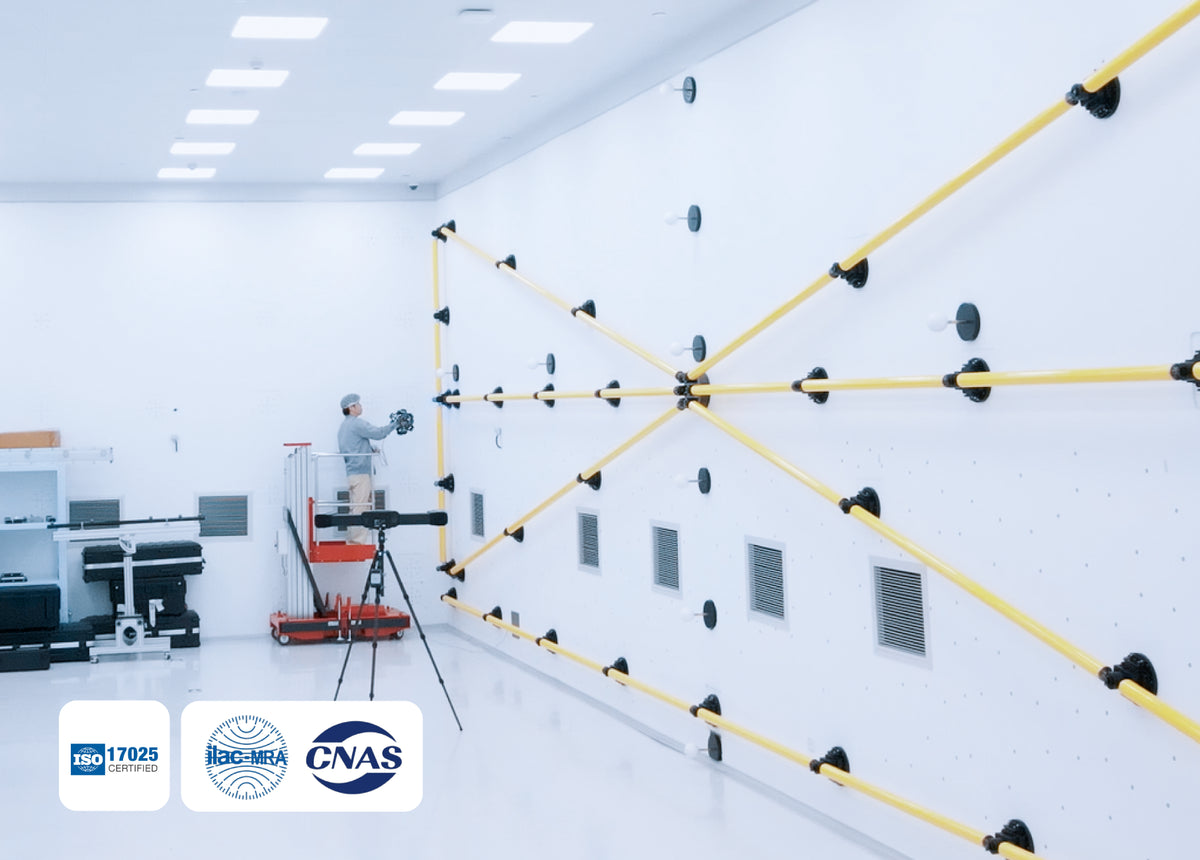

| Accuracy acceptance | VDI/VDE 2634 Part 3 and ISO 10360; tested in an ISO/IEC 17025 accredited laboratory |
| Certifications | CE, FCC, RoHS, WEEE, KC, FDA, UKCA, IP50, TELEC, and TISAX |
Interactive results
Inspect representative scan data.
Load a model to examine surface detail and captured geometry.
Package contents
What arrives with the selected system.
Review the documented hardware, included accessories and software access for this product.
FreeScan UE Nova
Standalone wireless scanner package
- FreeScan UE Nova scanner
- Included FreeScan Trak software
- Software license dongle
- VPG calibration rod
- Calibration hardware
- Swappable battery system and charger
- Wireless router and network cable
- Fiber-optic wired connection components
- Power adapter and regional power cord
- Outdoor lens filters
Trak Nova Upgrade for Existing UE Nova Owners
Upgrade path for a qualified existing UE Nova system
- Trak Nova upgrade package for an eligible existing UE Nova
- Dynamic tracking and marker-free scanning capability after installation
- Serial eligibility, hardware contents, accessories, and coverage confirmed in the configured quote
Manufacturer warranty and standard shipping are included with a new scanner purchase. The base list reflects components identified in official operating documentation. Confirm the current US packing list, quantities, regional plug, calibration items, upgrade kit contents, and warranty coverage before fulfillment. Training, extended protection, markers, FreeProbe devices, and optional software are not included unless selected.
