01

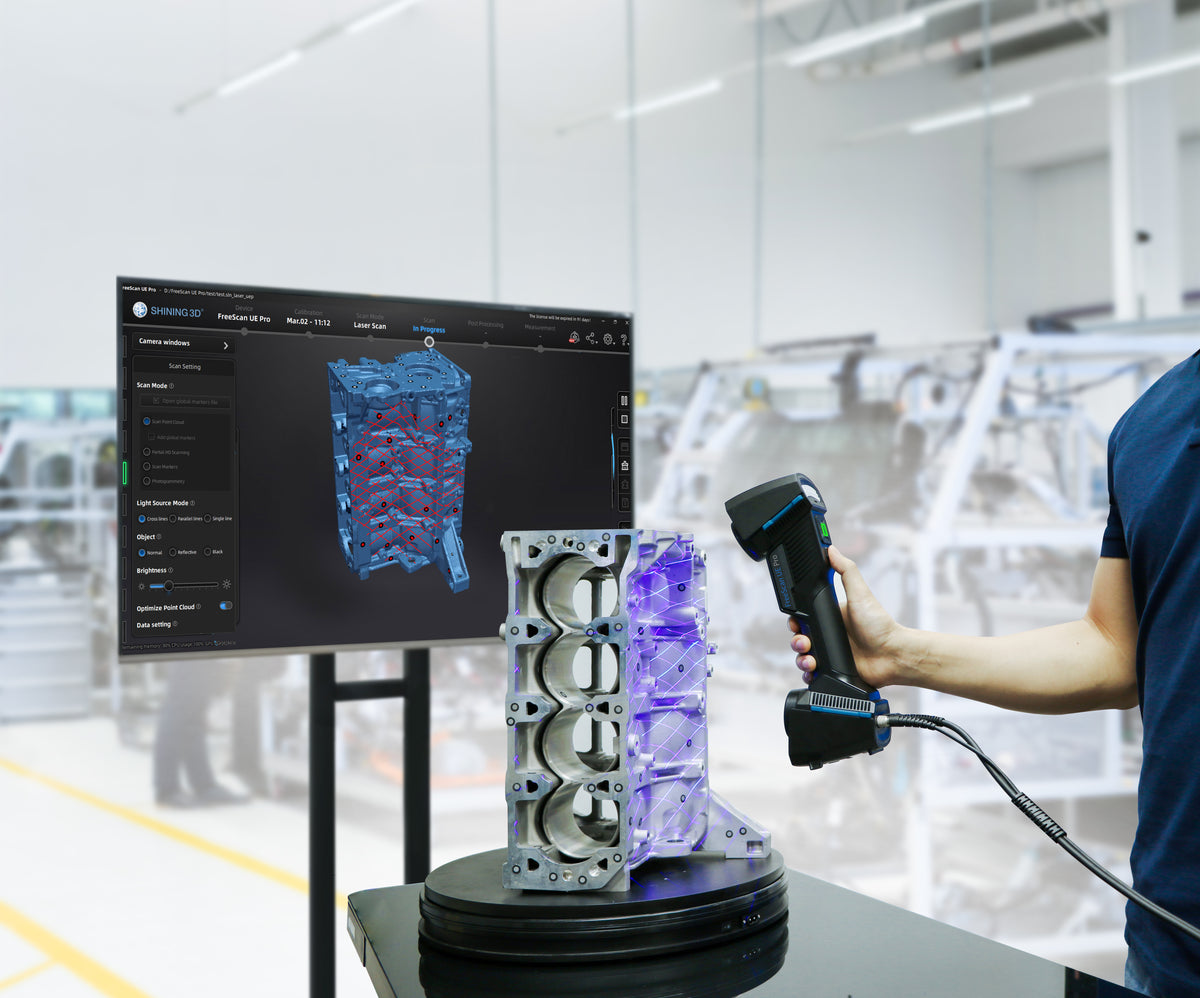

Up to 0.02 mm accuracy with markers
WIRED METROLOGY SCANNING
Control large-part accuracy without a separate photogrammetry setup
FreeScan UE Pro is a wired, metrology-grade blue-laser 3D scanner for inspection, reverse engineering, and large-part measurement. Its three laser modes balance fast coverage, fine detail, and access to deep pockets, while integrated video photogrammetry helps control volumetric accuracy across...
Up to 0.02 mm with markersAccuracy
26 blue laser linesHigh-speed scan
7 parallel blue laser linesDetail scan
1 single blue laser lineDeep-pocket scan
System architecture
Configure the complete measurement workflow.
FreeScan UE Pro is a wired, metrology-grade blue-laser 3D scanner for inspection, reverse engineering, and large-part measurement. Its three laser modes balance fast coverage, fine detail, and access to deep pockets, while integrated video photogrammetry helps control volumetric accuracy across larger workpieces.
FreeScan software included
FreeScan software is included with the scanner and supplied USB license dongle. It guides calibration, scanning, data editing, real-time meshing, data-quality review, and AI-assisted recognition of holes and slots. Scanner workflow updates are provided without a subscription.
Choose the workflow package
The base configuration is for teams that already have a validated inspection or reverse-engineering workflow. The EXModel Pro bundle adds a Shining 3D scan-to-CAD path. Shining 3D Inspect, BlueStar Mapping, extended protection, additional markers, and training are optional and are not included unless selected.
Important: FreeScan UE Pro uses markers for scanning. Its VPG mode removes the need for coded markers, but it does not make the full scanning workflow marker-free. The scanner does not capture color texture.
Match the system to the part, tolerance, environment, output, software stack, training need, and protection plan. Every selected option is included in the technical review.
Configuration
Build the system you need.
Select any optional protection, software, accessories, and training.
Configured total$19,999.00
Core system only
Your selected options will be prefilled on the recommendation and quote form.
System comparison
Compare the core system before adding options.
Review the core hardware first, then choose software, training, accessories, and protection.
| Decision point | Best for teams with existing softwareFreeScan UE Pro with CNASTeams with validated inspection or reverse-engineering software | FreeScan UE Pro with CNAS and EXModel ProTeams building a Shining 3D scan-to-CAD workflow |
|---|---|---|
| FreeScan UE Pro hardware | Included | Included |
| CNAS configuration | Included | Included |
| FreeScan software | Included | Included |
| EXModel Pro | Not included | Included under bundle SKU |
| Primary workflow | Scan, mesh, and export | Reverse engineering and CAD-ready modeling |
| Manufacturer warranty | Included | Included |
| Standard shipping | Included | Included |
| Purchase route | Configure quote | Configure quote |
Standard system contents
Every major component, connection, and calibration item.
High-value systems are quoted as a complete operational package; exact quantities and region-specific items are confirmed on the formal quote.
01
FreeScan UE Pro with CNAS
Scanner package
- FreeScan UE Pro scanner
- Included FreeScan software
- Markers
- Power adapter
- Calibration plate
- USB license dongle
- Data cable with power port
- USB drive with installer
- Scale bar
02
FreeScan UE Pro with CNAS and EXModel Pro Bundle
Reverse-engineering package
- FreeScan UE Pro scanner
- Included FreeScan software
- Markers
- Power adapter
- Calibration plate
- USB license dongle
- Data cable with power port
- USB drive with installer
- Scale bar
- EXModel Pro software entitlement under bundle SKU BD.202507.030(US)
The component list is based on the official FreeScan UE Pro Quick Start Guide. Manufacturer warranty and standard shipping are included. Confirm current US packing quantities, regional plug, CNAS documentation, and the EXModel Pro license and maintenance term before fulfillment. Training, extended protection, additional markers, and software not named in the selected package are optional.
System advantages
High-value capability without workflow friction.
Evaluate the measurable gains in setup, coverage, portability, capture speed, and confidence across large-volume inspection work.
02

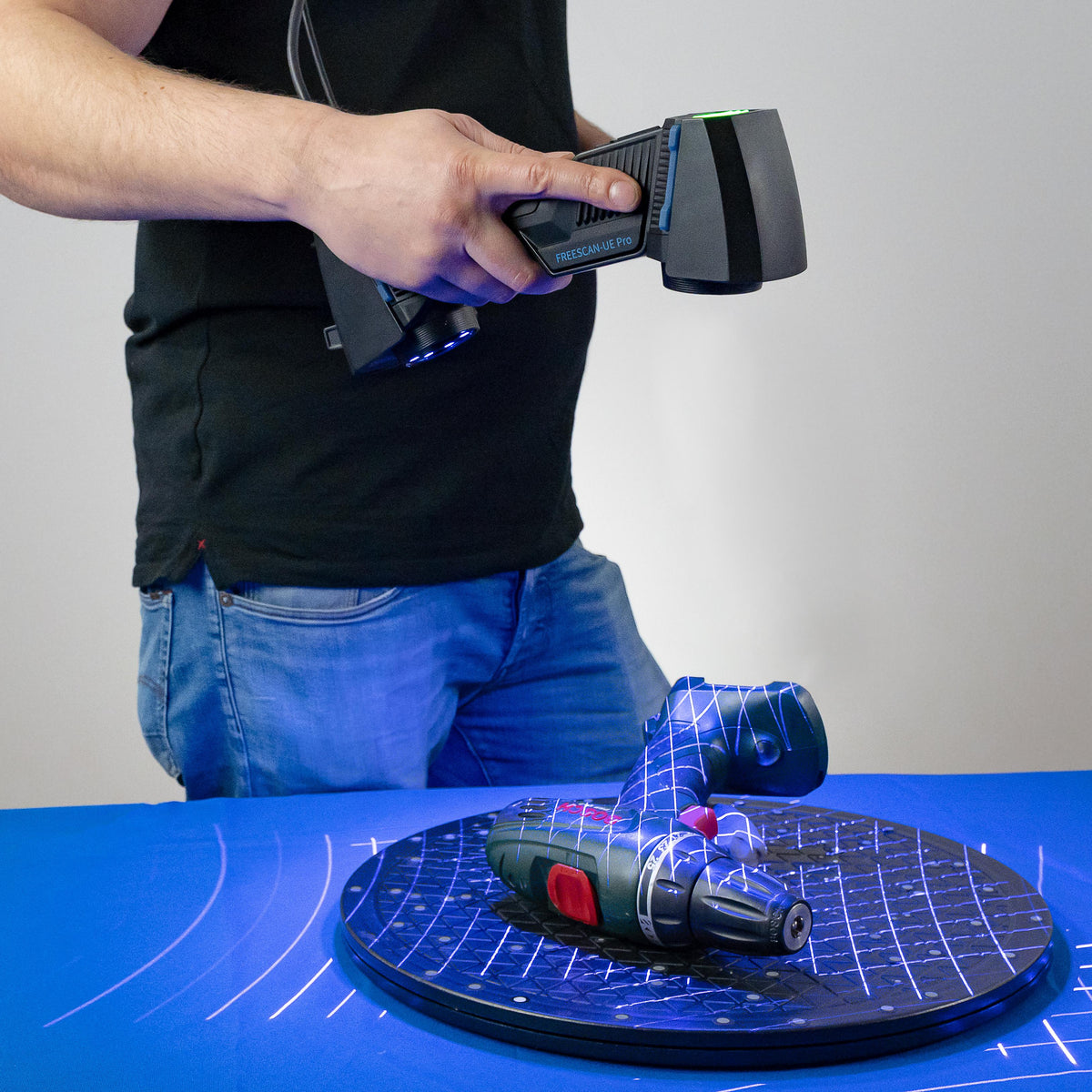

26 + 7 + 1 blue laser scanning modes
03

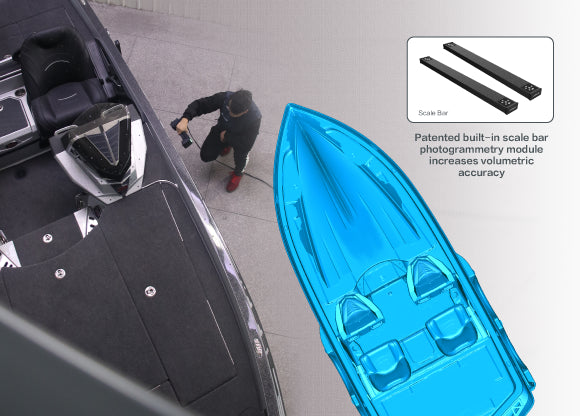

Integrated VPG for large-part accuracy control
04

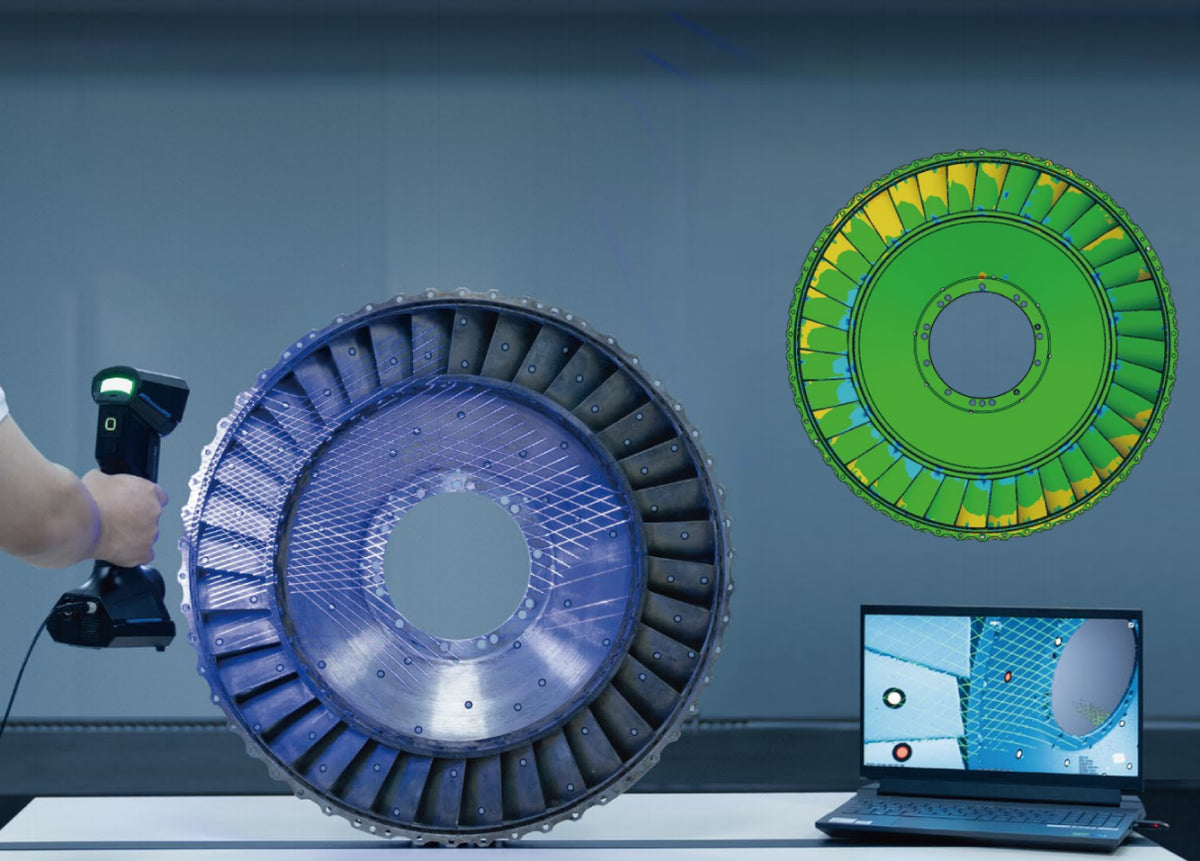

Up to 1,850,000 points per second
05

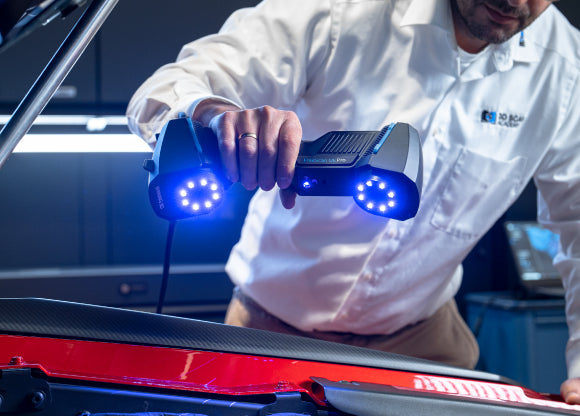

Handles dark, reflective, and outdoor surfaces
06

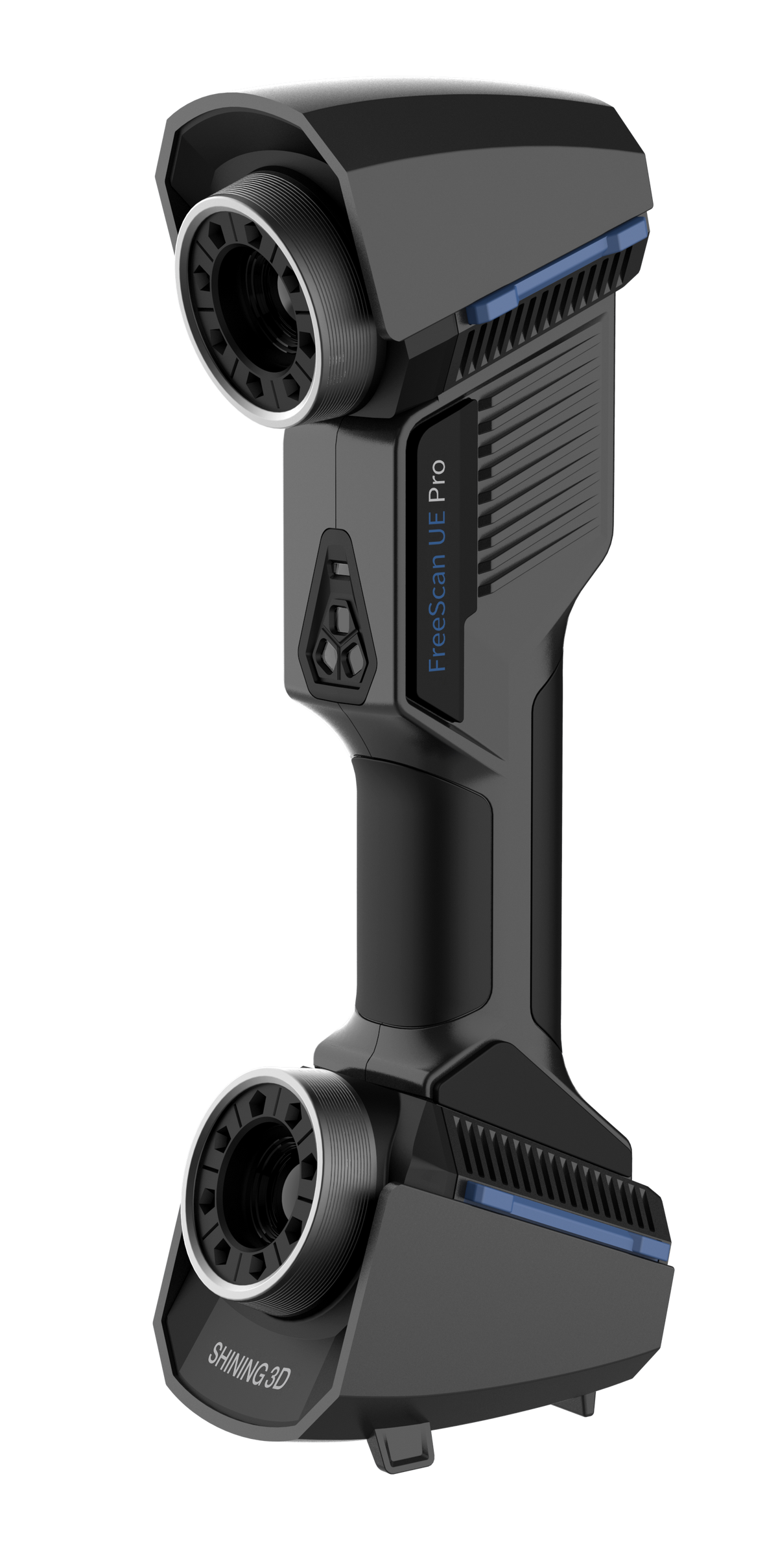

840 g wired handheld design
Deploy where the work happens
Bring controlled measurement to the part.
Combine mobile setup, optical tracking, wide-range capture, and downstream inspection in one connected operating workflow.
Review engineering specifications →Application proof
Built for parts that do not belong on a fixed CMM.
See how the system adapts to heavy industry, transportation, aviation, energy, and other large-component inspection environments.
01
Large-part inspection
02
Automotive body and sheet-metal measurement
03
Aerospace, energy, and heavy-industry inspection
04
Casting, tooling, and reverse engineering
Video library
Evaluate the system under real operating conditions.
Move between unboxing, tracking, handheld capture, and application footage without leaving the page.
Video library
Select a video to begin
Watch demonstrations, tutorials, and real application workflows without leaving the product page.
Technical specifications
Technical evidence for engineering and IT.
Review measurement performance, operating envelope, connectivity, and the workstation needed to process the data.
AccuracyUp to 0.02 mm with markers
High-speed scan26 blue laser lines
Detail scan7 parallel blue laser lines
Deep-pocket scan1 single blue laser line
Scan speedUp to 1,850,000 points/s
Maximum field of view600 × 550 mm
Point distance0.01-10 mm
Volumetric accuracy0.02 + 0.03 mm/m; up to 0.02 + 0.015 mm/m with VPG
Camera resolution2 × 3.2 MP
Working distance300 mm
Scan depth170-680 mm
Laser classClass II, eye-safe blue laser
ConnectionUSB 3.0
Dimensions298 × 103.5 × 74.5 mm
Weight840 g
Power12 V, 5.0 A
Operating temperature-20 to 40 °C
Operating humidity10-90% RH
CertificationsCE, FCC, RoHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TISAX
Accuracy qualificationVDI/VDE 2634 and ISO 10360 traceability; issued certificates govern the supplied system
| Component | Minimum | Recommended |
|---|---|---|
| Operating system | Not specified | Windows 10, 64-bit |
| Processor | Not specified | Intel Core i7-8700 |
| Memory | Not specified | 32 GB or more |
| Graphics | Not specified | NVIDIA GTX/RTX series, GeForce RTX 3060 or higher |
| Graphics memory | Not specified | 6 GB or more VRAM |
| Connection | Not specified | USB 3.0 |
Shining 3D publishes these as the recommended FreeScan UE Pro workstation requirements and does not publish a separate minimum configuration.
Interactive scan results
Inspect more than one related dataset.
Load the chosen model on demand, with a direct Sketchfab fallback for devices that cannot render the full scene.
Optional interactive preview
[FreeScan UE Pro] Cylinder head
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
[FreeScan UE Pro] Casting base
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Models published by Shining 3D on Sketchfab. Use the direct link if the embedded viewer exceeds the device's graphics capacity.
