Up to 0.02 mm
0.02 mm certified accuracy
PROFESSIONAL 3D SCANNING

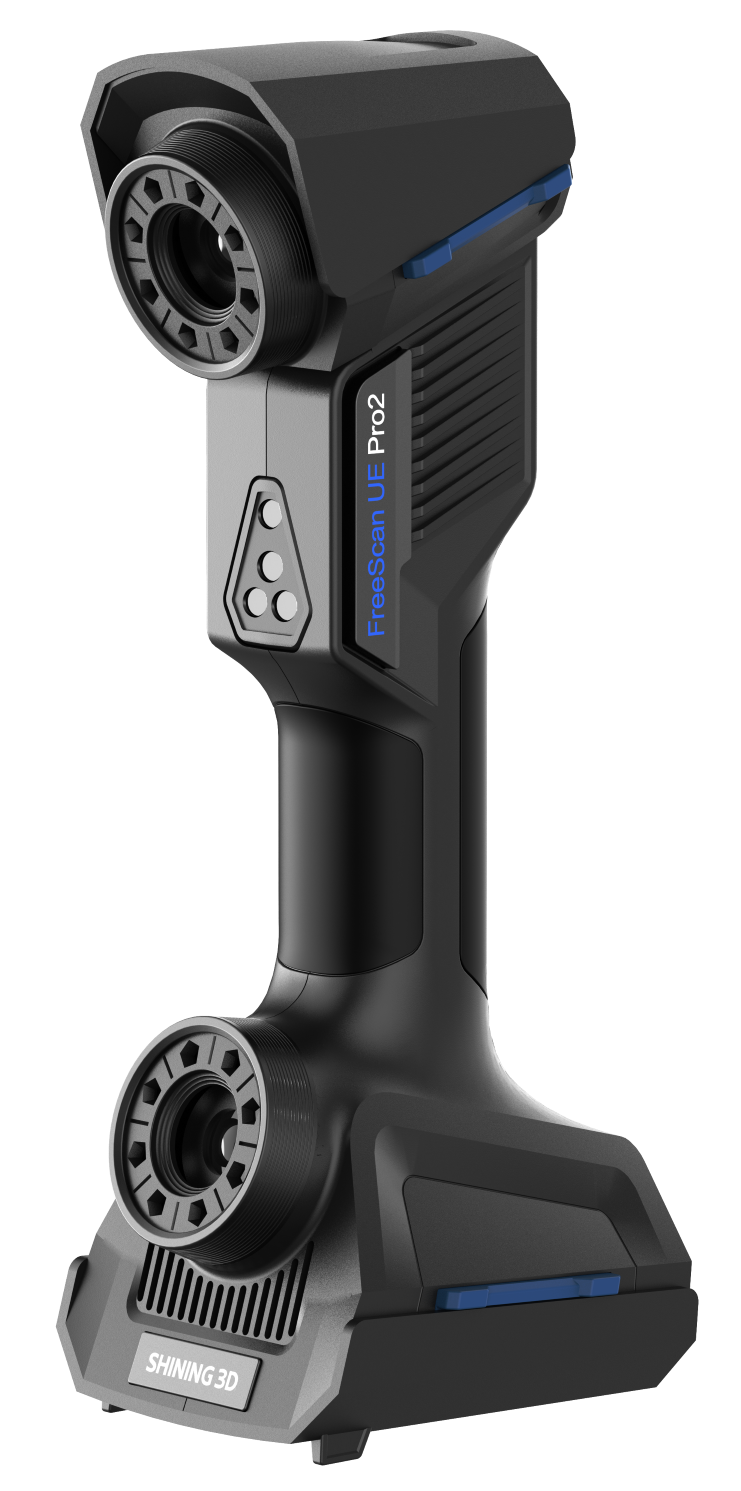

FreeScan UE Pro2 SHINING 3D Wireless metrology scanner
Wireless laser scanning with photogrammetry for industrial inspection.
Up to 0.02 mmScanner accuracy
50High-speed laser lines
3.46M pts/sMaximum capture speed
950 gScanner weight
System architecture & capabilities
Wireless laser scanning with photogrammetry for industrial inspection.
Up to 0.02 mmScanner accuracy
50High-speed laser lines
3.46M pts/sMaximum capture speed
950 gScanner weight
Wireless capture

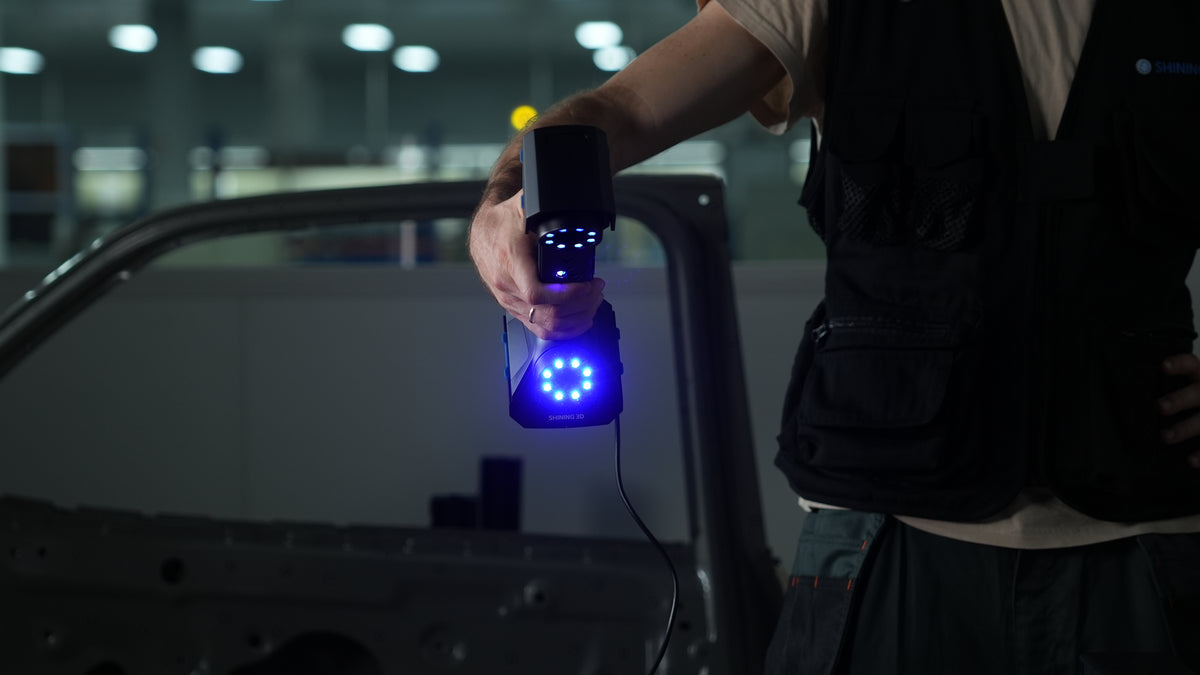

Wireless capture with embedded computing
50 + 7 + 1 laser lines

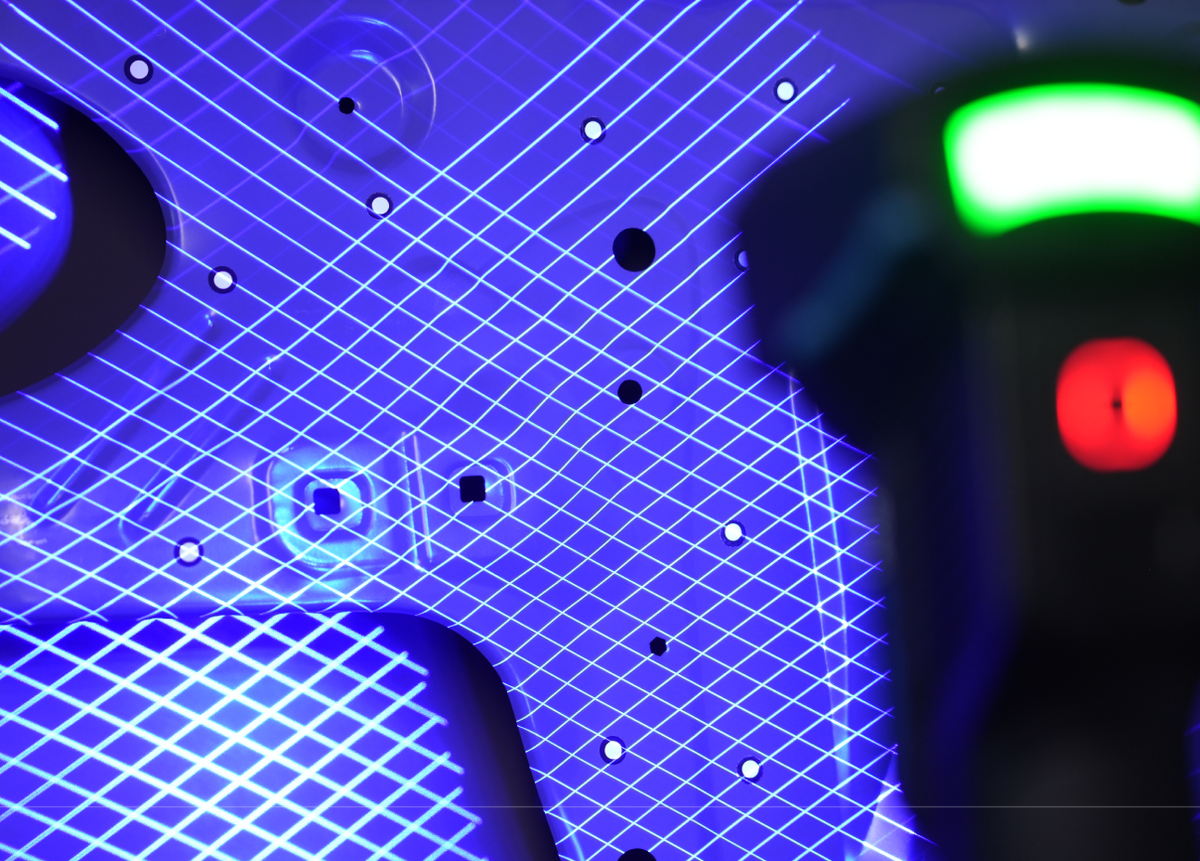

50 + 7 + 1 blue laser line modes
PROFESSIONAL 3D SCANNINGPerformance highlights
Explore FreeScan UE Pro2 capabilities.
Explore the capabilities that affect capture, output quality and day-to-day operation.
Feature in focusUp to 0.02 mm
01 / 06Your workflow
From measurement planning to the engineering handoff.
- Step 01
Scanner workflow
Plan the capture
Choose the scan mode, working range, and preparation around the part geometry and measurement objective.
Part-specific capture setup
- Step 02
Scanner workflow

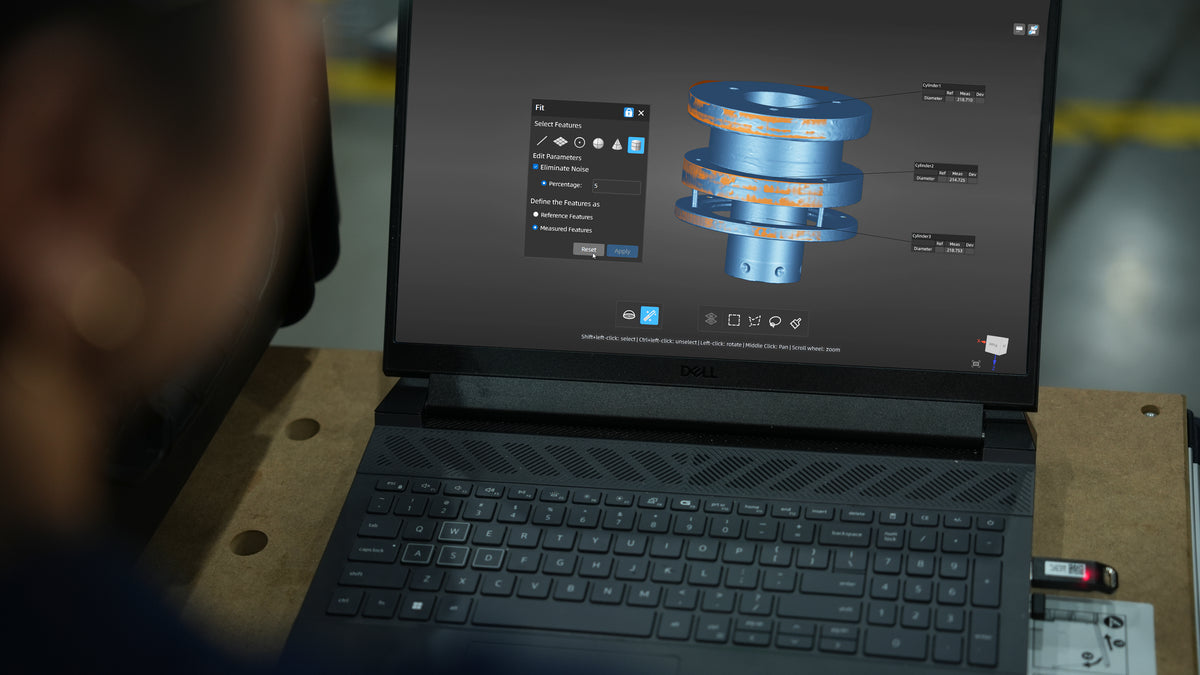

Capture & review the data
Check alignment, coverage, and data quality before preparing the result for the next engineering step.
Reviewed 3D scan data
- Step 03
Downstream licence requirements apply
Continue in CAD or inspection
Confirm the export format and software licence for downstream reverse engineering, dimensional inspection, or reporting.
An agreed engineering handoff
Application fit
Explore the applications for FreeScan UE Pro2.
Explore representative use cases before confirming system fit.
Video library
Watch the workflow in motion.
Use official demonstrations, case studies, and tutorials to assess real operation.
Technical evidence
Every specification, organized for review.
Open the data set needed for engineering, IT, quality, and procurement review.
Complete data table
Open a category to review the full specification.
Physical & Operating Specifications
| Net weight | 950 g |
|---|
Capture & Measurement Performance
| Accuracy | Up to 0.02 mm |
|---|---|
| Laser modes | 50 high-speed, 7 detail, 1 deep-hole line |

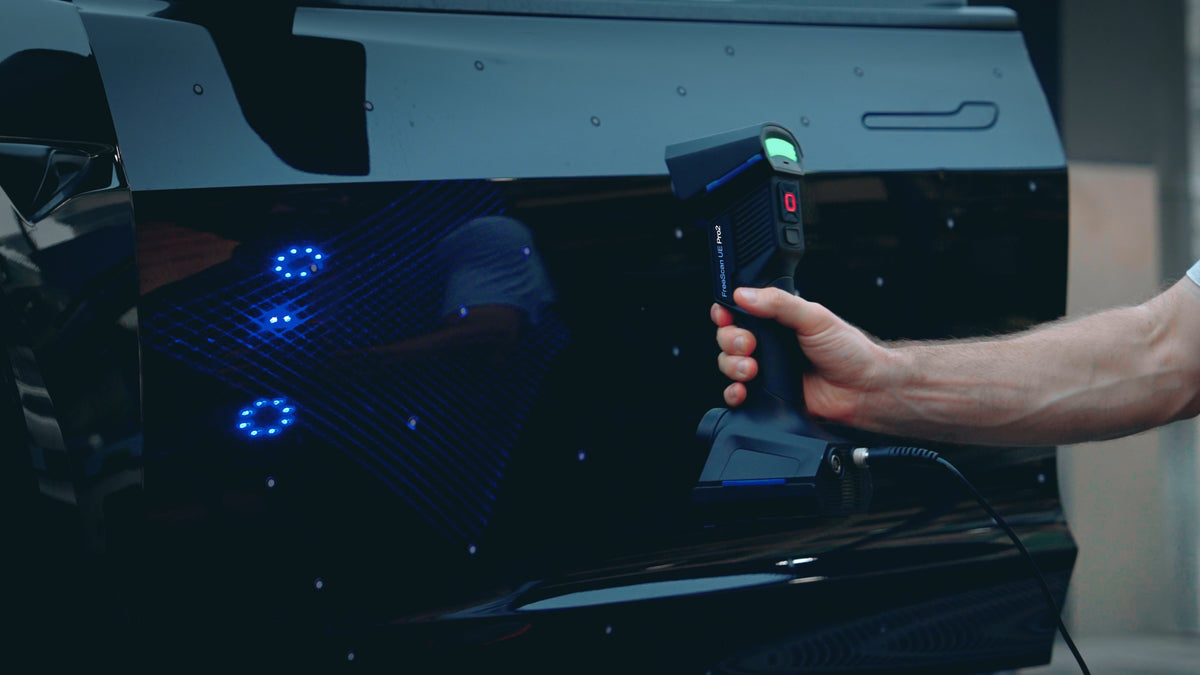

| Scan speed | Up to 3,460,000 points/s |
| Maximum frame rate | 180 fps |
| Maximum field of view | 600 × 550 mm |
| Volumetric accuracy | 0.02 + 0.03 mm/m; up to 0.02 + 0.015 mm/m with photogrammetry |
Software, Formats & System Requirements
| Connection | Wireless and USB 3.0 |
|---|
Workstation requirements
| Component | Recommended |
|---|---|
| Operating system | Windows 11 Professional 22H2 (64-bit) |
| Processor | 13th Gen Intel Core i7-13700H or above |
| Graphics card | NVIDIA GeForce RTX 4060 Laptop GPU or above |
| Video memory | 8 GB or above |
| System memory | 64 GB or above, DDR5 dual-channel |
| Connection | USB 3.0 |
SHINING 3D specifies this as the recommended computer configuration; minimum requirements are not stated in the brochure.
Standards & Safety Compliance
| Certifications | CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TISAX |
|---|---|

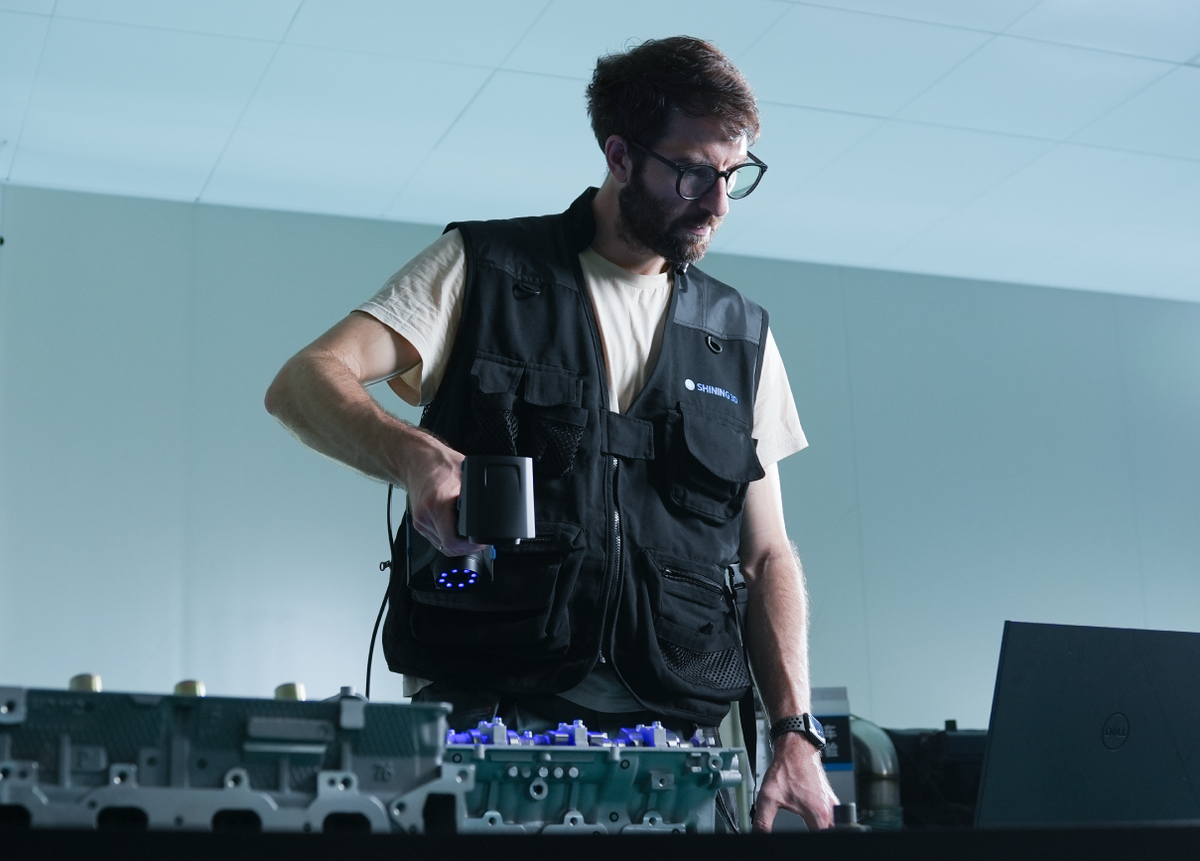

| Accuracy certification | VDI/VDE 2634 Part 3 and ISO 10360; tested in an ISO/IEC 17025 accredited accuracy laboratory |
Interactive results
Inspect representative scan data.
Load a model to examine surface detail and captured geometry.
Package contents
What arrives with the selected system.
Review the documented hardware, included accessories and software access for this product.
FreeScan UE Pro2 Standard Package
Scanner, included software access, power, calibration and wired-operation hardware confirmed by SHINING 3D's official unboxing.
- FreeScan UE Pro2 scanner
- Wireless power adapter
- Software-access dongle for FreeScan Software

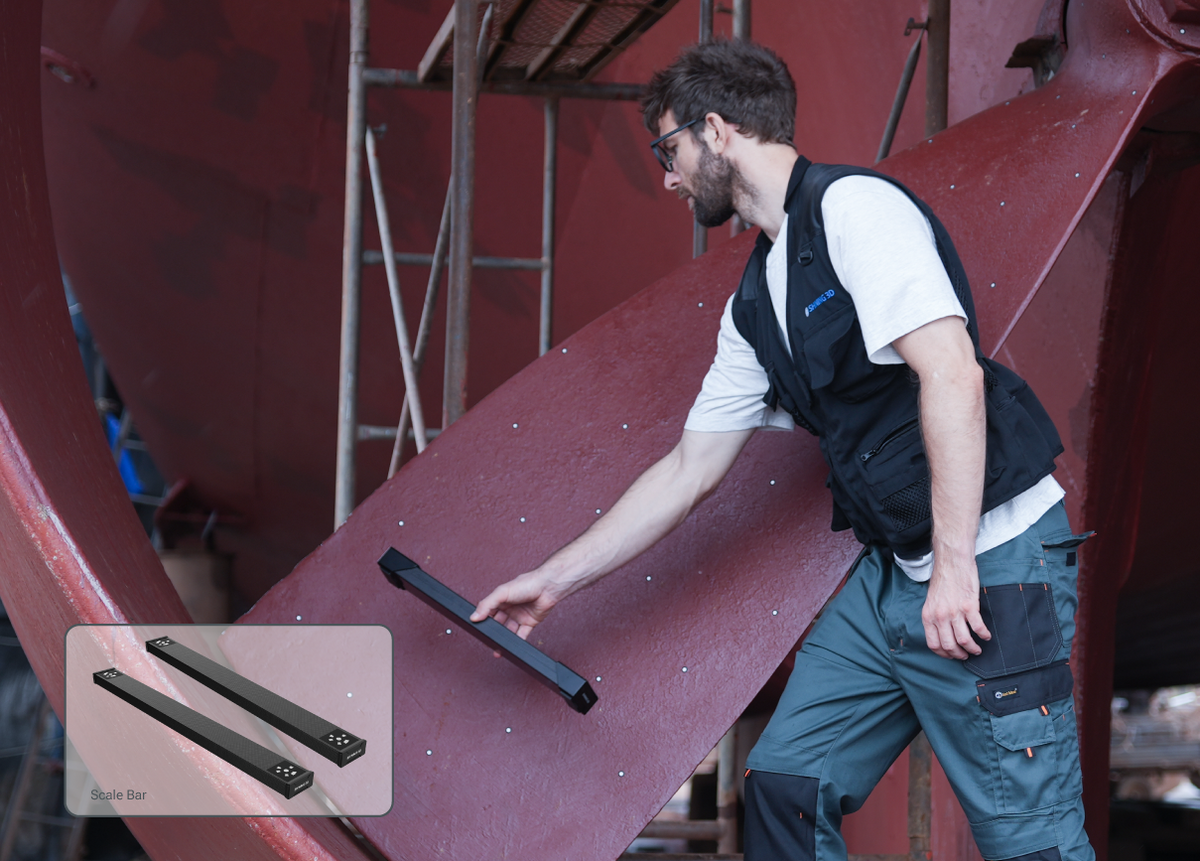

- Photogrammetry scale bars
- Calibration board
- Wired connection cables for optional USB 3.0 operation
- FreeScan Software - included native application for device control, real-time mesh display, reusable scanning templates, scan-quality visualization, AI feature recognition, flexible resolution and quick on-site inspection
Exact quantities, plug type and region-specific wireless accessories are confirmed on the formal quote. A compatible Windows workstation, SHINING 3D Inspect, EXModel or EXModel Pro, training and extended protection are not included unless selected.
FreeScan UE Pro2
$24,999
Monthly budget illustrations assume 36 payments at 15% APR, $0 down. Taxes, shipping and fees are excluded. This is not a financing offer or approval. Payment options through Affirm are subject to eligibility. See Affirm for available terms. Taxes and any applicable shipping are calculated separately.
Est. monthly budget: $867/ mo
36 mo · 15% APR · $0 down. Illustration only.
