Up to 0.02 mm with markers
Up to 0.02 mm accuracy with markers
WIRED METROLOGY SCANNING

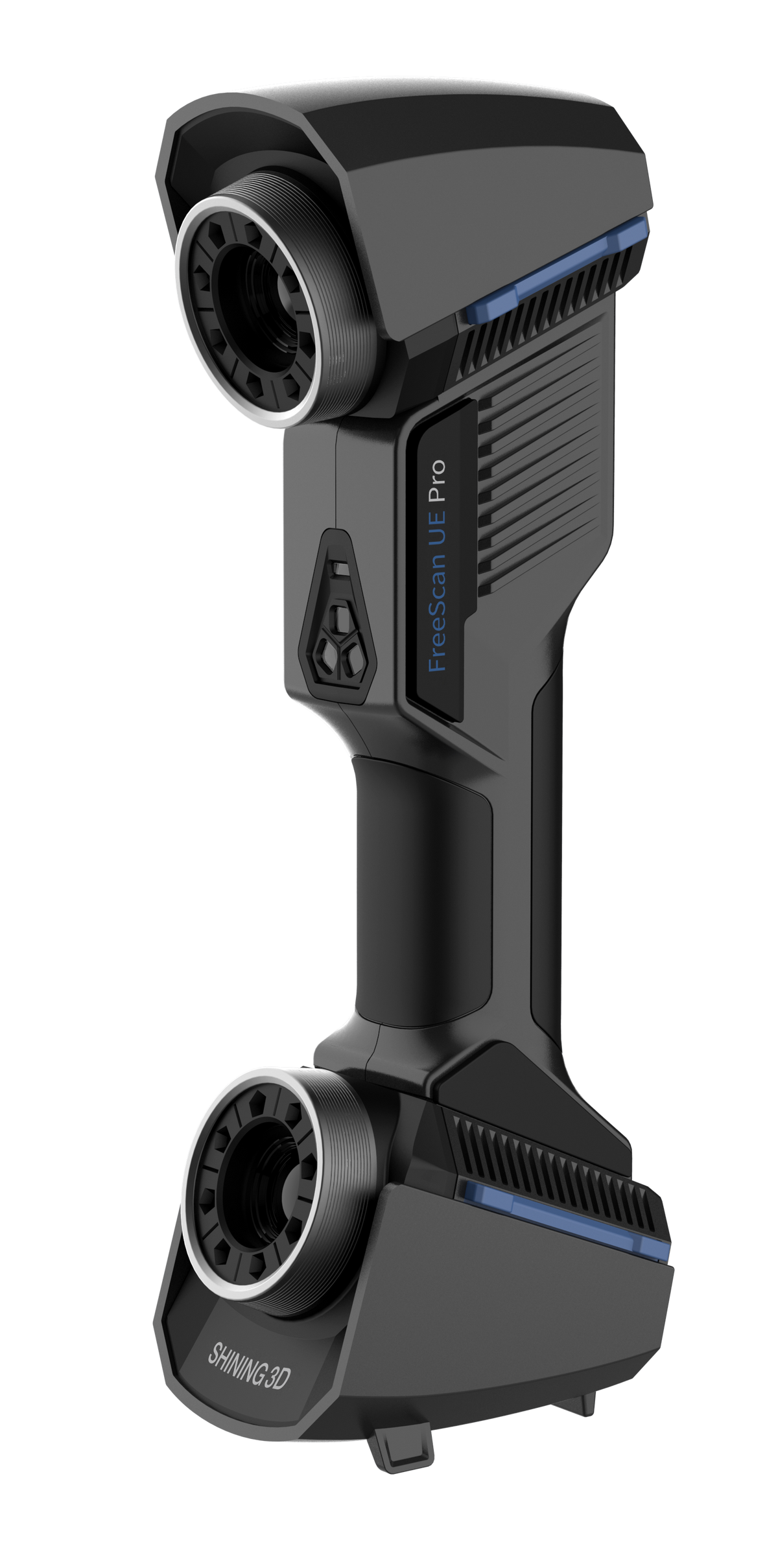

FreeScan UE Pro SHINING 3D Handheld metrology scanner
Precise laser capture for demanding industrial measurements.
Up to 0.02 mmAccuracy with markers
26High-speed laser lines
1.85M pts/sMaximum capture speed
840 gScanner weight
System architecture & capabilities
Precise laser capture for demanding industrial measurements.
FreeScan UE Pro is a wired, metrology-grade blue-laser 3D scanner for inspection, reverse engineering, and large-part measurement. Its three laser modes balance fast coverage, fine detail, and access to deep pockets, while integrated video...
Up to 0.02 mmAccuracy with markers
26High-speed laser lines
1.85M pts/sMaximum capture speed
840 gScanner weight
26 + 7 + 1 laser lines
26 + 7 + 1 blue laser scanning modes
Integrated VPG

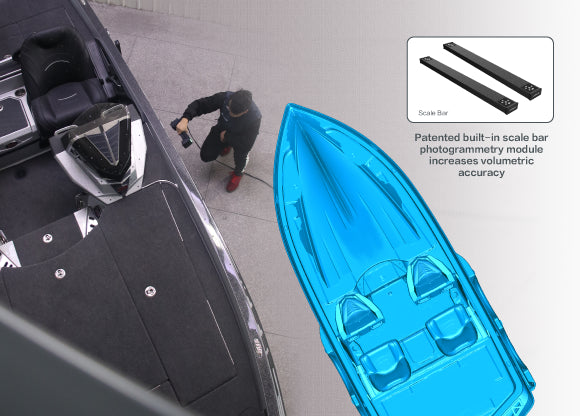

Integrated VPG for large-part accuracy control
WIRED METROLOGY SCANNING840 gProduct weightPerformance highlights
Explore FreeScan UE Pro capabilities.
Explore the capabilities that affect capture, output quality and day-to-day operation.
Feature in focusUp to 0.02 mm with markers
01 / 06Your workflow
From measurement planning to the engineering handoff.
- Step 01
Scanner workflow
Plan the capture
Choose the scan mode, working range, and preparation around the part geometry and measurement objective.
Part-specific capture setup
- Step 02
Scanner workflow

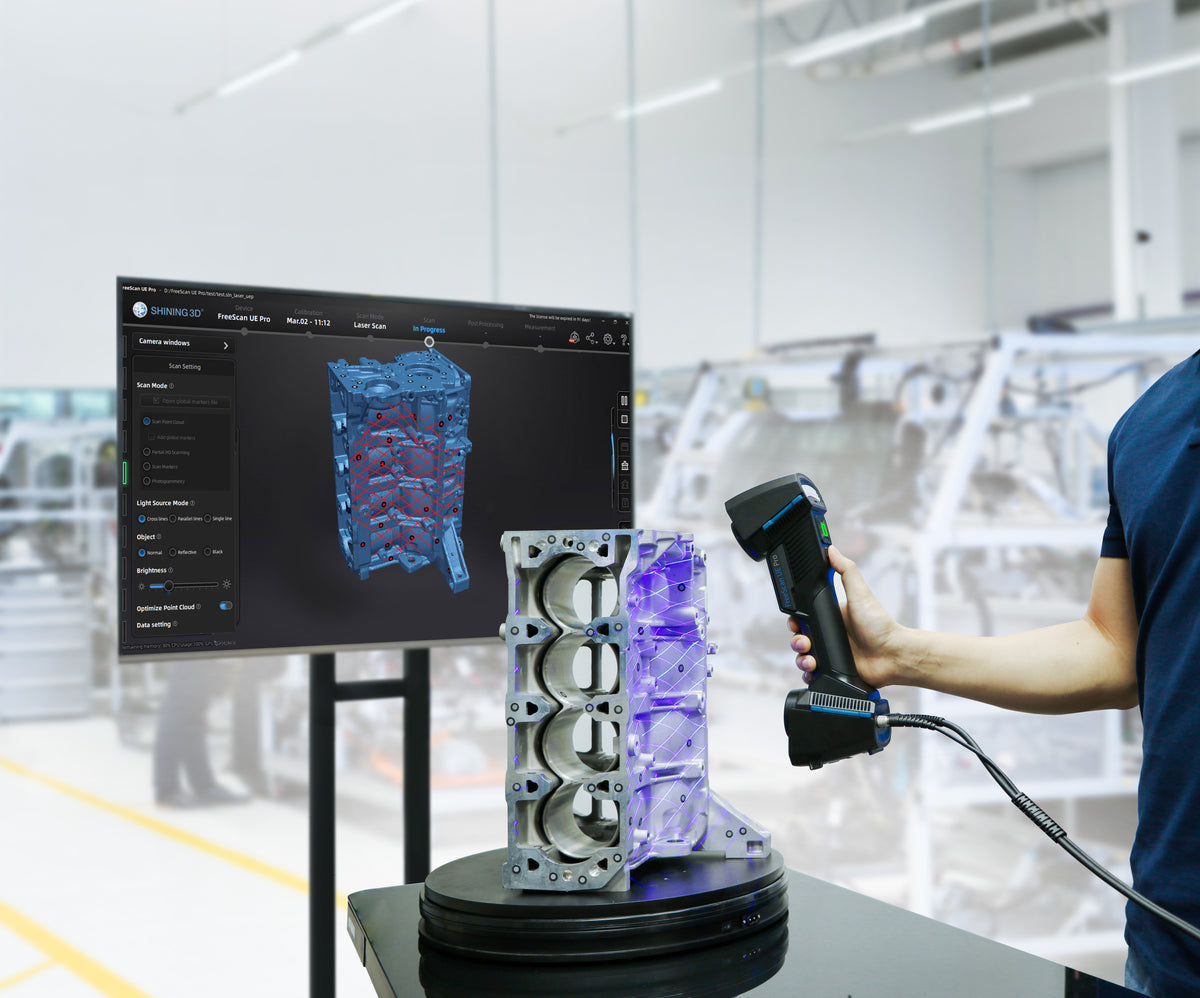

Capture & review the data
Check alignment, coverage, and data quality before preparing the result for the next engineering step.
Reviewed 3D scan data
- Step 03
Downstream licence requirements apply
Continue in CAD or inspection
Confirm the export format and software licence for downstream reverse engineering, dimensional inspection, or reporting.
An agreed engineering handoff
Application fit
Explore the applications for FreeScan UE Pro.
Explore representative use cases before confirming system fit.
Video library
Watch the workflow in motion.
Use official demonstrations, case studies, and tutorials to assess real operation.
Technical evidence
Every specification, organized for review.
Open the data set needed for engineering, IT, quality, and procurement review.
Complete data table
Open a category to review the full specification.
Physical & Operating Specifications
| Dimensions | 298 × 103.5 × 74.5 mm |
|---|---|
| Weight | 840 g |
| Power | 12 V, 5.0 A |
| Operating temperature | -20 to 40 °C |
| Operating humidity | 10-90% RH |
Capture & Measurement Performance
| Accuracy | Up to 0.02 mm with markers |
|---|---|
| High-speed scan | 26 blue laser lines |
| Detail scan | 7 parallel blue laser lines |
| Deep-pocket scan | 1 single blue laser line |
| Scan speed | Up to 1,850,000 points/s |
| Maximum field of view | 600 × 550 mm |
| Point distance | 0.01-10 mm |
| Volumetric accuracy | 0.02 + 0.03 mm/m; up to 0.02 + 0.015 mm/m with VPG |
| Camera resolution | 2 × 3.2 MP |
| Working distance | 300 mm |
| Scan depth | 170-680 mm |
| Laser class | Class II, eye-safe blue laser |
| Accuracy qualification | VDI/VDE 2634 and ISO 10360 traceability; issued certificates govern the supplied system |
Software, Formats & System Requirements
| Connection | USB 3.0 |
|---|
Workstation requirements
| Component | Recommended |
|---|---|
| Operating system | Windows 10, 64-bit |
| Processor | Intel Core i7-8700 |
| Memory | 32 GB or more |
| Graphics | NVIDIA GTX/RTX series, GeForce RTX 3060 or higher |
| Graphics memory | 6 GB or more VRAM |
| Connection | USB 3.0 |
Shining 3D publishes these as the recommended FreeScan UE Pro workstation requirements and does not publish a separate minimum configuration.
Standards & Safety Compliance
| Certifications | CE, FCC, RoHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TISAX |
|---|
Interactive results
Inspect representative scan data.
Load a model to examine surface detail and captured geometry.
Package contents
What arrives with the selected system.
Review the documented hardware, included accessories and software access for this product.
FreeScan UE Pro with CNAS
Scanner package
- FreeScan UE Pro scanner
- Included FreeScan software
- Markers
- Power adapter
- Calibration plate
- USB license dongle
- Data cable with power port
- USB drive with installer
- Scale bar
FreeScan UE Pro with CNAS and EXModel Pro Bundle
Reverse-engineering package
- FreeScan UE Pro scanner
- Included FreeScan software
- Markers
- Power adapter
- Calibration plate
- USB license dongle
- Data cable with power port
- USB drive with installer
- Scale bar
- EXModel Pro software entitlement under bundle SKU BD.202507.030(US)
The component list is based on the official FreeScan UE Pro Quick Start Guide. Manufacturer warranty and standard shipping are included. Confirm current US packing quantities, regional plug, CNAS documentation, and the EXModel Pro license and maintenance term before fulfillment. Training, extended protection, additional markers, and software not named in the selected package are optional.
FreeScan UE Pro
$19,999
