Integrated inspection cell

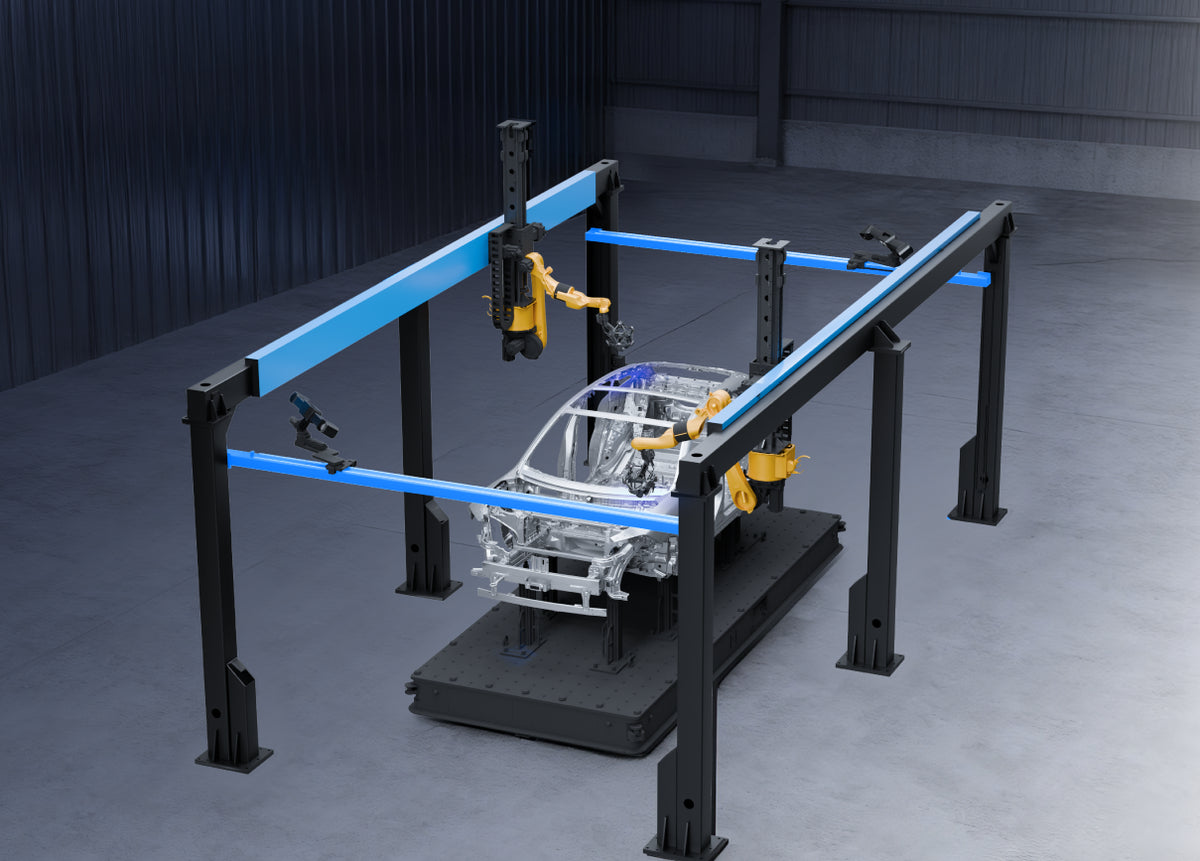

Multi-system integration for automated inspection cells
ROBOTIC 3D INSPECTION SYSTEM
RobotScan Q12 SHINING 3D Automated 3D inspection system

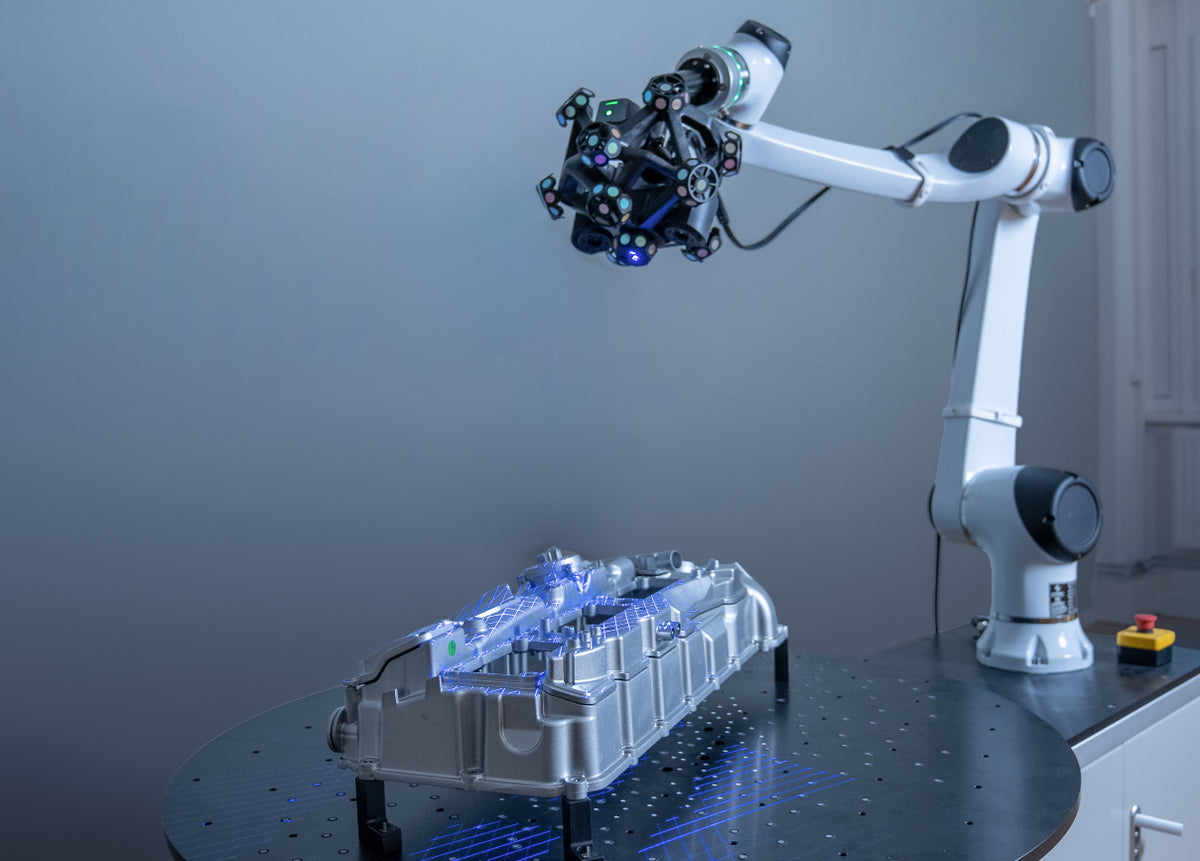

Build a repeatable path from part loading to inspection results.
Up to 0.005 mmScanner accuracy
<1 secondSingle-shot time
Up to 500 mmObject size
Up to 20 kgTurntable load
System architecture & capabilities
Build a repeatable path from part loading to inspection results.
Up to 0.005 mmScanner accuracy
<1 secondSingle-shot time
Up to 500 mmObject size
Up to 20 kgTurntable load
Up to 0.005 mm

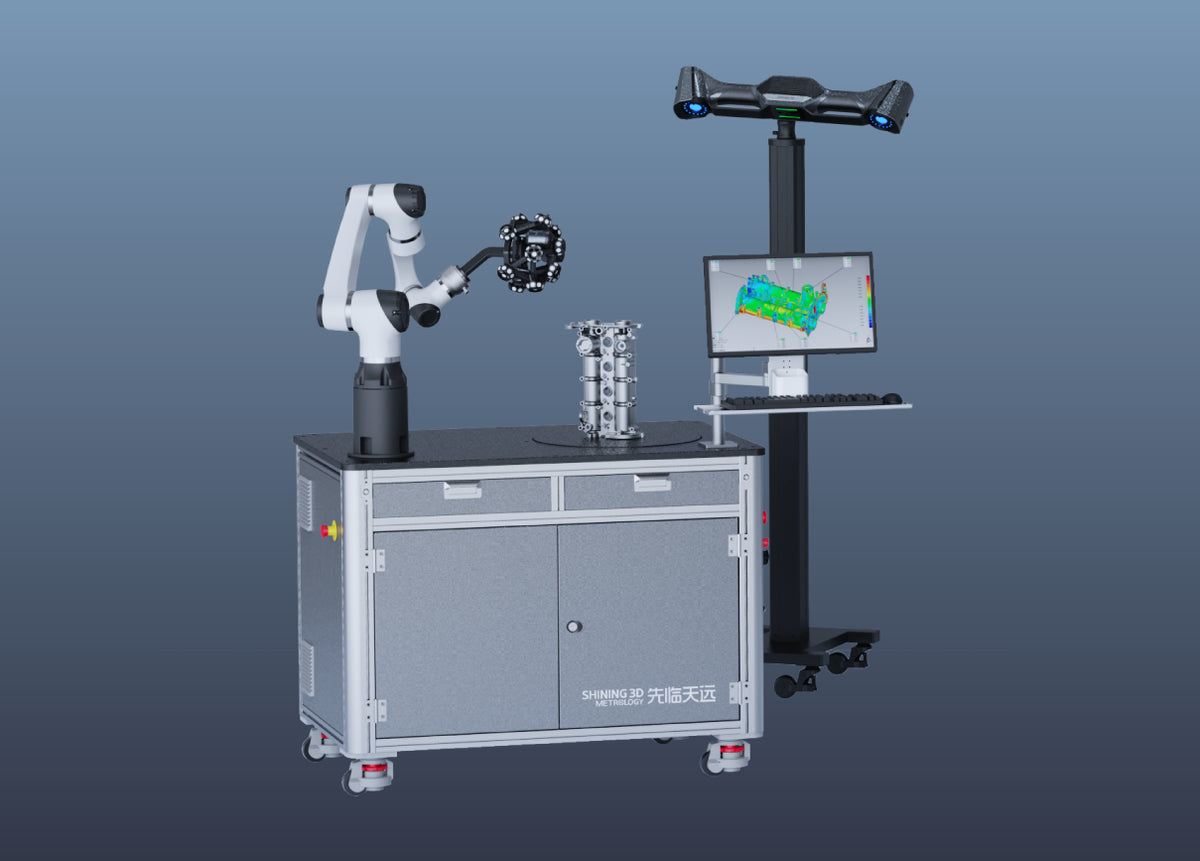

Full-field Q12 measurement with up to 0.005 mm accuracy

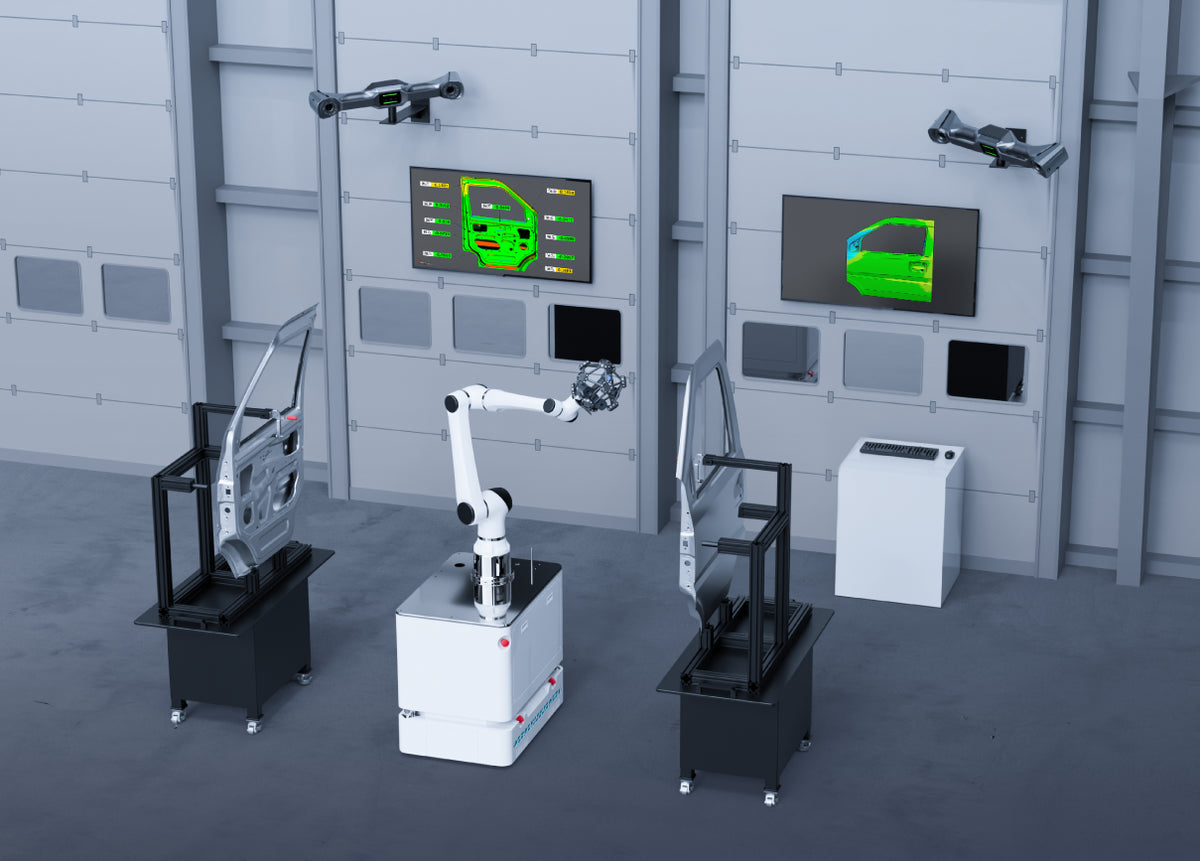

Robot-path setup

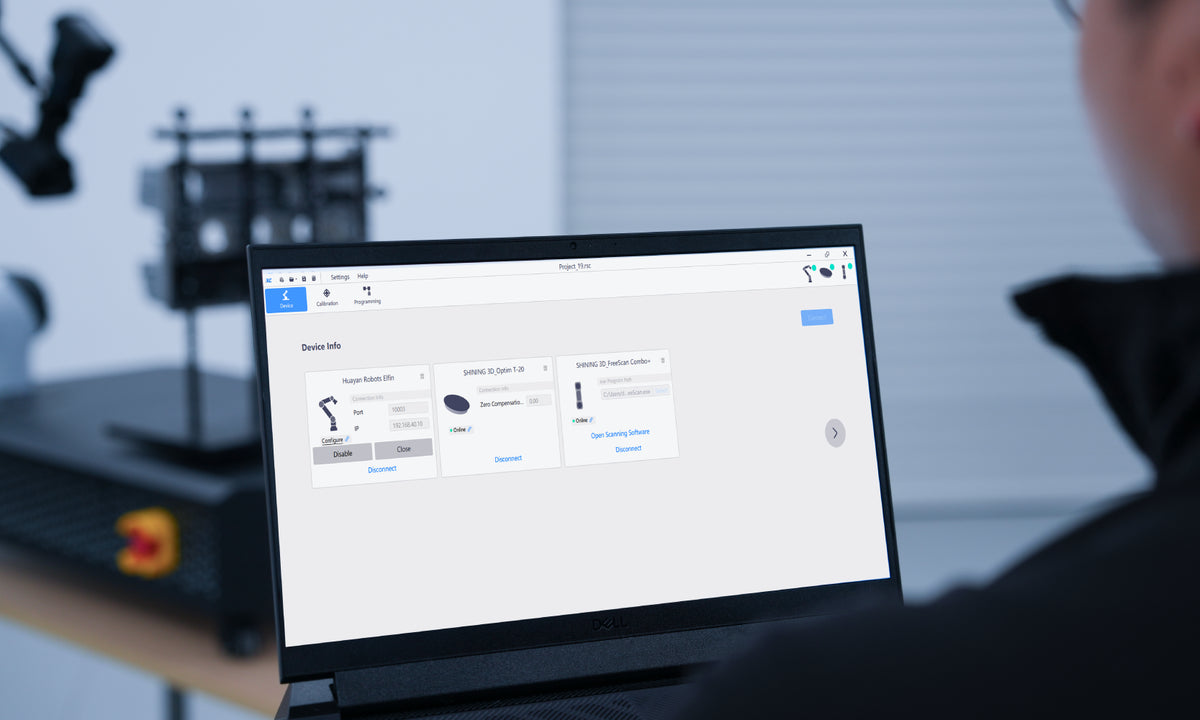

Streamlined robot-path setup and automated calibration
ROBOTIC 3D INSPECTION SYSTEM3.5 kgProduct weightPerformance highlights
Explore RobotScan Q12 capabilities.
Explore the capabilities that affect capture, output quality and day-to-day operation.
Feature in focusIntegrated inspection cell
01 / 06Your workflow
From measurement planning to the engineering handoff.
- Step 01
Application assessment
Define the inspection cell
Confirm the part envelope, loading method, and inspection targets for the RobotScan Q12 cell.
Agreed inspection scope
- Step 02
Included system software
Capture & inspect

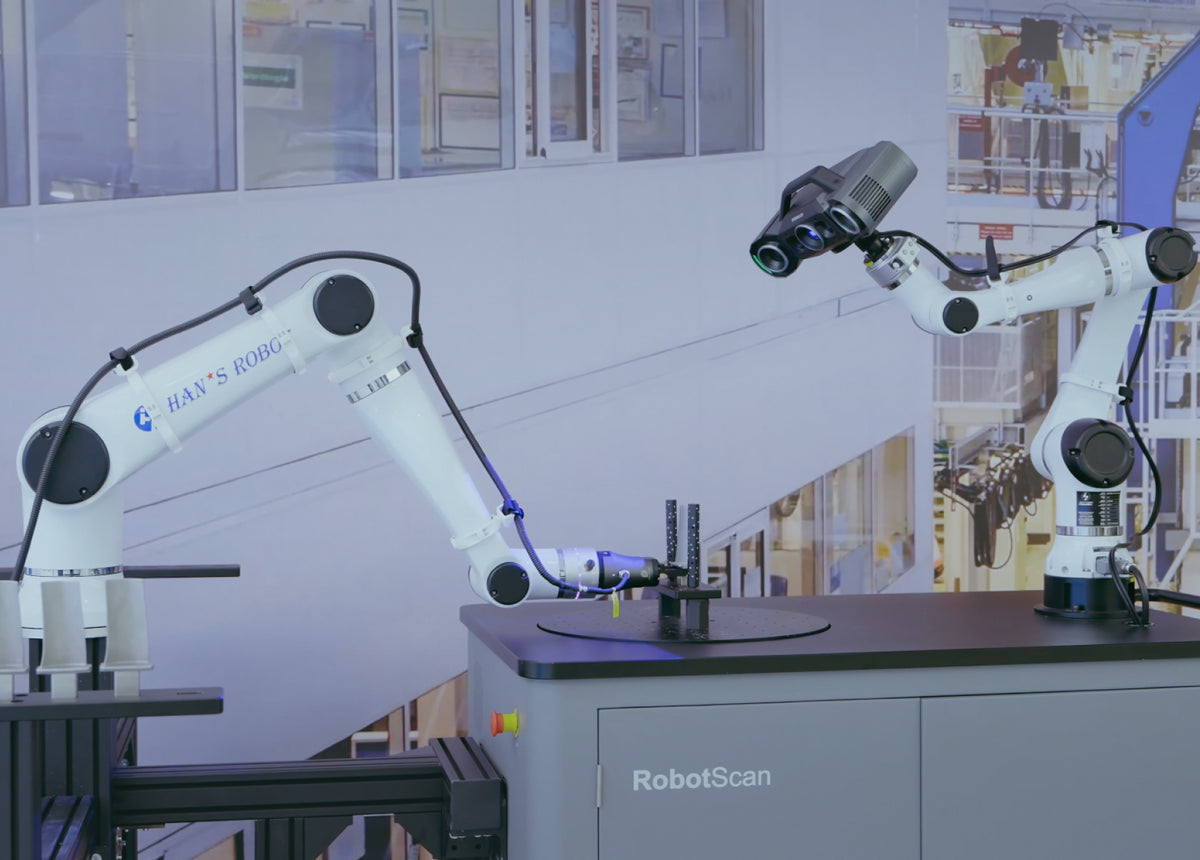

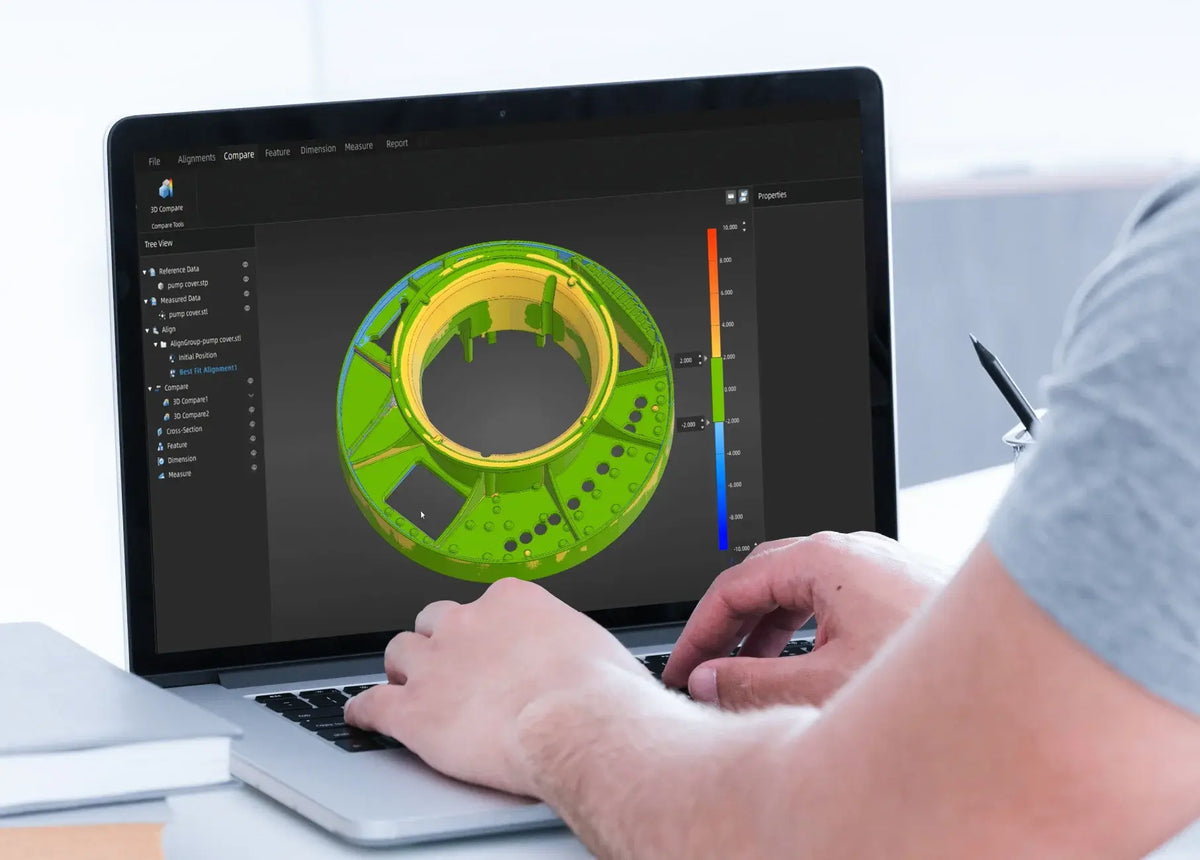

Coordinate the scanning path in RobotScan Control and evaluate the captured part in Shining 3D Inspect.
Measured part and inspection results
- Step 03
Integration scope confirmed on quote
Review the production handoff
Confirm report requirements and integration with the production process before deployment.
Defined reporting and integration workflow
Application fit
Explore the applications for RobotScan Q12.
Explore representative use cases before confirming system fit.
Video library
Watch the workflow in motion.
Use official demonstrations, case studies, and tutorials to assess real operation.
Technical evidence
Every specification, organized for review.
Open the data set needed for engineering, IT, quality, and procurement review.
Complete data table
Open a category to review the full specification.
Physical & Operating Specifications
| Turntable load capacity | Up to 20 kg |
|---|---|
| Power supply | 100 to 240 V, single-phase, 10 A |
| Operating temperature | 0 to 40 °C |
| Scanner dimensions | 366 × 162 × 132 mm |
| Scanner weight | 3.5 kg |
Capture & Measurement Performance
| Scanner accuracy | Up to 0.005 mm |
|---|---|
| Single-shot time | Less than 1 second |
| Measurable object size | Up to 500 mm |
| Large-range accuracy | 0.015 mm |
| System type | Robotic automated 3D inspection cell |
| Scanner | OptimScan Q12 structured-light scanner |
| Scanner cameras | 4 × 12.3 MP |
| Scan ranges | 160 × 110 mm small range; 430 × 300 mm large range |
| Point distance | 0.04 mm small range; 0.10 mm large range |
| Working distance | 210 mm small range; 590 mm large range |
| Depth of field | 60 mm small range; 300 mm large range |
| Light source | Blue LED |
| Monocular-Stereo Fusion | Supported |
| Exposure control | Multiple exposure modes, including intelligent automatic exposure |
| Robot working radius | Approximately 800 mm |
| Safe working space | 2400 × 2400 × 1600 mm |
| Installation | Desktop or floor-mounted |
| Connectivity | 2.5G Ethernet and USB 3.0 |
| Data cable length | 5 m |
Software, Formats & System Requirements
Workstation requirements
| Component | Minimum | Recommended |
|---|---|---|
| Operating system | Not separately published | Windows 10 64-bit or Windows 11 Pro 64-bit |
| Processor | AVX instruction support required | Intel Core i7-11700 or above |
| Graphics card | NVIDIA GPU with at least 1,280 CUDA cores required | NVIDIA RTX 3060 or above |
| Video memory | Not separately published | 6 GB or above |
| System memory | Not separately published | 32 GB or above |
| Interface | USB 3.0 | USB 3.0; the automation system also uses 2.5G Ethernet |
Shining 3D publishes recommended requirements for OptimScan Q12, not a separate minimum workstation. Final automation workstation and network requirements depend on the configured robot, inspection stack, and MES integration.
Standards & Safety Compliance
| Standard system dimensions | 1030 × 670 × 270 mm |
|---|---|
| Standard system weight | 70 kg |
| Accuracy acceptance | VDI/VDE 2634 Part 2 and ISO 10360; tested in an ISO/IEC 17025 accredited laboratory |
| Certifications | CE, FCC, RoHS, WEEE, KC, FDA, UKCA, IP50, TELEC, and TISAX |
Interactive results
Inspect representative scan data.
Load a model to examine surface detail and captured geometry.
Package contents
What arrives with the selected system.
Review the documented hardware, included accessories and software access for this product.
Configured RobotScan Q12 System
Core modules shown in the official RobotScan architecture. Final hardware and license scope is confirmed on the formal proposal.

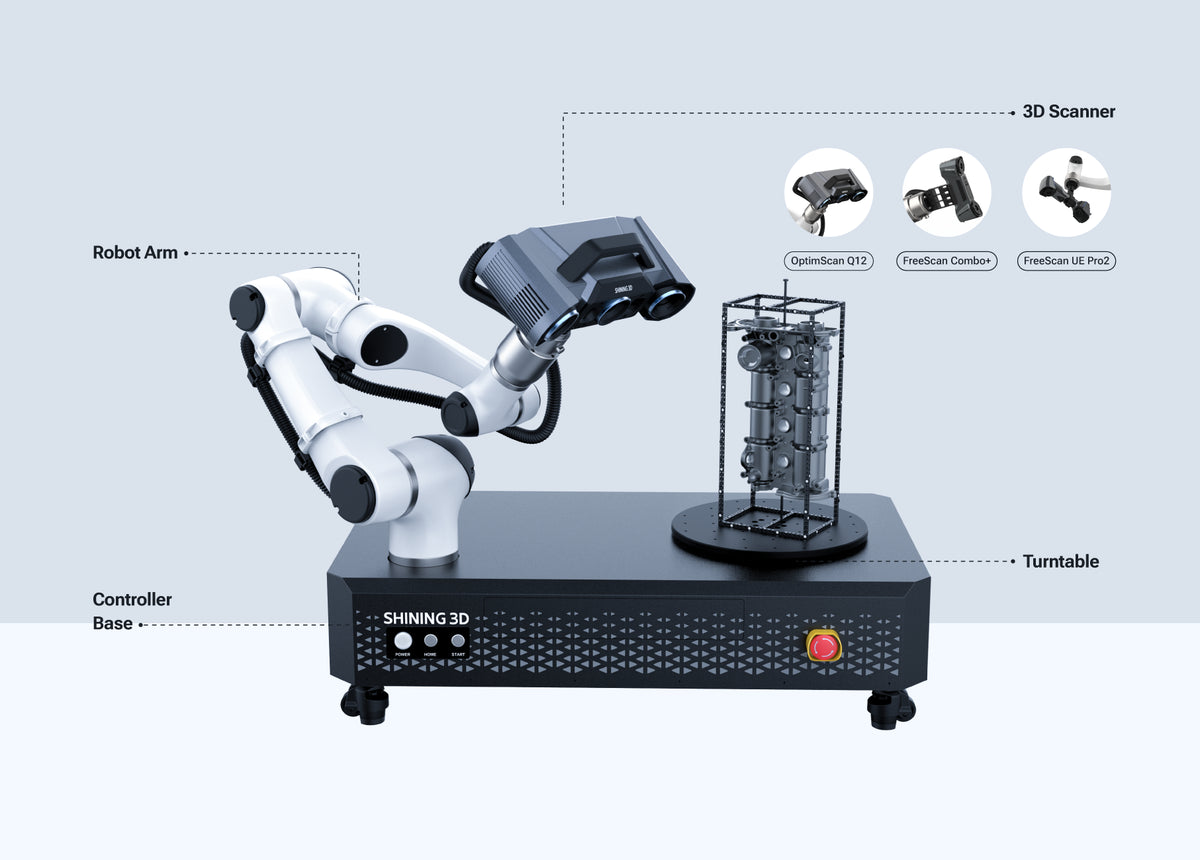

- OptimScan Q12 3D scanner
- Configured robot arm and controller
- System base and servo turntable
- RobotScan Control automation software
- Inspection software scope as quoted
- Calibration and system accessories required for the configured cell
Fixtures, guarding, loading and unloading equipment, MES integration, installation, and onsite services are application-specific.
RobotScan Q12
$82,499
Monthly budget illustrations assume 36 payments at 15% APR, $0 down. Taxes, shipping and fees are excluded. This is not a financing offer or approval. Affirm is unavailable for purchases over $30,000.
Est. monthly budget: $2,860/ mo
36 mo · 15% APR · $0 down. Illustration only.
Monthly payment options
