Two capture ranges
Switch between 150 × 96 mm and 300 × 190 mm scan ranges for small and medium objects
HIGH-RESOLUTION COLOR DESKTOP 3D SCANNER

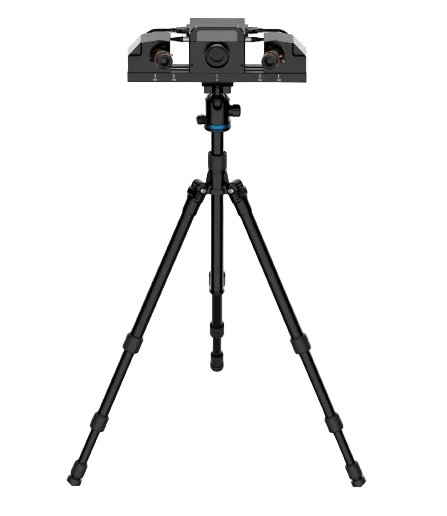

Transcan C SHINING 3D 3D Scanner
Capture precise geometry and full-color detail in one desktop workflow
White LED structured lightScanning technology

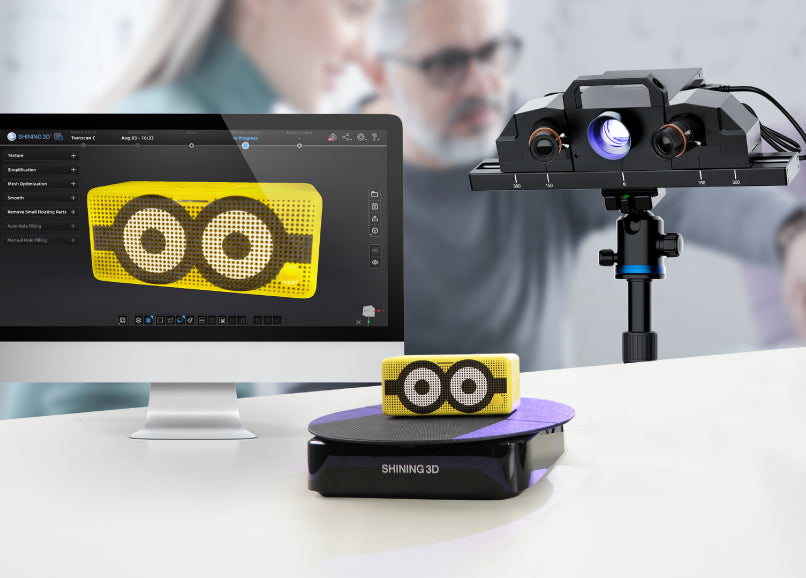

Structured-light scanning with automatic turntableScan mode
300 × 190 mm (outer)Scan ranges
System architecture & capabilities
Capture precise geometry and full-color detail in one desktop workflow
White LED structured lightScanning technology
Structured-light scanning with automatic turntableScan mode
300 × 190 mm (outer)Scan ranges

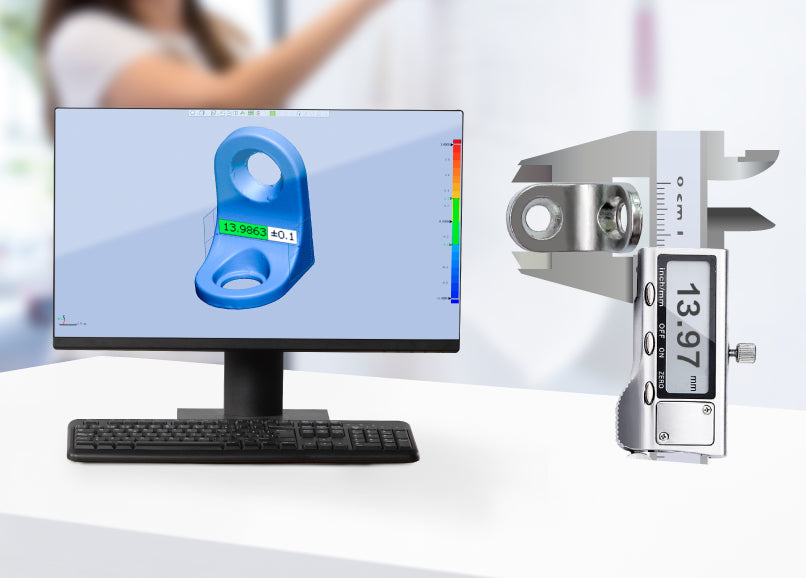

Up to 0.035 mm accuracy
Capture accuracy up to 0.035 mm with point distance down to 0.0375 mm

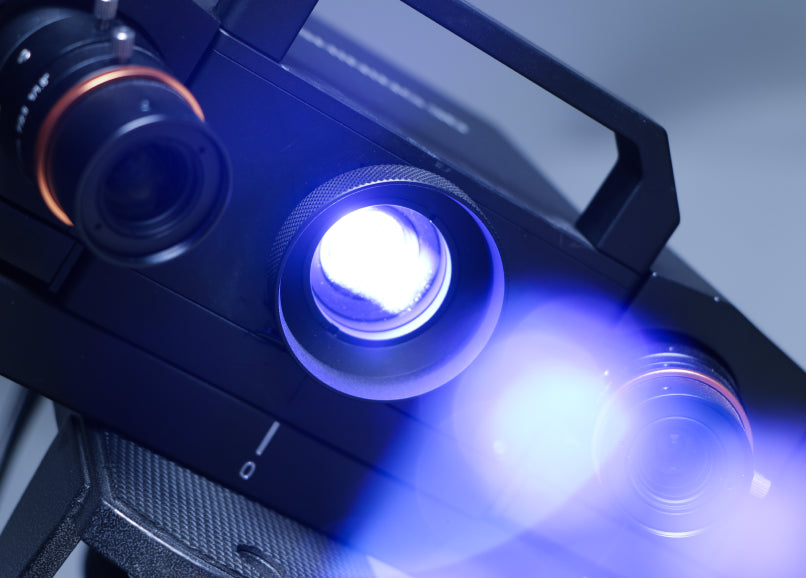

Dual 12 MP cameras
Record detailed 24-bit color textures with two 12 MP professional color cameras
HIGH-RESOLUTION COLOR DESKTOP 3D SCANNERPerformance highlights
Choose the range. Capture the detail.
Explore the capabilities that affect capture, output quality and day-to-day operation.
Feature in focusScan range
01 / 05Application fit

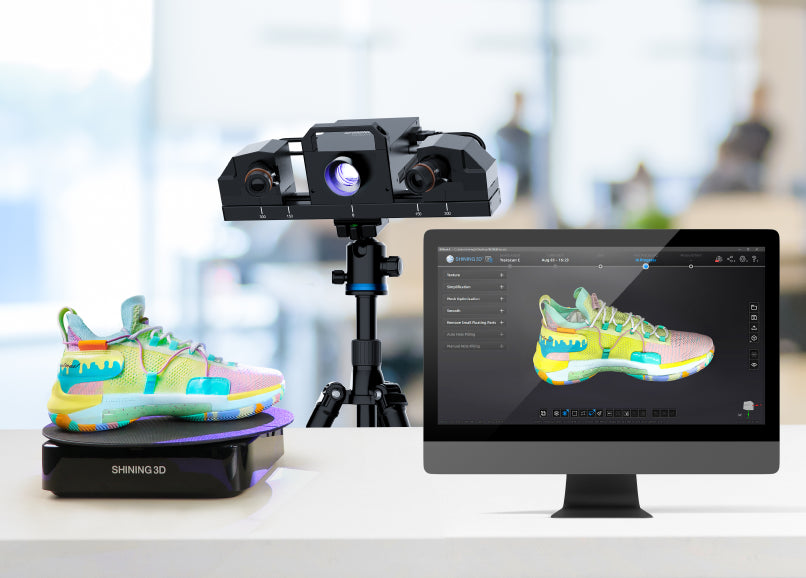

Real geometry and color for your workflow.
Explore representative use cases before confirming system fit.
Image: SHINING 3D product imagery.
Image: SHINING 3D / Sketchfab.
Image: SHINING 3D product imagery.
Image: SHINING 3D scan example.
Image: SHINING 3D product imagery.
Image: SHINING 3D / Sketchfab.
Video library
Watch the workflow in motion.
Use official demonstrations, case studies, and tutorials to assess real operation.
Technical evidence
Every specification, organized for review.
Open the data set needed for engineering, IT, quality, and procurement review.
Complete data table
Open a category to review the full specification.
Physical & Operating Specifications
| Host dimensions | 332 × 110 × 142 mm |
|---|---|
| Tripod dimensions | 475 × 120 × 120 mm |
| Turntable dimensions | 320 × 320 × 68 mm |
| Host weight | 2.7 kg |
| Tripod assembly weight | 2.2 kg |
| Turntable weight | 2.1 kg |
| Maximum turntable load | ≤10 kg |
Capture & Measurement Performance
| Scanning technology | White LED structured light |
|---|---|
| Scan mode | Structured-light scanning with automatic turntable |
| Scan ranges | 150 × 96 mm (inner); 300 × 190 mm (outer) |
| Single-shot accuracy | 0.035 mm (inner); 0.05 mm (outer) |

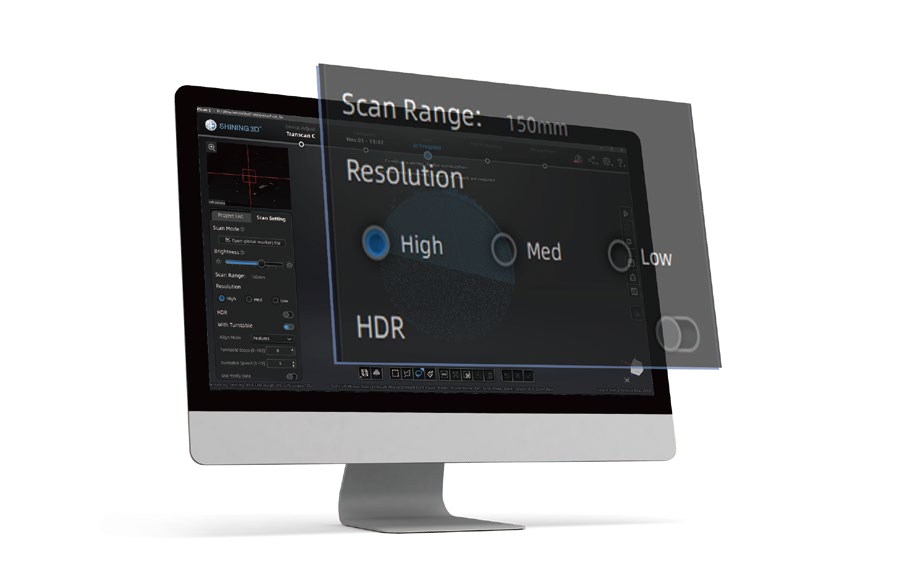

| Point distance | Inner: 0.0375 / 0.075 / 0.114 mm; outer: 0.075 / 0.154 / 0.23 mm |
| Scan speed | <70 s for 8 scans/turn without texture; <3 s per single frame without texture |
| Working distance | 260 mm (inner); 480 mm (outer) |
| Color capture | RGB 24-bit color |
| Color cameras | Two 12 MP professional color cameras |
| Texture acquisition | Fully automatic soft-light capture |
| Alignment modes | Markers, feature, and manual alignment |
| Calibration | Manual calibration |
| Operating environment | Indoor, room temperature |
Software, Formats & System Requirements
| Output formats | OBJ, STL, ASC, PLY, and 3MF |
|---|---|
| Included scanning software | EXScan C for calibration, capture, editing, alignment, merging, optimization, and export |
Workstation requirements
| Component | Recommended |
|---|---|
| Operating system | Windows 10 or Windows 11, 64-bit |
| Processor | Intel Core i7-8700 |
| Graphics card | NVIDIA GTX/RTX series, GeForce GTX 1060 or higher |
| Video memory | 4 GB or more |
| System memory | 32 GB RAM |
SHINING 3D publishes a recommended configuration rather than a separate minimum. EXScan C is Windows-only; larger and higher-resolution projects benefit from stronger GPU performance and additional memory.
Interactive results
Inspect representative scan data.
Load a model to examine surface detail and captured geometry.
Package contents
What arrives with the selected system.
Review the documented hardware, included accessories and software access for this product.
Transcan C Standard Package
Ready-to-use desktop scanning hardware with included EXScan C software.
- Transcan C scanner
- Tripod assembly
- Automatic turntable
- Calibration board
- Target markers
- Power cable and adapter
- USB data cable
- USB drive and documentation
- EXScan C scanning and post-processing software
EXModel, Geomagic Design X, BlueStar Mapping, inspection software, workstation, and training are optional and not included. Regional package quantities and plug type should be confirmed before fulfillment.
Transcan C
$4,899
Monthly budget illustrations assume 36 payments at 15% APR, $0 down. Taxes, shipping and fees are excluded. This is not a financing offer or approval. Payment options through Affirm are subject to eligibility. See Affirm for available terms. Taxes and any applicable shipping are calculated separately.
Est. monthly budget: $170/ mo
36 mo · 15% APR · $0 down. Illustration only.
Monthly payment options
