EinScan Libre for Machine-Guard Retrofits: Capture Before CAD
A guard that clears the machine in CAD can still collide with a hose, block a service panel, or leave too little room for the operator's normal task. Those problems often start before design. The retrofit team measured the obvious envelope but missed the mounting faces, moving components, access path, or existing floor conditions.
A 3D scan can give the designer a much better as-built reference. It cannot identify every hazard, choose the safeguarding method, or certify compliance. For a machine-guard retrofit, those responsibilities stay with the employer and qualified safety, controls, and mechanical personnel.

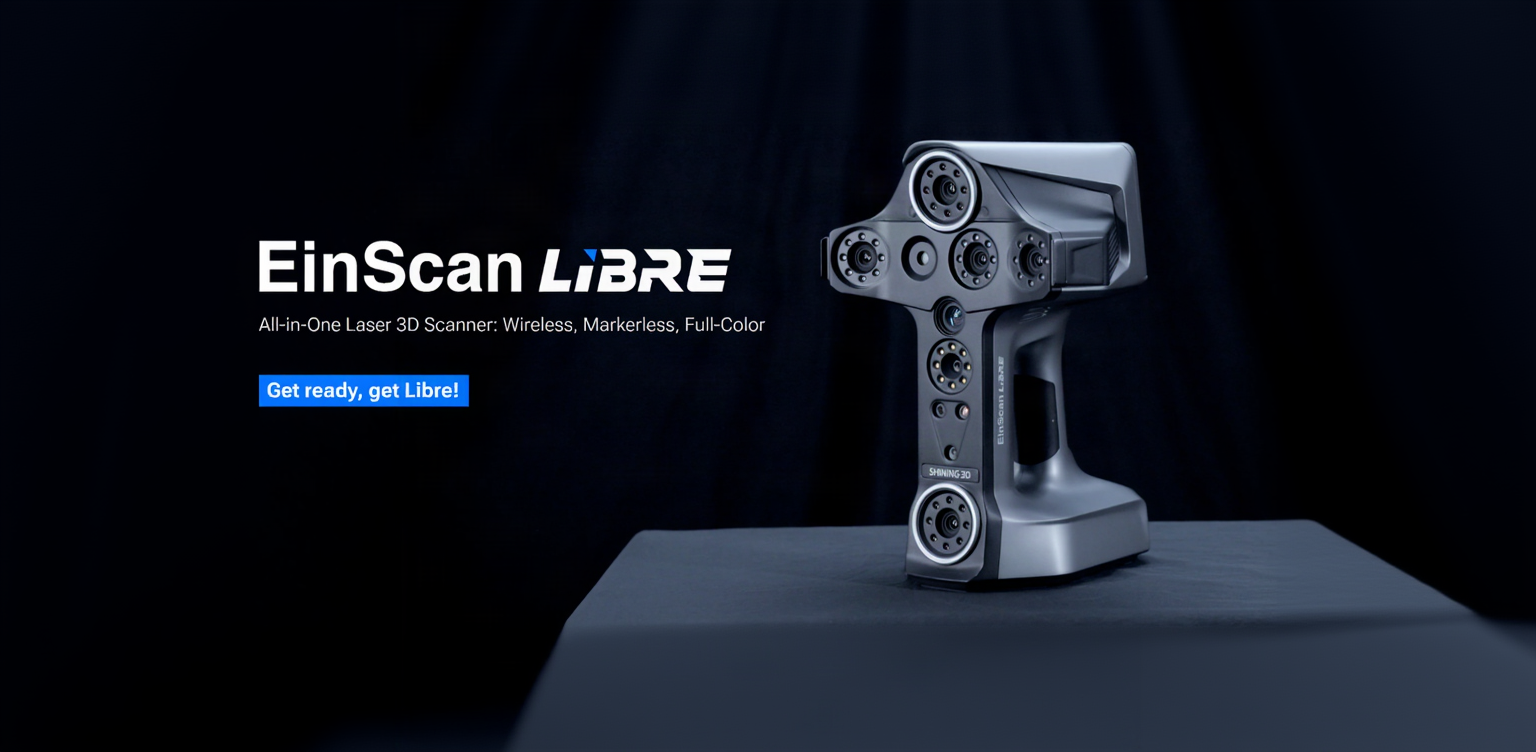

EinScan Libre is relevant to this work because it is a wireless, standalone scanner designed for medium and large objects. Its three capture modes give a field team different ways to handle broad geometry, dark or reflective surfaces, and detailed areas. The useful question is not whether the scanner can produce a complete-looking mesh. It is whether the capture plan preserves the geometry the guard designer and reviewer must actually use.
Separate the geometry survey from the safety decision
OSHA's general machine-guarding rule, 29 CFR 1910.212, requires one or more guarding methods to protect employees from hazards such as points of operation, ingoing nip points, rotating parts, flying chips, and sparks. It also requires guards to be affixed to the machine where possible, or secured elsewhere when that is not possible, without creating a hazard of their own.
The scan is an input to that work. It does not determine where the danger zone ends, whether an interlock is required, or whether a barrier is adequate for every operating and service mode.
| Scan-supported decision | Information to capture | Decision that remains outside the scan |
|---|---|---|
| Guard fit and mounting concept | Frames, panels, mounting faces, fasteners, base plates, floor, walls, and nearby utilities. | Whether the proposed mounting method and guard construction satisfy the applicable safeguarding requirements. |
| Interference review | Doors, handles, controls, lubrication points, cable trays, hoses, bins, carts, and maintenance access. | Which access must remain available and under what energy-control procedure. |
| Moving-envelope reference | Documented positions of slides, arms, tooling, stock, and material-handling equipment. | The hazardous motion envelope and the protective distance required for the selected safeguard. |
| Fabrication handoff | Units, datums, interface geometry, hole locations, clearance zones, and uncertain or inaccessible areas. | Final dimensions, tolerances, materials, fasteners, controls integration, and approval for production use. |
Before anyone enters the machine area with scanning equipment, the plant must decide how the survey will be performed safely. Scanning must not expose the operator to moving machinery or hazardous energy. The site's authorized personnel should determine whether shutdown, lockout/tagout, blocking, or another approved control is required for each capture position.
Build the capture list from the proposed guard
A broad scan of the machine is not enough. Work backward from the decisions the designer expects to make. If a fixed panel may attach to an existing frame, the scan needs clean data on that frame and its fasteners. If an access door may swing into an aisle, the survey needs the floor, neighboring equipment, posts, carts, and the likely operator path.
Capture the fixed reference structure
Start with geometry that can anchor the CAD model: machine frames, base plates, columns, floor features, and stable mounting faces. Identify which surfaces are genuinely rigid and which belong to removable covers or adjustable equipment. A visually prominent panel is not necessarily a reliable datum.
Record interfaces, not just outer surfaces
Include bolt heads, threaded holes, brackets, hinges, cable entry points, conduit, pneumatic lines, and access covers. Photograph and label features that the mesh may not describe clearly. If a hole is too deep, shadowed, or small to capture, flag it for direct measurement instead of reconstructing it from appearance.
Document machine states explicitly
A single scan records one arrangement. It does not automatically describe the swept volume of a moving slide, robot, clamp, stock feeder, or service door. If the project needs multiple safe machine positions, capture each approved state as a separate dataset and record how that state was established. Do not move or energize equipment merely to complete a scan without the plant's approved procedure.
Choose the Libre mode around the surface and scale
SHINING 3D describes EinScan Libre as a computer-free scanner with an onboard display, processing hardware, and replaceable battery. It covers objects from roughly 0.1 m to more than 10 m across its modes. That range is useful around legacy machinery, where a survey may combine a broad equipment envelope with smaller brackets and interfaces.
| Libre mode | Published capability | Possible retrofit role | What to qualify |
|---|---|---|---|
| IR Rapid | Field of view up to 983 x 979 mm and working distance up to 1.5 m. | Broad machine, aisle, enclosure, and surrounding-equipment capture. | Fine interfaces may need a second, higher-detail pass. |
| IR Adaptive | 38 infrared laser lines for surfaces that can be difficult in other modes. | Dark or reflective machine components and mixed industrial finishes. | Test representative paint, bare metal, oil residue, and ambient conditions. |
| Laser HD | 101 blue laser lines, point distance down to 0.05 mm, and scan speed up to 4,500,000 points per second. | Mounting faces, brackets, edges, and guard-interface geometry. | Tracking, line of sight, and the measurement importance of each feature. |
The manufacturer lists volumetric accuracy up to 0.04 + 0.06 mm/m and several alignment methods, including feature, texture, hybrid, markers, and global markers. Treat those as published system capabilities, not as a blanket uncertainty statement for every dimension pulled from a processed mesh. Surface response, calibration, scan path, alignment, scale, post-processing, and feature extraction all influence the usable result.
Control drift before it reaches CAD
Large factory equipment often has long planar panels, repeated frames, and few distinctive features. Those conditions can make a complete-looking scan drift or close incorrectly. Break the survey into planned regions with overlap, then tie the regions to stable reference geometry. Use targets when the environment or required confidence calls for them, even if a marker-free mode can track the surface.
Keep a short capture log with:
- machine identifier, location, date, operator, scanner serial number, software version, and calibration status;
- machine state, approved energy-control condition, and plant representative;
- scan mode, alignment method, resolution, exposure, and any markers or scale reference;
- areas blocked by guarding, equipment, floor conditions, or access restrictions;
- direct measurements used to confirm scale or critical interfaces; and
- file names connecting raw capture, registered data, mesh, CAD reference, and released design.
Before meshing, inspect registration at both ends of the dataset and around the mounting region. A small alignment error accumulated across a long machine can become a fabrication problem at the opposite end.
Keep the mesh and the engineering model separate
The scan records observed surfaces. A guard design contains intent: straight panels, controlled gaps, hinge axes, fastener choices, service clearances, and interfaces with electrical or pneumatic safeguarding. Do not turn the mesh into a smooth solid and treat every reconstructed surface as measured fact.
| Deliverable | Purpose | Release control |
|---|---|---|
| Raw and registered scan data | Preserves the captured evidence and alignment history. | Retain unchanged with the capture log. |
| Review mesh | Lets the team inspect coverage, occlusions, and gross interference. | Label repaired, filled, smoothed, or decimated regions. |
| CAD reference model | Supports guard layout, mounting concepts, and fabrication drawings. | Distinguish scanned surfaces, direct measurements, and designer-created geometry. |
| Released guard design | Defines the approved safeguard and its installation. | Requires the organization's engineering, safety, controls, and change-management approvals. |
If a mounting hole, shaft center, safety distance, or fabricated interface is critical, verify it with a method suitable for the required tolerance and risk. The FreeScan Combo machined-part inspection guide explains why a complete surface model is not automatically a validated measurement result.
Verify the installed guard against the approved design
Do not let the original scan become the only record used for acceptance. Installation can introduce new conditions: shifted brackets, weld distortion, unmodeled cable routes, loose hardware, blocked controls, or access gaps. The responsible team should inspect the installed guard, test the associated safeguarding functions, verify required distances and openings, and confirm that normal operation, material flow, cleaning, adjustment, and maintenance are addressed.
OSHA's lockout/tagout guidance also makes an important distinction: guarding that protects workers during normal production does not necessarily control hazardous energy during every service activity. The final review must consider both the machine's operating safeguards and its servicing procedures.
Questions retrofit teams ask before scanning
Can a 3D scan make a machine guard OSHA compliant?
No. A scan can document as-built geometry for design and interference review. Hazard identification, safeguard selection, safety distances, controls integration, validation, and compliance decisions remain with the employer and qualified professionals.
Does EinScan Libre require markers for a machine-guard survey?
Not in every case. Libre supports feature, texture, hybrid, marker, and global-marker alignment. Large flat panels, repeated frames, weak texture, or long capture paths may still benefit from markers or other stable references. Qualify the alignment method on the actual machine geometry.
Which Libre mode is best for a large industrial machine?
IR Rapid can cover broad areas efficiently, while IR Adaptive can help with difficult dark or reflective surfaces and Laser HD can capture smaller interfaces at higher resolution. A mixed-mode plan is often more useful than forcing the entire survey into one setting.
Can the machine remain in production while it is scanned?
The scan plan must not expose anyone to moving machinery or hazardous energy. The plant's authorized safety and operations personnel should determine the required shutdown, lockout/tagout, blocking, guarding, and access controls before the survey begins.
What should the guard fabricator receive from the scan team?
Provide the agreed mesh or point cloud, units, coordinate system, datums, interface geometry, direct measurements, inaccessible-area notes, processing history, and a clear distinction between observed surfaces and reconstructed CAD. The released fabrication package should come from the approved engineering process.
Use a representative zone to qualify the workflow
Before committing to a plant-wide retrofit program, test one zone that includes the surfaces and decisions most likely to cause trouble: a long frame, a reflective component, a recessed mounting point, nearby services, and a moving or removable element. Review the raw capture, registration, mesh, CAD handoff, and verification plan with the same people who will approve the guard.
