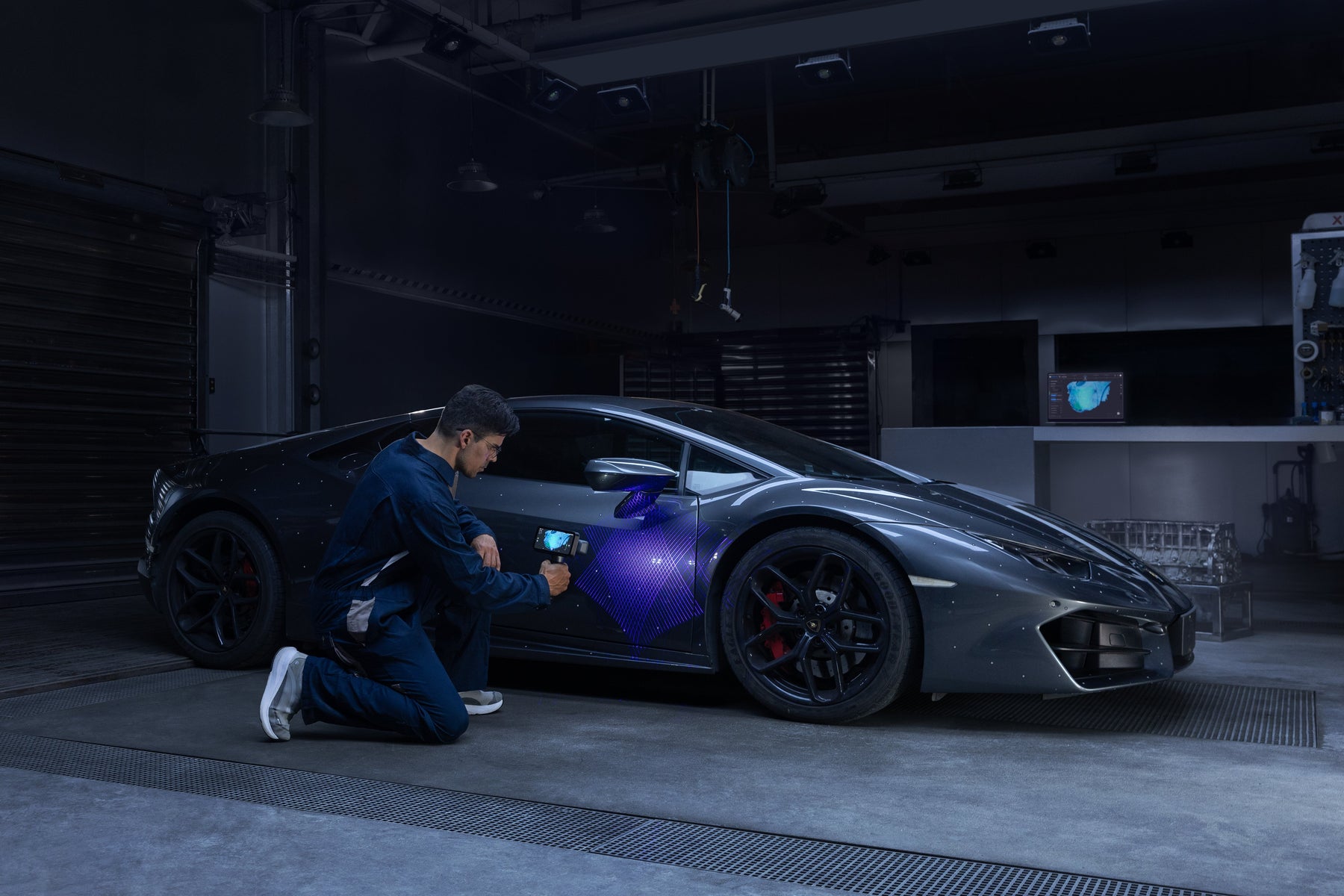

EinScan Rigil Automotive Scan-to-CAD: From Vehicle Geometry to Production-Ready Design

Direct answer: EinScan Rigil is a strong candidate for automotive reverse engineering when a shop needs portable capture across engine bays, interiors, installed systems, and individual components then intends to rebuild that geometry as editable CAD. The crucial distinction is that scanning records the vehicle as it exists. Production-ready CAD still requires datum strategy, design-intent reconstruction, tolerance decisions, and fit validation.

That distinction separates an impressive mesh from a manufacturable part. An aftermarket engineer does not simply need the shape of a bracket, inlet, console, or body opening. The engineer needs to know which faces locate the part, which holes control assembly, what clearance must remain under motion and heat, and which geometry is worn, flexible, damaged, or irrelevant.

Why automotive scan-to-CAD projects fail after a good scan

Vehicle projects contain more ambiguity than the final rendering suggests. Painted panels flex. Rubber seals compress. Interior trim is textured and clipped into place. Castings include draft, parting lines, and as-manufactured variation. A modified car may combine original parts, repaired structures, and one-off fabrication that no factory CAD represents.

A scan captures all of it indiscriminately. If a designer converts that mesh into a dense “solid” and begins adding features, the model can become slow, difficult to edit, and disconnected from functional design intent. Worse, the designer may accidentally use a sagging hose, worn bushing, damaged mounting face, or loosely fitted trim panel as a nominal boundary.

The better question is not “Can this scanner make an STL?” It is “Can this workflow preserve the measured evidence while producing controlled CAD for the decision we need to make?”

Where EinScan Rigil fits in an automotive workflow

EinScan Rigil combines blue-laser and IR VCSEL capture with standalone, wireless-PC, and wired-PC operating modes. SHINING 3D specifies Laser HD volumetric accuracy up to 0.04 + 0.06 mm/m and resolution up to 0.05 mm, plus IR Rapid capture up to 16,000,000 points per second, under the manufacturer's stated conditions. The system also supports marker-free hybrid laser tracking when the available geometry and surface provide a suitable reference.

These are useful capabilities for a one-person shop visit, but they do not make every mode interchangeable. The engineer should choose the capture method around the object, tolerance, access, and downstream use.

Choose IR Rapid, Laser HD, markers, or feature tracking deliberately

Use IR Rapid for context and coverage

IR Rapid mode is useful when the priority is fast coverage of medium-to-large, geometry-rich areas such as cabins, trunks, underhood packaging, seats, dashboards, and surrounding structure. Its broad working range can help establish context before the designer isolates smaller functional regions.

Context geometry does not need the same density as a machined bore or mounting boss. Capturing everything at maximum resolution increases processing time without adding decision value.

Use Laser HD for critical mechanical geometry

Blue-laser modes are better suited to fine mechanical features and many dark or metallic automotive surfaces. Crossed laser lines favor throughput; parallel lines favor local detail. Rigil allows dynamic switching between its laser modes within the workflow so an operator can cover the overall component and then concentrate on bores, edges, slots, ribs, and sealing interfaces.

Do not promise marker-free capture on every car part

Feature tracking needs recognizable, non-repetitive geometry. An engine block or complex engine bay may provide abundant reference features. A broad hood, roof, door skin, or symmetric panel may not. Markers, magnetic targets, nearby reference structures, or a different capture plan may be the more reliable choice.

Marker-free is a workflow option not a guarantee that preparation disappears.

Blue laser reduces surface difficulty; it does not repeal optics

Black plastics, polished aluminum, chrome, carbon fiber, glass, and translucent polymers still deserve a representative test. Angle, exposure, ambient light, contamination, and surface treatment can change the result. A removable scanning spray may improve coverage, but it must be compatible with the finish, electronics, adhesives, coatings, and cleaning restrictions. Obtain the asset owner's approval before applying anything.

A controlled workflow from vehicle to editable CAD

1. Define the product decision

State what the scan must support: package a new assembly, reproduce a broken component, design a fixture, create an aerodynamic surface, or compare a prototype. Identify critical interfaces, required tolerance, desired CAD format, manufacturing process, and approving engineer before acquisition begins.

2. Make the vehicle safe and stable

Scanning must never put an operator beneath an unsupported vehicle or near unexpectedly moving, energized, hot, pressurized, or rotating systems. The vehicle owner controls lift procedures, energy isolation, high-voltage systems, airbags, fuel systems, and shop access. U.S. employers should review applicable OSHA hazardous-energy requirements; Canadian and Mexican work must follow the corresponding jurisdictional and site rules.

Record the vehicle state. Ride height, wheel load, suspension position, hood or trunk position, seat adjustment, and disassembly can all change the geometry that matters.

3. Establish functional datums before broad scanning

Capture the features that make the future part locate and function: mounting planes, bolt-hole axes, bores, shaft centerlines, symmetry planes, body reference points, suspension pickups, seal paths, and flange faces. Photograph and label them. If a customer drawing or model defines a datum reference frame, use it deliberately rather than relying on an unconstrained best fit.

4. Capture context first, critical detail second

Create a lightweight global representation of the surrounding vehicle, then capture the critical component and interfaces at the appropriate detail. Review coverage while still at the car. A five-minute acquisition is not a five-minute job if one hidden mounting face forces a second visit.

For assemblies, decide whether parts must be captured installed, removed, or in multiple states. A closed hood, compressed seal, articulated suspension, or routed wiring harness may reveal constraints that an open or unloaded scan misses.

5. Preserve evidence before editing

• Retain the original scan project and unedited measured data.
• Create a working copy for cleanup, alignment, decimation, and meshing.
• Document deleted regions, hole filling, smoothing, mirroring, and inferred surfaces.
• Keep high-detail critical regions separate from lightweight vehicle context when practical.
• Use consistent units, coordinate systems, file names, and revision identifiers.

6. Reconstruct design intent not scanner noise

Build parametric planes, cylinders, axes, sketches, lofts, and controlled surfaces from the measured reference. Use symmetry, repeated features, mating parts, design rules, and engineering judgment to recover intent. Do not reproduce wear, dents, casting texture, sag, or scan artifacts unless they are intentionally part of the product definition.

An STL-to-STEP conversion usually wraps triangles in a nominal CAD container; it does not create an editable feature history or restore design intent. For simple components, a designer can remodel around sections and primitives. Complex freeform Class-A or aerodynamic surfaces may require dedicated reverse-engineering tools and specialist surfacing skill.

7. State tolerances independently of the scan

The point cloud does not decide manufacturing tolerance. Tolerances come from function, process capability, assembly needs, risk, and the controlling specification. In North American product definition, ASME Y14.5 provides the authoritative GD&T language, but the responsible engineer must apply it correctly.

For OEM or Tier work, the customer's approved measurement method, quality plan, and customer-specific requirements govern acceptance. Owning a capable scanner does not automatically make every scan an approved inspection record.

8. Validate geometry, fit, motion, and manufacturability

Compare reconstructed CAD back to the measured data using sections and deviation maps, but interpret the colors by functional region. Then validate the design with the methods appropriate to its consequence:

• Check mounting points and critical dimensions with independent measurement where required.
• Run clearance, access, tool-path, and assembly studies in CAD.
• Evaluate motion envelopes, heat, vibration, hose/cable movement, and service access.
• Prototype low-risk interfaces with a printed buck, template, fixture, or inexpensive first article.
• Perform engineering analysis and physical testing for structural, pressure, thermal, or safety-critical parts.
• Record deviations, assumptions, approvals, and revisions before release.

What an automotive EinScan Rigil demo should prove

A polished demonstration on a small matte object cannot qualify a vehicle workflow. Bring the actual part or a representative combination of scale, surface, access, and feature detail and agree on success criteria first.

• Can the operator capture both vehicle context and the smallest critical interface?
• Where does marker-free tracking remain stable, and where are targets the better control?
• What surface preparation is needed on the prospect's black, polished, or reflective materials?
• Can the project be reviewed, resumed, aligned, and exported into the customer's CAD workflow?
• How much workstation processing, mesh reduction, and operator training are required?
• Can the team produce one representative CAD feature and compare it back to the scan?
• What claims remain unproven after the demonstration?

Book a representative-part EinScan Rigil demo, review the SKYLAB3D industrial scanning workflow, or request a scanner and software quote.

Frequently asked questions

Is EinScan Rigil good for automotive reverse engineering?

Yes, when the part size, tolerance, surface, access, and CAD deliverable fit its capabilities. Its standalone operation, blue-laser detail modes, IR coverage, and hybrid tracking make it particularly relevant to custom fabrication, restoration, replacement parts, and vehicle packaging. Validate the exact application with a representative demo.

Can Rigil scan an engine bay without markers?

Often, geometry-rich engine bays provide enough features for hybrid or feature tracking. Smooth covers, repeated geometry, deep occlusions, or large flat regions may still benefit from markers or a planned reference structure. Test the actual engine bay rather than assuming marker-free performance.

Does blue-laser scanning eliminate scanning spray?

No. Blue laser can improve capture on many dark and metallic surfaces, but highly polished, chrome, transparent, translucent, or difficult composite surfaces may still require exposure changes, a different angle, controlled lighting, or an approved removable spray.

Can I convert an STL directly into SolidWorks or another CAD system?

You can import or wrap a mesh, but that is not the same as an editable, design-intent CAD model. Production work normally requires extracting references, rebuilding parametric features or surfaces, assigning datums and tolerances, and validating the reconstruction against the scan.

Which datums should I capture for an aftermarket component?

Capture the features that locate, orient, fasten, seal, or articulate the part: mounting planes, bolt axes, bores, shaft centerlines, symmetry, seal surfaces, body reference points, and clearance boundaries. The correct datum scheme follows function and the controlling engineering specification.

Is Rigil accurate enough for suspension parts?

Scanner specifications alone cannot answer that. Suspension work requires an application-specific tolerance and uncertainty assessment, controlled vehicle state, suitable datums, and engineering validation. Safety-critical design, material, welding, fatigue, and roadworthiness requirements extend far beyond surface capture.

Should I use IR Rapid or Laser HD mode on a car?

Use IR Rapid when broad contextual coverage is the priority, and Laser HD when finer mechanical detail and tighter reference geometry matter. Many jobs benefit from separate levels of detail: lightweight vehicle context plus high-detail functional interfaces.

What software should I budget for?

Budget for the complete path: scan acquisition and processing, mesh cleanup, scan-to-CAD or surfacing, the destination CAD system, and any inspection software. Also account for a capable workstation, training, data storage, and the time required to reconstruct and validate parts.

What should I send SKYLAB3D before requesting a demo?

Send photographs, approximate dimensions, the smallest critical feature, required tolerance, material and finish, installed/removable status, access constraints, desired CAD output, current software, deadline, and the decision the data must support. Remove customer-confidential information unless a suitable agreement is in place.

Bottom line

EinScan Rigil can shorten the distance between a real vehicle and an engineered aftermarket product, especially when portability and mixed-scale capture matter. The return does not come from collecting the most triangles. It comes from capturing the right interfaces once, rebuilding purposeful CAD, and validating fit before tooling, machining, printing, or fabrication consumes the budget.

Technical note: confirm current product specifications with SHINING 3D documentation and a representative application test. SKYLAB3D does not replace the vehicle owner's safety program, the responsible engineer, customer-specific quality requirements, or regulatory approval.
