Einstar Vega vs EinScan Rigil: Which Workflow Fits?

Einstar Vega and EinScan Rigil both let an operator capture without staying tethered to a workstation, but they are not interchangeable. Vega is designed around portable infrared scanning, color capture, and a simpler all-in-one workflow. Rigil adds blue laser modes, infrared rapid capture, and two PC-connected operating modes for heavier engineering data.

For a United States buyer, the useful question is not which scanner has the longer feature list. It is which one can capture the actual part, work with the available computer, and produce data that fits the next step.

How do Einstar Vega and EinScan Rigil differ at a glance?

Einstar Vega suits portable color capture, education, creative work, and general product digitizing. EinScan Rigil is the stronger choice for engineering parts that benefit from blue laser capture, higher data throughput, and flexible standalone, wireless-PC, or wired-PC operation. Both can scan without a computer, but their optical systems and downstream workflows differ.

The Einstar Vega all-in-one 3D scanner uses infrared scanning modes and a 48 MP texture camera. It can capture on the device, review the result on its 6.4-inch display, and transfer the project for desktop post-processing when needed.

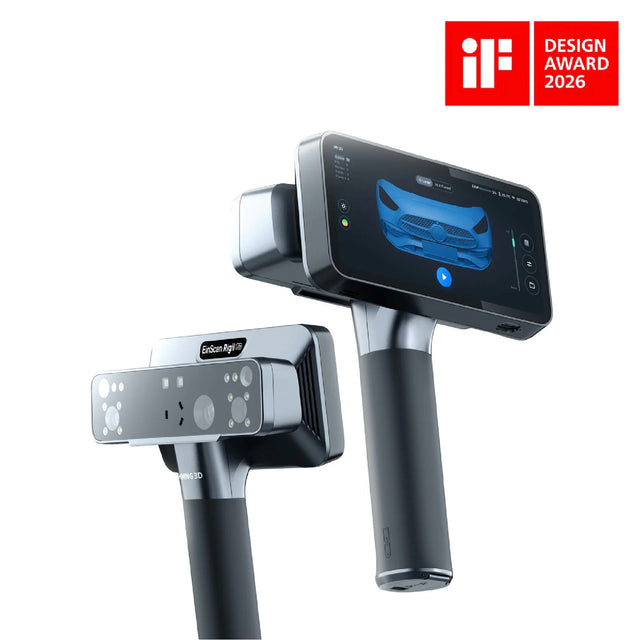

The EinScan Rigil all-in-one laser 3D scanner combines blue laser and infrared capture. Its three operating modes let a team scan on the device, connect wirelessly to a Windows workstation, or use a wired connection when large projects and predictable throughput matter.

Which scanner handles dark or reflective engineering parts more reliably?

Rigil usually provides the more direct path for dark, metallic, or reflective parts because its blue laser modes are designed for demanding surfaces and fine geometry. Vega remains useful for textured objects, color capture, and general geometry, but difficult finishes may require preparation, controlled lighting, or a representative-part test before purchase.

Surface behavior can matter more than nominal object size. A painted housing with strong texture may track easily in infrared. A polished machined component can lose data, reflect light into the cameras, or force the operator to use markers and temporary scanning spray. Laser capture can reduce some of that friction, but it does not remove line-of-sight limits, deep recesses, or the need for stable alignment.

The manufacturer currently lists Rigil with crossed blue laser lines for speed, seven parallel lines for detail, and an infrared rapid mode for larger or feature-rich objects. Vega uses HD and Fast infrared modes. The correct screening test is the hardest surface and smallest important feature on the real part, not an ideal sample.

Which platform gives the better field workflow?

Vega is easier to treat as a self-contained capture tool when color, portability, and quick on-device review lead the job. Rigil offers the broader operating range for engineering teams because the same scanner can work standalone, connect wirelessly to a workstation, or run wired when project size and network conditions demand it.

Vega keeps the field kit compact and avoids carrying a computer for basic capture. Rigil also works independently, while its replaceable-battery design and PC modes make it easier to extend a longer engineering session or move a large project onto stronger computing hardware.

Neither scanner turns field capture into a complete field procedure by itself. Plan power, spare storage, glare control, environmental protection, file backup, marker handling, and safe access around the object. For outdoor or customer-site work, confirm that the proposed workflow can be repeated without relying on uncontrolled lighting or improvised part preparation.

What software comes with each scanner?

Einstar Vega includes the ImageStarVision desktop post-processing workflow for transferring and refining projects captured on the device. EinScan Rigil includes EXScan Rigil for PC-based online scanning, file transfer, and larger-data processing. These applications cover scanner operation and mesh work; they do not automatically create a finished parametric CAD model.

ImageStarVision can import Vega projects, edit point clouds and meshes, adjust texture, make basic measurements, and export common polygon formats. EXScan Rigil is used when Rigil connects to a computer for online scanning or when the project benefits from more workstation memory and graphics capacity.

A mesh is still not a native CAD feature tree. Reverse engineering normally requires cleanup, alignment, surface or solid reconstruction, dimensional decisions, and validation in suitable scan-to-CAD software. Include that software and labor in the purchase plan instead of treating the scanner application as the final engineering deliverable.

How should buyers interpret accuracy and resolution?

Resolution describes how densely the system can represent geometric detail; accuracy describes agreement with a reference under stated conditions. Vega documents fine capture resolution but is not positioned as a metrology system. Rigil carries a manufacturer-stated volumetric accuracy, yet that figure alone does not establish a traceable inspection process or guarantee a result on every part.

The official Vega specification lists a minimum resolution of 0.05 mm. The current Rigil product specification lists geometric resolution up to 0.05 mm and volumetric accuracy up to 0.04 + 0.06 mm/m in Laser HD mode. These numbers describe different aspects of performance and should not be compared as if they were the same measurement.

Part finish, calibration state, working distance, tracking, temperature, fixture stability, operator motion, and alignment method all affect the data. When a drawing tolerance governs acceptance, define the allowable measurement uncertainty before choosing the capture system.

Which workstation does each workflow require?

Vega can capture without a computer, and ImageStarVision supports current documented Windows and Apple-silicon macOS workflows. Rigil also captures standalone, but its current EXScan Rigil documentation specifies Windows 11 Professional 64-bit for PC processing. A Mac buyer should not assume EXScan Rigil compatibility and should plan a suitable Windows workstation.

For Vega desktop processing, the manufacturer lists Windows 10 or 11 64-bit and recommends macOS 11 or later on Apple silicon. Larger files still require enough memory and free storage, regardless of operating system.

For Rigil, the current EXScan Rigil recommendation lists a 13th-generation Intel Core i7-13700H or better, NVIDIA RTX 3060 laptop GPU or better, at least 8 GB of VRAM, 64 GB of dual-channel DDR5 memory, USB 3.0, and Windows 11 Professional 22H2 64-bit. Those are recommended values for substantial projects, not a promise that every lower configuration will fail.

Can either scanner replace a metrology system?

No. Vega is an entry-level professional capture tool, while Rigil is a higher-capability professional scanner with a published accuracy specification. Neither specification by itself creates a traceable inspection result. Conformance work needs a qualified procedure, calibrated equipment, controlled conditions, documented uncertainty, appropriate references, and validation against the acceptance requirement.

NIST explains that metrological traceability applies to a measurement result through a documented, unbroken calibration chain, with each link contributing to measurement uncertainty. A dense mesh, a color deviation map, or a close CAD overlay is not enough by itself.

If the task is dimensional inspection, first-article acceptance, gauge replacement, or tight-tolerance production control, review the industrial 3D scanner portfolio for inspection and engineering. A metrology-oriented scanner and validated inspection workflow may be the correct path.

What should a United States buyer verify before ordering?

Verify the object envelope, smallest required feature, difficult surfaces, capture environment, platform, included software, output format, downstream CAD or inspection step, operator training, and acceptance risk. Then confirm the live product configuration and price. A qualified decision connects the scanner to the complete workflow, not just the first scan.

• Choose Einstar Vega when untethered infrared and color capture, a built-in screen, macOS desktop support, and a lower-complexity workflow matter most.
• Choose EinScan Rigil when blue laser capture, reflective or dark engineering parts, replaceable batteries, and Windows-connected processing justify the additional capability.
• Escalate to metrology when inspection uncertainty, datum control, repeatability, or acceptance reporting governs the purchase.
• Check the software chain before ordering. ImageStarVision and EXScan Rigil process scan data, while native CAD reconstruction requires a separate scan-to-CAD workflow.

For a closer look at the next accuracy tier, compare EinScan Rigil and FreeScan Combo for professional versus metrology scanning. Buyers who have already selected a model can order from the live Vega or Rigil product page, or request a formal procurement quote.
