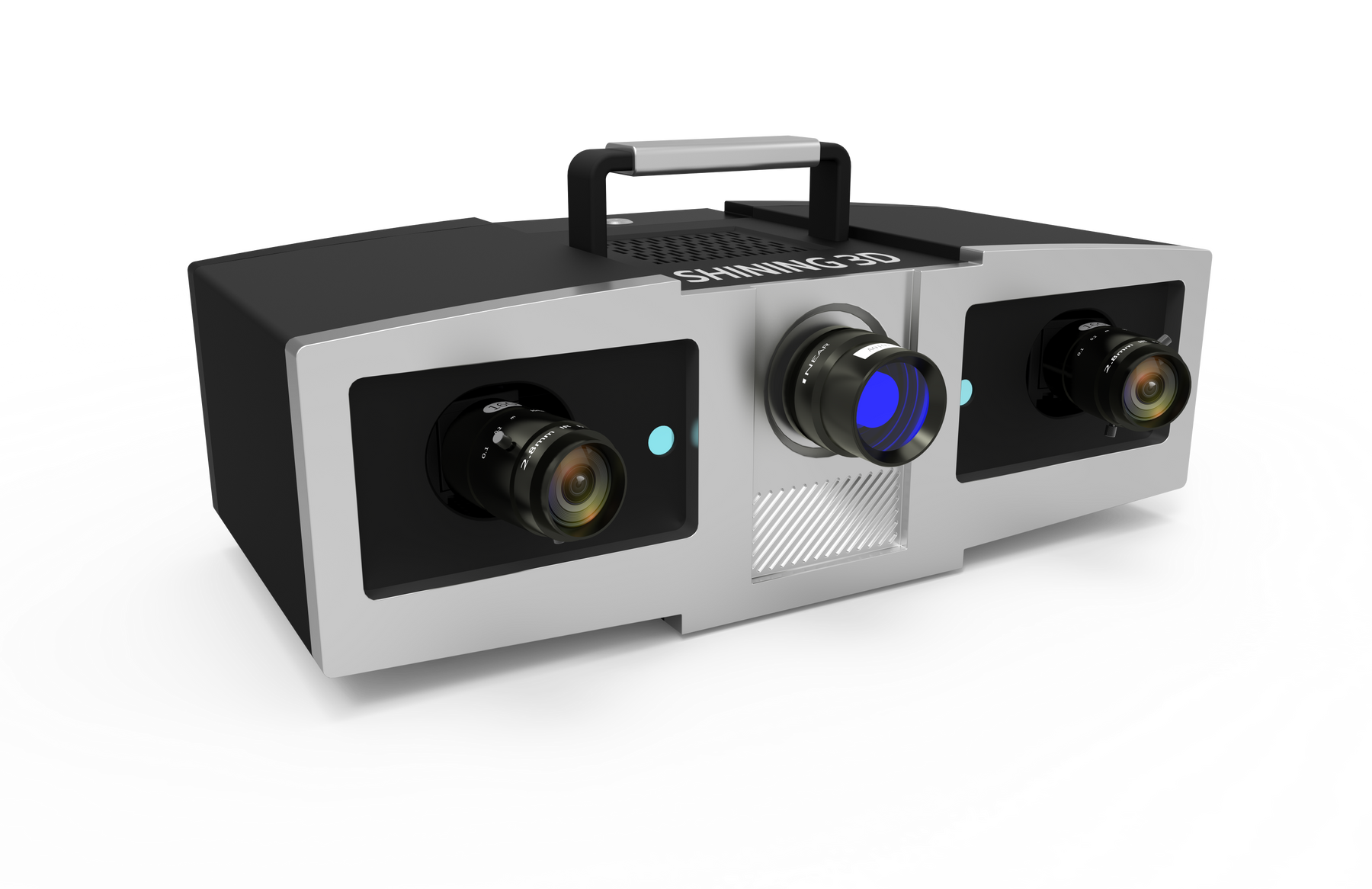

OptimScan 5M Plus for Turbine Blade Inspection
The OptimScan 5M Plus is a strong fit for controlled turbine-blade dimensional inspection when the job requires dense full-surface data, fine edge detail, and repeatable CAD comparison. Its 0.005 mm single-shot accuracy, 0.04 mm point distance, and blue-light structured projection support airfoil profile checks, provided the process is qualified for the actual tolerance.
A turbine blade is a small part with an unusually demanding inspection problem. The airfoil blends compound curvature, thin leading and trailing edges, platform transitions, root features, and often a reflective alloy or coating. A handful of discrete measurements can confirm selected dimensions, but it may not reveal where profile error develops between those points.
When does the OptimScan 5M Plus fit turbine-blade inspection?
The OptimScan 5M Plus is a fixed structured-light system intended for high-detail work in a controlled measurement environment. According to the current SHINING 3D OptimScan 5M Plus technical data, it uses two 5-megapixel metrology cameras and a blue LED projector. The manufacturer specifies single-shot accuracy up to 0.005 mm, point distance up to 0.04 mm, a single scan range up to 400 x 300 mm, and scan time of 1.5 seconds or less.
Those specifications make the system relevant when the inspection plan needs dense surface coverage of a small or medium airfoil rather than portable capture of an installed assembly. The practical question is not whether 0.005 mm appears on the data sheet. It is whether the entire measurement process - scanner configuration, lens range, calibration, surface preparation, fixture, alignment, environment, operator method, and software evaluation - can demonstrate adequate uncertainty for the blade tolerance.
| Inspection need | How full-field scanning helps | Qualification question |
|---|---|---|
| Airfoil profile | Compares dense surface data with nominal CAD or an approved reference geometry. | Which datum scheme and section locations control acceptance? |
| Leading and trailing edges | Captures edge form from multiple views instead of relying on one line of sight. | Can the selected point spacing and viewing angles resolve the required radius? |
| Post-repair geometry | Shows excess or missing material across repaired regions before release to the next operation. | Is the alignment repeatable before and after welding, blending, or machining? |
| Coated surface geometry | Maps the external form after coating for comparison with the defined final envelope. | Does the inspection plan distinguish external shape from true coating thickness? |
Why is full-field data useful on an airfoil?
Airfoil acceptance often depends on a coordinated set of characteristics: profile at defined sections, chord, twist, bow, sweep, edge radii, platform relationships, and root-to-airfoil orientation. A full-field scan creates a common geometric data set from which those checks can be evaluated. It also produces a color deviation map that can help engineering teams locate a process shift before selecting the exact sections or features for deeper analysis.
That color map is a diagnostic view, not an acceptance rule by itself. The report must use the drawing or model-based definition, the correct datum reference frame, and the specified evaluation method. ASME Y14.5-2018 (R2024) remains the current ASME standard for stating and interpreting geometric dimensioning and tolerancing requirements. Quality teams should apply the contractually required revision and customer-specific rules.
How should a turbine-blade scanning workflow be built?
- Define the decision before scanning. List the controlled characteristics, tolerance limits, required report format, drawing or model revision, and whether the result is for process feedback, final acceptance, repair evaluation, or reverse engineering.
- Select the measurement range for the smallest important feature. The OptimScan 5M Plus supports multiple scan ranges. Choose the lens configuration and point spacing around the trailing edge, fillet, cooling-hole boundary, or local repair area that drives the job, not only the overall blade length.
- Stabilize the environment and equipment. Allow the blade, fixture, scanner, and calibration artifact to reach a stable condition. Isolate the setup from vibration and avoid changing the camera-to-part relationship after calibration.
- Control the surface condition. Reflective superalloys and coatings can introduce glare or incomplete data. Adjust exposure and high-dynamic-range settings first. Use scanning spray only when the material, cleaning process, customer requirements, and downstream operations explicitly permit it.
- Fixture without distorting the blade. Support the root or approved locating surfaces, keep required datums visible, and record the fixture method. A fixture that bends a thin section can create a repeatable but wrong result.
- Capture overlapping views. Rotate or reposition the blade so both pressure and suction sides, edges, platform transitions, and root interfaces have sufficient overlap. Inspect raw data for holes, glare, edge noise, and movement before meshing.
- Align using the inspection plan. Best fit can be valuable for process diagnosis, but it can hide datum-related error. Use datum-based, reference-point, local, or constrained alignment when that is what the engineering definition requires.
- Evaluate and validate. Report the required sections and characteristics, review uncertain regions, and confirm the method with a repeatability study and an independent reference where the risk warrants it.
How do you make the result traceable and repeatable?
Traceability is not created by saving an STL file or attaching a calibration certificate. The National Institute of Standards and Technology explains that dimensional measurement traceability requires a documented, unbroken chain of calibrations and an evaluation of measurement uncertainty. The NIST discussion of traceability for 3D imaging data is a useful foundation for building that evidence.
For the OptimScan 5M Plus, SHINING 3D lists accuracy certification to VDI/VDE 2634 Part 3 by an ISO/IEC 17025-accredited laboratory. That supports equipment evaluation, but the user still owns the application method. A practical validation plan can include:
- a documented scanner configuration and calibration status;
- a stable fixture and repeatable view sequence;
- multiple scans by the same operator and, when relevant, different operators;
- comparison of critical characteristics with a calibrated reference method;
- defined rules for spray, exposure, filtering, meshing, alignment, and section extraction;
- an uncertainty statement or decision rule appropriate to the tolerance and customer requirement.
For tighter characteristics at a blade root, a sharp cooling-hole edge, or an inaccessible internal passage, the defensible answer may be a hybrid plan. Structured light can provide fast, dense external geometry while tactile CMM, optical microscopy, computed tomography, or another qualified method handles features that the scan cannot resolve or see.
What does structured-light inspection not replace?
An external optical scan measures visible surface geometry. It does not establish material integrity, subsurface crack condition, coating bond, wall thickness, internal cooling-passage condition, or alloy composition. A surface deviation can show where shape changed, but it cannot determine why.
Keep dimensional inspection separate from nondestructive testing and material evaluation. Fluorescent penetrant, eddy current, ultrasonic, radiographic, computed-tomography, microscopy, and metallurgical methods have different detection capabilities and qualification requirements. Use the methods required by the applicable maintenance manual, process specification, customer approval, and regulatory framework.
How is this application different from larger-part structured-light inspection?
The OptimScan 5M Plus decision centers on high-detail capture of smaller, intricate geometry in a controlled setup. For larger molded components where automation, a broader field of view, or a different camera architecture drives the process, see the OptimScan Q12 injection-molded part inspection workflow. The two systems should not be treated as interchangeable simply because both use structured light.
Teams comparing fixed and handheld systems can also use SKYLAB3D's industrial 3D scanning for inspection guide and the current SHINING 3D industrial scanner portfolio to separate controlled lab metrology from portable shop-floor capture. Because the OptimScan 5M Plus requires qualified application engineering, it is handled via direct enterprise consultation rather than standard digital procurement.
Common questions about turbine-blade 3D inspection
Can the OptimScan 5M Plus inspect a turbine blade without scanning spray?
Sometimes. Blue structured light, exposure control, and HDR settings can capture many surfaces directly, but highly reflective, dark, or translucent regions may still produce incomplete data. Test the actual alloy and coating first. Use spray only when the part, cleaning process, and customer requirements allow it.
Is 0.005 mm accuracy enough for every blade characteristic?
No. The published value is a single-shot equipment specification, not a guarantee for every feature or setup. The measurement process must have adequate uncertainty for the specified tolerance, and some root, edge, hole, or internal characteristics may require another method.
Can a 3D scan replace CMM inspection?
It can replace or reduce some discrete-point work when the optical process is qualified, but it should not be assumed to replace every CMM characteristic. Many blade programs use full-field scanning for external airfoil geometry and retain tactile or other methods for critical, inaccessible, or especially tight features.
Can the scan detect cracks or internal cooling-passage damage?
No. The OptimScan 5M Plus captures visible external geometry. Crack detection, internal passages, wall thickness, coating bond, and material integrity require the appropriate qualified NDT, CT, microscopy, or metallurgical method.
