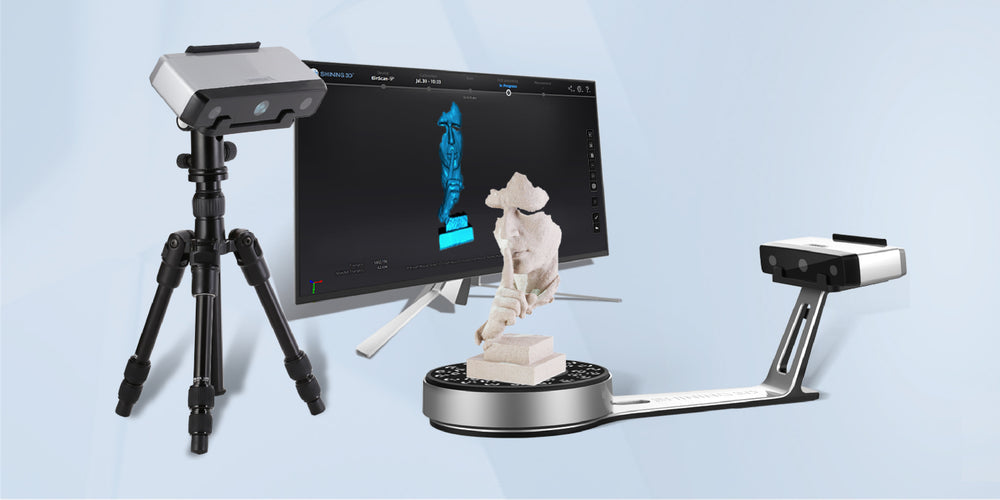

SE V2 or SP V2
Choose 0.1 mm accuracy with SE V2 or 0.05 mm accuracy and additional alignment modes with SP V2.
Desktop 3D scanning
EinScan Desktop Series SHINING 3D SE V2 and SP V2 desktop 3D scanners
Two desktop scanners. Full-color capture. Choose the accuracy and alignment tools your projects need.
Up to 0.1 mmSE V2 accuracy
Up to 0.05 mmSP V2 accuracy
Under 1 secondSingle-shot speed
Full colorTexture capture
System architecture & capabilities
A practical path from physical objects to 3D models.
SE V2 makes desktop capture accessible for education and design. SP V2 adds finer accuracy and marker-based alignment for more demanding small-part work.
Up to 0.1 mmSE V2 accuracy
Up to 0.05 mmSP V2 accuracy
Under 1 secondSingle-shot speed
Full colorTexture capture
Color on your desktop
Use white LED structured light and automatic turntable scanning to capture object shape and surface texture.
EXScan S included
Calibrate, scan, align, edit, and export meshes. Add CAD or texture-mapping software when your project needs it.
Desktop 3D scanningCompare configurations
Choose the hardware that fits your workflow.
EinScan-SE V2
Starting at $1,199
Est. monthly budget: $42/ mo
36 mo · 15% APR · $0 down. Illustration only.
Monthly payment options
EinScan-SP V2
Starting at $2,099
Est. monthly budget: $73/ mo
36 mo · 15% APR · $0 down. Illustration only.
Monthly payment options
Hardware specifications
| Capability | EinScan-SE V2 | EinScan-SP V2 |
|---|---|---|
| Accuracy | Up to 0.1 mm | Up to 0.05 mm |
| Single-shot speed | Less than 1 second | Less than 1 second |
| Turntable rotation | Less than 45 seconds | Less than 45 seconds |
| Alignment modes | Manual, feature, turntable | Manual, feature, turntable, markers, coded targets |
| Fixed scan volume (brochure) | Up to 700 × 700 × 700 mm | Up to 1200 × 1200 × 1200 mm |
| Turntable scan volume | Up to 200 × 200 × 200 mm | Up to 200 × 200 × 200 mm |
| Calibration board | Standard calibration board | High-accuracy calibration board |
| Turntable | Standard turntable | Coded-target turntable |
| Included scanning software | EXScan S | EXScan S |
| Texture capture | Full color | Full color |
Need custom software or multi-unit packages?
Build & Configure System ↗Performance highlights
Capture, refine, and export from your desktop.
Explore the capabilities that affect capture, output quality and day-to-day operation.
Feature in focusAutomatic capture
01 / 06Your workflow
From the turntable to your next project.
- Step 01
EXScan S included

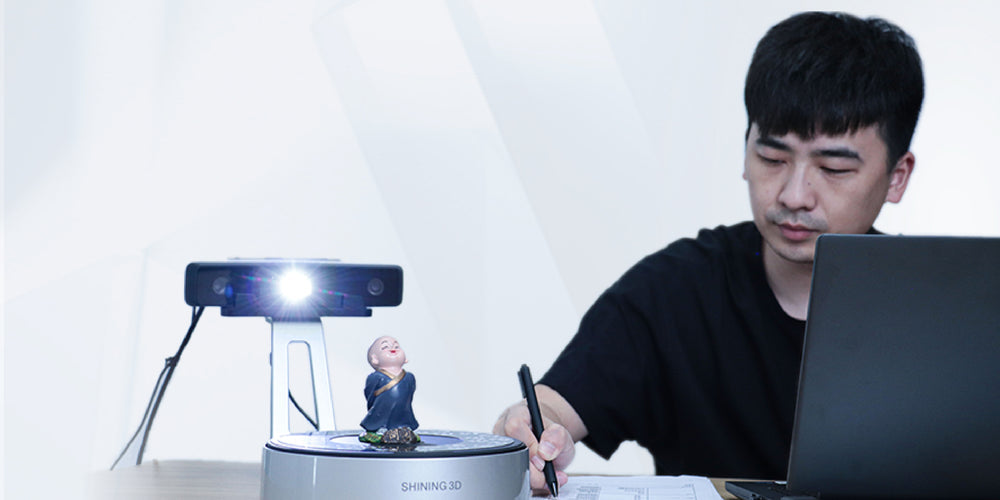

Calibrate and capture
Calibrate the scanner, prepare the object, and choose automatic turntable or fixed scanning.
Geometry and color scan data
- Step 02
EXScan S included

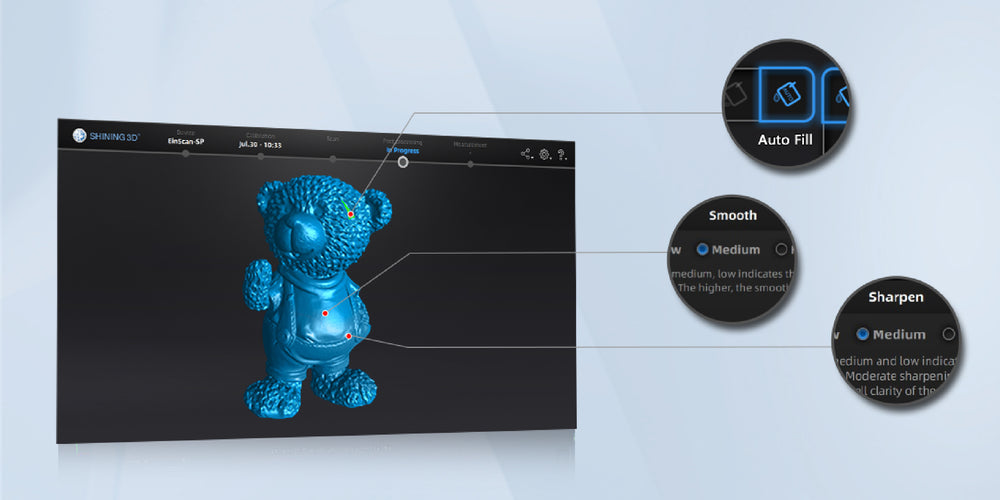

Align and refine
Align multiple views and use mesh editing tools to check coverage and prepare the model.
Processed mesh
- Step 03
Downstream tools as required

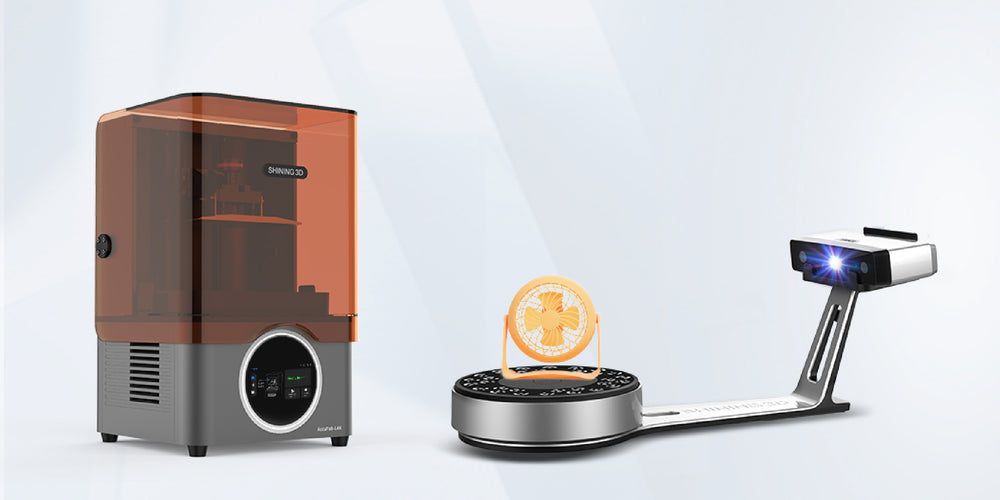

Export for your task
Export a mesh for 3D printing and visualization, or continue into optional CAD software for reverse engineering.
STL, OBJ, PLY, ASC, or 3MF

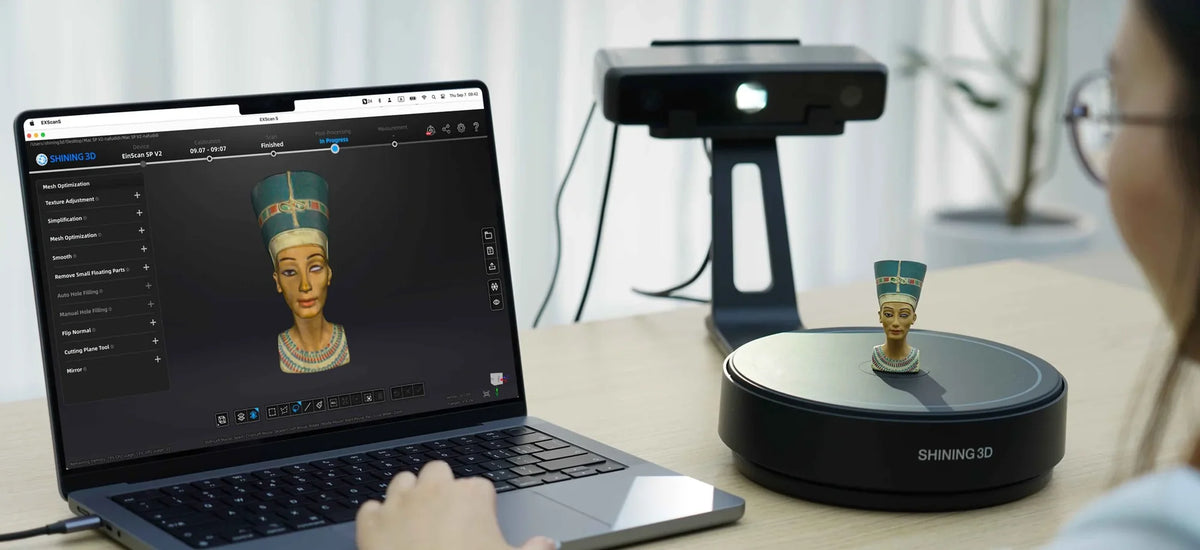

Application fit

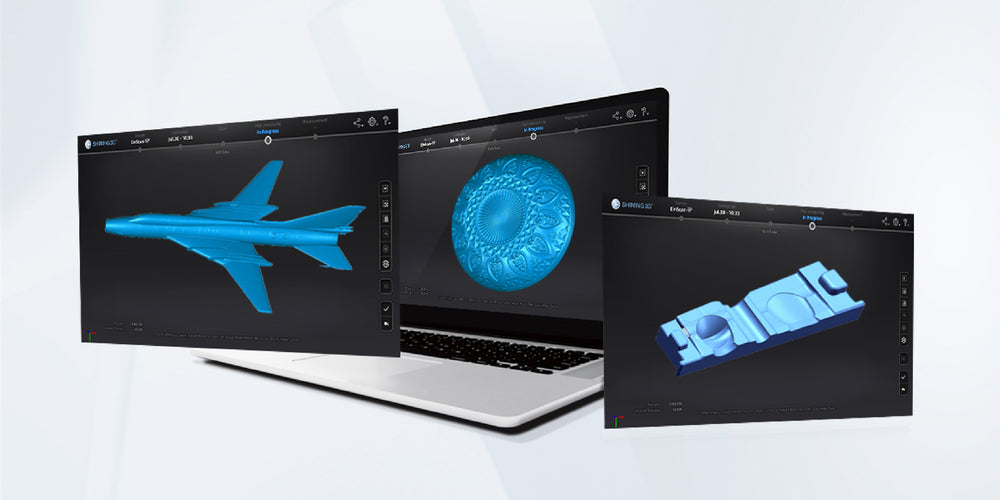

From teaching projects to small-part design.
Explore representative use cases before confirming system fit.
Image: SHINING 3D product imagery.
Image: SHINING 3D product imagery.
Image: SHINING 3D product imagery.
Image: SHINING 3D product imagery.
Video library
Watch the workflow in motion.
Use official demonstrations, case studies, and tutorials to assess real operation.
Technical evidence
Every specification, organized for review.
Open the data set needed for engineering, IT, quality, and procurement review.
Complete data table
Open a category to review the full specification.
Physical & Operating Specifications
| Turntable load capacity | 5 kg |
|---|
Capture & Measurement Performance
| Accuracy - SE V2 | Up to 0.1 mm |
|---|---|
| Accuracy - SP V2 | Up to 0.05 mm |
| Single-shot scan speed | Less than 1 second |
| Turntable scan speed | Less than 45 seconds per turn; varies with computer and scan settings |
| Point distance | 0.17 to 0.2 mm |
| Scan modes | Fixed scanning with or without the turntable |
| Single-scan range | 200 × 150 mm |
| Minimum scan volume | 30 × 30 × 30 mm |
| Maximum turntable scan volume | 200 × 200 × 200 mm |
| Maximum fixed scan volume - SE V2 | 700 × 700 × 700 mm |
| Maximum fixed scan volume - SP V2 | 1200 × 1200 × 1200 mm, per manufacturer brochure; confirm alignment and setup for large objects |
| SE V2 alignment | Manual, feature, and turntable |
| SP V2 alignment | Manual, feature, turntable, markers, and turntable coded targets |
| Light source | White LED structured light |
| Camera resolution | 1.3 MP |
| Color capture | Supported |
| Working distance | 290 to 480 mm |
| Current operating-system support | Windows 10/11 64-bit; macOS Ventura 13 or later for SE V2/SP V2 |
Software, Formats & System Requirements
| Export formats | OBJ, STL, ASC, PLY, 3MF |
|---|---|
| Computer connection | USB 3.0 on V2 hardware |
| Included scanning software | EXScan S for Windows or macOS |
Workstation requirements
| Component | Minimum | Recommended |
|---|---|---|
| Windows release | Windows 10/11, 64-bit | Current compatible EXScan S Windows release |
| macOS release (V2 only) | macOS Ventura 13 or later | Confirm the exact Mac configuration against the current EXScan S release |
| Processor (Windows) | Intel Core i5 or higher | Intel 7th-generation Core i5 or higher |
| Memory (V2 brochure) | More than 16 GB RAM | More than 16 GB RAM; capacity depends on project size |
| Graphics (V2 brochure) | NVIDIA GTX 660 or higher, with more than 2 GB VRAM | Compatible dedicated NVIDIA GPU; confirm the selected PC before purchase |
| Computer connection | USB 3.0 connection for V2 hardware | Direct, stable USB connection |
Hardware figures use the V2-specific manufacturer brochure. Current EXScan S releases support Windows 10/11 (64-bit) and macOS 13 or later. Confirm the exact computer and scan workload before purchase. Optional CAD and texture software have separate requirements.
Interactive results

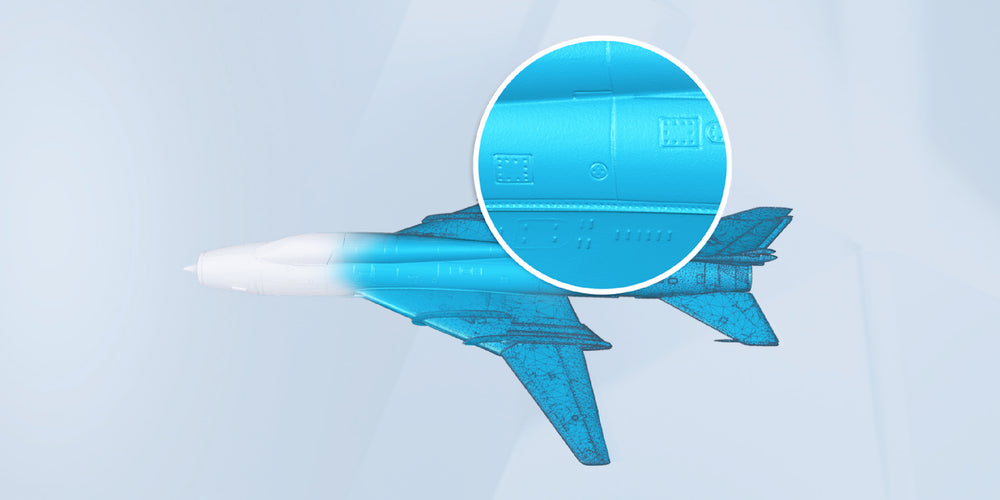

Inspect representative scan data.
Load a model to examine surface detail and captured geometry.
Package contents
What arrives with the selected system.
Review the documented hardware, included accessories and software access for this product.
EinScan-SE V2
Standard desktop package
- Scanner head
- Scanner stand
- Scanner bracket
- Turntable
- Calibration board
- Calibration-board holder
- Power adapter
- USB cable A
- USB cable B
- Quick guide
- EXScan S scanning software (included download)
EinScan-SP V2
Desktop package with additional alignment tools
- Scanner head
- Scanner stand
- Scanner bracket
- Coded-target turntable
- High-accuracy calibration board
- Calibration-board holder
- Tripod
- Marker set
- Power adapter
- USB cable A
- USB cable B
- Quick guide
- EXScan S scanning software (included download)
Model-specific contents follow the manufacturer brochure and V2 quick guides. A computer, 3D printer, and optional CAD or texture-mapping licenses are not included.
