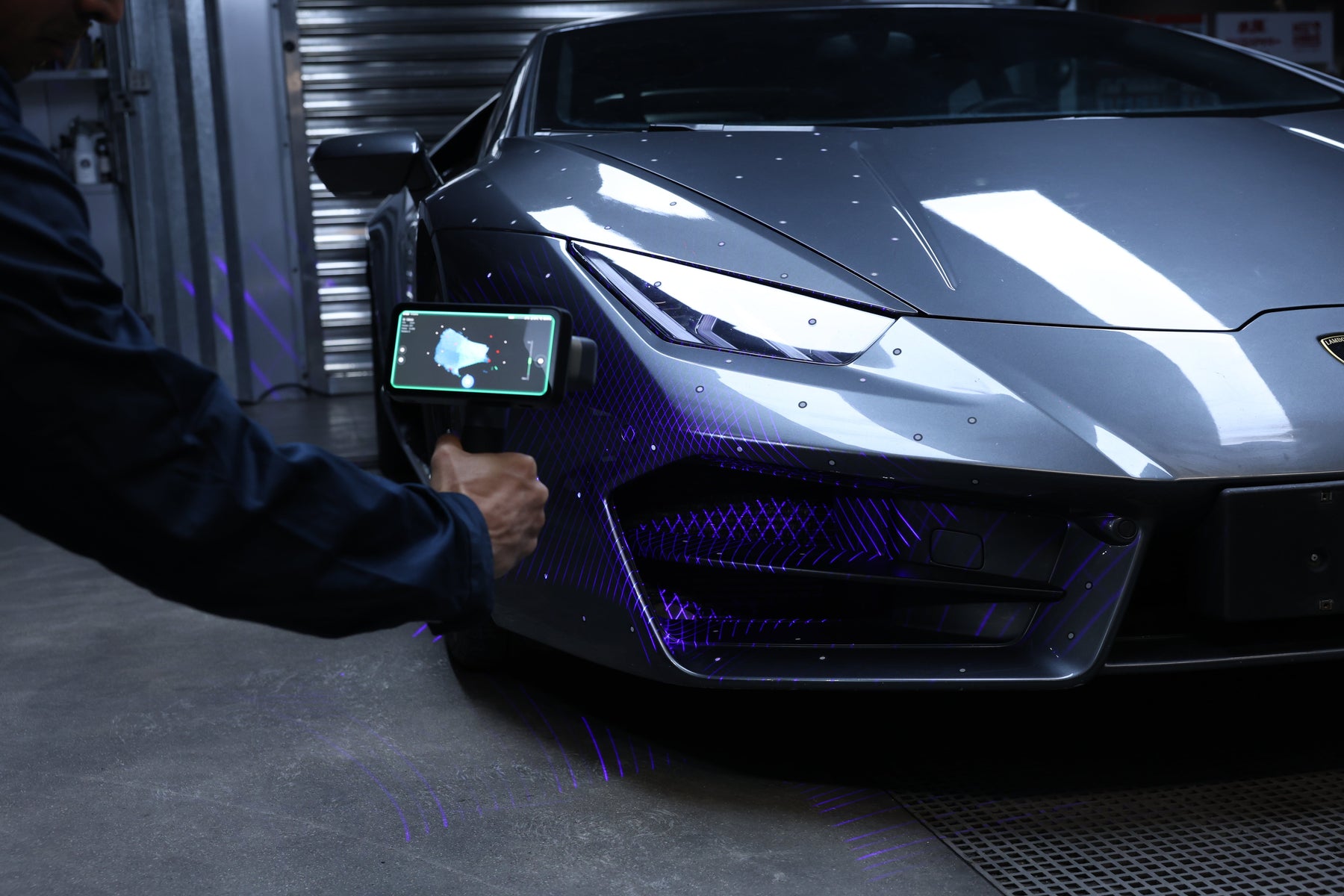

How to Use EinScan Rigil for Automotive Reverse Engineering

The EinScan Rigil fits automotive reverse engineering work that calls for portable capture of parts, interiors, engine-bay geometry, fixtures, or aftermarket fitment surfaces. It can produce a useful mesh or CAD reference, but the scan is not automatically a traceable inspection result. Standalone, wireless-PC, and wired-PC operation let the technician choose a setup that works around the vehicle instead of arranging the job around a workstation cable.

The problem Rigil solves in a vehicle bay

Automotive scan-to-CAD work rarely happens in a perfect metrology lab. The object may be installed in a vehicle, surrounded by reflective paint and dark trim, too large for a turntable, or unavailable long enough to build a dedicated setup. That is why portability is not a convenience feature here; it changes which jobs can be captured economically.

The practical question is whether the scanner can capture the surfaces and interfaces that control the design. A bumper scan used to plan an accessory needs broad coverage and reliable tracking. A replacement bracket needs clean holes, mounting faces, and edge transitions. Those jobs may use the same scanner, but they should not use the same capture plan.

What the Rigil changes in a scan-to-CAD workflow

Conventional handheld scanning can create a second logistics problem: the operator must manage a scanner, cable, computer, power, and a safe place for the workstation while moving around the part. SHINING 3D's current Rigil platform combines onboard computing, display, storage, and battery power with three ways to work:

• Standalone: scan and process on the device when mobility matters most.
• Wireless PC: keep the scanner untethered while using a computer for additional processing resources.
• Wired PC: use a USB-C connection when network conditions, project size, or shop policy favor a stable physical connection.

A technician can scan on the device in a confined area, move to a PC for a larger project, or use a cable where wireless operation is restricted. The choice affects convenience and processing capacity; it does not remove the need to plan references, overlap, surface preparation, and validation.

EinScan Rigil specifications that matter for automotive work

The table below uses SHINING 3D's current published Rigil Series information. "Up to" specifications describe manufacturer-rated performance under stated conditions. Actual results also depend on the surface, geometry, operator, environment, calibration, and processing choices.

SHINING 3D also documents marker-free blue-laser scanning through a Laser + IR hybrid tracking mode in EXScan Rigil. This can reduce preparation when the object has enough trackable geometry. Flat panels, repeated ribs, symmetric shapes, and long featureless spans may still need markers or another reference strategy.

Choose the mode after you define the deliverable

Use Laser HD for mating features and detailed components

Start with Laser HD when the CAD model depends on holes, bosses, clips, flanges, mounting pads, edge transitions, or smaller geometric features. Typical candidates include brackets, intake components, trim hardware, housings, lamp interfaces, switchgear, and replacement parts. Parallel-line scanning can be useful when the operator needs deliberate detail capture; crossed lines can favor faster coverage.

Use IR Rapid for broad context and larger surfaces

IR Rapid is useful when the team first needs the surrounding geometry: trunk volume, seating envelope, cockpit, large trim, fascia, cabin, dashboard, vehicle exterior regions, or a larger fixture. Its higher published point rate and longer working-distance range can help cover more area before the operator returns to important interfaces with a higher-detail strategy.

Split the project instead of forcing one setting

Many automotive jobs are easier to manage as two captures. Scan the surrounding geometry at a coarser resolution, then capture the important interfaces separately at higher detail. Align and check the datasets before CAD work begins. This usually produces a smaller, cleaner project than scanning the entire area at the finest point spacing.

A practical automotive reverse-engineering workflow

1. Define the engineering question

"Scan the part" is not a sufficient scope. Decide whether the job is for packaging, fitment, reproduction, restyling, fabrication, documentation, additive manufacture, or dimensional comparison. List the interfaces that control the outcome. A replacement bracket may require accurate hole centers and mating planes; an upholstery insert may depend more on surrounding freeform surfaces and clearances.

2. Set an acceptance criterion before capture

Convert the drawing, assembly requirement, or design intent into a measurable threshold. If the model will become product definition, review applicable GD&T conventions. ASME Y14.5 establishes rules for stating and interpreting geometric dimensioning and tolerancing on drawings, models, and related documents. The scan is evidence used in the workflow; it does not replace engineering judgment about datums, tolerances, wear, deformation, or design intent.

3. Stabilize and prepare the object

• Secure loose panels, trim, hoses, clips, and flexible parts in the state the CAD model must represent.
• Clean oil, dust, and fingerprints that can change reflectivity or hide edges.
• Use reversible scanning spray only when material, finish, downstream cleaning, and customer requirements permit it.
• Place markers where the tracking plan needs them; avoid covering critical features.
• Control sunlight and moving reflections when practical, especially on a vehicle exterior.

4. Calibrate and run a short proof scan

SHINING 3D recommends calibration before first use, after periods of inactivity, after significant vibration, when data quality drops, or when accuracy and tracking degrade. Before committing to a large capture, scan a representative section that includes the hardest surface and the most important interface. Review point spacing, tracking stability, noise, edge behavior, and coverage.

5. Capture with deliberate overlap

Move steadily and keep sufficient overlap with verified geometry. Do not chase an occluded feature by twisting the scanner into an unstable angle; change the part orientation or plan a second scan. Interior passages and deeply occluded geometry cannot be recovered from surfaces the optical system cannot see.

6. Clean the mesh without erasing the part

Smoothing, hole filling, decimation, and watertight meshing are useful tools, but every automated operation changes the dataset. Preserve a raw or minimally processed master. Create separate meshes for visual presentation, CAD reference, and downstream printing if those use cases need different cleanup.

7. Build CAD from design intent

A mesh is not automatically a production-ready parametric model. Use planes, axes, cylinders, sections, and surface fits to reconstruct the intended geometry. Treat worn edges, bent sheet metal, seal compression, repaired surfaces, and hand-finished areas as measured conditions, which may differ from the original design intent.

8. Validate the result

Compare the reconstructed CAD to the mesh, review critical sections, and check important dimensions with an appropriate independent method. For traceable inspection, NIST explains that metrological traceability belongs to a measurement result and requires a documented, unbroken chain of calibrations that contributes to measurement uncertainty. A scanner specification, calibration event, or reseller statement alone does not make a result NIST-traceable.

Where Rigil fits, and where another scanner may fit better

If the primary requirement is portable engineering capture, review the EinScan Rigil product page. If tighter inspection requirements control the purchase, compare SKYLAB3D's industrial SHINING 3D scanner range and define the measurement objective before choosing hardware.

Questions to answer in a Rigil demo

• What are the smallest critical features, and can they be reconstructed repeatably?
• How does the scanner handle the actual black, polished, chrome, painted, translucent, or textured surface?
• Can the operator maintain tracking across the longest low-feature region?
• What is the project size and processing time in standalone, wireless-PC, and wired-PC modes?
• Which output, such as STL, OBJ, PLY, 3MF, or ASC, fits the downstream software?
• Is the required deliverable a mesh, reference CAD, parametric solid, inspection report, or production release?
• How will the team validate the reconstructed model and document uncertainty?

Request an application-specific EinScan Rigil demo with your part size, surface, smallest critical feature, and desired CAD output. SKYLAB3D is an authorized SHINING 3D reseller and can use that information to structure a useful evaluation instead of a generic product tour.

Frequently asked questions

Is EinScan Rigil good for automotive reverse engineering?

Yes, when the job needs portable surface capture for fitment, packaging, replacement parts, fabrication, restoration, or scan-to-CAD reference work. The decision should be based on the actual part, surface, tolerance, and output, not the model name alone.

Can EinScan Rigil scan a whole car?

It can capture vehicle-scale regions and broad surfaces, particularly with IR Rapid mode, but project strategy matters. Large panels, symmetry, changing light, repetitive geometry, and file size can make a multi-scan plan more reliable than one uninterrupted capture.

Does marker-free scanning mean markers are never needed?

No. Marker-free capability can reduce preparation when geometry provides reliable tracking. Flat, repetitive, symmetric, or accuracy-critical regions may still benefit from markers or global markers.

Does the scanner create a finished CAD solid?

No. The scanner creates point-cloud and mesh data. Reverse-engineering software and CAD work are used to reconstruct surfaces, features, and parametric design intent. The effort depends on geometry, required editability, and tolerance.

Is a Rigil scan automatically suitable for inspection reports?

No. Inspection suitability depends on the scanner, software, calibration, environment, fixture, operator, procedure, uncertainty, validation, and customer requirements. Traceability is a property of the measurement result, not a label applied to the instrument.

What information should I provide for a scanner recommendation?

Provide the part's minimum and maximum size, material and finish, smallest critical feature, tolerance or fit requirement, environment, expected weekly volume, output format, CAD or inspection software, and whether the work happens on a bench, shop floor, or installed vehicle.

Get a scan-to-CAD scanner recommendation based on the application. For a broader process overview, see SKYLAB3D's industrial 3D scanning and reverse-engineering guide.

Sources and specification notes

• SHINING 3D: EinScan Rigil Series, accessed August 16, 2026.
• SHINING 3D: EinScan Rigil calibration notice, accessed August 16, 2026.
• ASME Y14.5-2018 (R2024), accessed August 16, 2026.
• NIST: Metrological Traceability FAQ and Policy, accessed August 16, 2026.

Specifications can change. Confirm the current model, software version, included components, and applicable test conditions at the time of quotation.
