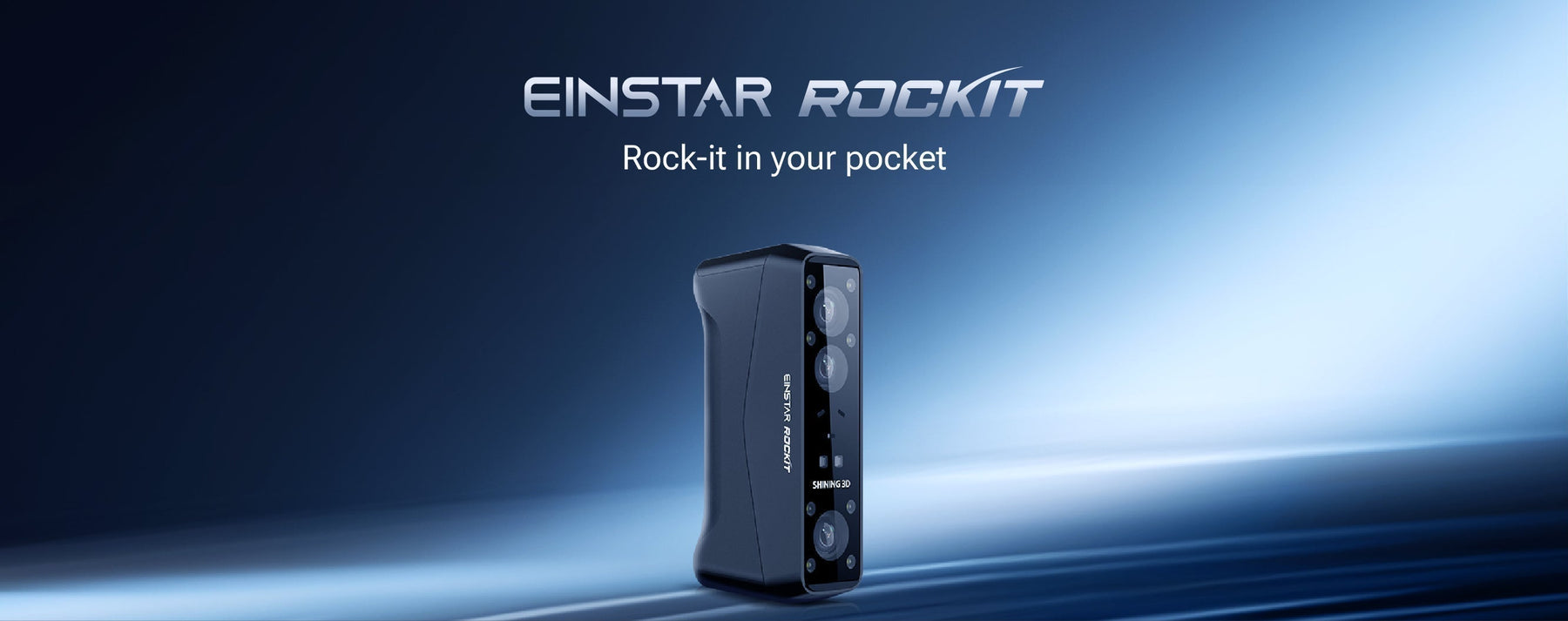

EINSTAR Rockit for Car-Part Reverse Engineering

EINSTAR Rockit fits car-part reverse engineering when a workshop needs wireless capture of brackets, panels, ducts, trim, or fit-up geometry and the output is a CAD reference rather than a traceable inspection report. Its blue-laser and infrared modes reduce setup friction, but reliable results still depend on surface behavior, tracking strategy, overlap, and independent dimensional checks.

Automotive fabrication rarely starts with a cooperative object. A legacy bracket may be oily and dark. A replacement duct may need to clear hoses and wiring. A trim panel may combine broad curves with clips, holes, and thin edges. The useful question is not whether the scanner can make a mesh. It is whether that mesh preserves the interfaces the new part must fit.

When does EINSTAR Rockit fit a car-part reverse-engineering job?

Rockit is best suited to workshop capture where mobility, mixed surface geometry, and fast setup matter more than a formal metrology record. Typical candidates include brackets, intake paths, interior trim, bodywork references, mounting envelopes, and replacement components whose functional interfaces will be checked independently before machining, printing, or installation.

The scanner weighs 420 g with its battery and connects to a Windows computer through built-in Wi-Fi or USB Type-C. SHINING 3D specifies up to three hours of battery runtime, which helps when the operator must move around a vehicle, a bench fixture, or an installed assembly without managing a scanner cable.

How should a workshop choose between Laser HD and IR Rapid mode?

Use Laser HD when edge definition, smaller features, or difficult surface behavior control the job. Use IR Rapid when the priority is broader, faster coverage and the surface supports stable alignment. Many automotive projects benefit from a broad infrared pass followed by targeted blue-laser capture around holes, flanges, clips, and mating boundaries.

Laser HD uses 19 + 19 crossed blue laser lines for faster acquisition and seven parallel blue laser lines for detailed capture. The manufacturer lists scan rates up to 2,800,000 points per second in Laser HD mode and up to 4,800,000 points per second in IR Rapid mode. Those rates describe data acquisition under supported conditions; they do not predict total job time or CAD effort.

Rockit can align Laser HD data by global markers, markers, or features. IR Rapid adds texture and hybrid alignment options. Marker-free scanning is useful on feature-rich objects, but it is not a rule that markers are never needed. Long smooth panels, repeated ribs, symmetric parts, and surfaces with few stable features may still need a deliberate reference strategy.

How do you turn a Rockit scan into usable CAD for a replacement part?

Start with the interfaces that control fit, not with the visible boundary of the old part. Capture locating faces, hole patterns, clearances, neighboring geometry, and motion envelopes; then validate coverage before teardown. CAD reconstruction should separate measured condition from intended design and should retain independent checks for every installation-critical feature.

1. Define the design decision. State whether the job is for reproduction, packaging, redesign, tooling, additive manufacture, or a clearance study. List the features that determine whether the new part works.
2. Document the part condition. Note wear, damage, deformation, flexible regions, coatings, loose hardware, and anything that should not become design intent.
3. Stabilize the setup. Secure the part or vehicle state. Clean contamination that hides geometry, and control moving reflections or changing daylight when practical.
4. Run a proof scan. Test the hardest surface and smallest required feature before committing to a full capture. Review tracking, noise, coverage, and edge behavior.
5. Capture the surrounding context. Include enough neighboring geometry to explain fit and interference. A bracket without its mounting plane or a duct without nearby obstructions is an incomplete engineering record.
6. Use deliberate overlap. Build a stable global dataset before chasing small details. Add markers or other references when feature alignment becomes uncertain.
7. Validate before CAD work. Inspect holes, pockets, thin edges, transitions, and hidden interfaces while the setup is still available. Record several physical dimensions that can detect scale or registration problems.
8. Reconstruct design intent. Convert the reference mesh into the surfaces, solids, features, and constraints needed downstream. Do not smooth wear or damage into a new nominal design without an engineering decision.
9. Check the result on the part. Compare the CAD model with the scan and independent measurements, then verify fit before irreversible machining, printing, drilling, bonding, or tooling.

Rockit exports common mesh and point formats including STL, OBJ, PLY, 3MF, and ASC. These formats can move geometry into downstream tools, but an export is not automatically an editable parametric model. Scan-to-CAD work still requires feature recognition, surface reconstruction, alignment choices, and engineering review.

When is EINSTAR Rockit not the right scanner?

Rockit should not be the default when the purchase is controlled by traceable dimensional inspection, very tight tolerances, a large tracked volume, automated production measurement, or an acceptance plan tied to a qualified metrology system. In those cases, choose the measurement workflow first and then select hardware that can support it.

SHINING 3D publishes resolution, field-of-view, speed, alignment, and operating specifications for Rockit, but the current product specification table does not state a metrology accuracy claim. That makes it especially important not to convert the scanner's 0.05 mm minimum Laser HD resolution into an accuracy statement. Resolution describes sampling detail; it is not measurement uncertainty.

For tighter inspection or validated dimensional comparison, review the SHINING 3D industrial scanner portfolio and qualify the complete process. NIST guidance on dimensional measurement traceability for 3D imaging data explains why traceability belongs to a measurement result and its uncertainty, not merely to the instrument name.

Rockit also occupies a different portfolio role from the EinScan Rigil automotive scan-to-CAD workflow. Rockit is the smaller, lower-cost workshop path for accessible wireless capture. Rigil is the all-in-one professional route for broader automotive field work and larger mixed projects. The industrial reverse-engineering workflow guide connects both options to the downstream CAD and validation steps.

What do U.S. automotive fabricators ask about EINSTAR Rockit?

Can EINSTAR Rockit scan car parts without markers?

It can use feature alignment for marker-free capture when the part has enough distinct geometry. Smooth panels, repeated features, symmetric parts, and low-feature surfaces may still need markers or another deliberate alignment method. Confirm the strategy with a proof scan before removing the part or vehicle setup.

Does Rockit create an editable CAD model automatically?

No. Rockit produces scan data that can be exported in formats such as STL, OBJ, PLY, 3MF, and ASC. Creating an editable parametric or surface model requires a separate reconstruction workflow, design-intent decisions, and verification against the physical part.

Is 0.05 mm resolution the same as 0.05 mm accuracy?

No. The 0.05 mm figure is the minimum stated Laser HD resolution, which describes point spacing or detail sampling. It should not be presented as measurement accuracy. Job suitability depends on the complete capture, alignment, processing, validation, and uncertainty plan.

Can Rockit replace calipers, templates, or fit checks?

No. A scan can preserve freeform geometry and surrounding context, but direct measurements and physical fit checks remain important for mounting interfaces, clearances, flexible parts, wear, and safety-critical decisions. Use the scan as one controlled engineering input rather than the only source of truth.

What should you bring to an application review?

Bring the actual part or a representative surface, overall dimensions, smallest required feature, target CAD format, computer configuration, expected weekly use, and every fit or tolerance decision the scan must support. A short controlled test can expose tracking, surface, software, and reconstruction constraints before they become production delays.

Get an EINSTAR Rockit application recommendation from SKYLAB3D with the part, surface, feature, CAD, computer, and validation requirements.

Specifications in this article are based on the current official U.S. EINSTAR Rockit product page and the SHINING 3D product announcement. Confirm current availability, package contents, software, computer requirements, and application performance before purchase.
