FreeScan Trak ProW for Large Casting Inspection Before Machining

A large casting can look ready for machining and still be wrong in the places that matter. A shifted boss, a distorted flange, or uneven machining stock may not become obvious until the part is on a machine, the fixture is committed, and expensive spindle time is already at risk.

Scanning before machining changes that decision point. Instead of checking a handful of accessible dimensions, the quality team can compare the casting's accessible surface to the nominal model, establish the machining coordinate system, and identify whether enough stock exists around critical features. For large parts, the useful question is not simply whether a scanner can collect points. It is whether the measurement plan can hold a stable coordinate system across the full casting and produce results that manufacturing can act on.

Start with the machining decision

The inspection plan should begin with the decision that follows the scan. A full-color deviation map can be persuasive, but it is only useful when it is tied to defined datums, tolerances, and acceptance rules.

Why an optical tracker changes large-part inspection

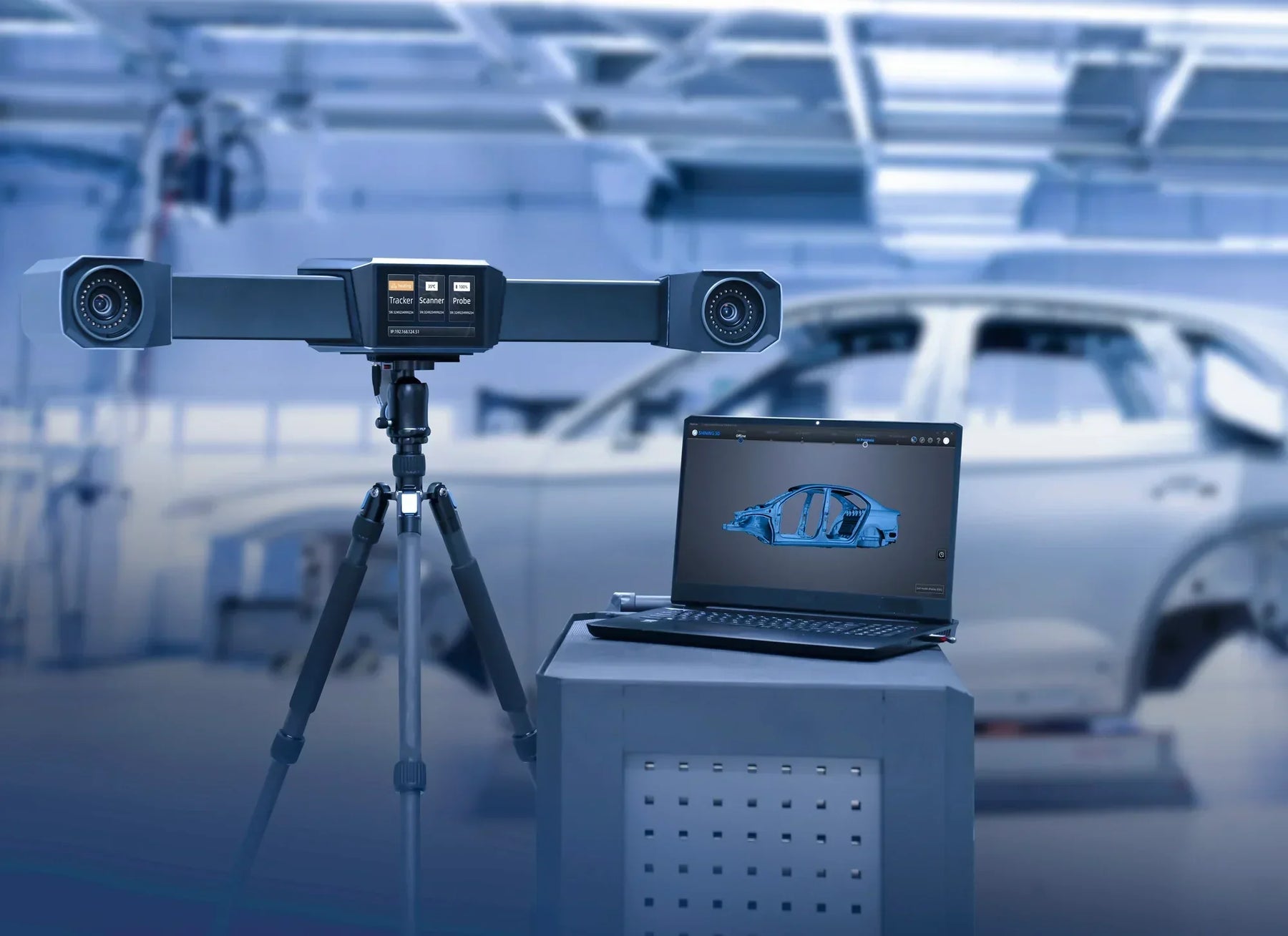

Handheld scanning becomes harder as the measurement volume grows. Small alignment errors can accumulate, long flat areas may offer little geometric information, and relocating equipment can introduce another registration step. FreeScan Trak ProW addresses that problem by having the FreeTrak W tracker continuously locate the TE25W scanner. The tracker follows targets on the scanner, so reference markers are not normally required on the casting itself.

According to Shining 3D's current FreeScan Trak ProW specifications, the system supports a maximum tracking distance of 8.6 m and a single-station tracking volume of 206.7 m³. The stated scan rate is up to 5,500,000 points per second. Three laser modes provide 50 lines for faster surface coverage, seven parallel lines for detail, and one line for deep pockets.

The published accuracy specification is 0.023 mm. For a large casting, however, volumetric accuracy is the more relevant number because it describes performance across a measurement volume. Shining 3D lists 0.046 mm at 15.6 m³, 0.063 mm at 45 m³, 0.088 mm at 76 m³, and 0.127 mm at 128 m³. With its video photogrammetry workflow, the listed volumetric accuracy is 0.044 + 0.012 mm/m for an extended volume. These are manufacturer specifications, not a promise that every shop-floor measurement will achieve the same uncertainty.

Part size is therefore not enough to qualify the application. The demonstration should use the required tolerance, working volume, line-of-sight constraints, surface condition, temperature stability, and the complete reporting method. If the allowed deviation approaches the measurement system's practical uncertainty, the application needs a more rigorous capability study before the scanner is used for acceptance.

Build the coordinate system around the machine setup

The same scan can produce different conclusions under different alignments. A global best fit spreads error across the surface and can be useful for process diagnosis, but it is usually the wrong basis for deciding whether a casting will clean up in a specific machining setup.

Use the drawing or model-based definition to identify the primary, secondary, and tertiary datum features that constrain the part. ASME Y14.5 provides the rules for stating and interpreting geometric dimensioning and tolerancing. The inspection software does not create design intent; it must apply the datum structure and tolerance requirements already defined by engineering.

A practical pre-machining casting plan often includes two analyses:

• Datum-based alignment to answer whether critical features and machining stock are correctly located for the planned setup.
• Best-fit or regional analysis to diagnose foundry process drift, distortion, or pattern-related shape change.

Keep the two results labeled separately. A buyer, machinist, or supplier should be able to see which coordinate system produced each deviation map and why that alignment is appropriate.

A repeatable capture sequence for a large casting

1. Stabilize the part. Document supports, lifting points, orientation, and temperature. Inspect only after the part has reached the condition defined by the procedure.
2. Prepare accessible surfaces. Remove loose sand, oil, scale, or debris that would change the measured surface. Apply scanning treatment only when the approved process allows it.
3. Plan tracker placement. Position the tracker so the scanner remains visible around the highest-value regions. Record unavoidable occlusions before capture begins.
4. Establish scale for the full volume. For extended measurements, use the video photogrammetry workflow and calibration equipment as directed by the manufacturer. The goal is to control long-range registration, not simply to make the mesh look continuous.
5. Capture the datum features first. Confirm that the surfaces or features needed for alignment have adequate coverage and data quality before collecting lower-priority areas.
6. Scan machining-critical regions at suitable detail. Increase resolution around bosses, pads, bores, flange transitions, and edges that will drive setup or stock decisions.
7. Close the loop. Return to an earlier region or use the procedure's verification artifact to check that the coordinate system remained stable during the measurement.
8. Preserve the evidence. Store the raw scan, alignment definition, nominal model revision, inspection settings, deviation limits, operator, equipment status, and report together.

The optional FreeProbe can add discrete measurements in recesses or obstructed areas that the scanner cannot see. It does not make an invisible surface measurable; the probe still needs physical access and a controlled relationship to the tracked coordinate system.

Turn the scan into a machining decision

A useful report is shorter than the raw data and more explicit than a screenshot. It should identify the part and model revision, inspection condition, datum alignment, tolerance basis, excluded or inaccessible regions, and the exact result used to release, rework, or reject the casting.

For machining-stock analysis, use section cuts and directional checks at critical faces rather than relying only on the color map. A surface scan can compare the outside of the casting with the outside of the nominal model. It cannot confirm internal wall thickness unless the relevant internal surface is captured or another qualified method supplies that information.

If the measurement result will support formal acceptance, calibration alone is not the whole traceability argument. NIST explains that metrological traceability belongs to a measurement result and requires a documented, unbroken calibration chain in which each step contributes to measurement uncertainty. The shop must also control the measurement process, environment, software method, verification interval, and reporting.

Teams that are still choosing between a tracked system and a more mobile field workflow can compare this application with FreeScan Trak Nova for heavy-equipment wear measurement and refurbishment. For the broader equipment range, use SKYLAB3D's industrial 3D scanning inspection guide and Shining 3D industrial scanner collection.

Keep dimensional inspection separate from NDT

A 3D surface scan can reveal geometric deformation and visible surface shape, but it does not certify the absence of porosity, cracks, inclusions, or other internal discontinuities. The American Society for Nondestructive Testing describes NDT as a set of scientific inspection methods used to evaluate materials and components for flaws without harming them. The specified visual, penetrant, magnetic particle, ultrasonic, radiographic, or other qualified examination remains necessary when the drawing, code, customer, or quality plan requires it.

Use dimensional scanning and NDT as complementary evidence. One confirms geometry against the product definition; the other addresses material or structural discontinuities within the scope of the chosen method.

Questions foundry and quality teams ask

Can FreeScan Trak ProW inspect a large casting before machining?

Yes, when the required tolerance, measurement volume, surface access, environment, and alignment method fit the system's demonstrated capability. The workflow should be proven on a representative casting before it is used for acceptance.

Does marker-free tracking eliminate all setup work?

No. It can remove the need to place reference markers on most parts, but the team still has to plan tracker line of sight, datum coverage, extended-volume control, surface preparation, and verification.

Should the casting be aligned with a best fit?

Not when the decision depends on machining datums or stock at specific features. Use the drawing-defined datum structure for acceptance and reserve best-fit analysis for process diagnosis unless engineering specifies otherwise.

Can the scan replace ultrasonic or radiographic testing?

No. A surface scan measures accessible geometry. It does not determine whether subsurface defects exist, so required nondestructive testing must remain in the inspection plan.
