FreeScan UE Nova for Body-in-White Inspection
FreeScan UE Nova fits body-in-white dimensional audits when the job calls for full-field surface data across a large structure, not automatic inline inspection. Its wireless reach, 50-line capture, and wide field of view can reduce repositioning, while a qualified datum, scale, and measurement-system plan controls whether the result is fit for release decisions.

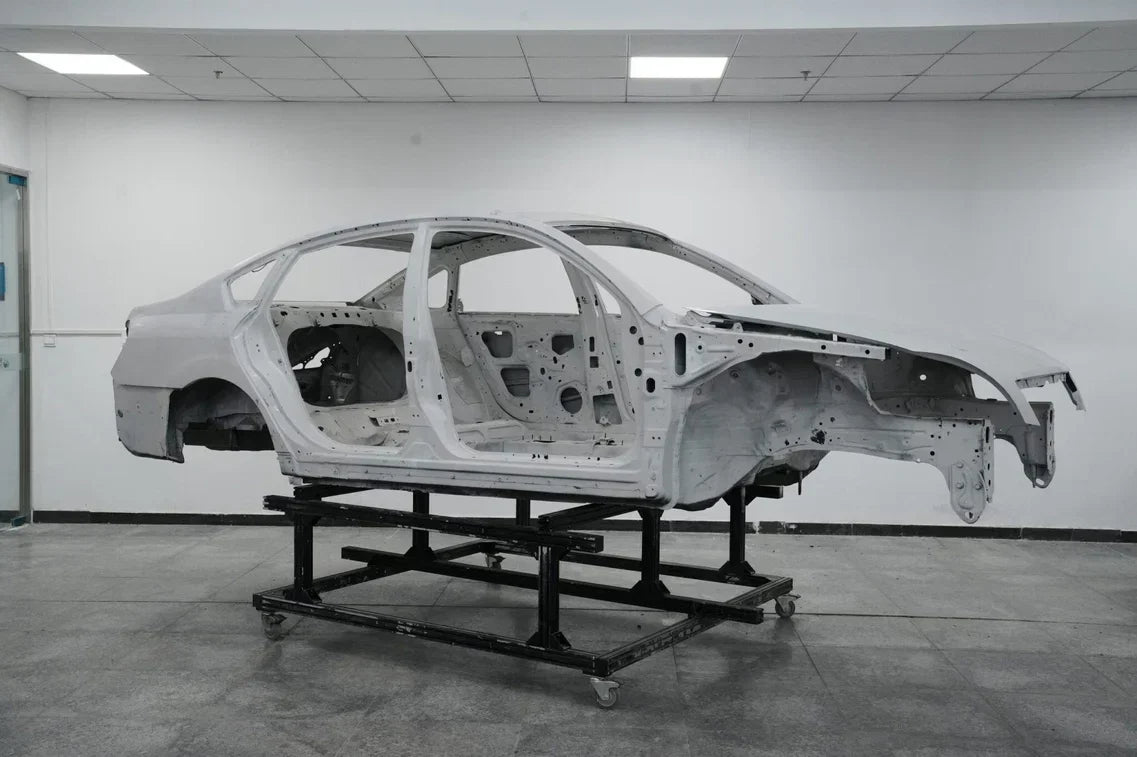

A body-in-white (BIW) is the welded vehicle structure before paint, glazing, trim, and final assembly. At this stage, a dimensional pattern around door apertures, roof rails, underbody points, or joining interfaces can affect several downstream operations. A complete surface model can help engineers see how those deviations relate, but only when the scan is built around the drawing, fixture state, and decision being made.
Where does FreeScan UE Nova fit in body-in-white inspection?
The strongest fit is an offline or near-line audit: pilot builds, first-article studies, fixture troubleshooting, launch containment, process-change validation, and investigation of an assembly that does not agree with downstream tooling. These jobs benefit from portable coverage and a dense comparison to nominal CAD. They do not necessarily require the cycle time, guarding, automated loading, and statistical integration of a dedicated inline cell.

According to SHINING 3D's FreeScan UE Nova specifications, the scanner uses 50 blue laser lines, captures up to 4,600,000 points per second, and provides a field of view up to 2.6 x 2.2 m. The published scanner accuracy is 0.072 mm. With video photogrammetry (VPG), the published volumetric accuracy is 0.072 + 0.012 mm/m.
Those values describe the equipment under specified conditions; they do not automatically become the uncertainty of a plant-floor inspection. Part temperature, fixture restraint, line-of-sight, surface condition, marker layout, alignment method, operator technique, and the reporting rule all contribute to the usable result.
Which working range should be used?
FreeScan UE Nova provides three working ranges. The choice should follow the feature and the decision, rather than using the widest mode throughout the job.
| Mode | Published working range | Useful BIW role | Planning caution |
|---|---|---|---|
| Near | 300-800 mm | Local joints, brackets, apertures, and smaller areas requiring closer access | A closer view does not solve hidden geometry or an unstable datum strategy |
| Standard | 600-1500 mm | General body-side, roof, floor, and opening coverage | Plan overlap around pillars and transitions to prevent weak alignment |
| Far | 1200-2600 mm | Fast coverage of large, accessible exterior regions | Use closer modes or another method for critical recessed and high-detail features |
SHINING 3D lists a 2300 mm depth of field and a scanner weight of 1.6 kg. Wireless operation, built-in computing, and hot-swappable batteries can make it easier to move around a vehicle structure without routing a data cable across the inspection area. A wired fiber connection remains available when the application or facility favors a tethered setup.
Evaluate the workflow on your actual BIW
Bring the CAD model, critical characteristics, fixture condition, expected tolerance band, and reporting requirement. SKYLAB3D can structure a demonstration around the measurement decision rather than a generic scan.

How should the body-in-white measurement plan be built?
Start with the decision. A fixture investigation, a panel-flush diagnosis, and a formal dimensional release do not need the same evidence. Define the characteristics that matter, their tolerance and datum references, the required confidence, the sampling plan, and who will accept the report before anyone places a marker.
- Freeze the physical state. Record fixture clamps, locating pins, temporary supports, doors or closures, weld sequence, part temperature, and any loads applied during measurement.
- Translate the drawing into a scan plan. Identify datum targets, critical openings, weld interfaces, surface profiles, hole patterns, and features that require a complementary probe or gauge.
- Choose the scale-control method. For a large BIW, FreeScan UE Nova's VPG workflow uses non-coded markers and a calibrated reference rod. The rod must remain visible as required by the workflow; it is not a decorative accessory.
- Set the alignment before viewing color maps. A datum-based or feature-based alignment answers a different question than a best-fit alignment. Best fit can be valuable for deformation analysis, but it can also distribute error and conceal a datum-specific problem.
- Qualify the measurement system. Repeat the scan with realistic operators and repositioning. Compare important characteristics against an accepted reference method and evaluate repeatability, reproducibility, bias, and stability at the decision threshold.
The AIAG Measurement Systems Analysis manual treats measurement-data quality as part of decision quality. For traceability, NIST's metrological traceability guidance is equally important: an unbroken calibration chain does not, by itself, prove that a result is fit for a particular tolerance or release decision.
What does a defensible BIW scan-to-report workflow look like?
1. Verify the scanner and environment
Complete the required equipment checks and calibration, then document the software version, scanner configuration, reference rod, and environmental conditions. SHINING 3D states that FreeScan UE Nova acceptance testing follows VDI/VDE 2634 Part 3 and ISO 10360 in an ISO/IEC 17025 accredited laboratory. That manufacturer-level test information supports equipment evaluation; it does not replace the user's application-specific verification.
2. Establish reference coverage
Place non-coded markers where they can support continuous tracking around the structure without obscuring critical surfaces. Build overlap across the roof, pillars, rockers, floor, and underbody transitions. If a datum target or reference sphere is part of the plan, protect it from movement and capture it with enough surrounding geometry to confirm identity.
3. Capture broad geometry, then critical detail
Use Far mode for accessible large-area coverage, then change range where smaller features or complex transitions need it. The wide field of view is useful for maintaining context across the body, but the operator still needs deliberate passes around occlusions. Deep channels, enclosed cavities, hidden fasteners, and some hole axes may require another sensor or a tactile method.
4. Inspect the data before alignment
Check for holes, weak marker geometry, motion artifacts, double surfaces, and incomplete feature edges. Repairing a mesh can improve presentation, but it must not create inspection evidence that was never measured. Preserve the original point data and record any filtering or smoothing used for the report.
5. Align and report against the drawing intent
Use the approved datum reference frame or a documented fixture alignment for acceptance reporting. Reserve best-fit views for clearly labeled diagnostic analysis. The current ASME Y14.5-2018 (R2024) standard defines the US engineering language for dimensioning and tolerancing; the inspection method should reflect the applicable drawing revision and customer-specific requirements.

A useful report ties each result to the measured build, fixture state, alignment, software, operator, date, and approved characteristic list. Include areas that could not be measured, not just the most visually complete color map. That record makes a later comparison between fixtures, lots, or process changes much more valuable.
When is another inspection system the better choice?
FreeScan UE Nova should not be forced into every automotive measurement job. Select a different architecture when the requirement exceeds a portable audit workflow:
- Inline, every-body inspection: A fixed, robotic, or multi-sensor cell may be necessary when the system must inspect automatically at production takt, exchange status with line controls, and report without manual scanning.
- Hidden or discrete features: Tactile probing, gauges, computed tomography, borescopes, or other sensors may be needed when line-of-sight scanning cannot establish the required feature.
- Controlled large-volume coordinates: A tracked scanner, laser tracker, or photogrammetry network may be preferable when the measurement plan requires a different reference architecture across the full vehicle envelope.
- Tighter component metrology: Smaller machined or cast parts may be better served by a higher-accuracy close-range system. See the FreeScan Combo workflow for machined-part quality control.
- Reverse engineering rather than inspection: If the objective is portable vehicle capture for scan-to-CAD, the EinScan Rigil automotive scan-to-CAD guide follows that separate path.
For a broader view of available hardware, compare the SHINING 3D industrial scanner collection. The industrial 3D scanning and inspection workflow explains how scanner selection connects to CAD comparison, inspection software, and reporting.
Common engineering questions
Can FreeScan UE Nova inspect a complete body-in-white?
It can capture accessible BIW surfaces for an offline dimensional audit, using its wide field of view and VPG workflow to control scale across a large structure. Completeness still depends on line-of-sight, marker coverage, fixture access, and the characteristic list. Hidden features may need another measurement method.
Is 0.072 mm accuracy sufficient for BIW inspection?
Not by specification alone. Compare the published accuracy and volumetric-accuracy expression with the feature tolerance, body size, alignment method, environmental conditions, and required measurement-system capability. Validate the complete workflow against an accepted reference before using it for release decisions.
Can a handheld scanner replace inline BIW inspection?
Not automatically. A handheld workflow is well suited to pilot builds, audits, troubleshooting, and process validation. A requirement for 100% inspection at production takt usually points to a qualified automated cell with defined loading, safety, controls, and data integration.
Should a BIW color map use best-fit alignment?
Use best fit only when it answers the documented diagnostic question. For acceptance reporting, align to the drawing's datum reference frame or the approved fixture strategy. Label every view so the reader can tell whether deviations are datum-based, fixture-based, or best-fit.
Choose the measurement architecture before choosing the scanner
Share the BIW envelope, tolerance range, fixture condition, inspection frequency, critical characteristics, and desired report. SKYLAB3D can help determine whether FreeScan UE Nova, a tracked system, or an automated approach is the defensible path.
