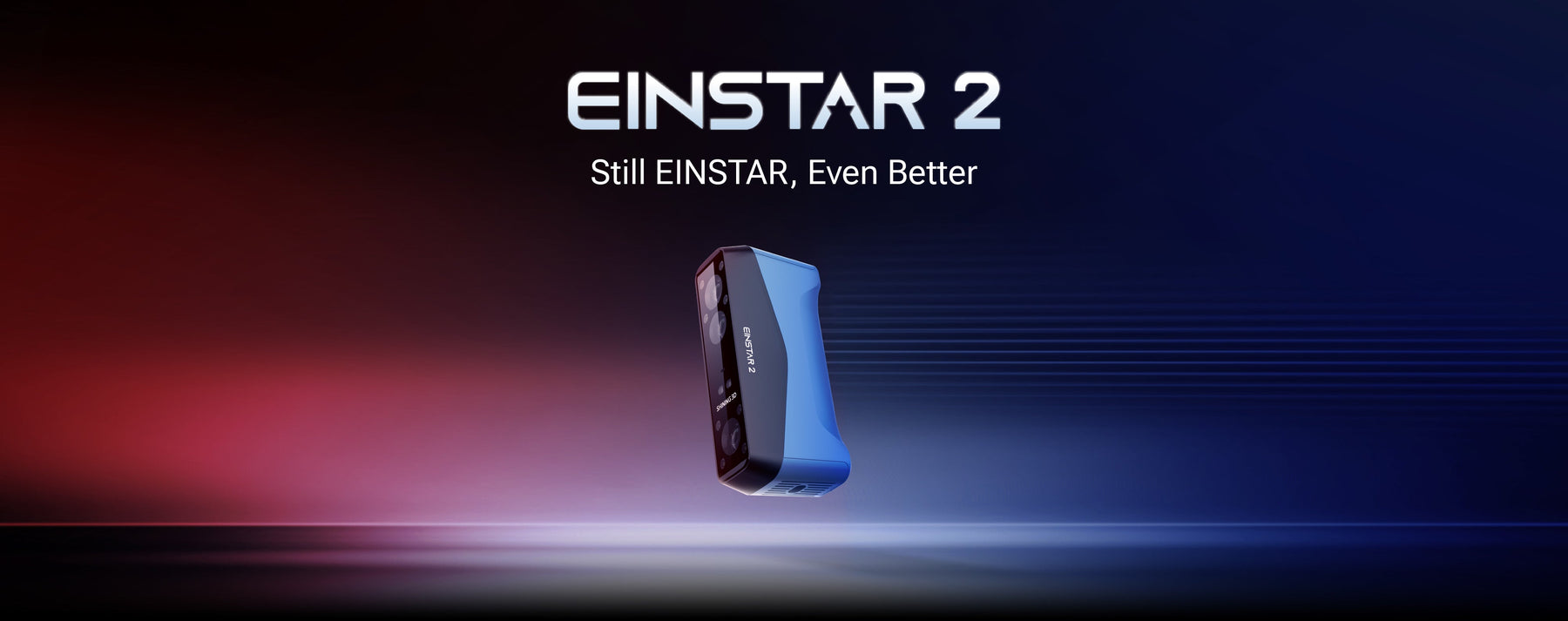

EINSTAR 2 for Replacement-Part Scan-to-CAD
EINSTAR 2 can capture small and medium replacement parts as a mesh for scan-to-CAD work when the goal is to reconstruct editable geometry, not certify dimensions from the scan alone. Its 17-line blue-laser mode supports detailed capture, while infrared mode helps cover broader geometry before the model is rebuilt and checked in CAD.
A broken bracket, obsolete cover, or undocumented housing often contains the only surviving definition of a part. Scanning preserves its as-found shape, but the mesh is evidence - not automatically a manufacturing drawing. A reliable replacement-part workflow separates capture, CAD reconstruction, design decisions, and final verification.
When does EINSTAR 2 fit a replacement-part project?
EINSTAR 2 fits maintenance and small-manufacturing projects that need portable capture of accessible part geometry before an engineer rebuilds the design in CAD. It is best treated as a reverse-engineering capture tool. Projects requiring traceable acceptance measurements, controlled uncertainty, or formal inspection records need a validated metrology workflow instead.
Good candidates include machine brackets, guards, covers, ducts, housings, handles, and fit-up components whose original CAD is unavailable. The part must be safe to remove or scan, and the team must decide whether the replacement should reproduce wear or restore intended geometry.
- Use Laser HD mode when edge detail, holes, ribs, or smaller features drive the CAD reconstruction.
- Use IR Rapid mode to establish broader form or acquire a larger region efficiently when fine laser detail is not required everywhere.
- Escalate the workflow when dimensional acceptance, geometric tolerancing, or documented uncertainty controls the release decision.
What do the two scan modes contribute?
Laser HD and IR Rapid solve different capture problems. Official EINSTAR 2 specifications list 17 blue parallel laser lines and resolution settings from 0.05 to 10 mm in Laser HD mode. IR Rapid mode uses infrared VCSEL projection, a larger field of view, and feature, texture, marker, or hybrid alignment options.
| Decision factor | Laser HD | IR Rapid |
|---|---|---|
| Typical role | Detailed geometry and controlled local capture | Broader form and faster coverage |
| Published scan speed | Up to 2.5 million points per second | Up to 4.8 million points per second |
| Maximum field of view | 490 x 580 mm | 1170 x 1385 mm |
| Alignment options | Global marker or markers | Global marker, markers, features, texture, or hybrid |
| Working distance | 100 to 600 mm | 160 to 1400 mm |
Resolution describes the spacing or detail level of acquired points; it is not a statement of measurement accuracy. The official EINSTAR 2 product specifications do not publish a metrology accuracy claim, so acceptance requirements should not be inferred from the 0.05 mm resolution setting.
Qualify the part before choosing the scanner
Share the part size, surface, smallest critical feature, required CAD output, and how the finished replacement will be verified. SKYLAB3D can help determine whether an entry-level capture workflow is appropriate or whether the project needs metrology-grade inspection controls.
How should the part be prepared for scan-to-CAD?
Preparation begins with the engineering question, not the scanner. Record the part condition, identify functional interfaces, establish scale and orientation, and decide which geometry must remain untouched. Reflective, dark, or translucent surfaces may require an approved scanning aid, while repeated or low-feature regions may need markers for stable alignment.
- Document the as-found condition. Photograph damage, deformation, wear, repairs, and mating components before cleaning or applying anything to the surface.
- Identify functional geometry. Mark bores, mounting faces, sealing surfaces, clearances, and interfaces that will control the reconstructed model.
- Plan coverage and alignment. Select orientations that expose undercuts and reduce line-of-sight gaps. Use markers when geometry or surface texture does not support dependable alignment.
- Control surface treatment. Apply removable scanning spray only when the material, cleaning method, customer requirements, and downstream process permit it.
- Capture reference features. Include enough stable geometry to register multiple scan regions and relate the mesh to the intended CAD coordinate system.
How does a scan become editable replacement-part CAD?
The scanner exports a polygon mesh or point-based file, not a manufacturing-ready parametric model. EINSTAR 2 supports STL, OBJ, PLY, 3MF, and ASC output. The reverse-engineering step then uses the mesh as a reference for datums, sections, analytic features, surfaces, and design-intent decisions inside CAD software.
A disciplined workflow does not trace every bump. It distinguishes four kinds of evidence:
- Original design features: nominal planes, cylinders, patterns, and symmetric relationships that should be reconstructed cleanly.
- Service wear: polished faces, elongated holes, abrasion, or material loss that should not automatically become new design geometry.
- Damage or distortion: bends, cracks, heat effects, or impact deformation that require engineering judgment.
- Manufacturing variation: draft, shrinkage, weld variation, or forming effects that may be intentional or process-dependent.
For a broader view of the reconstruction process, see SKYLAB3D's industrial 3D scanning and reverse-engineering workflow. If the project is primarily automotive and benefits from crossed-line portable capture, compare the distinct role described in the EINSTAR Rockit car-part reverse-engineering guide. The full SHINING 3D industrial scanner collection covers entry-level through metrology-grade paths.
How should the reconstructed part be verified?
Verification must be chosen before release and matched to the consequence of failure. Compare the CAD model with the cleaned mesh to find reconstruction errors, then verify critical interfaces with suitable measurement equipment, test fit, functional checks, or a validated inspection process. Scanner output alone does not establish traceability or conformity.
For low-risk fit-up components, a controlled test fit may be appropriate. For load-bearing, pressure-retaining, rotating, regulated, or safety-related parts, involve the responsible engineer and use the organization's approved material, inspection, and release procedures. Under NIST guidance, traceability depends on a documented chain of calibrations and stated measurement uncertainties; it does not come from a scanner name alone.
What workstation and field limits matter?
EINSTAR 2 is portable, but the complete workflow still depends on computing capacity, battery planning, lighting, and data transfer. Official specifications list a 420 g scanner weight with battery, USB-C connectivity, a 5500 mAh battery, and Windows 11 requirements beginning with an RTX 3060-class laptop GPU and 32 GB of dual-channel memory.
SHINING 3D lists outdoor illumination limits below 110,000 lux for Laser HD and 70,000 lux for IR Rapid, with an operating range of -10 to 40 degrees C. These are equipment limits, not a guarantee that every surface or environment will scan successfully. Validate the actual part, lighting, vibration, access, and workstation before committing to a production process.
Frequently asked questions
Can EINSTAR 2 create an editable CAD file directly?
No. EINSTAR 2 exports mesh or point-based formats including STL, OBJ, PLY, 3MF, and ASC. Editable parametric CAD requires a separate reverse-engineering step that reconstructs design features from the scan evidence.
Does 0.05 mm resolution mean 0.05 mm accuracy?
No. Resolution and measurement accuracy are different properties. The official EINSTAR 2 specifications list a 0.05 mm Laser HD resolution setting but do not publish a metrology accuracy claim.
Can a worn part be scanned and reproduced exactly?
It can be captured as found, but reproducing the worn shape may repeat the failure. The CAD reconstruction should separate intended geometry from wear, damage, distortion, and manufacturing variation.
When should a U.S. manufacturer use a metrology-grade scanner instead?
Use a validated metrology workflow when the scan supports dimensional acceptance, tolerance verification, regulated records, supplier approval, or a safety-critical release decision. Define the required uncertainty and traceability before selecting equipment.
Sources
- EINSTAR 2 official specifications, SHINING 3D.
- EINSTAR 2 official U.S. product information, SHINING 3D.
- Metrological Traceability: Frequently Asked Questions and NIST Policy, National Institute of Standards and Technology.
